99 TL Ignition switch
Compliments of 6MTUA5 @ https://acurazine.com
9-6-2008

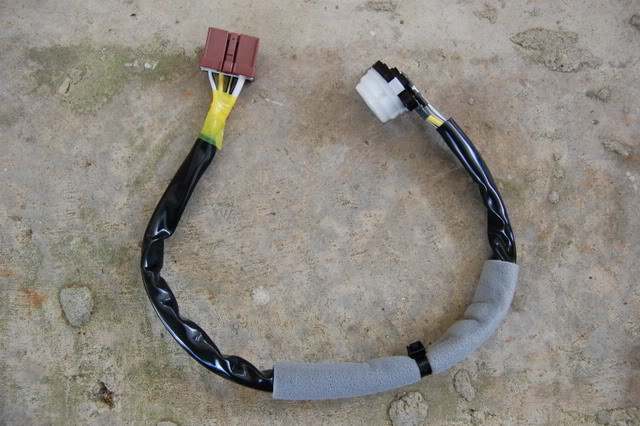

The new ignition switch (Part# 35130-S84-A01)

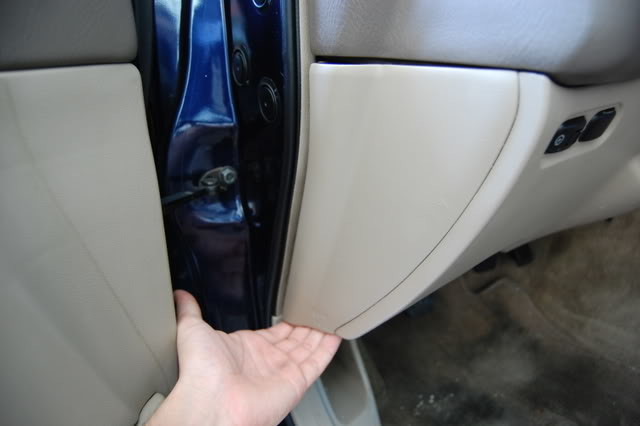

Start by removing the fuse panel

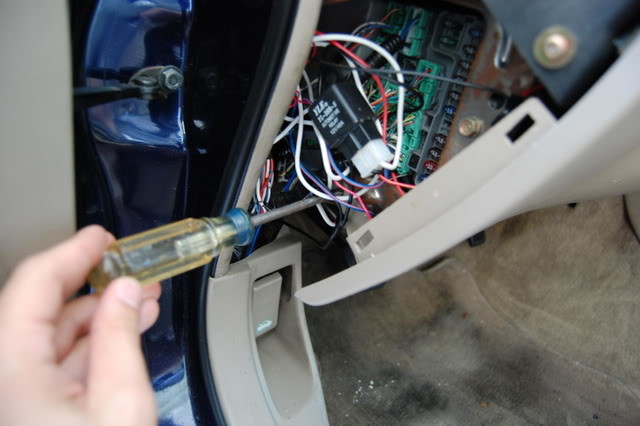

Remove screw from the dash panel

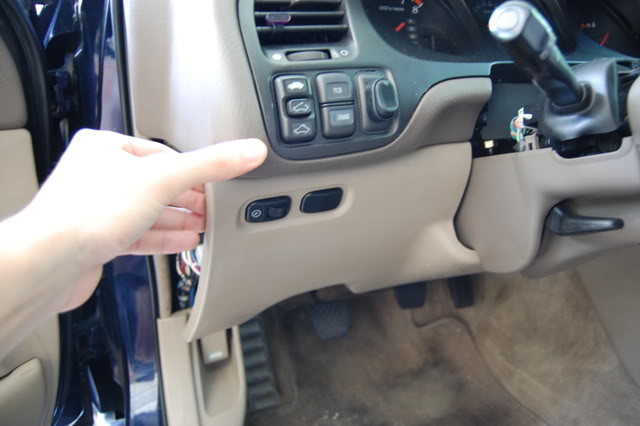

Pull corner of dash panel loose

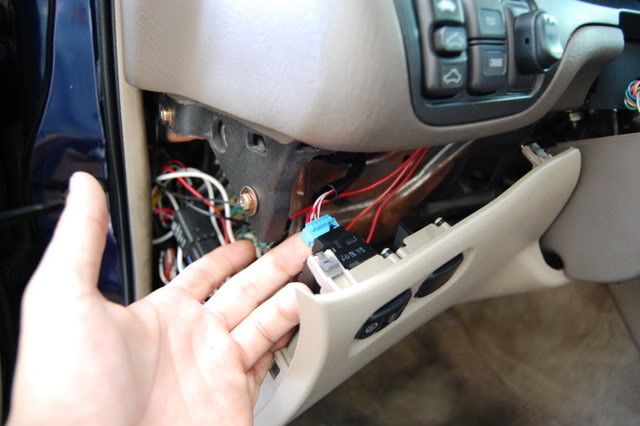

Unplug dash light dimmer switch

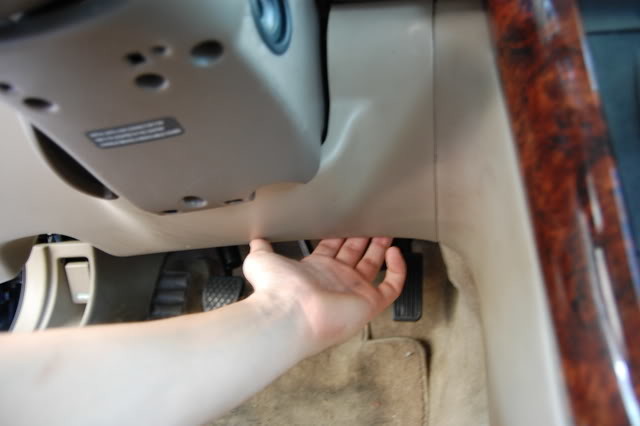

Pull on the bottom of the dash panel on the other side until you get it loose

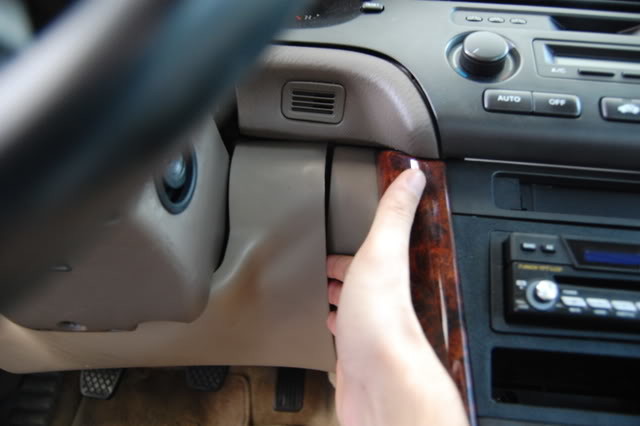

Pull from here to get the last clip loose

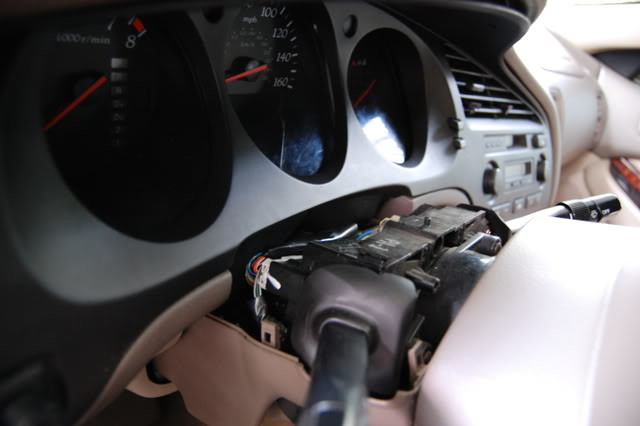

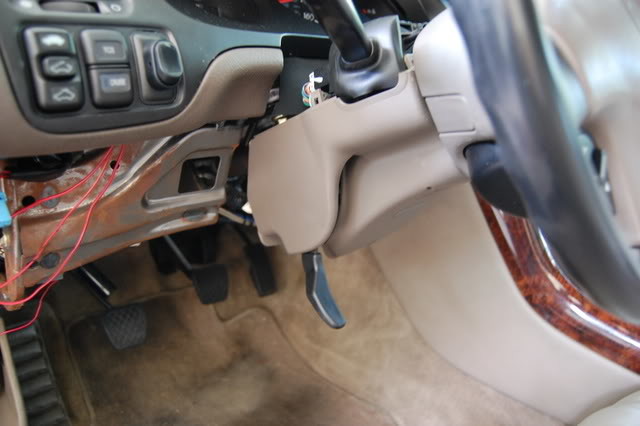

Remove screws from the bottom of the steering column cover and then remove the top of it
Flip down tilt steering lock so you can slide the bottom part of the cover off

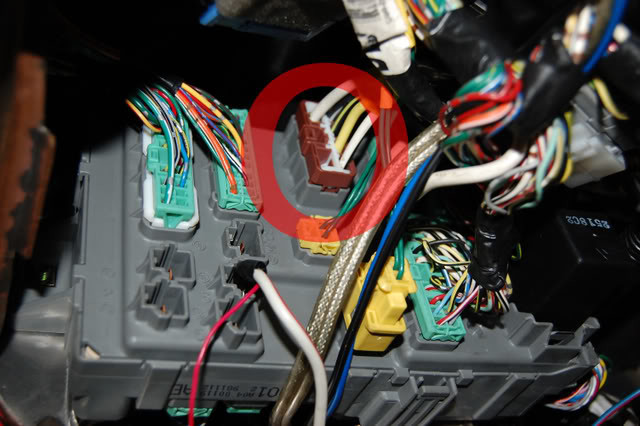

Unplug the brown plug (this is located under the left side of your dash)

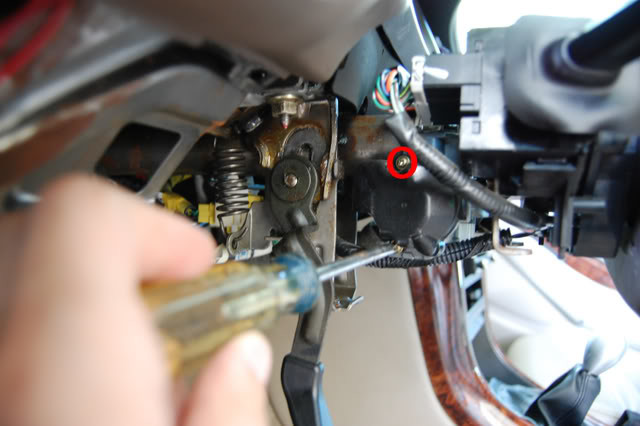

Remove two screws

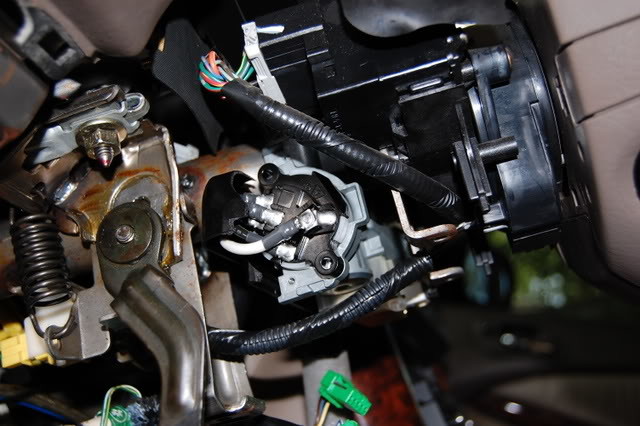

This is where I got to the "mystery screw" I found it but could not get to it for the life of me. If you lay down and look under steering wheel and follow the plastic cover (from the two screws removed in previous step) you can see it. I just snapped off the cover so I could remove the switch. I am going to tape the cover back on to keep the wires from being exposed.
Now you just slide out the ignition switch and install the new one. Put everything together back in reverse order.

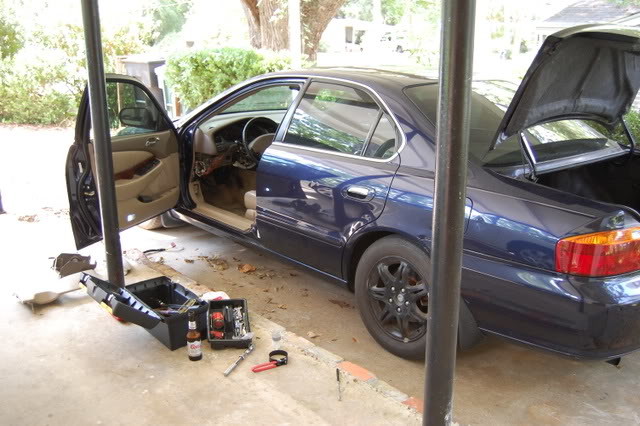

The mess I made in my buddy's driveway
