1929 Chevrolet International - 4 Door Sedan Project by BearsFan315

4 minute(s) of a 636 minute read

actually installed my rear bumpers today, as well as the signal lights i made up for the car. these are NOT factory but more for safety ( too many crazy drivers out there)

used all new hardware as well, they look great, and notice the spare tire carrier is installed as well

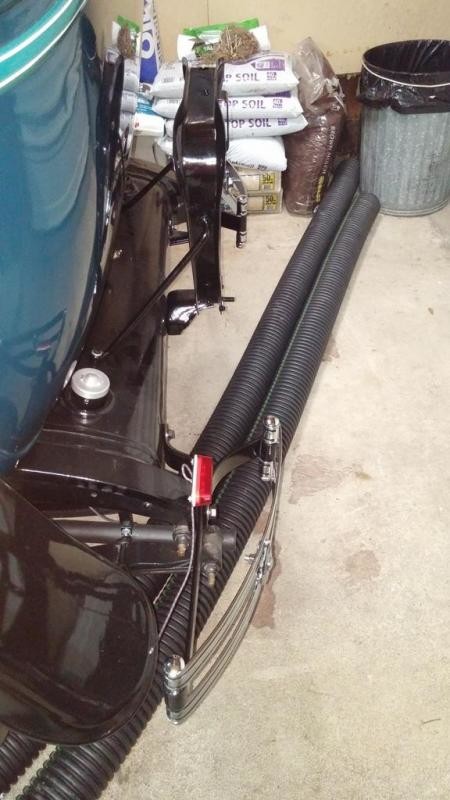

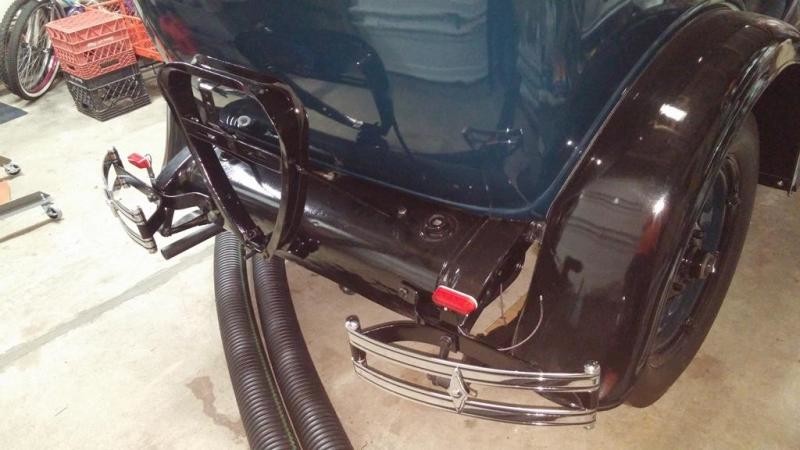

left side view showing brackets

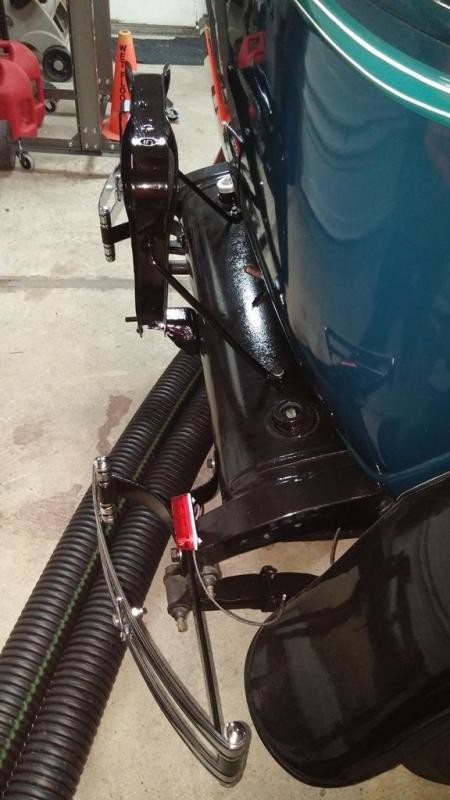

good angle view of left side bumper and signal/brake light

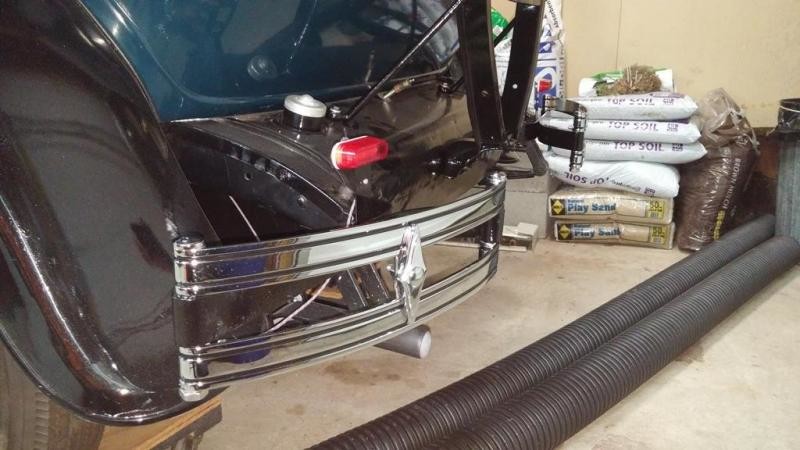

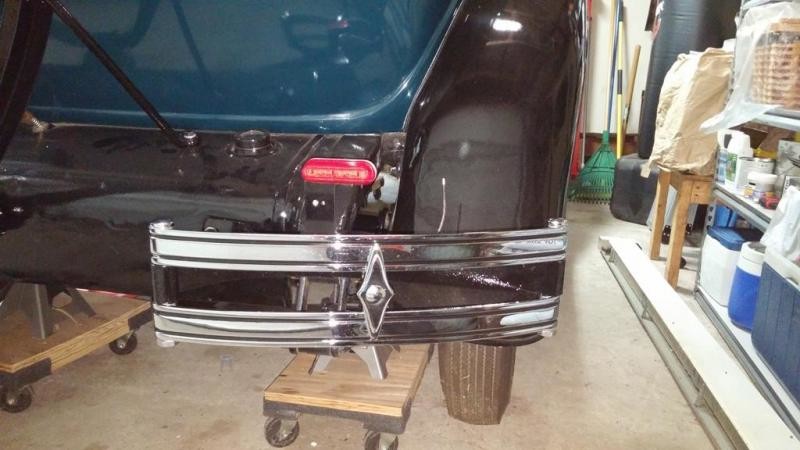

head on view of left side bumper and signal/brake light

head on view of right side bumper and signal/brake light

angle view of right side bumper and signal/brake light

per a recommendation i painted the inside of the housing gloss white, it should help reflect the little bit of light that the bulbs put out

i painted both the standard housing and the conversion LED housing.

Tail Lamp housing that will be restored all original

This is the LED housing

got my stanchions from TFS and opened them up to start laying out and building my front end

question, are they supposed to be straight up and down (90 degrees post to base) or should they be angled ??

mine are angled one more so then the other. attached are a few pictures of them

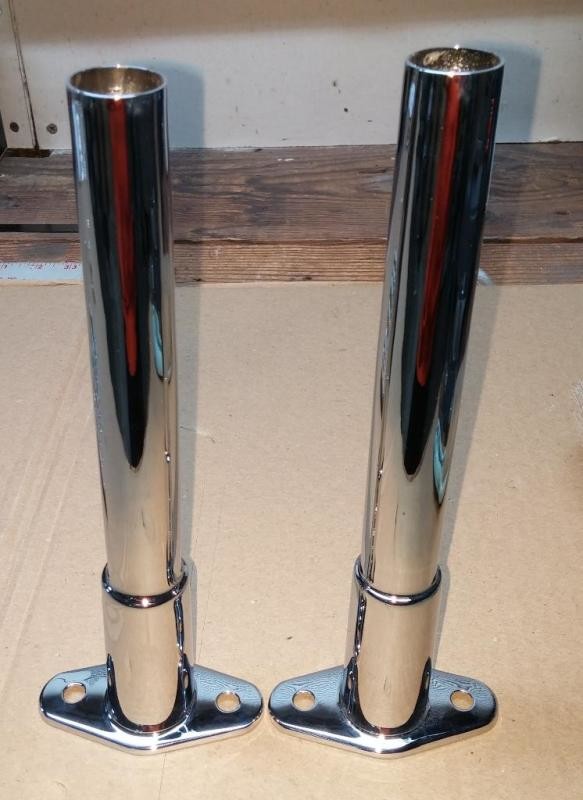

stanchions side by side for comparison, yes lean to right

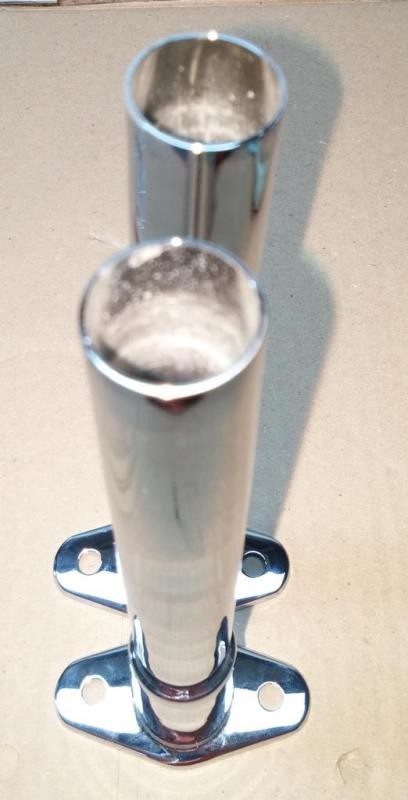

stanchions top down, bases are square to each other, notice difference

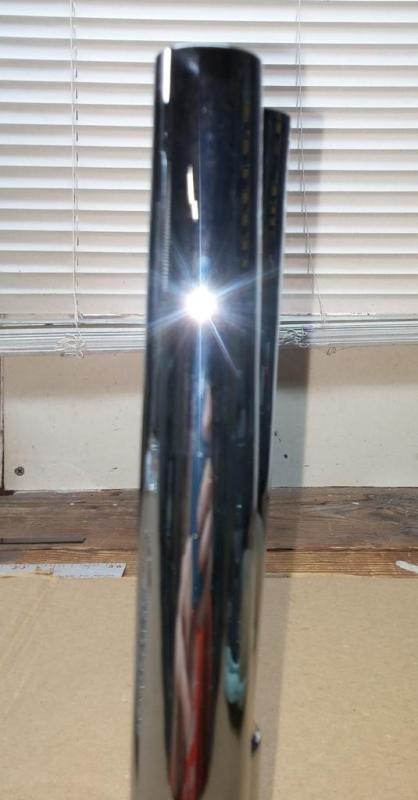

looking straight on, notice the angle difference

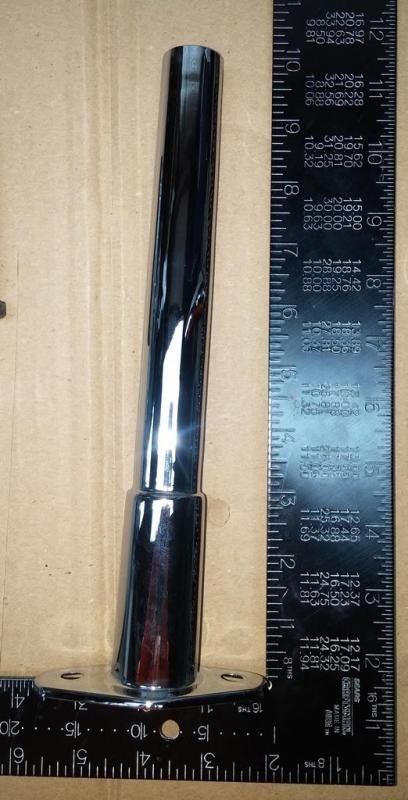

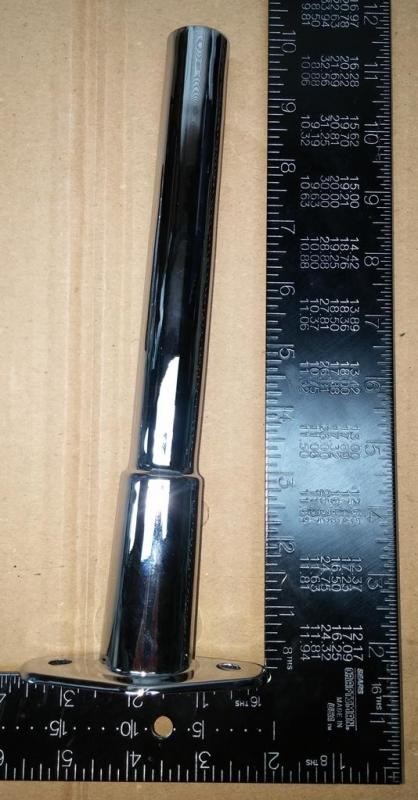

stanchion 1 against the square

stanchion 2 against the square

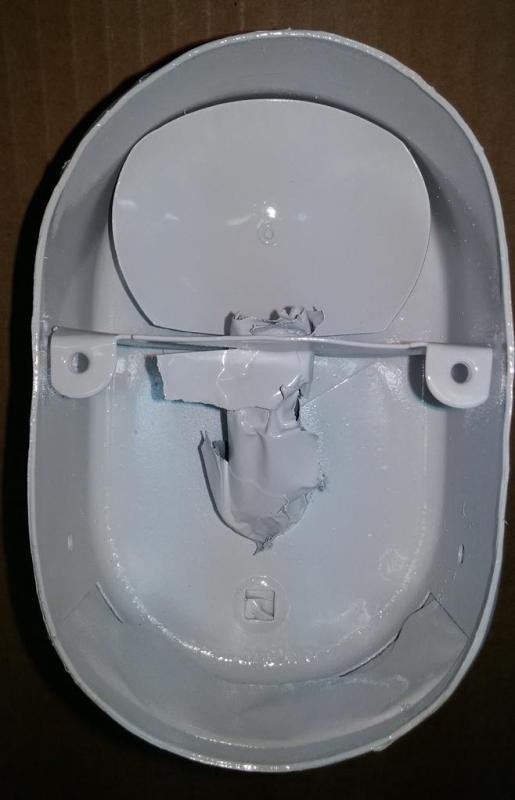

updated on my painting insides... got a few coats of paint on them, all cured, and removed the tape...

should be ready for rebuilding, and yes i will remove paint from target areas to ensure proper ground :) at least i hope

here are a few of the Stock Housing Rebuild

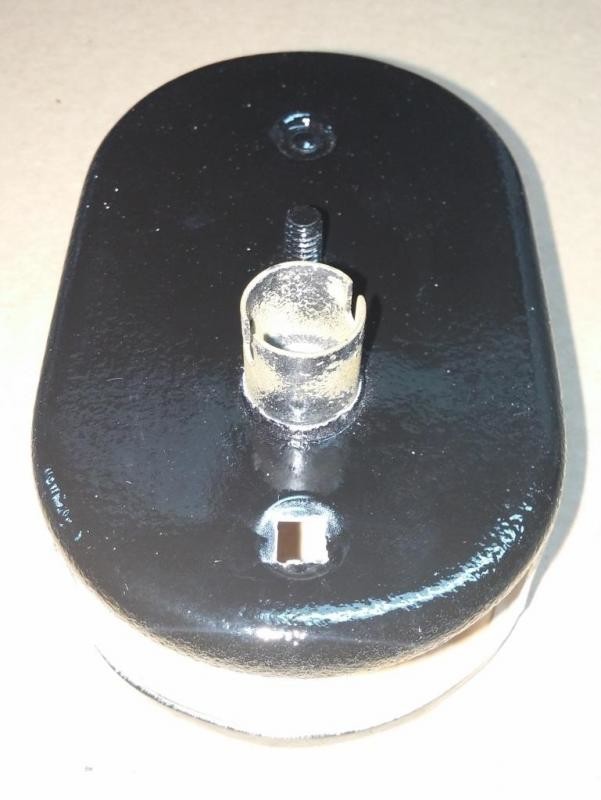

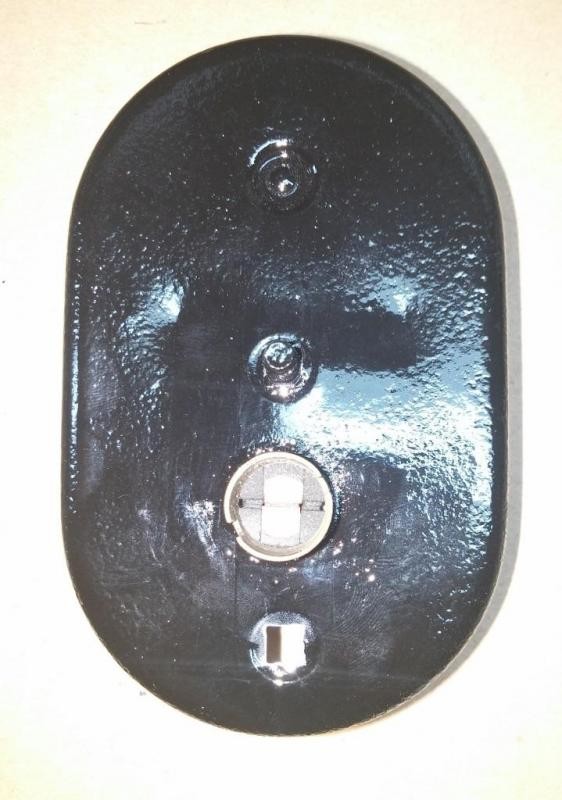

back of stock housing

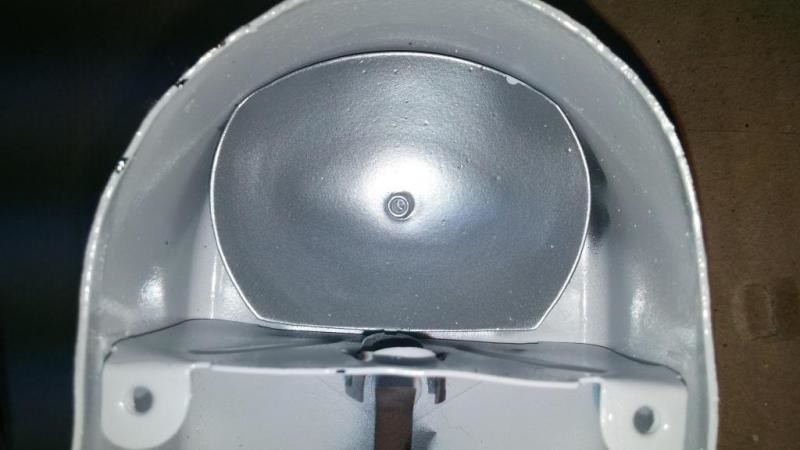

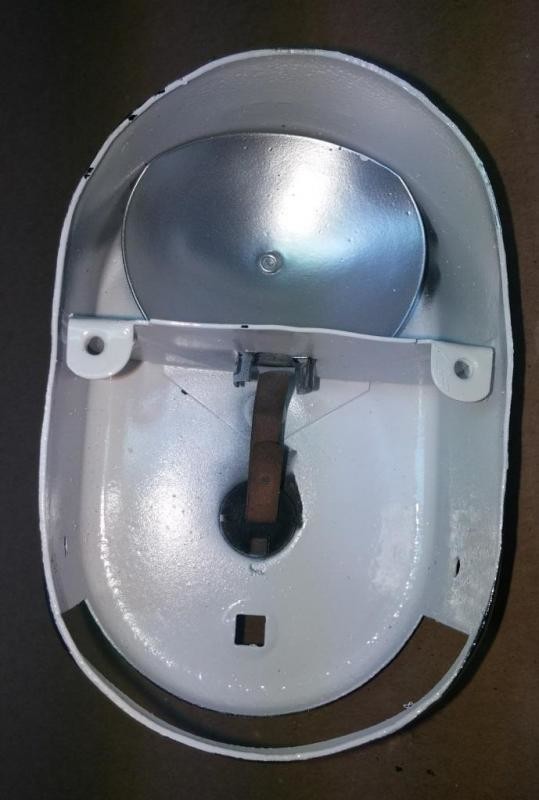

inside, gloss white background, silver reflector

lower half for tail/parking light (original hardware)

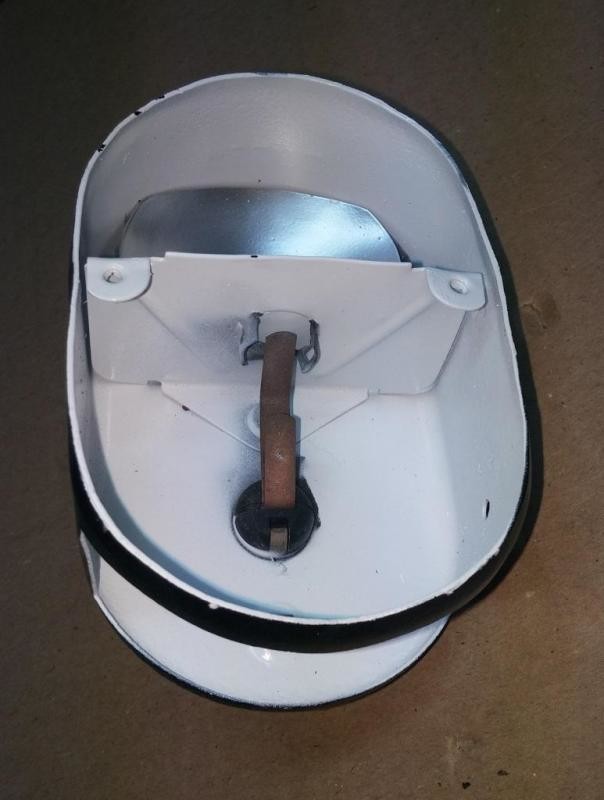

rear of stock housing angled
