1929 Chevrolet International - 4 Door Sedan Project by BearsFan315

4 minute(s) of a 636 minute read

Here are few of the LED conversion Housing

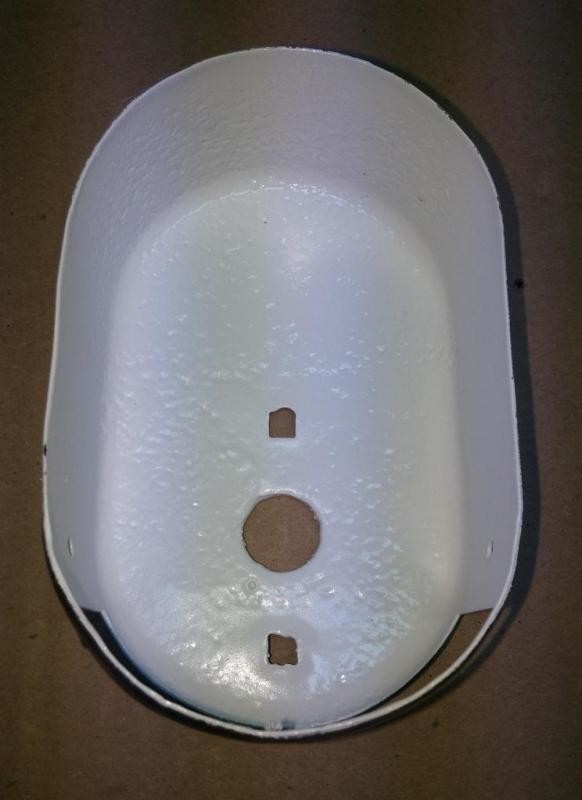

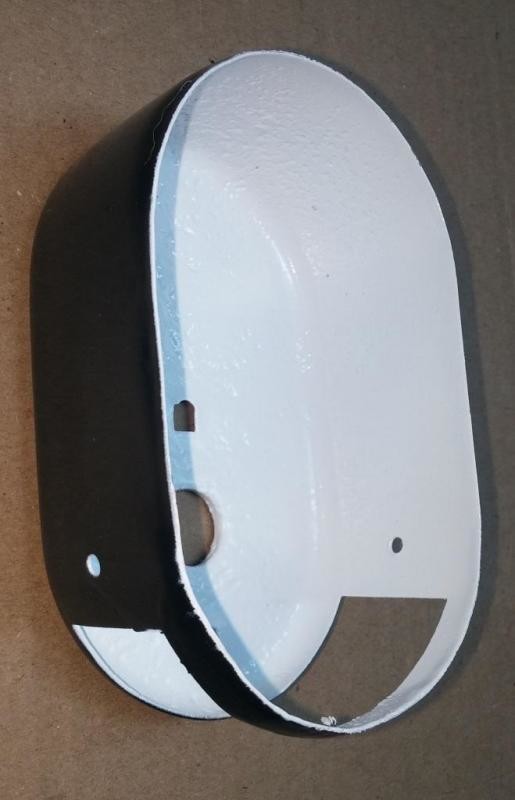

inside, clean shiny white

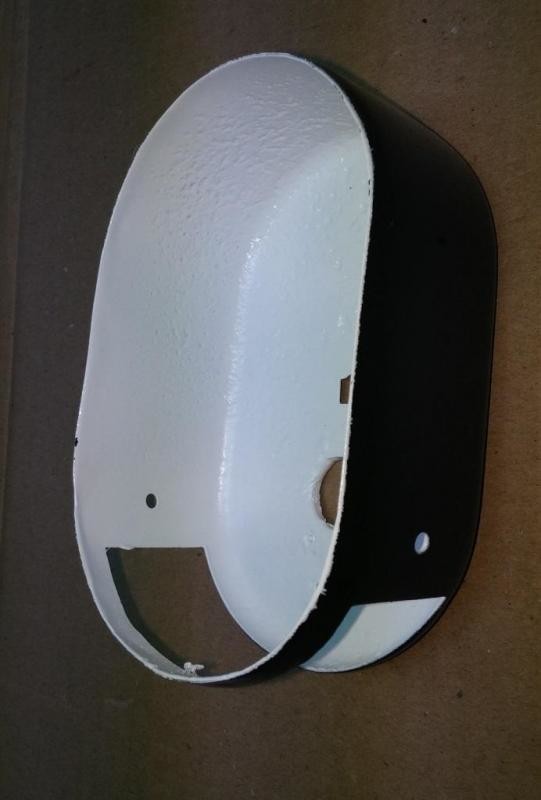

few angled views of inside

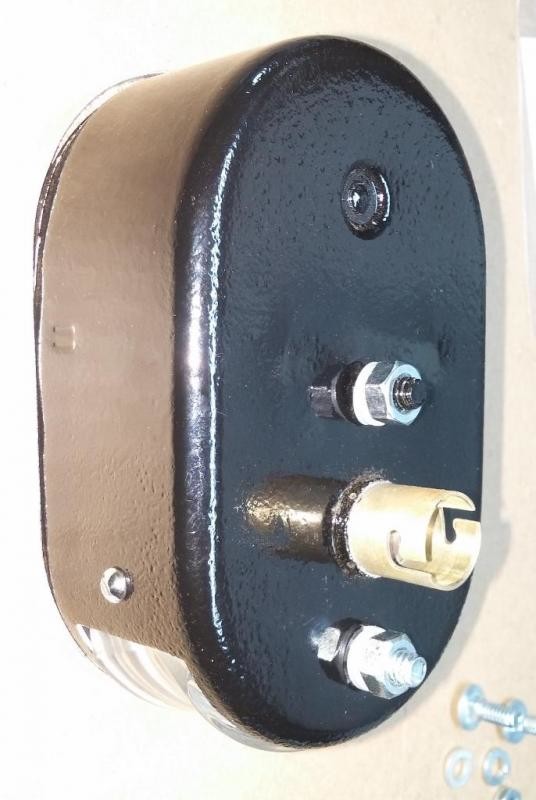

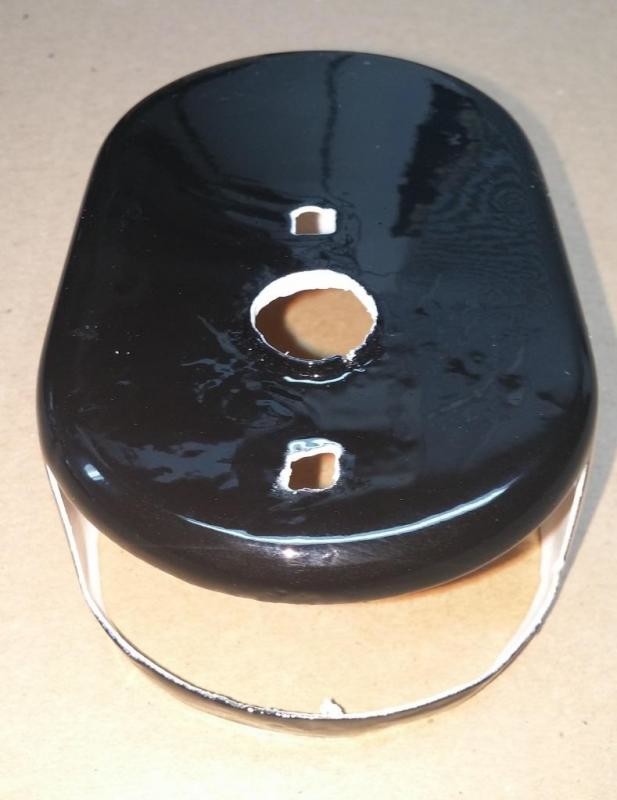

back of LED housing, ready for original hardware to go back in

4-21-2019

looking at bulbs, can someone help verify

Manual says the tail lamp (lower lamp) is 3 candle power:

#63
base: Ba15s
Volt: 7.0
Amp: 0.63
Watt: 4.41
Candle Power: 3
Life: 1000 hours

then the STOP lamp (upper lamp) is a 15 candle power

#87
base: Ba15s
Volt: 6.8
Amp: 1.91
Watt: 12.98
Candle Power: 15
Life: 300 hours

i went with these bulbs based on my notes and research :)

actually got my Original Stop/Tail lamp built and almost ready for Install !! just need to mount it and test it.

here are a the [pictures of the assembly, i bought the lens mounting kit for the clear lens. i also cleaned up the copper bars/strips, housing, etc to ensure a good clean ground and contact.

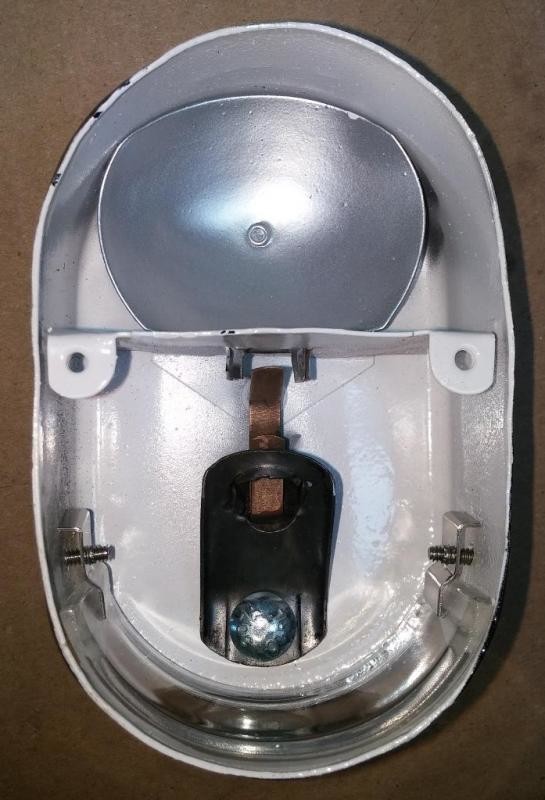

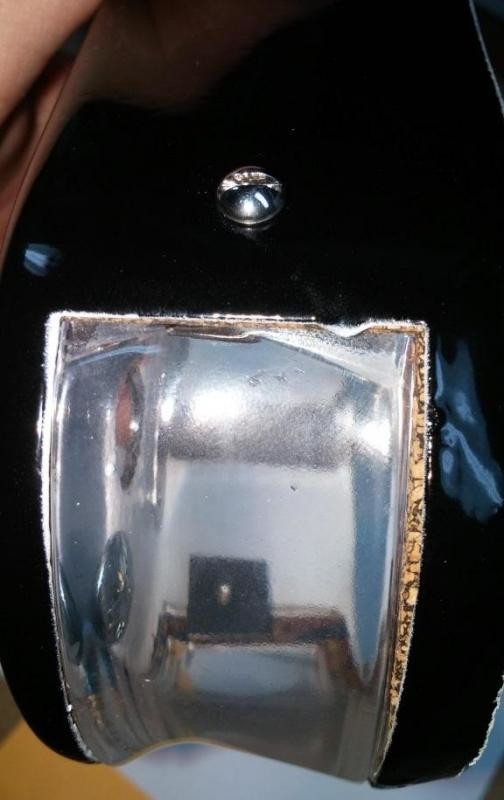

A Look Inside before Bulbs

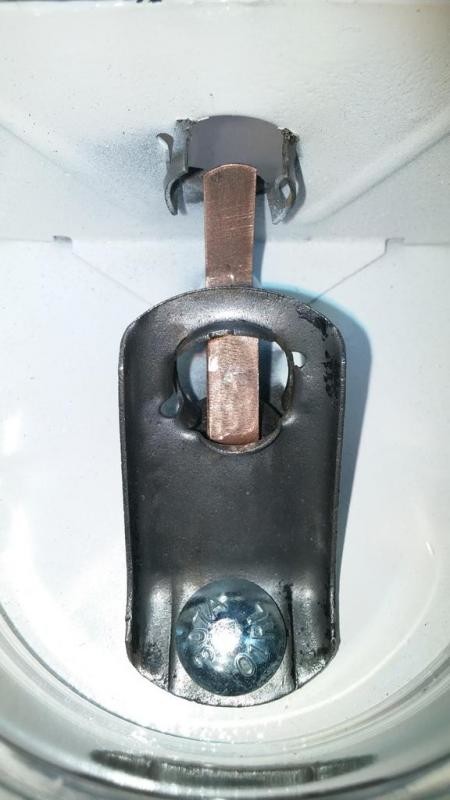

Close Up of Tail Lamp Holder

New Hardware for License Lens

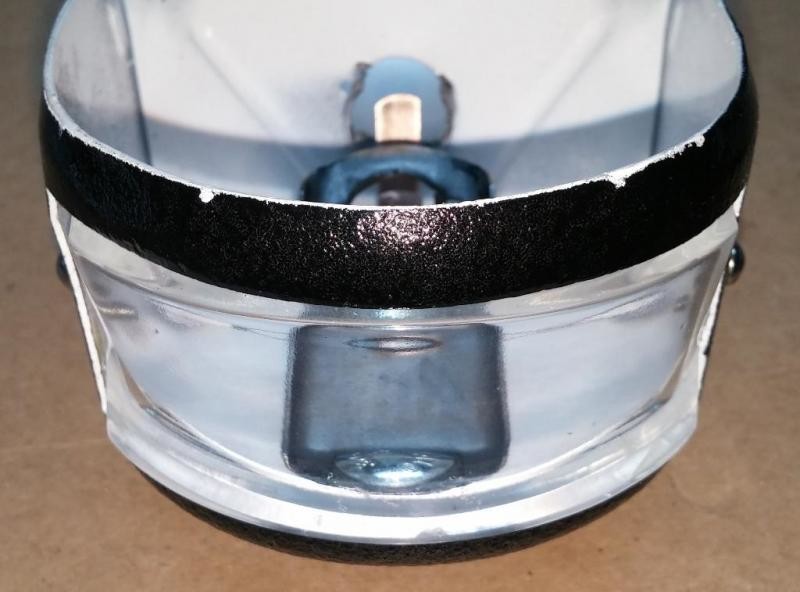

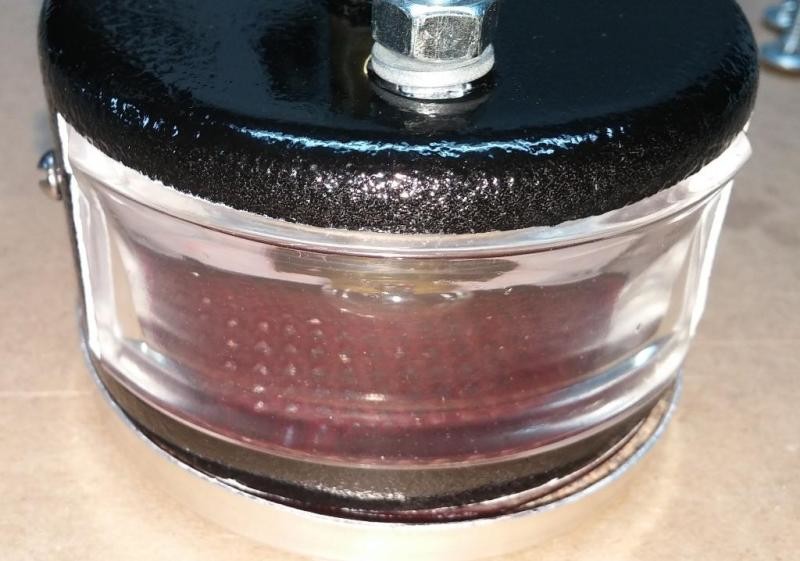

View of Clear License Lens

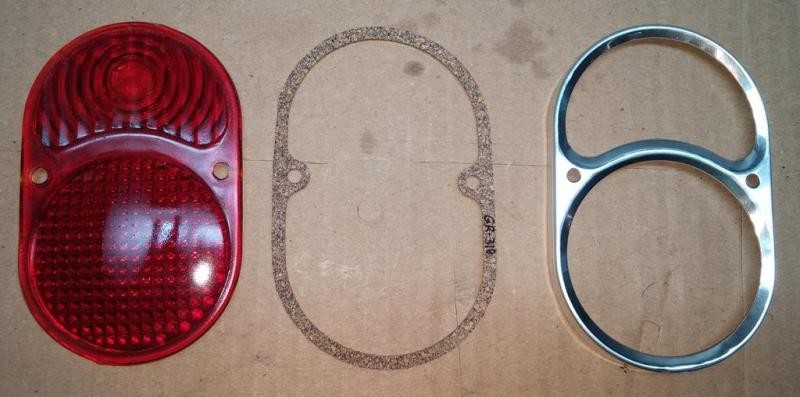

NOS Lens, Gasket, Trim Ring

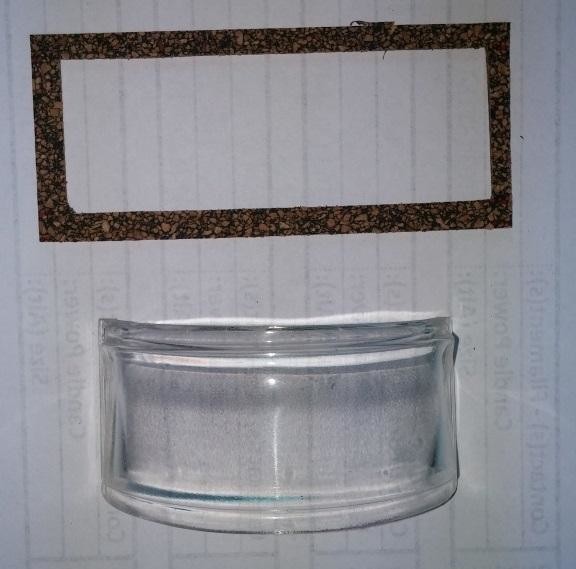

New Clear License Plate Lens and Homemade Gasket

New License Lens Installed with Gasket and NEW Hardware from Gary Wallace

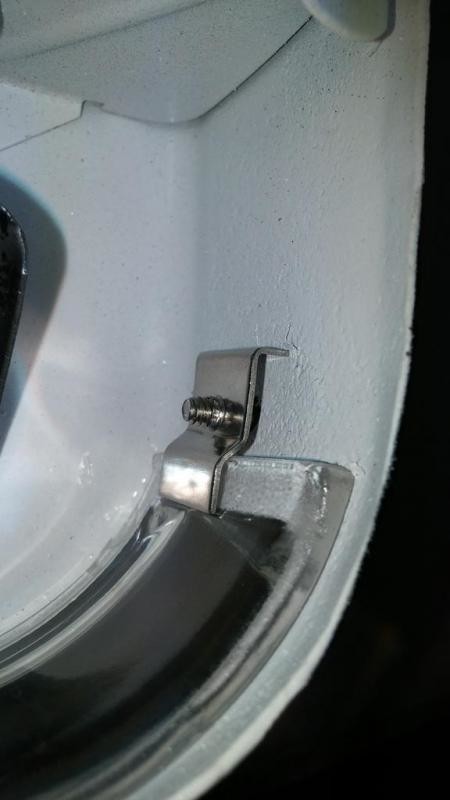

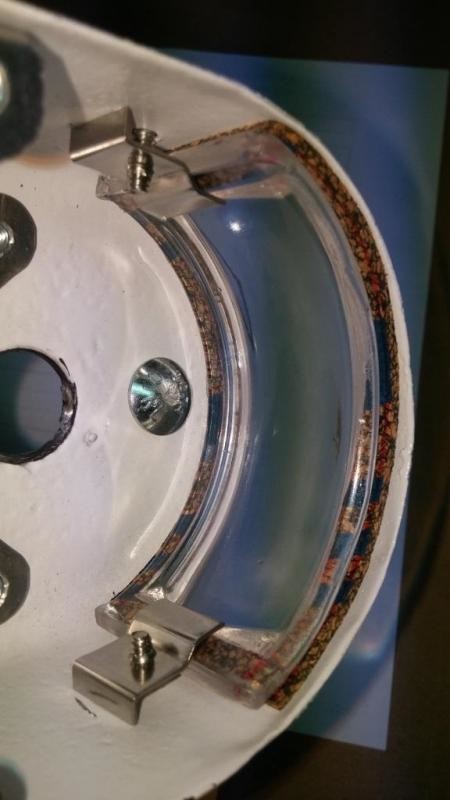

Close Up of Hardware, Gasket, and Lens

Assembly

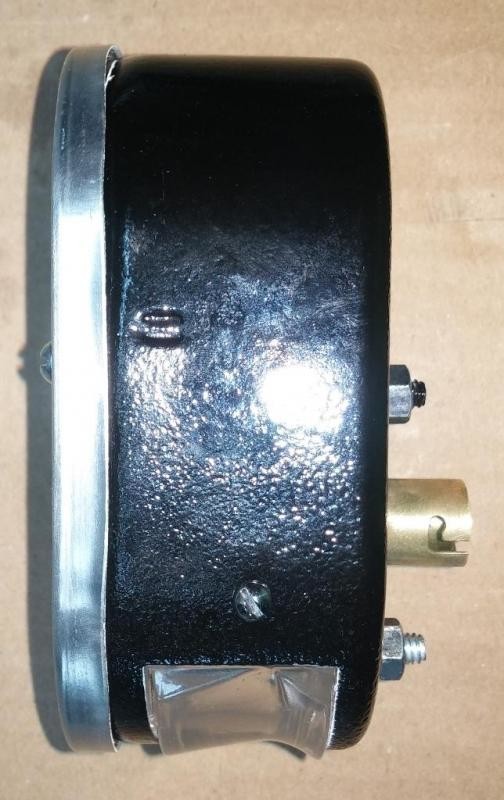

Side View

Angled View

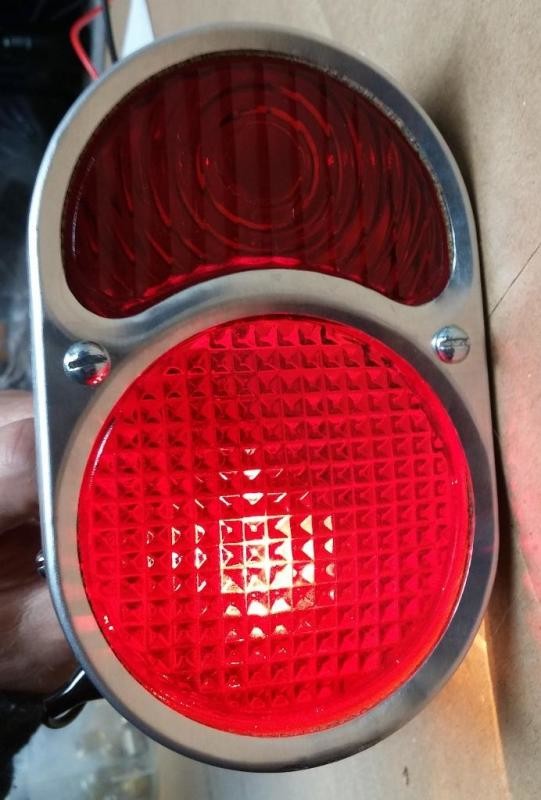

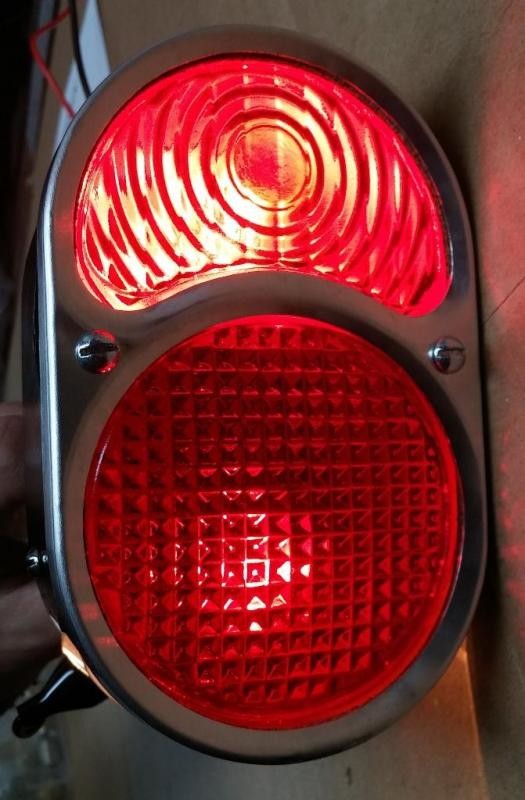

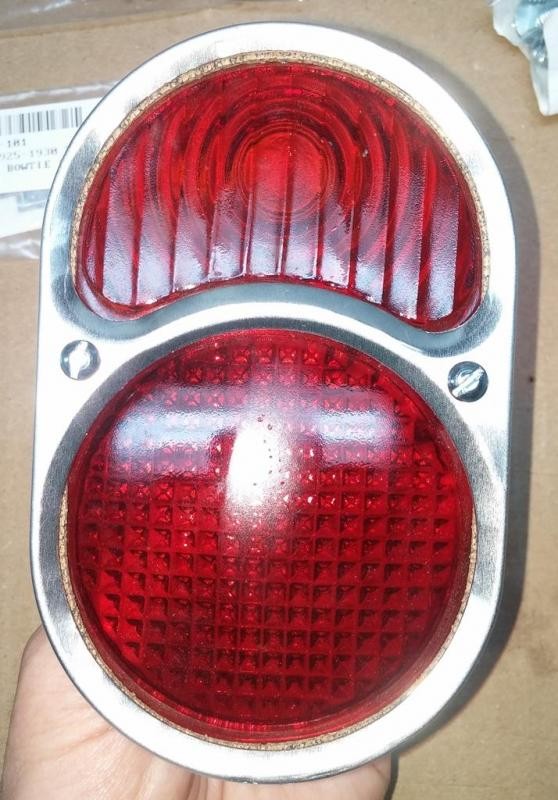

Tail Light Lens

did a light CHECK as well to ensure the lights worked and there were NO issues at this point... everything worked like a charm :)

i used a set of clips and connected ground to the mounting bolt, then touched the positive to one of hte two points inside the bayonet connector.

Light Test: Parking/ License Lamp

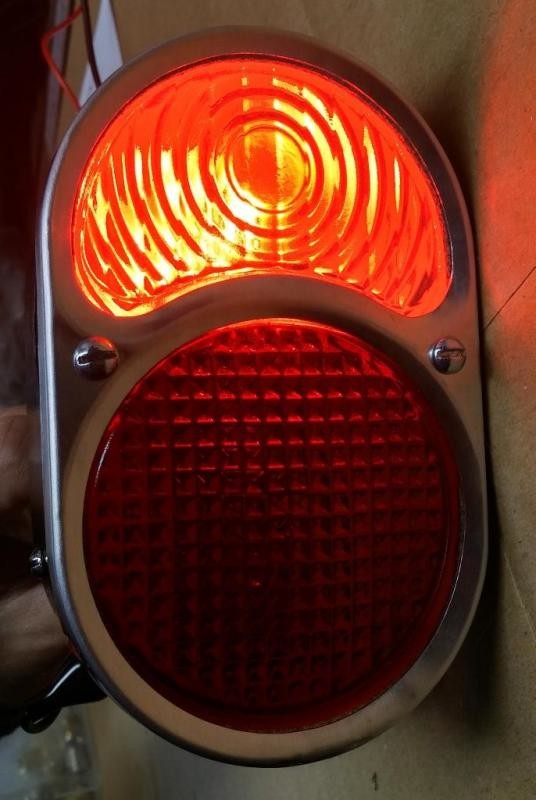

Light Test: Stop Lamp

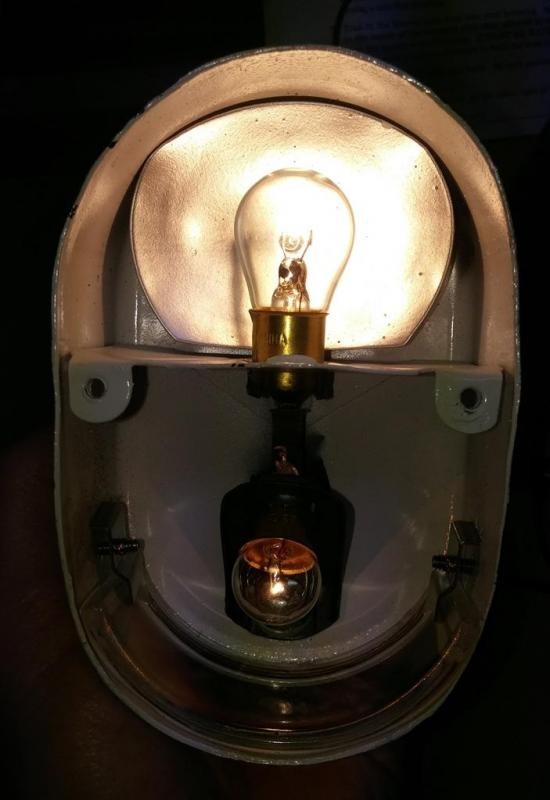

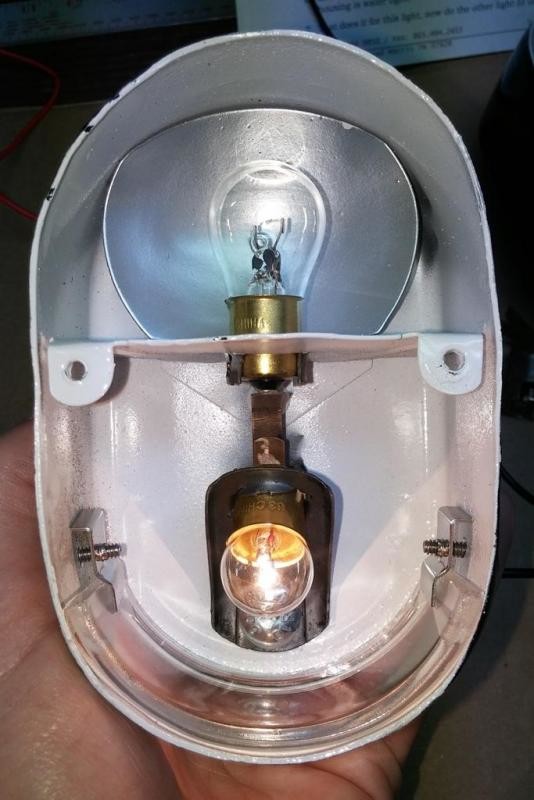

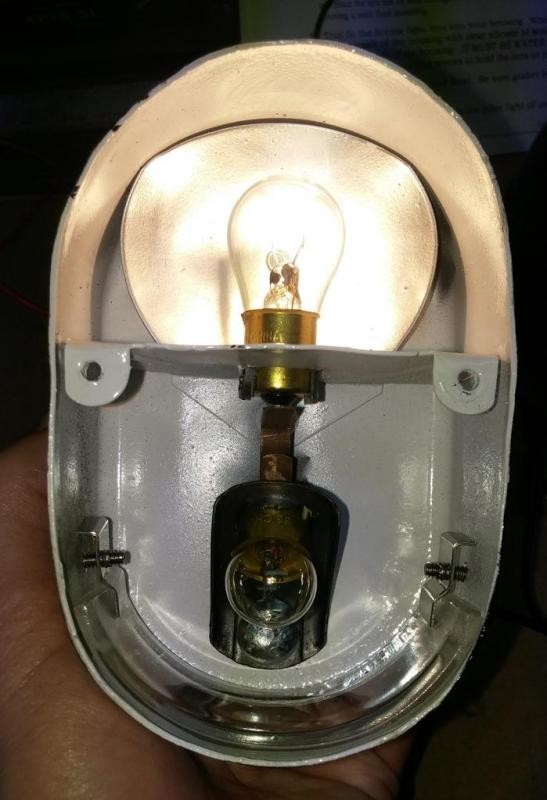

Light Test: Parking/ License Lamp & Stop lamp

Light Test: Parking/ License Lamp

Light Test: Stop lamp

Light Test: Parking/ License Lamp & Stop lamp
