1929 Chevrolet International - 4 Door Sedan Project by BearsFan315

2 minute(s) of a 636 minute read

spent some time planning out and working on the LED conversion for the other housing.  goal was I want it to LOOK original with the standard socket and all. just different guts :)

i was originally going to solder the wires directly to the brass/copper connectors on the socket, but as i got into it decided why NOT just shape them to fit a spade terminal !! this way i can unplug the wires and remove the LED board if needed for service, cleaning, etc... then i can trim the wires and solder and wrap the connectors onto the ends of the wires. one is tail, one for stop, and one for ground. put a lug on the ground then filed that to fit on the carriage bolt square.

backside of connector, shaped them to fit a spade connector

lens, gasket & hardware installed

round lug filed to fit square of carriage bolt for ground

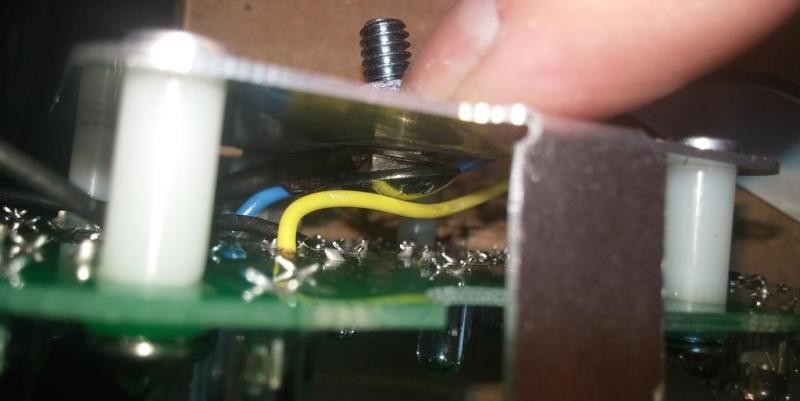

LED board all connected and bracket secured, ready for install

close up of Grounding Lug on Carriage Bolt

LED Board & Wiring all secured and ready for lens, bezel, and gasket

a rear view of connector and housing
