Aftermarket deck install
Compliments of troy_audi0 @ fiat500owners.com
11-26-2012

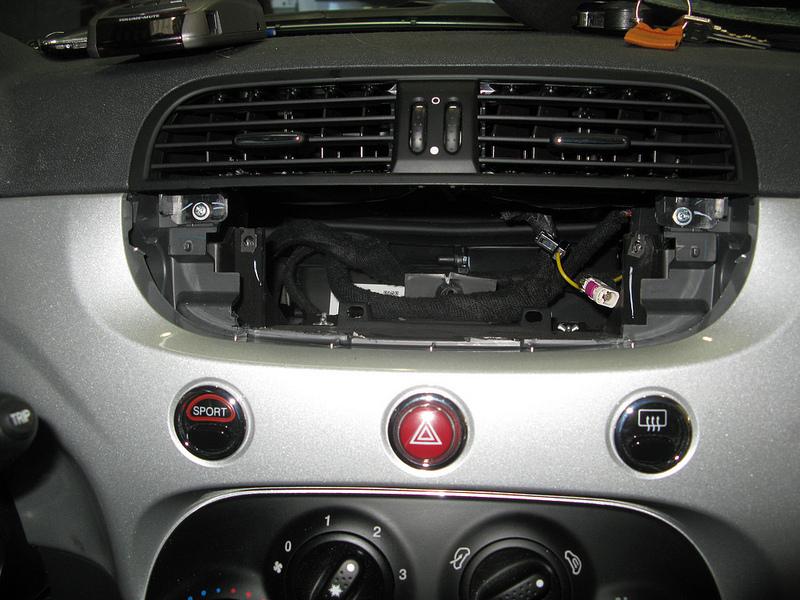

Start with checking out my >How to o remove OEM radio<
Ok Big thanks to Metra they hooked it up!! got the Dash Kit 99-6515B & Harness XSVi-6515-NAV
You need an ant. adaptor as well Metra part# 40-EU20
here we go..
kenwood KDC-X996BT plus Metra Dash Kit & Harness

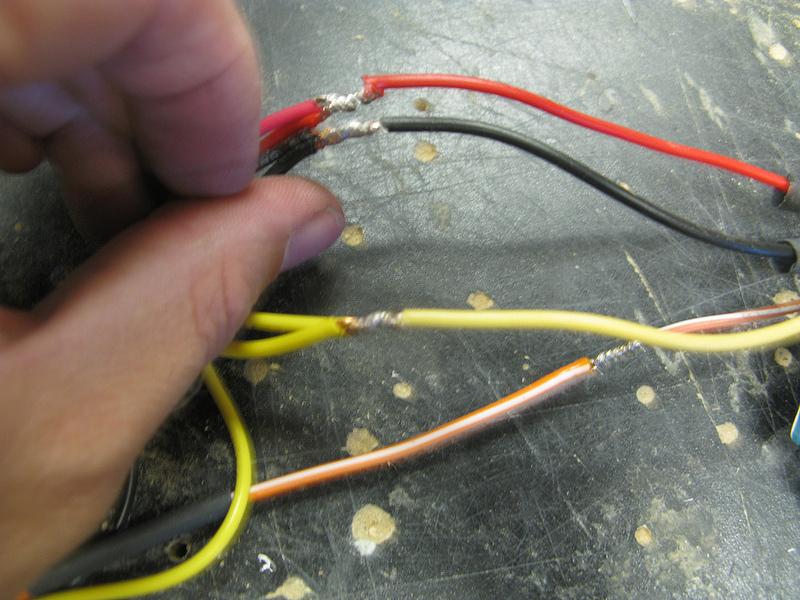

All soldered up

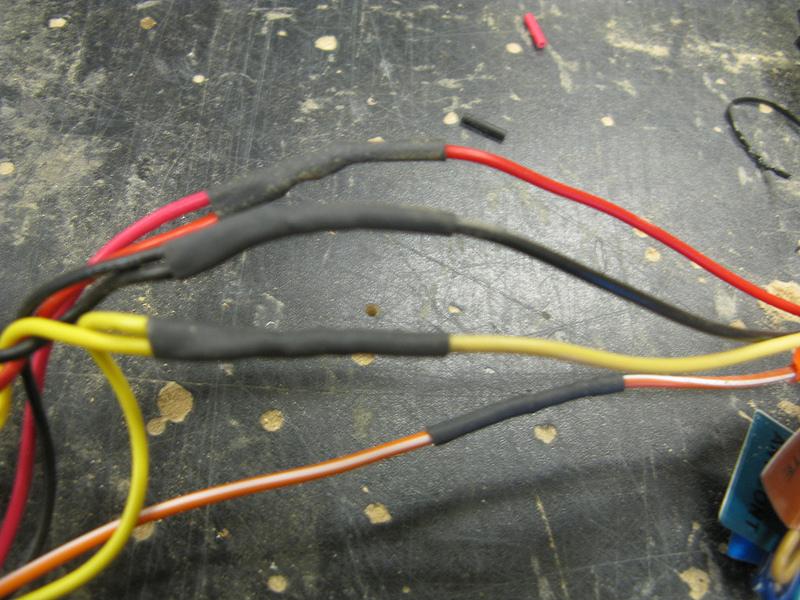

Heat shrink

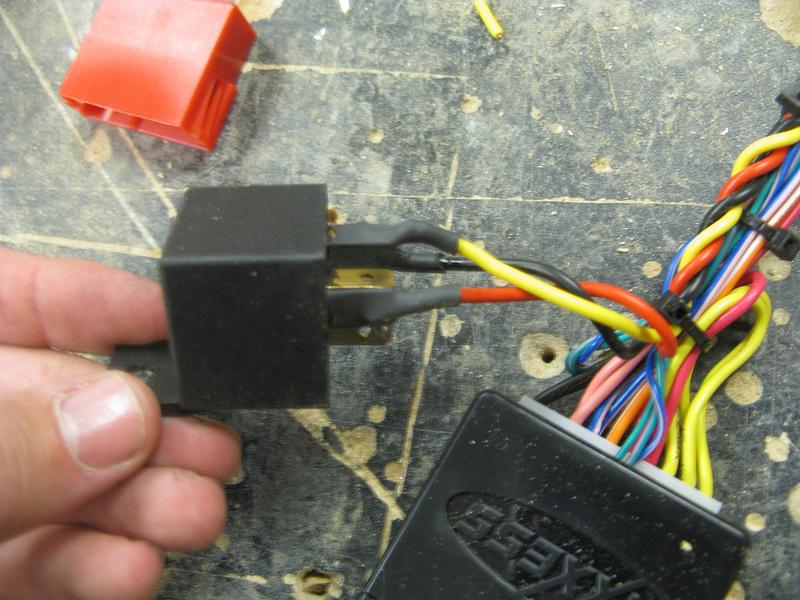

Relay for amp turn-on and "other Acc"

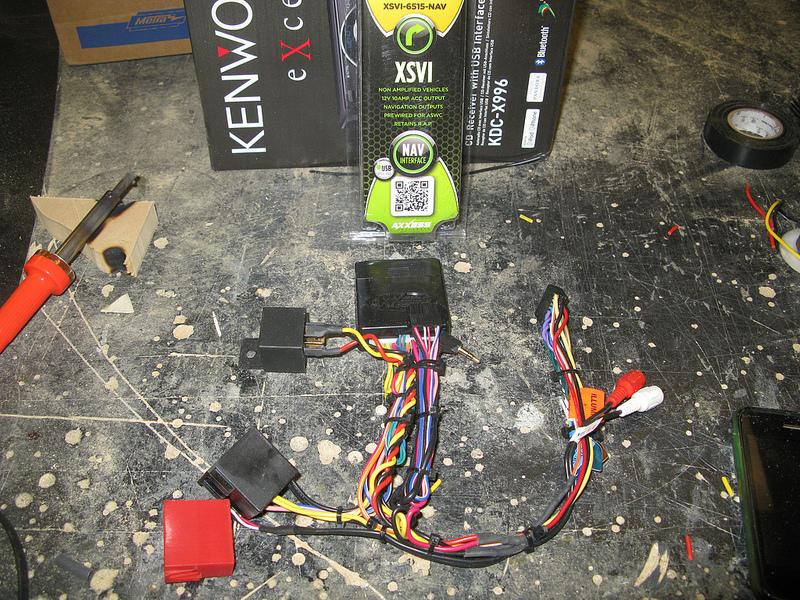

Almost finished with the harness
Had to cut a small section at the bottom to get the dash kit in and mounted

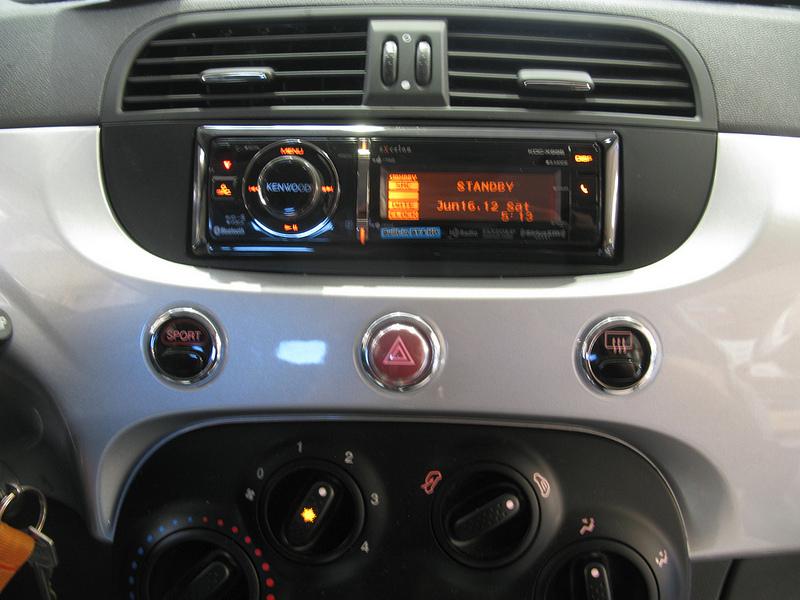

Sorry for the bury picture deck mounted
11-27-2012
You can add a Steering WHEEL CONTROL INTERFACE Metra ASWC OR Pac-Audio SWI-
Now the part I do not know is how well it works.. my car does not have steering controls nor have I talked to my Tech support about them.. I will try to find out in the AM and let you guys know.
You are right about the Blue-n-Me I love the way the Kenwood works..iPod/iPhone control and blue tooth.
They have an app for Nav Speech I have not used.. I will try it..
