Ultra low VW fox coil over install and strut housing mod


Compliments of Banned wagon @ www.vwortex.com


OK this i my current project should finally be able to bring down my fox to a proper ride height

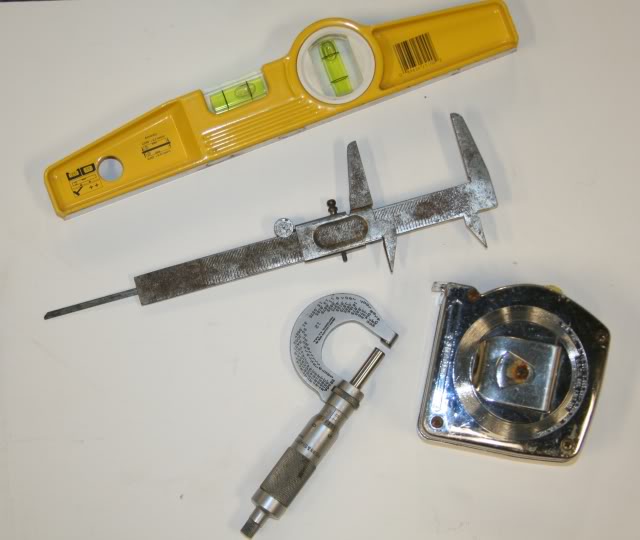

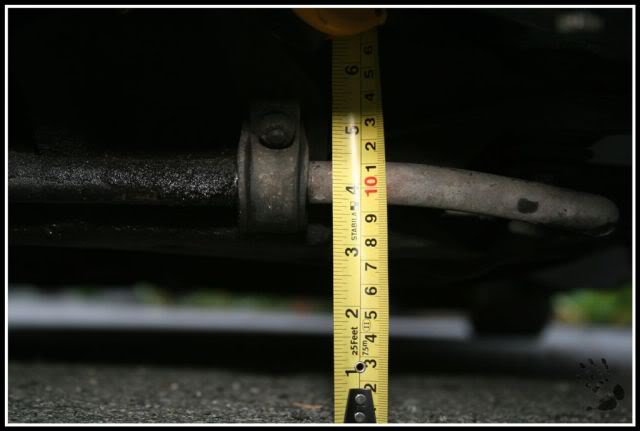

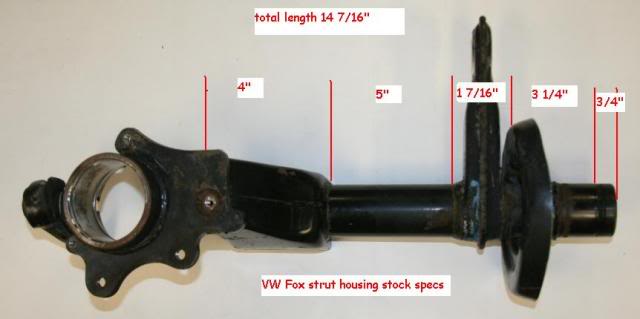

First you get out all of your fun measuring tools and start taking notes



ok all measured up

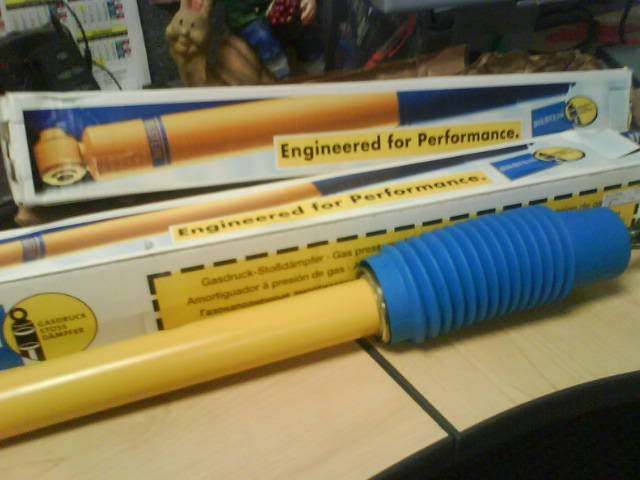

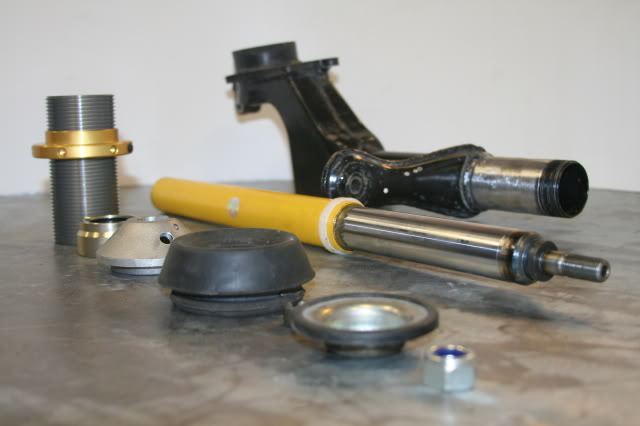

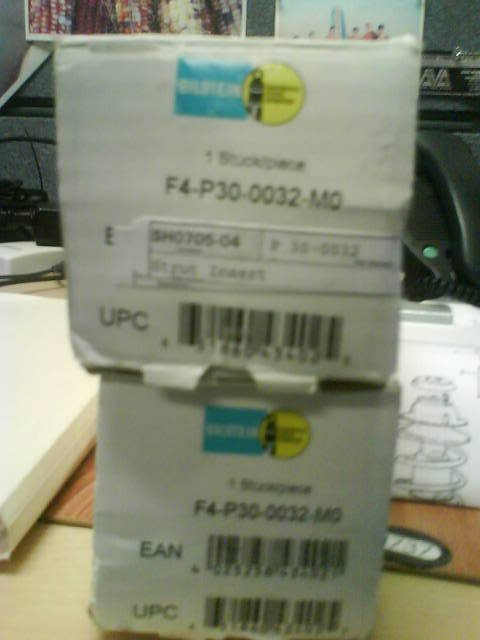

next get a set of strut inserts of your choice. I chose the bilstein MK1 sports

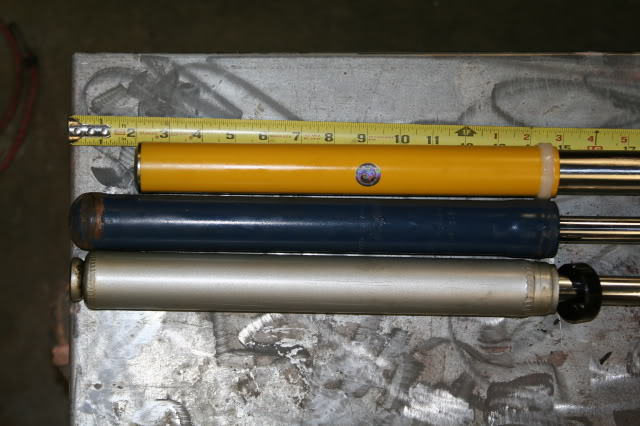

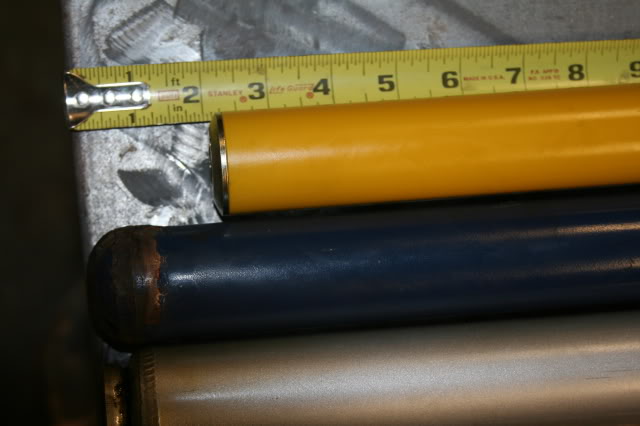

measure the difference between the old stock struts and the new

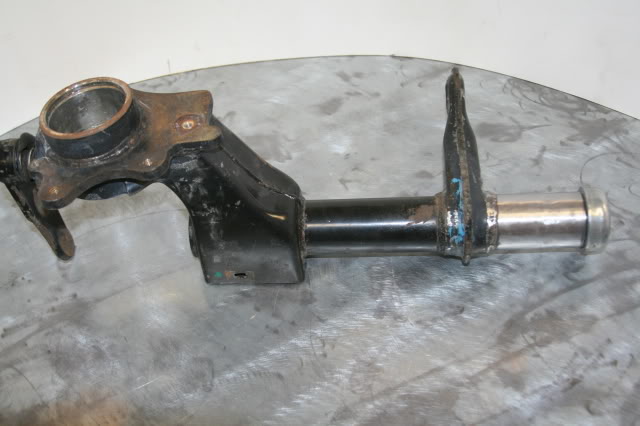

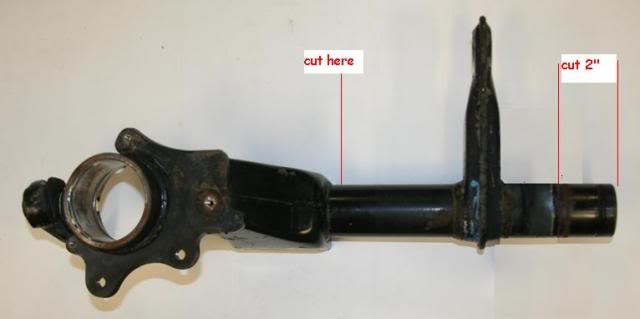

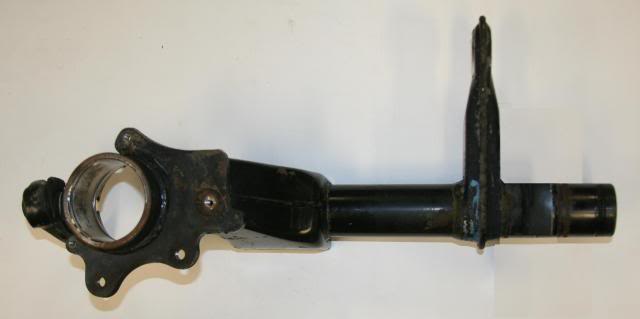

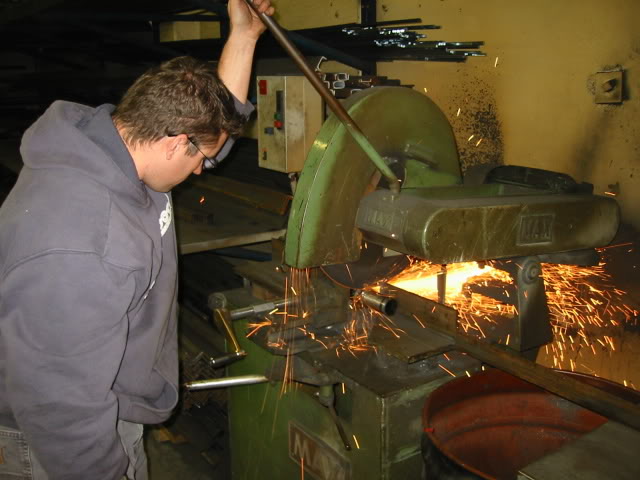

ok time to start cutting! first the spring perch

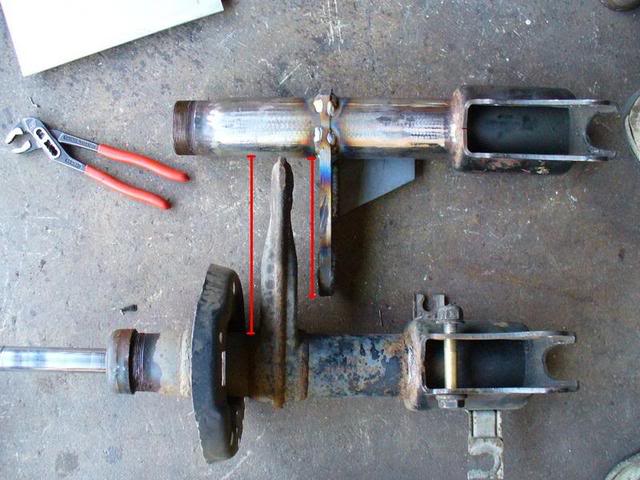

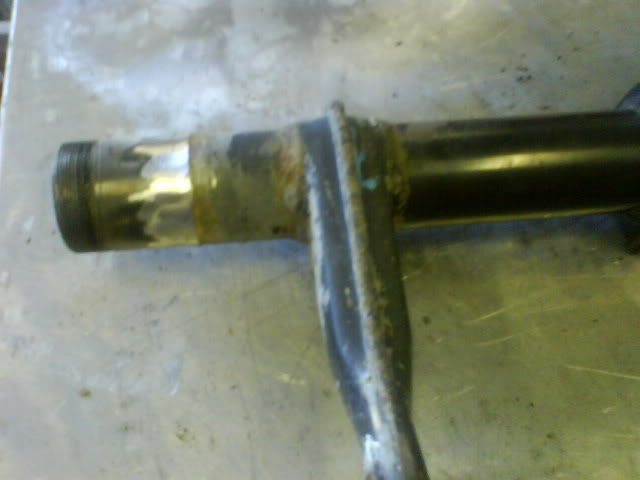

then one more final cut mark the tube in a few places so you get the alignment of the steering arm back correctly



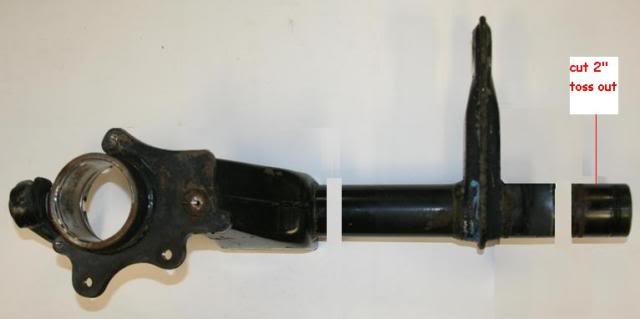

cut off 2" and toss it

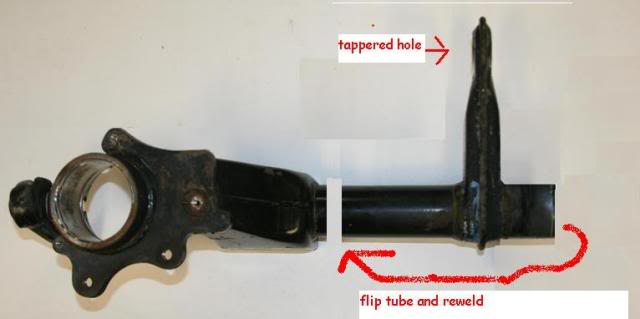

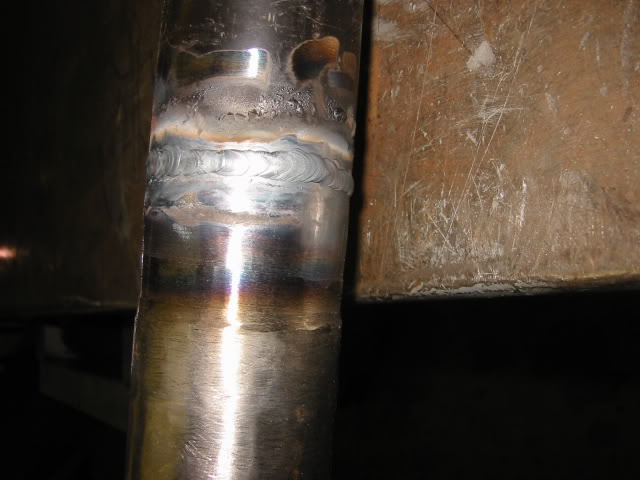

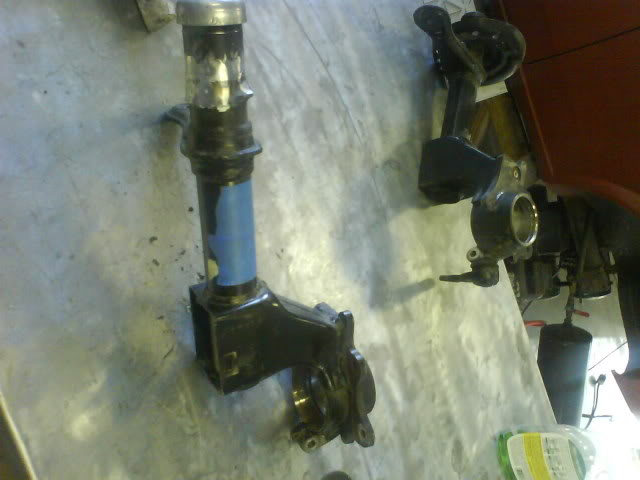

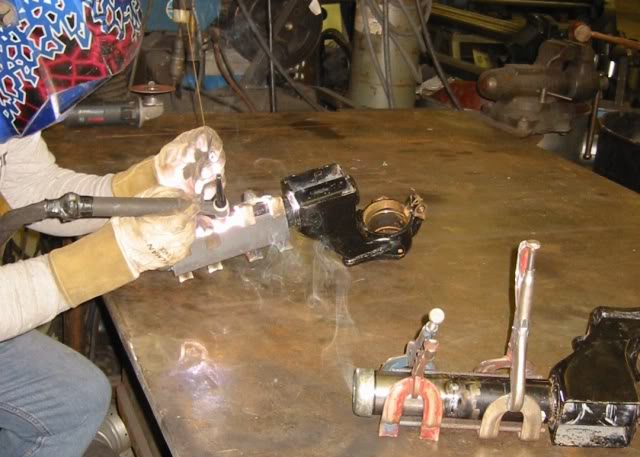

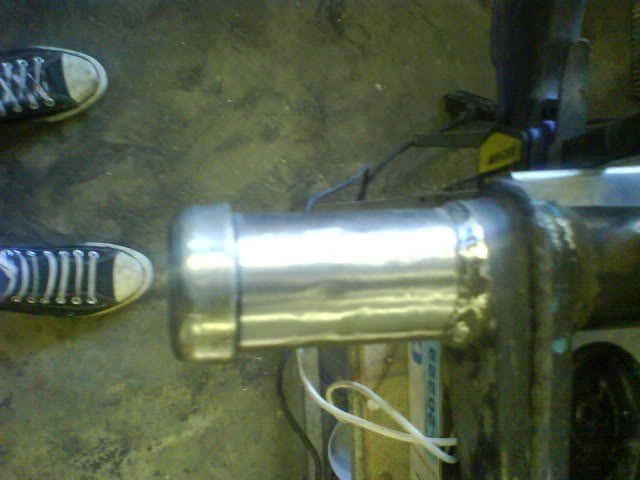

now the big twist in my version flip the whole thing over now and re weld

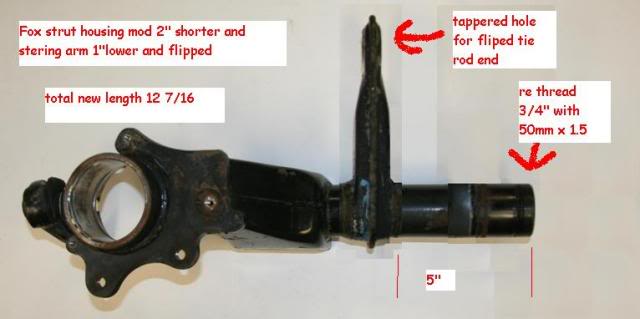

Now you have a strut housing that is 2" shorter and has 1 1/2 " more room for a longer threaded sleeve.
all done



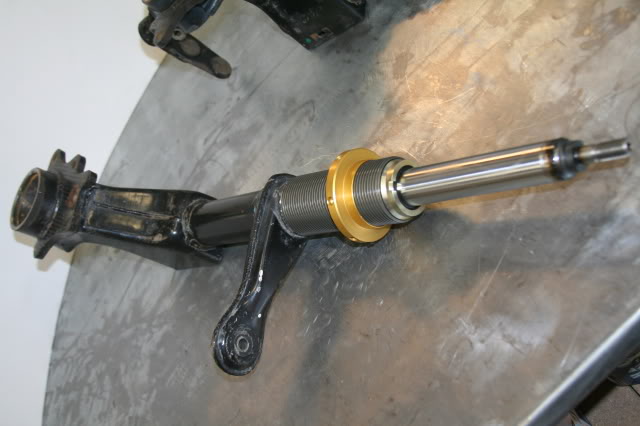

now just add any threaded sleeve coil over kit of your choice


this is my plan so far. I have the struts now and am ordering coil over parts and springs this week i hope
if you want even more drop!! you need to find a shorter strut insert
like this one from Koni.
The 8610-1436 are 290mm (11.42") housing length
Page 11:
http://www.koni-na.com/pdfcata...g.pdf
that's about 3" shorter then stock fox insert
VW Fox stock (confab) struts are 360mm (14 3/8")
MK1 bilstein sports F4-P30-0032M0 are 317mm 12 1/2" give or take a 1/32"nd
i will update as i get parts and do work.

OK more info and research
After looking and measuring my Fox's.

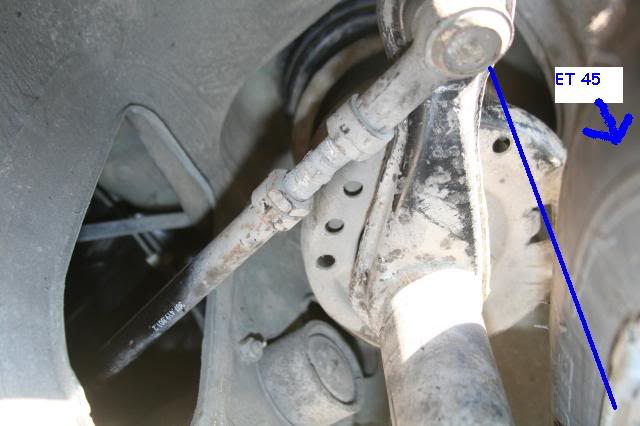

It looks like with some ET wheels if you bring down the steering arm it will make contact with the tire!



so to fix this you need to rotate your steering arm in a bit to clear the tire and wheel. BUT if you rotate the arm in, you cause two problems. the tie rods are too long . The other problem is your lock to lock steering will be diminished a bit.



so to fix these problems

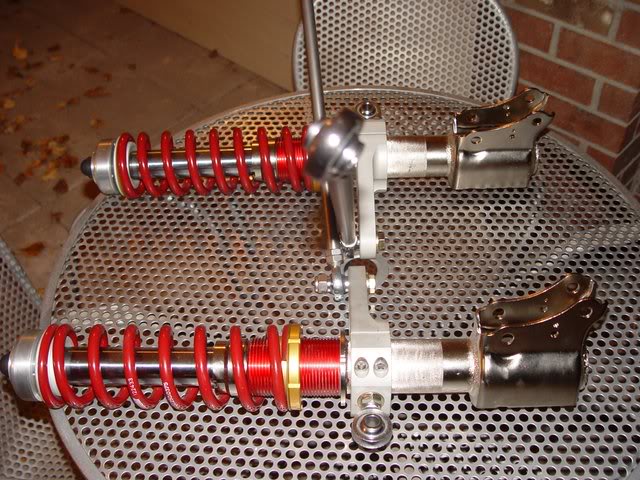

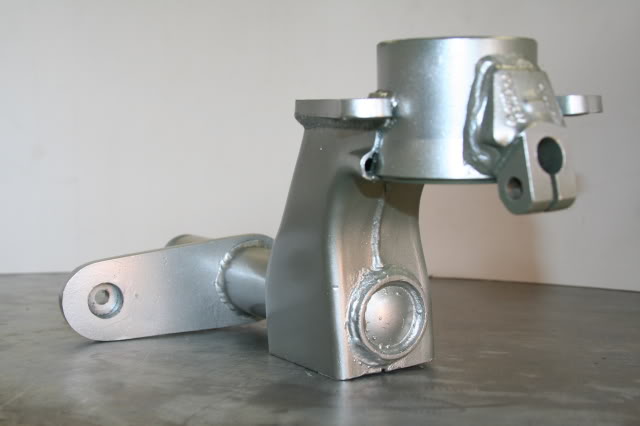

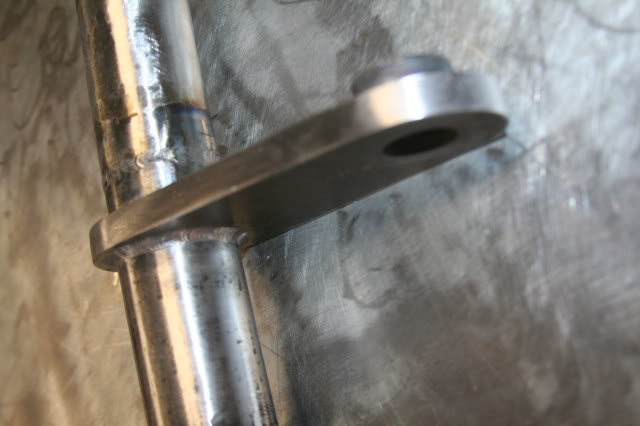

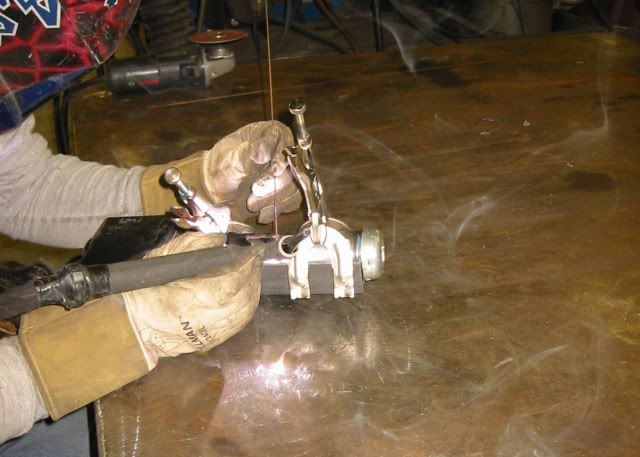

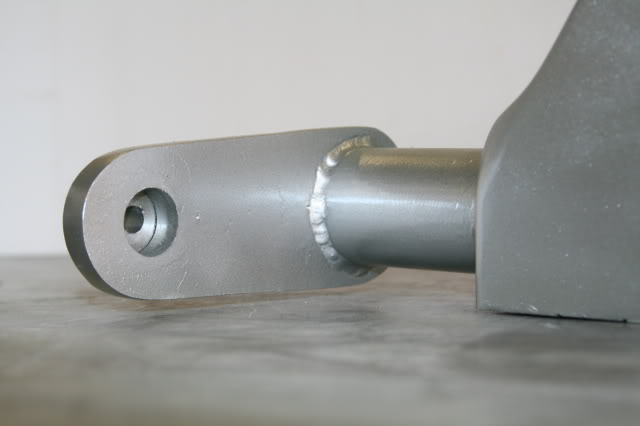

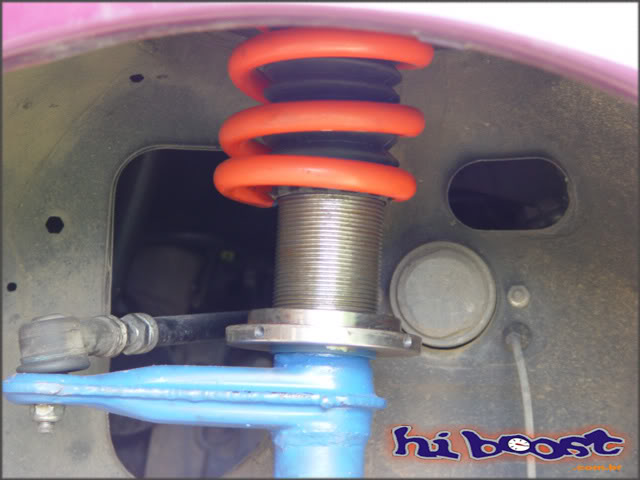

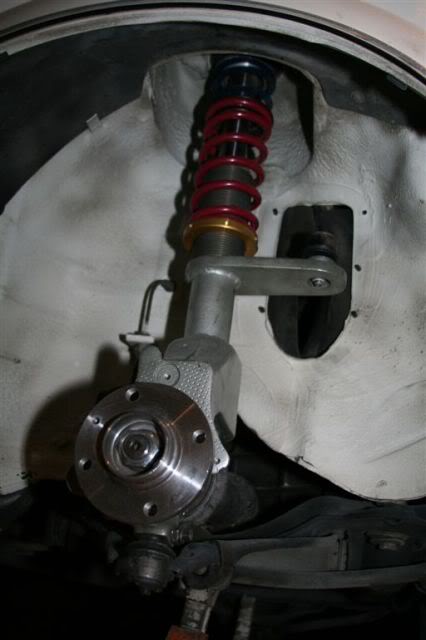

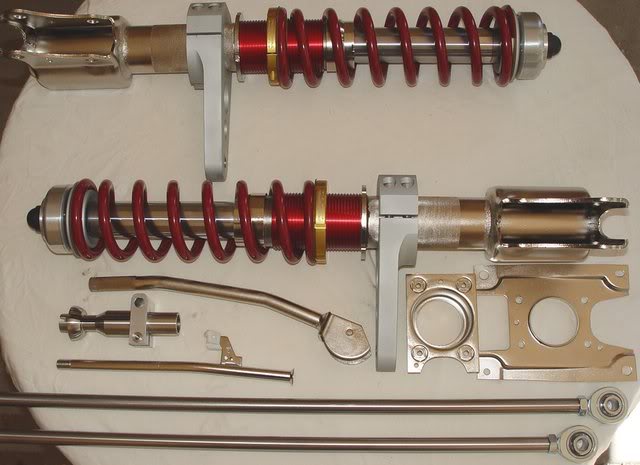

you need to shorten the steering arm like this guy did.




the angles of the steering arm and tie rod maintained. and the steering ratio and lock to lock turning radius.

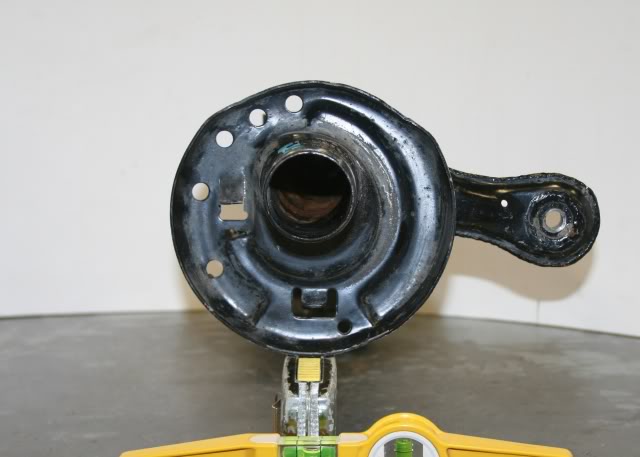

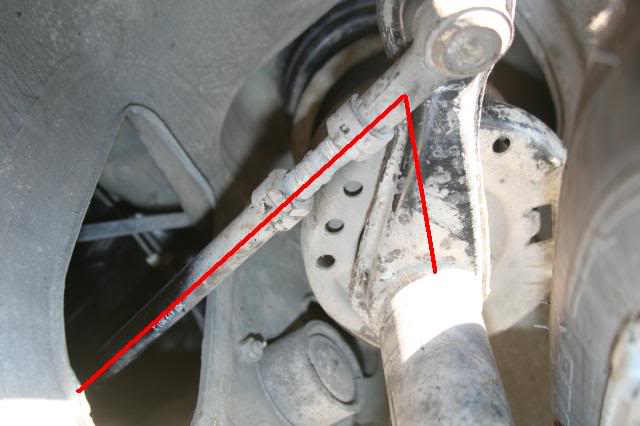

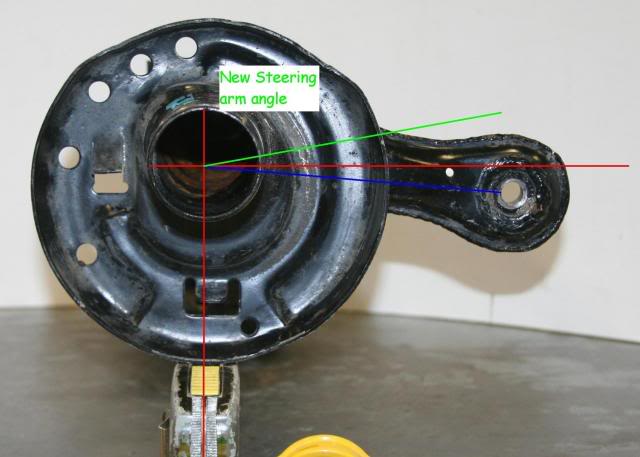

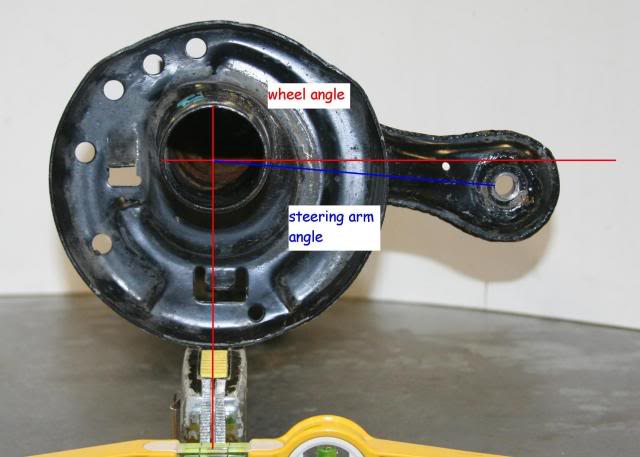

OK clocked the strut towers to see just how much i am looking at having to more the steering arm

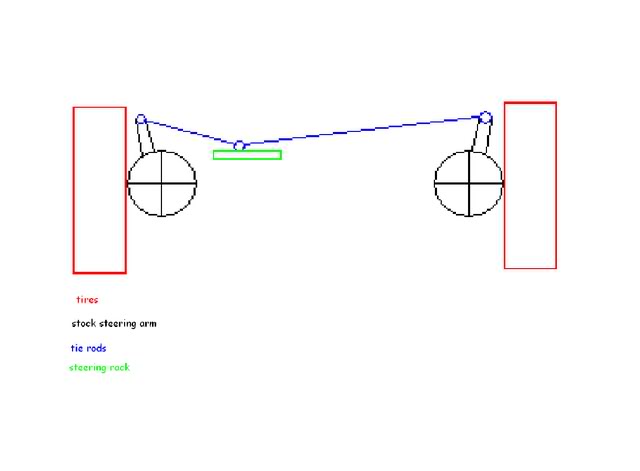

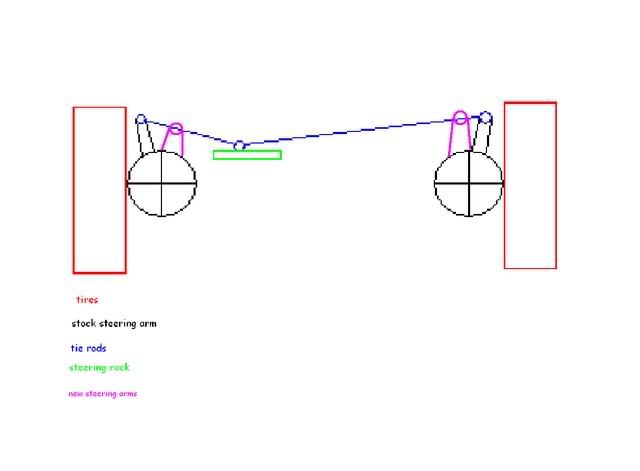

Ok this is my plan (just think of this as a white board, not a blue print)

rotate and shorten the arms preserves all the stock geometry

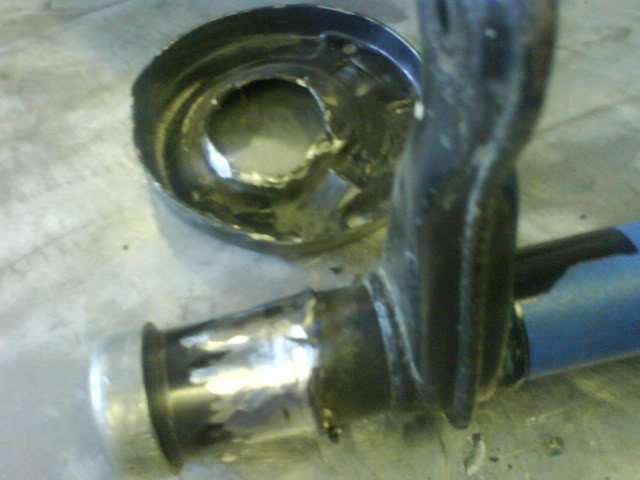

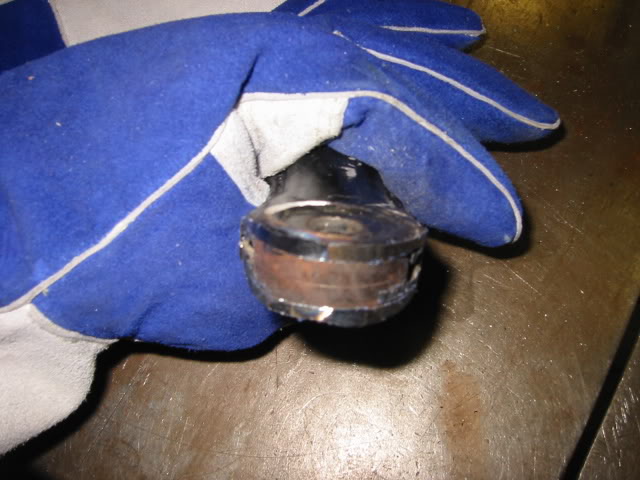

Did some actual work today cut off the spring hats.

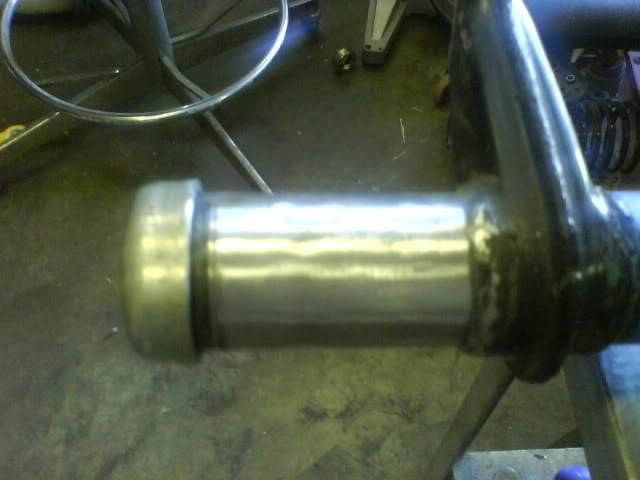

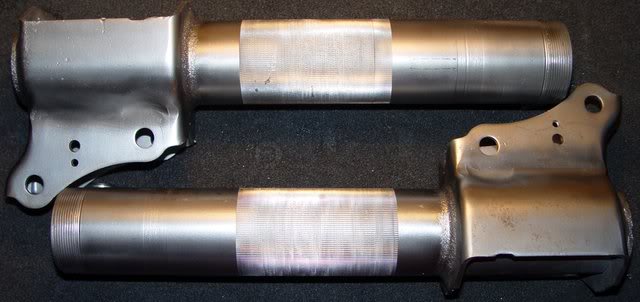

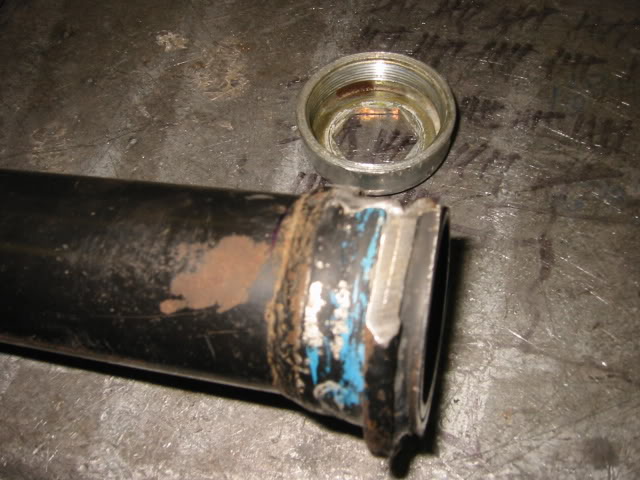

all cleaned up





now if I was doing normal fox coil overs, the next step would be to cut the coil sleeves to fit

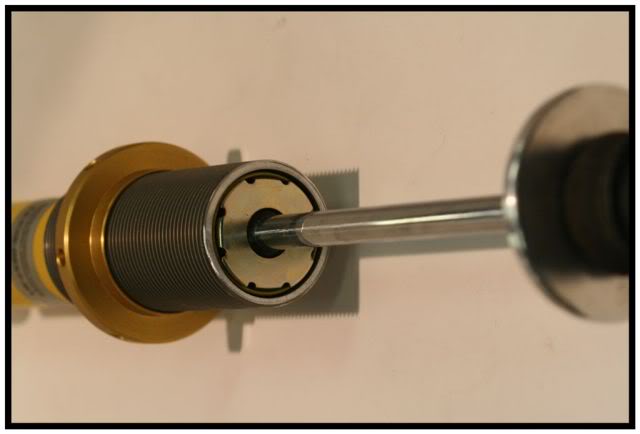

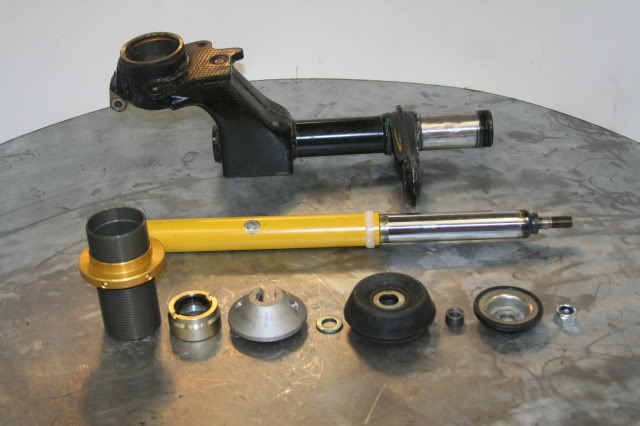

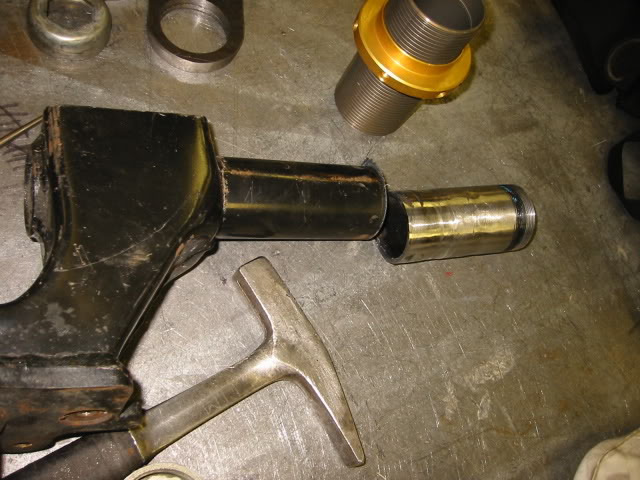

the strut retaining cap also holds on the threaded sleeve.

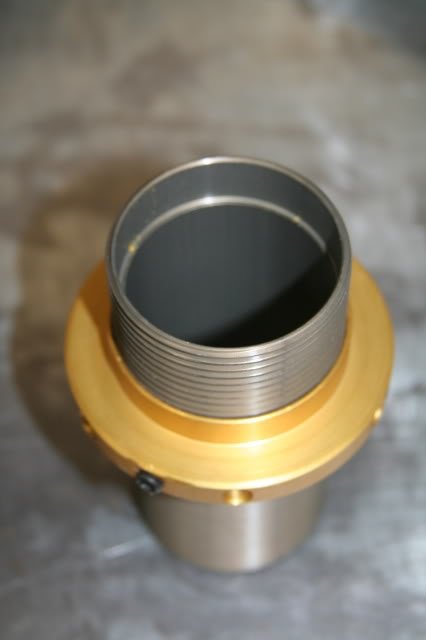

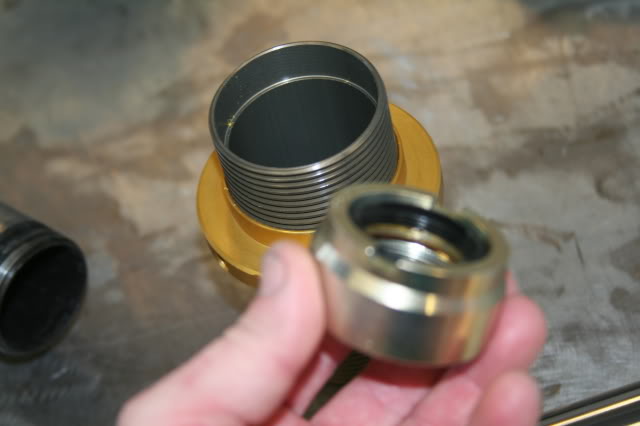

the sleeves i got have a recess that fit the bilstein strut cap perfectly

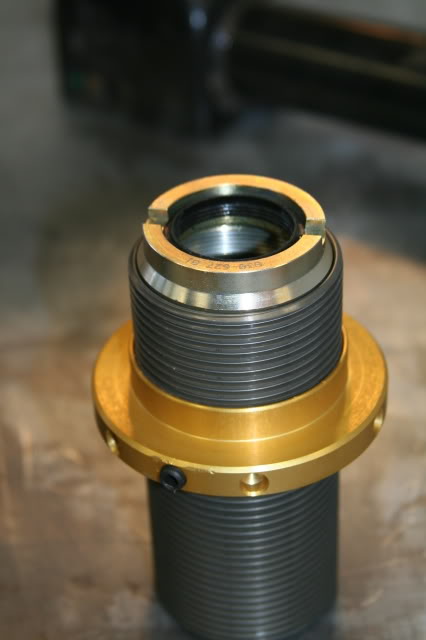

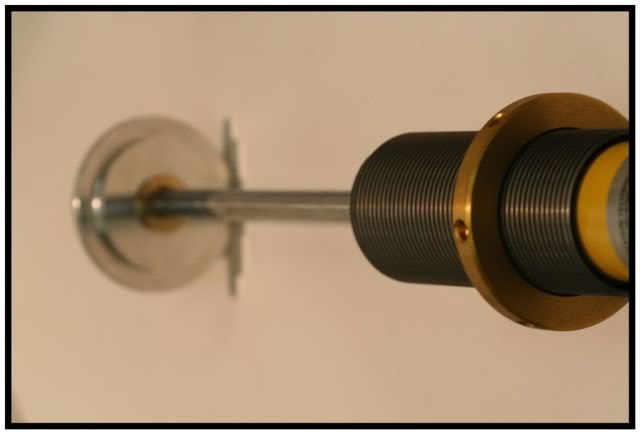

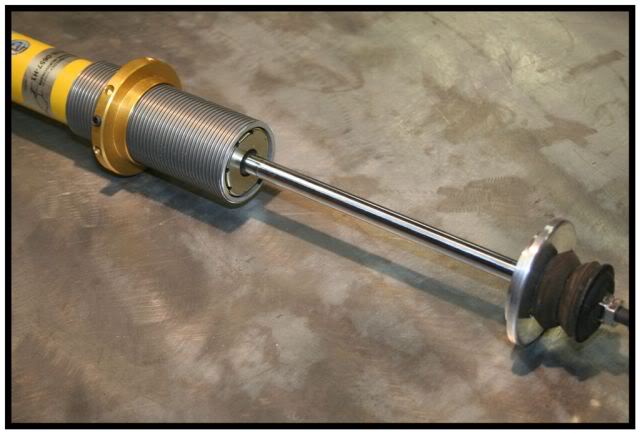

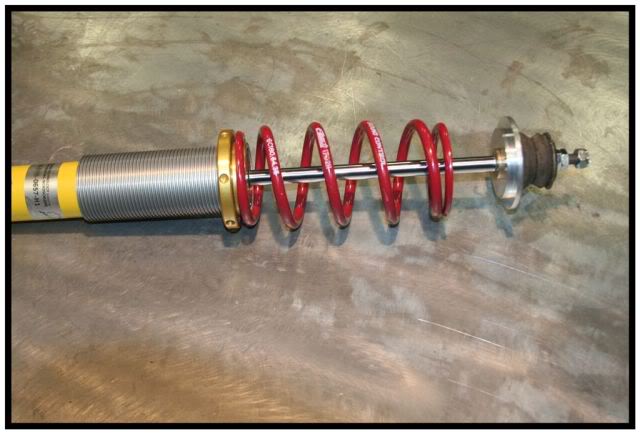

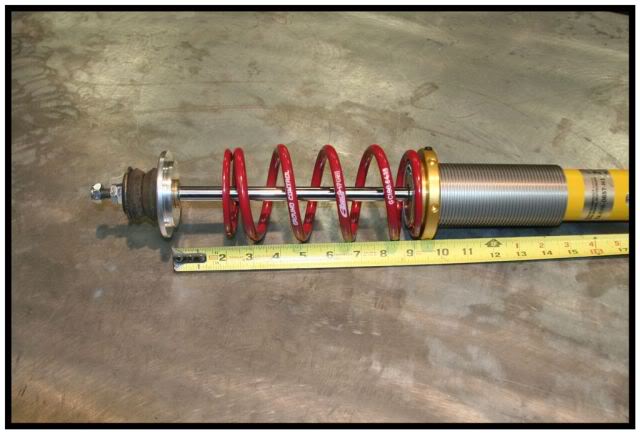

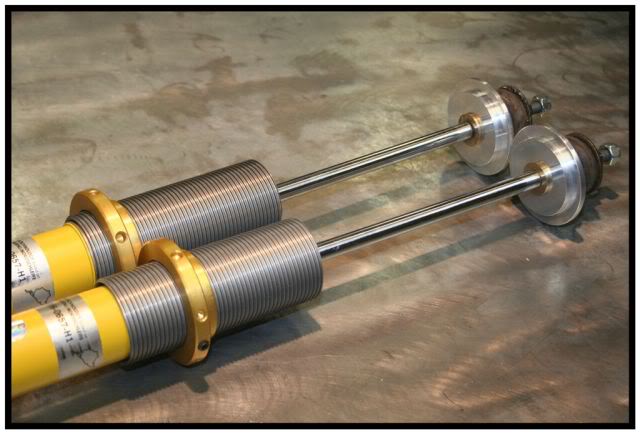

all assembled

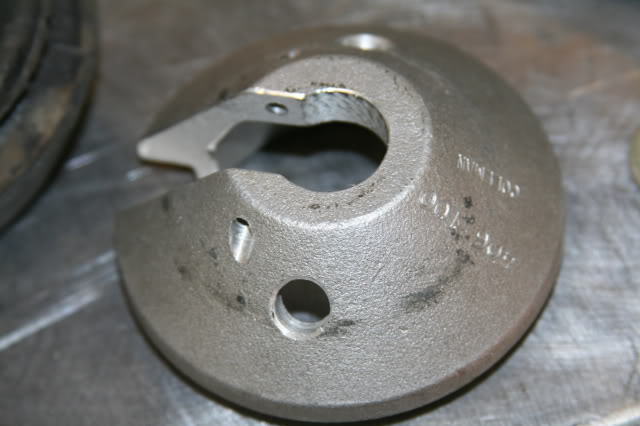

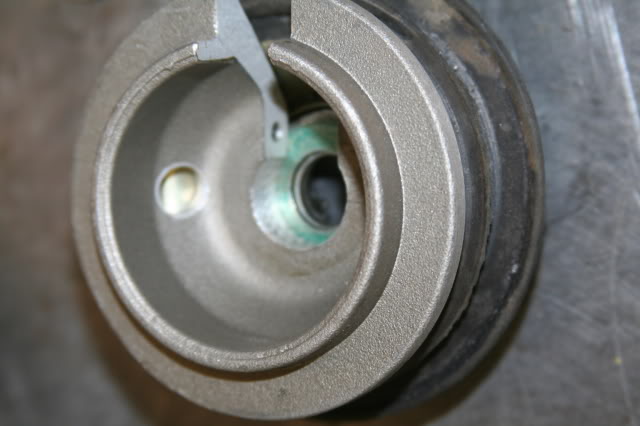

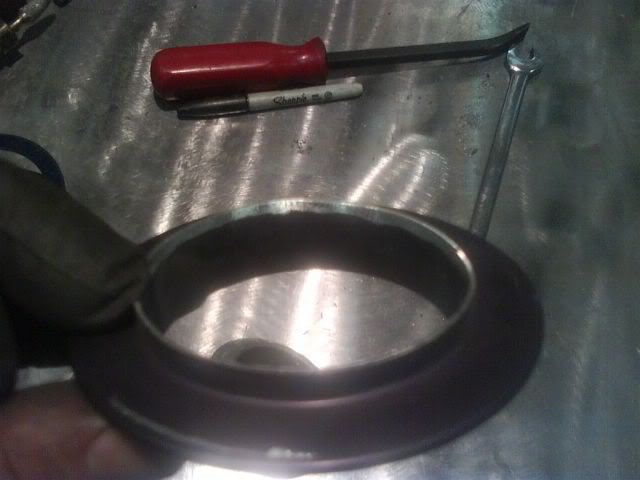

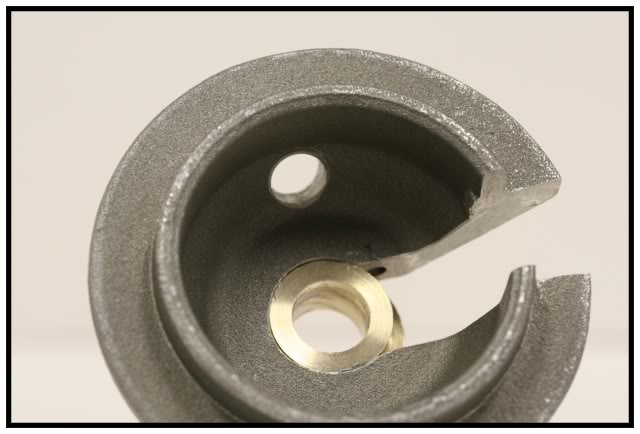

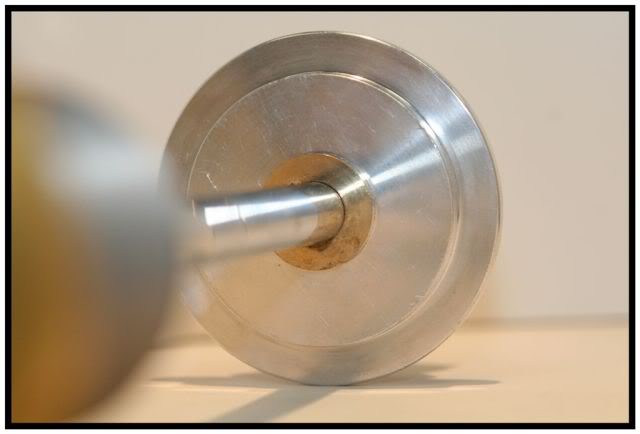

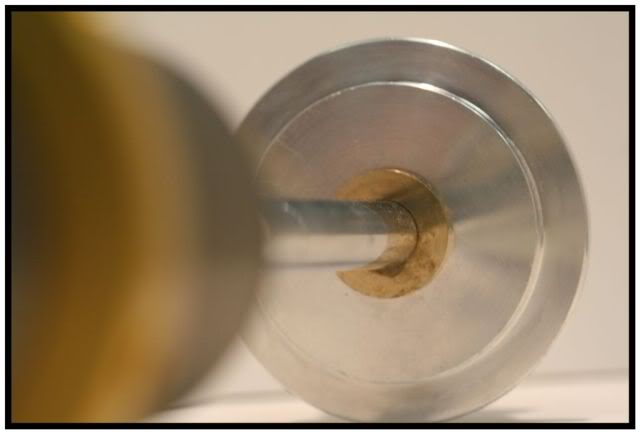

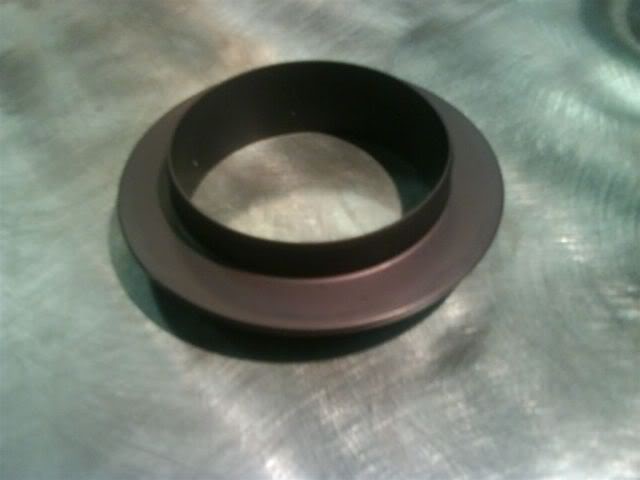

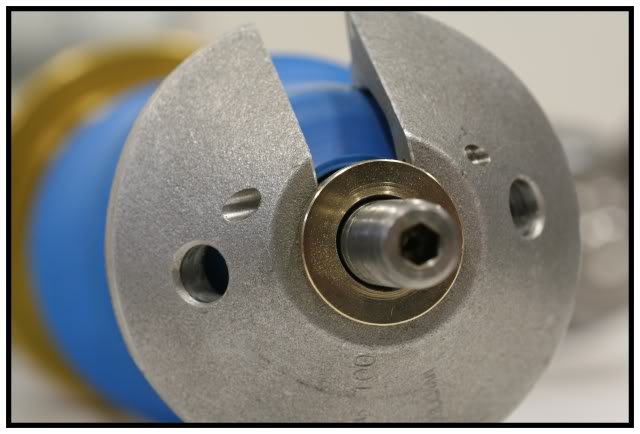

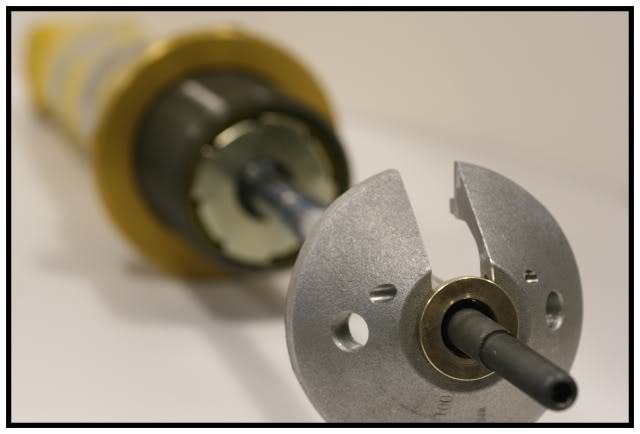

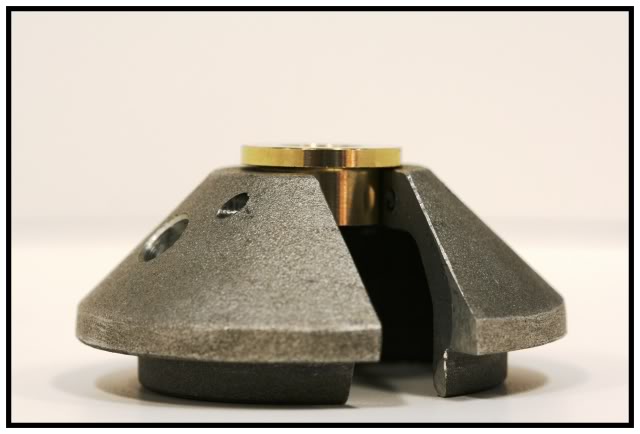

the top spring hat

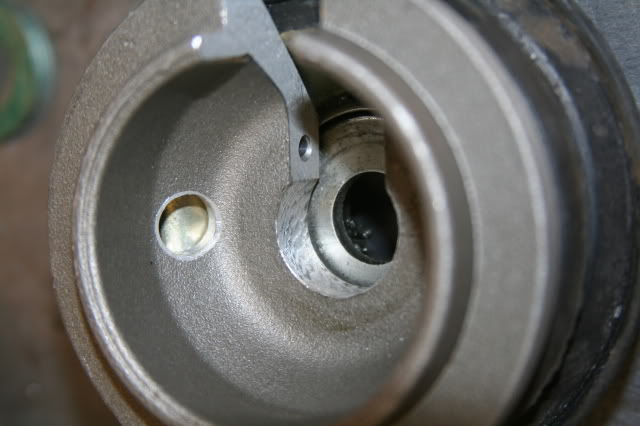

I tested the top s  spring hat in the stock strut bearing.



it needed a small (1/8" washer)spacer to rotate freely



now all I need is a spring. Bolt it all back together and install.
Disassembled it all again. ready to start chopping and welding





oh and the shortened steering arms are going to be a blatant copy of this guys work. http://www.motorgeek.com/phpBB...t=800

Well had a busy day today

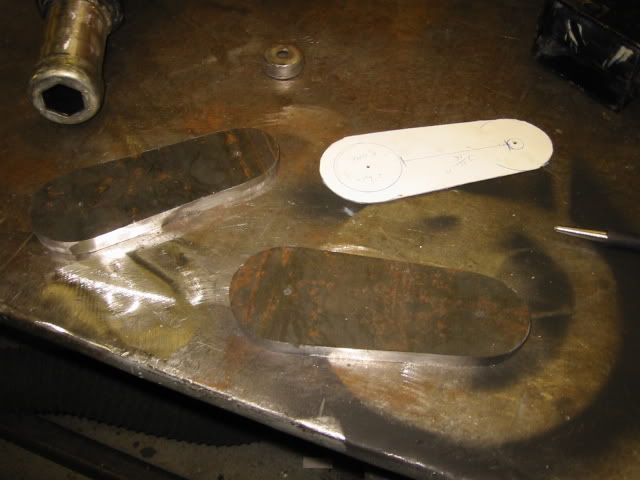

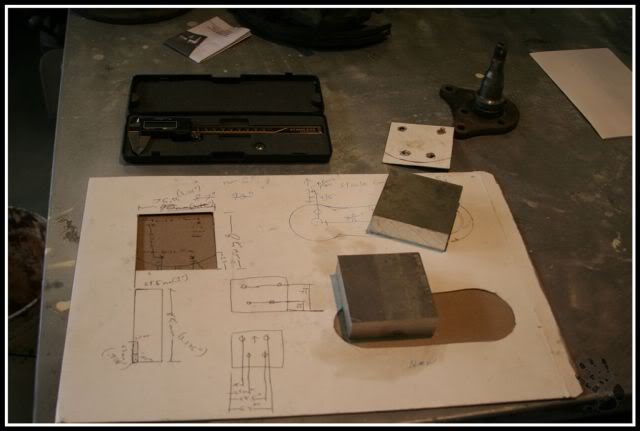

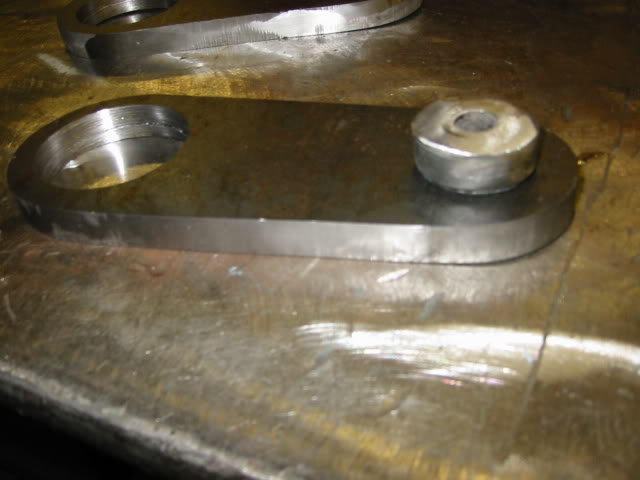

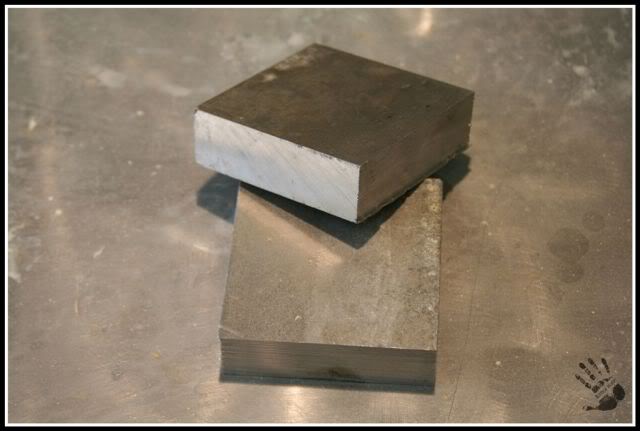

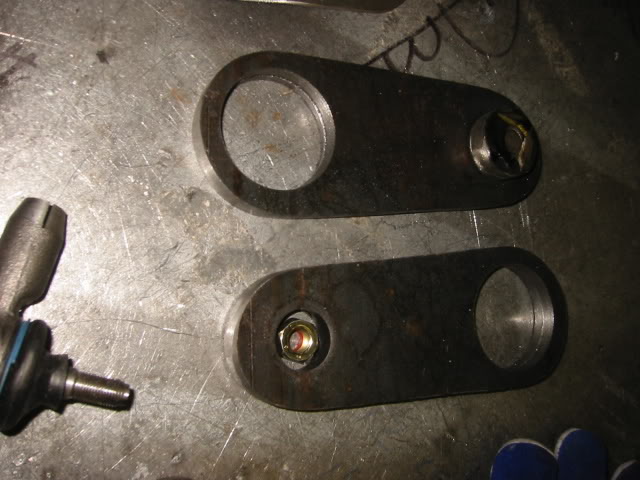

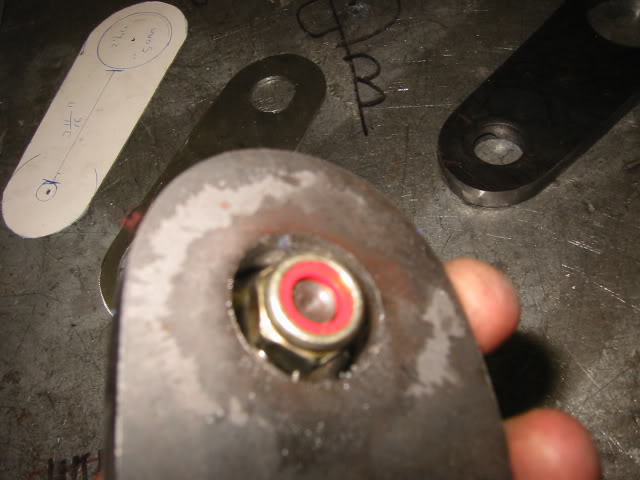

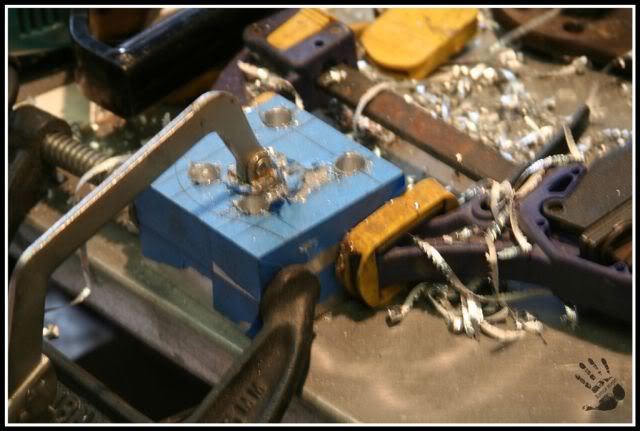

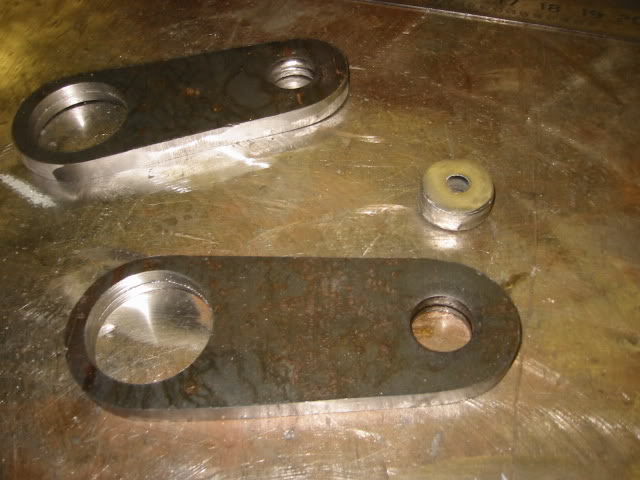

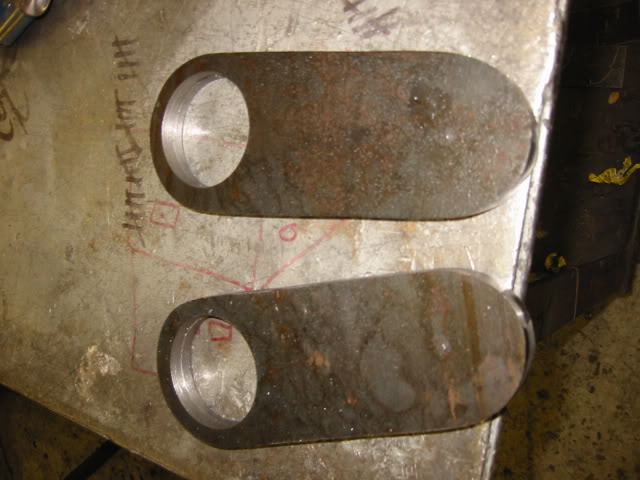

cut out some 1/2' plate



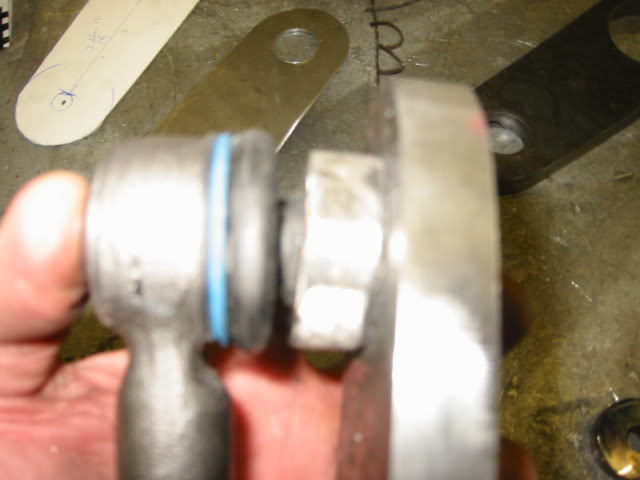

Drilled some holes

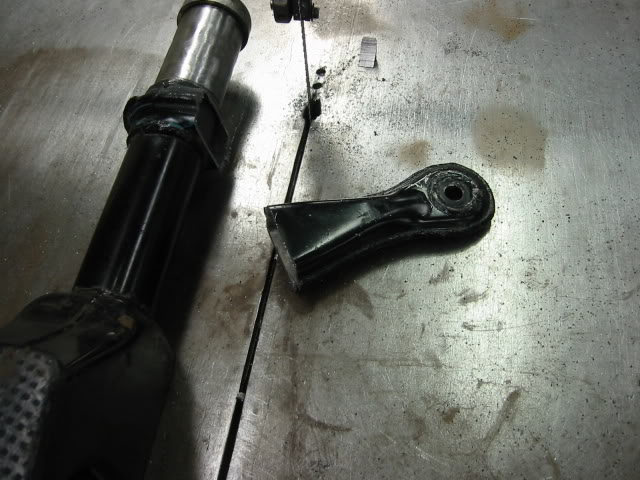

cut the stock arm off

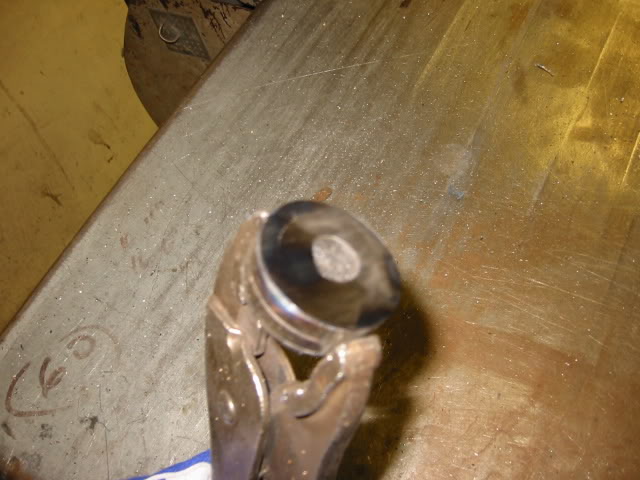

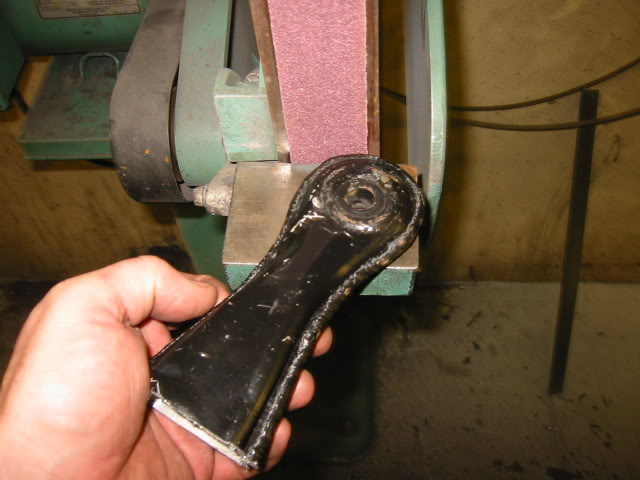

getting the tapered bung for the tie rod out of the stamped steel took a little effort

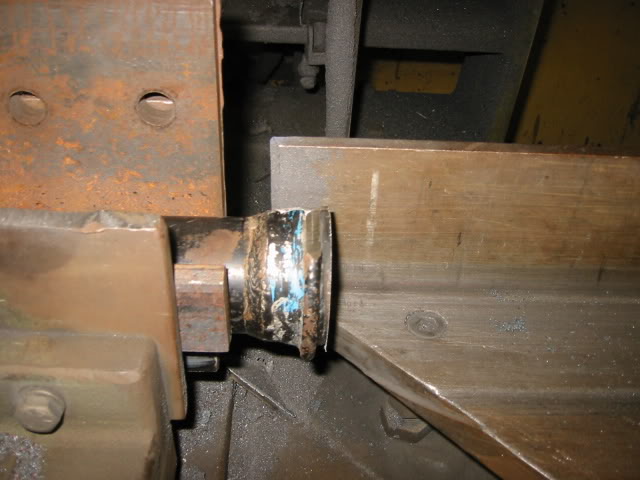

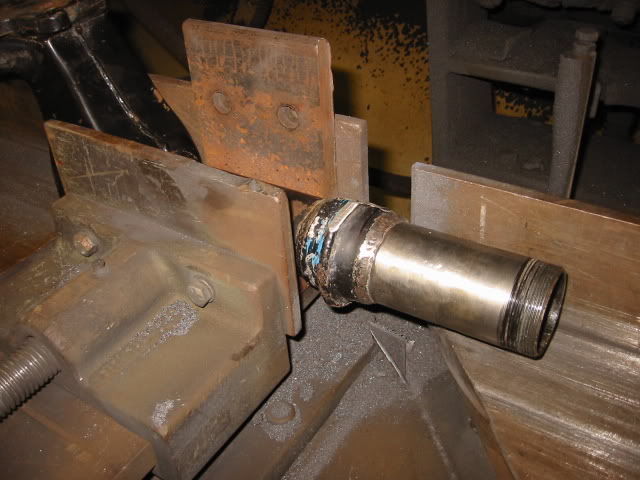

ok time to chop





i would have used a pipe cutter to cut it but i cut the section on tube out where the steering arm was.

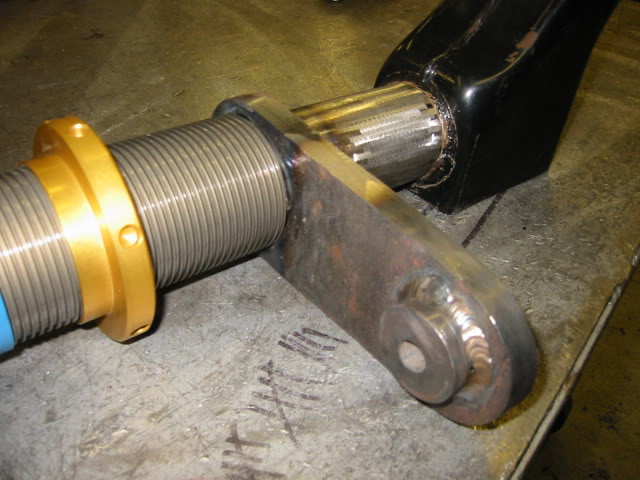

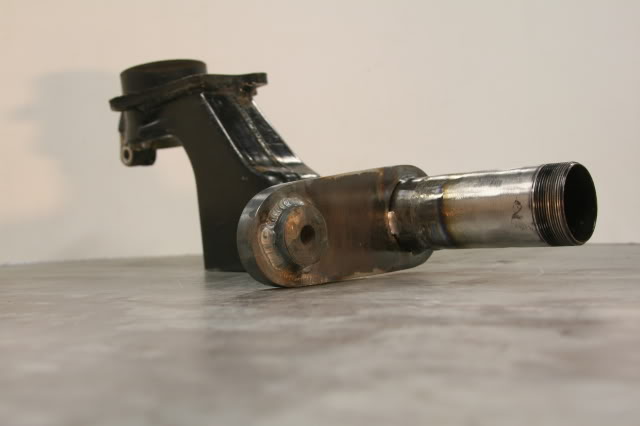

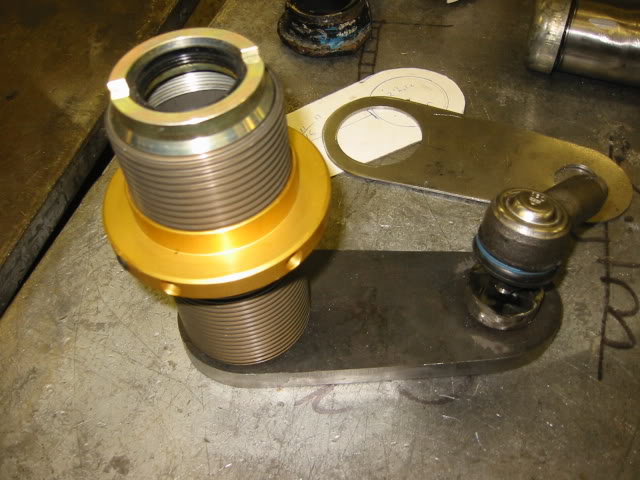

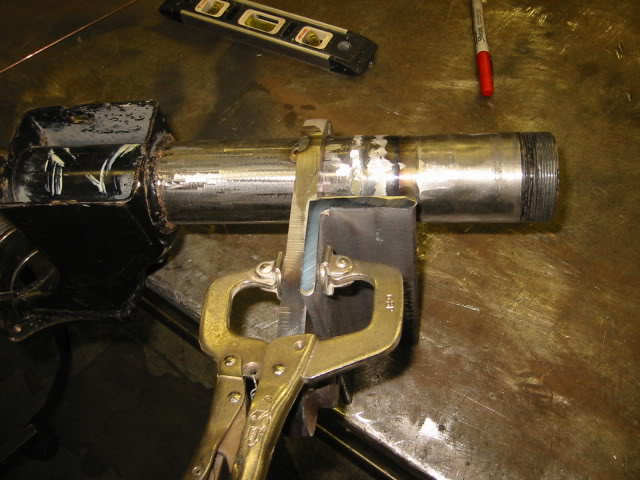

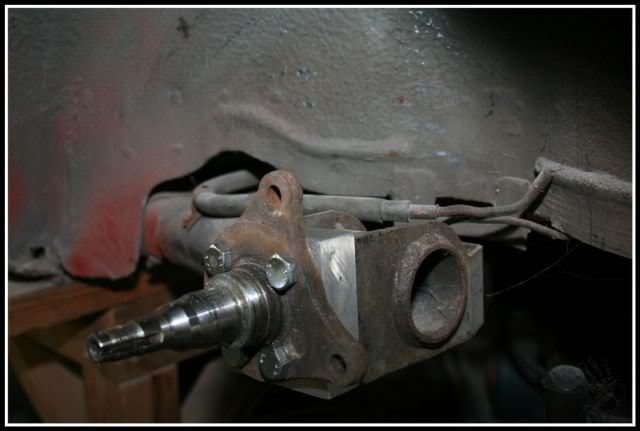

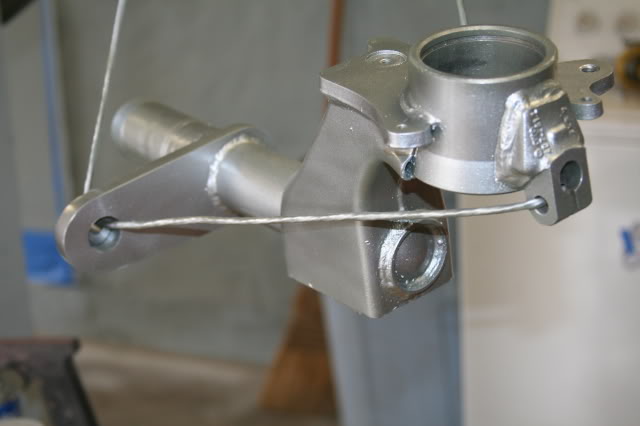

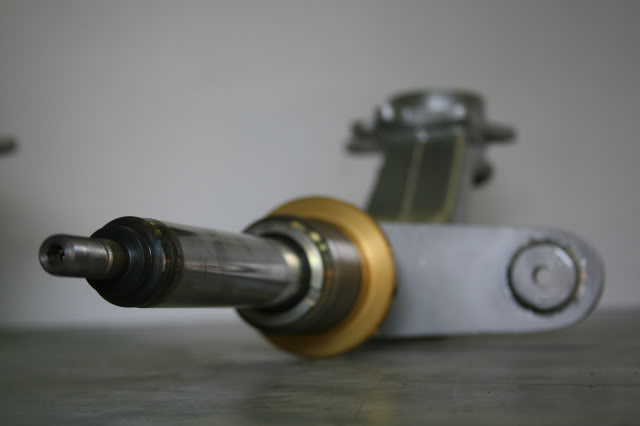

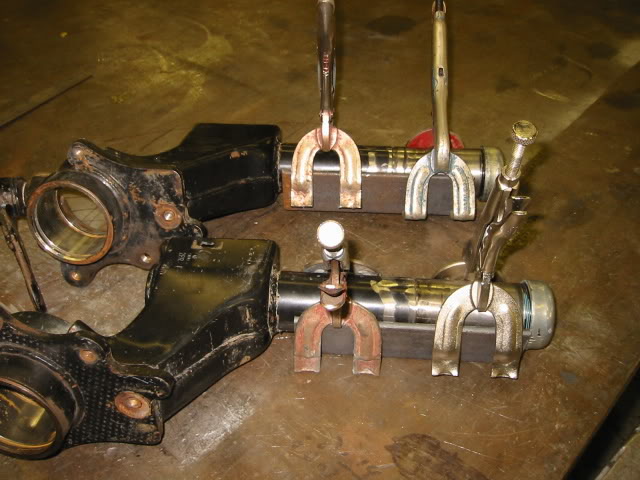

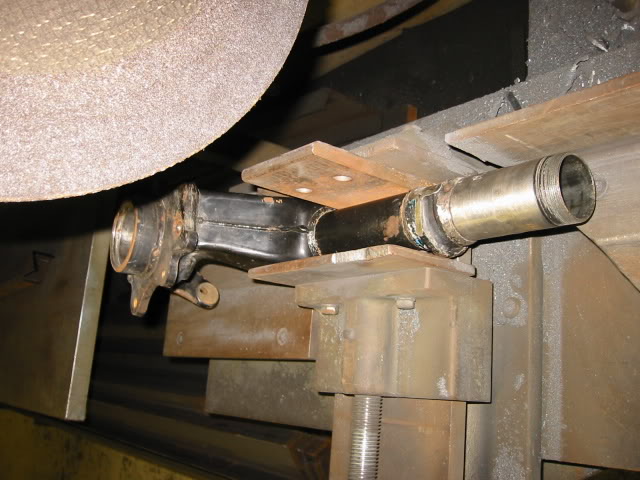

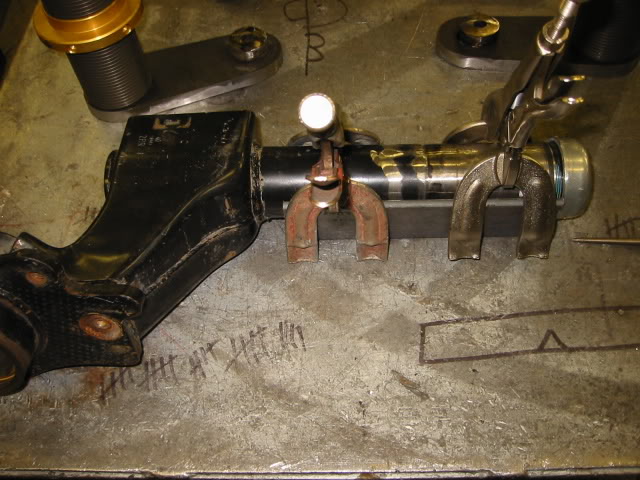

all mocked up

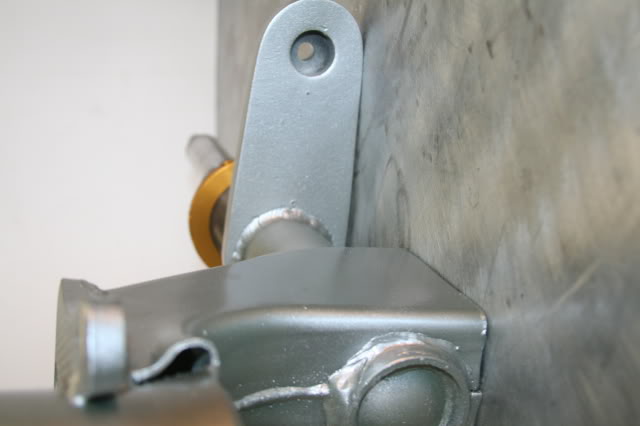

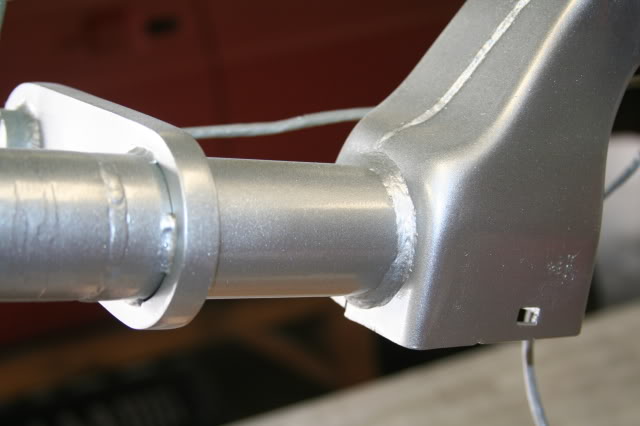

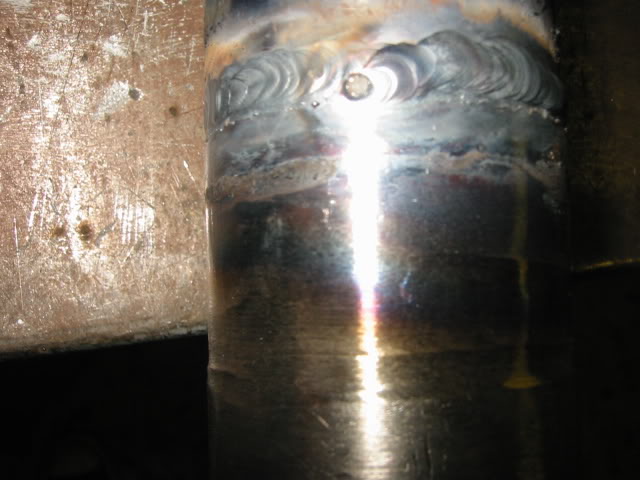

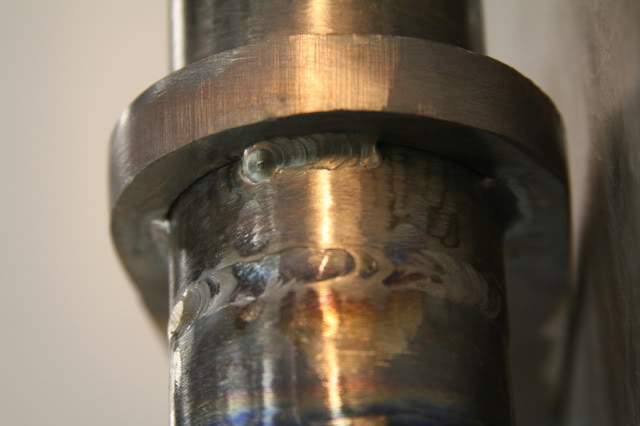

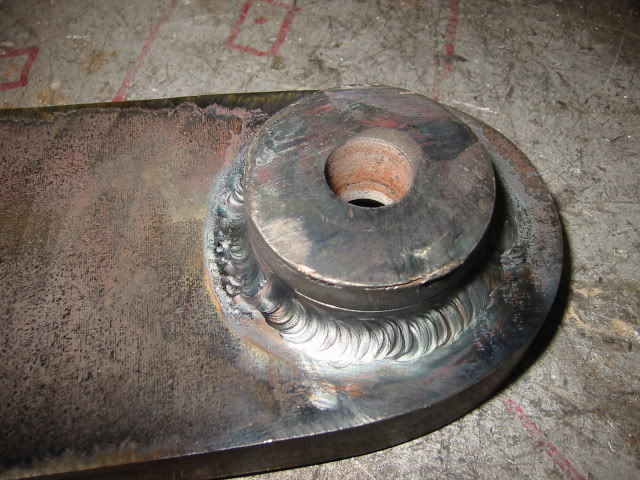

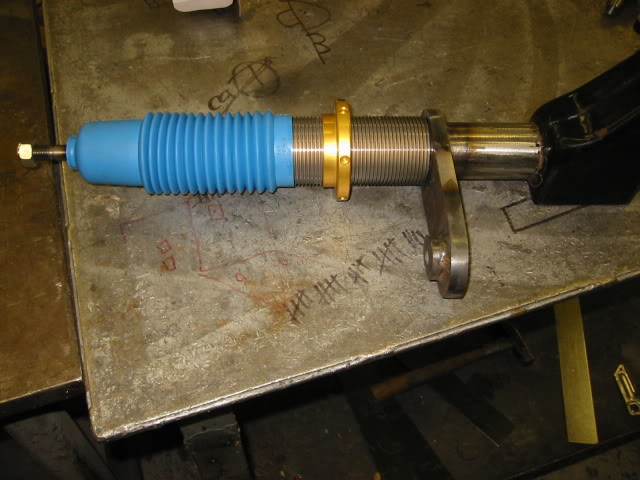

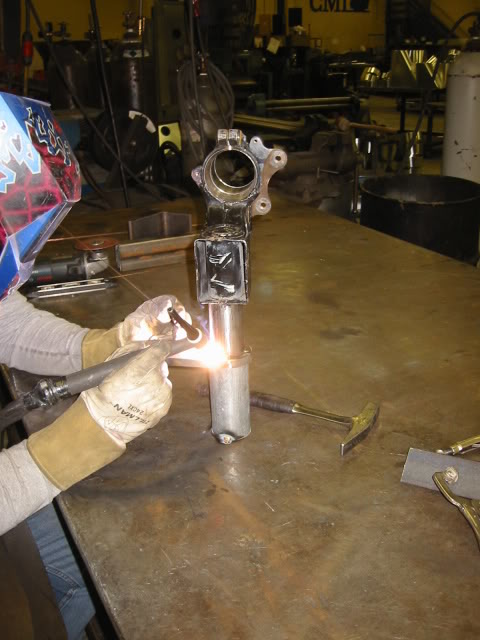

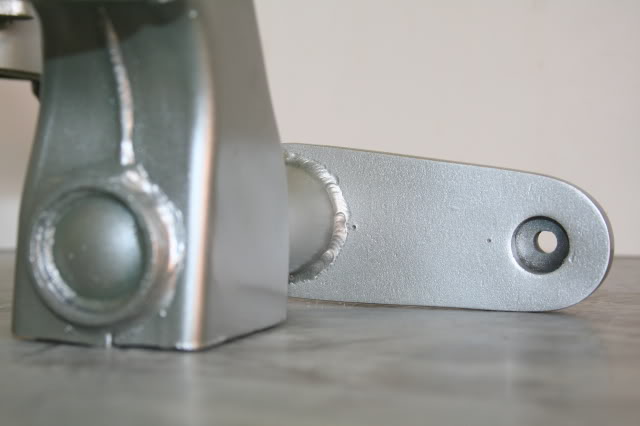

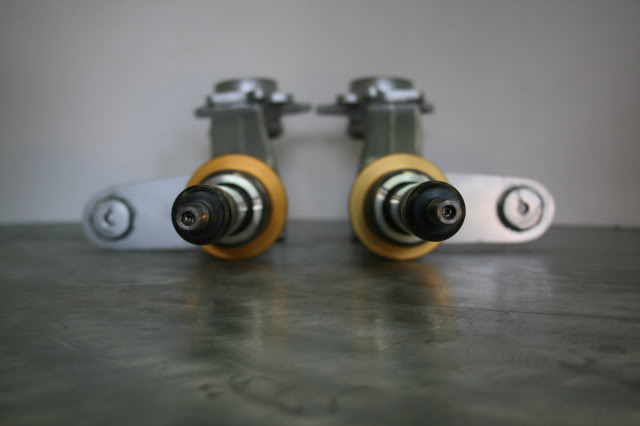

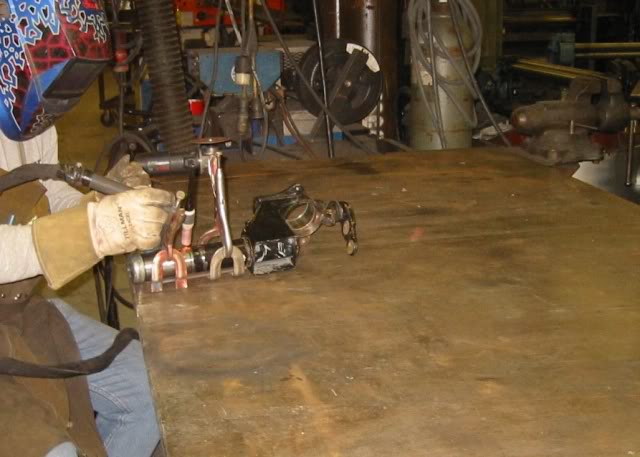

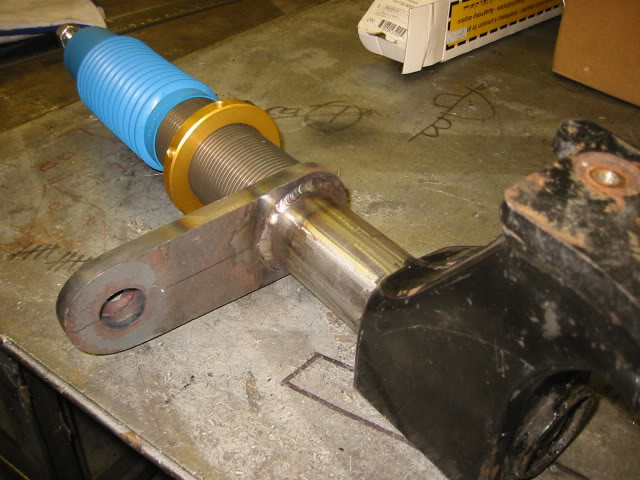

All tig welded up











more to come


back to the coil overs

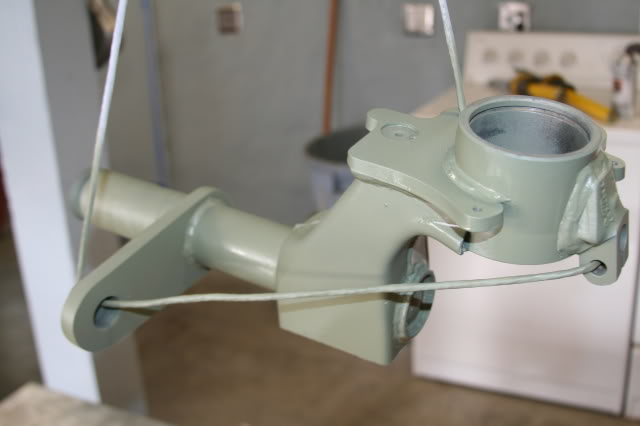

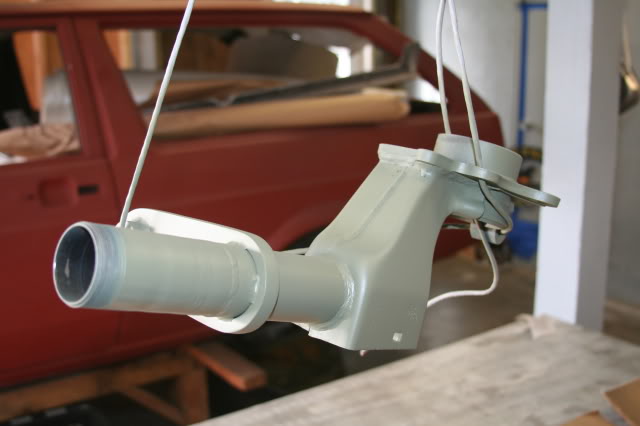

some etch primer

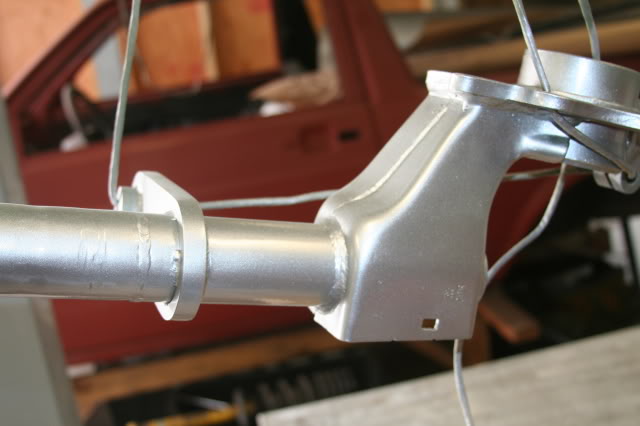

and paint

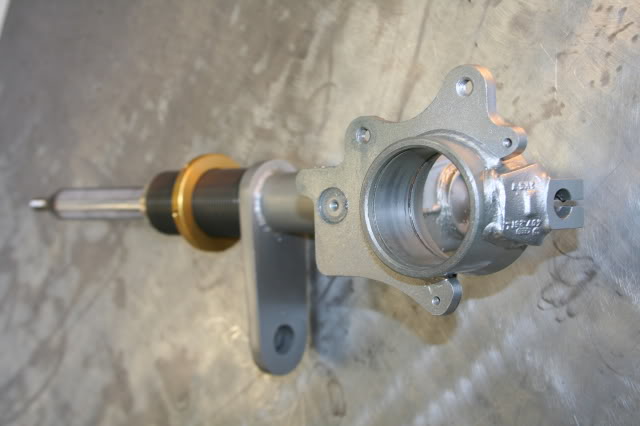

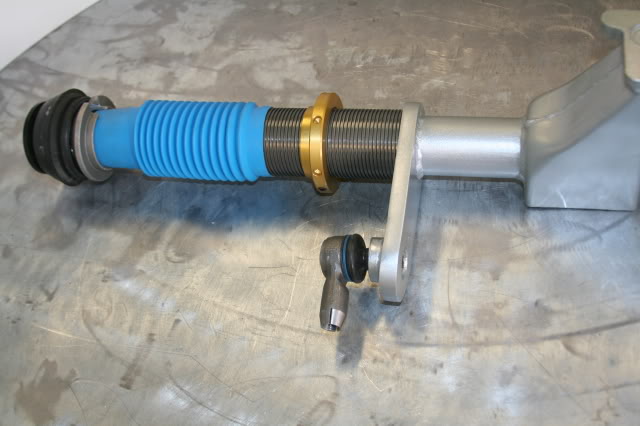

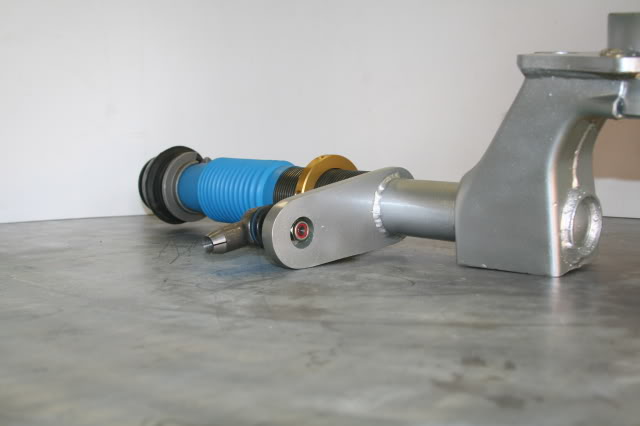

and reassembled









like a glove







What i haven't done yet is the shorting of the tie rods. they are to be shortened to retain all of the Original Ackermann geometry. this mod is not all about looks every attempt is being made to improve handling.

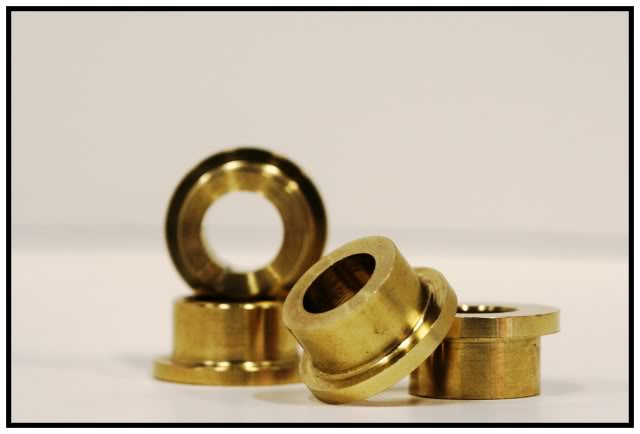

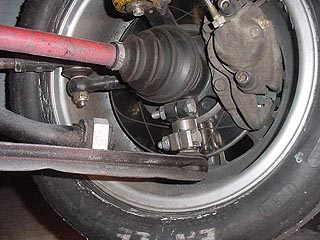

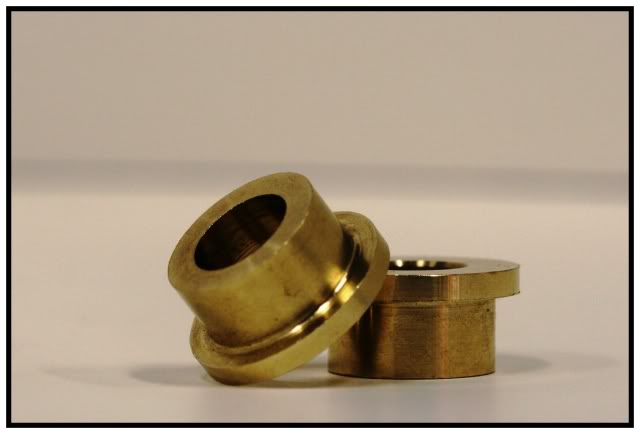

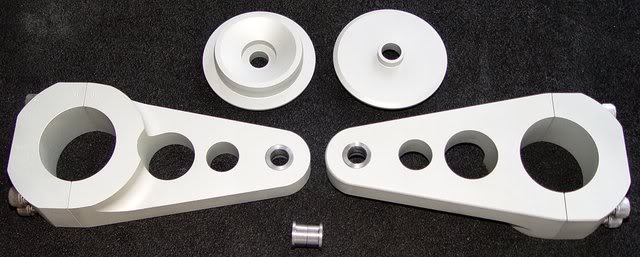

i have these to keep my a-arms flat





also this is not a new mod at all. This is copy of what many race teams use

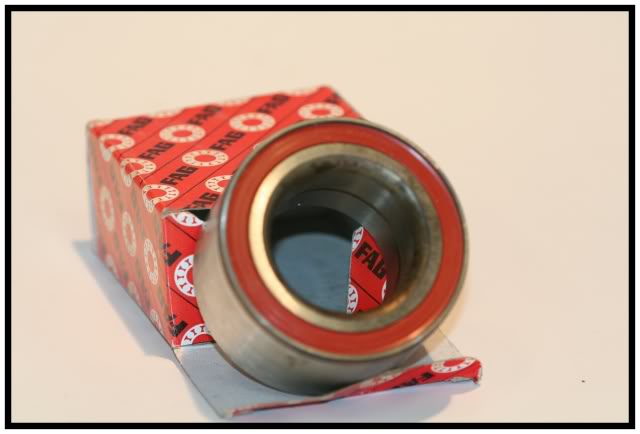

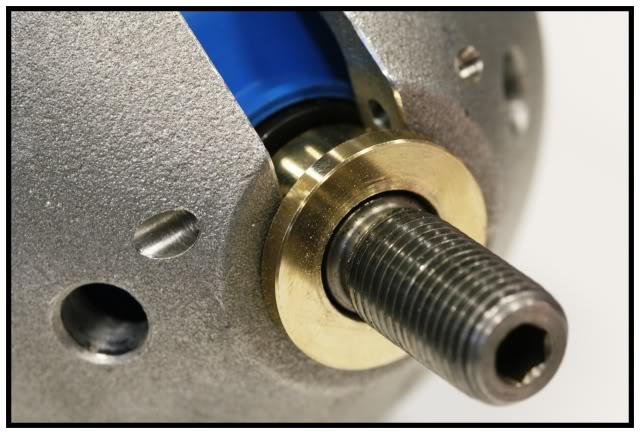

I pressed in new bearings today

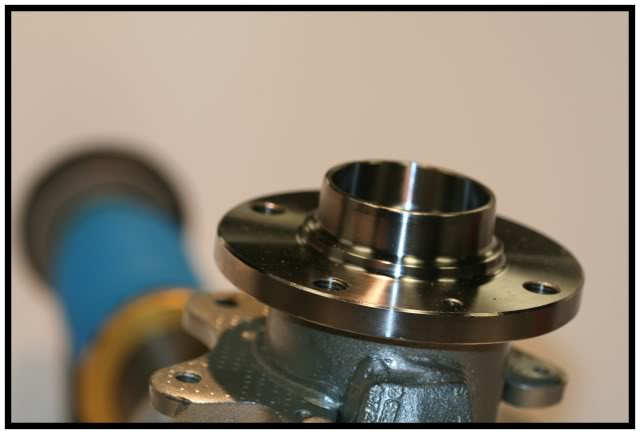

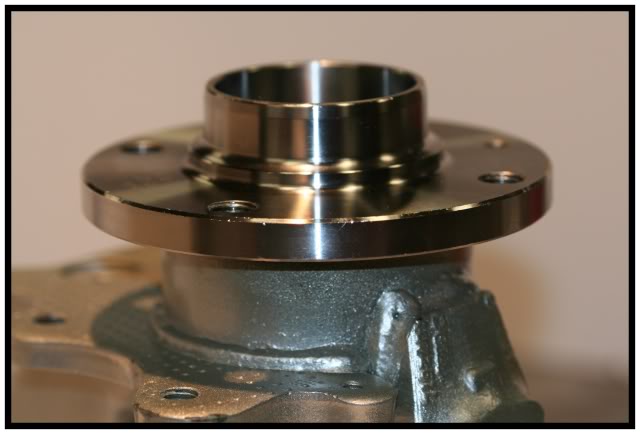

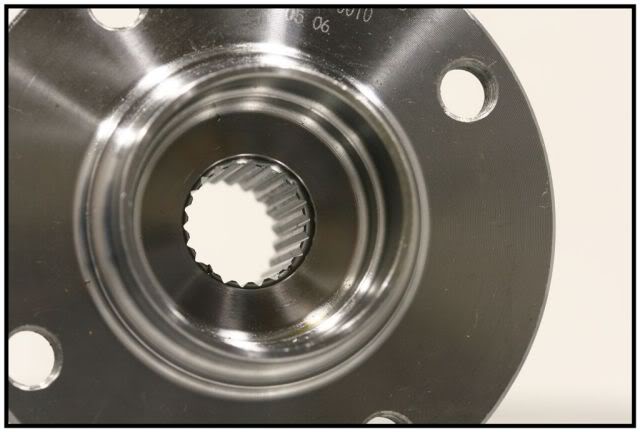

and hubs

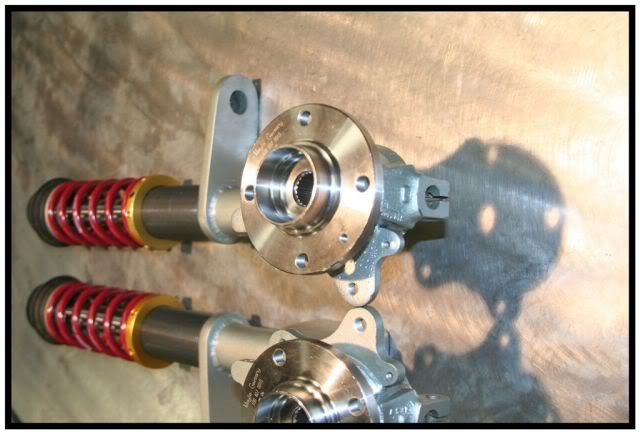

all done

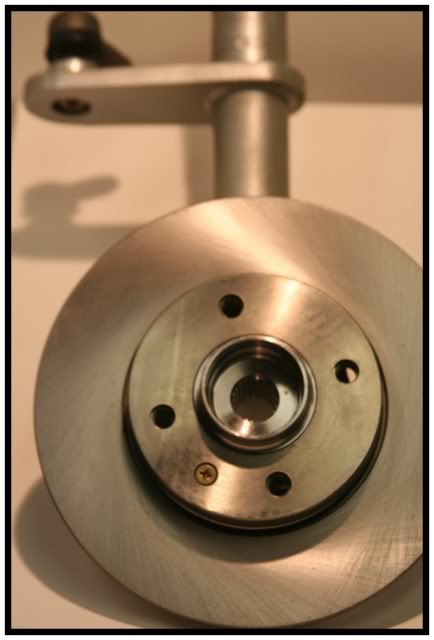

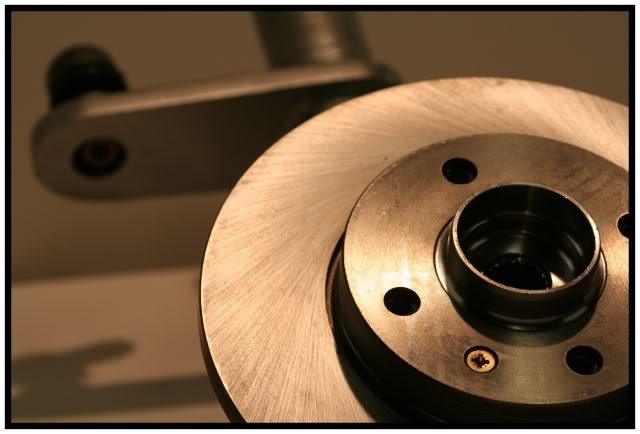

some rotors






now all i need is some new springs



i haven't chosen springs yet not sure on length or spring rates yet.
The rears are in the works too. nothing new here just shorter shocks and some coil over sleeves.


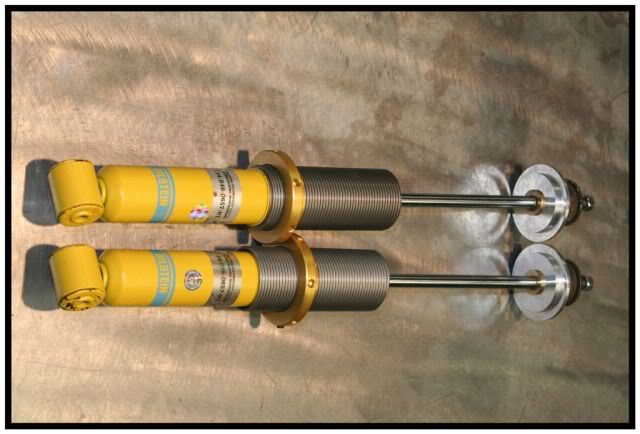

I have the rear sleeves now. i ordered springs today

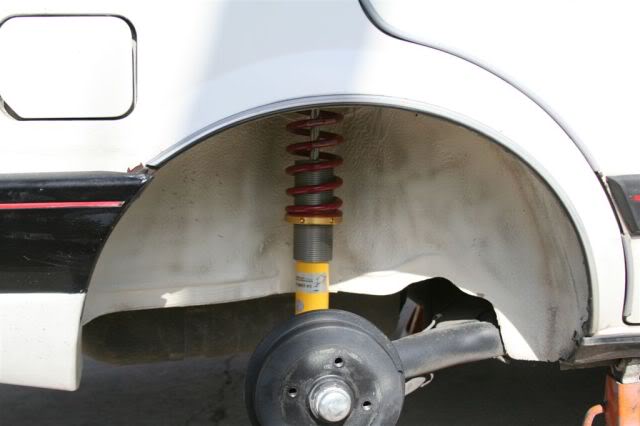

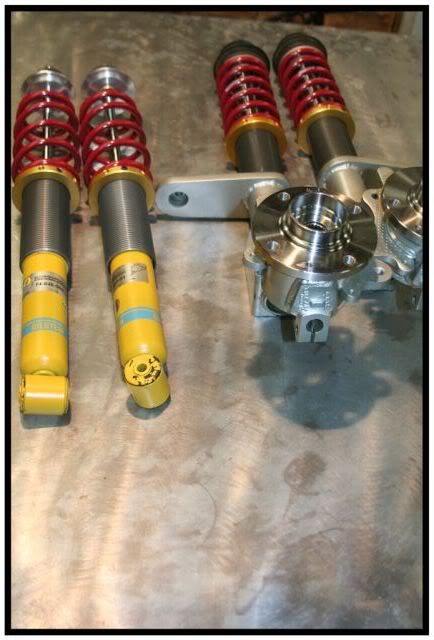

see i have all four corners now i will have the springs this week.

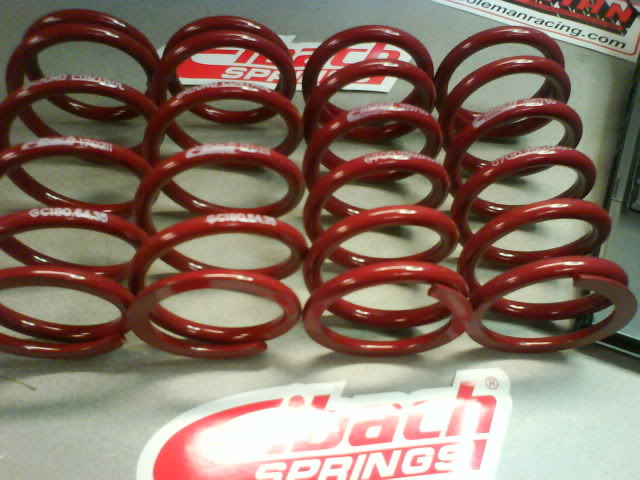

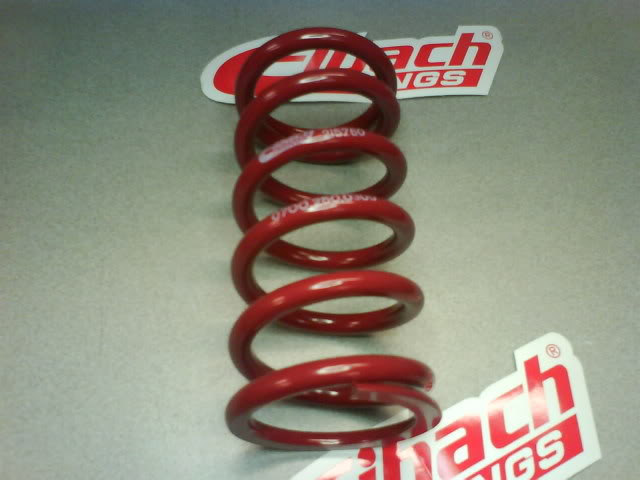

Wow! UPS ground delivered my springs in one day!




front 7" 350
rear 7" 250

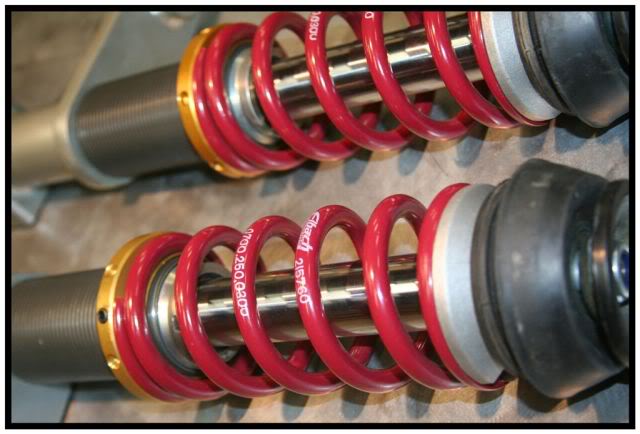

well i assembled them when i got home the fronts are perfect. I am thinking i need longer rears or some of the small helper springs i have seen on other coil overs
Fronts





Rears

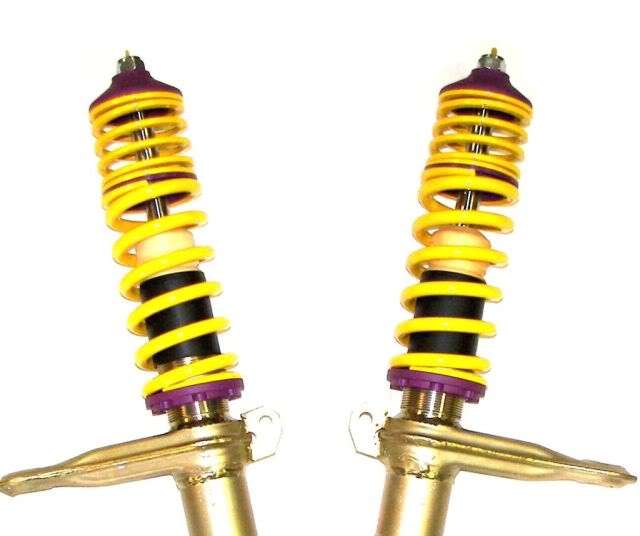

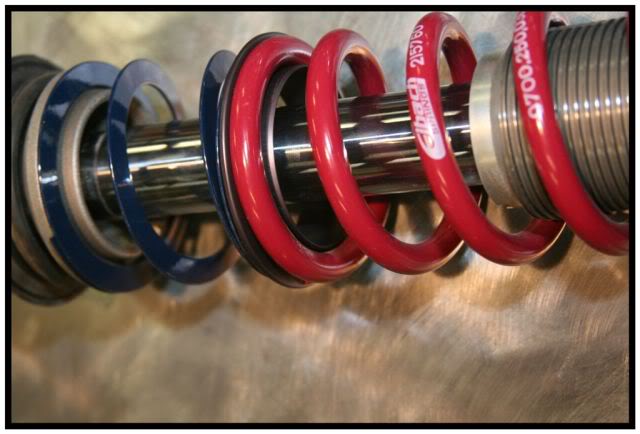

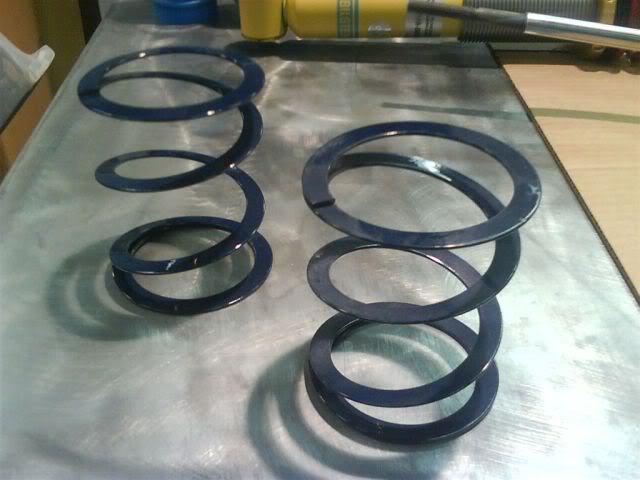

this is the small helper type spring i am thinking of?

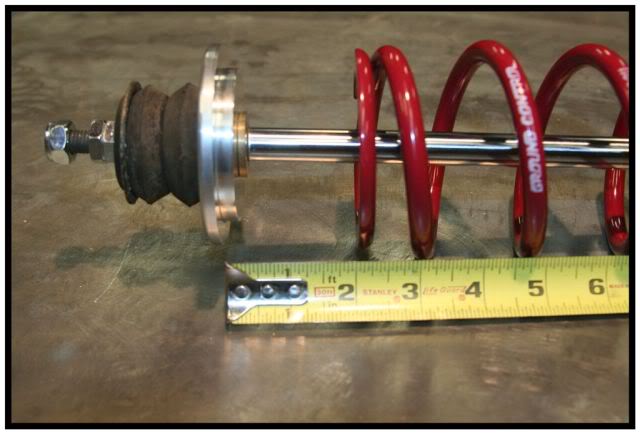

The spring is about 2" short. it is a 7" 200lb spring. I will call Ground Control in the morning to see if i can exchange them for a different spring.


So i got the last few parts today for my coils. http://www.pegasusautoracing.c...=1876

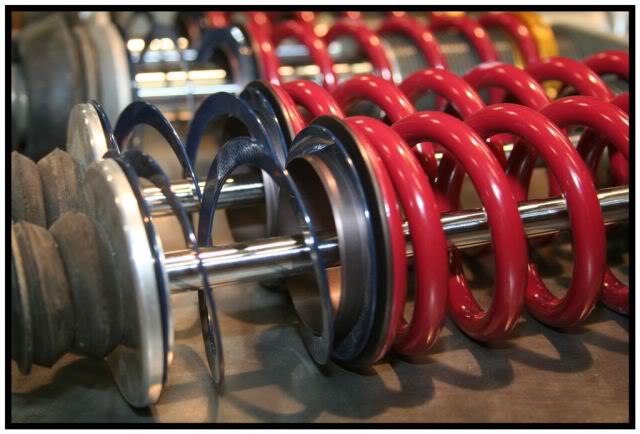

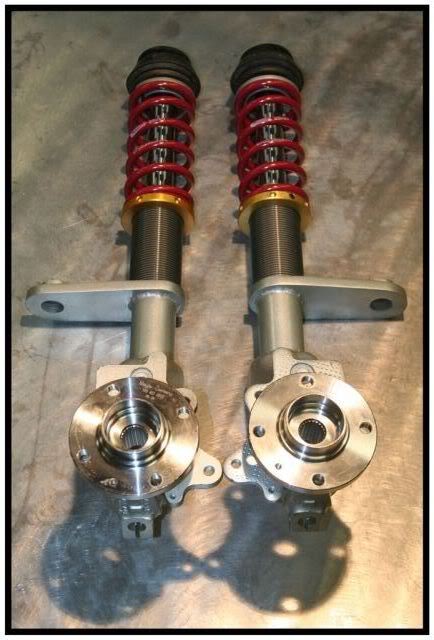

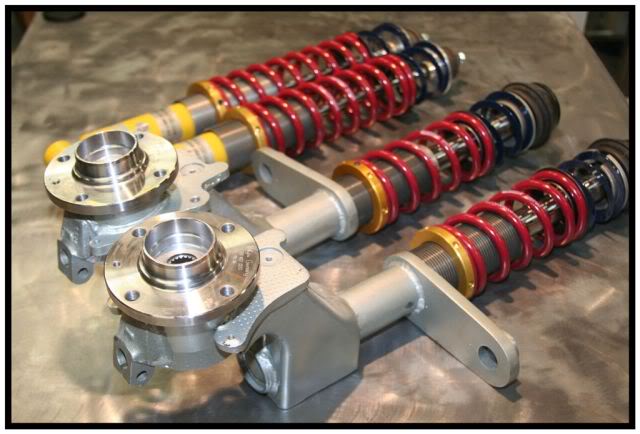

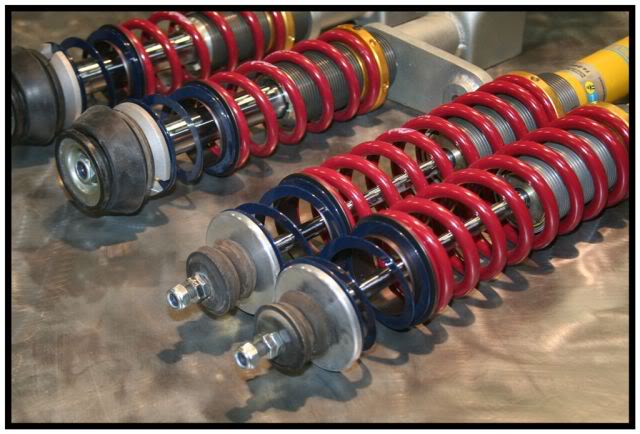

all assembled ready for some new break parts






OK i am done picture whoring for now....

OK so i finally got some time to install the coil overs. ran into a few challenges some were expected some were a surprise.
the first snag was the steering arms and shorting the tie rods.

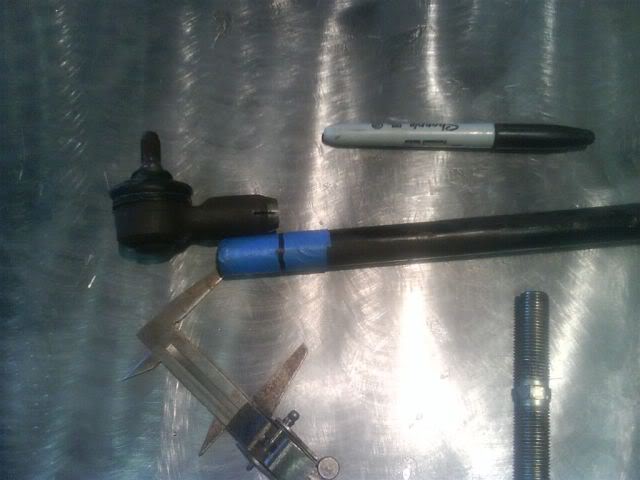

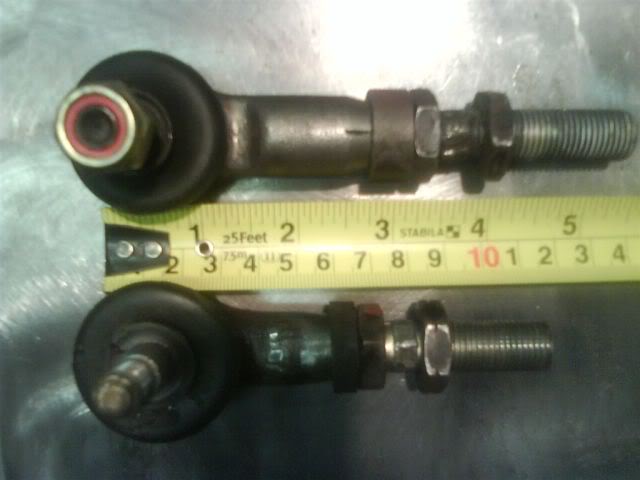

first i cut down a the tie rod ends a bit and the rods them selves about 1" total shorter

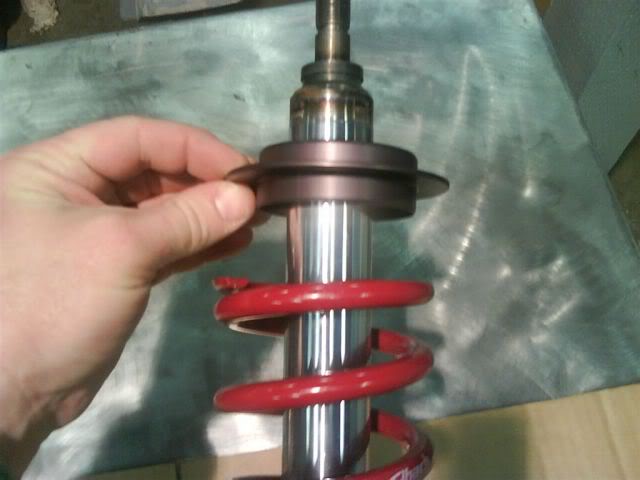

the next snag was a surprise! i installed the strut towers in the car and cycled the springs up and down a few times with a floor jack. found out when the helper spring are fully compressed, the spring coupler binds on the top hat and just stays that way. so i pulled it all apart.

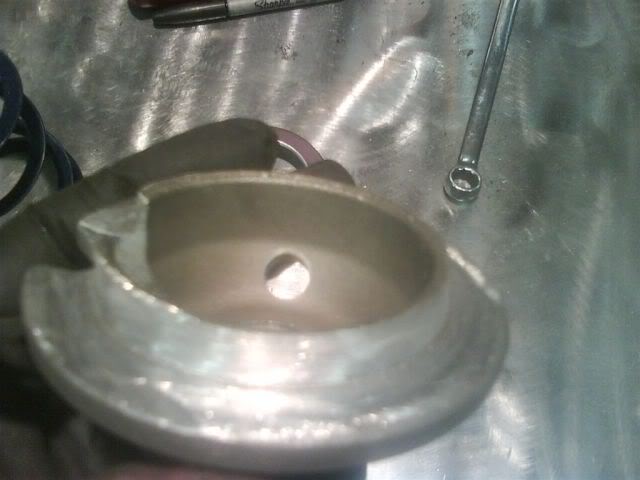

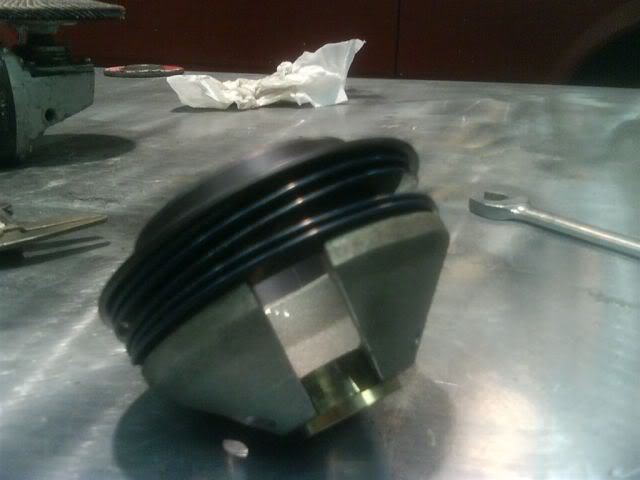

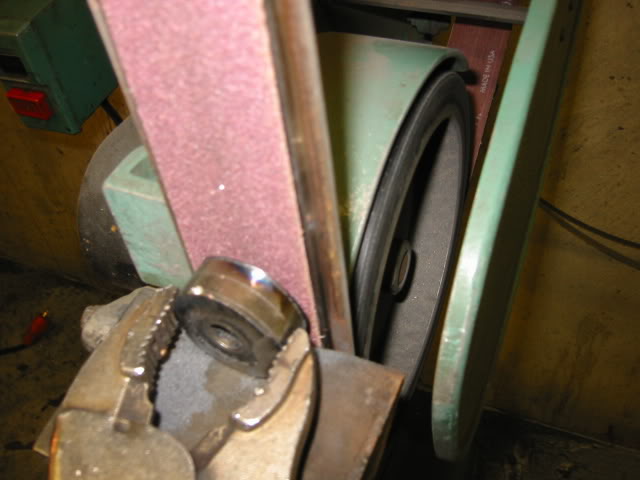

pry ed the spring loose. then ground a little off the top hat and the spring coupler till they no longer bind up

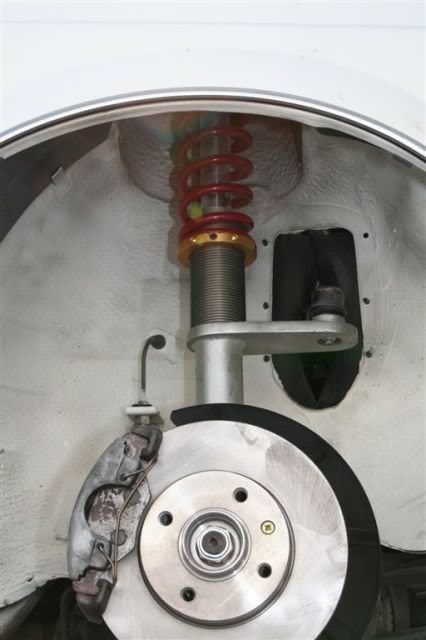

all happy now

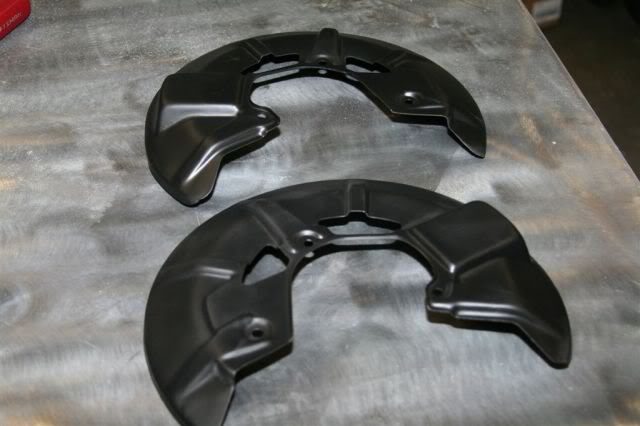

Gave the break shields a quick blast then some paint




well that's all for today, hopefully i can get it all done this weekend.

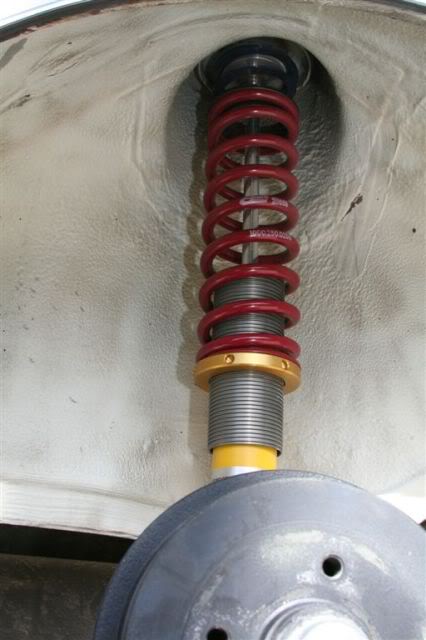

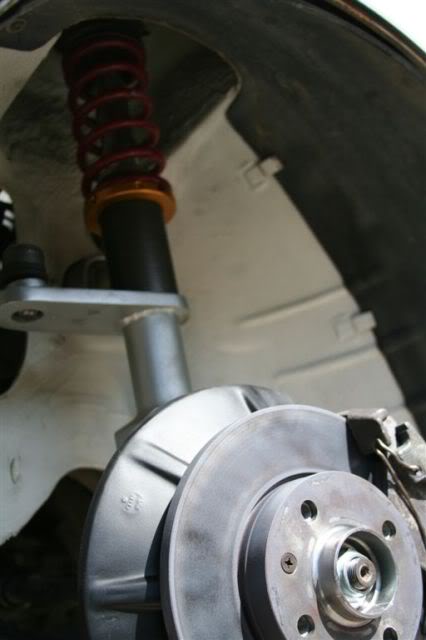

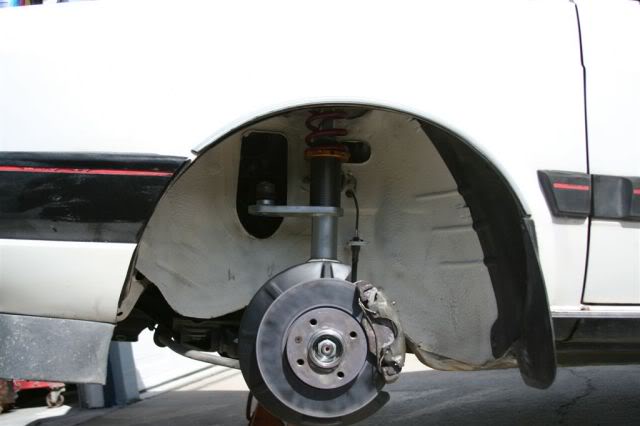

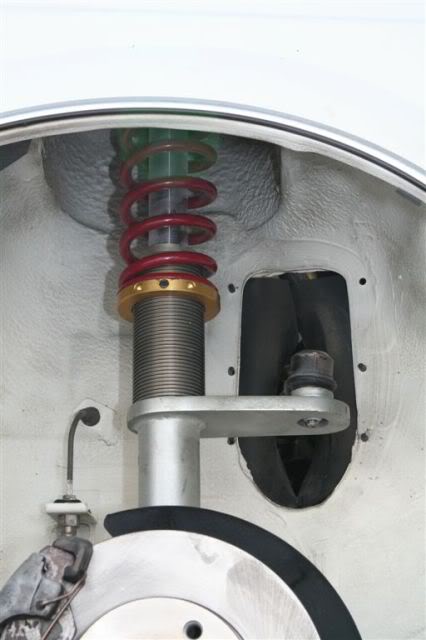

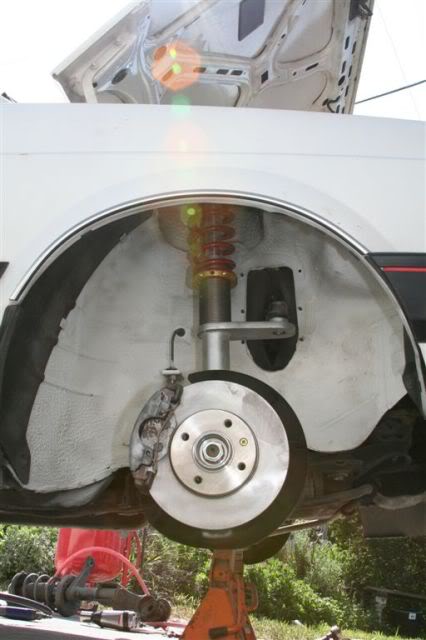

Ok that was a fun day of work. I caught my shoe on fire, the shop is a mess and my back hurts...but the Coil overs are all in.









didn't really go smoothly. had to trim and grind a few different spots.
well with the rear all the way down the exhaust is sitting on the ground and the floor boards are about 3/4" off the ground.



I raised the rear a bit. went for drive. well it handles good still need to tune in and realign. oh and the S10 spoiler dint make it out of the drive way...

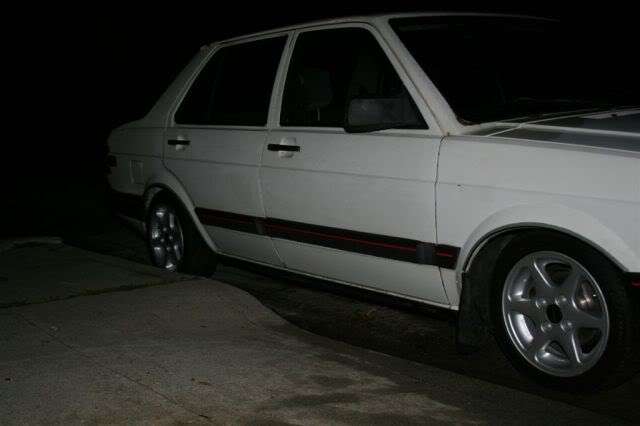

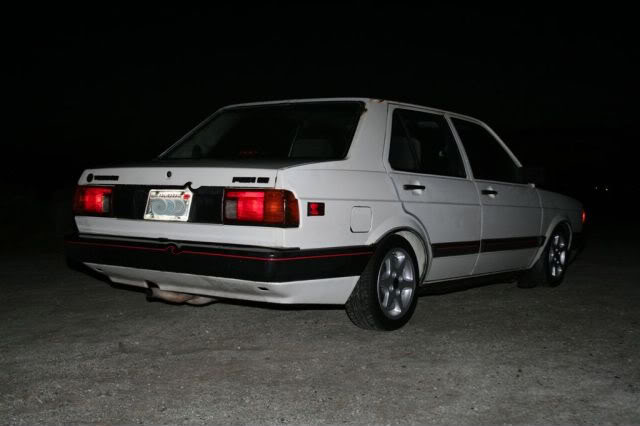

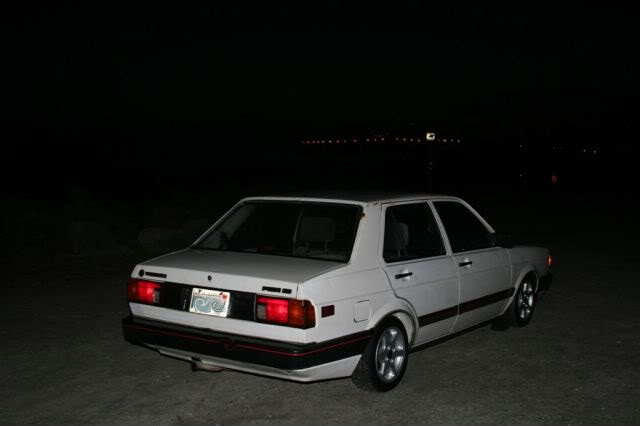

well it was dark when i finished so the pictures i got are kinda Sukey. i will get some better ones in the morning










Yea i have it in the garage but it is too big to fit now. when i lowered the car off the jack the lip spoiler was bent in half. i could put it back on Squeegee puddles off the road.

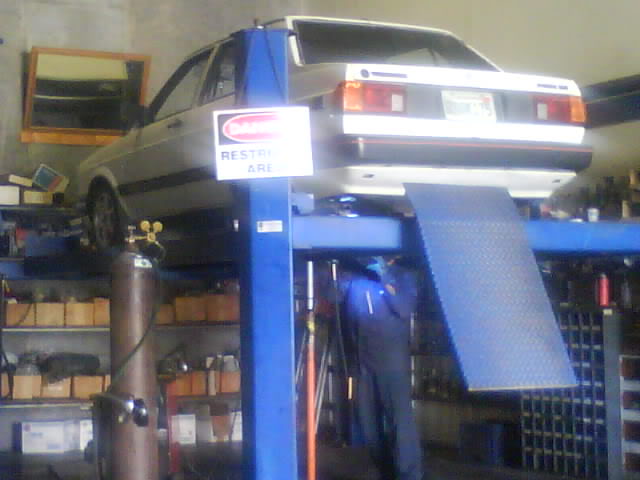

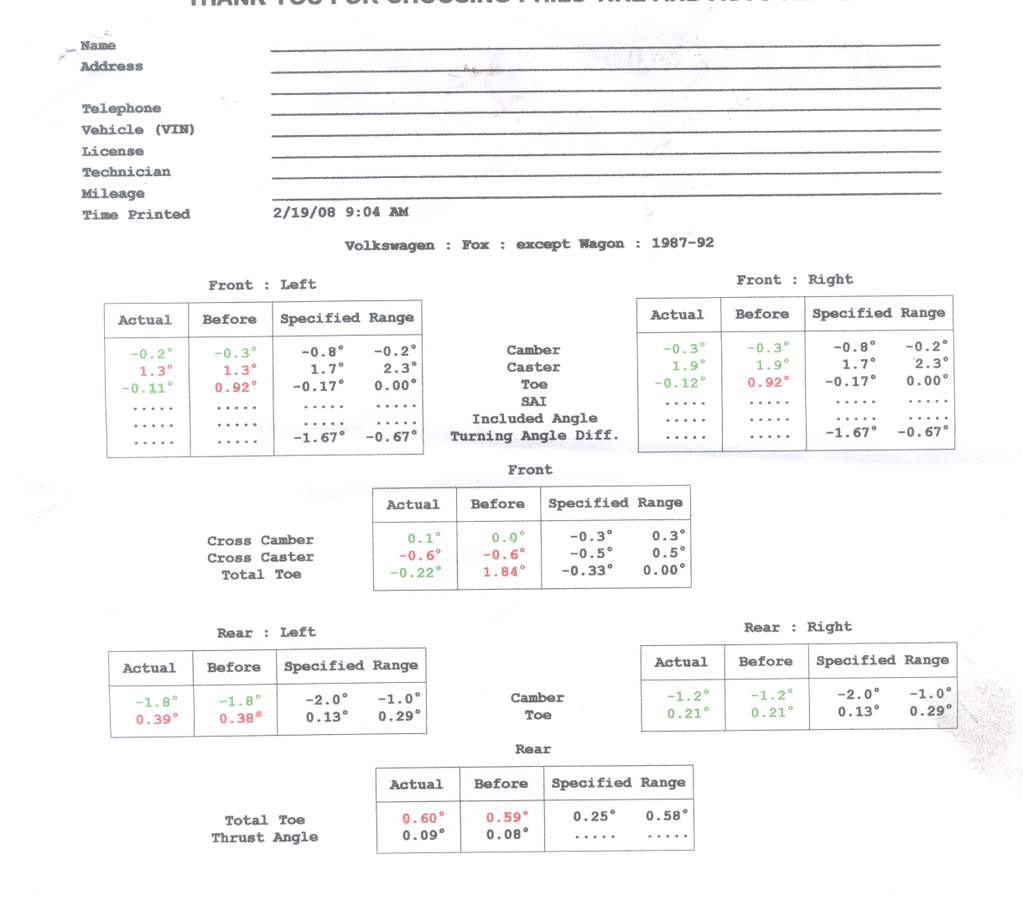

ust got the car back from the shop for a alignment. drives super nice.
the alignment came out perfect even though its in the weeds. i thought for sure at least the camber would be messed up a bit.

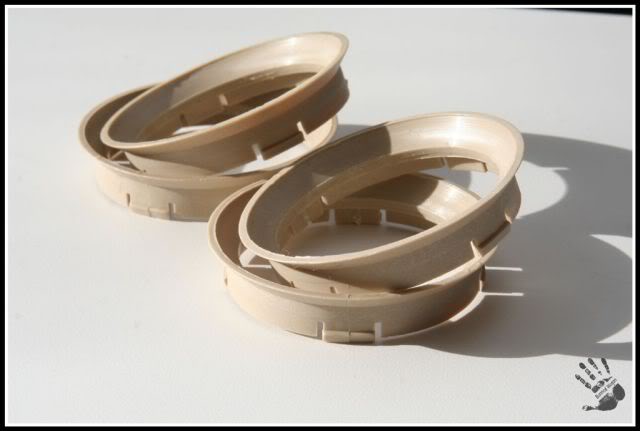

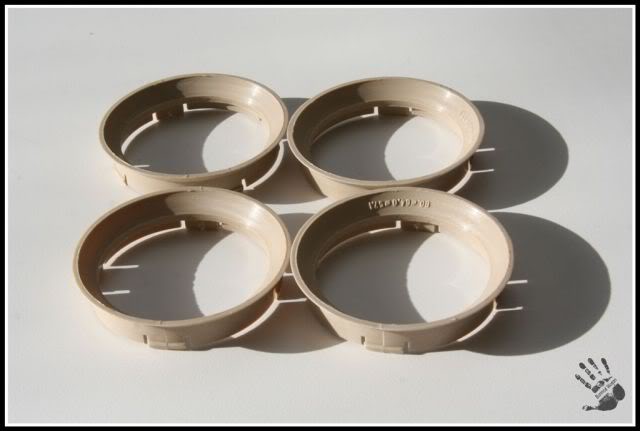

I got the hub centric rings today. installed them wow what a difference!




also spent a good long wile getting the exhaust all tucked up as high as possible.

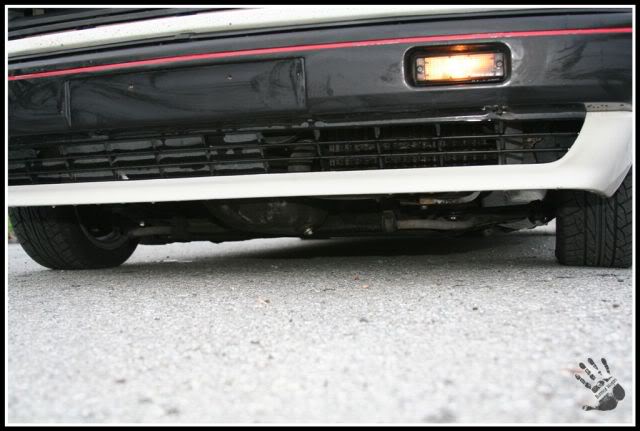

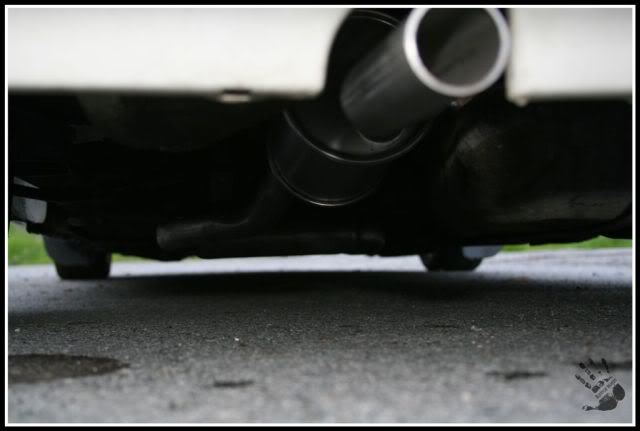

now the exhaust is not the lowest thing under the car.



so with my new found ground clearance i readjusted the ride height down a bit on the front and rear. and leveled it out no more rake.

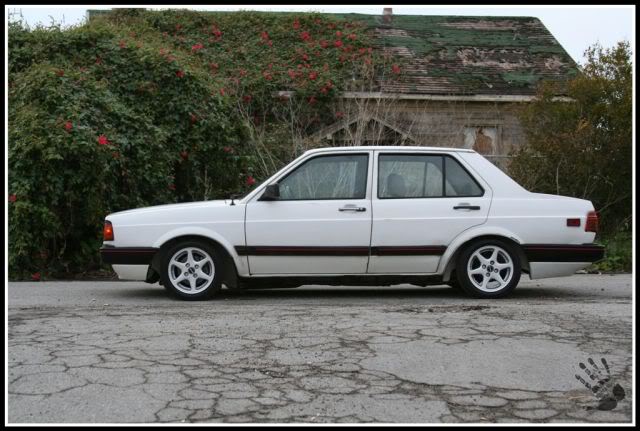

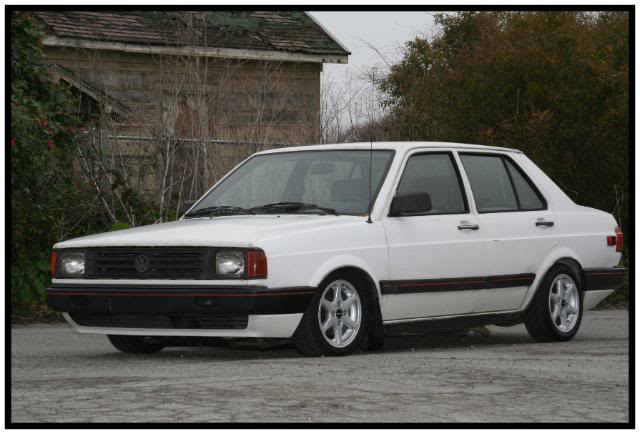

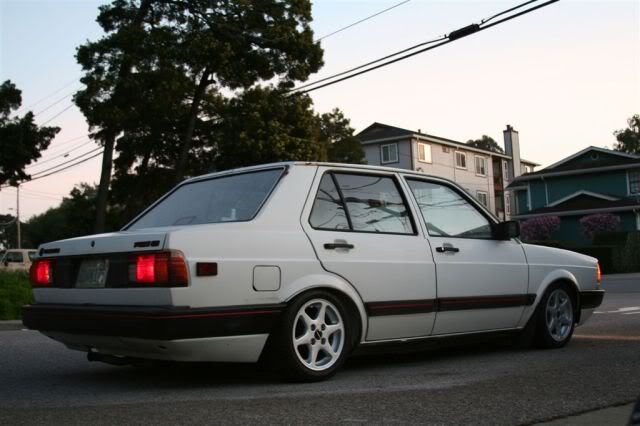

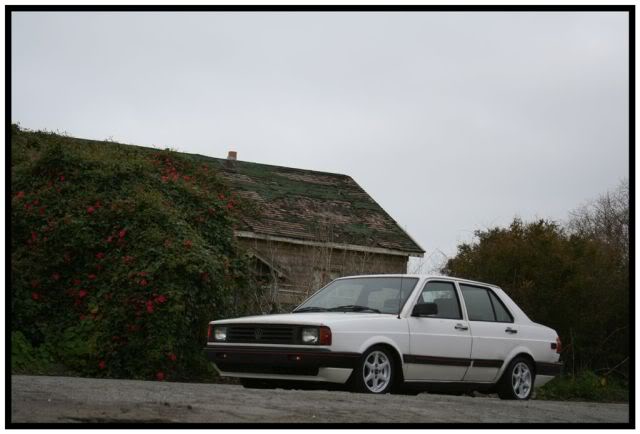

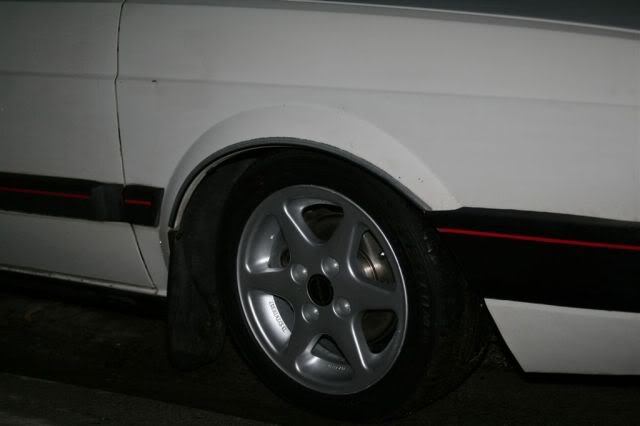

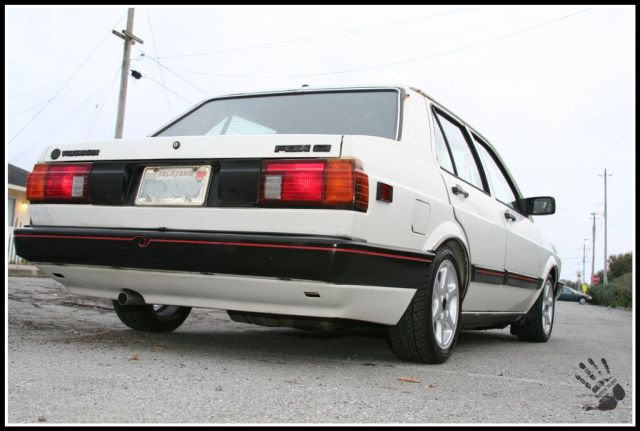

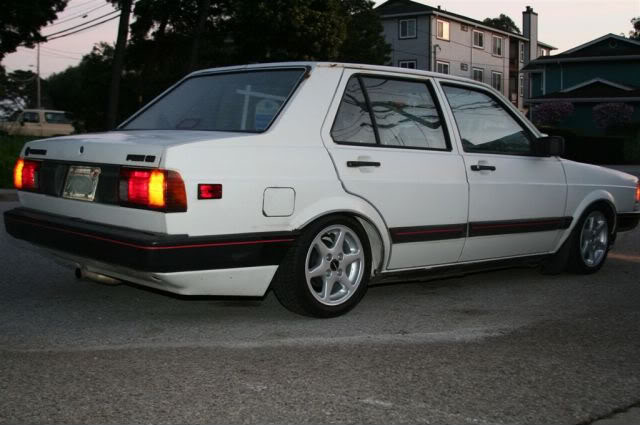

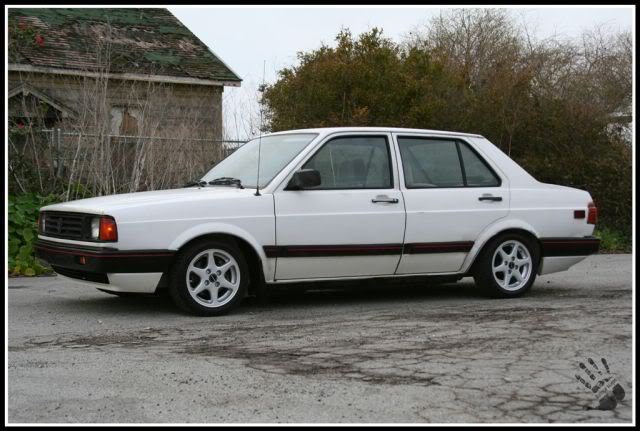

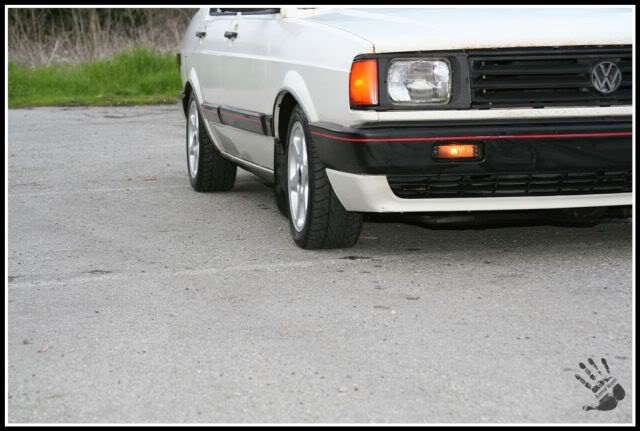

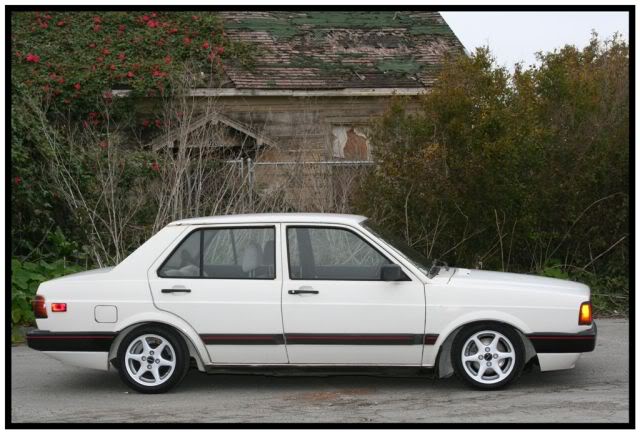

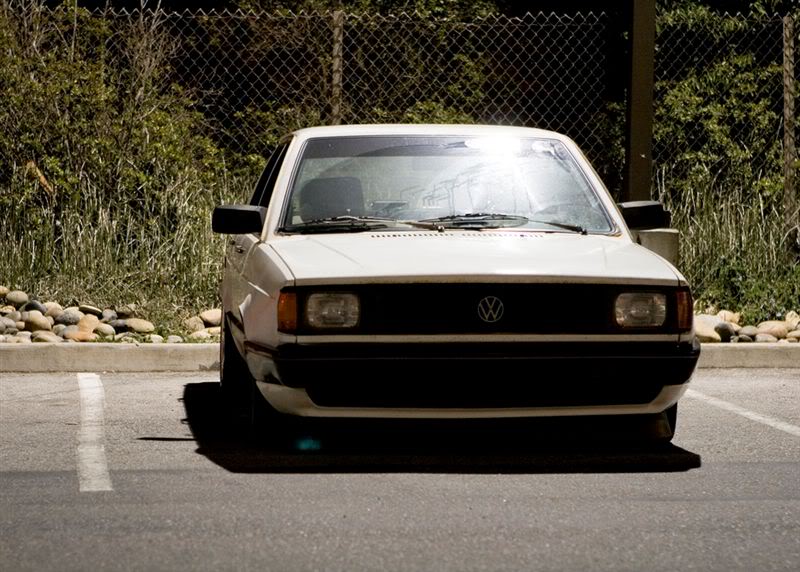

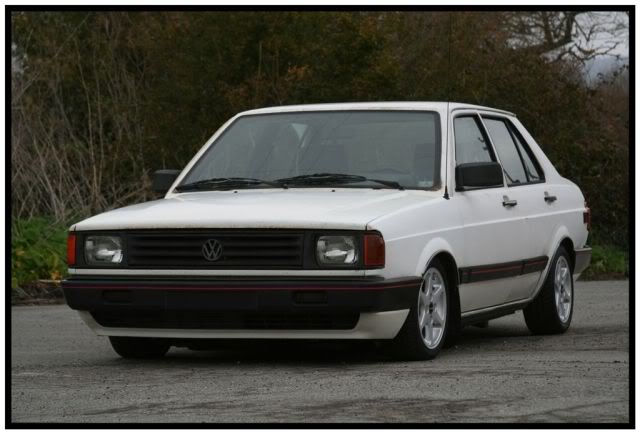

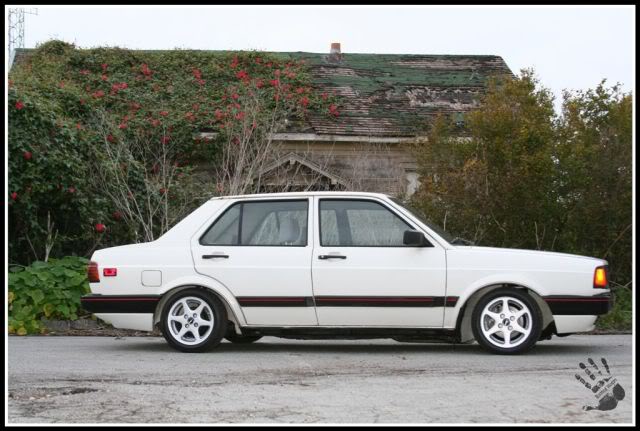

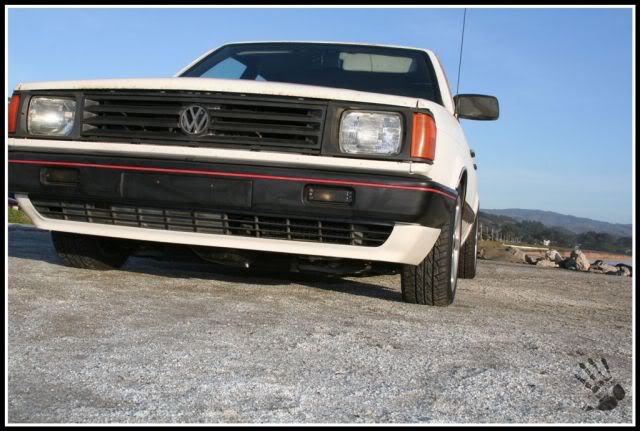

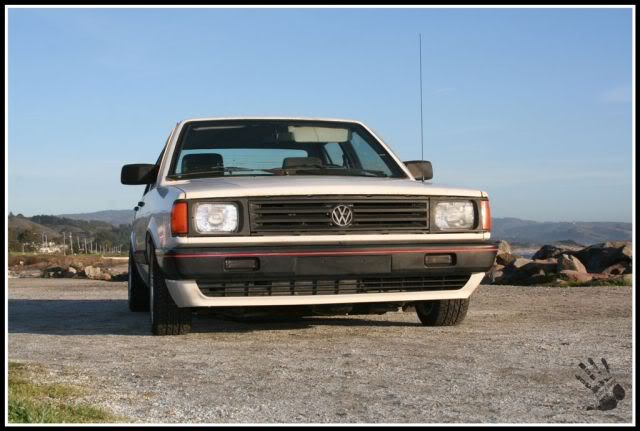

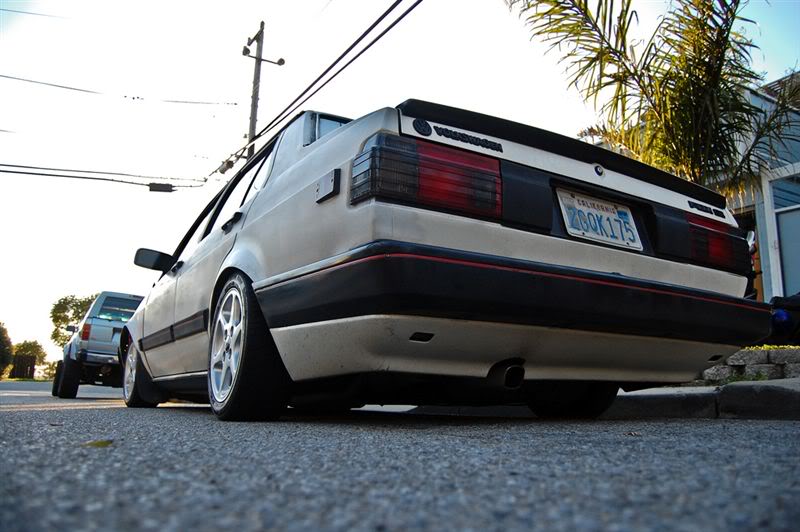

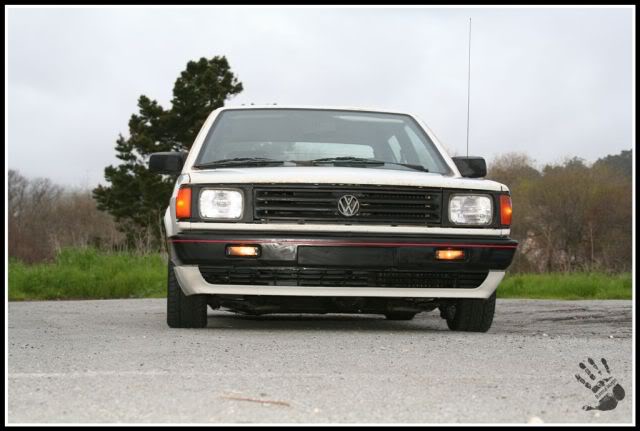

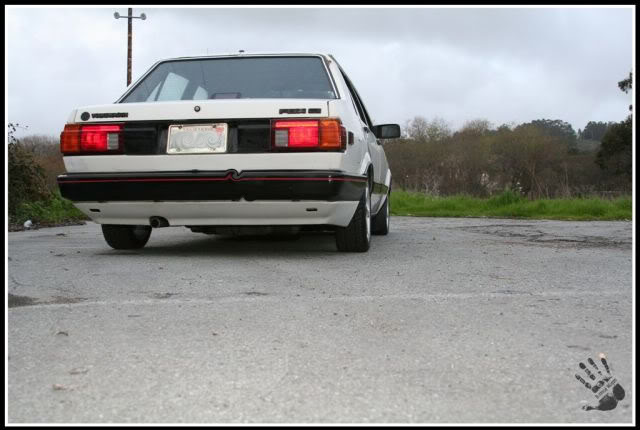

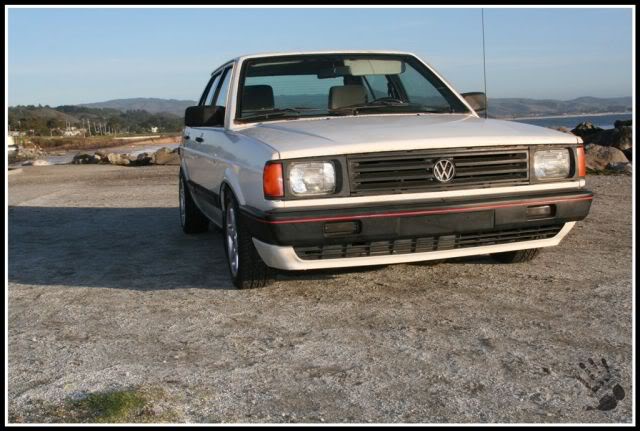

new daily driving height and pictures at that height

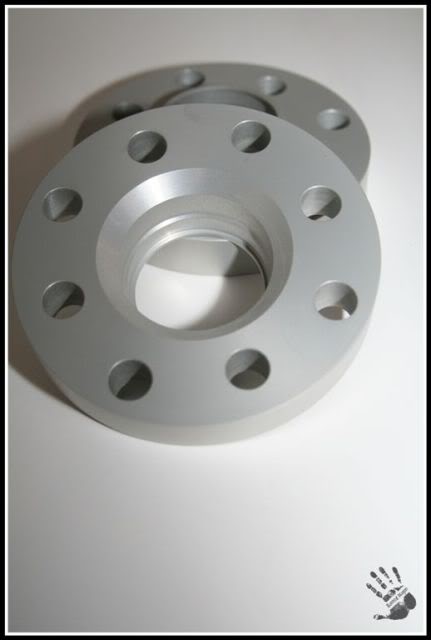

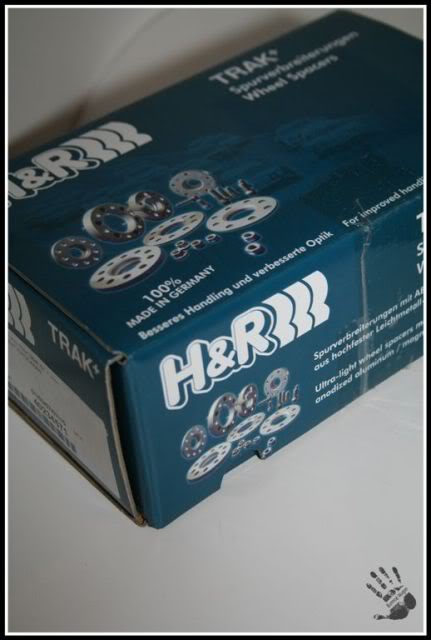

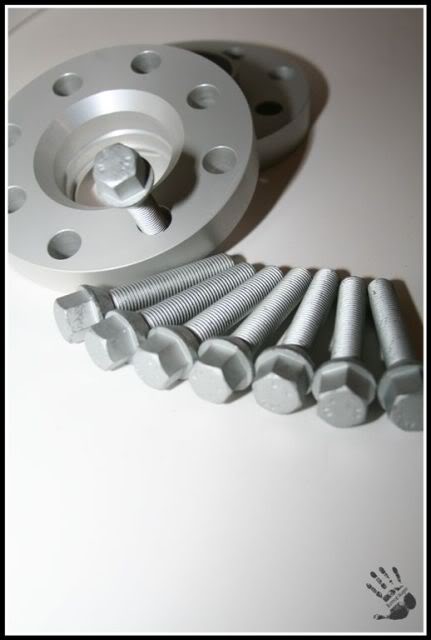

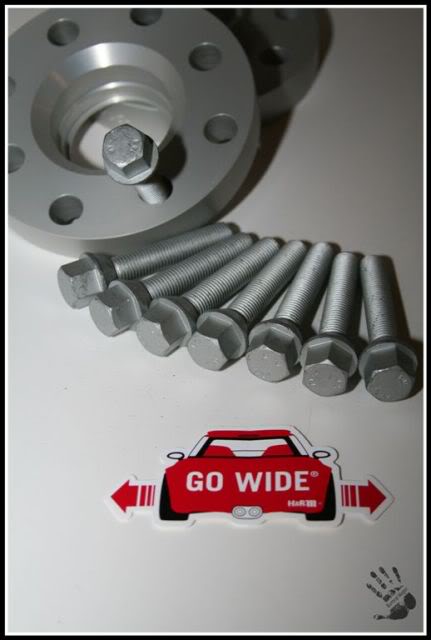

OK i got my 20mm spacers for the fronts

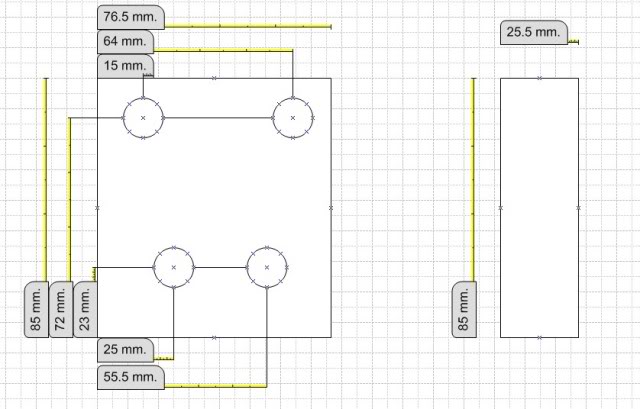

now i am going to make these for the rear

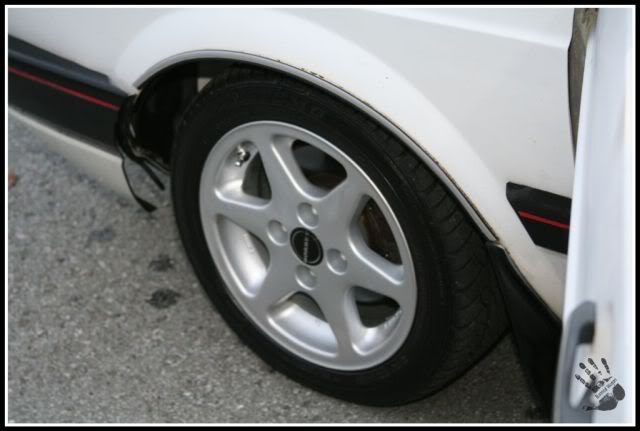

this is with it all the way down in the back and front



this is the front all the way down and the back up a bit

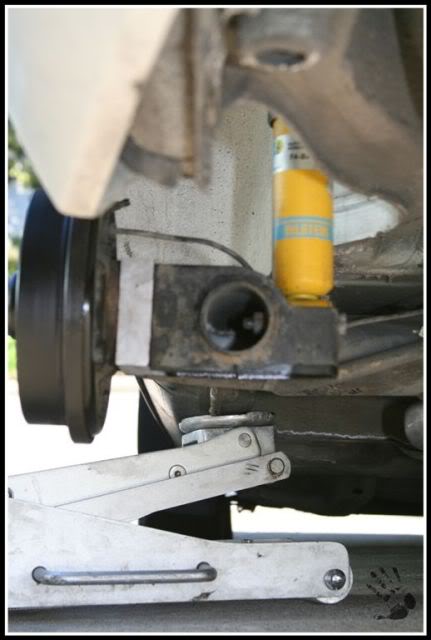

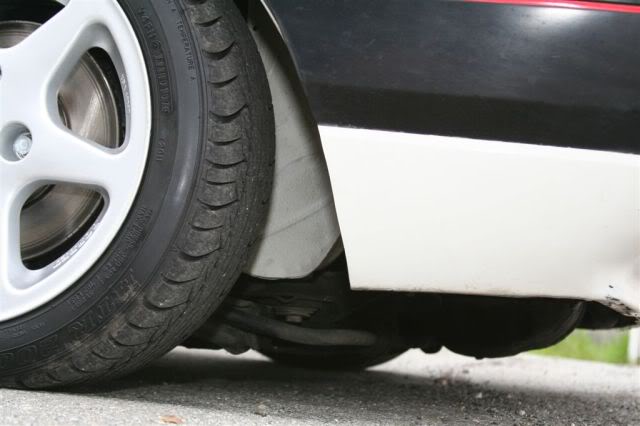

this is the rear all the way down. the car sitting on the pans in the rear


Ok spacers are done and in 20mm front and 25mm rear.

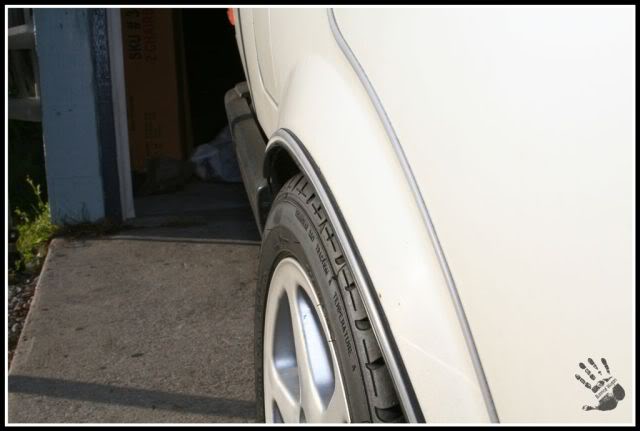

Front 20mm



Rear
25.5mm







rear with spacer



front and rear with spacers
