some more shots from tonight...

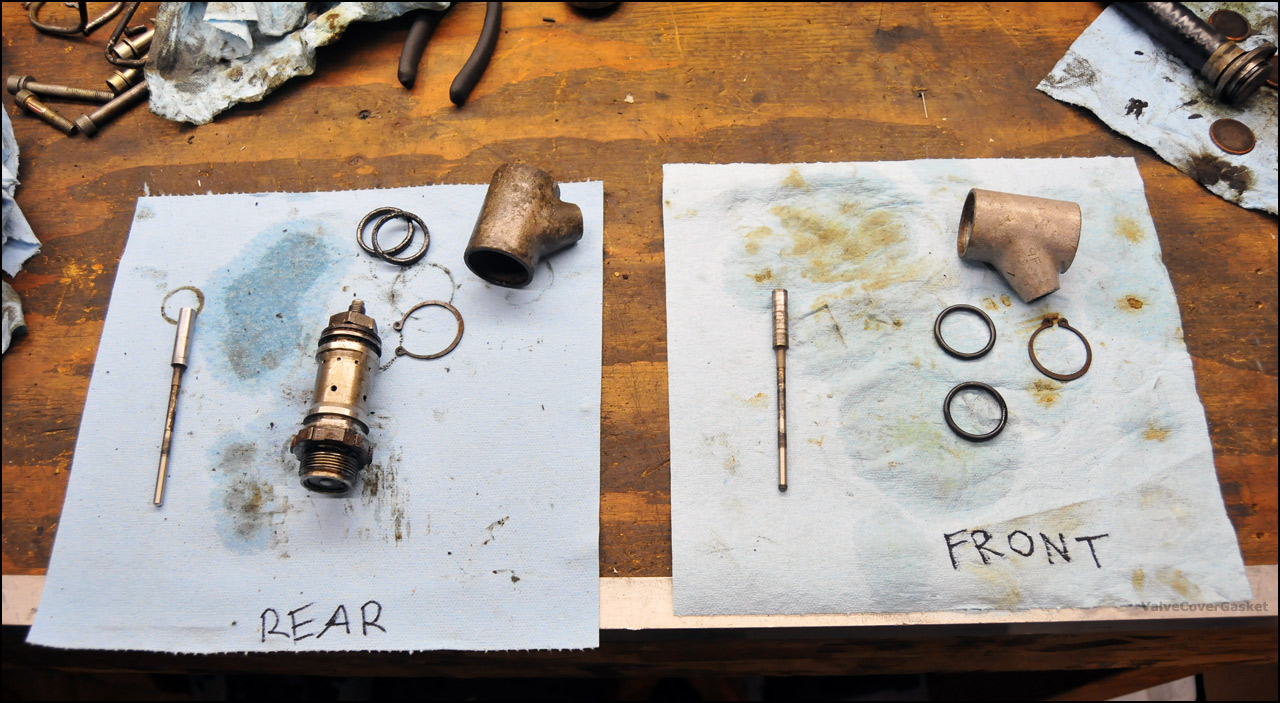

front brake pump is MIA because its soaking in penetrating oil

4-19-2012

just got back from canada with a whole bunch of parts...

looking like we have the early - non fusible link - brake pushrods and ive now got all the parts needed to convert over to the later style. another "while we're in there" thing... in the event that the rod ever seizes again, and not in the fully up position, we can prevent cam/engine damage.
completing the conversion means pulling the lower intake and valley cover, but should provide another good opportunity to peak into the motor and see how things are looking in there.
...also time for another order from Albers for gaskets when that intake comes off, and i just ordered more parts yesterday oh well
and i needed to do the thermostat anyway and this will be a good opportunity while the coolant is drained for that manifold removal


lots more pictures to come this weekend although mostly of tearing things down as ill be waiting on parts until mid next week at the earliest before things start coming together

4-21-2012

a few of the new parts from last week...

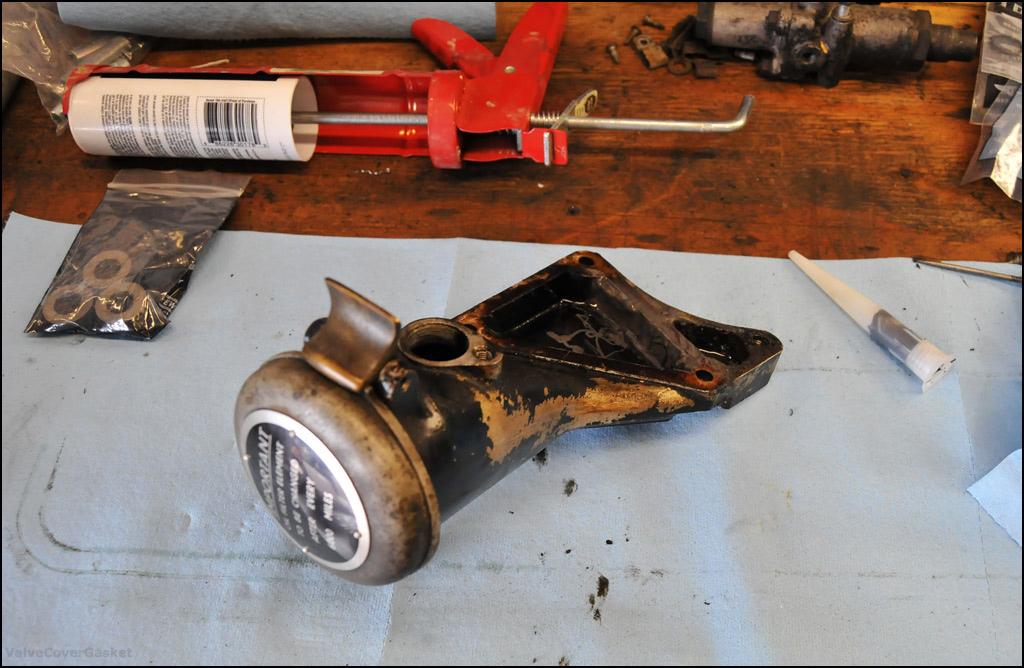

new choke housing, no melted parts!

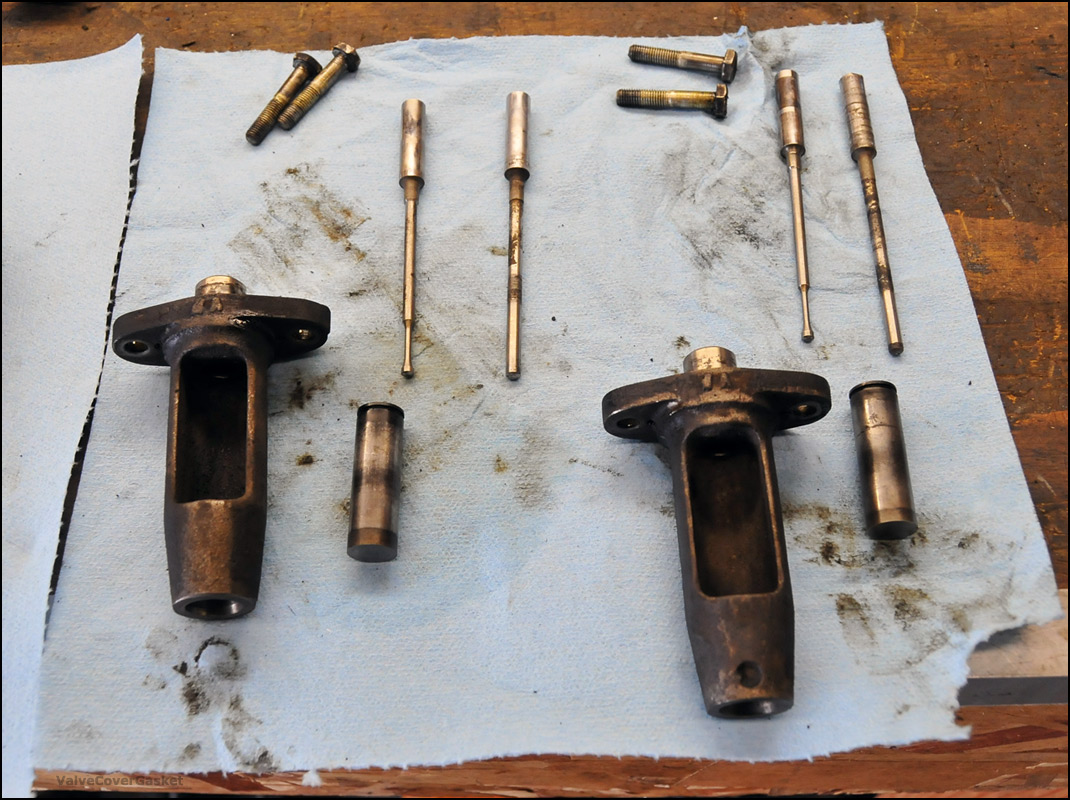

the new brake pump pushrod parts, spent some time cleaning everything today.

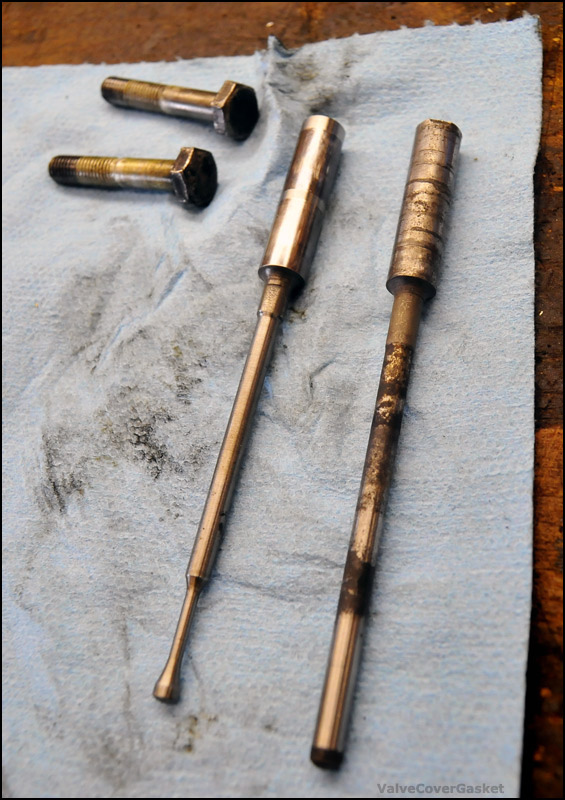

and you can see the old (solid) versus new (fused) push rods

spent some time cleaning the new stuff today... waiting on the second order of gaskets and orings before i pull the lower intake and swap the valley covers/push rod pedestals, but that should be pretty quick. i didnt want to leave the engine even more torn apart for the next week while i waited for parts.

having second thoughts also on painting the engine bits before reassembly... not sure how painting over the silver coating would work out for the intake horns. we'll see how im feeling later this week but at the moment thinking ill hold off.

anyway, should have more updates later next week when the parts start to show up

4-30-2012

should have a big pic update in a couple days, but weekend's progress was excellent.

got both valve cover gaskets swapped to the new style rubber setup, and in doing so discovered the A bank head had been off the car at some point relatively recently as it was really clean and it also already had the rubber valve cover gasket setup. B bank head probably had the original cork one, as it looked really old and was leaking like crazy... but its all been updated now, and you can actually read the RR on both sides of the motor now getting the B bank valve cover off was a pretty involved process (all told both sides took ~4 hours including cleaning and reassembly), so there should be some good pictures to check out of that...

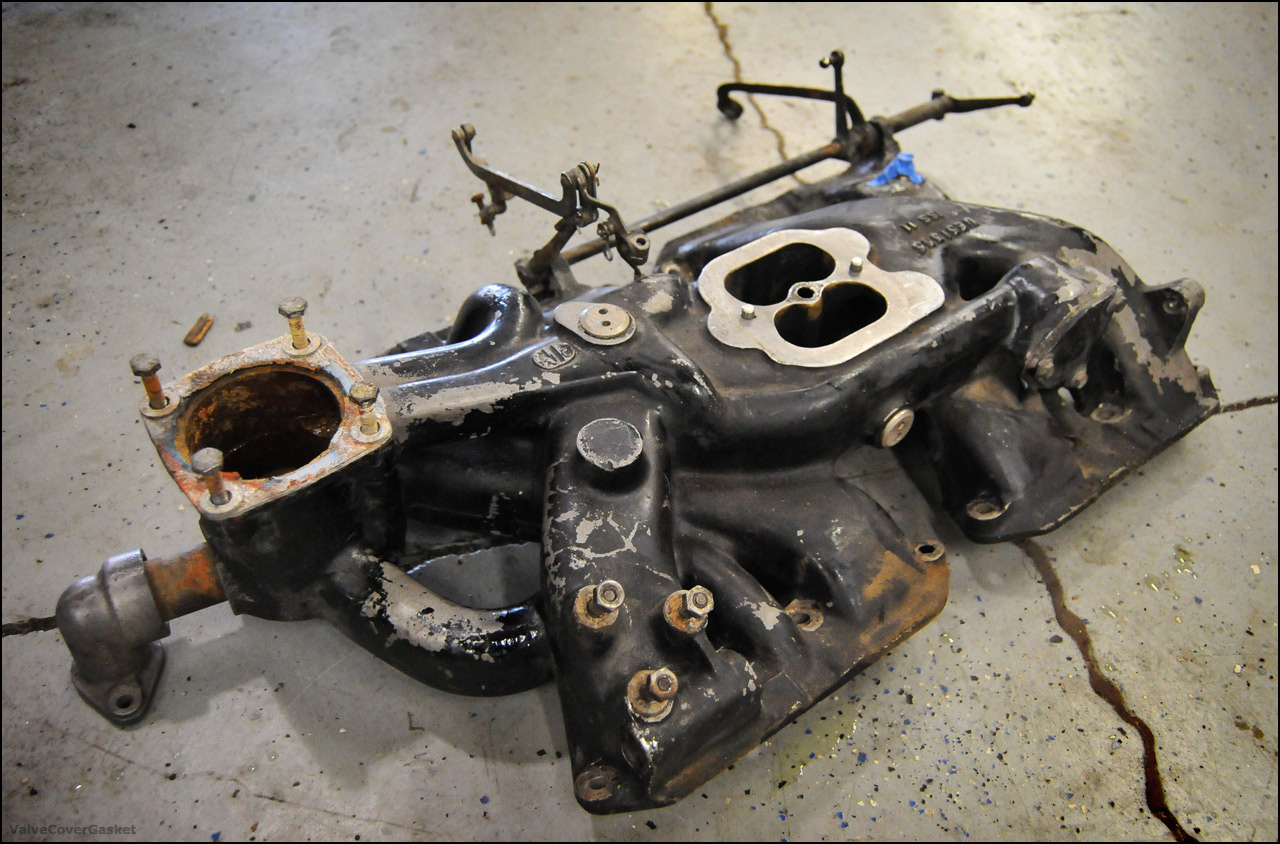

also got the lower intake off the car yesterday afternoon, along with a few other associated parts, and will be cleaning/painting all of that over the next couple days. i managed to find engine paint to match the silver coating on the intake horns, so the whole motor should be looking really sharp soon. i decided not to paint the valve covers when i had them off just to preserve some patina, and they werent really in bad shape other than a few spots where the paint had been nicked off that should be easily covered up when the intake parts are bolted back on.

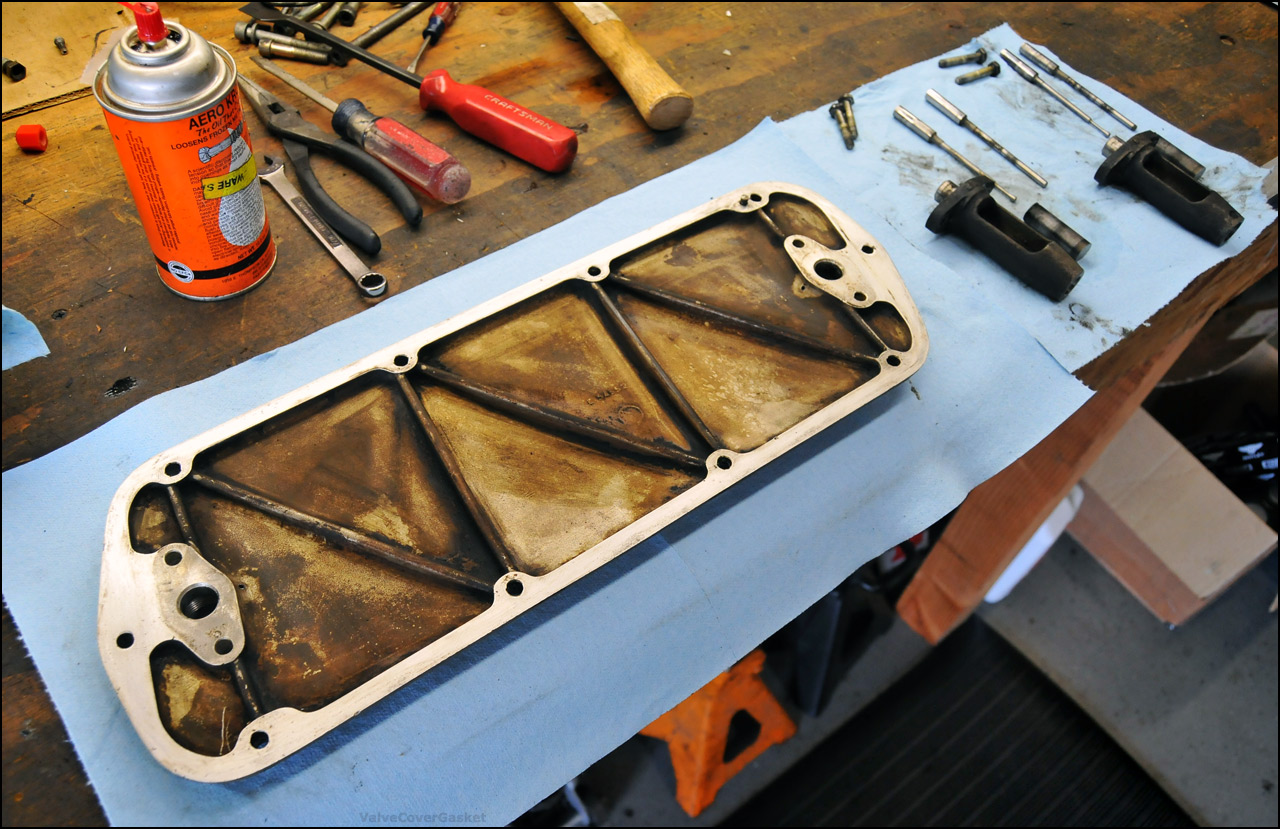

the valley cover on the block and surrounding area look pretty dirty, so whoever had the intake off to do the head before probably didnt bother lifting/resealing the valley cover as it looks like its been slowly leaking a bit of oil around the cover and getting everything greasy... so therell be some work in cleaning that all up. the factory used a silk thread to seal up the valley cover originally (and im sure thats whats still in ours...) and im sure they leaked as soon as the cars were cranked for the first time... thatll be getting redone with an actual seal when i bolt it all together this time.
also found that the thermostat was missing, rather than stuck open like i originally thought - the car would run normal-ish temps around town then get super cooled on the highway. ive got a new tstat assembly waiting to go in, so we'll see what happens there... it didnt seem to ever get hot before if the gauges are to be trusted... fingers crossed!

should have the rebuilt brake pumps back in the shop soon, and then its all ready for reassembly!

should be posting a lot of the pictures in a day or so..

5-1-2012

and... pictures!

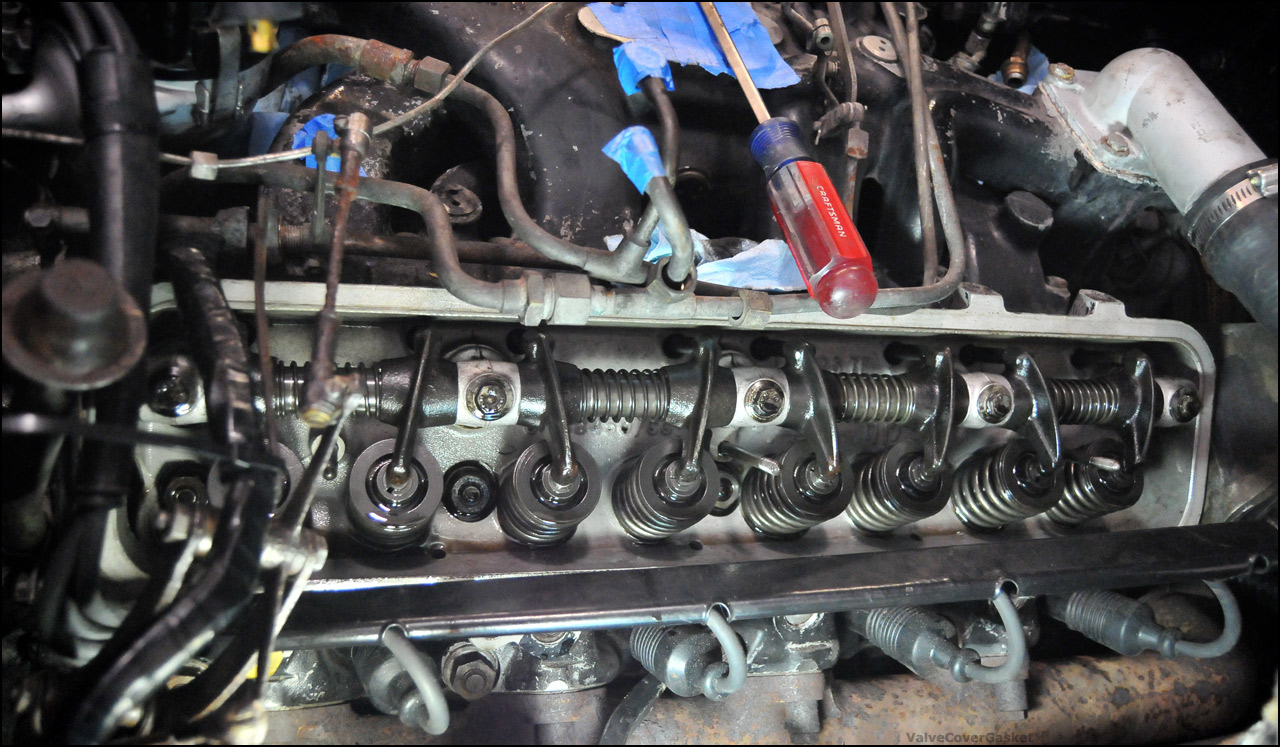

the new looking head

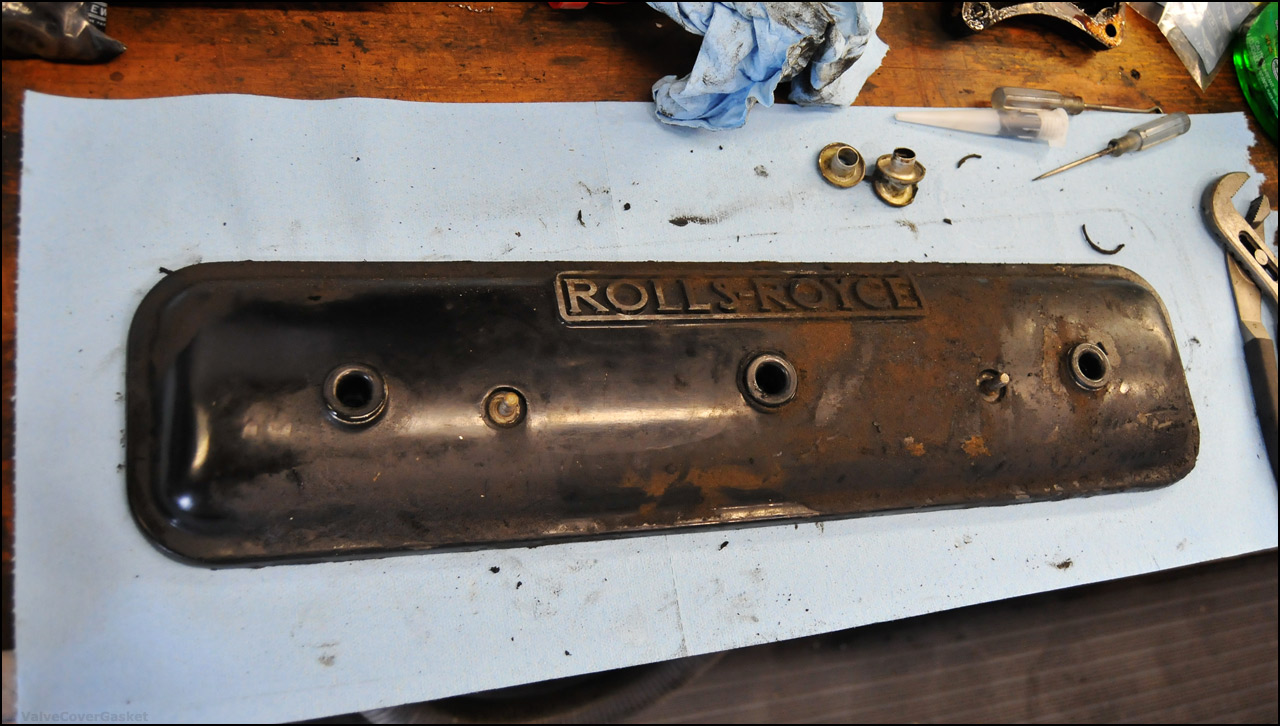

B bank valve cover before...

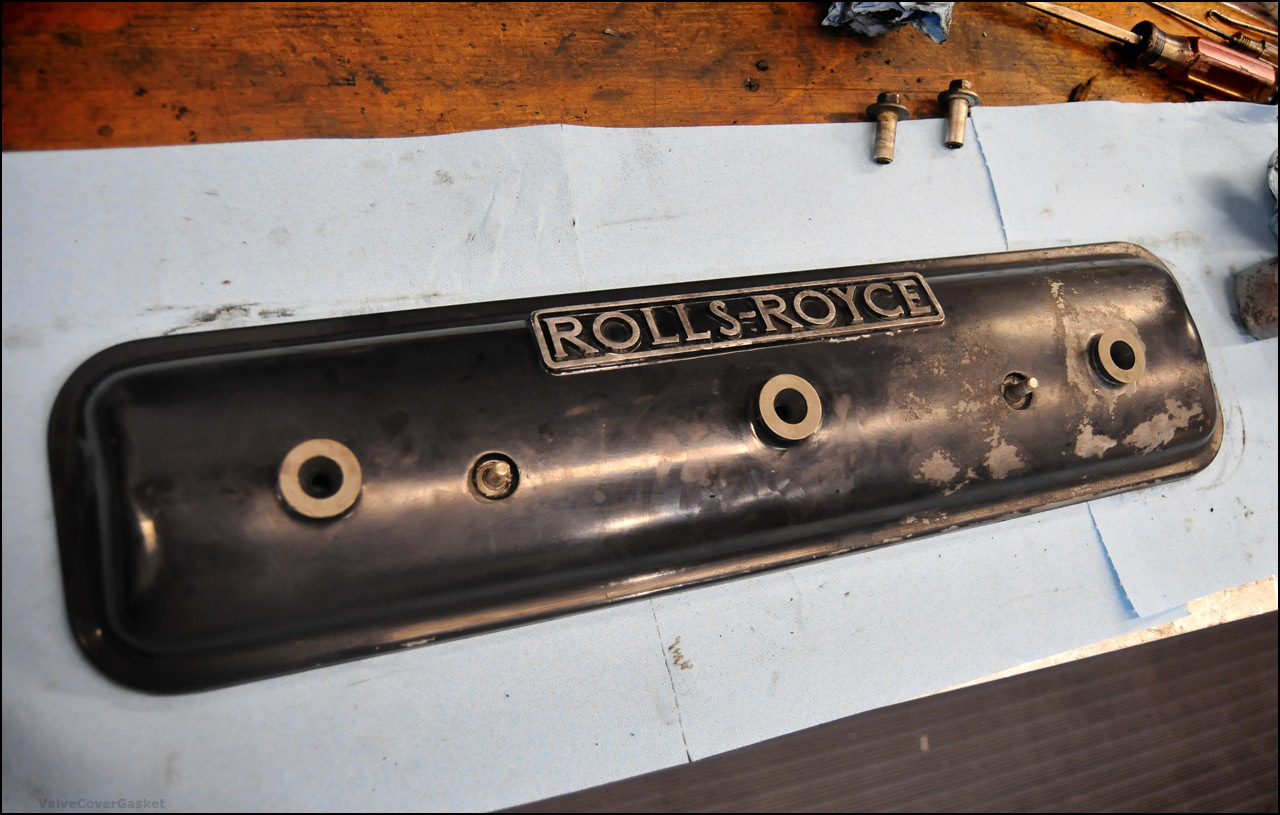

and after...

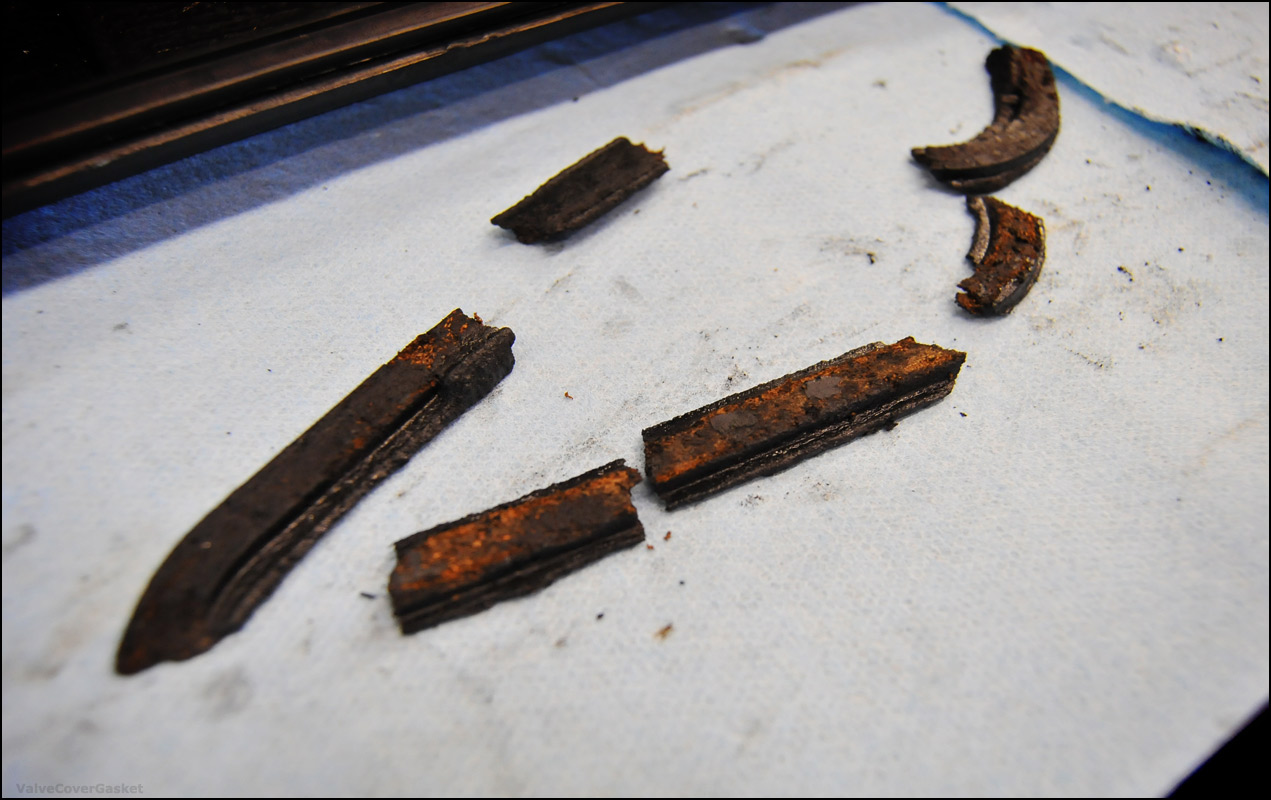

old gasket bits...

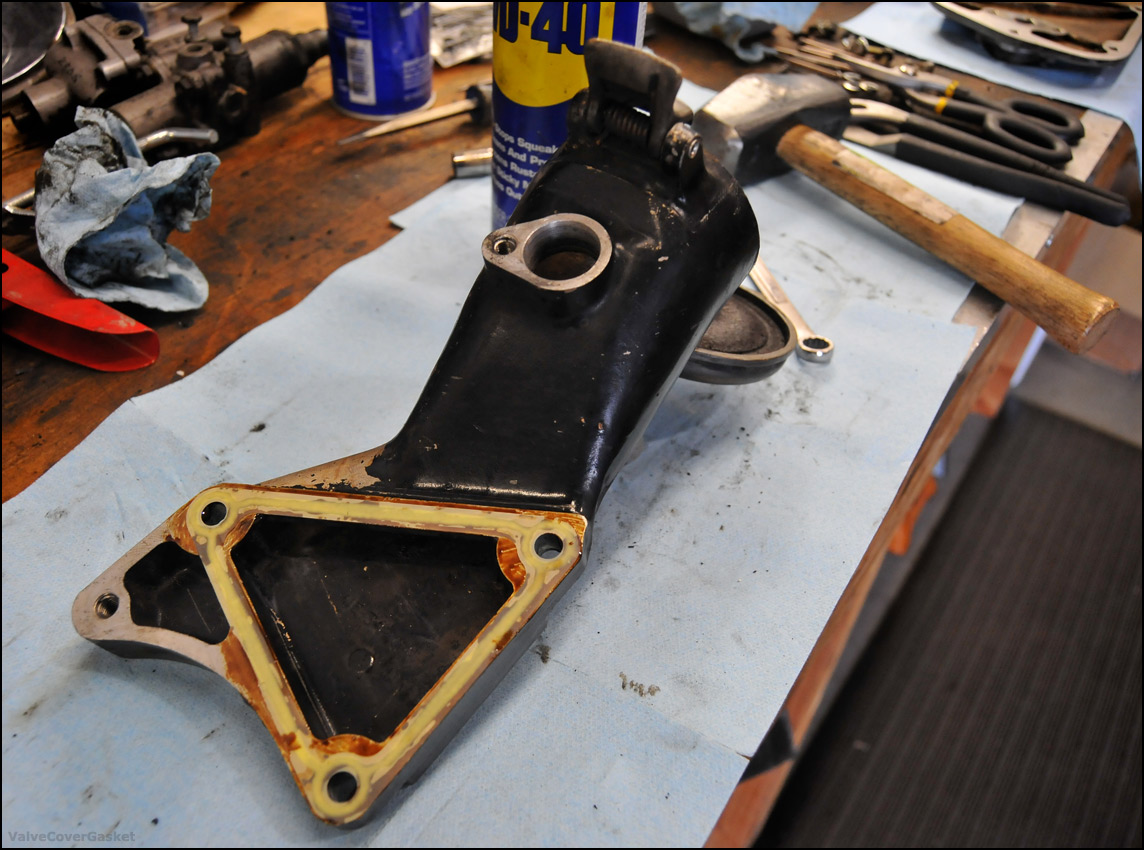

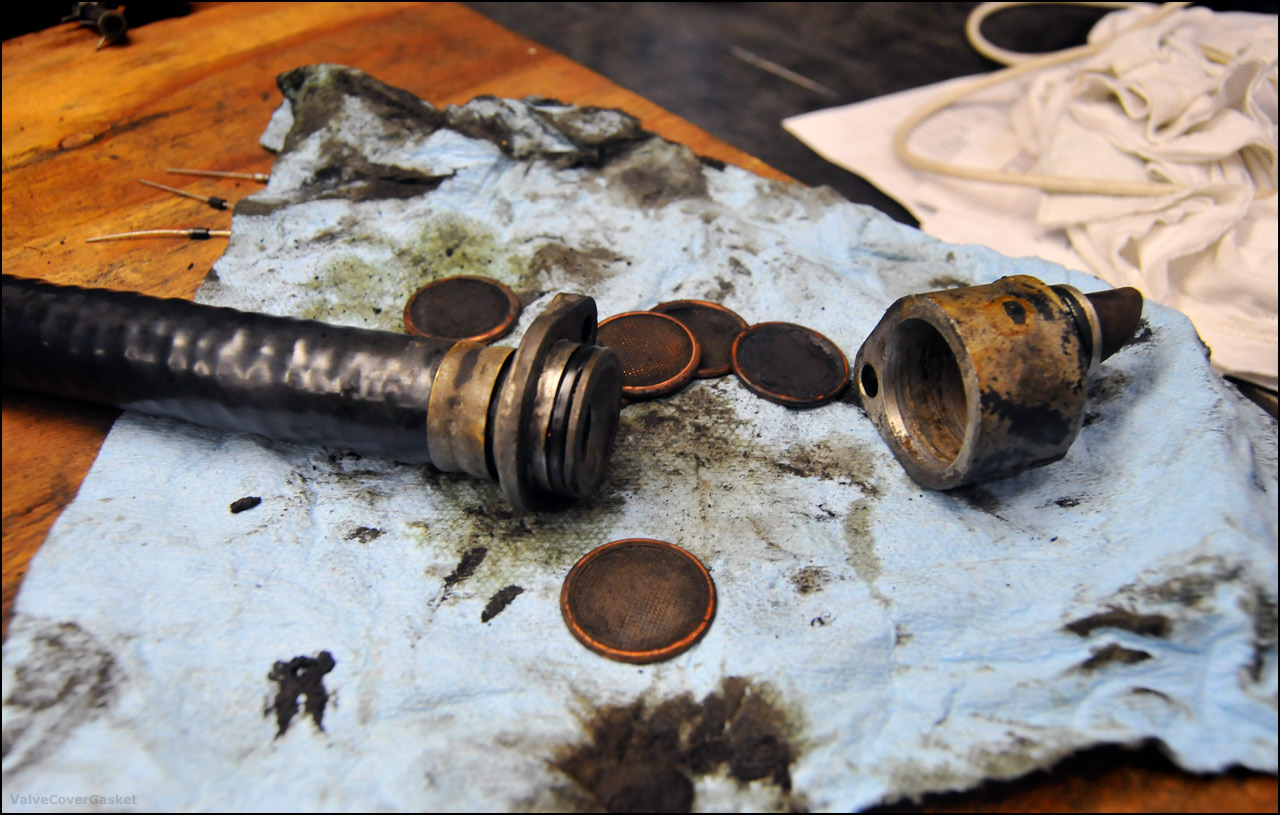

oil filler neck bits... filled with some of that same goop from the oil pan

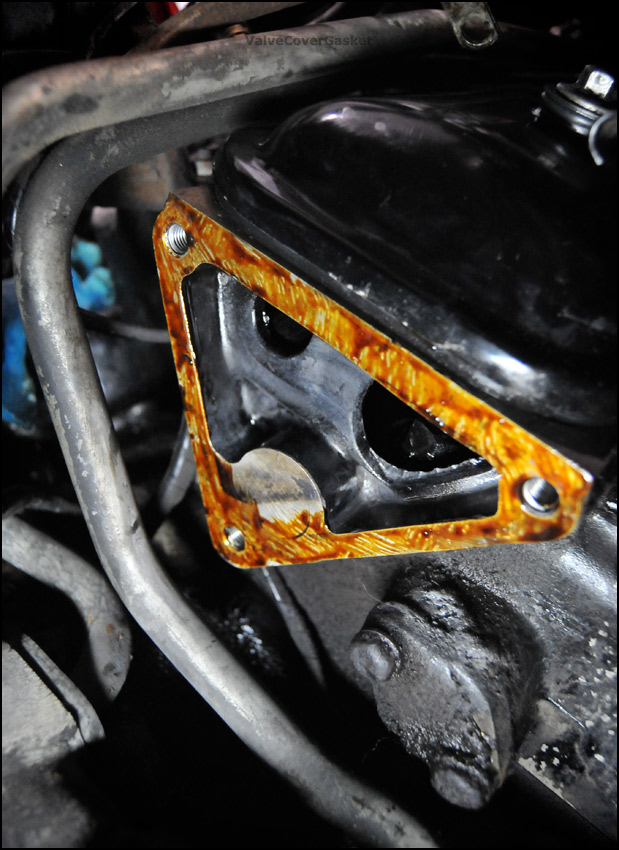

getting ready to remount it, after the valve cover install

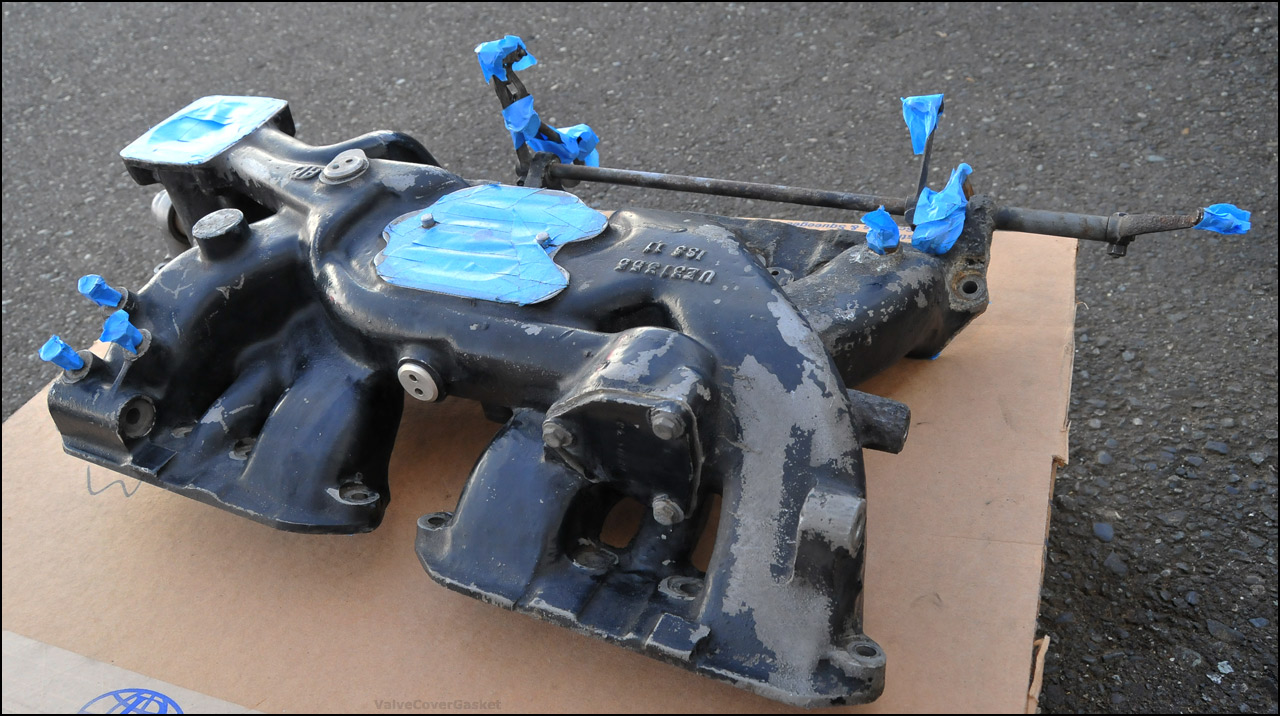

masked up for paint...

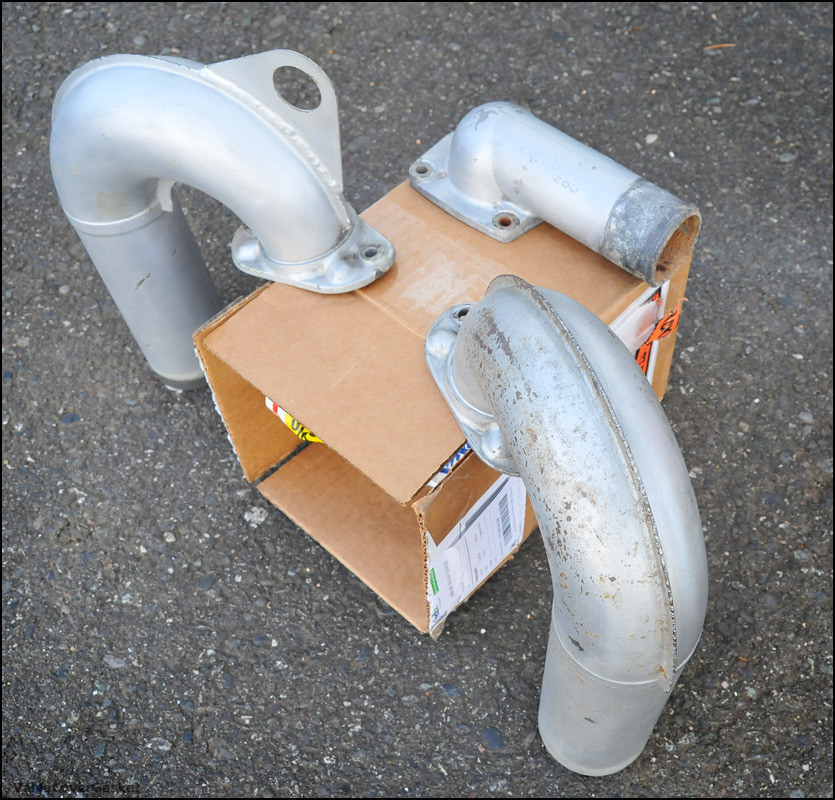

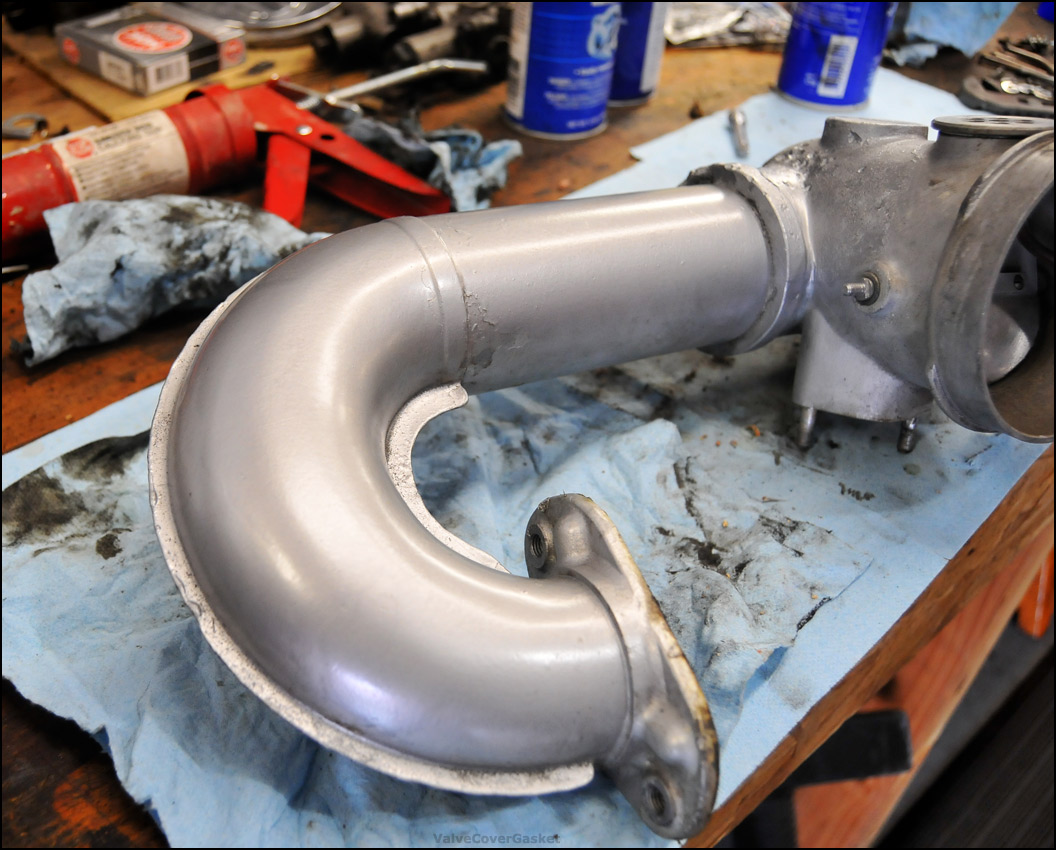

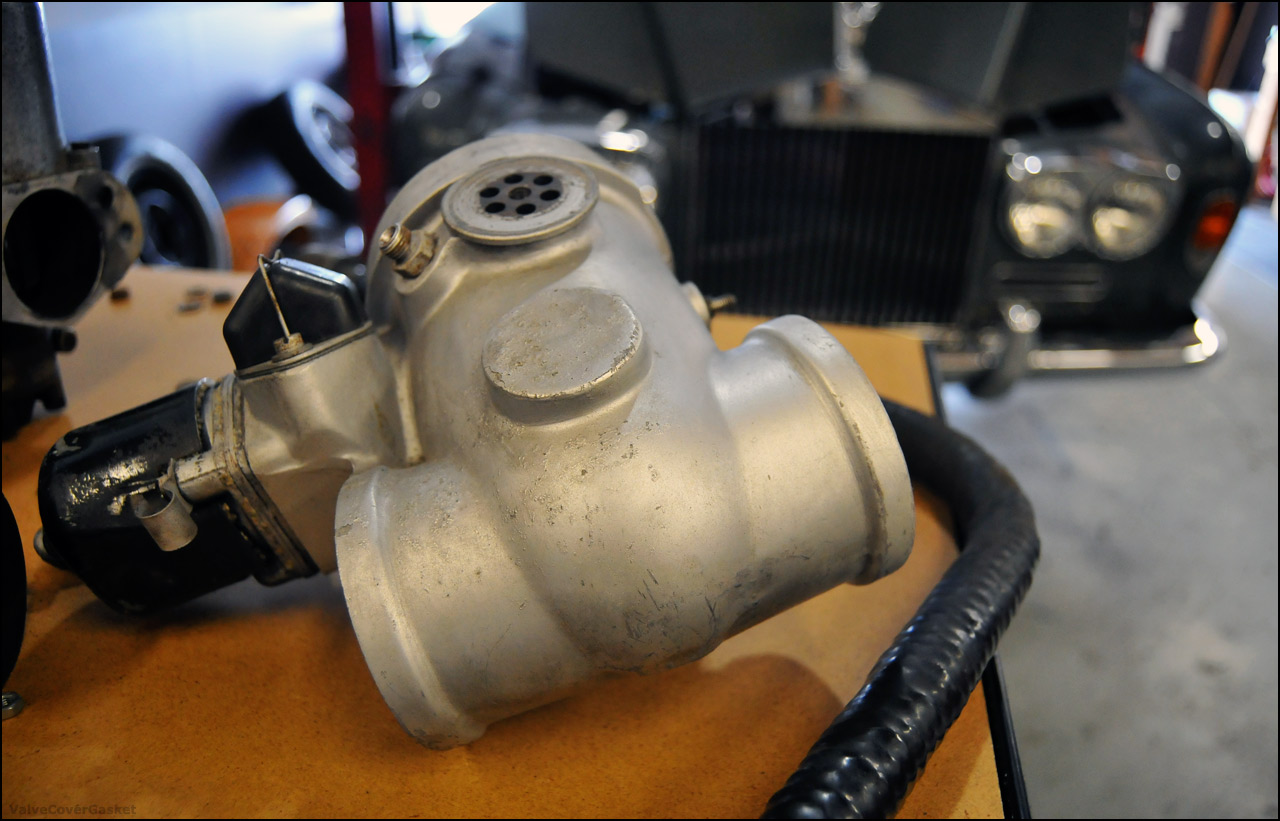

test shot of the intake horn paint..

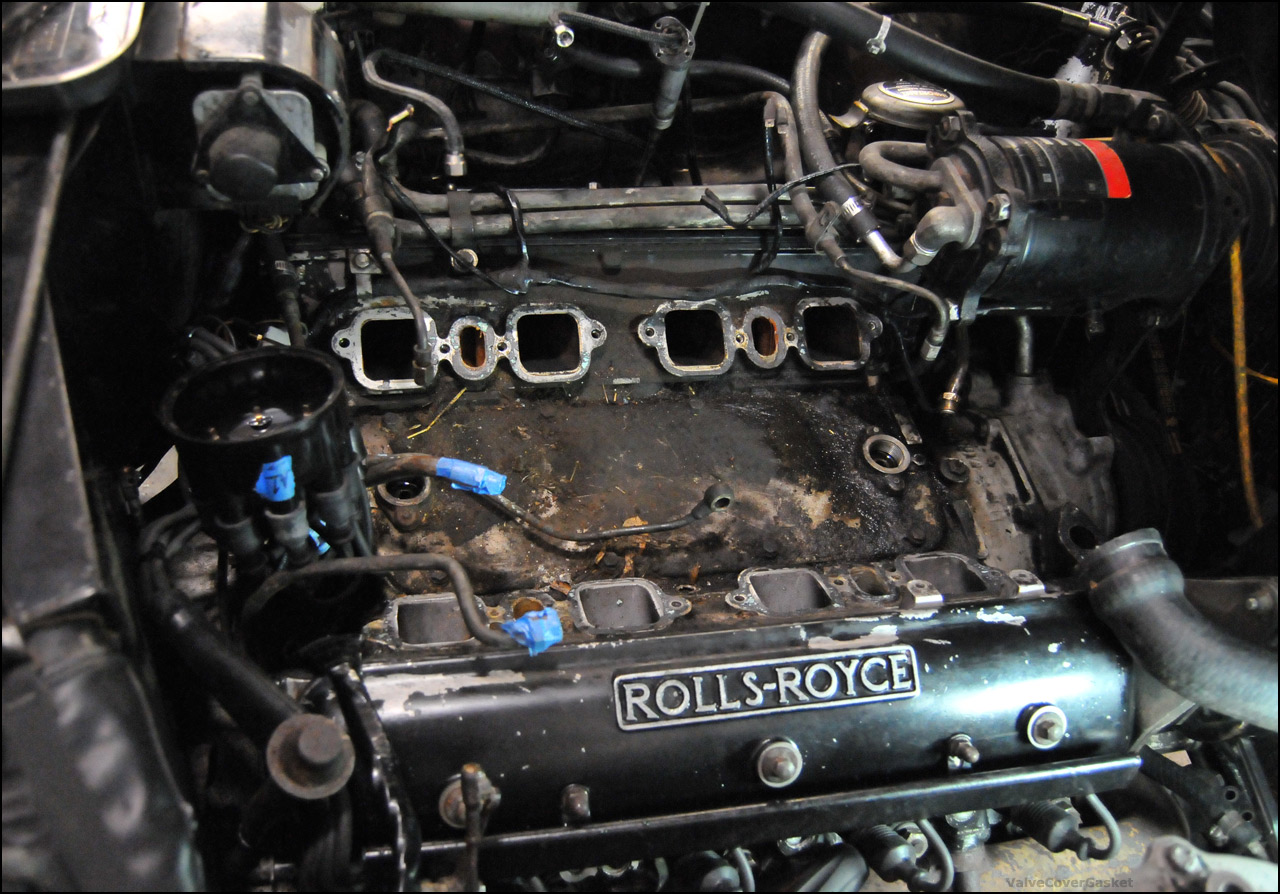

looking like a total mess (with clean valve covers! )... for now.

got the intake and tstat housing stuff painted today, as well a few of the base coats on the lower intake manifold. ill have pictures of that tomorrow.

planning to be all wrapped up with the painting tomorrow and make a dent in the cleaning and brake pump pedestal swap. also the refreshed brake pumps will be in tomorrow afternoon, so thatll make all the parts needed to get it all back together, which should hopefully be the motivation i need to wrap up the cleaning/painting and get everything prepped for reassembly tomorrow night
