DIY - steering wheel boost gauge install


Compliments of Mr. Phil @ www.audiforums.com


ok well i just did this last night and took pictures of it this morning as i actually ran wire for the light in the boost gauge... hope this is helpful to anyone that may ask, so we don't have to keep hunting other forums for a DIY for something that is very simple

my car is a 1998.5 1.8tq with the AEB engine

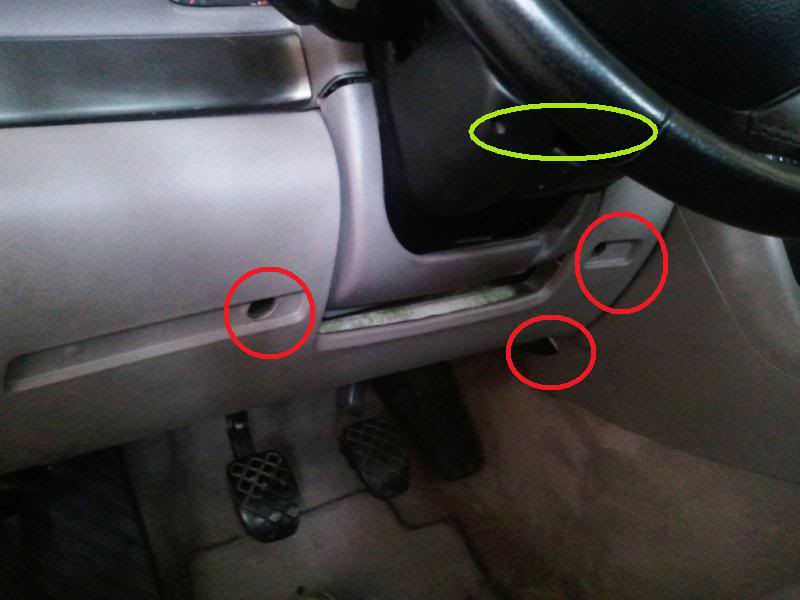

pop open these lil covers and remove the bolts holding the knee padding area up.... the yellowish circle is for the two phillips head screws holding the plastic trim on the steering wheel if u wanna take that off

Click the image to open in full size.

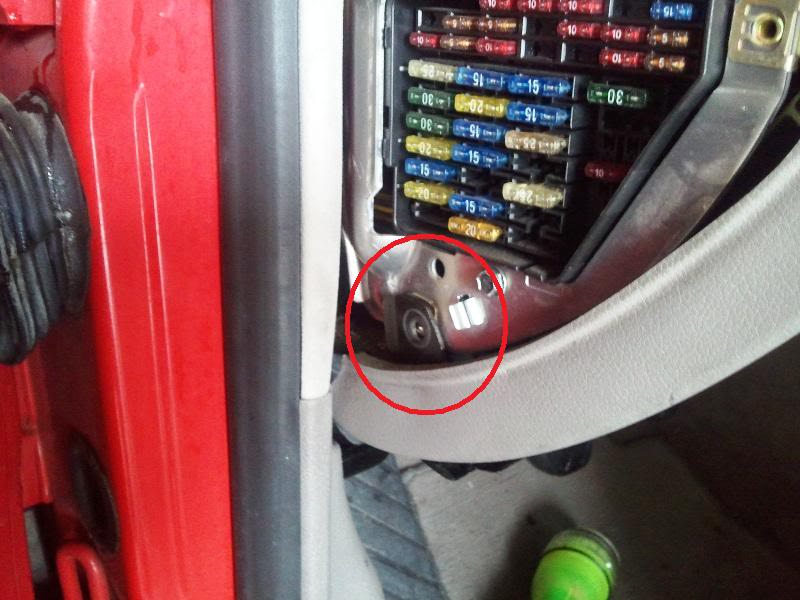

there is another bolt holding it in on the fuse panel area as well.. dont forget this

Click the image to open in full size.

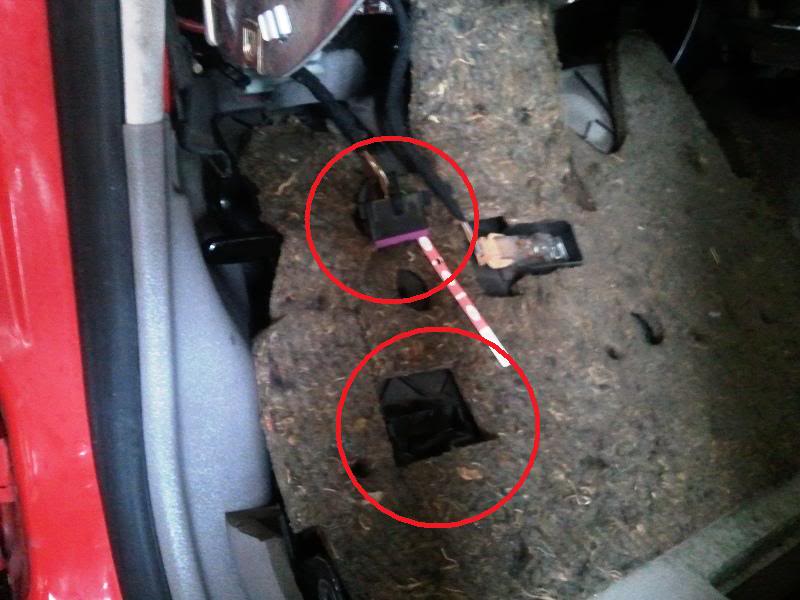

when u drop the piece, be cautious of your OBD2 port... disconnect to avoid damaging the wires

Click the image to open in full size.

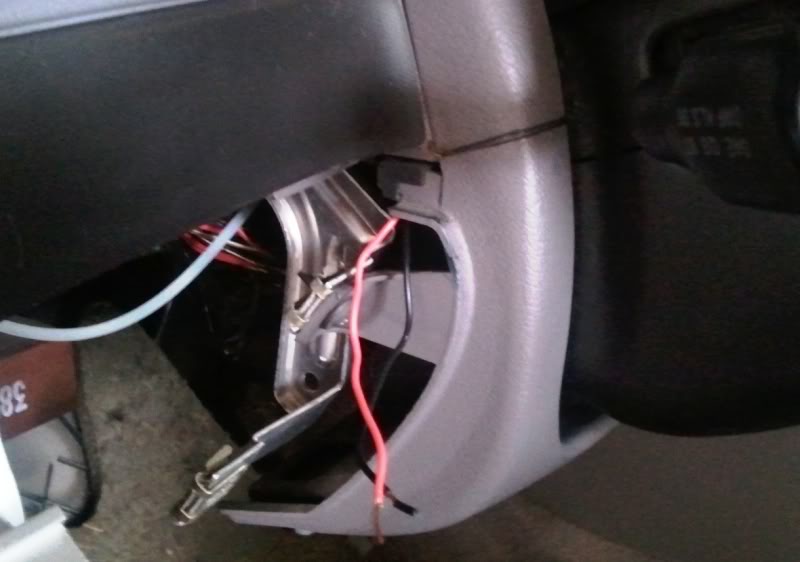

i ran the wires through this little area.. i know most people here are men and dont have skinny girl hands, but i managed to fit my fingers in here and pull out the wires

Click the image to open in full size.

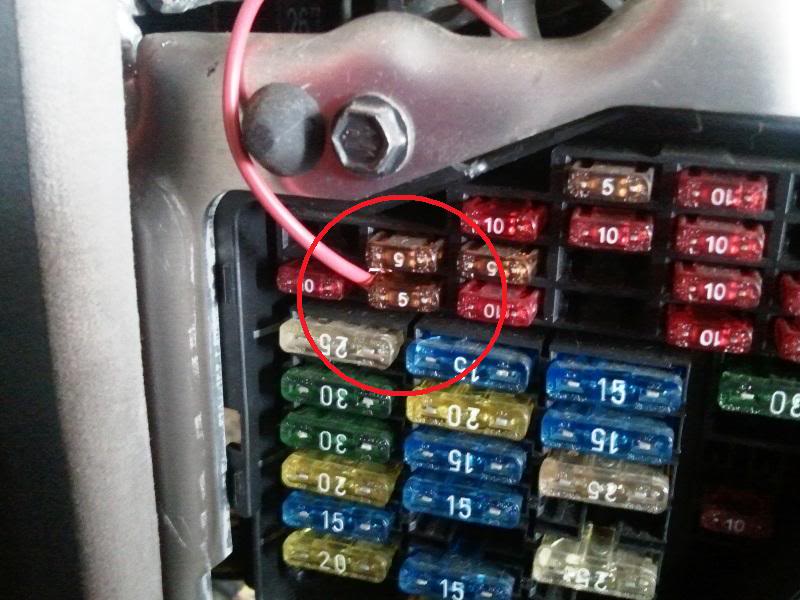

i ran the positive to the fuse here, which happens to be the license plate light

Click the image to open in full size.

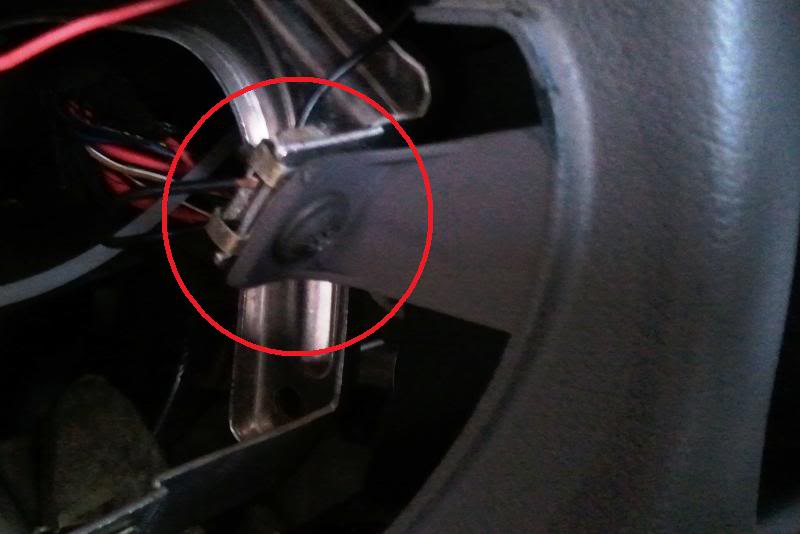

this is where I made my ground... works great, the bolt is going to require a t15 torx bit though, so if u dont have this and dont wanna buy one, i suggest u find your own ground lol

Click the image to open in full size.

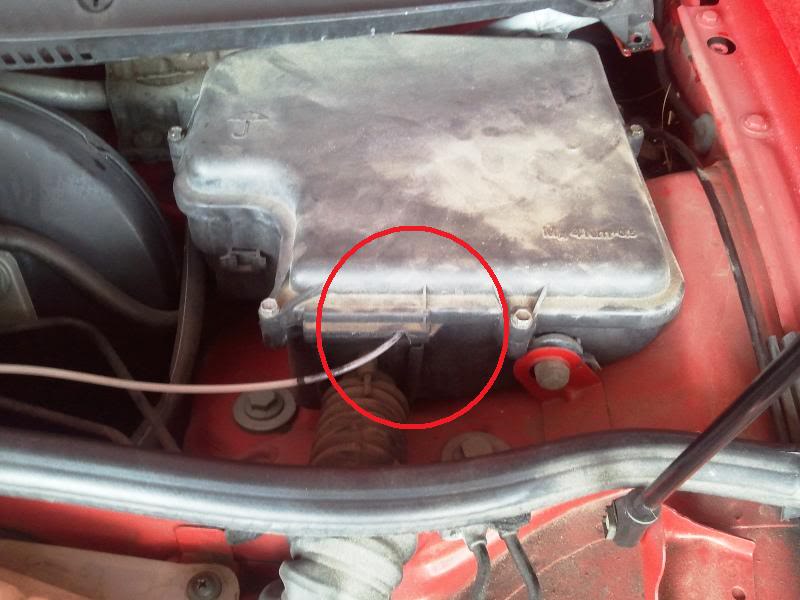

now finding a place to run the tubing through was a pain, so i eventually lifted up the ecu access box and found a natural hole in the firewall so i didnt have to drill... so this is where i chose to run the tube through

Click the image to open in full size.

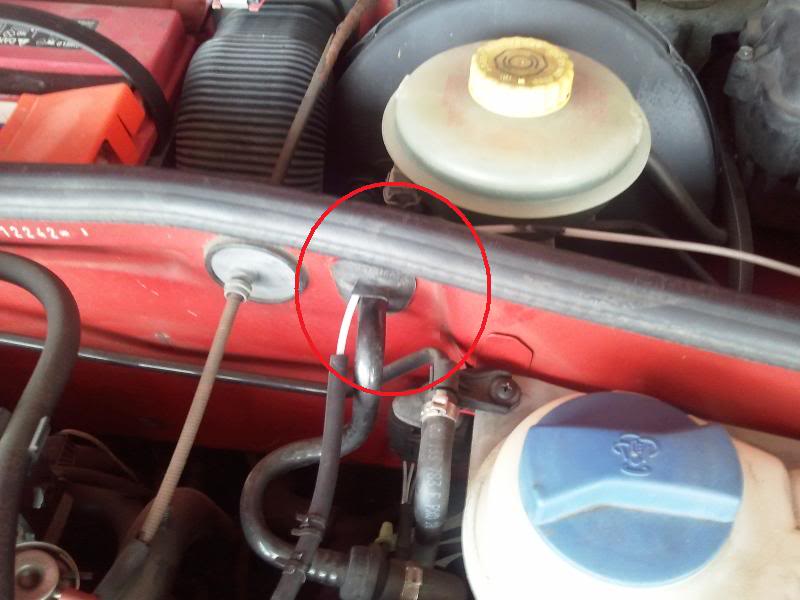

then i pushed the hard tubing through this grommet

Click the image to open in full size.

and this is where i installed the T fitting for my vacuum... you can use the FPR up top if u want, but this is the most common so i did it here for sanity's sake

Click the image to open in full size.

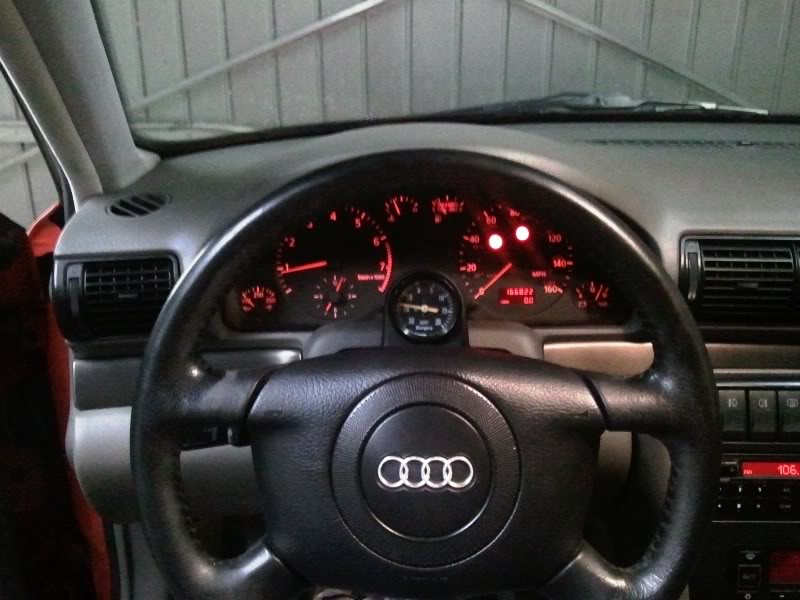

this is it mounted and installed after everything

Click the image to open in full size.

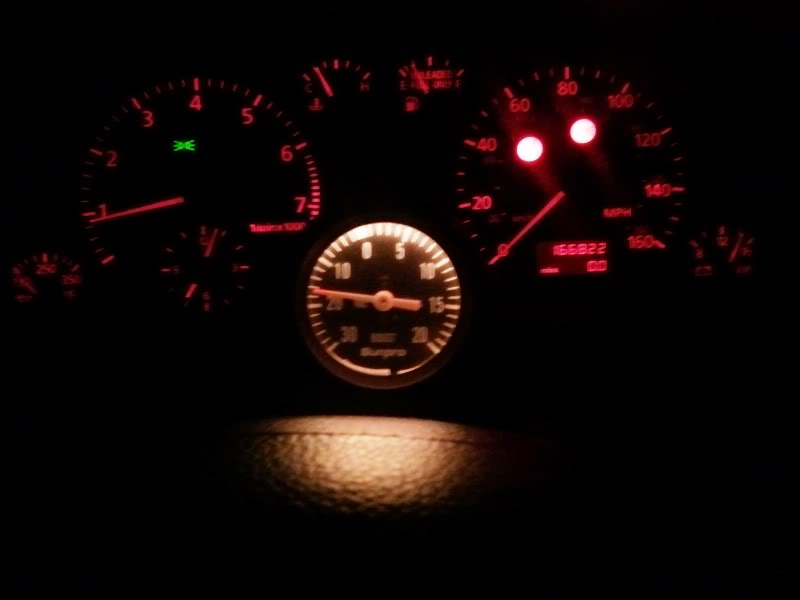

and here is the light all shnazzy like...

Click the image to open in full size.

WELL I HOPE THIS COMES IN HANDY FOR PEOPLE WANTING TO DO THIS BUT DONT EXACTLY KNOW HOW AND DONT WANNA HAVE TO HUNT GOOGLE OR OTHER WEBSITES... SO IF U WANNA STICKY IT SWEET.. IF NOT.. OH WELL, AT LEAST IT GAVE ME SOMETHING TO DO FOR THE LAST HOUR HAHA
