AFE Intake 54-12162 Install

Compliments of Blackbird @

Hey guys! As promised, a right up for this intake (see here: New AFE Intake? )

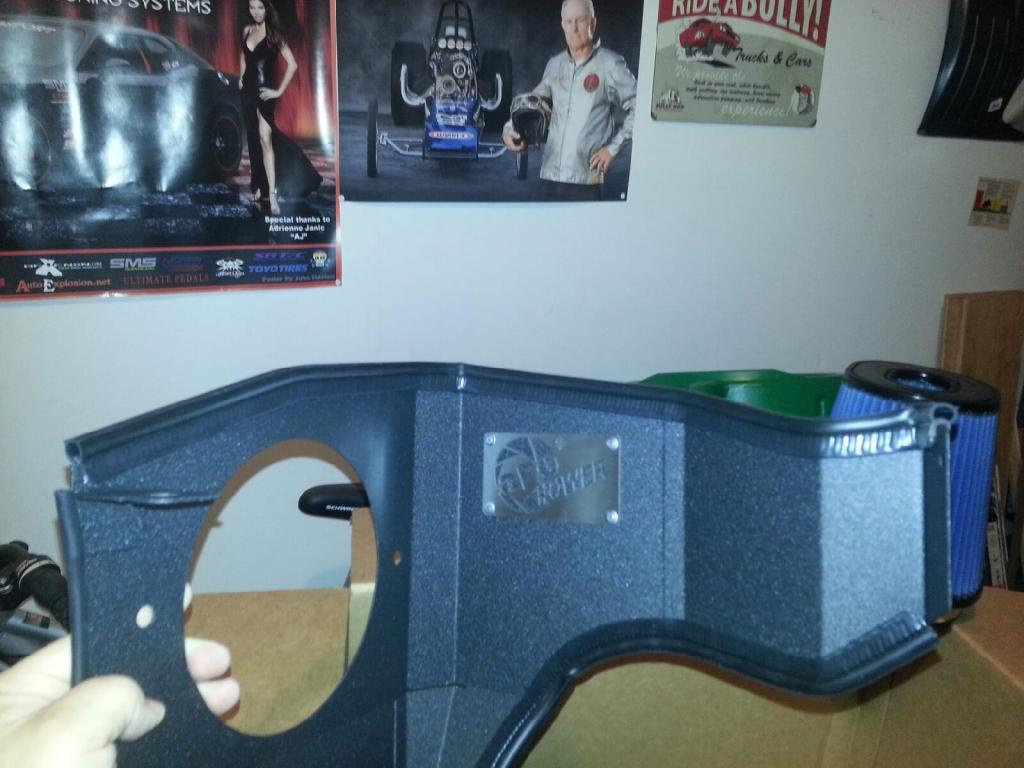

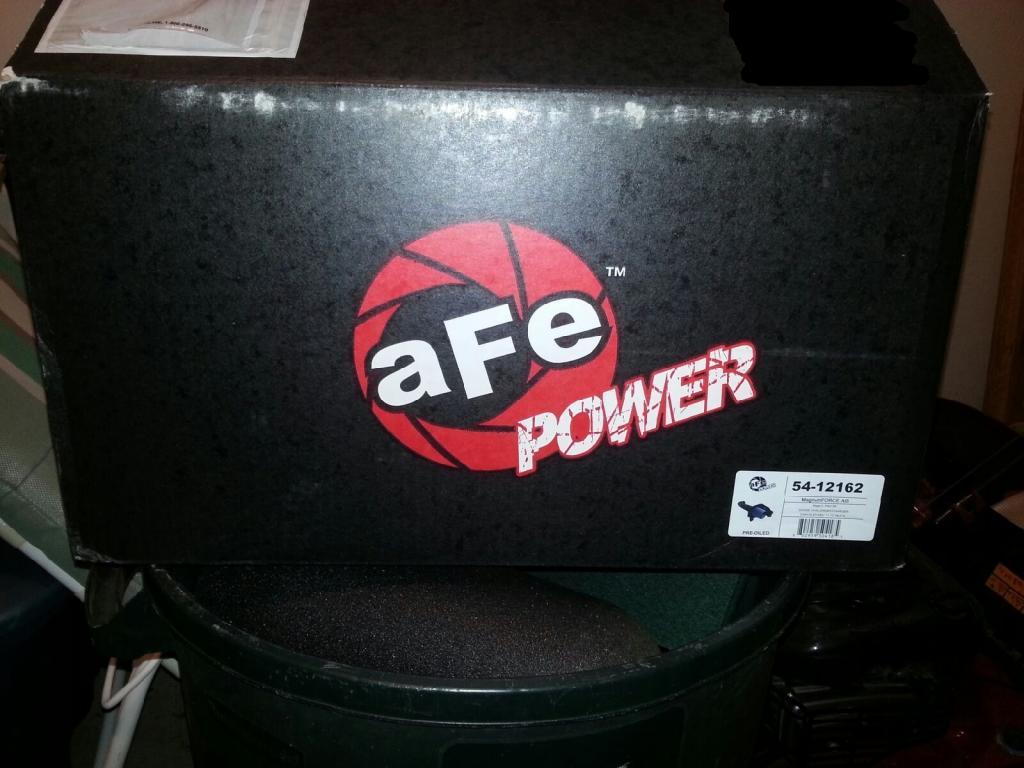

OK! So to start, here is the box the intake came in:

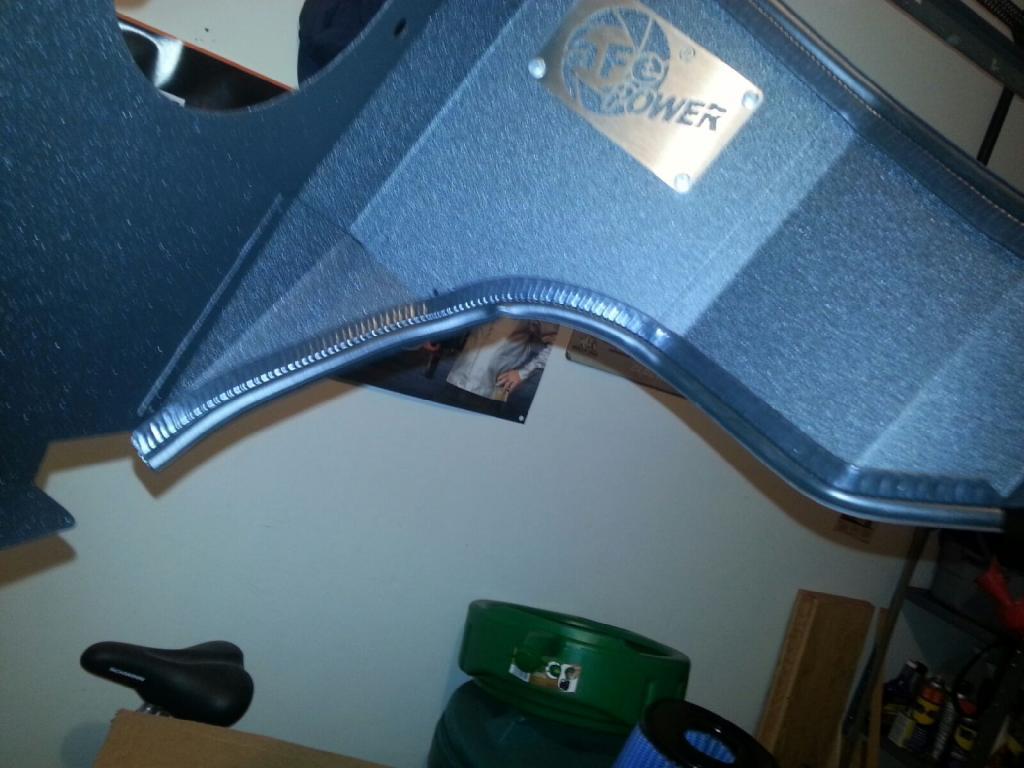

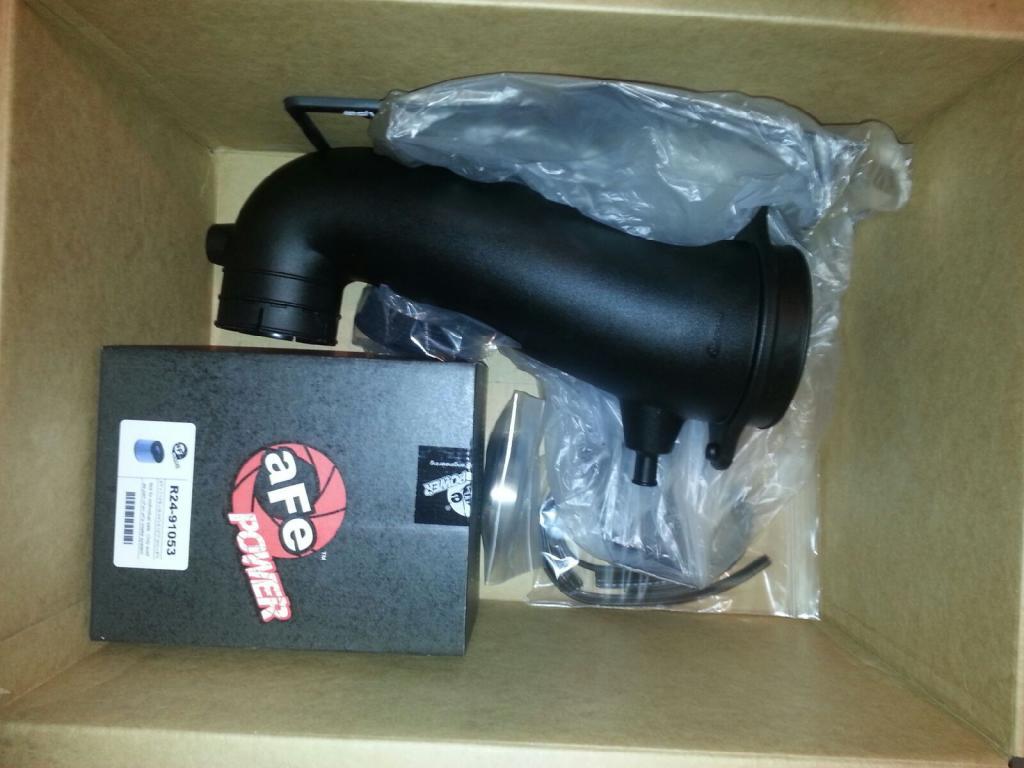

The goodies inside:

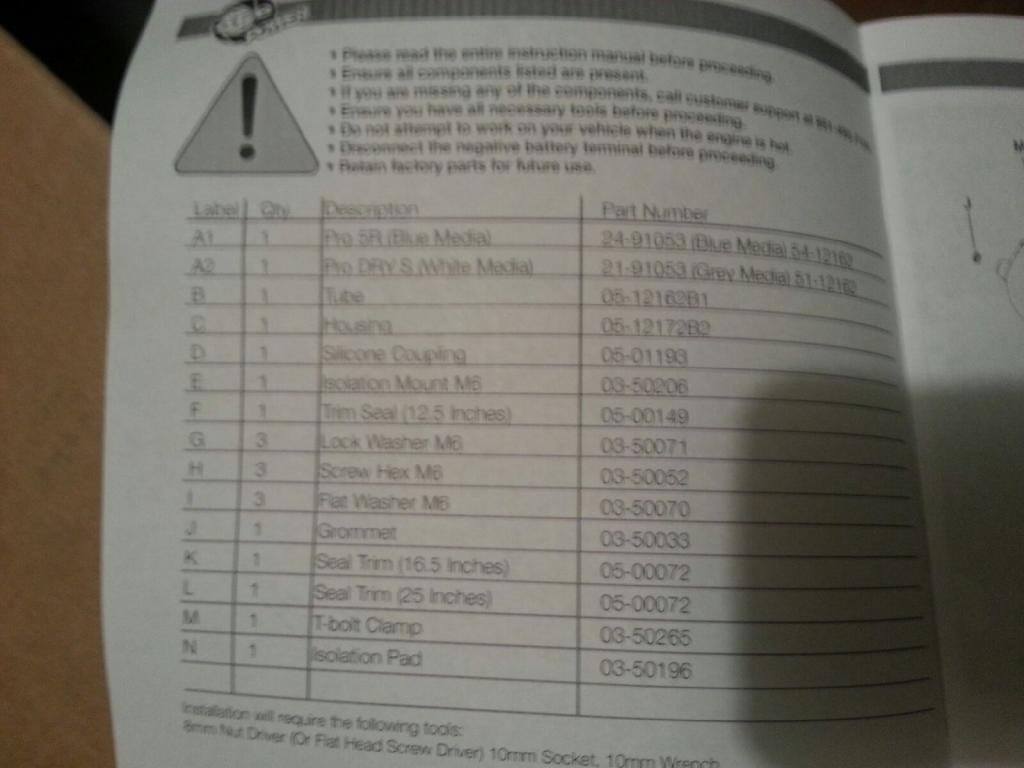

VERY IMPORTANT!!!!! (and vendors will thank me for Checked the list of parts that are supposed to be in the kit BEFORE you start taking anything apart:

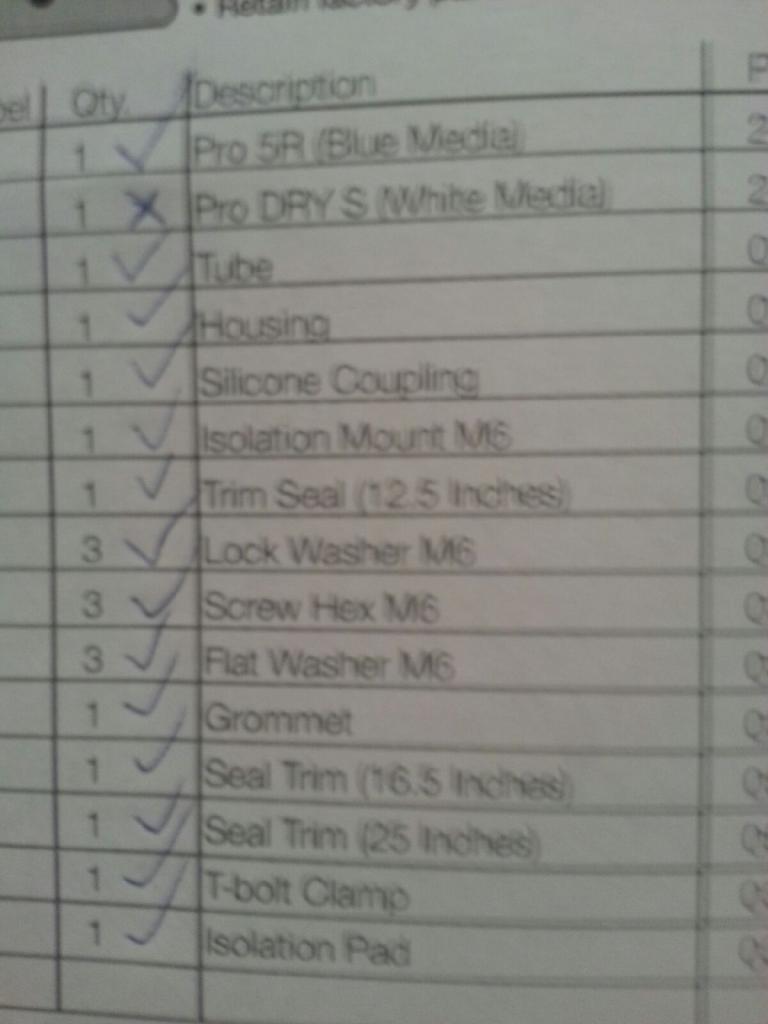

Checked everything off as I found it:

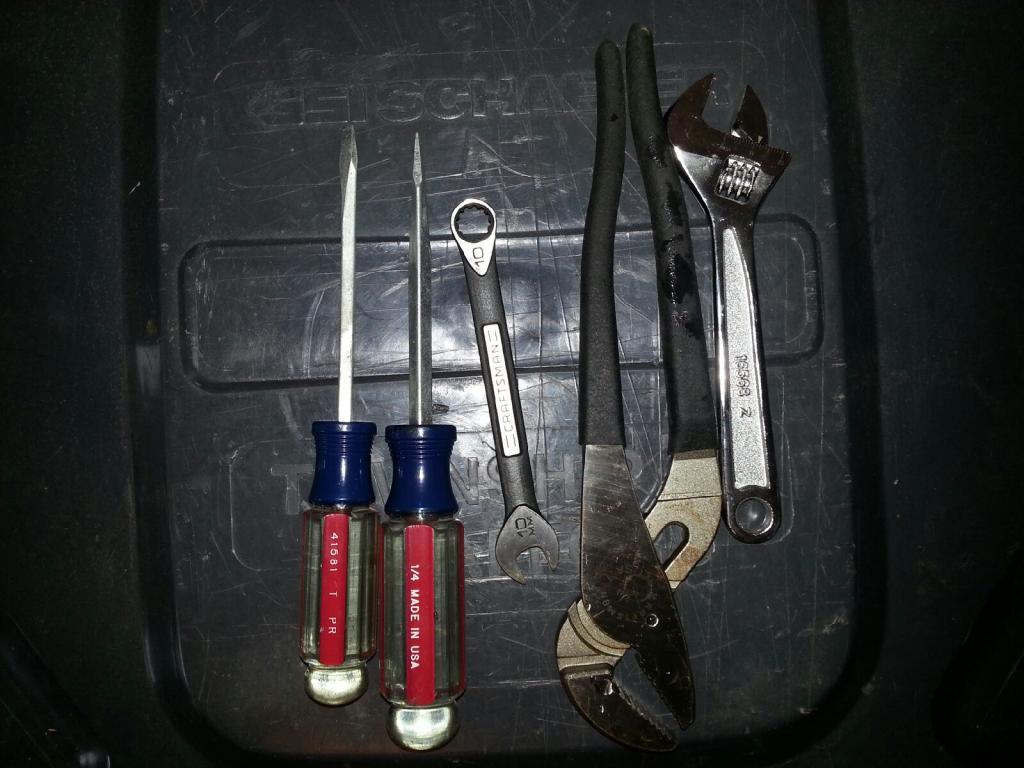

(Most) the tools needed for the install. I made it a point to use hand tools to show the ease of installation; the only thing I'm missing in the pic is the 11mm wrench that that got lost under the car(I hadn't backed up the car yet) I used an adjustable because I couldn't find my damn 8mm open end wrench:

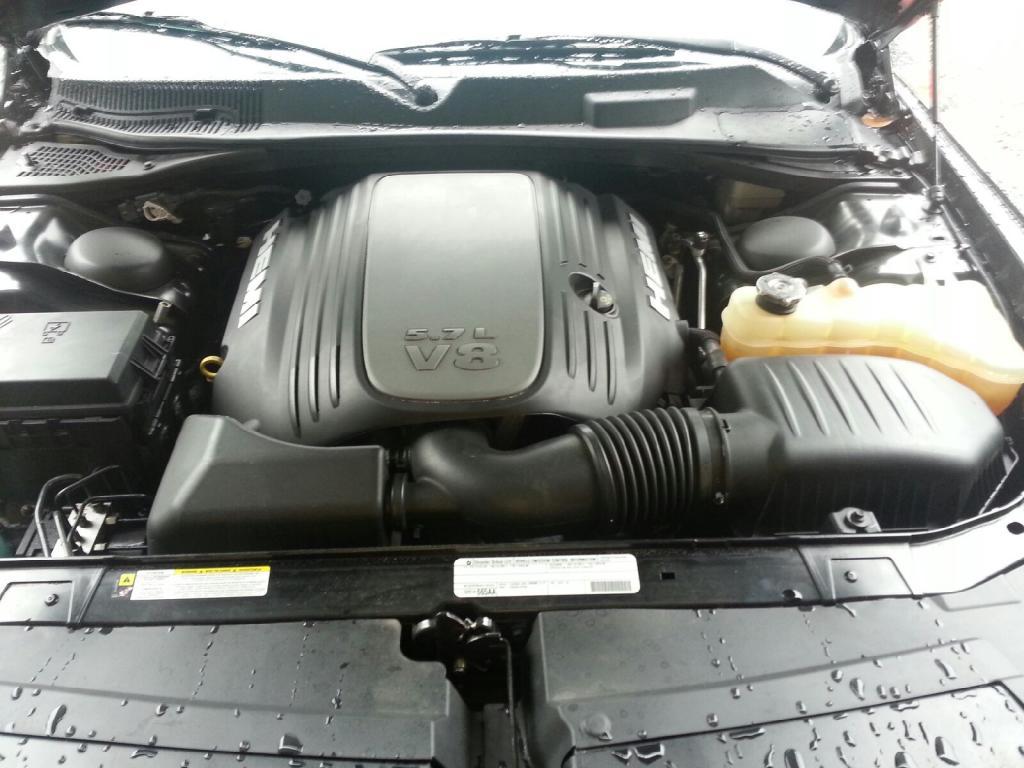

Stock intake:

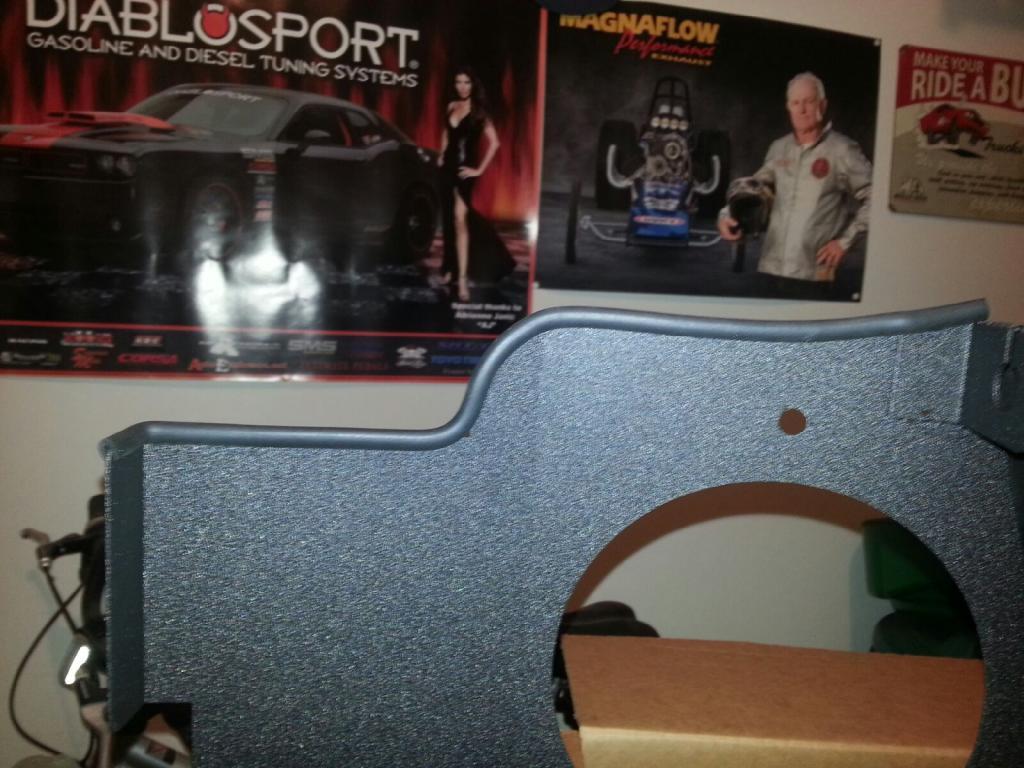

I did some mild pre-assembly of the gaskets and inlet tube-
Lower gasket:

Upper gasket

Side Gasket:

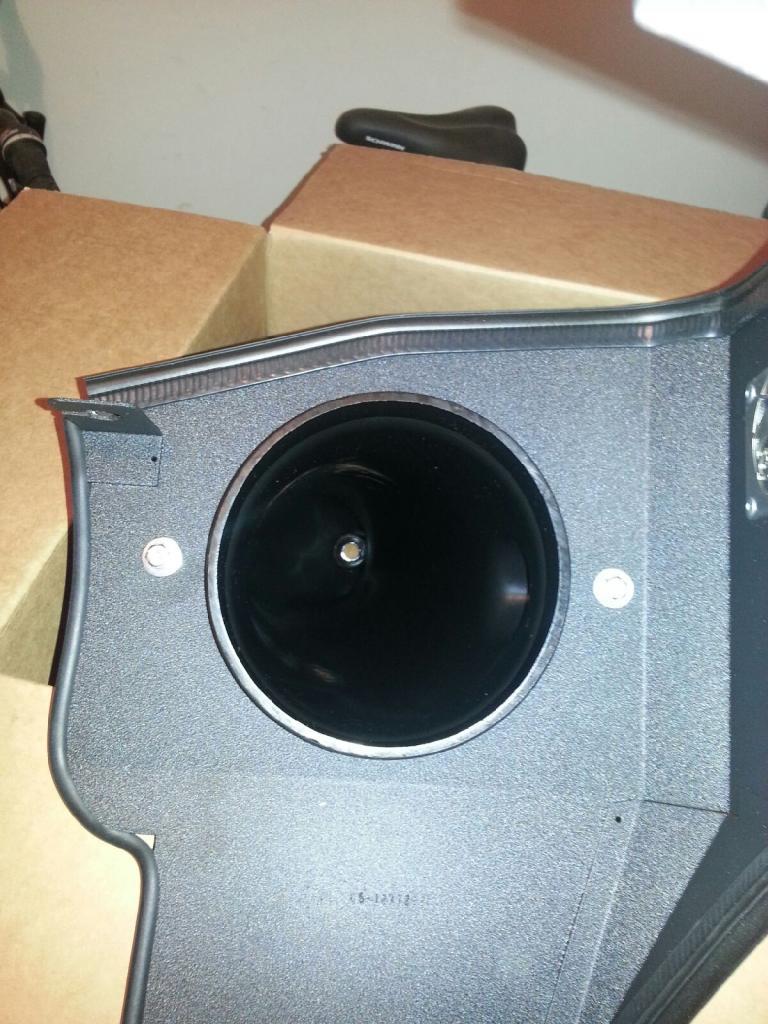

...and the inlet tube is held on to the box with 2 bolts:

Now removing the intake itself is pretty easy; basically it's 4 screws, 1 clamp, the Air Intake Temperature Sensor, the vacuum hose near the intake box, and a grommet on the back of the driver's side inlet resonator to the left of the throttle body.

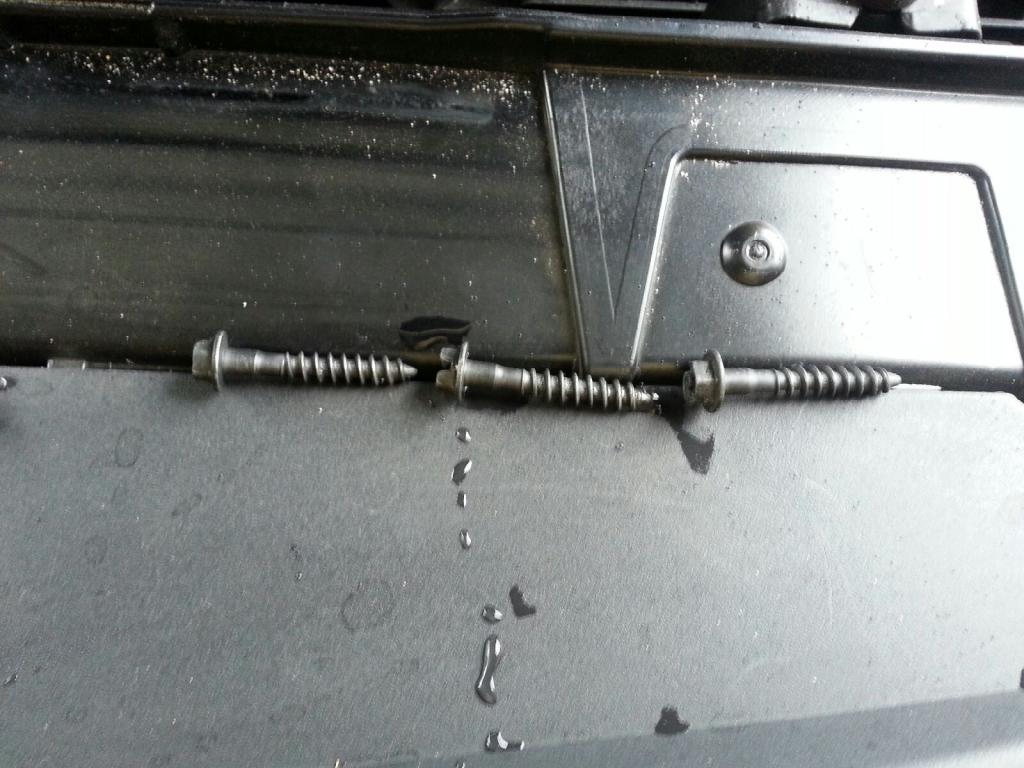

3 screws hold the lid on the stock airbox:

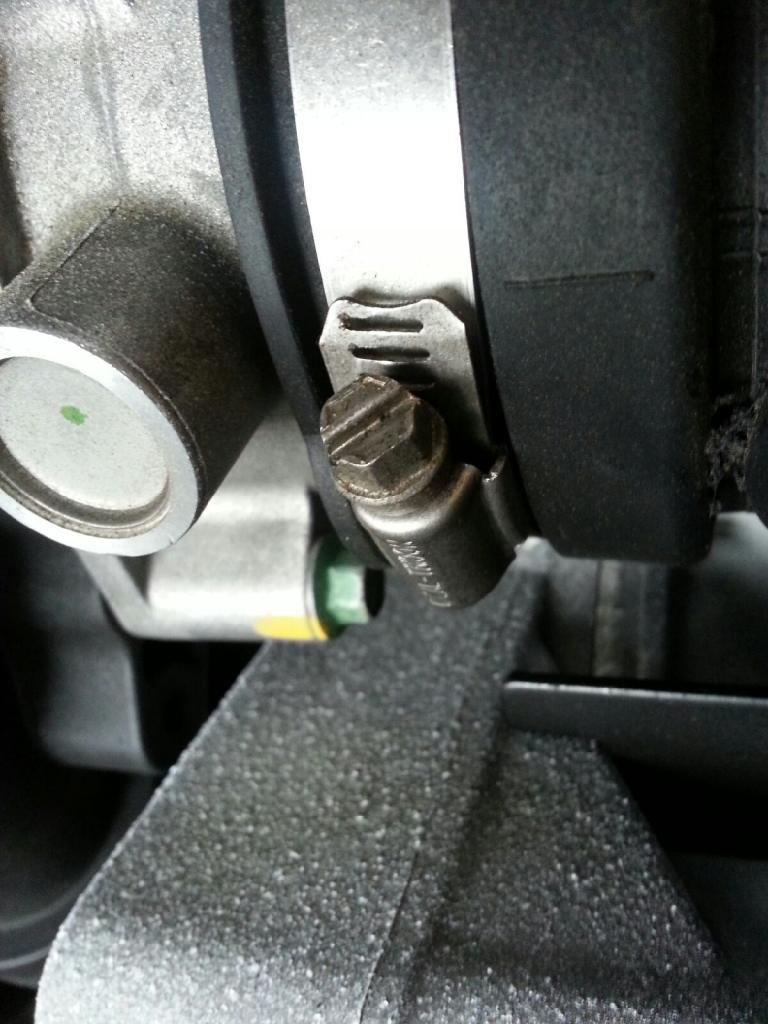

Throttle body clamp:

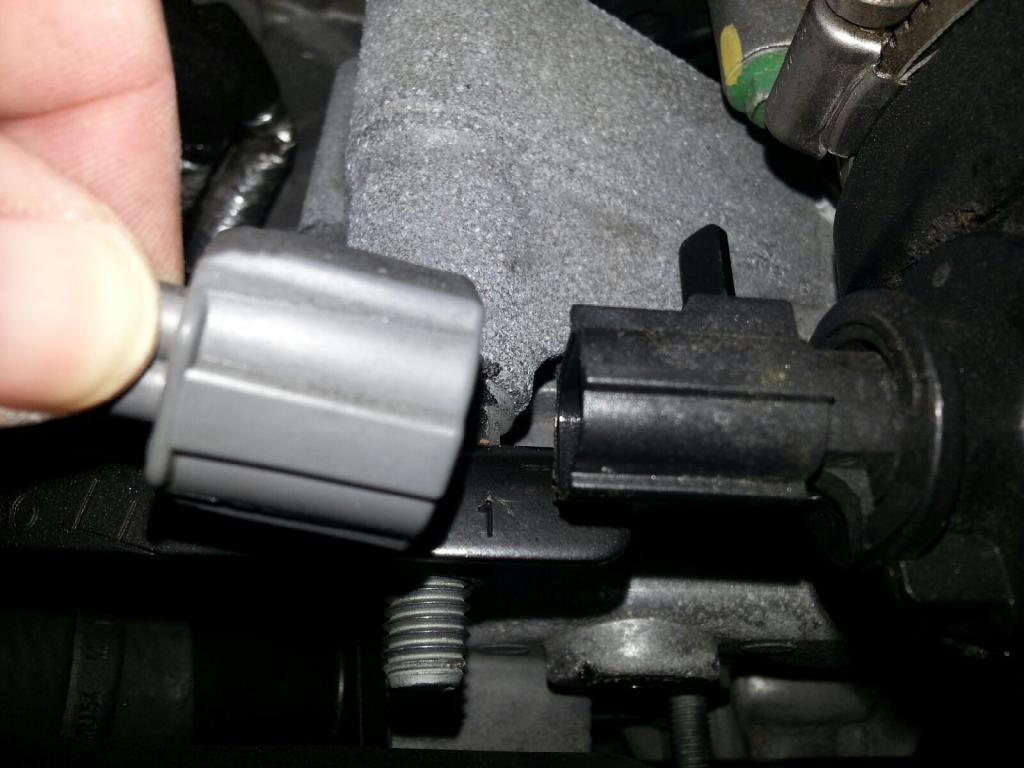

Disconnect the Air Intake Temperature Sensor:

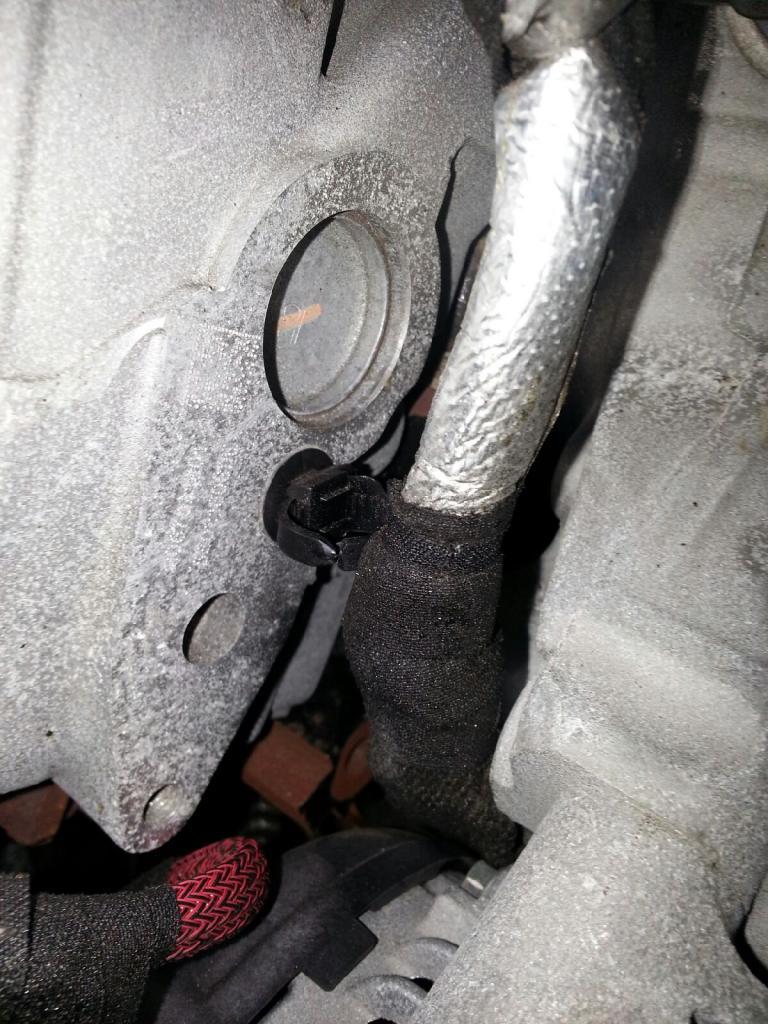

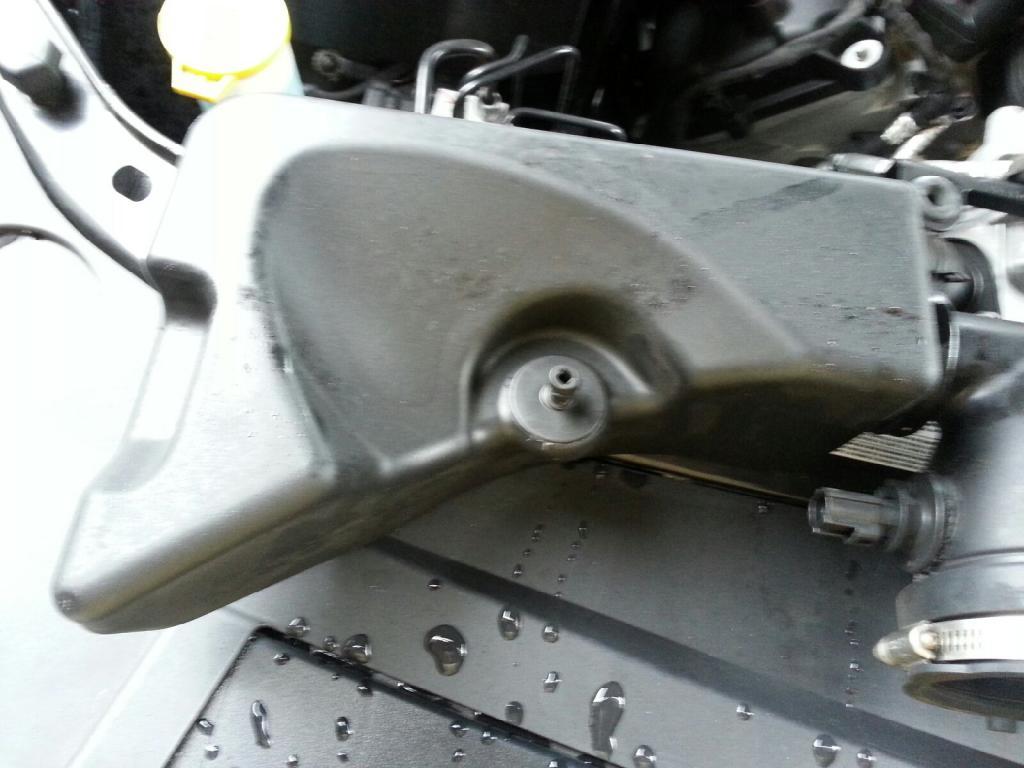

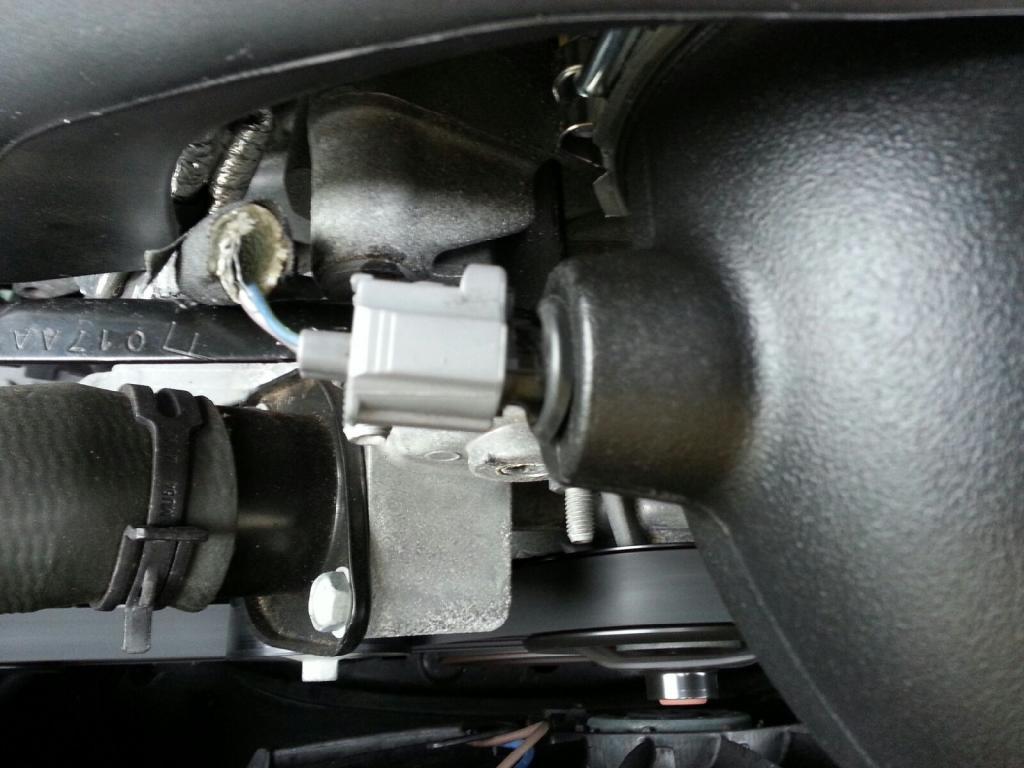

The grommet plug on the back stock intake:

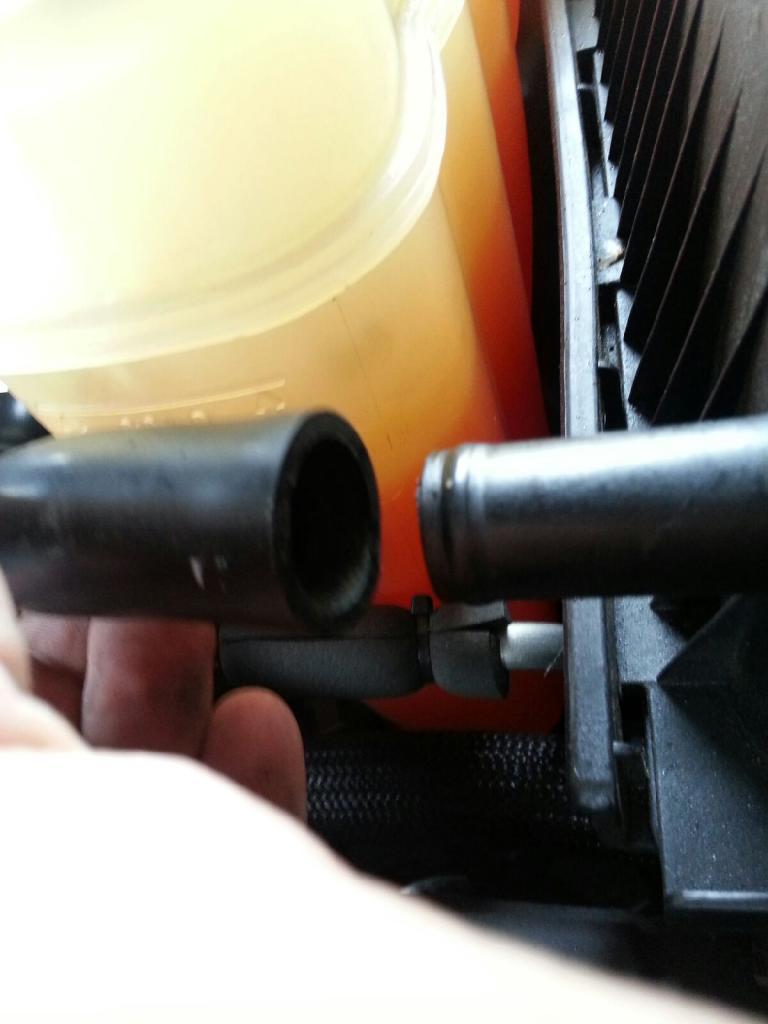

Vacuum hose removal:

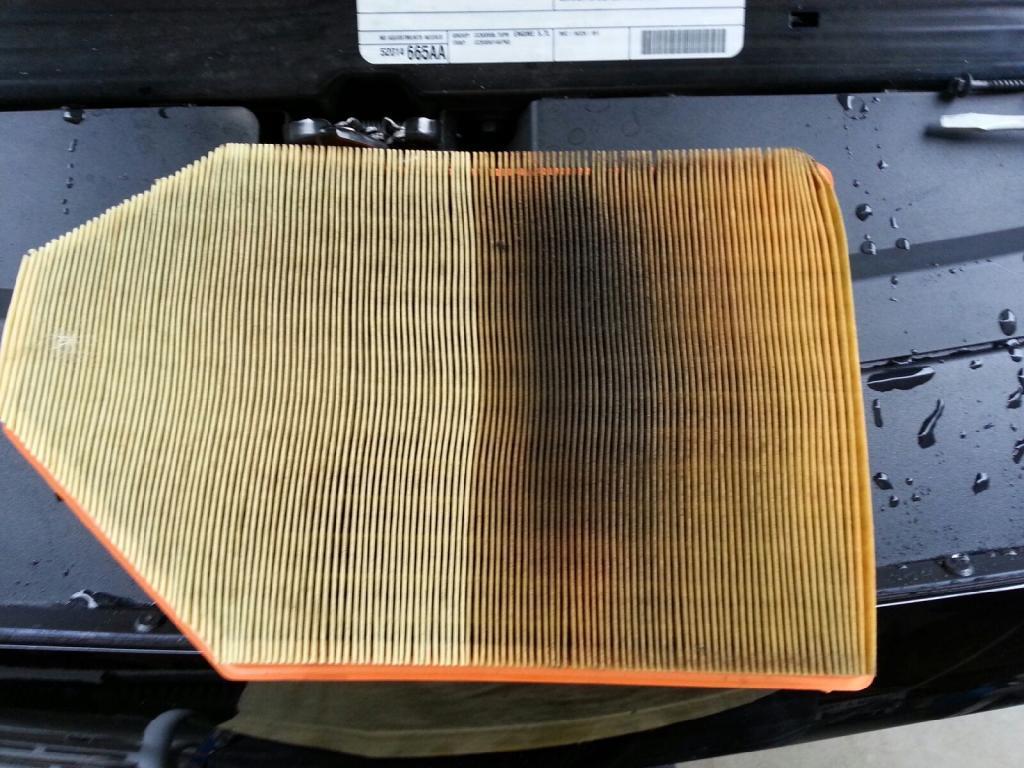

Aaaannnnd the stock 35,000 mile filter:

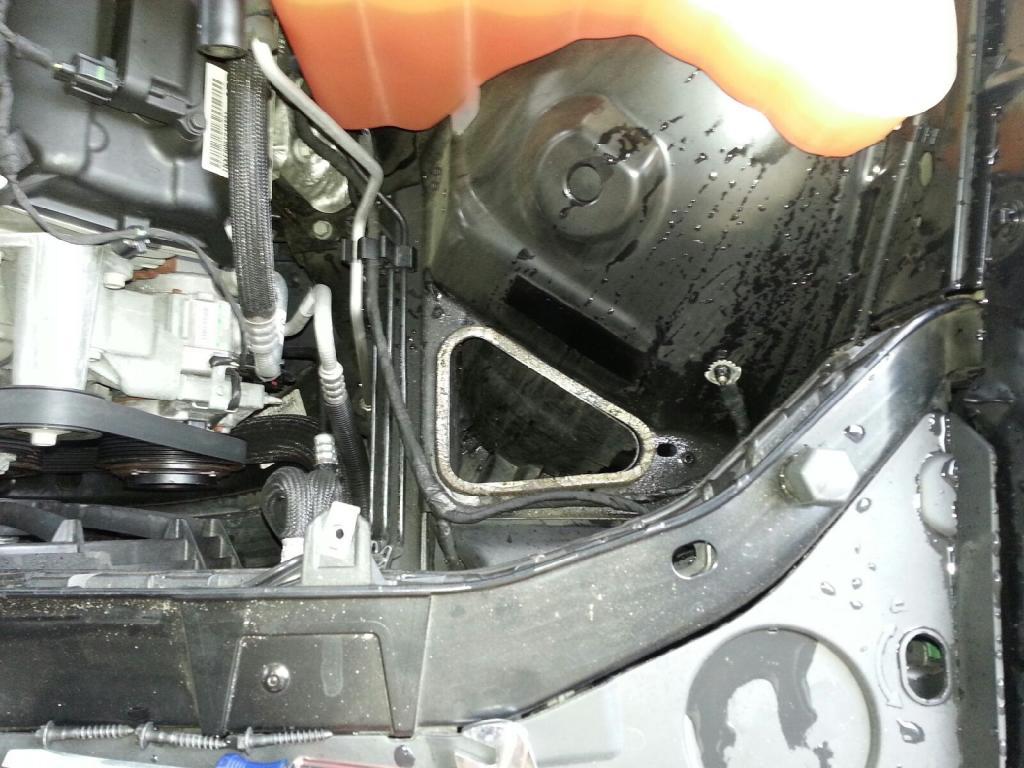

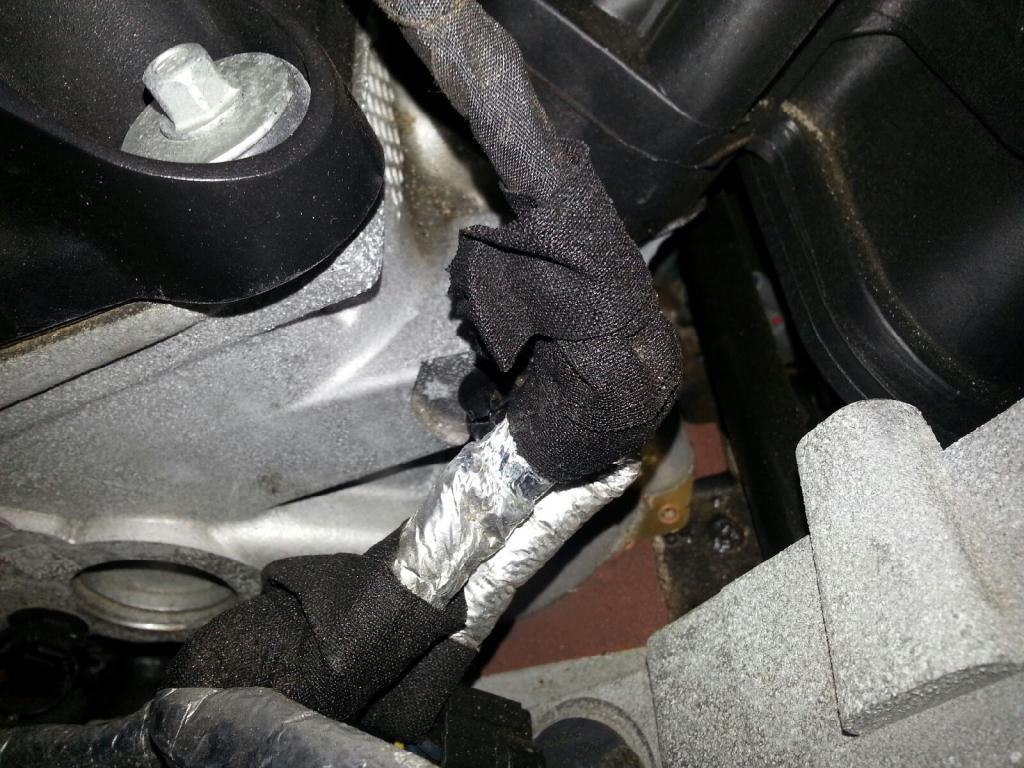

Everything out of the way:

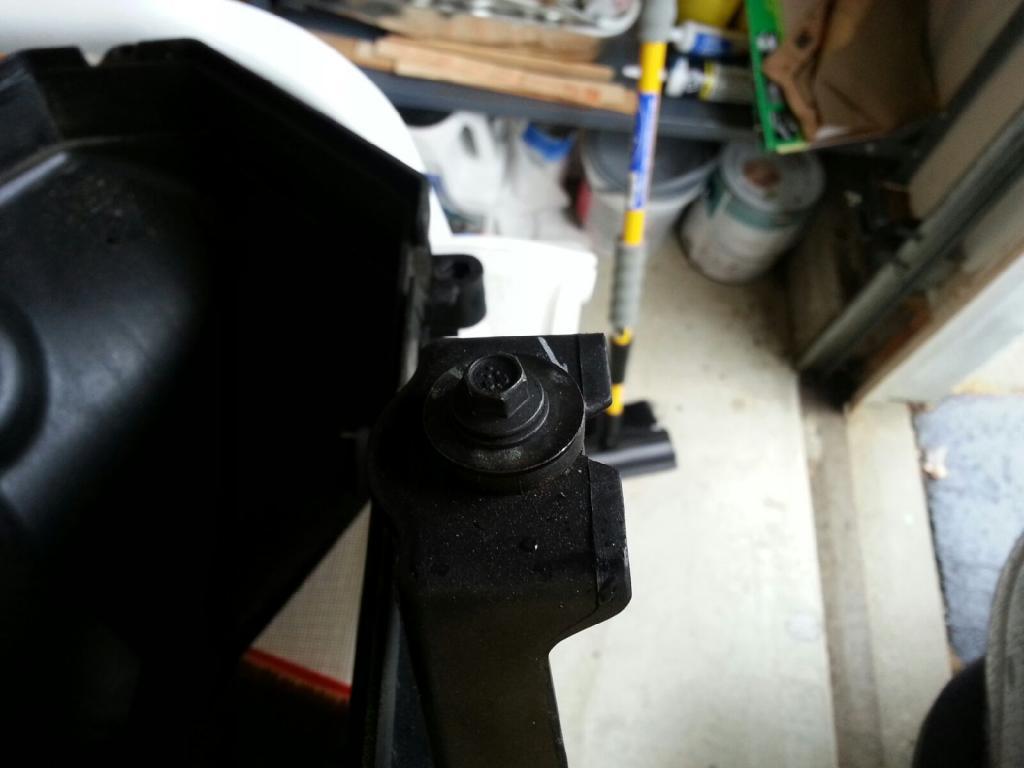

Remove the front grommet on the stock intake:

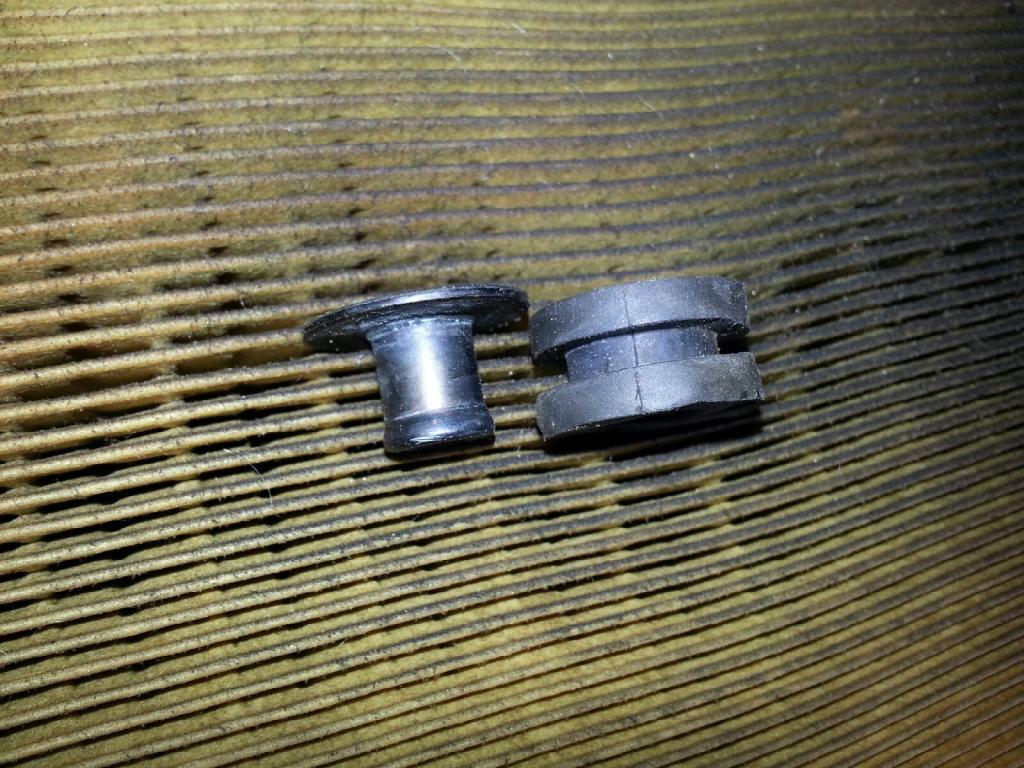

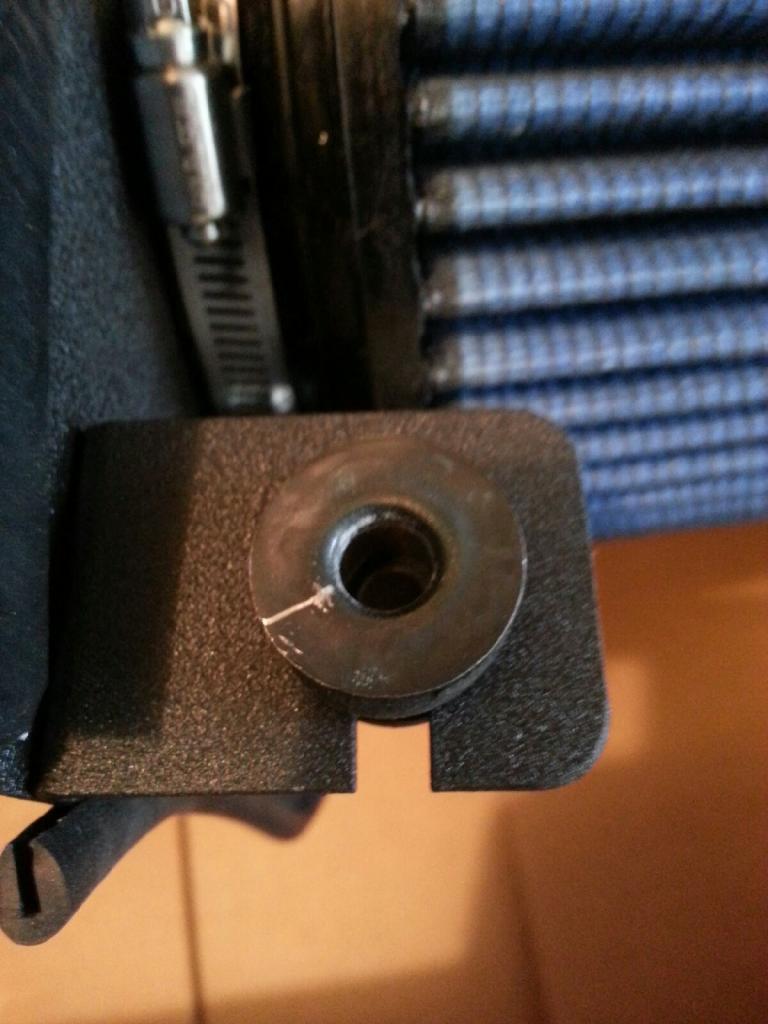

I didn't realize the grommet was a steel sleeve in a rubber grommet before I wrestled it out of the stock housing:

So, putting it into the AFE housing was pretty easy once I realized

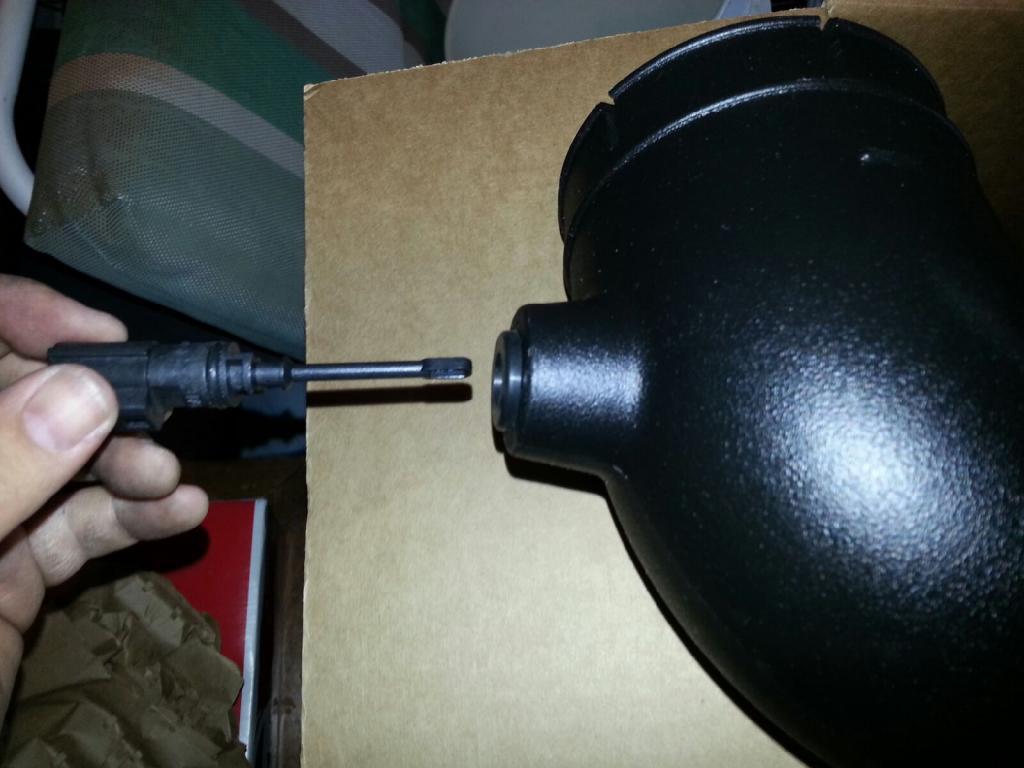

Now... the Biggest bitch of the whole thing was whole thing putting the Air Intake Temperature Sensor into the AFE tube. They give you a grommet to take up the slop in the hole but the is where I had to use the pliers and and rag; one the push in on the end the the other to twist:

Correct depth:

To make the Air Intake Temperature Sensor reach, I cut 2 factory zip ties:

And two:

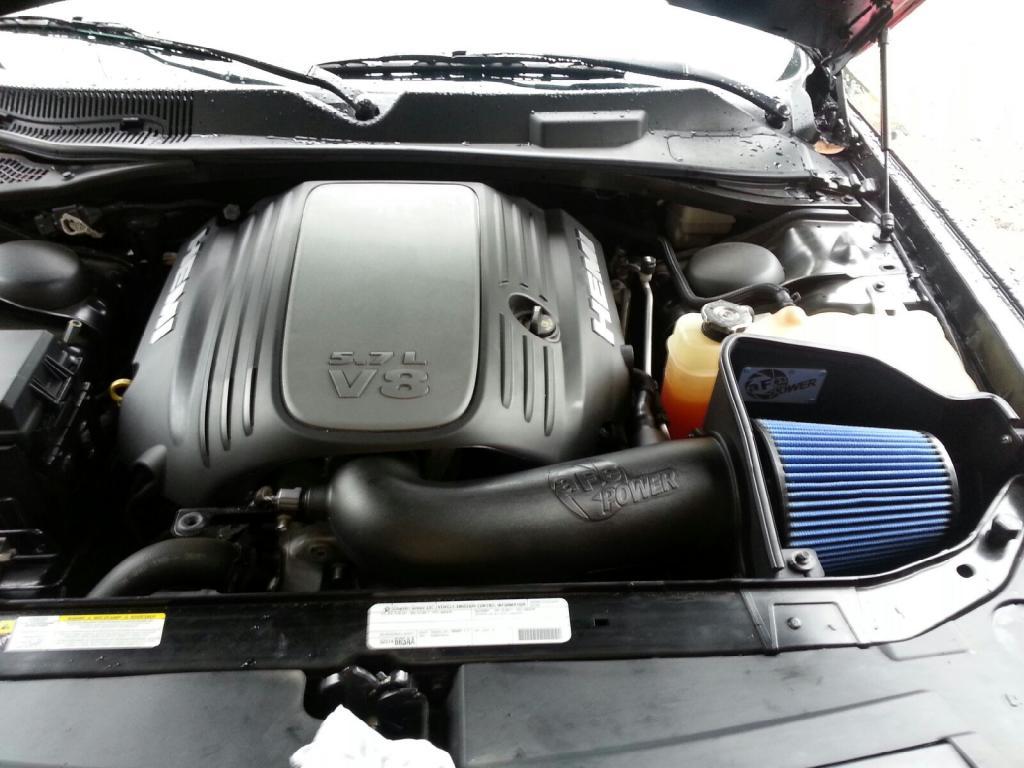

and BAM!!! intake is installed:

The quality on this kit was OUTSTANDING!! Everything fit as it should; no miss aligned holes and broken/half ass parts in the kit. I will be adding more pics to this in the next few days but you get the gist for

DRIVING IMPRESSIONS - None, it was a crappy rainy day out but on the few dry stretches I had, it was definitely more zippy and intake sounded is AWESOME
