My new E-Fan Setup!

Compliments of jondakotaguy @


First.. Want to thank the guy that recommended the thread that brought the Jeep Recall Fan to my attention.

I will be adding a secondary aux fan between the Rad and condenser for sure as a backup... once I get this fan wired into a controller; for now its just on a toggle switch.

And please dont make fun of the image quality.. it's the best I got.. LOL!!!

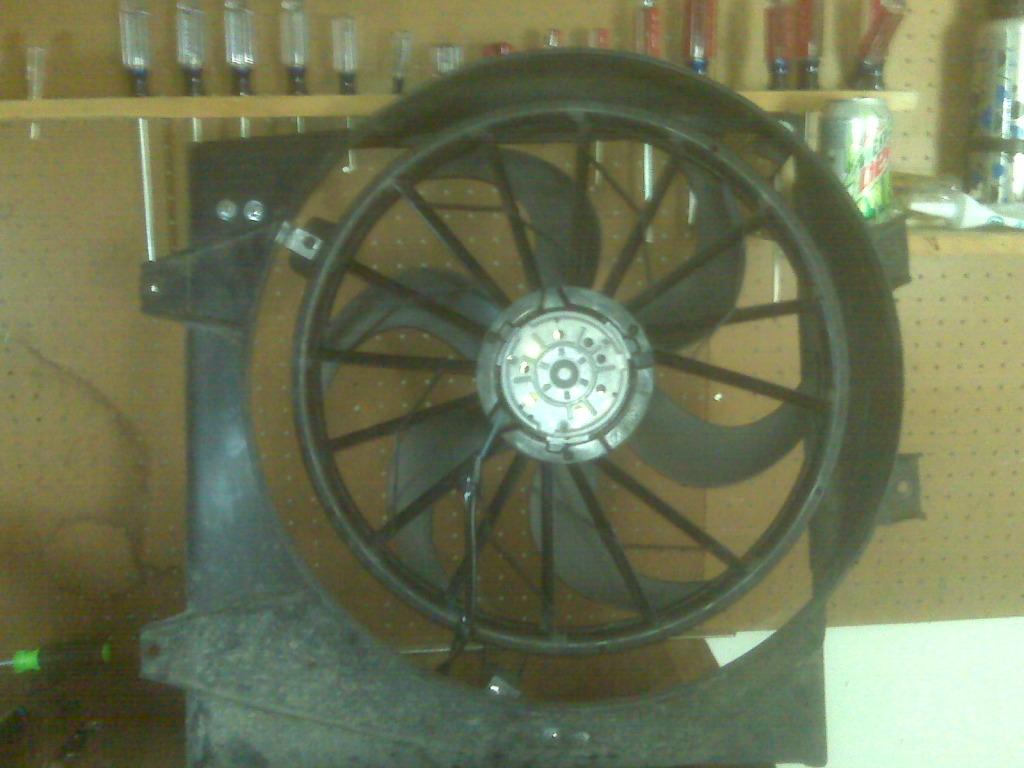

Lets start with the Fan it self..

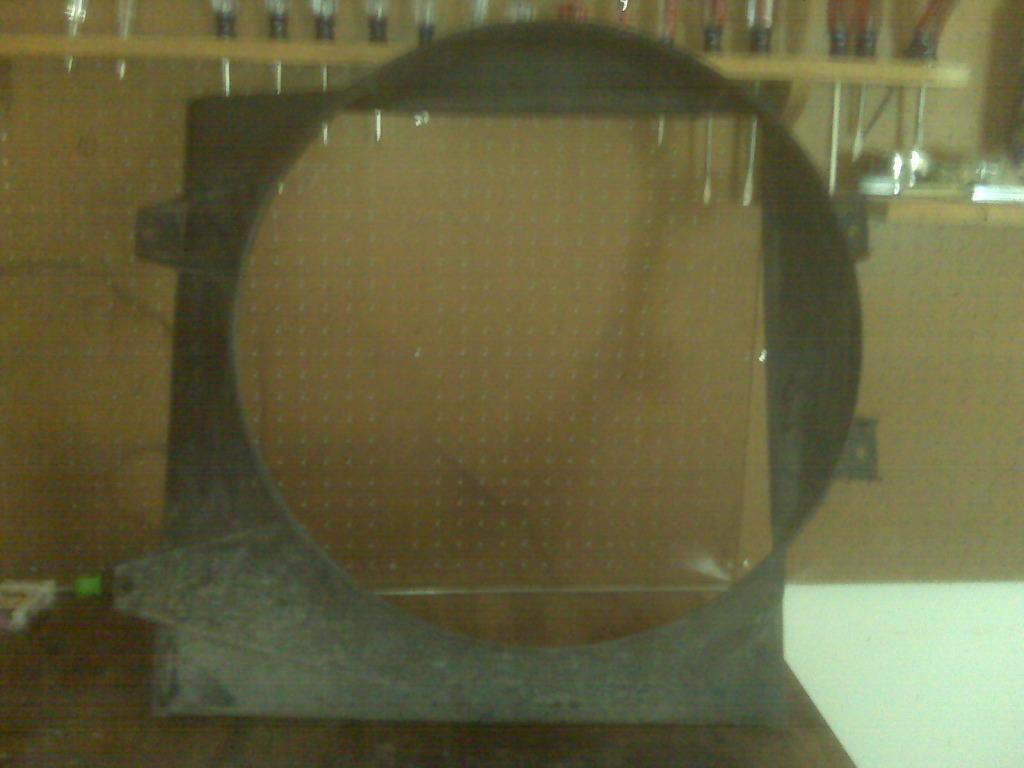

next.. the factory fan shroud..

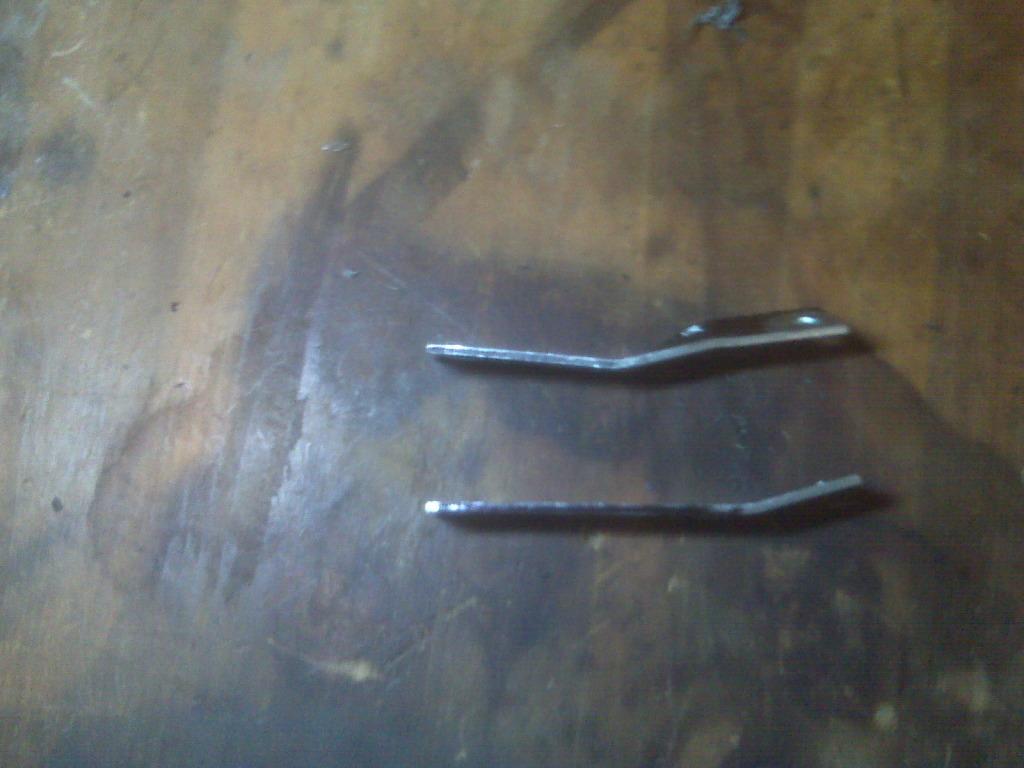

After a dry fit.. bending some brackets (so to speak- Notice the angles and bends.. )

Time to drill some holes..

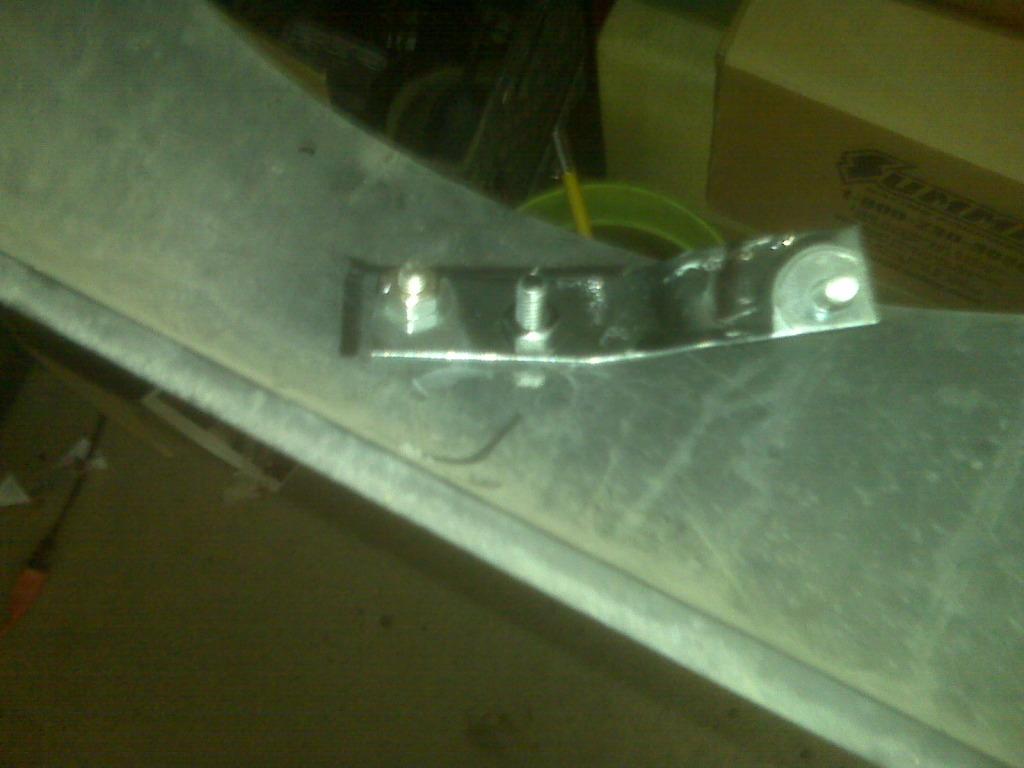

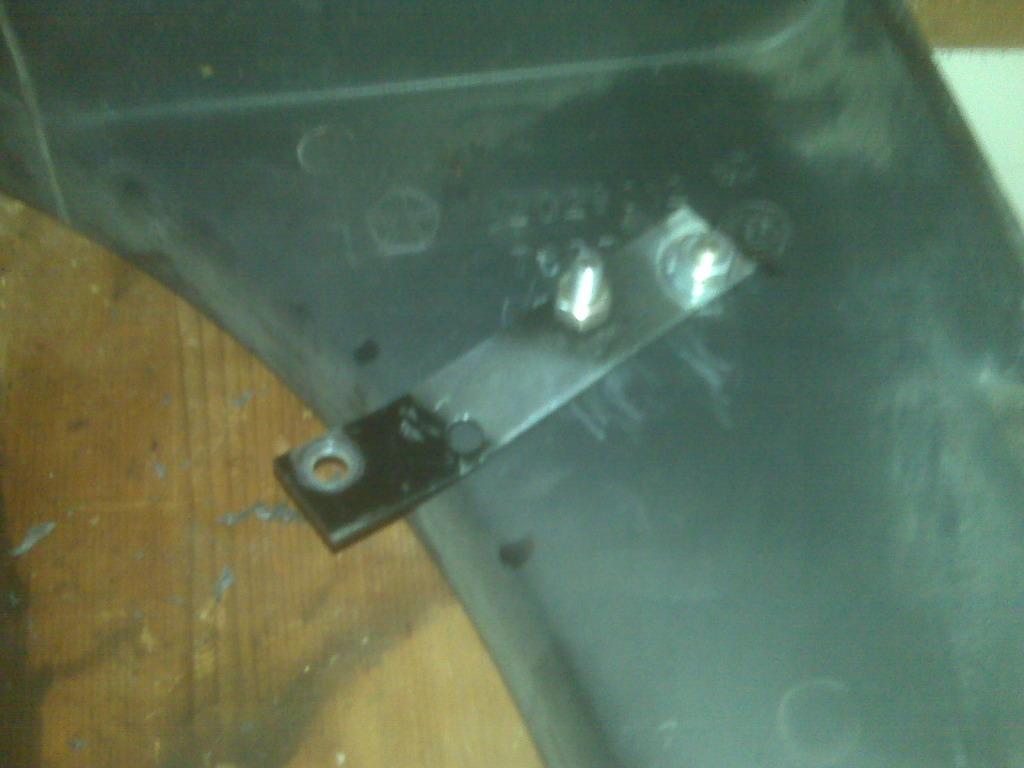

Attaching the brackets..

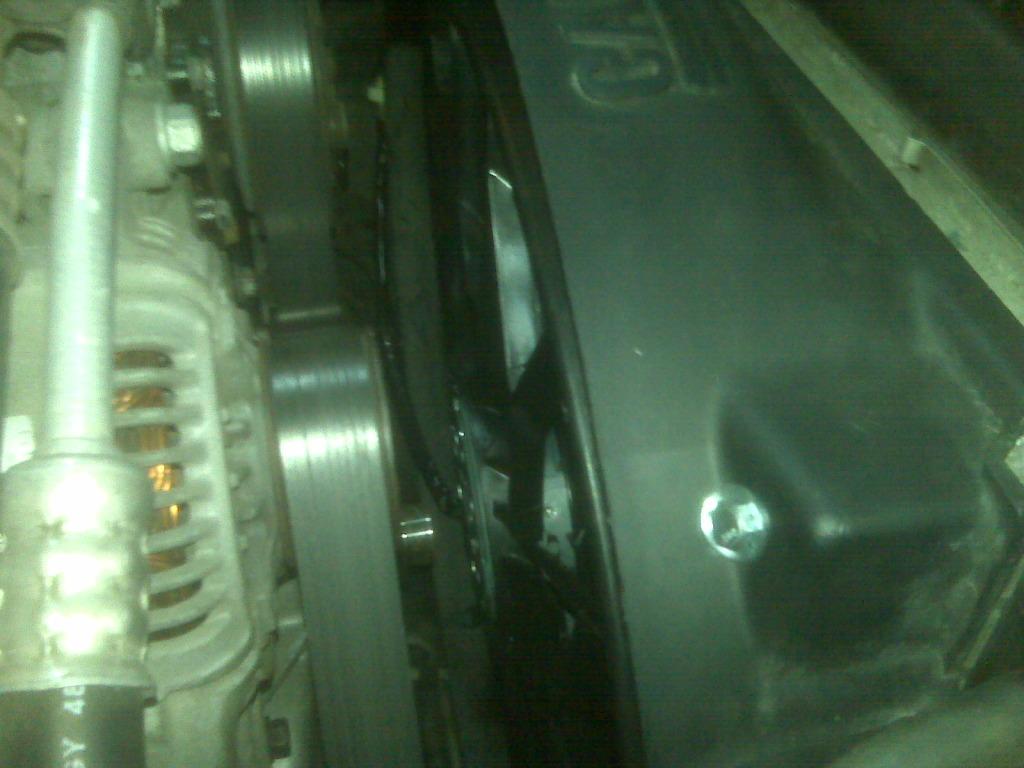

Now she is all together


I did not take pics but i shot some black paint on the 'brackets' and when i get some time ill clean up the shroud and paint the hole thing so its all matching colors.. including the silver bolts..

So far the fan works really well.. takes a little longer to wind up to full speed.. and also to come to a stop.. alot more air.. not too sure if the mount location is hurting the air flow or not being this was meant to be against the radiator... but all well..

I will be adding like i said and aux fan when i get the controller for this one.. and i will control it with a switch.. for the cases of towing or really hot ass days..

Also a side note.. which seems to help it out a little more.. i removed the rubber between the cal and the hood.. seems to help with air flow when stopped..
