Remove rear seats w/ pics
Compliments of sunyfoci @ focusfanatics.com
Since I was taking my seats out I thought I'd do a quick how to with pictures.
Time - about 10 minutes

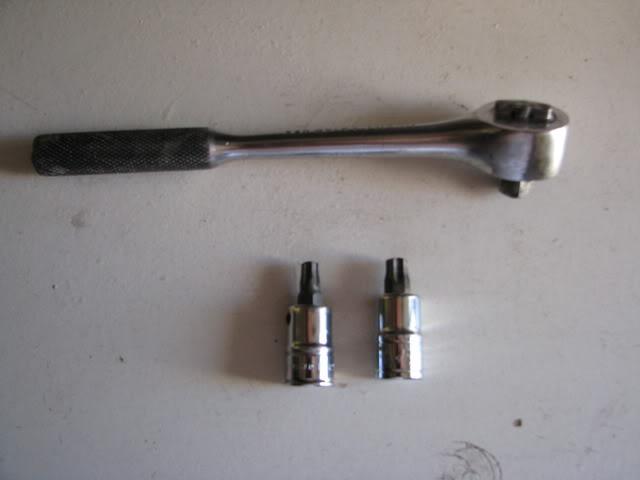

Tools required -
T40 torx socket
T45 torx socket

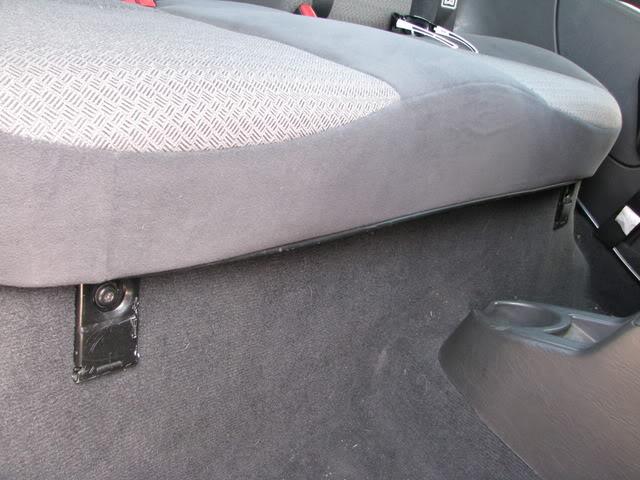

From inside the car remove the two bolts holding the lower section of the back seat using the T40 socket.

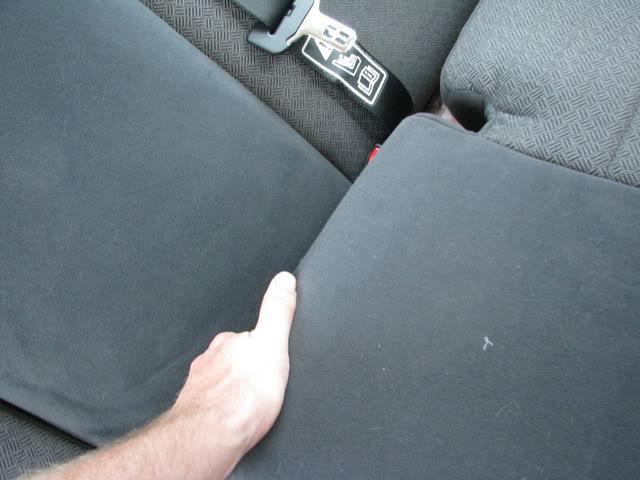

Lift up on the backside of the lower seat and remove it from the car
with the lower section out of the car you can replace the two bolts so you don't lose them.

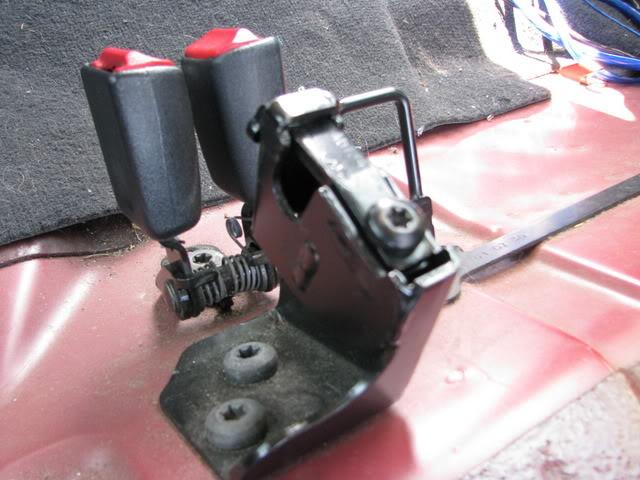

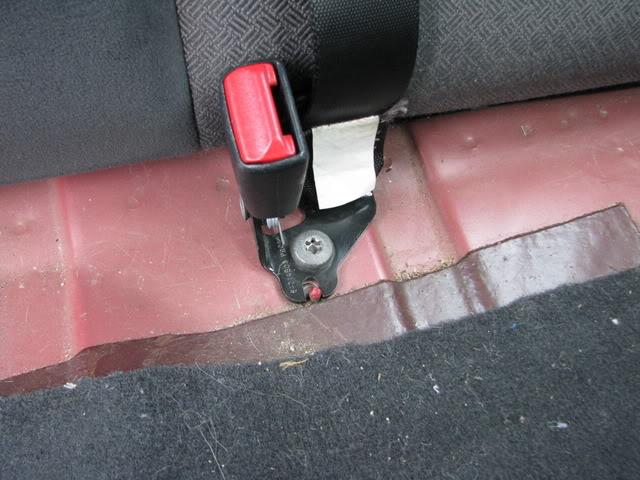

Using the T45 socket remove the mounting points for the 3 rear seat belts, middle and both sides.

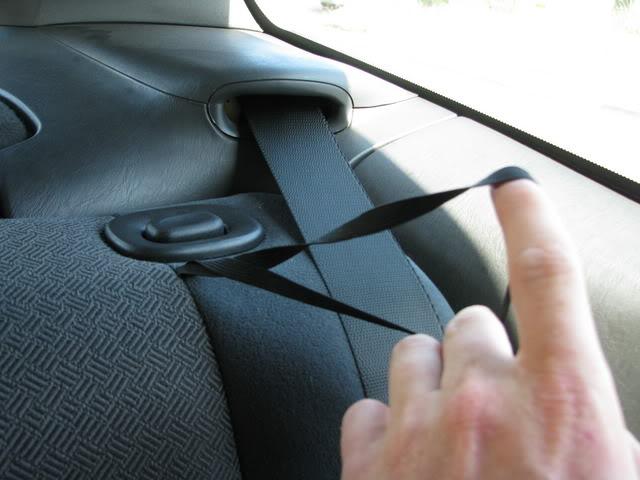

It is necessary to remove the sides because you have to unloop the shoulder straps on the sides through the elastic, you could skip removing the two sides and just cut the elastic if you wanted to also.

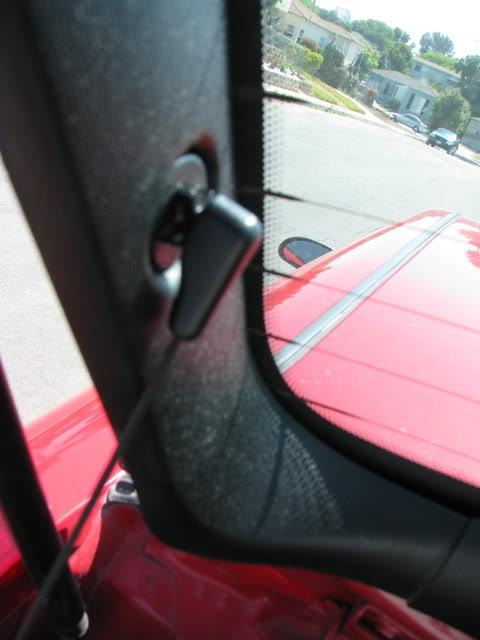

Open the hatch and remove the cargo cover by unclipping the strings attached to the hatch lid

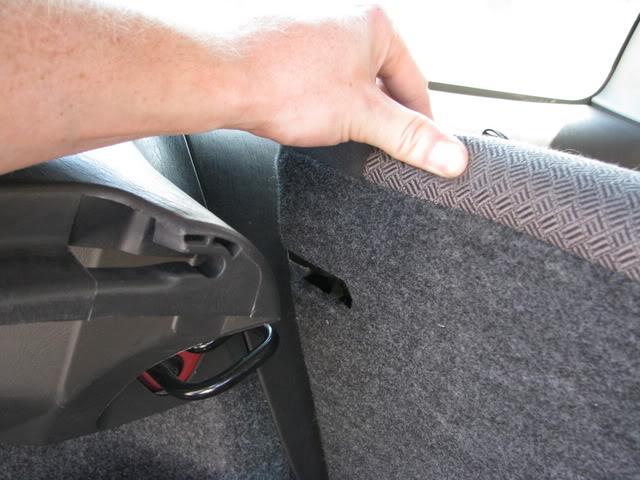

Slightly lift up on the cover and pull it toward you, it will pop out now you can lift it up and slide it out.

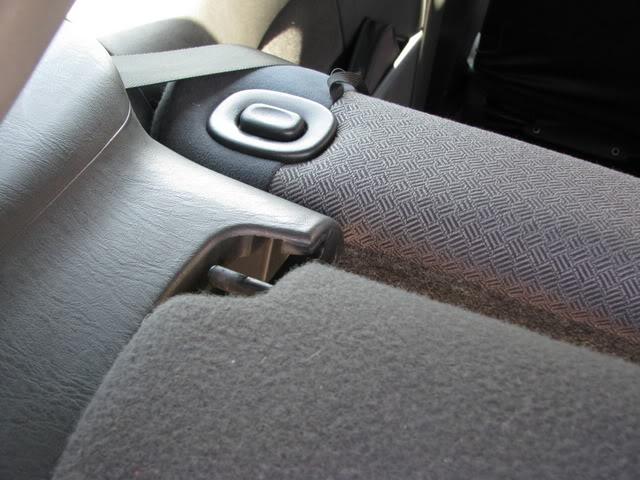

Push in the seat release buttons and flip both sides of the rear seat forward

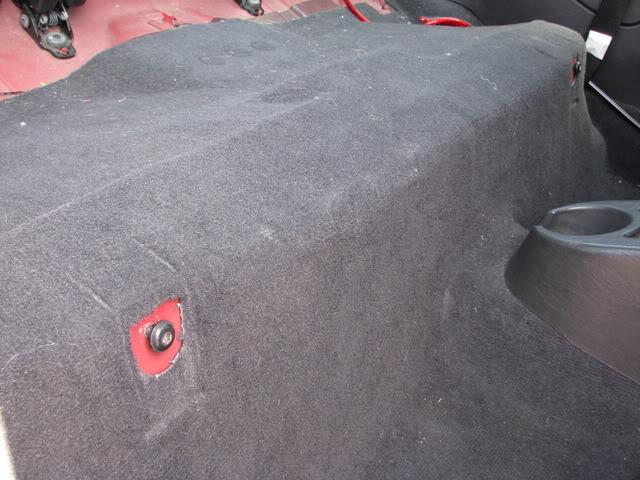

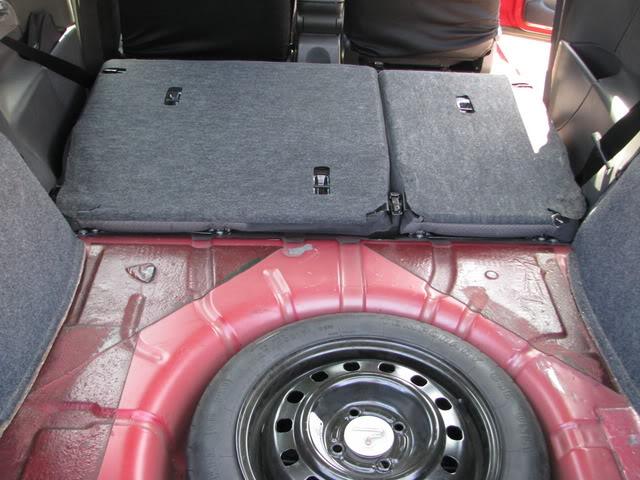

The back seat should now look like this, with the lower carpet removed.

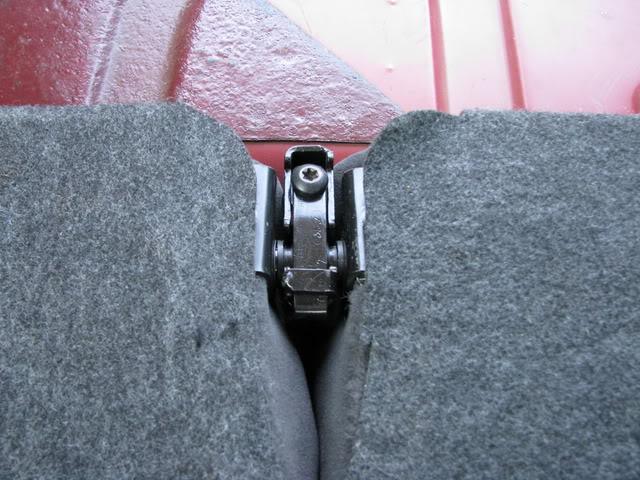

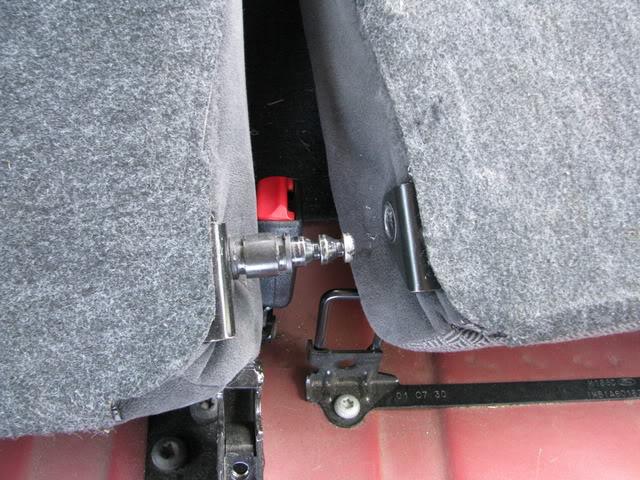

In the middle of the two hinged seats you will see a bolt this holds the middle hinge for the seats.

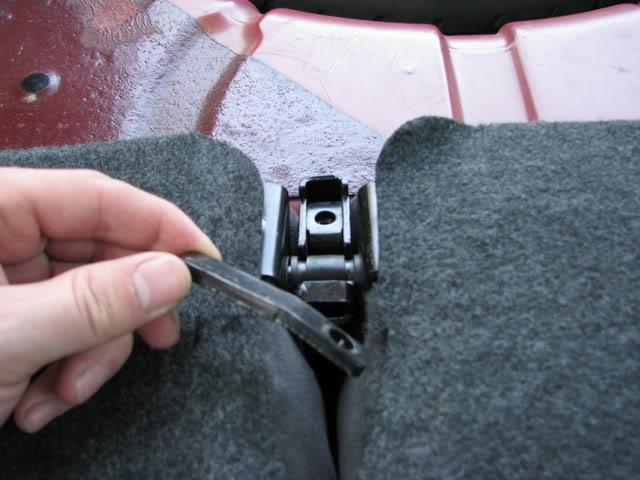

Using the T40 socket remove this bolt and slide the metal piece it was holding toward the front of the car to remove it.

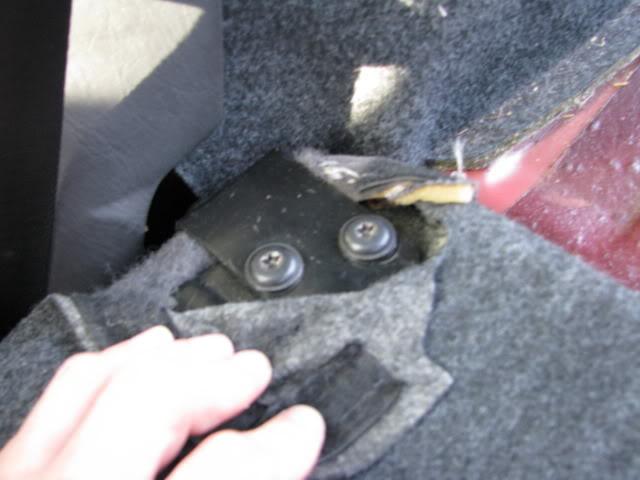

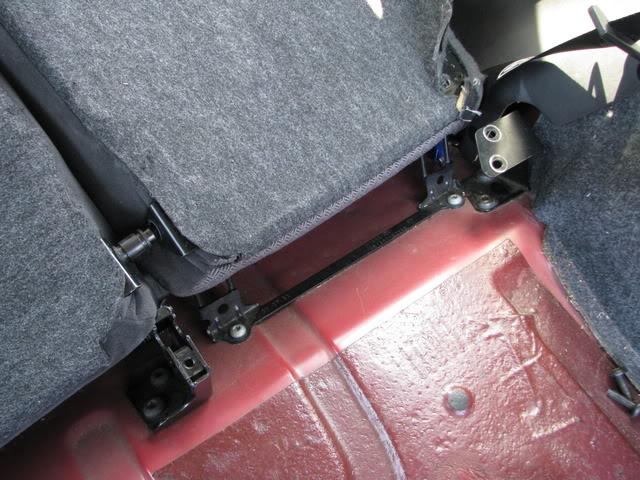

On the left and right sides there are 2 bolts still holding the seats, use the T40 socket to remove them.
Lift up on the right side section of the rear seat, with some effort it should pop out of the middle hinge and right hinge
You should now be able to remove this smaller section by pushing it to the side away from the larger seat section.
Pull the larger section out now and replace the bolts in the seat backs so you don't lose them
Replace the piece of metal and bolt in the middle hinge.

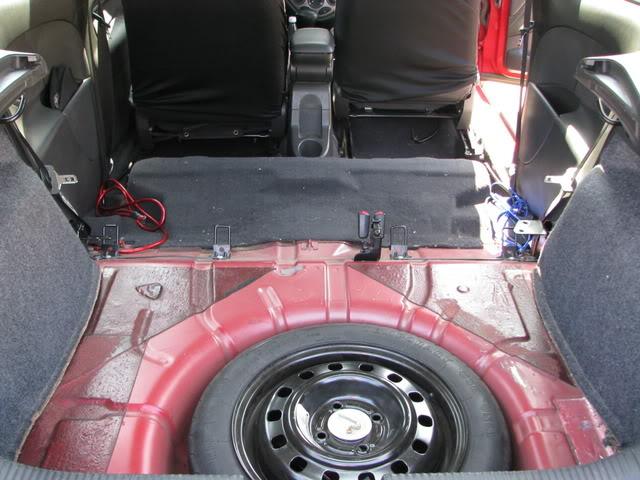

And you're done the rear seats are out of the car.
