Differential Fluid Change for S2000


Compliments of SIIK2NR @ www.s2ki.com


Time: 45 minutes

Difficulty level 1-10: 2

Tools required:
1/2 inch drive
Metric sockets

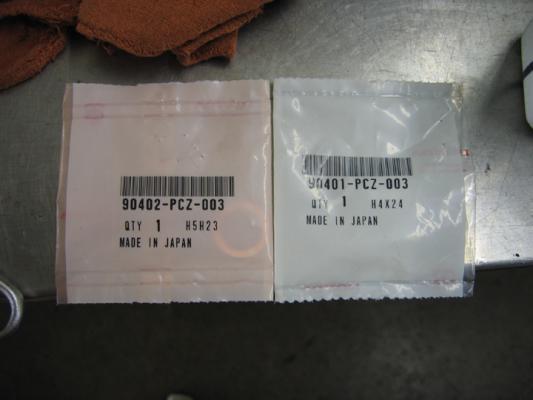

Replacement washers 90402-PCZ-003, 90401-PCZ-003
Fluid pump

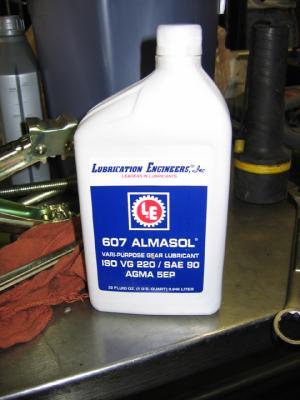

Differential fluid 1 quart
Rags

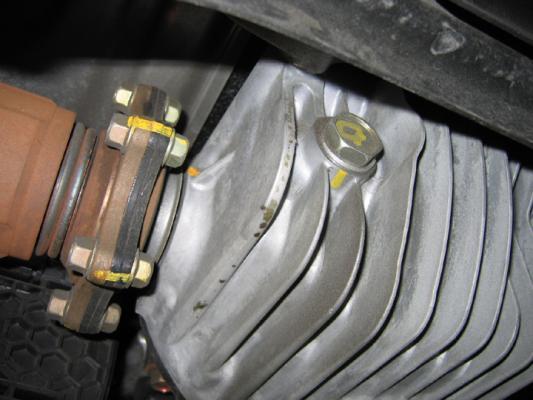

1. Remove differential fill bolt first, remove washer and replace with
90402-PCZ-003

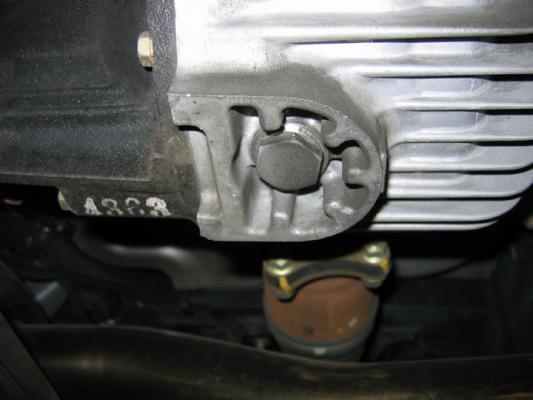

2. Remove differential drain bolt second, remove washer and replace with
90401-PCZ-003

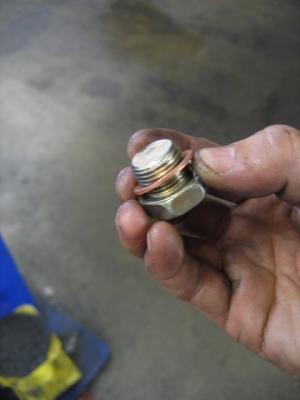

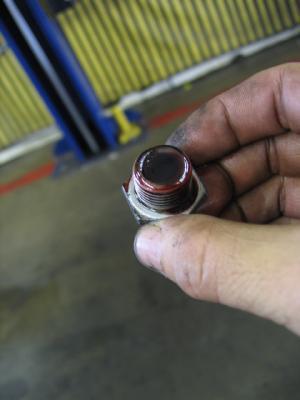

Inspect drain bolt for shavings and wear on the magnet

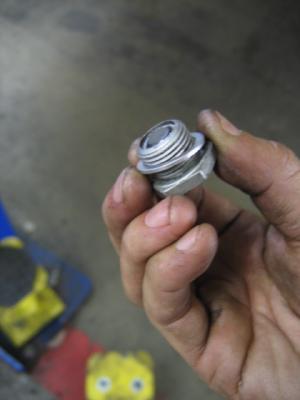

Wipe drain bolt and clean magnet




3. Drain old fluid into container

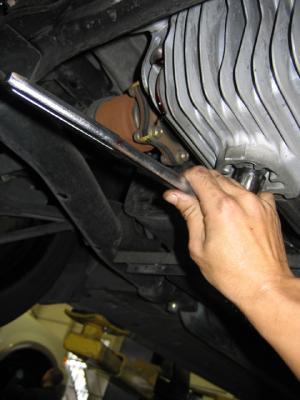

4. Replace drain bolt using 24mm socket and 1/2 inch drive. Torque to 33 lbf-ft

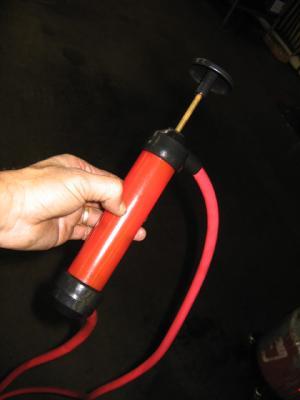

5. Use fluid pump to pump diff fluid of your choice into the pumpkin. The bottom line goes to the fill hole and the top line goes into the bottle of diff fluid

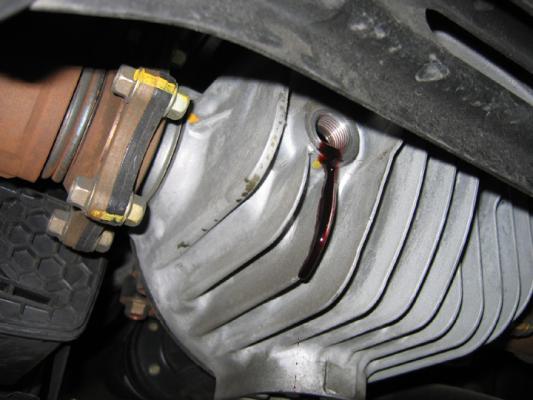

6. Fluid will leak out of fill hole when diff is full




7. Replace fill bolt, torque to 33 lbf-ft

8. Wipe area clean




9. Your done!
