Instructions - Door Panel Removal (door card for you Brits) "How To"


Compliments of H20boy @ jaguarforums.com


5-26-2010

First, remove the little supertweeter grille covers, be careful, easily snaps off, ask me how I know.
Click the image to open in full size.



The removal of that little plug requires one of those little shop tools that look like a dental tool, otherwise, you'll tear it up trying to pry it out with a small screwdriver. Go to Northern Tool and get a small set for $3.

Click the image to open in full size.


Click the image to open in full size.

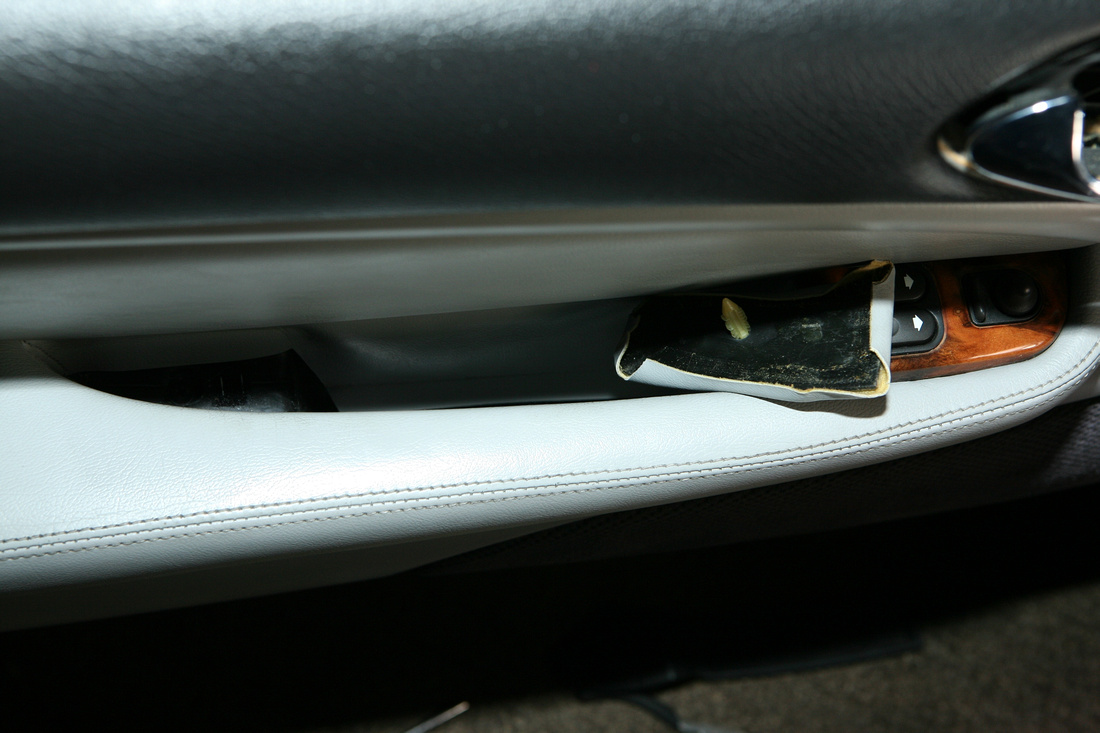

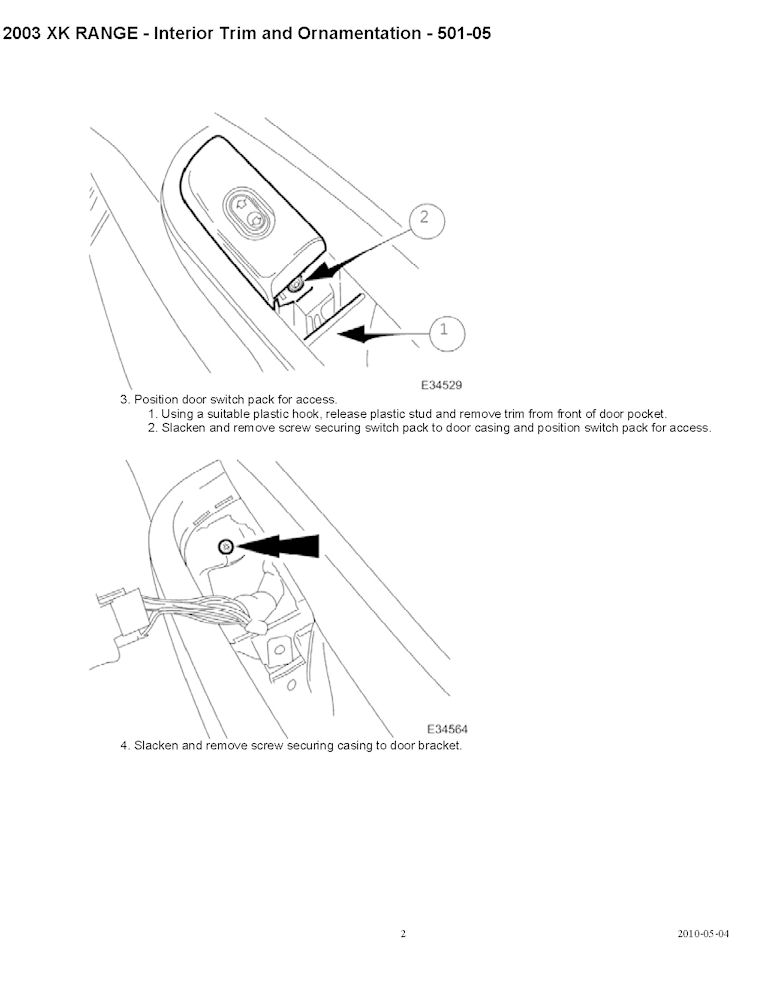

That little trim piece with the 'plastic stud' simply pulls out from under the switch pack. Very important, don't forget this, otherwise you wont be able to access the switch pack mounting screw. My audio shop didn't do this step and snapped the wood thinking it was just 'snugly' snapped in there.

Click the image to open in full size.
Click the image to open in full size.


Start at the top right (by the supertweeter) or top left, and slowly work your way around the panel pulling outward to release those male/female love buttons (aka fasteners)Click the image to open in full size.

More than likely, a few of your male fasteners will snap off during removal and reinstallation, so before you start, stop by the dealer and pick up a handfull for around $1 a piece. You'll be happy you did.

This is probably as far as you'll need to go, no need to disassemble anything else to get to the window adjustments.

Click the image to open in full size.

Click the image to open in full size.
