Replacing Steering Coupling - 70 MK III

Compliments of 2sasilverbullet @


Note to self - don't do this again! PAY someone to do this for me!

What I thought would be about an hour job turned into a 4 hour ordeal for a friend and I! So this is the only thing I accomplished Saturday. I was going to bolt the new brake booster and master cylinder up - that will have to wait for all my muscles to heal.

Getting the old coupling out wasn't too hard.

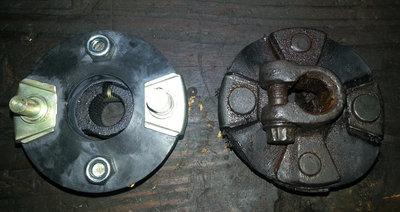

Here's a pic of the old and new one:

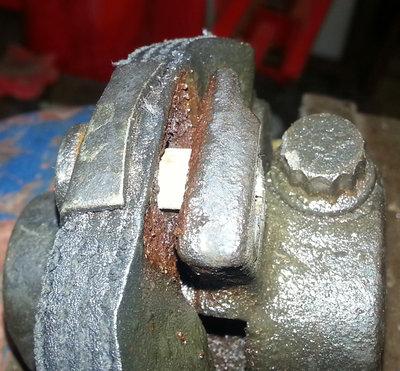

The fun(not) part was grinding off the old rivets.

Another view:

Getting the new coupling in place was a nightmare! I had to end up completely removing the pitman arm (no easy task, puller required)

Then I had to get the coupling on the steering box - with a hammer.

Once on, I had to push the whole steering box/coupler assembly up onto the steering shaft and bolt the box in.

Once bolted in, I had to pry the coupler up all the way to get the bolt in that holds it to the steering box.

The bolt that came with the coupler stripped - I ended up using one of the old bolts.

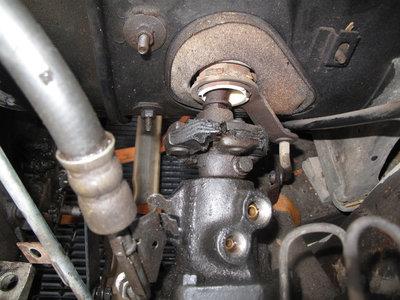

Here's the old coupling:

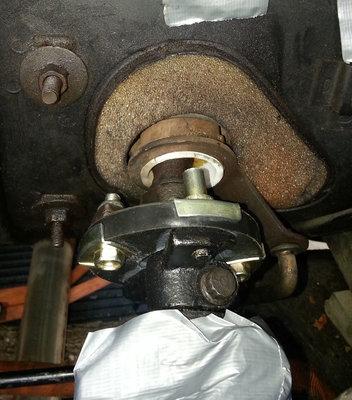

Here's the new coupling installed:

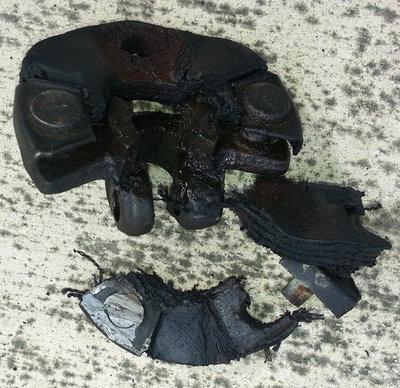

Here's a pic of the leftover:
