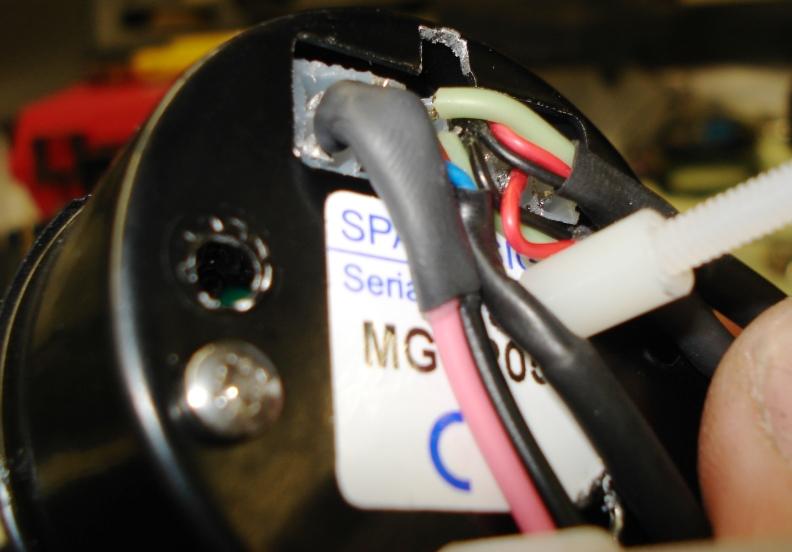

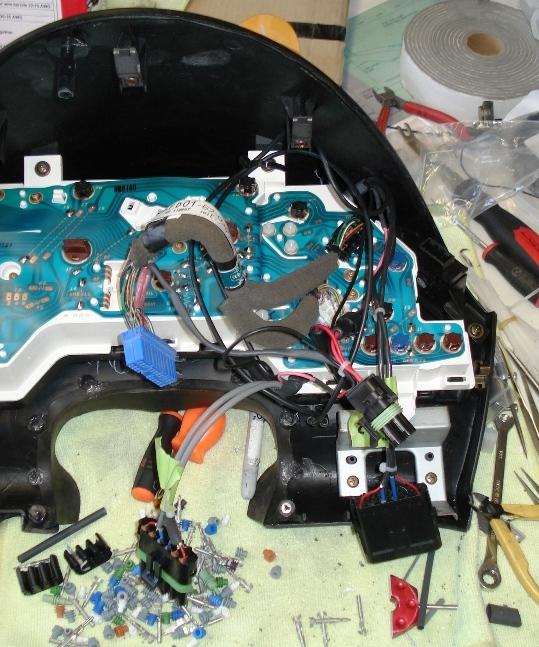

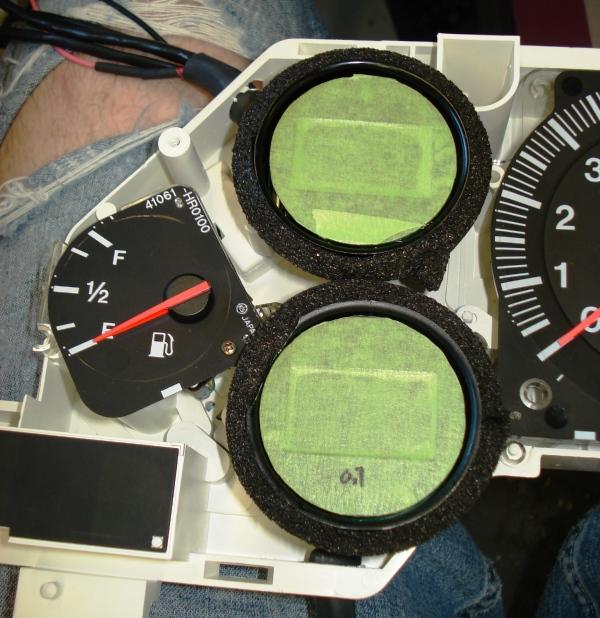

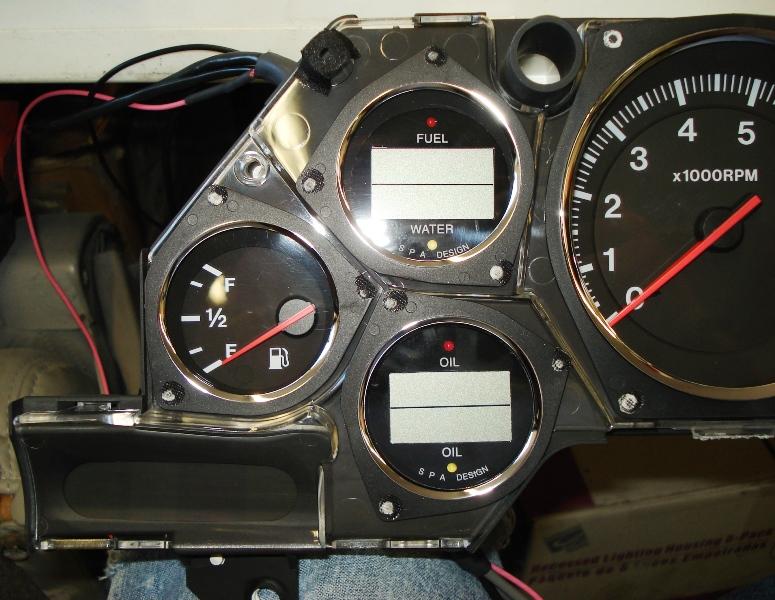

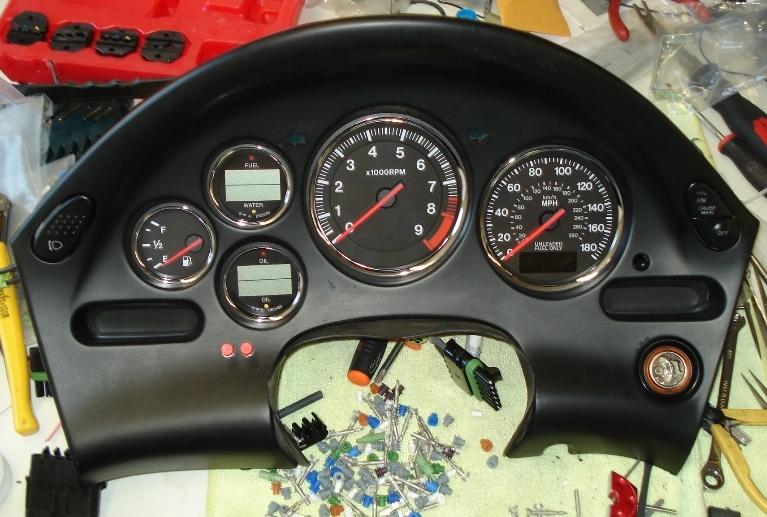

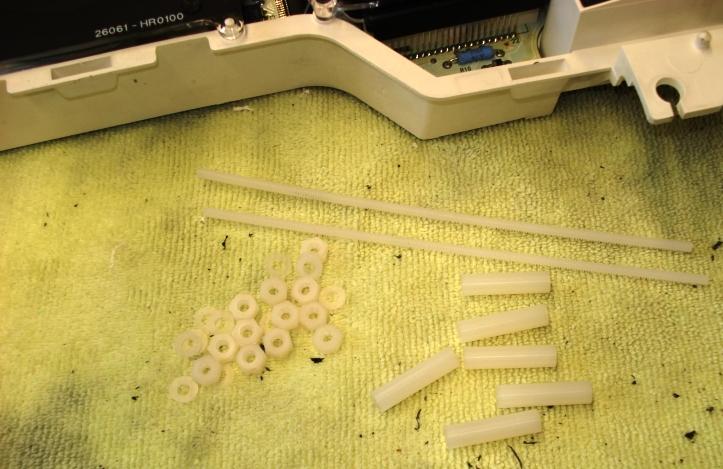

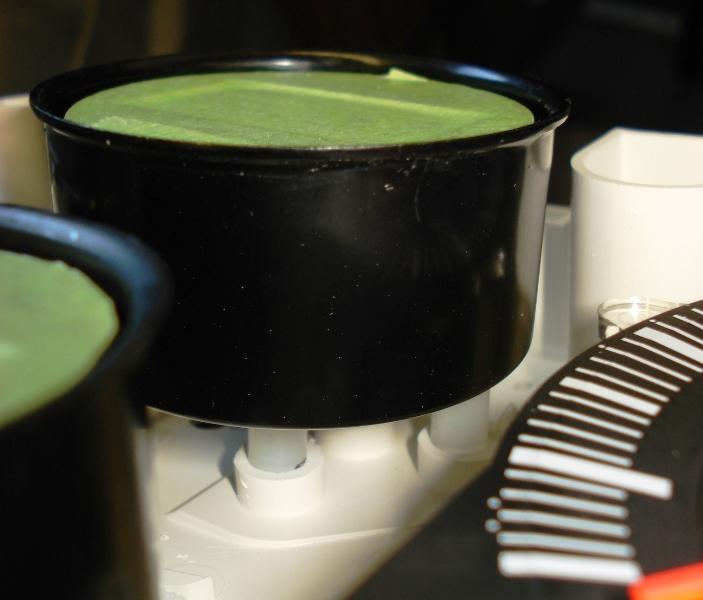

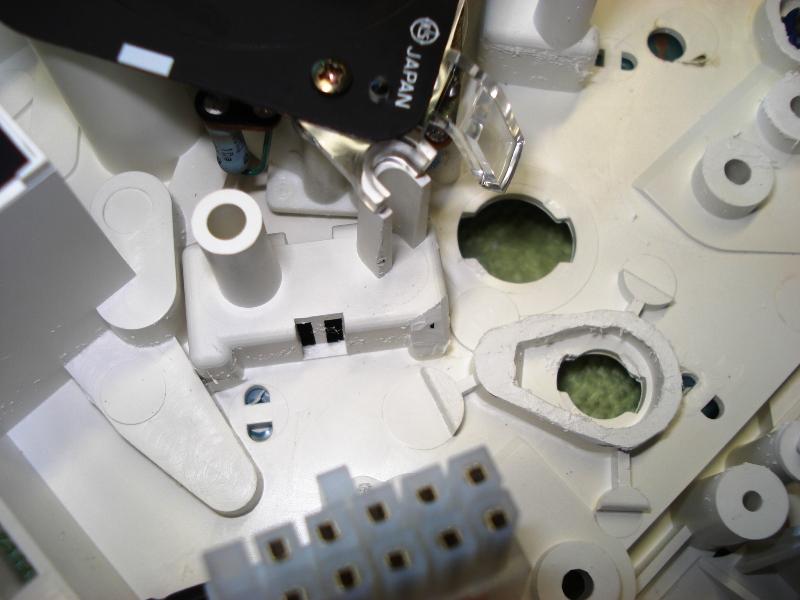

Finished the dash, had to eliminate the plugs for the SPA gauges and solder the wires directly, I did mil spec connectors though, so it's good. I used plastic rod, spacers and nuts to attach the gauges to the dash, required a lot of trimming original gauge structure in order to fit, but the finished product turn out awesome.

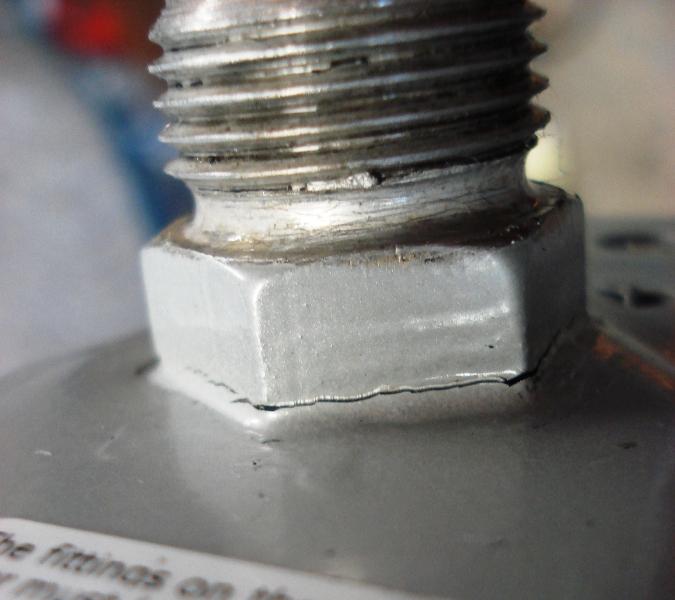

Well, put fluids in, cranked it over for oil pressure and found that I have a crack at one of the fittings on one of my mocal oil coolers. Need to fix that and find out why my fuel pump isn't turning on, will need to trace that issue too.

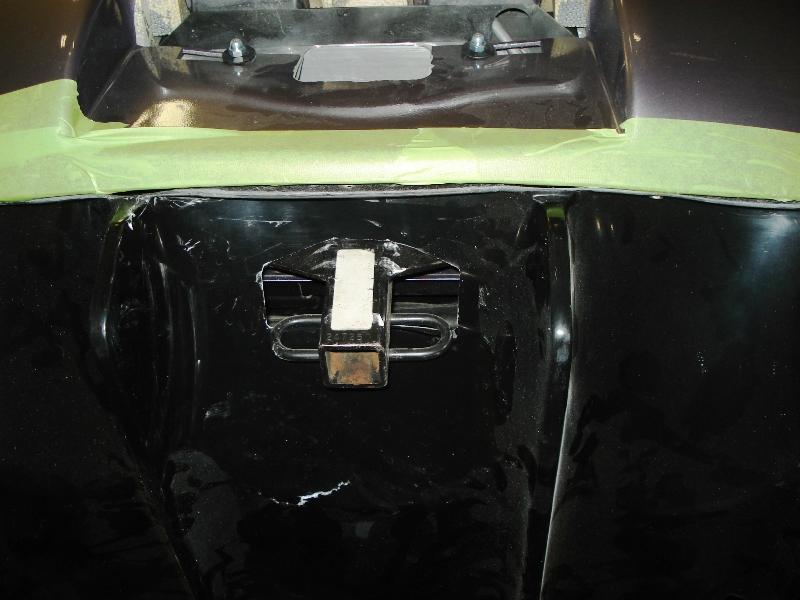

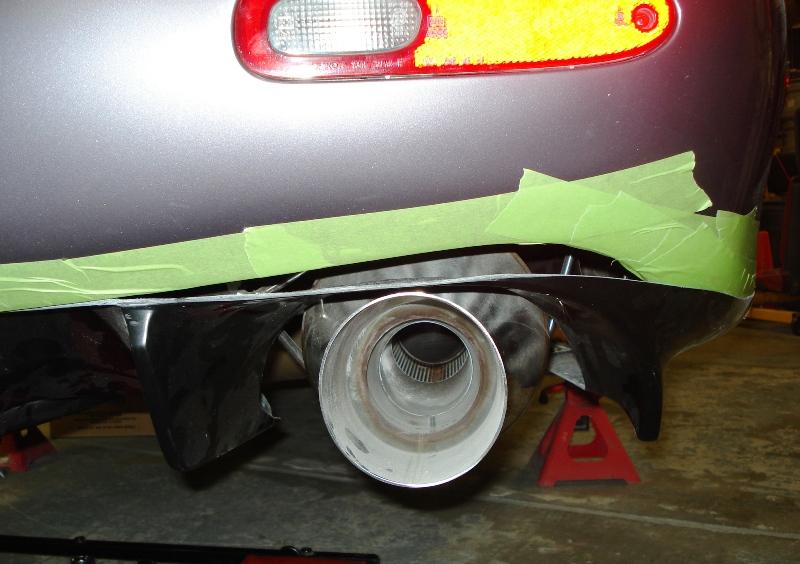

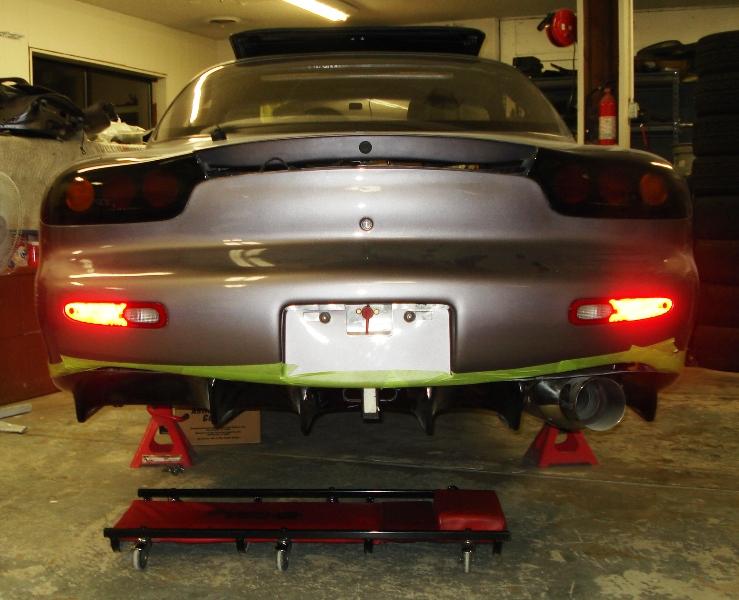

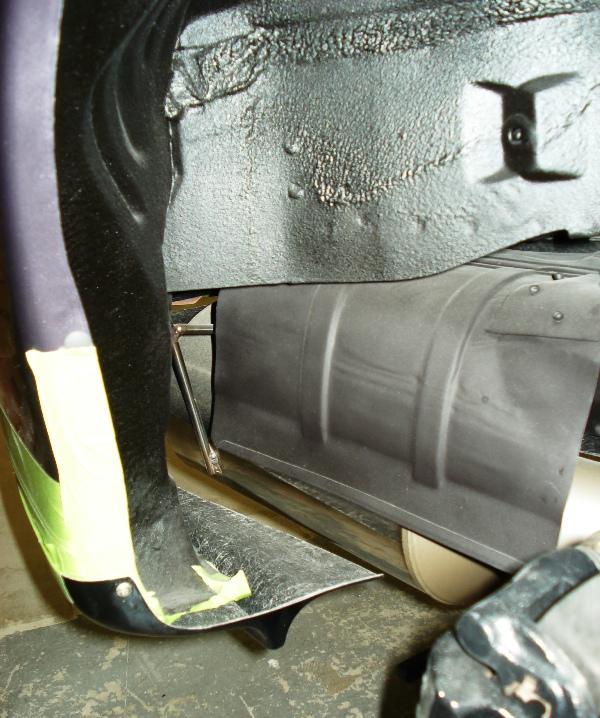

Well checked the wiring for the fuel pump and everything looks good, may be a supporting accessory that causing the pump to not kick in initially when starting. Will figure it out when I can get back to starting the motor. Since I'm dead in the water because of the oil cooler, I worked on other things like getting my rear diffuser fitted. Will need some more work at the corners and getting rid of the aero drag pocket in the right rear tire well.
