AFGMOTO1978 Build Thread by afgmoto1978

5 minute(s) of a 464 minute read

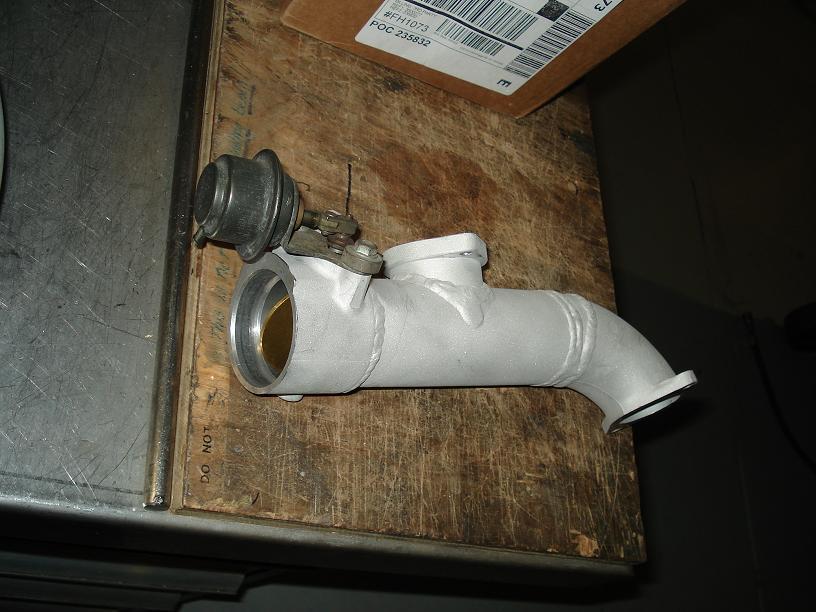

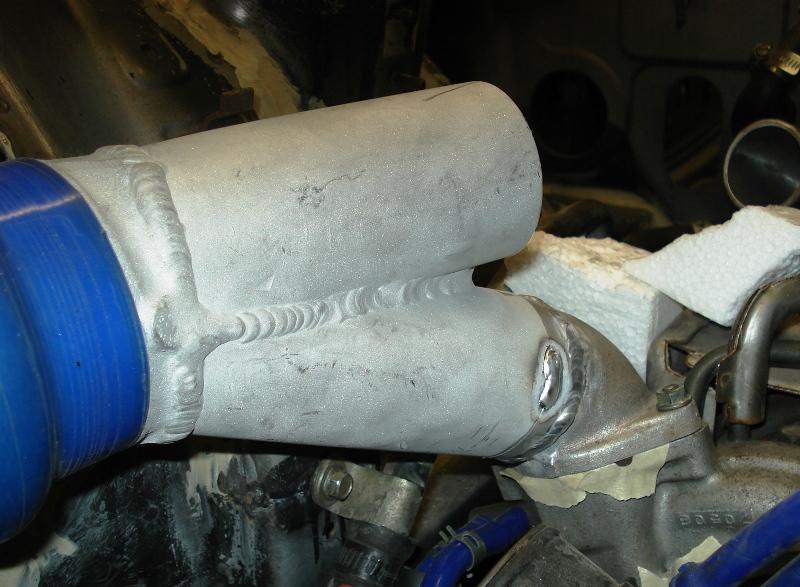

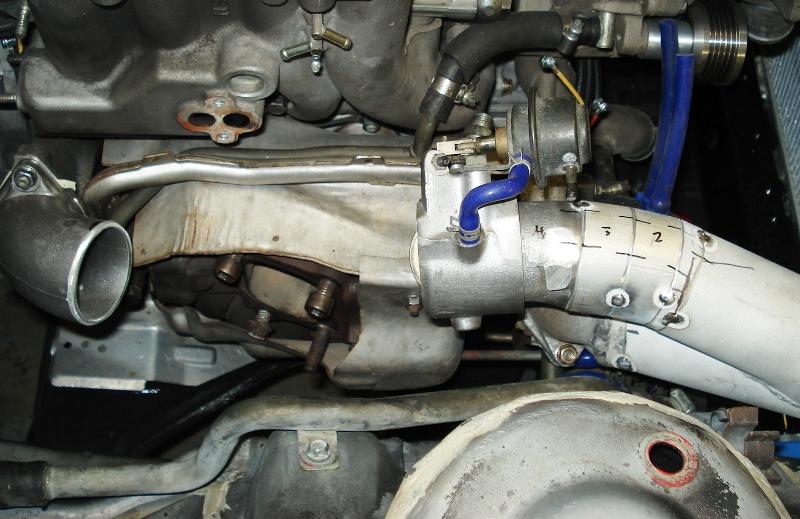

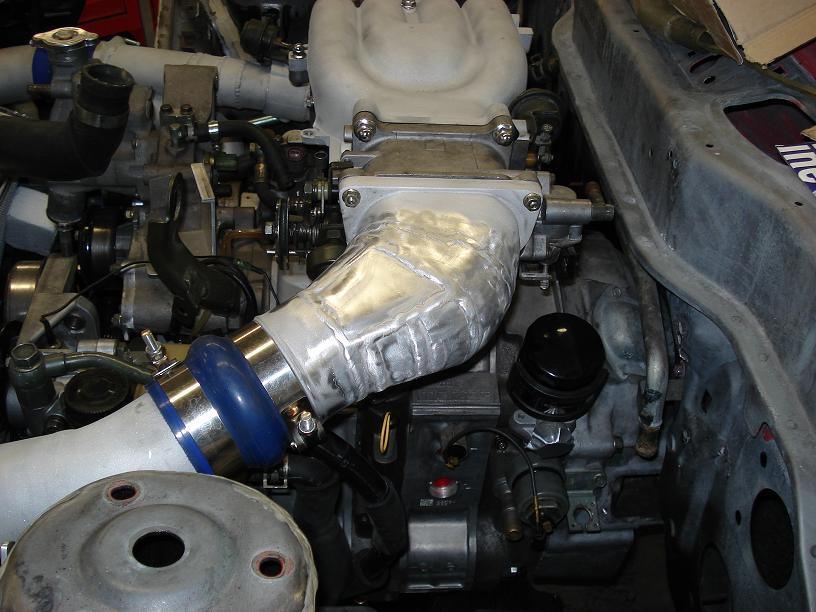

Got most of the routing for the twin turbos done, just need to cut a section for the secondary tubing. Currently have it all tack'd up to confirm everything lines up. I also have the intake side IC endtank started, but need to wait for some 3" tubing to finish the routing before I finish it. I started on modifying the greddy elbow too, but didn't like the direction I was going....need to put more thought into that. Man, I tired.

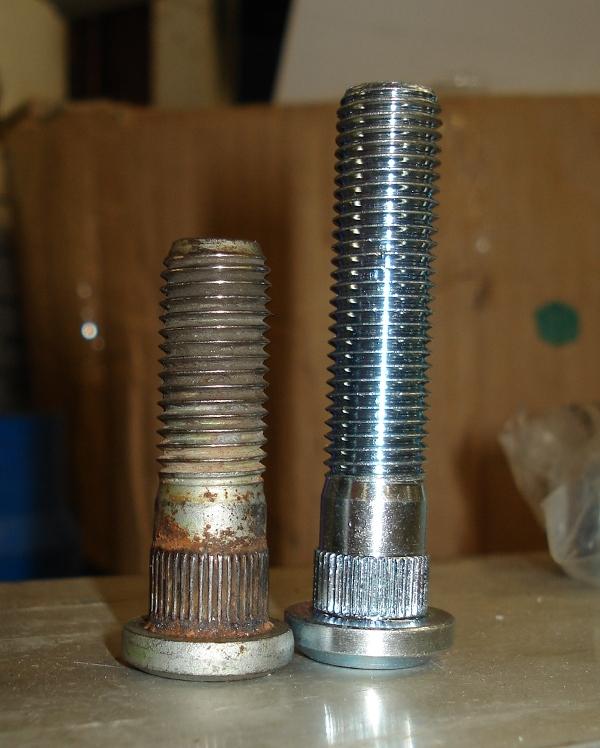

Oh, I also got some Mackin industries 20mm longer than stock wheel studs.

2-4-2007

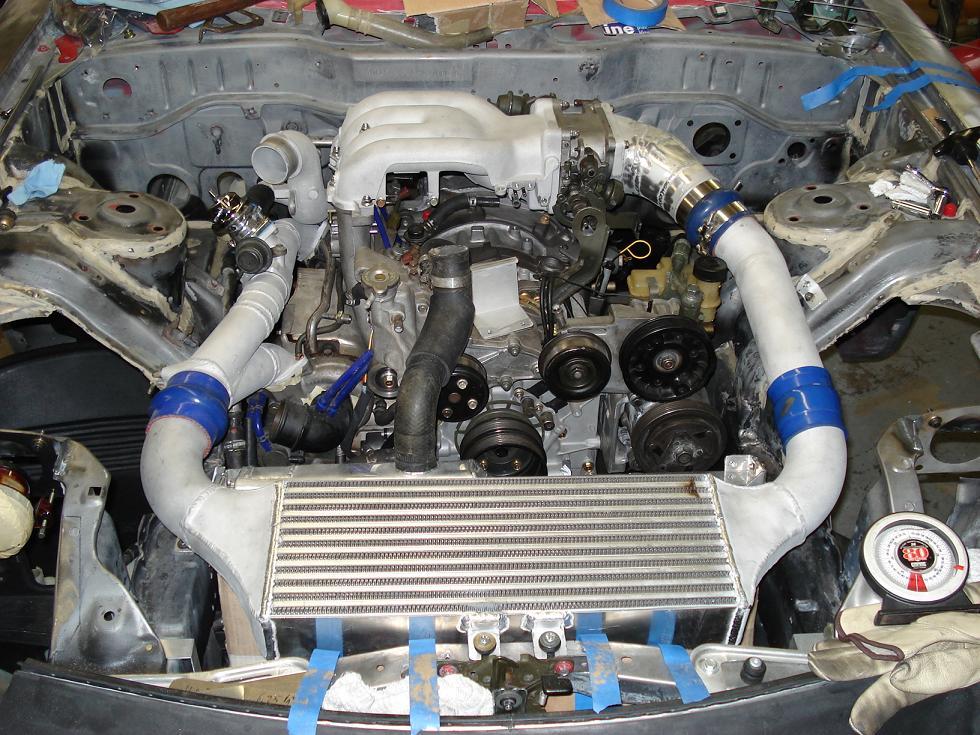

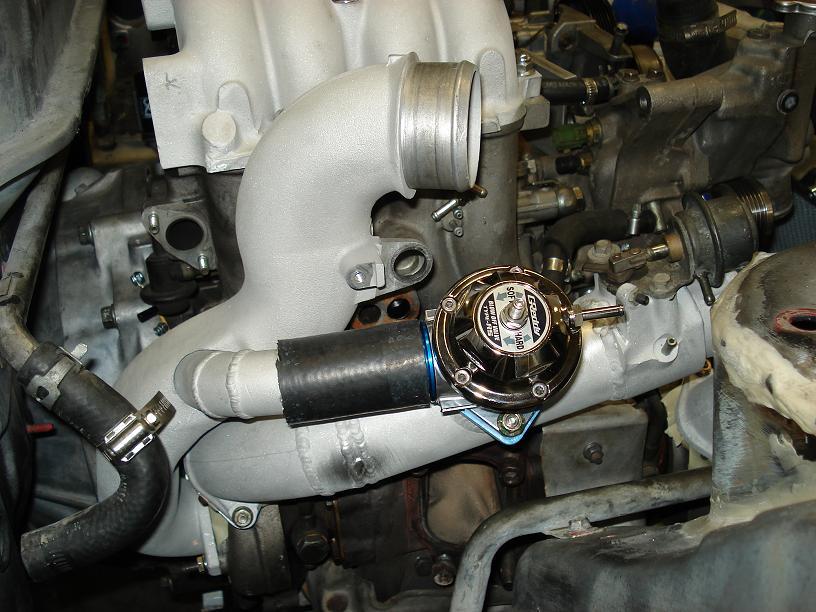

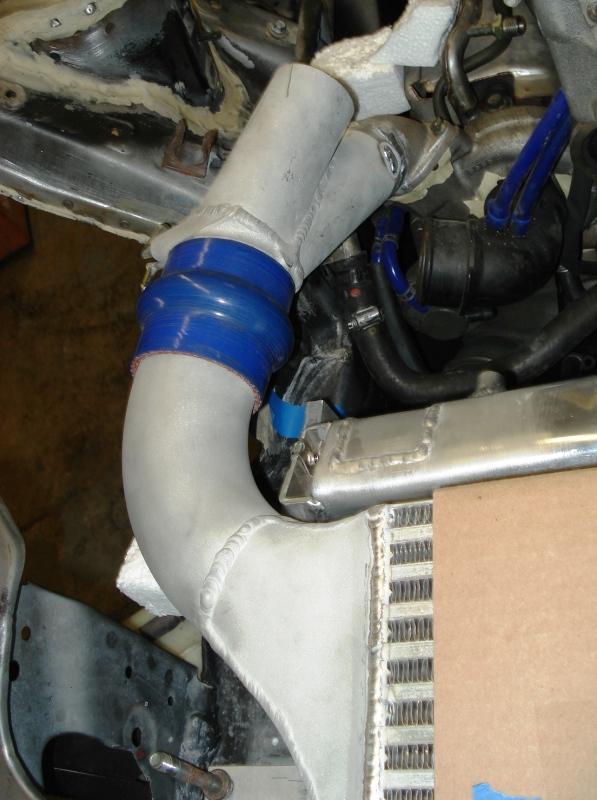

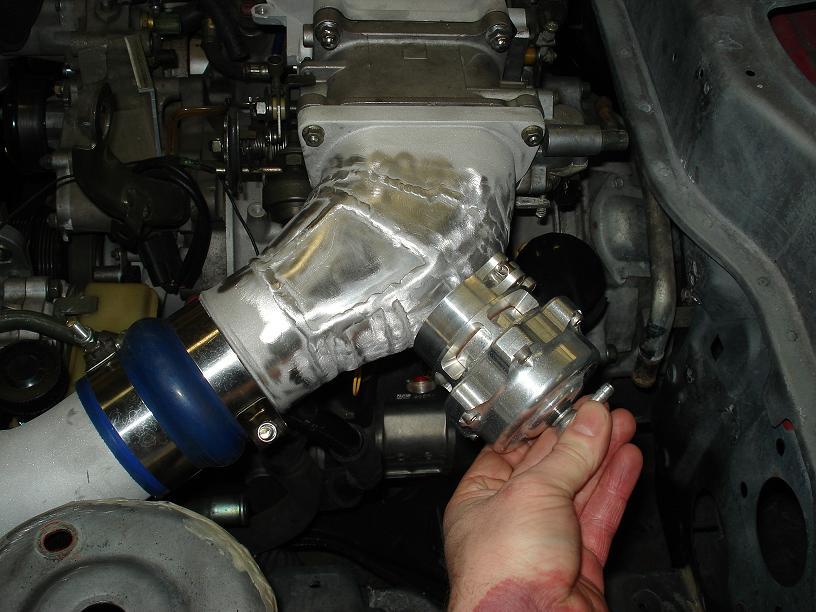

Alright, got the IC and ducting done. The Secondary turbo BOV is in, just need to finish welding in the recirc tubing. The throttle body end tank is a bit frankensteinish, but it will work great. Trying to decide if I want to weld on the Tial BOV on the throttle body end tank or at the cold side end tank of the IC.

I need to get the rad fan I want and I should have all the mounting done by end of week. I still need to do the oil cooler mounting, waiting for some fittings before I go further on that. Making progress.

I'm also trying to decide if I want to mod the hood so it's vented. A lot of work, but it would be functional and bad ass at the same time.......

2-12-2007

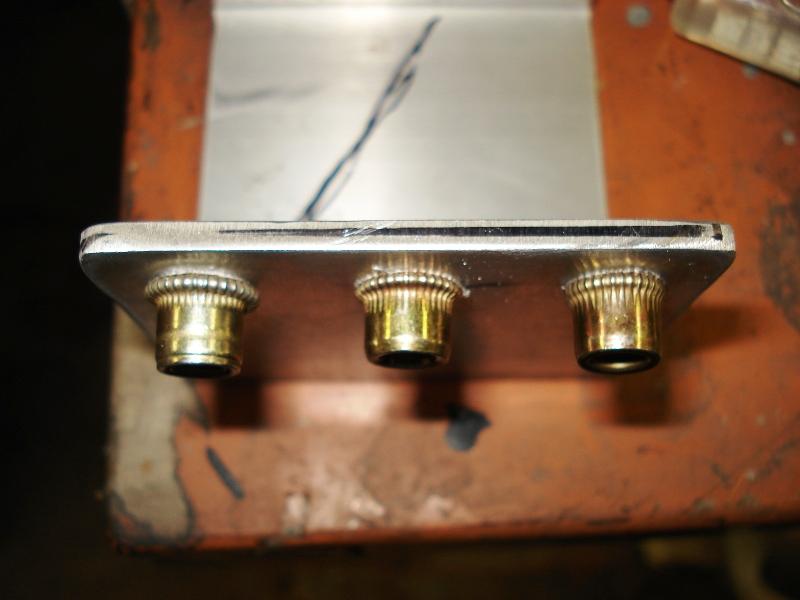

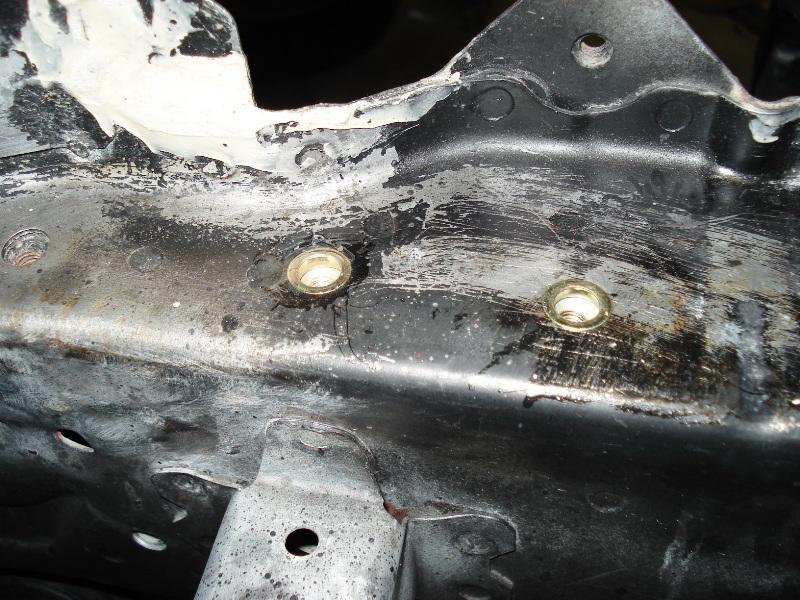

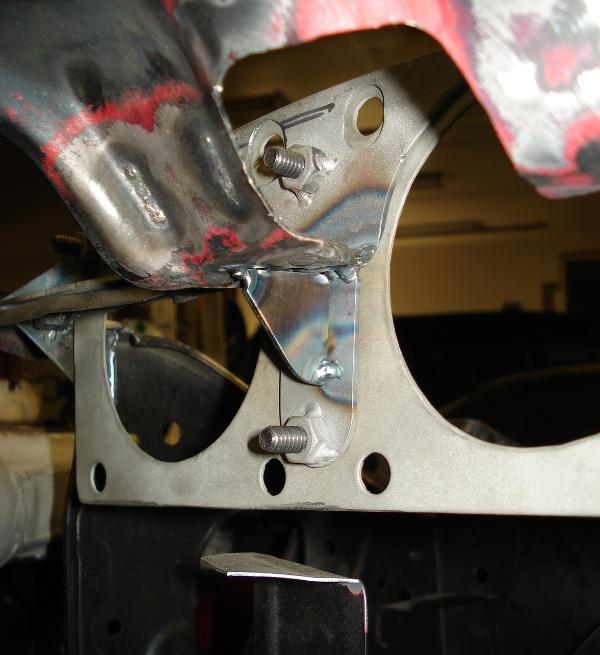

Okay, so I fabd up a mount for the Radiator and I didnt like how it turned out so Im redoing it. However, I was able to put rivnuts on the driver side frame rail for the rad mount. FYI, if you ever use these things be sure to do a mockup on another piece with the same thickness to get the crimping settings right. These things are prone to spinning if not installed properly. On that note I added epoxy to the mix to further reduce that risk. If you look at the mockup panel I did you can see three different degrees of crimping, the center on is what you want to look for.

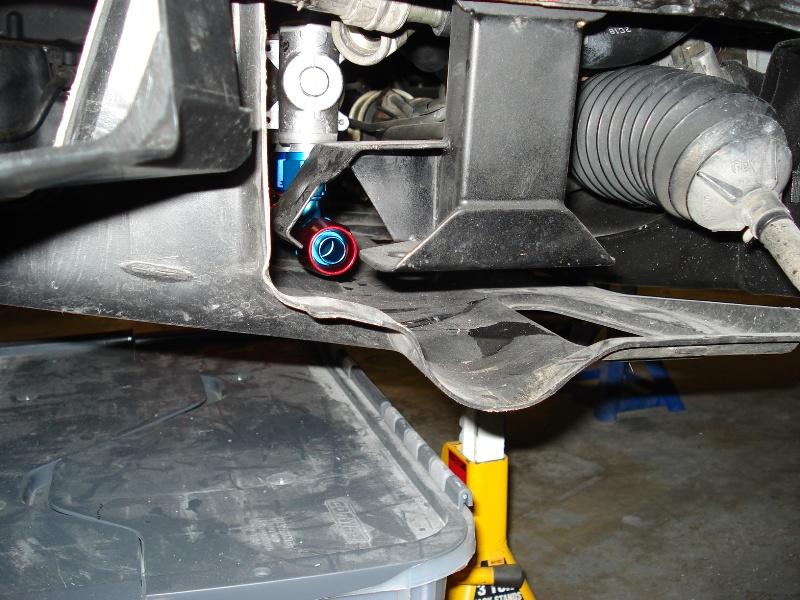

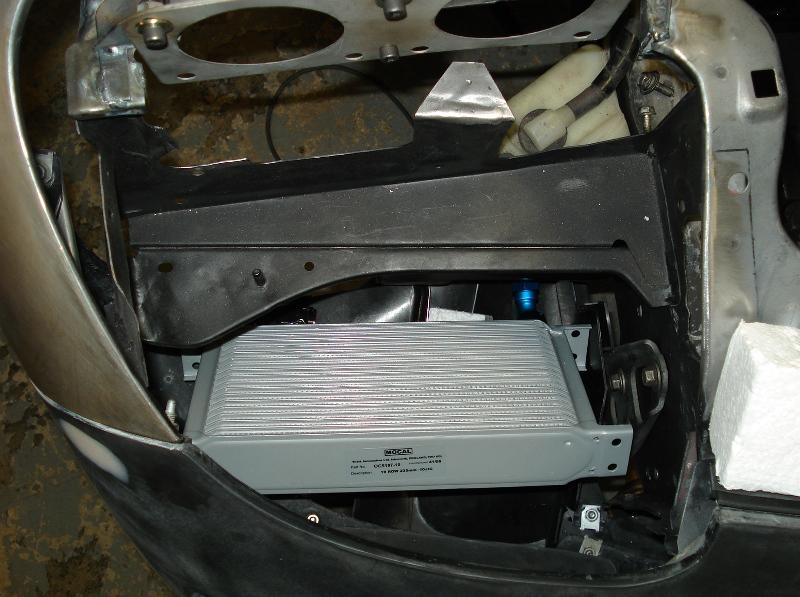

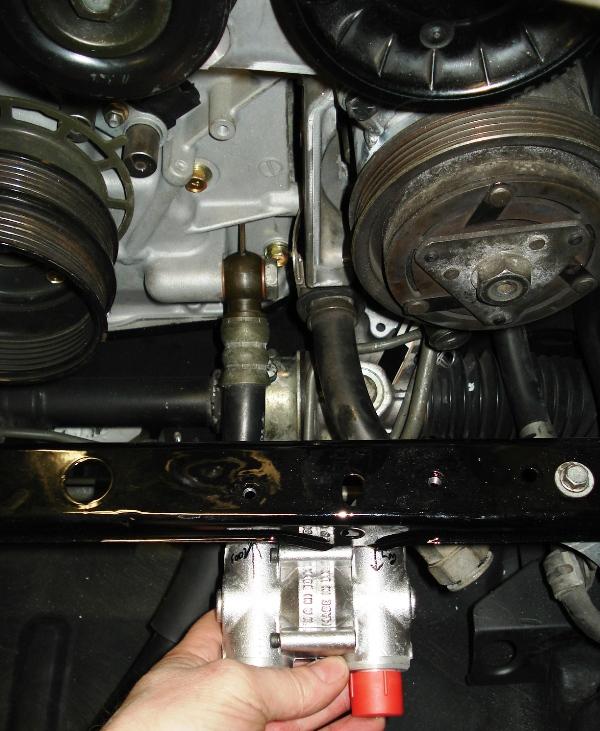

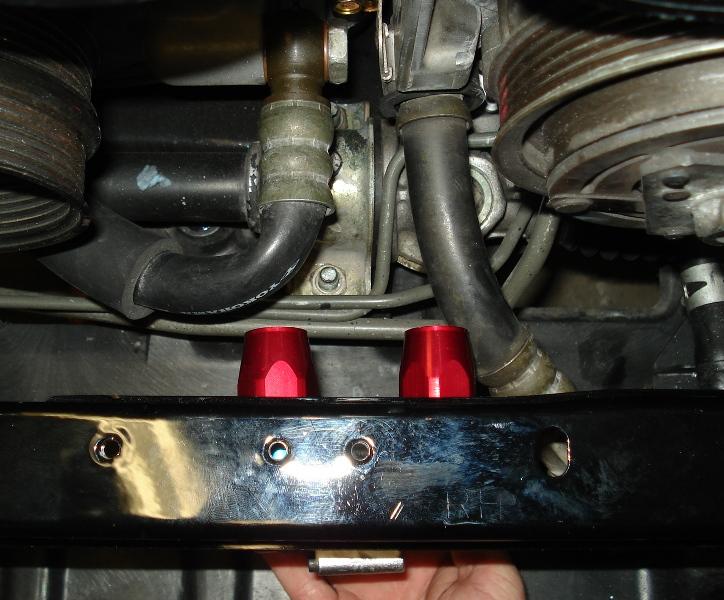

I also started playing around with the mounting location of the Mocal oil thermostat. I was hoping to utilize the stock inlet/outlet lines, but its not looking like that will work. I have to go buy more fitting for the twin oil cooler setup.

Tackd the headlight support tabs too, welding upside down isnt easy.

2/13/07

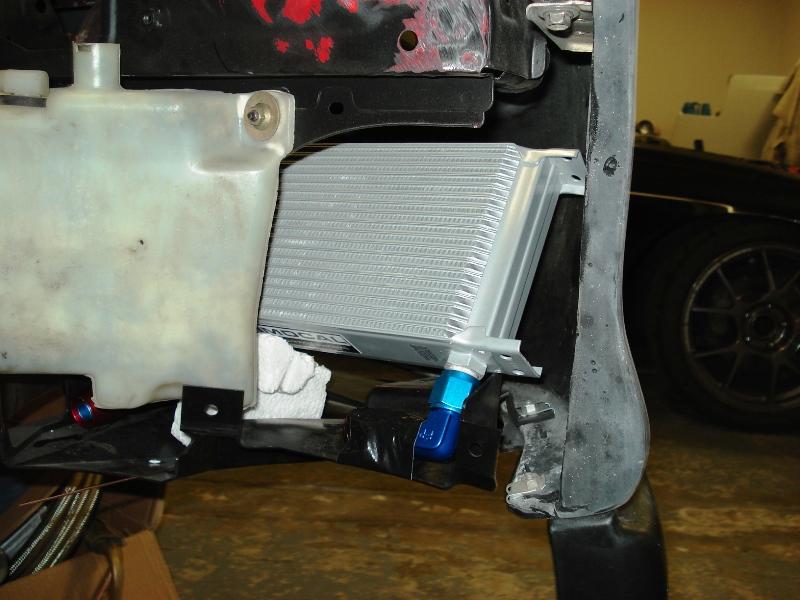

Got most of my oil line fittings so I went ahead and started playing around with the setup. Wish I had gone with Setrab oil coolers back then, would have save me a lot of trouble

2-25-2007

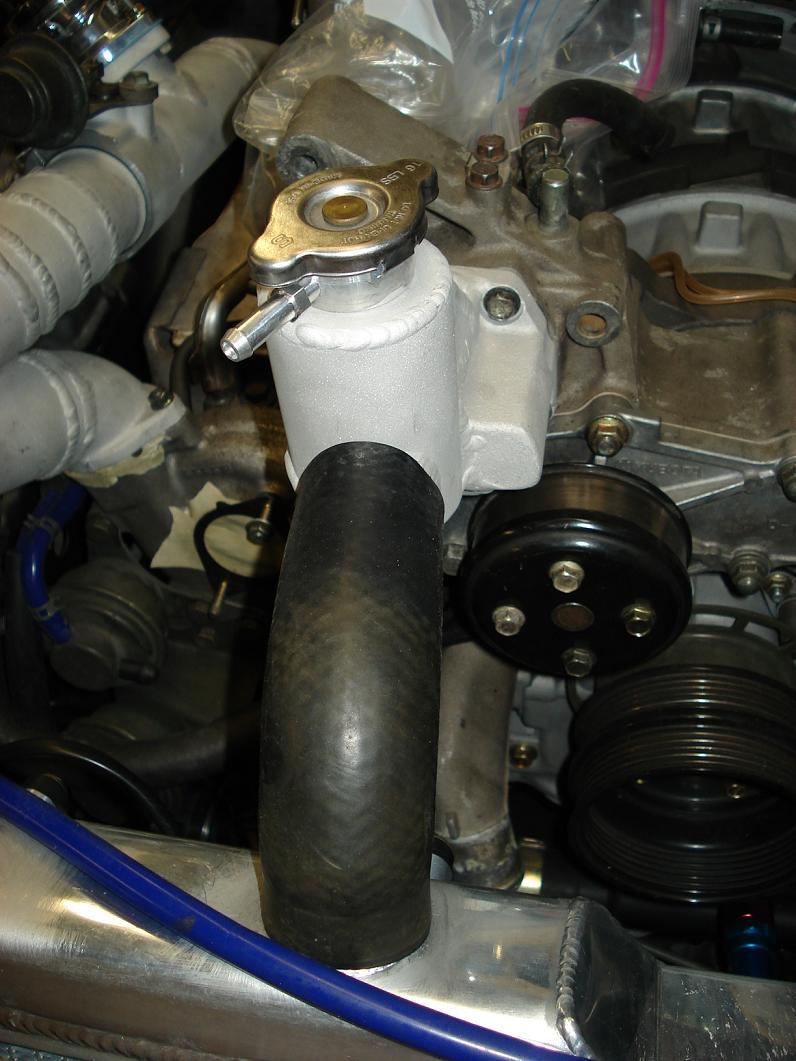

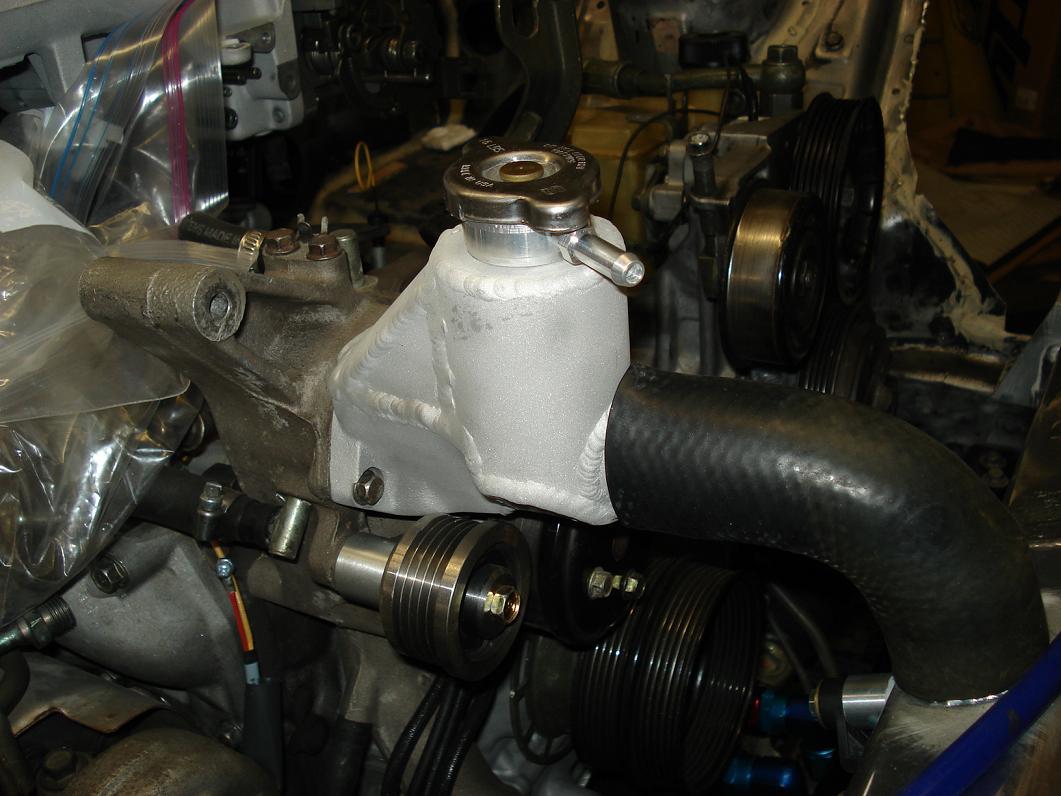

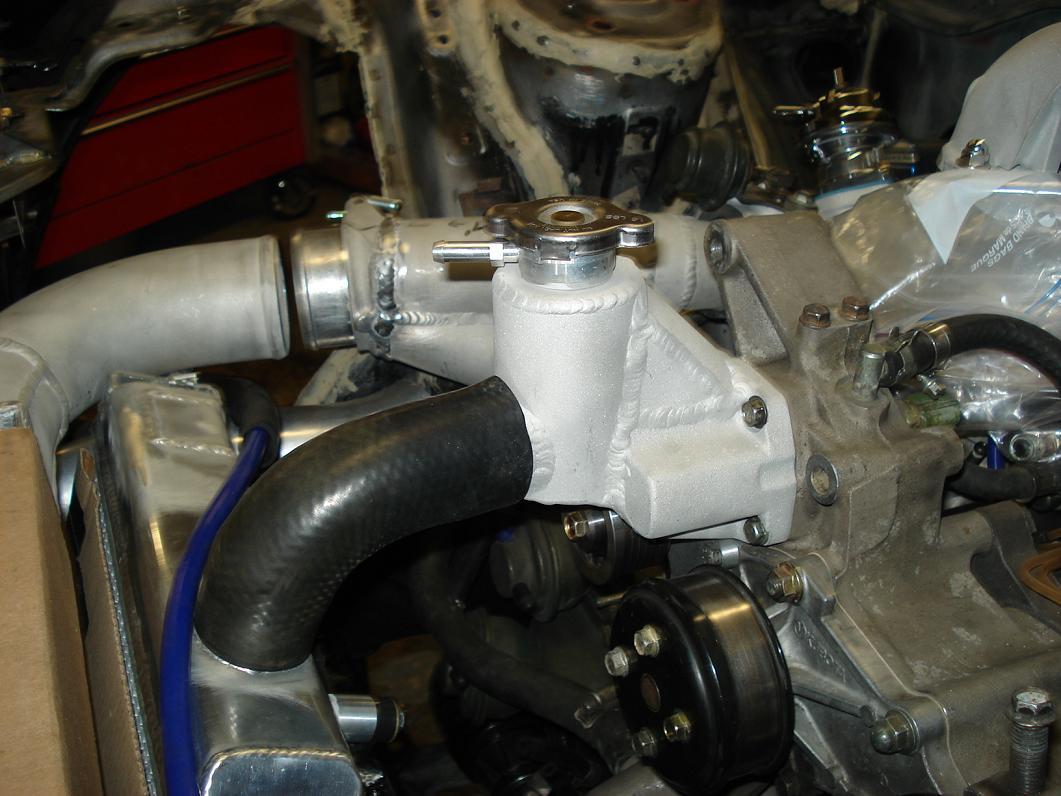

Today I got the water outlet tank done. I also have most of the oil cooler mounting pieces made, just need to weld everything together.
