2-21-2009

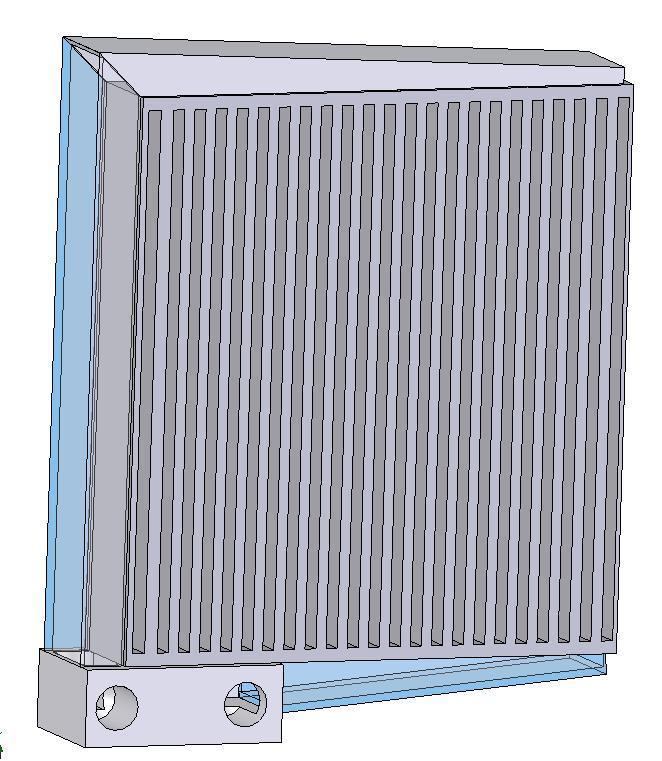

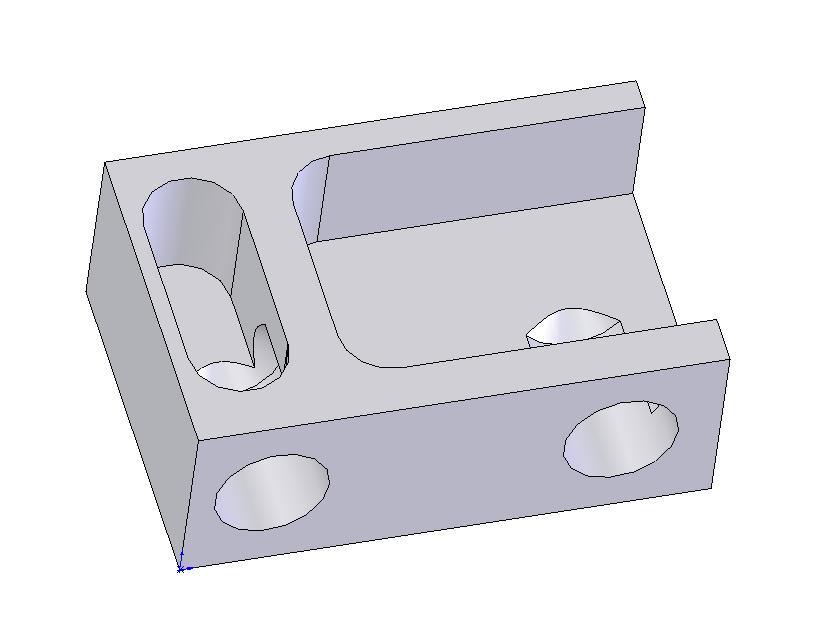

Alright, working on the oil cooler concept design, now I need to make the individual pieces. Hope to be done with the main assembly by tomorrow evening. It's going to be a tight fit.

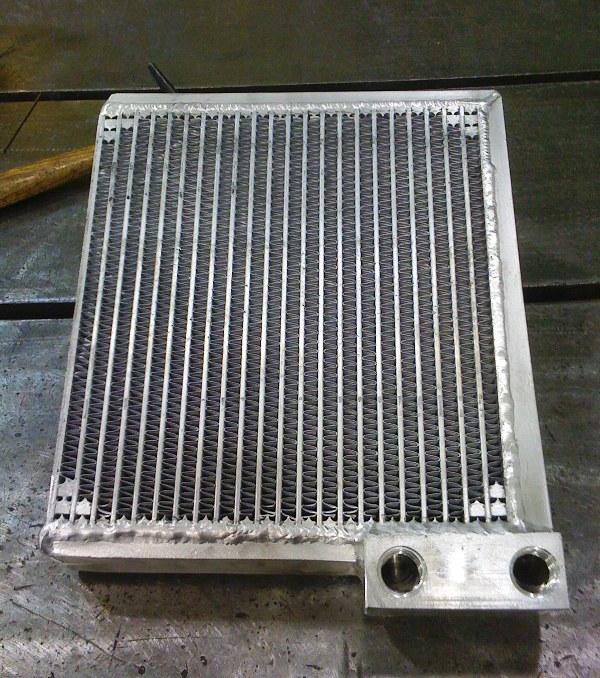

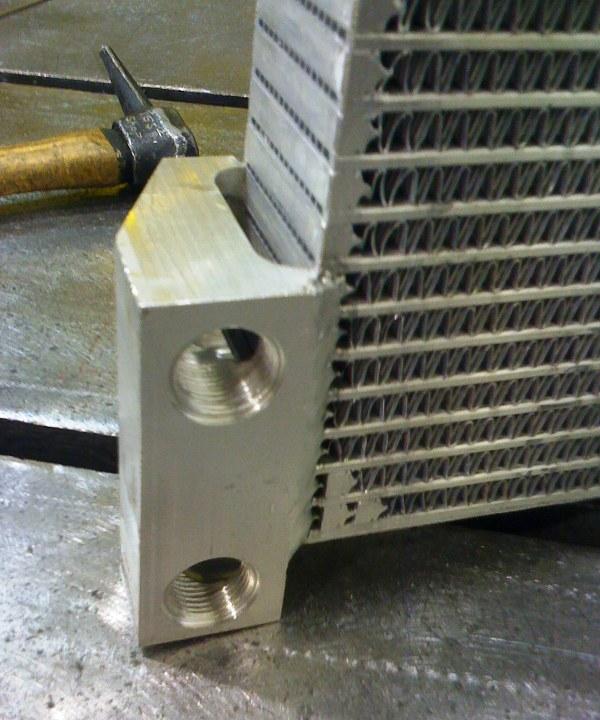

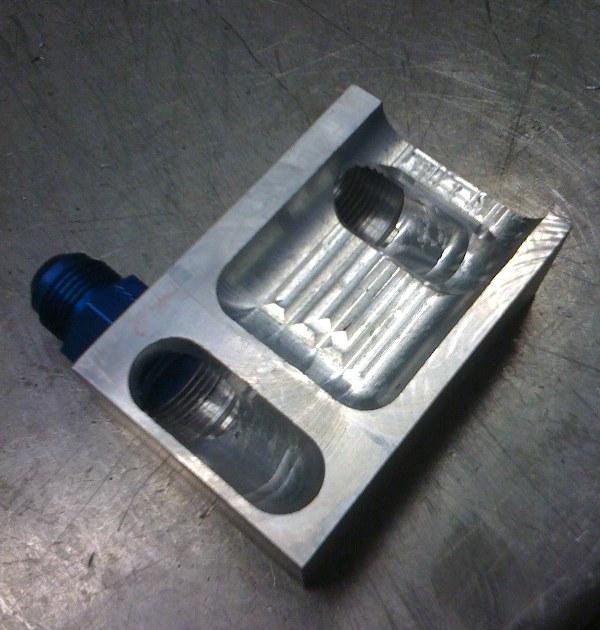

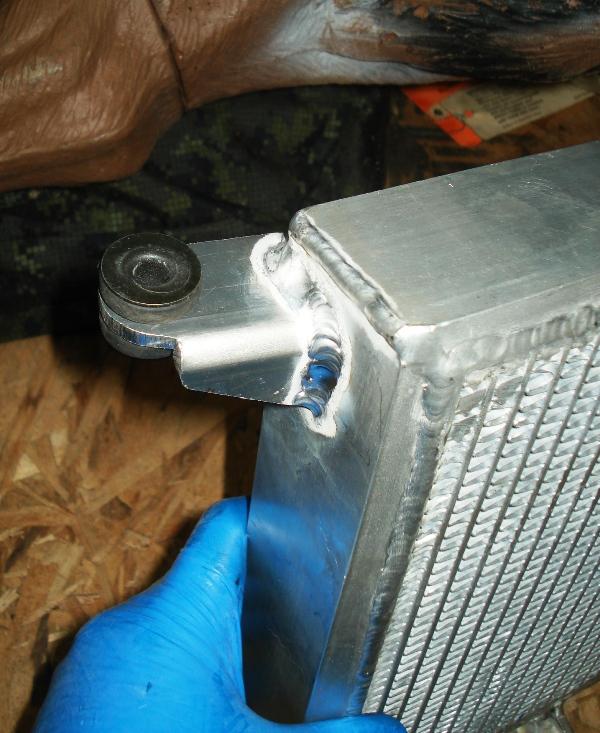

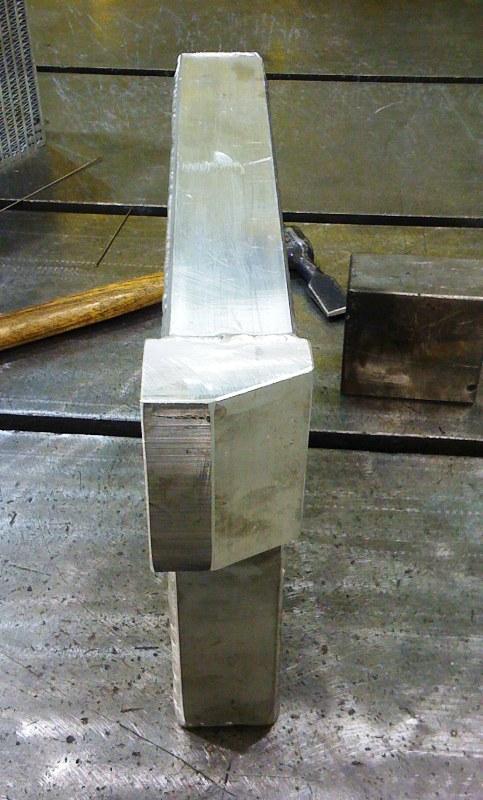

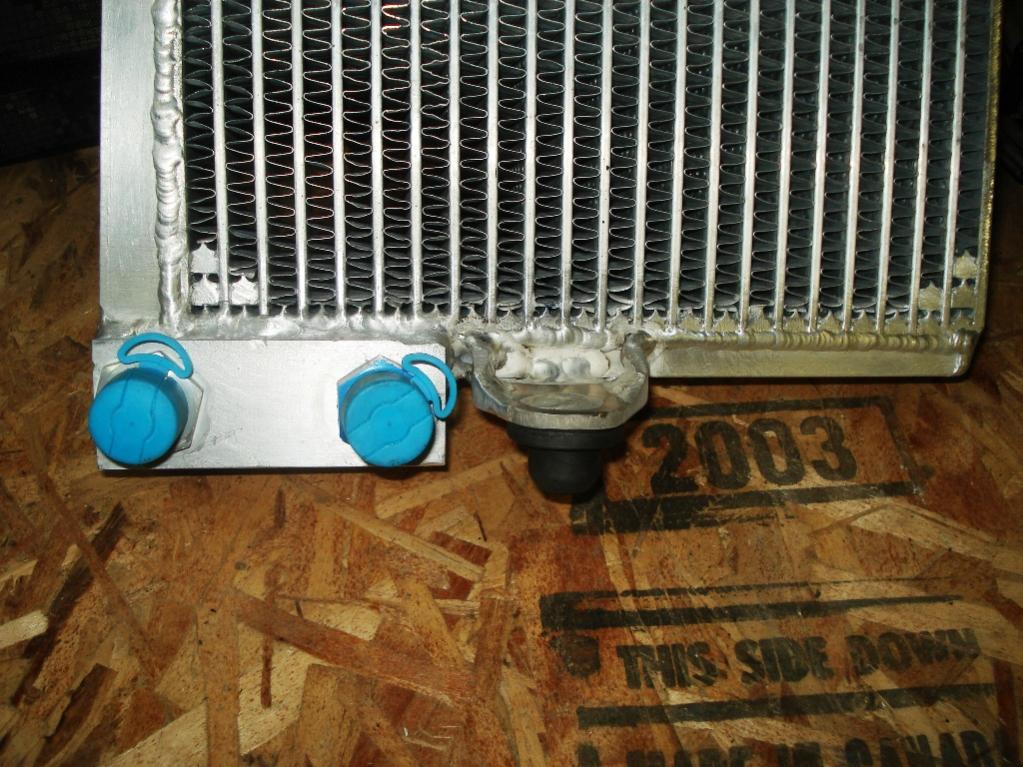

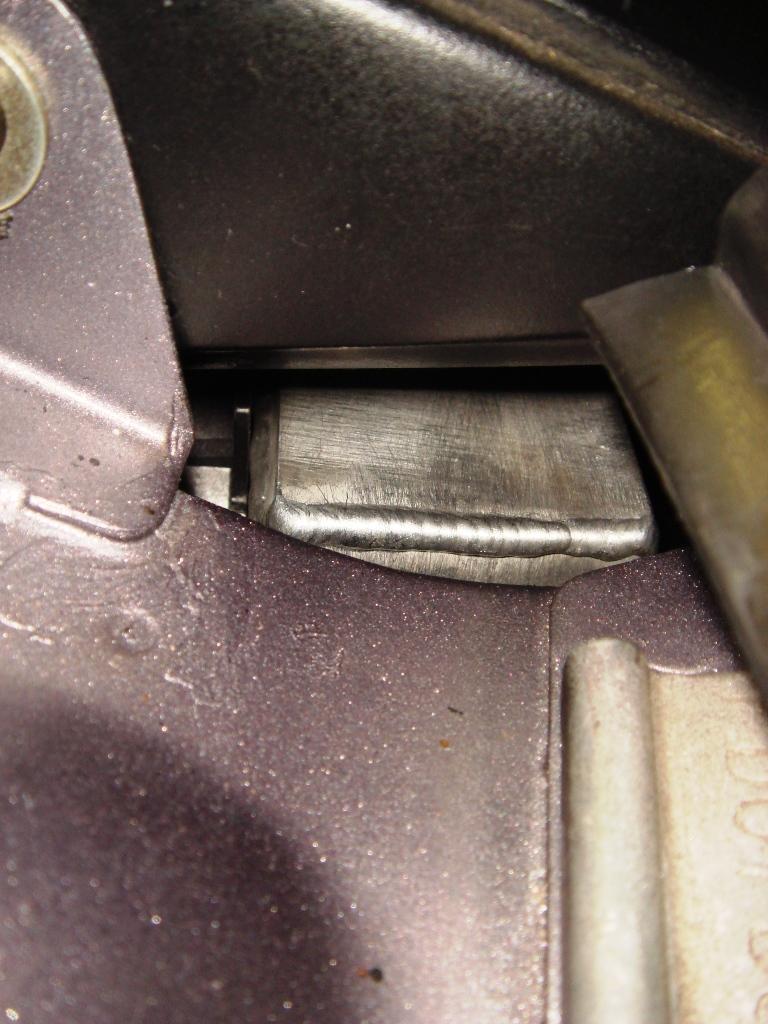

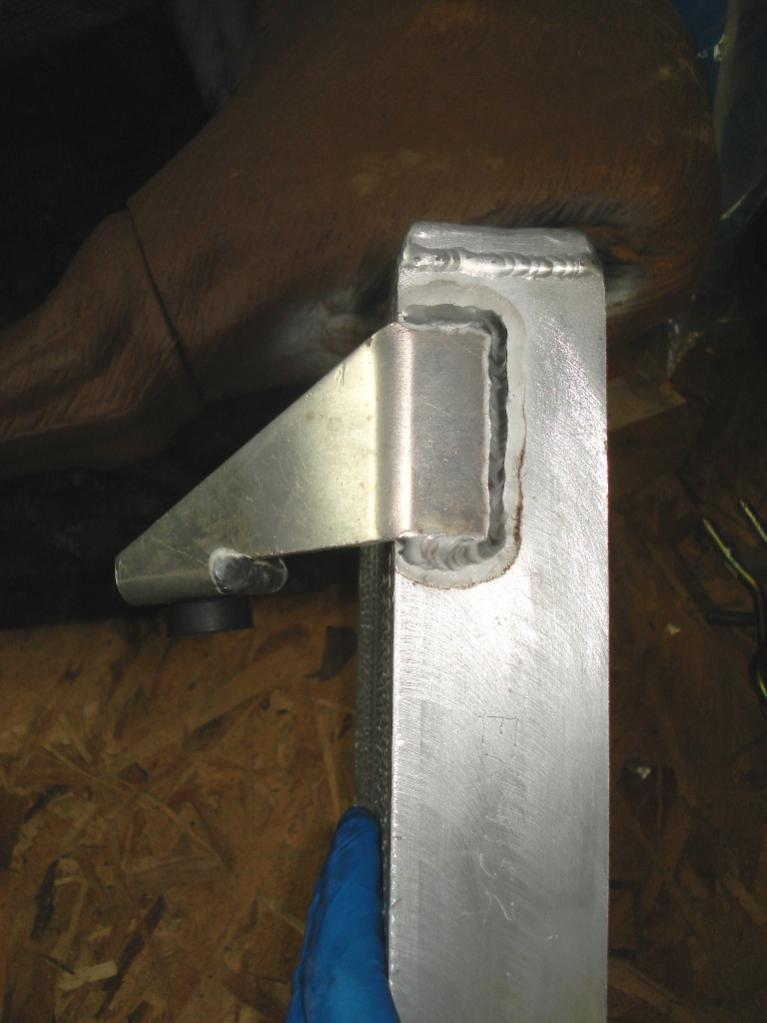

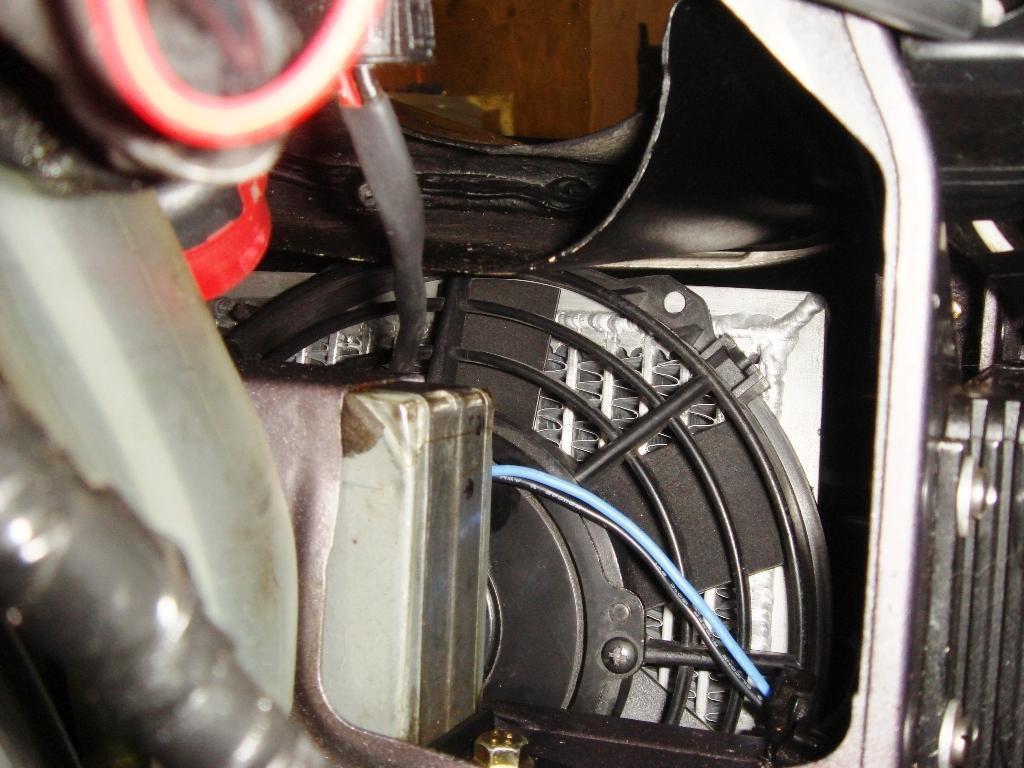

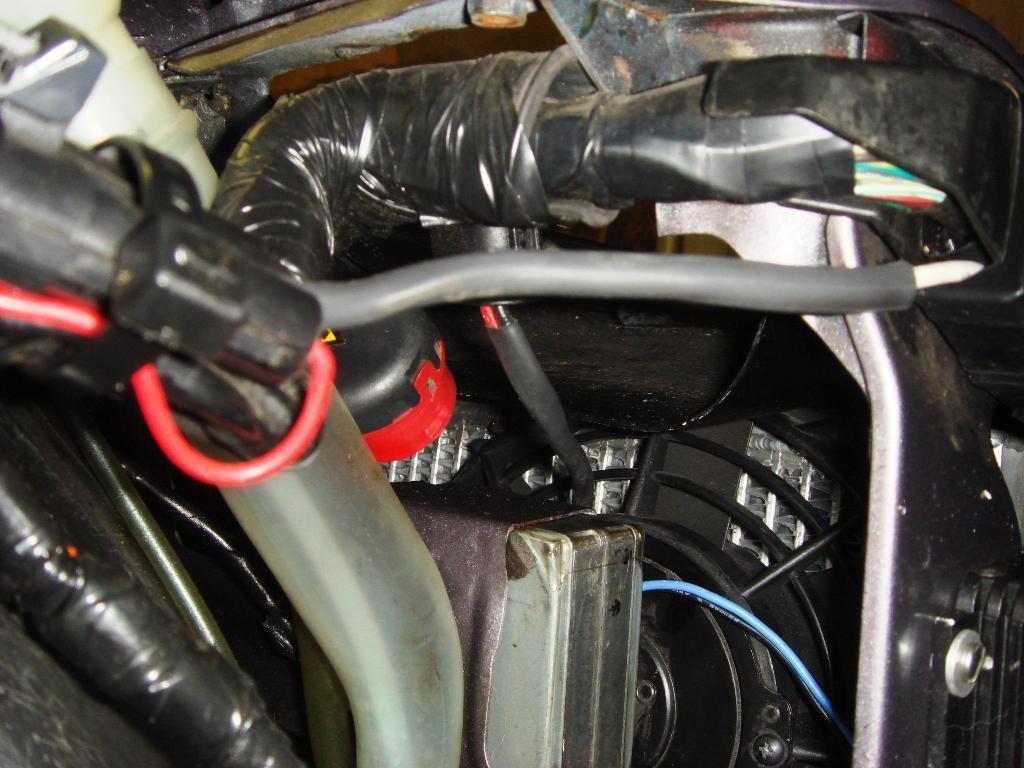

One oil cooler mostly done. Need to weld in the mounting taps, ducting tabs and fan taps. Changed up the design to give it a smaller foot print and minimize excessively sized oil galleys. Beyond having to deal with the silver braze on the core and changing my mind in the middle of making the adapter block it was pretty straight forward. Need to make the passenger side now.
2-26-2009

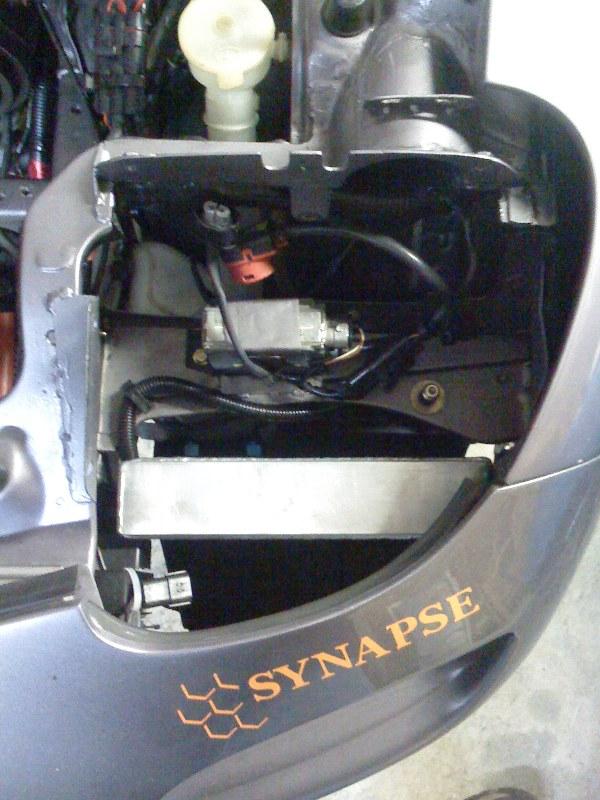

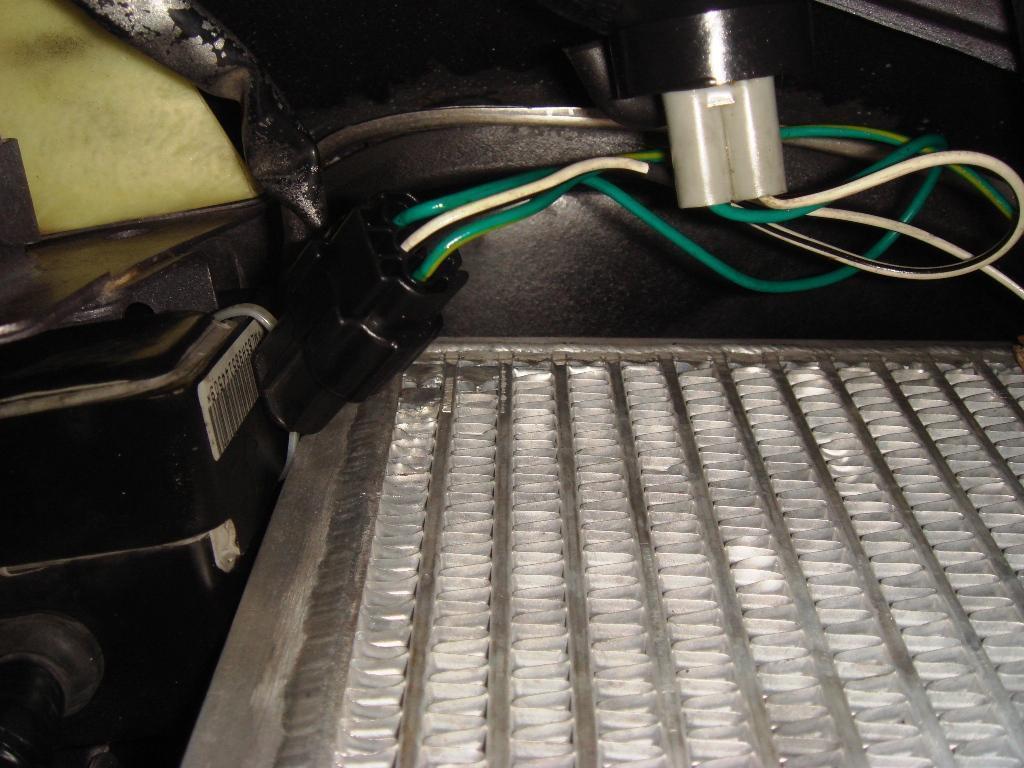

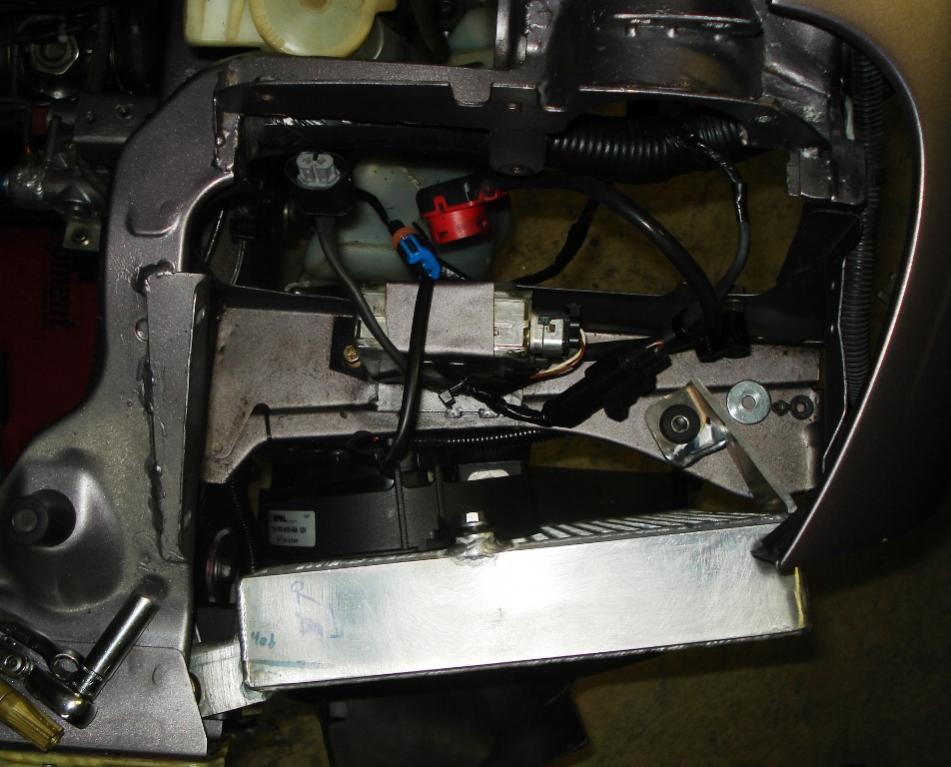

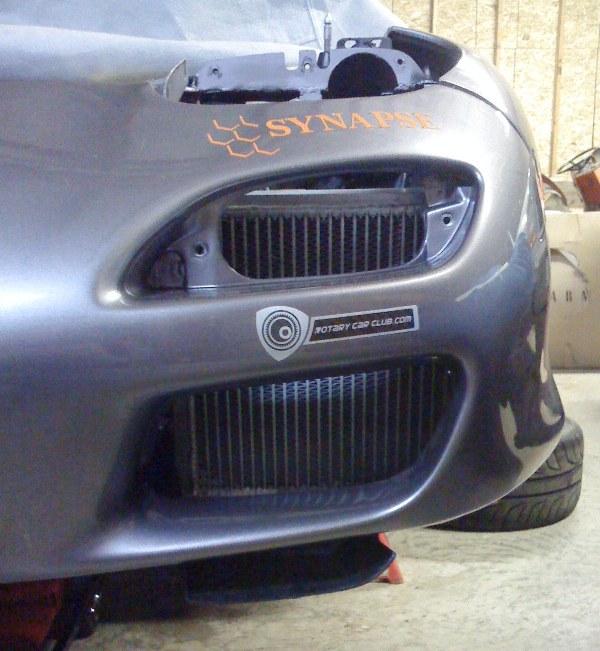

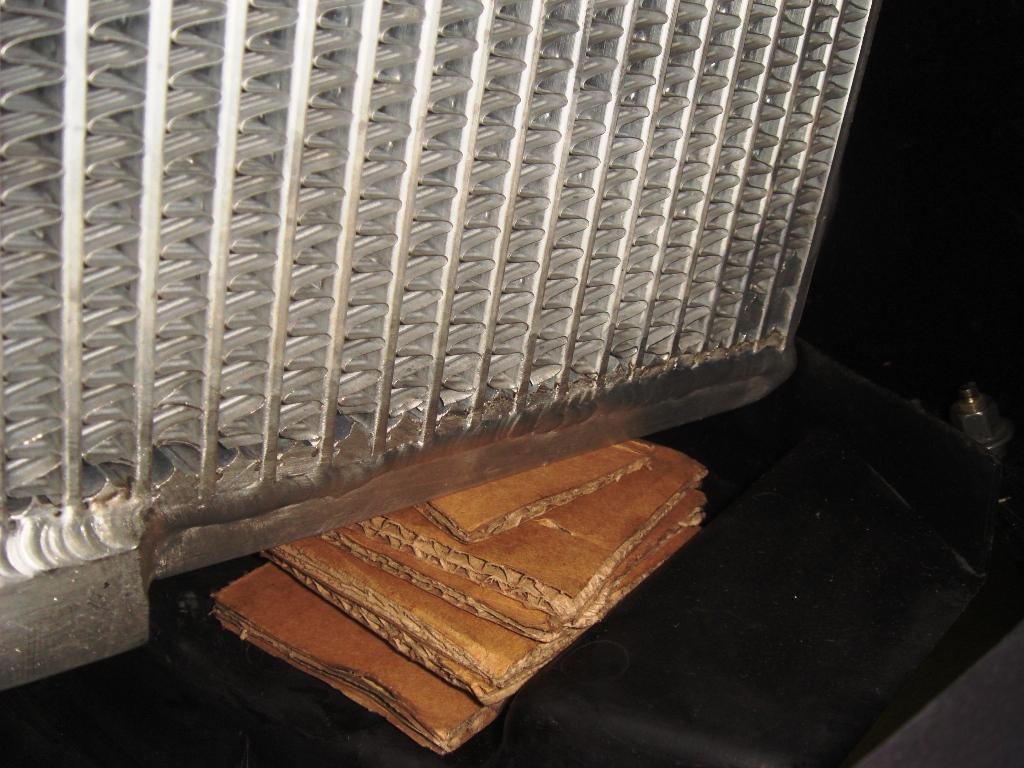

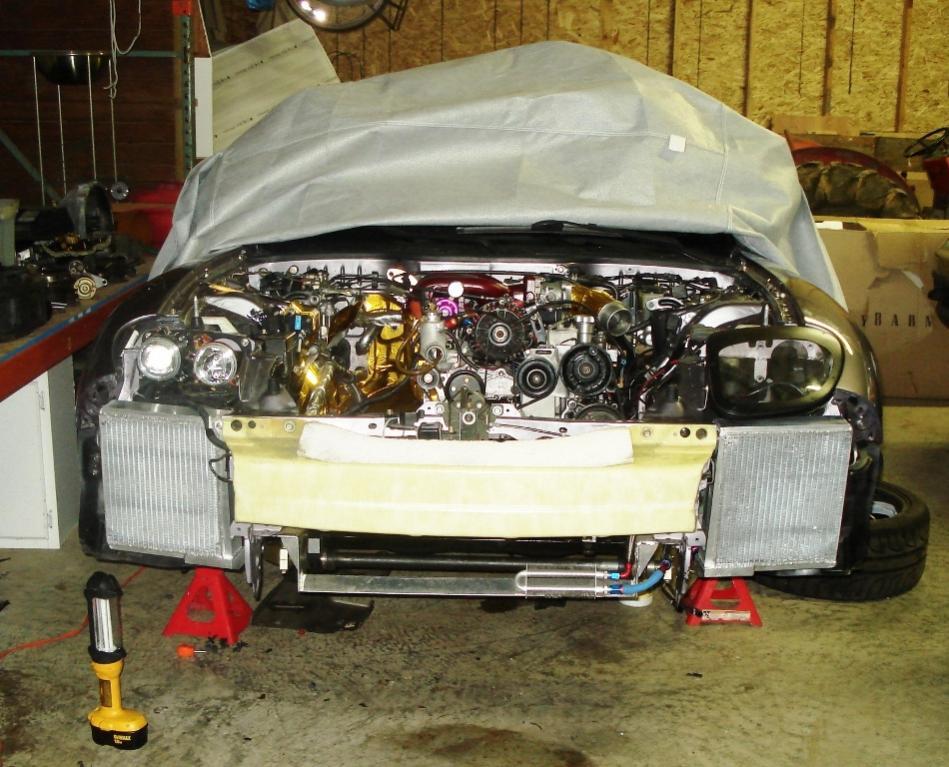

Moar Mock Up Photos, raised the oil cooler so it will clear the diffuser I will eventually be making.
