My 1968 Cougar XR7 Build (Pic heavy)

Compliments of crazexr7 @


Hello everyone, thought I'd make a build thread of the project I've been working on for a while. The car is a 68' cougar that's been passed down in my family ever since my Grandpa first bought it in 68'. Originally bought in New Jersey, the car has traveled from New Jersey to New York, to California and back all the way to CT.

It was passed down to my Dad as soon as the carburetor caught fire and caused a bit of damage, by my Grandpa working on it. Dad rebuilt the motor and much of the interior and had it repainted looking in prime condition. By 1996, Dad couldn't afford driving it around much anymore so it was stored at my Grandpa's garage for a bit until he got sick of it and pushed it outside, where it was exposed to the elements. From there on, rust, decay and any other words you can think of or imagine have gotten to the car, and prevented it from running.

So the car is now mine and has been a great project for me. I've done a ton of work over the summer and plan on having it running as soon as I start my summer job again. So here's some pics of the car and what I've done.

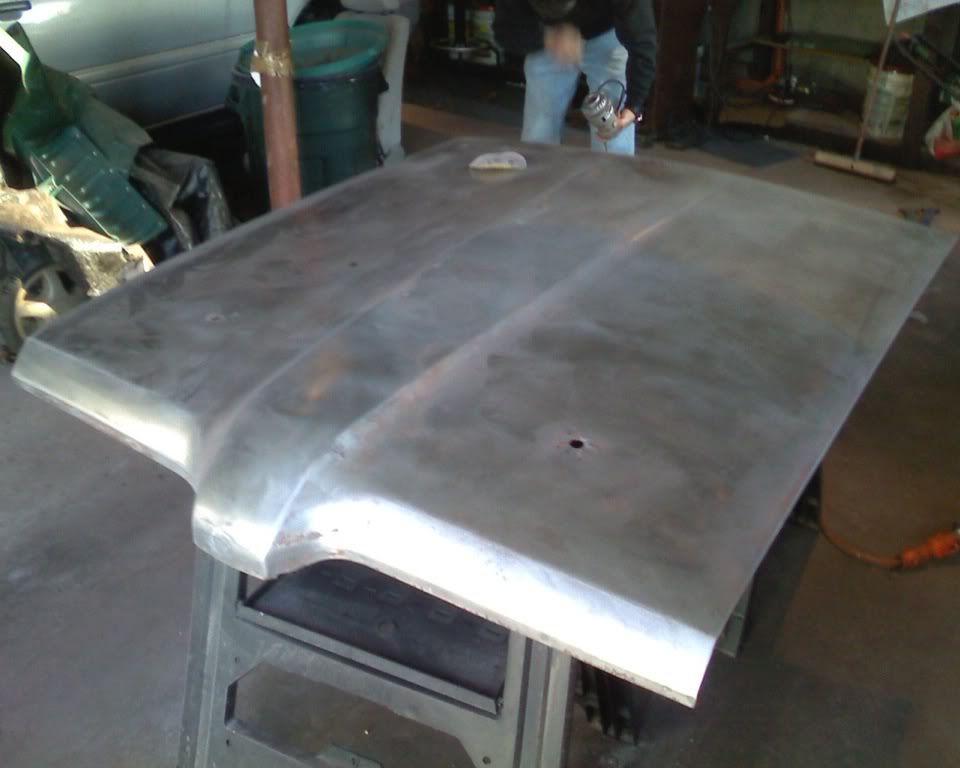

Here's me sanding the hood when I was 14. (I'm 18 now)

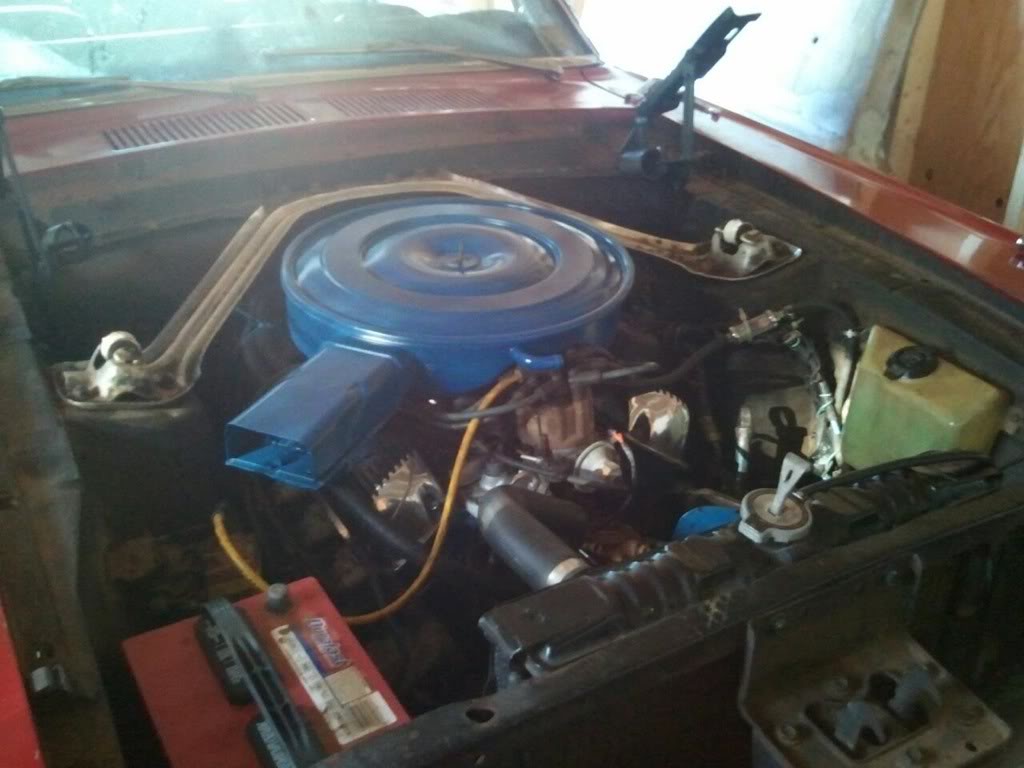

Filthy engine:

The engine is a 302 with holley 4 barrel carb. The motor wasn't turning over so I dismantled it to see what was wrong. Ended up being completely hydrolocked with rust over the cylinders

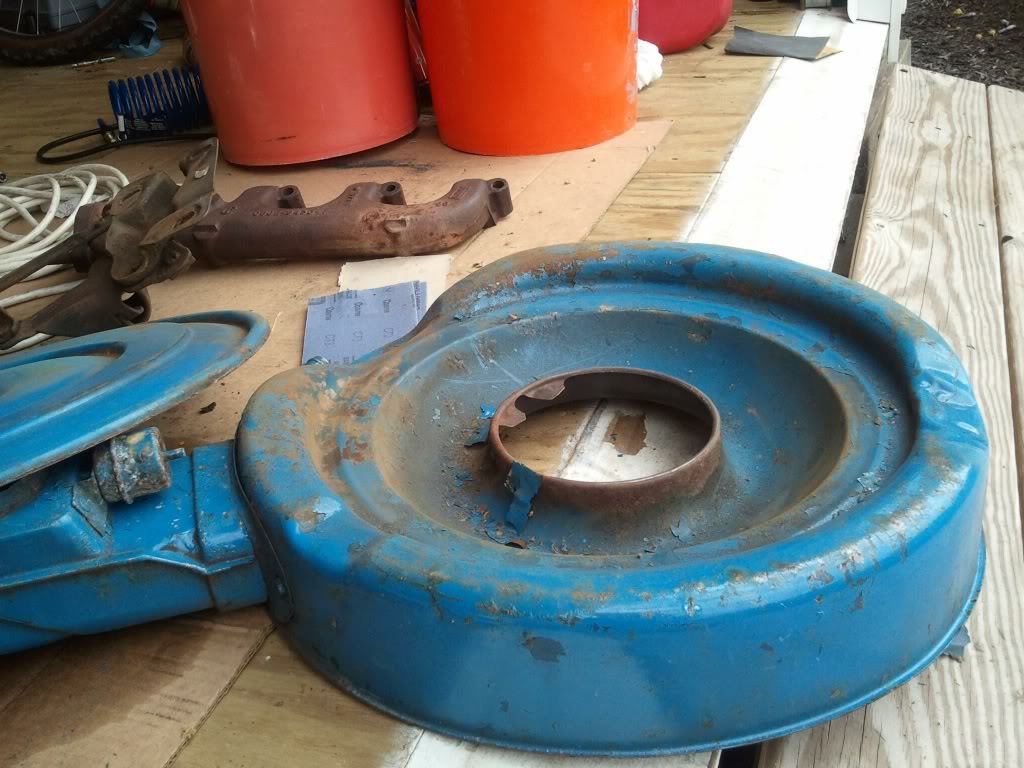

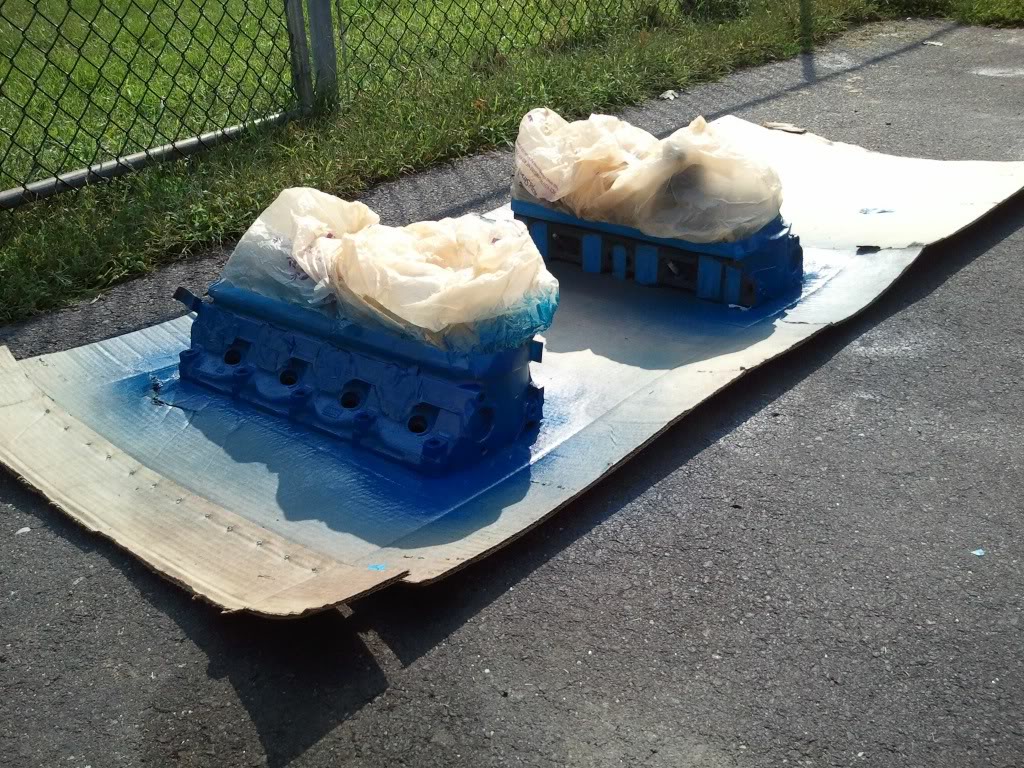

So I honed the cylinders, painted the heads, intake manifold, and exhaust manifold and my Dad helped me polish my valve covers and Assembled it back together.

oh and my friend sand blasted some parts for me

almost together:

and then where it was at

Used vinyl paint on my dash from green to black:

In the last couple of weeks I've been trying to start it up, but found out the floats are bad in the carb so I'm going to have to rebuild the carb before I light the car on fire trying to start it up again. Really can't wait to get this thing running and back to great condition. Also plan on lowering it a bit to about this:

So let me know what you think and I'll update this thread every now and again with some progress on my way

Album can be found here
