92 City, My First Rebuild


Compliments of big-jay @ theminiforum.co.uk


12-30-2013

Hi all,

Been a member of this site for a while now and have decided to start my own thread.

Ive owned my 1992 Mini City for 2 years now. I got myself a job working at Landrover and saved for a few months in order to buy her. The reason i wanted a Mini was because my dad has been obsesed with them since a young age, and naturally, after going to a few mini shows and what not with him, i caught the Mini bug myself and just had to have one. She had been restored, (bodged, but I'll get to this later), before I brought her.

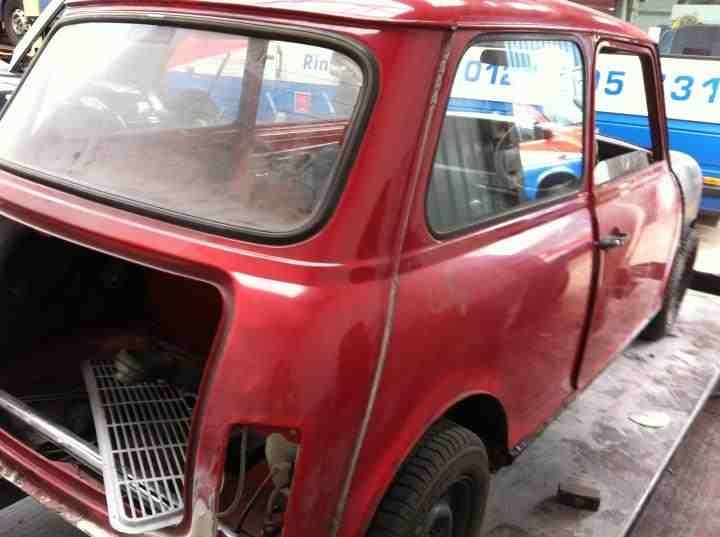

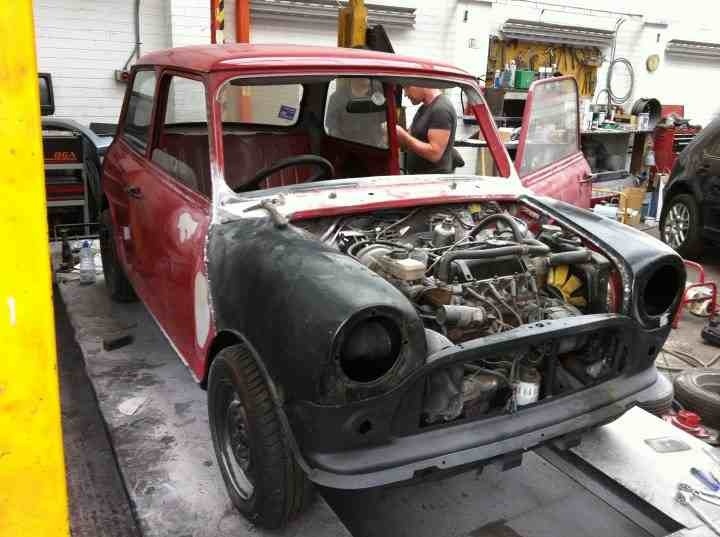

Here are some pictures of work being done before I purchased.

66725F62-02E4-46F6-998B-54E7BA81B082_zps

FF236F40-0772-40A8-BB9B-91B13D82DAF6_zps

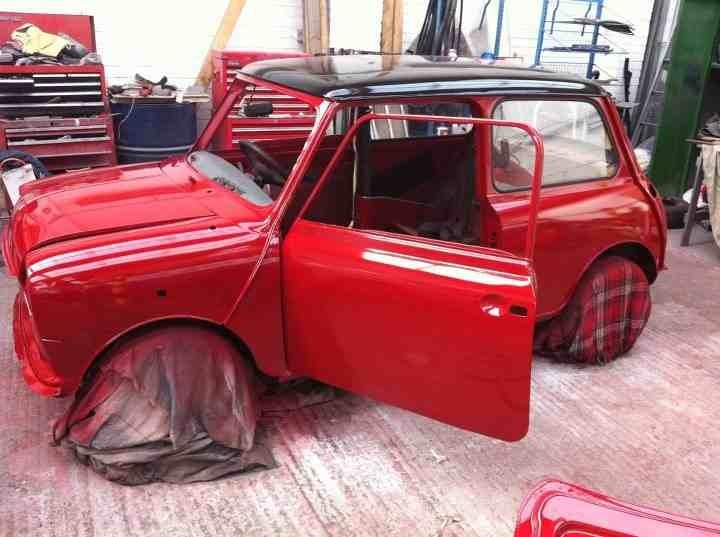

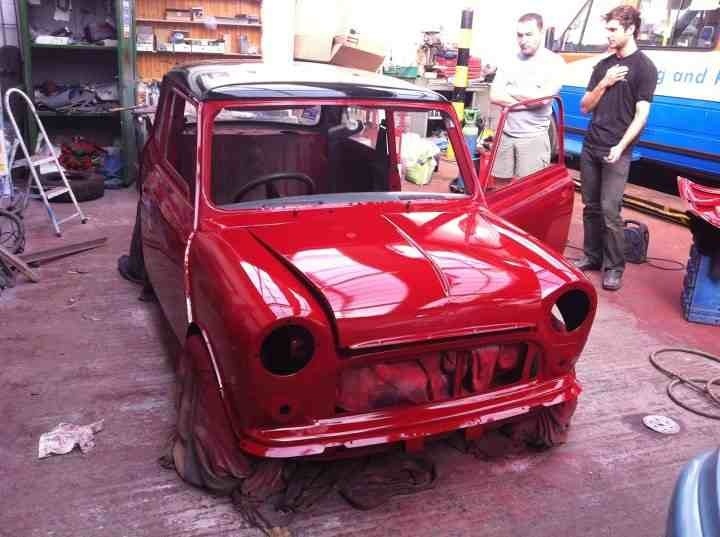

Resprayed.

82AF084D-212D-47FC-853E-07674E6AB050_zps

B6339677-9872-4C32-A7C2-F25BB1DCFBF6_zps

All looks very nice and shiny, was over the moon with it and couldn't wait to get it home !:D

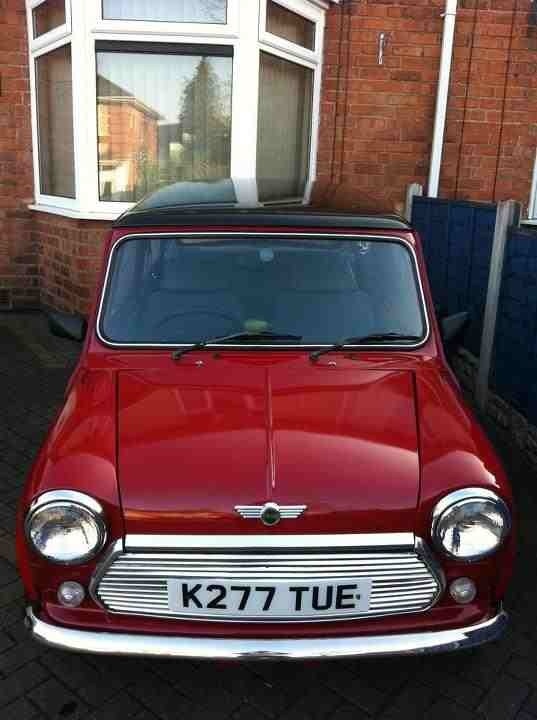

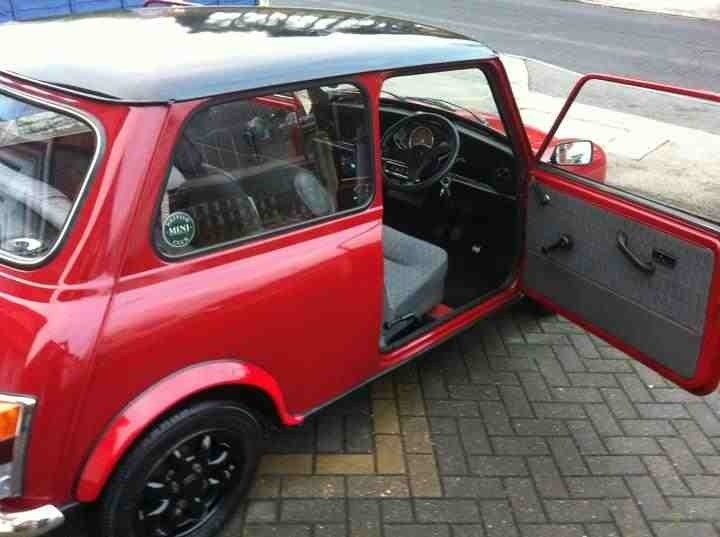

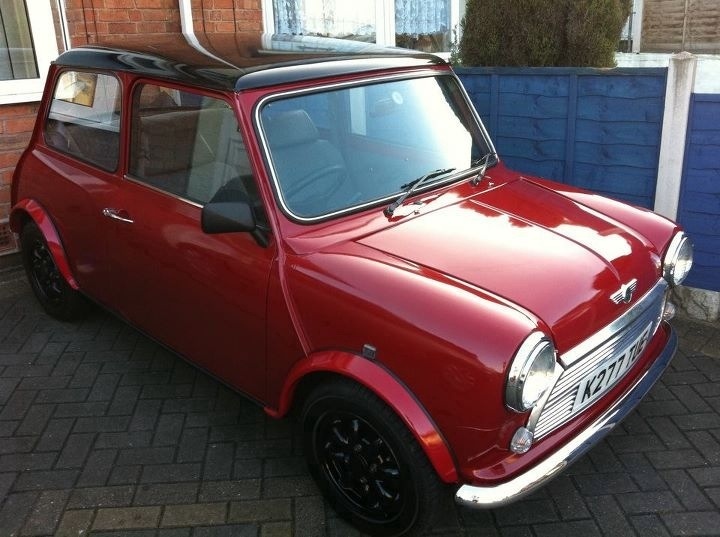

Pictures of when I first got it home.

6214AE59-6431-4A99-88A3-AFC1D19B22C4_zps

5799A42F-2CC8-4CC2-A96C-66B8F400612E_zps

7FE214CA-5C0F-4260-B499-8359F4256DBA_zps

Over the past two years I've made some changes/mods to her, stage one RC40 kit, cooper interior, centre speedo, deep dish wheels, angel eyes, new grille, 90% of the rubbers/seals changed, CD player, boot lining kit ect ect.

What ever she's needed she's had, no expense spared, regular servicing/cleaning/new parts and things like that as she is my pride and joy !

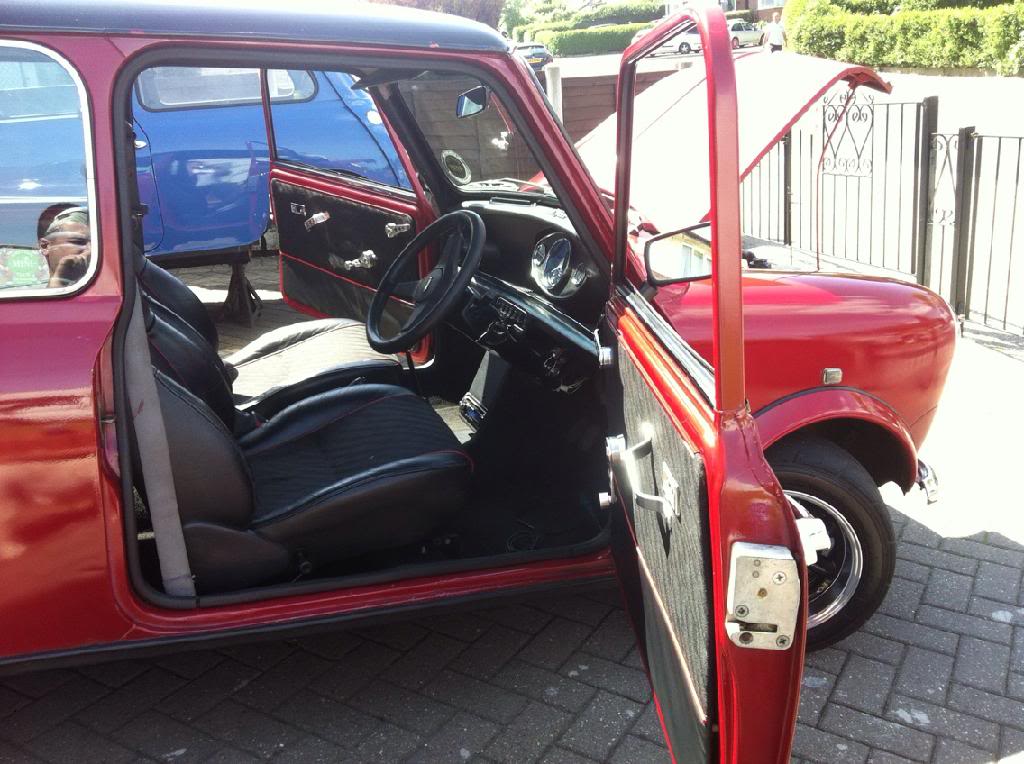

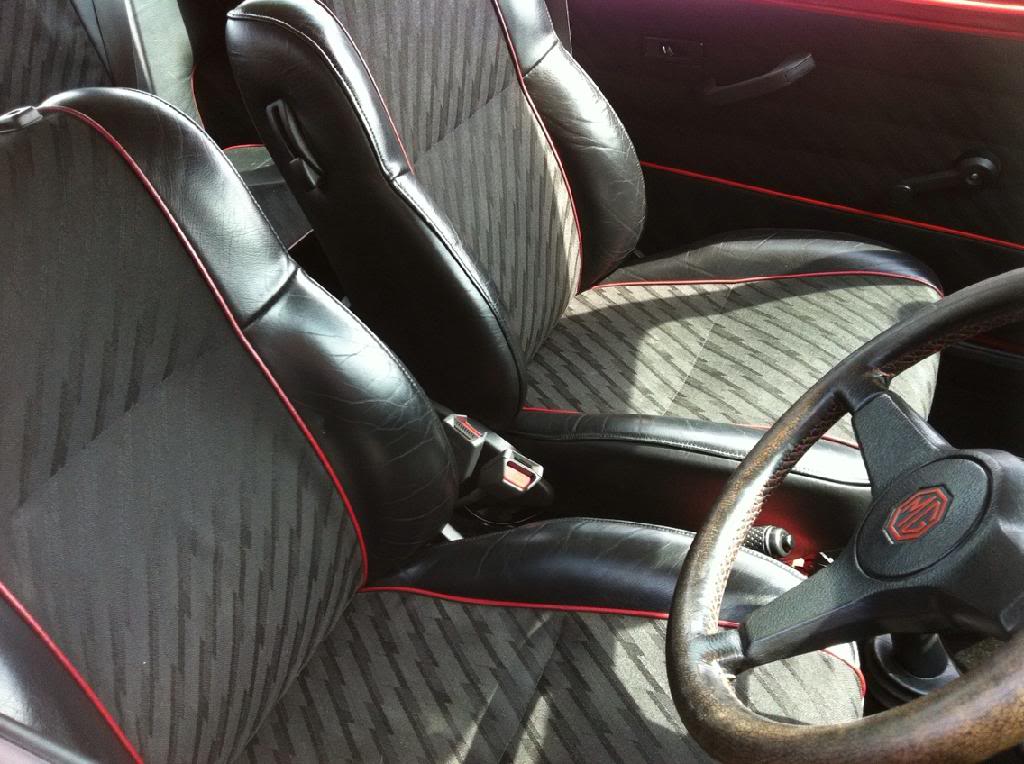

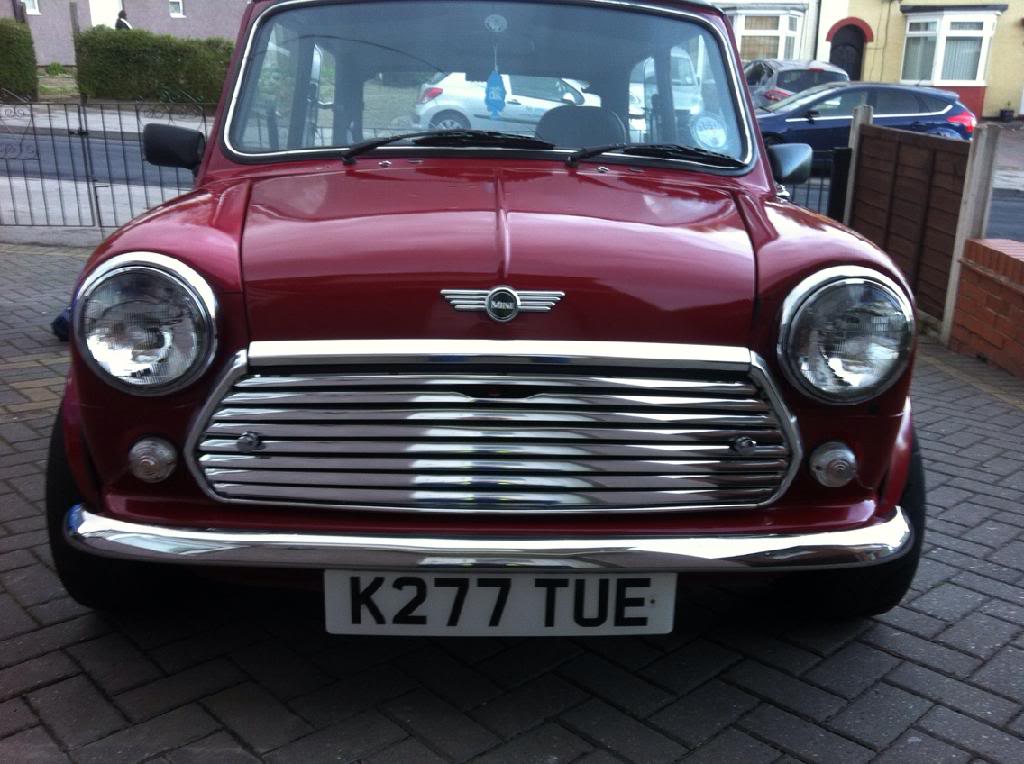

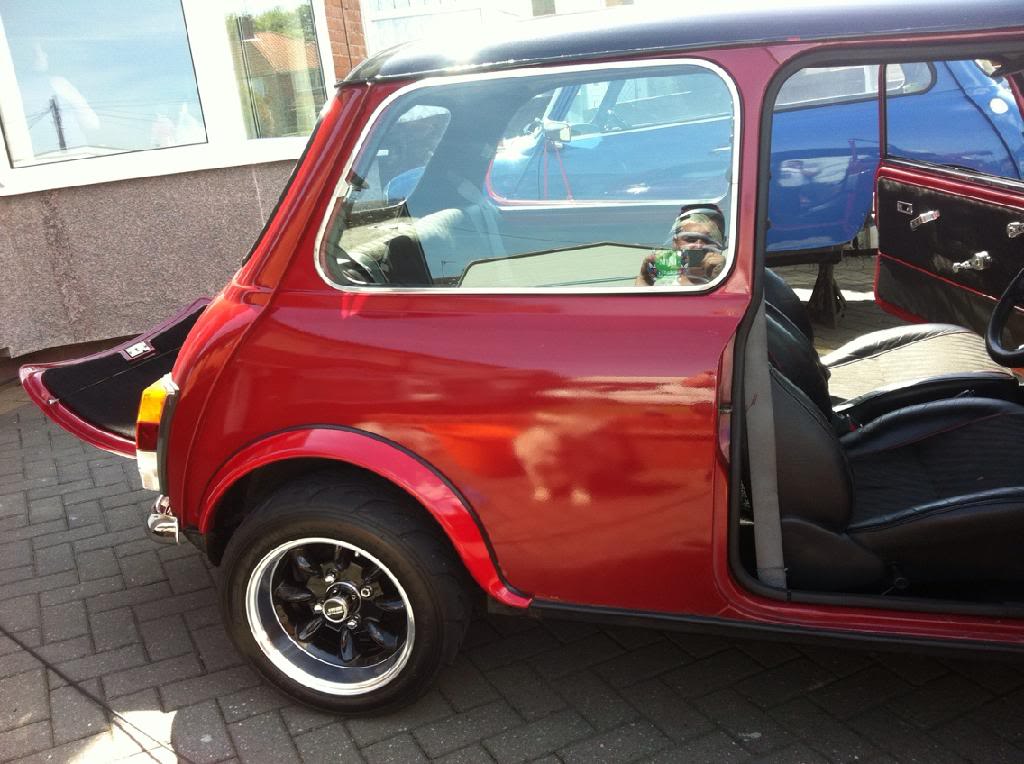

Some pictures of the changes I made.

3EA2DFC5-893C-4A5E-B376-E61684A63081_zps

2ACF680B-EE9B-4FAA-A835-21B71B2AD8D8_zps

675CC902-CB93-40E2-97F7-71344F67DAA9_zps

9DBA2AF9-BAF7-4506-B889-21BD34BD2885_zps

It's been great owning and driving this car for the last two years, everybody loves her and I get compliments from people saying how nice my car is all the time. The engine pulls strong and has never missed a beat as it is very low mileage for the age of the car and looks as if its been well maintained during its life. But unfortunately she has started to deteriorate over the last few months due to the poor primer/paint that was used. It's like my whole car has came out in a rash. There's bubbling everywhere and it seems to get worse at this time of year so I definitely want a respray sometime soon.

It didn't help that some little b*****d decided to drop a lit firework out of his car window, which unfortunately ended up spraying the whole drivers side of my car. The rear quarter wasn't to badly damaged and I managed to t-cut and polish the damage out, but the door paint was too far gone to save. So I decided I was going to flat it all back to the factory paint to see if that would cure the bubbling, and re-paint it.

So I flatted the door back and primered it, then left it a week or so as she was up for an M.O.T and I needed to get on with a few other bit and pieces. She needed two new tyres and not much else if I'm honest with you, just things here and there like a fuse or a bulb etc.

Brought these as a little treat for my self and my car as they caught my eye when I went to pic up my new tyres from Minispares !

88BC376A-C185-453D-9187-0B16B7A1BCF7_zps

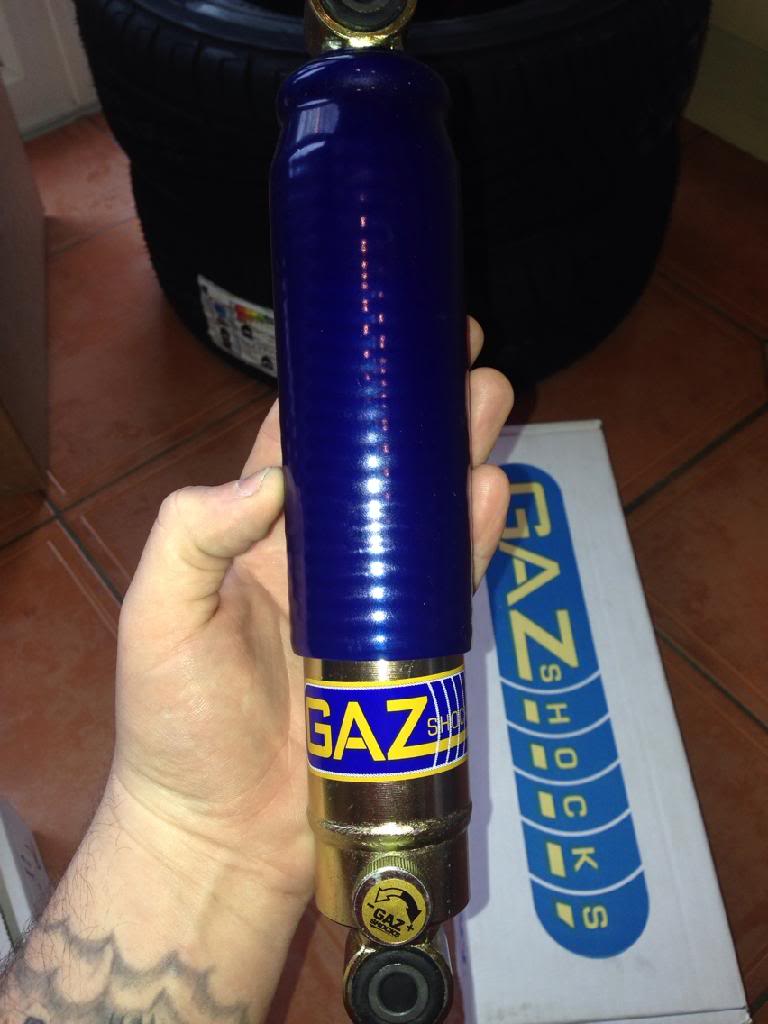

Gaz lowered shocks and genuine hi-los, why not, I worked hard in the run up to Christmas  ;-)

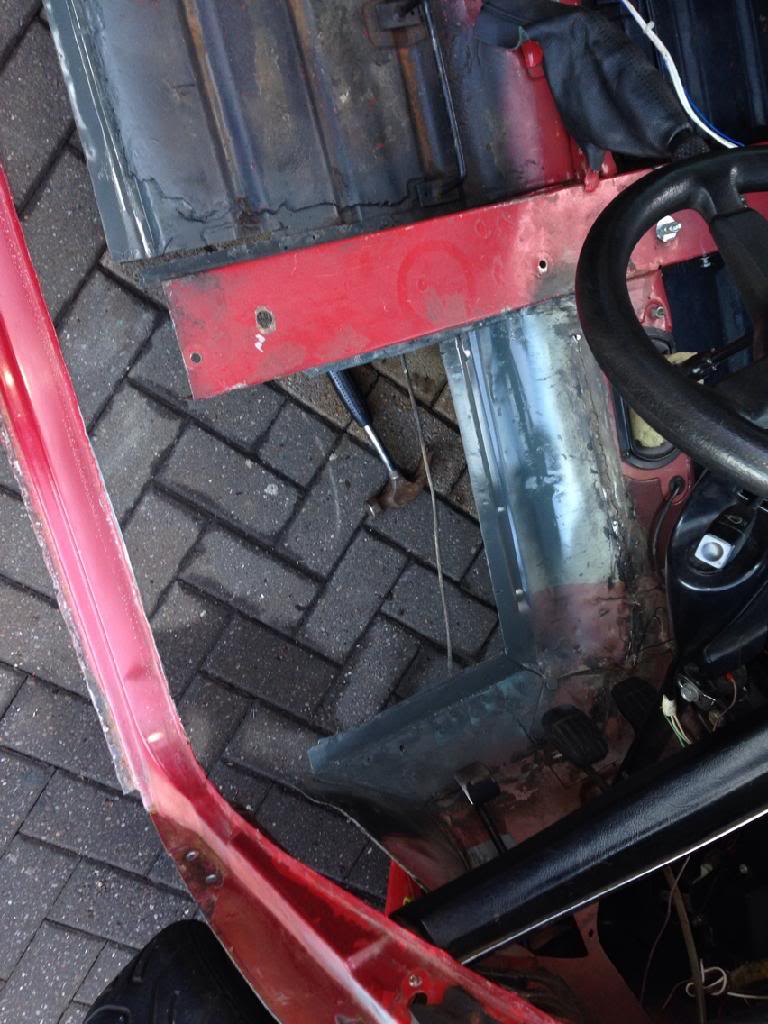

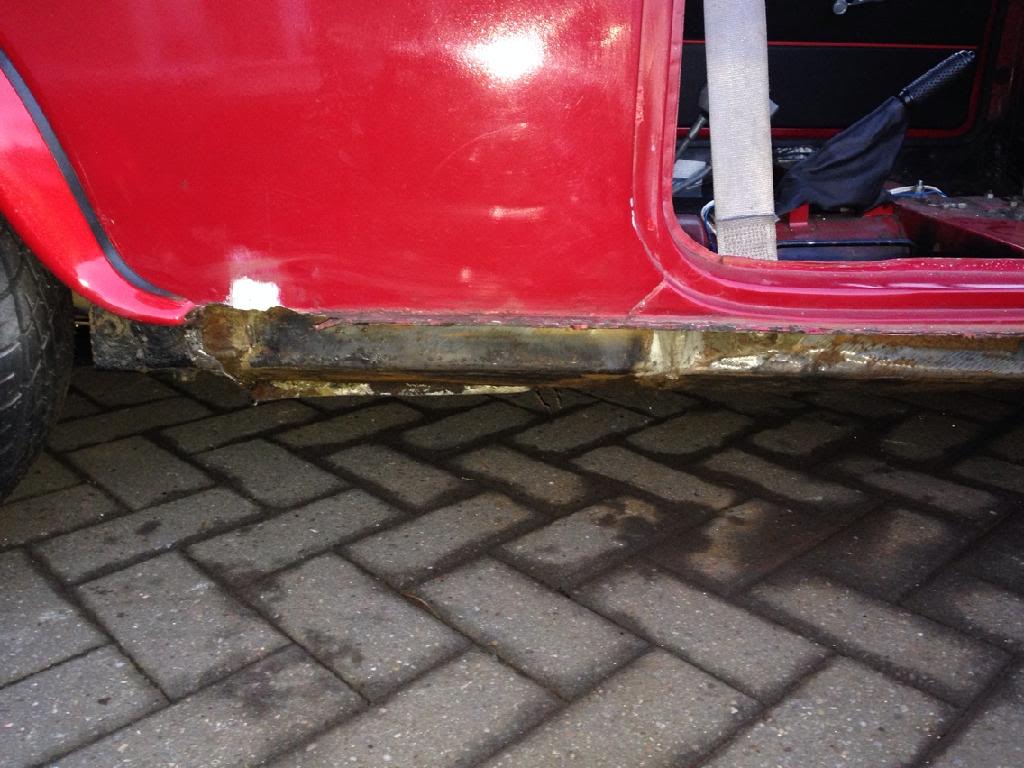

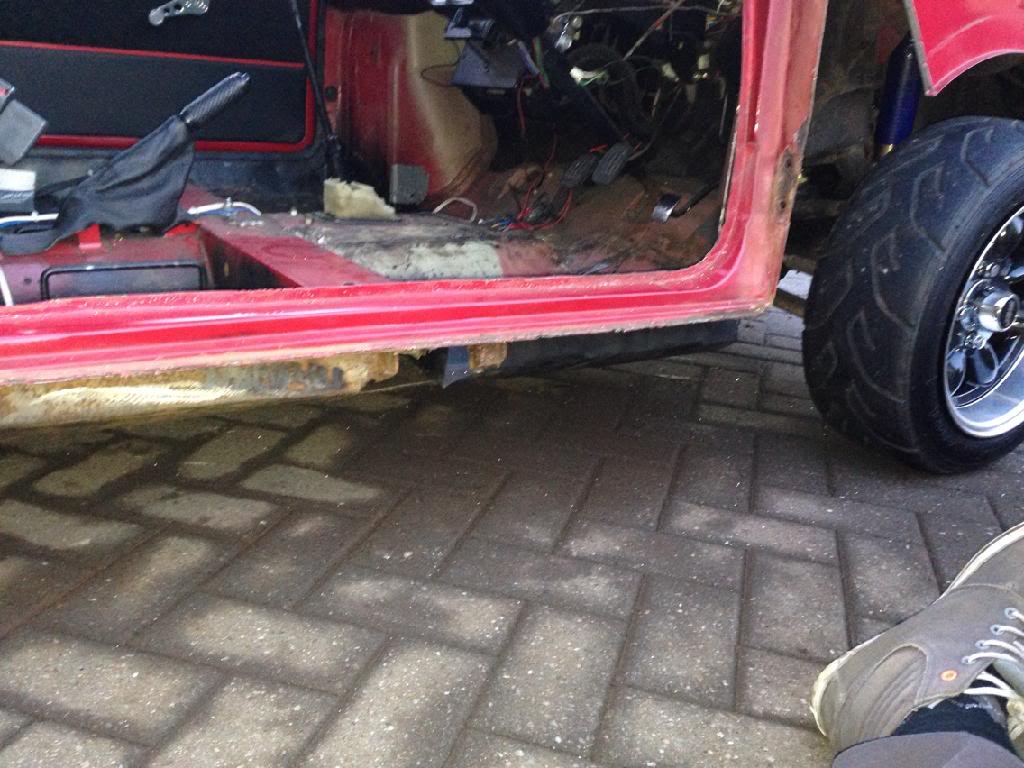

So, over the next few days I fitted them and got it up to M.O.T standard. The plan was to paint the door after but I thought, why not, I've got the paint and its a nice day, well, this is what happened...

78F5B372-7687-4DD8-A04C-0FB3B71203FB_zps

BB420078-E3C4-4EFB-81D5-C7A52B8FDA40_zps

FAFAB957-120C-4E78-8C1D-28839D4CA9C9_zps

50CC8E81-0FC7-42C3-8636-8A7D2E88FB94_zps

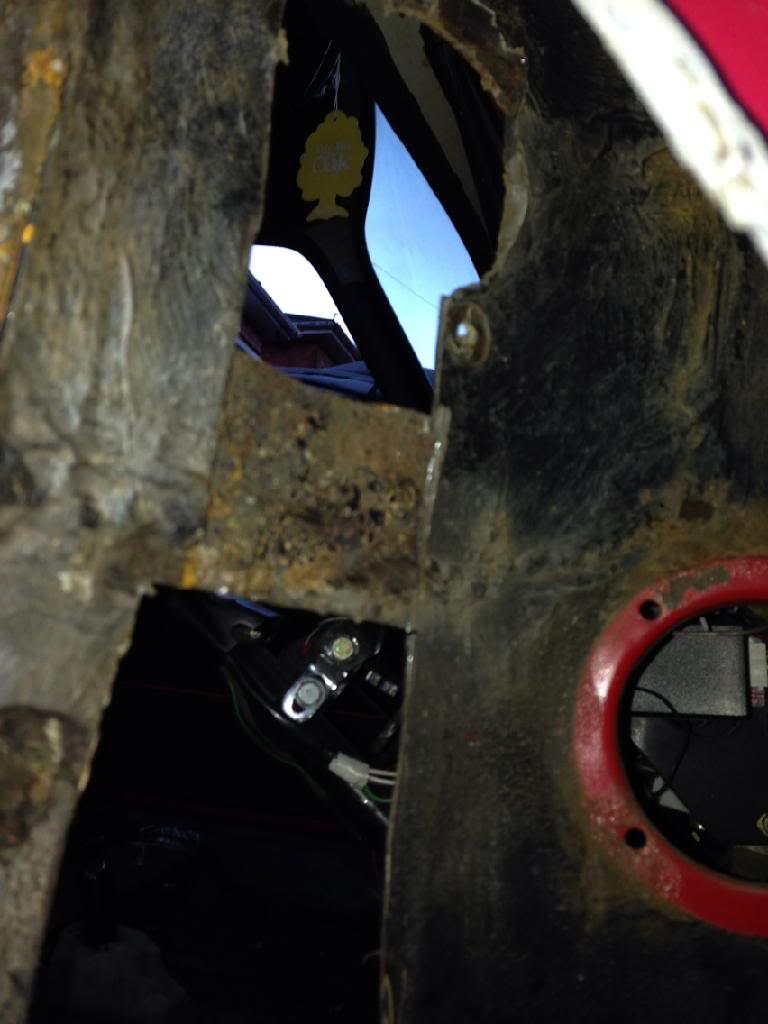

Where do I start:D Come to paint the door and realised the lip that attaches the a-panel to the wing had rotted away, so i decided to get the grinder out and chop out the old a-panel as my dad says there not to hard to change and are pretty cheap. Well this just went from bad to worse, chopped it out and came across huge metal plates that had been welded on to the flitch. So I decided to remove these plates and found all the nasties that lurked beneath it !!

Rot, Rot and more Rot !!

After seeing this I decided to start removing the flitch panel and upon finishing this I then realised I had several layers of metal where the floor pan is. So i decided to have a poke about and discovered I had several floor pans on top if each other. Got busy with the grinder again and found that the guy who 'restored' it had just slapped another floor pan over the top of the rotten one. A Proper Bodge Job !

I cut out the rotten floor pan, and then decided that, well, I've gotten this far so why stop here. She's got oversills which I hate because there water traps and were causing problems with water coming into the car. I had planned to remove them at some point, so I cut the over sill off and found that the guy had just plated either side of the rotten inner sill. The weld was so weak I could literally peel it off with a flat head screwdriver !! Not happy as you could imagine, seemed like it took more effort to Bodge it than it would have took to repair it properly !!

I removed all of the rotten inner sill and then discovered the rear quarter is rotten and was just filled with filler, not going to touch this yet though as, along with with the doorstep, this is keeping it rigid so I'll repair the above first then get started on this. So I now have a panel list as long as my arm and a ton of work to do, but what can you do, I guess that'll teach me for getting carried away with the grinder !

I think I've got the basics of welding down and my dads going to teach me some more over the coming days as his damn good with a welder, seeing as he also owns a Mini;-). also I'm going to remove the bitumen under seal tomorrow as its nasty stuff and weighs a tonne ! I guess now its off the road Ill replace both sides as the passenger sides probably going to be just as bad as the drivers side is, can see this being a full on restoration now !

Will post an update tomorrow of how I get on.


12-31-2013

Update guys,

Got the bitumen sound deadening off today, horrible stuff but not to hard to remove.

9CFA383F-4895-4D52-9F5D-F09B464C53A6_zps

2772F9EA-84AB-4B45-9BDC-A1E780B95B18_zps

Also I mocked up the new floor pan to see how it fitted, I don't think it's the right one for my car though so I'm going to scrap it and get the correct one, I know it's a waste and all but better to do it right the first time !

974D7DA1-8216-4439-A18C-E4AE1FC83A83_zps

What does everyone think of Magnum panels, I don't think there great if I'm honest !

Couldn't get too much done today as its New Year's Eve and all, trying to keep the noise down as I'm sure the neighbours are getting sick of hearing the grinder now haha;-). I also ordered a few panels from M Machine today, doorstep, rear quarter repair panel and a crossmember repair section. Got to start some where and these will keep me busy until I can order the rest from Old Skool Minis after the holiday (3rd January I think).

Before removing the doorstep I'm going to replace the flitch and then brace the door with some steel box section, as I don't wont anything moving that shouldn't. I'm planning on repairing most of the other stuff first anyway to make it as strong as possible before removing it.

I also practised a bit of welding today, I don't think it went to bad if I'm honest with you, but I'm hoping to get your opinions on it.

34BB19CD-0C76-4DF5-9AEB-9186EFE073CA_zps

EC6CB03F-7AFE-4981-9F0B-21724E0A34B8_zps

Got some decent penetration on it, so I'm happy (I think).

That's it for today, I might get some bits painted up tomorrow though, as I can't really do anything more until I receive some of my panels from M Machine. Hopefully they'll be here by the weekend so I can crack on with it !


1-3-2014

Update,

Got the rest of the Bitumen sound deadening off from the passenger side today, found a few holes but I'm replacing most of the panels on this side anyway, when I've finished the drivers side, also found some more bodges, nothing new there then. No wonder my floor was always wet, half the patches he'd done weren't even fully welded, just tacked in and filled over with seam sealer !

7A75702A-E7F2-4A47-BAA1-64E53973B428_zps

Picked a couple of panels up from Old Skool Minis today, flitch panel and an outer sill.

FA276020-9005-4842-815A-1C92BA290CA5_zps

3DD1C2C7-62B9-4999-BD3B-9E13912A14BE_zps

Hopefully me and my dad can get started on welding in the flitch panel tomorrow, providing it doesn't rain too bad. Also I painted the seat anchors today, a little before and after -

A8A4386B-F790-46A4-B571-EBF2EF5409AC_zps

D543E444-3D57-4130-A6DF-BA3E8E2AD7C0_zps

Painted them body colour for something different, really happy with how they came out, the picture doesn't do them justice. Going to use stainless nuts though as I'm changing most of the nuts on the car to stainless anyway.

That's it for now but hopefully will have something to update with tomorrow.


1-4-2014

Update guys,

Fitted the new flitch panel today, pretty happy with how it came out, some pictures for you.

Chopped out the old (poor picture) -

E7730D26-5057-4A74-AD6B-21A220E7EBFD_zps

Kurust and weld through primer applied -

785CEB59-1D63-4D27-9DF5-5D0B9780E6B8_zps

Holes drilled for spot-welds and positioned into place ready for welding -

D9AB7B4F-2B55-47BE-8ACD-BD317FAC381D_zps

Welded in and dressed (poor picture) -

2EADF460-A2CB-442C-85FF-7EB14209835C_zps

Got a few holes to fill in tomorrow and have got to make a plate to go around the top of the flitch as the metal was to far gone to save. Still got a long way to go but it's progress:-) !


1-8-2014

Parts update,

Some of my panels from M Machine arrived today, Crossmember Repair Section, Rear Quarter Repair Section and a Doorstep.

BA3D9FAF-D605-445D-9272-F3DE9D636365_zps

Should also be picking up a Inner Sill, Door skin, Wing and a Floor Pan on friday from Mini Spares, will post some pictures up when i have them in hand, but that's all for now, hoping me and my dad can crack on with it the weekend providing the weather isn't to bad !


1-10-2014

Parts update,

Went to Minispares today to pick up my panels, here's some pictures -

4F35839D-2CDE-4099-B0EA-744478EEE8B0_zps

Also picked up these ready for when I refurb the front subframe, Rebound Buffers and Poly Bump-stops.

0D66976E-4455-4A74-828A-0F611E27F564_zps

Will be getting some work done on the car tomorrow so will put pictures of progress up soon !


1-11-2014

Update guys,

Me and my dad got the floor pan welded in today, took some persuasion but nothing the grinder and a big hammer couldn't sort out;-). Really happy with how it came out, got some pictures of the process.

In position to be welded -

4DB8B2B1-0F6D-4A9B-BC5C-237BD476D5ED_zps

Welded, tidied up and temporarily primed to keep the rust at bay -

D04C7782-A875-4D81-A090-83FC75388453_zps

Ill be sanding the whole floor of the car, priming, applying Tiger Seal on the welds, applying more primer, top coating and will then be applying Dyna-Mat with underlay. Then I think I'll be buying a new carpet set from Newton Commercial, so that should smarten the inside up !

Also I removed the shock absorber mount today, I new it had gone but didn't think it would be too bad, couldn't of been more wrong !

D72B86F2-52A3-4F87-B87B-76C30933F10C_zps

Rot cut out -

B0B89757-54E1-4EED-BD81-EB49953D528B_zps

Temporary primer applied -

62B306D8-355B-4888-8856-DDF559A508C2_zps

Will have to make a repair piece for this and then I'll be purchasing Lowered Shock Absorber Mounting Brackets for both sides from Minispares.

Also made a small patch for the bottom of the Flitch panel -

FC41E708-9A69-401D-80EA-870258AD263D_zps

You can't really see the patch but if you look back at the earlier photo of when we put the Flitch panel In You'll see there's a small hole at the bottom.

So, to do list for tomorrow is as follows, make a piece to fit the top of the Flitch panel, ( as you can see in the photo above ), and also get the Cross Member repair section welded in. Feels like we're making good speedy progress with this so I'm happy:D. Can't wait to get this welding phase over and start prepping the whole car for a nice new shiny paint job:D. Still got the other side to do though but hopefully won't take us too long.

That's it for today guys but I'll have some more to update tomorrow !


1-12-2014

Update,

We made a piece to fit the top of the Flitch panel today, i hate really fiddly pieces, and some how it took all day to get it right so didnt get chance to do anything else but it does look good now it's in.

In position to be welded -

B56F7A1B-9253-4740-A897-F70EAC17A080_zps

Welded in and dressed up -

60815833-BC72-458D-BAC3-EBC98C802C00_zps

Still got to make another piece to fit the remaining gap at the top of the Flitch but getting there:-)

On a side note, she's looking sorry for her self;-) -

38C405DA-F3C0-4BAB-8EB8-67B6B9DFC878_zps

Two minis tucked up;-) -

82E35867-F7AF-4FF4-B7FA-8D229F83517E_zps


1-15-2014

Update,

Booked the night off work last night so I got a bit done yesterday and some today.

The rust bug had already started to come through my nice fresh welding so had to sand all the welding down we've done, re-primer and apply temporary black top coat to stop it.

37EE730B-A91A-4E07-82D8-0A3B801AA4DA_zps

B4979312-A377-4E7B-9AFF-7DB46E8A5A46_zps

I also removed what was left of the wing from the inner wing and front panel.

Started off like this -

CBF7D316-18D5-4727-A1A4-0E582D905C1B_zps

And ended up like this -

6D0D0D64-F2AB-4AF6-B3AC-F71F9E9A1371_zps

As you can see the inner wing lip at the top is gone so I spent today fabricating a new one. Had to make it in two halves as I haven't got a piece of steel long enough.

Made a card template first -

62A21999-DE36-4CF4-813F-0F82FC879F8F_zps

Then transferred it to steel -

9D5912EF-D664-453D-80C2-12FF04FA88DC_zps

How it fits -

0768A133-4A74-4B5A-89BF-9A991DC970A0_zps

I left the old lip in place so I could get the curve right. Didn't get chance to fabricate the top half or remove the old lip today as it started chucking down so I went in. I'll do some more the weekend though as I'm at work for the rest of the week now.

Also I received some new smoked side indicators today, bargain from Wood and Pickett on EBay !

EBC68323-18EE-47E5-B494-97DF5B477809_zps

Aiming to have a big box full of new goodies for the rebuild:D

All in all I'm happy with the progress but still have a massive list of panels and parts I need, new rear subframe, bonnet, boot, possible front subframe, all the panels for the other side, respray and the list goes on believe me;-). Ill have to upload a picture of it !

More updates the weekend:-)


1-20-2014

I have a massive update coming soon guys, don't worry I've not give up;-). Got loads done, just haven't had the time to update this thread, also photobuckets messed all my pictures up so I've got to figure out how to fix that too !


1-24-2014

Huge Update,

Right, where do I start:D ! Got a load done over the last few weeks but haven't been able to get on here to update, but nows the time !

I acquired some one inch box section to make some bracing ready for the removal of the doorstep.

E866BCD7-0462-4E54-8494-CDFADE904B45_zps

Braced the door by tacking it to either side of the door flanges, before I did this I took some accurate measurements from the other side and they where bang on the same, so that was a relief, means nothing's moved that shouldn't have !

6CC23714-0964-49F7-AA8A-7E48FFF9DE43_zps

We then chopped the old doorstep out and had a play trying to get the other doorstep into place. Ive heard the magnum doorsteps are a pig to fit but to be honest it really wasn't a bad fit at all, just took a bit of time to get it to fit right at the rear end but not to bad at all.

Roughly positioned into place ( apologise for the poor pictures, but just wanted to get on with it:-) )

A27D54F5-B621-488B-B013-B3AB89B655EC_zps

Then we checked the fit with the door on -

A51B3585-3E01-4FC2-AA3D-2D0B42E9E4CA_zps

Not a bad fit at all, still needed more work as the gap was wider at the back. I have got a picture of the finished product but its not brilliant as the light was fading and my cameras not the best as it is, I will post a better picture of the finished product soon though, but here's the poor picture anyway.

Welded in, better picture coming soon -

F3C87F1B-12AC-4D4B-81C3-25A6C2D51BAF_zps

Plug welded it to the front inner sill and the new crossmember, which I'll show you how we fitted.

I positioned the crossmember in place and then used an old cobra subframe I had knocking around in the shed to make sure the gaping was right between the two seat securing brackets, then we tacked it in place and then seam welded it. Really impressed with M-Machine panels, great fitting and quality !

Painted the inside for some protection -

3003A4E7-411A-4705-A64F-191804278B54_zps

Then we drilled the holes for the plug welds and seamed welded the top and sides -

F1F3F700-1ECD-4088-AD21-6604503164E0_zps

Still needs more welding along the top to fill the gaps, will get a lick of filler after as well, but daylight was running out so had to call it a day.

Then I started to do some seam sealing of the stuff we've already welded in.

Sanded back mostly to bear metal -

BB811A83-B595-472B-A989-5D365AD20931_zps

Etch primed -

482D6E08-C7E6-4C25-948E-A085F3CE23D9_zps

Tiger seal applied, will prime again and top coat -

B750AA56-553F-4255-B57B-2F100783FB86_zps

Also done the flitch, same as above -

057DDCEC-D5F2-4258-A741-875770AE1B5F_zps

Had a bit of a reaction with the flitch though so will have to be rubbed down and primed again !

That's all the body work I've got done, but I've still got more to update.

Won this beauty on eBay for an absolute bargain, brand new, never installed, the guy brought it for his own project but never finished it. Just waiting for it to arrive now and I'll take some piccys of it, have got the eBay picture though so here you go.

C3A866E1-1350-4F3D-ACE7-155092C9466C_zps

So today I started stripping down my current dash set up to clean the clocks and what not and get them ready to go in the new dash, which won't be being installed until the cars finished though so it will be safely tucked away in my room till then:-)

Before -

129CB50B-7AD7-439E-9FDF-D3FEE5046E43_zps

Removed -

A35B0974-07AC-40D2-947E-D3A7FC78DEF0_zps

Took it inside and stripped it down and cleaned it.

Before -

D4EDC290-62F6-4CCE-8A8E-DB1753522F84_zps

After -

308C5651-3747-40F5-8993-81D5CB41F8AB_zps

I'm going to Repaint all the back plates and renew all bolts etc, also thinking of getting some magnolia fascias from sticky fingers as that will finish the clocks off nicely !

So that's where I'm currently at and am going to do some more work tomorrow, going to Bingley Hall on Sunday and cannot wait, going to relieve my self of some hard earned cash:D.


1-25-2014

Update,

Decided to repair the shock mount today but couldn't get it completely finished as it started lashing down, hail stones and everything, don't you just love the British weather !! Anyway here's some pictures of the process.

Hole in question -

279BAC85-2BC4-48E7-ADE7-55D3EC31D1B6_zps

Kurust, etch primer and top coat applied -

B722F02C-ACEC-4721-95DF-E8380C3280A2_zps

We then made this plate from thicker gauge steel, 1.2mm and etch primed it -

67CF2613-6A3F-4E14-9B08-EF95FF2D79AF_zps

Top coat applied to the back of the plate -

D1185232-4078-4BAA-98D0-40EE97F9B80F_zps

Plug welded, used the shock mount bolts to keep it all tight -

DD3C28C8-B23B-4A26-B707-926DD077A06E_zps

Seam welded, not finished though as it started p***ing down, had to quickly apply some etch as you can see its already started to get wet -

97539B6D-9C77-44C8-A36D-285992BDFBF1_zps

Will have to finish this off on Monday as its Bingley Hall Tomorrow, booked a couple of nights off work next week to work on the car anyway. Also started sanding and seam sealing the underneath of the new floor pan and flitch, but haven't finished this yet so I'll take some pictures when I'm done.

That's all for now folks:-)


1-26-2014

Update,

Went to Bingley Hall today, what a great day out it was, was packed out there all day, got some really good bargains:-)

I got an upper dash rail, MK2 rear lights, doorstep plates, loads of smiffy's bits bolts, scuttle repair panel, a couple of knotted wire cups, and some roloc pads of different grades to put in the drill all for a really good price !

27134528-89B3-4592-92B7-46A302DB0D3D_zps

50712347-5766-467A-98C3-1291DDBDECA1_zps

1CA7CAD5-F48A-4A1B-9E05-4EF0B4870B32_zps

Also I think I've got the only top dash rail with no rust haha;-)

01082B3C-C7C7-484F-BD37-38E42B55024A_zps

A85F29BB-0D61-4D69-9BAA-C639F875B073_zps

C5BAD5BB-BE92-4ECA-8444-78BE3EF9B6A4_zps

My dash should be arriving Wednesday with any luck so will post some piccys when it does !

Doing some more work on the car tomorrow so updates to follow:-)


1-27-2014

Small update,

One of those days today, don't feel like I've achieved much, but just couldn't be bothered with the grinder etc, so I got on with some of the niggly but necessary jobs.

First off I cleaned up the speedo casing along with the oil and temp cases -

CC1F2538-BB50-46F8-BFD8-75FDE842E6D5_zps

After, (poor picture) -

452B0AF0-26F5-4201-B795-978C32FF676D_zps

Finished up seam sealing the underneath of the floor pan -

28DFF4F8-566E-4403-9414-AE6EEF3D0A90_zps

A0F94CD2-583A-4E83-9A2E-D39802CD700D_zps

Also I removed an old alarm system I had and some other things I no longer want -

97DFE5B4-4642-403E-A132-3743B96321B8_zps

Stripped back the underseal on the inner wing and to be fair it's pretty decent apart from where it meets the front panel, it's been bodged there so something else to put right -

51DE815D-FBA4-40B6-B5CC-E4CAFADB03F1_zps

Problem area -

CA47F96F-1FF2-4C9D-9B8C-793E2C27B907_zps

Also removed the lower dash rail as i think I may be sending it, plus my newly acquired top dash rail, off to the trimmers next week to be covered in some sexy black alcantara;-)

Removed the chrome trim, very delicately -

18C530EB-CF32-451C-B2C9-D1FB5BA94E09_zps

And I couldn't resist trial fitting the MK2 lights -

65051A38-5952-47FF-95A8-D1695B1F1EF4_zps

They look fantastic, even though my paintwork doesn't, respray on the cards soon thankfully. Took them back off and stored them away safely.

That's all today but I'll get the grinder out tomorrow and remove the companion bin, some of the rear quarter section and might finish of my doorstep. Still lots to do but got to keep it moving !


1-28-2014

Update,

So I got a fair amount done today, I started off by removing the companion bin as it was rotten where it meets the floor.

How it was when I started -

86D02430-947D-4F61-9BB8-158C19C9588C_zps

Partly cut out with the grinder, you can see the inner sill wasn't even welded to anything where it meets the inner sill stiffener, just moving freely, bodger's paradise, what a joker ! -

1C1DE878-A0B3-47CD-911D-D942AA3C645A_zps

D37F9CA7-75ED-4FF1-BB11-58F6A11924D8_zps

I officially hate drilling out spot welds, took forever ( EXTREMELY poor picture ) -

DABB2CE7-F5DE-433C-8FC4-73F34F5B9FB9_zps

Hammer meets thumb trying to remove spot welds, all beautifully swollen and bruised now:D

85D8AD4B-459F-4EA9-92F4-429D811F2E13_zps

Removed what was left of the 'inner sill' -

F40A253D-F947-4C8B-83D8-A3C04210AE33_zps

Need to remove this cup thing for the seatbelt as the companion bin from M-Machine doesn't come with it -

A3079DE2-BEFF-4FE3-9B92-3AFBAD745944_zps

Think I got my money's worth out of this cutting disk:D -

A10E6497-C523-498C-A5C0-135331D62026_zps

Removed the rest of the companion bin and then I turned my attention to the rear quarter. I jacked her up and removed the arch and then set about it with a knotted wheel brush on the drill.

Before wheel brushing -

762BF828-E3EA-4385-AE6E-58FBF00810C4_zps

After wheel brushing -

C166346E-E086-4B95-BCAE-318239E037BD_zps

Area of rot -

FFBB0B70-D9AB-4290-A566-9156235381FC_zps

Area of rot -

D1016143-2C46-4468-A01B-C59F8AA771AE_zps

Chopped out the rot with the grinder and could not believe what greeted me -

F0BC11BA-A3AE-4334-8808-0570359A551E_zps

Bodged full of some sort of sealant and no closure plate in sight -

D1ECE47D-75DC-425E-BCDB-04918DB25B7B_zps

Anyways removed all that nastiness and this is what I was left with -

F7396CA2-591F-4DDE-A317-FDC04D385DF8_zps

Another headache as its all wrong, no wonder my car was flooded with water when it was on the road. It's all going to have to be redone so will be removing the subframe this weekend to sort this area out properly.

I decided I'd had enough of looking at the messy welds on the door step so I set about them with a 1mm cutting disk and I'm quite pleased with how It came out. Ill also use some Roloc Disks to get the final finish but it still needs some small holes filled and some filler to perfect it but for a quick dressing up its not bad !

ADDC605D-33FE-4FB7-B957-13B3EF09D49F_zps

C6509E98-4F8B-4E17-9B2B-281B74B3F64B_zps

Primer applied and it all looks fairly tidy -

DA307DEE-1AB1-4B09-9FC3-48BBD0A4A789_zps

B41812AC-DB03-4200-AC6F-615DF733F8EE_zps

That's as far as I got today but I'll get some more done tomorrow before work.


1-29-2014

Update,

Nothing major but an update all the same. Got some seam sealing done today around the fresh air vent and flitch panel inside of the car.

Weld ground down -

3CD0C4AA-8C0B-40C0-BA32-E90B75A7639C_zps

I split the seam with a large flat head screw driver and flooded it with Zinc rich primer in order to protect it against rust, then closed it back up and primed the rest of the air vent -

1C552C14-819A-43E2-A5AA-F7EB8F84075E_zps

Tiger seal applied, not the prettiest but as long as it keeps the water out I don't care -

A0C0B8B1-6CB0-4F7A-9E6C-BC9D9742CE2E_zps

As you can see I've still got to fabricate a piece for the top of the flitch but will have to wait till the weekend now. Planning on removing the rear subframe this weekend as well so I can start work on the heel board.

Ive ordered some panels from M - Machine today, RH Rear Floor Pan, Heel Board Repair, Inner Sill Stiffener, and also the subframe closing panel so hopefully that will arrive by the weekend !

Got my dash today but it arrived damaged because of the delivery guys, it's got a small crack in the lacquer in one corner. I think I'll have it repaired though as the rest is in pristine condition and I did get it for a dirt cheap price. Don't think I can be bothered with the hassle of sending it back to be honest !

DA55B4F5-D61B-46AF-985B-89237E5D5BD8_zps


1-31-2014

Parts Update,

Arrived home from work today to be greeted by a nice big package from M-Machine !

81785422-21E1-4AA3-A3F3-946F302FE527_zps

D020278A-8587-4C31-B61B-94D7E0F8C587_zps

Wasn't expecting a Heritage companion bin but I'm not complaining:D

Should be making some progress with this little lot over the weekend so updates ahead !


2-1-2014

Update,

Thought I'd finish the Flitch off today so me and my dad got straight to it.

Removed the windscreen -

F4CB7117-36DB-4549-BD44-63AD7757EF40_zps

And then removed the scuttle as I'll be replacing this with a new Heritage panel, not going to use the scuttle corner repair I picked up from Bingley, don't know what i was thinking when I bought that -

AF0CFAF9-1448-4885-A52D-CC8B9D9380C1_zps

Drilled out the spot welds -

F74F78F9-D8D7-4049-B262-67DB1BFB56E8_zps

Discovered more of the brown stuff -

E0802465-5200-471E-9951-35F153C5CBCD_zps

Sanded and Kurust applied -

68C07E74-9DBD-4237-B3D7-CA66CE99883E_zps

Zinc Primed -

B75299DD-3869-468F-A80F-795BCEFB4F54_zps

Top coat for protection -

D3F113CD-F7F3-4047-BF08-4EC8D657BD12_zps

Then we made a piece for the top of the Flitch -

3E55C4D3-04C0-471A-9135-497BED9C81B7_zps

Final trimming and the bend added to the piece, then primed and top coat applied -

EE555B74-978A-4987-97A9-D76B3DDB681E_zps

Welded in -

92C5F14C-167F-424E-944B-4FEDC585ADCE_zps

There was also a small hole at the top of the inner wing, as you can see above, so we made a small piece and welded that in -

114784D4-A248-43C8-BE18-A5A6320F0EFB_zps

Inside -

62EBFA3C-D8A9-4D4D-BA42-262D7D34F5D2_zps

That all we got done today, big update for such a small repair I know but it's these repairs that seem to take the most time. Going to replace the inner wing lip tomorrow and then I might remove the rear subframe in preparation for repairing the heel board.

That's all for today !


2-2-2014

Update,

Repaired the inner wing lip today as well as a hole at the bottom of the inner wing / toe board.

Chopped off the old lip -

545F415F-7A04-4F49-8B26-FD2B8F472ED3_zps

Made two lip pieces to go along with the other lip piece I made a while ago -

47CF06B9-008B-42D3-8F31-CA3D4D2A5D1D_zps

Welded the first part in -

DFDEB656-A09E-4D45-9D1E-92CC9F7C8F69_zps

4F6D92BB-84DB-4792-AAAA-6E2D90956C0E_zps

Then welded the other two parts in, tidied the welds up and primed. Almost an invisible repair but will take a roloc disk to it tomorrow -

7CBAE1F5-2FFD-4DBB-9FC3-47BEDE76C900_zps

46E084F9-50C6-4ED0-B0E5-1EFF45C02A30_zps

Then we chopped out the rot in the bottom of the inner wing / toe board -

B8515EB9-5B5E-4E35-BB4E-F355447B592B_zps

54F728F4-5BCE-47C9-9117-E07CF03D8780_zps

Made a piece to fit the inner wing -

A98243C6-3318-4E9D-9D56-45115A339D27_zps

Welded that in and primed, will tidy up the welds and what not tomorrow as ran out of time today because I had to go and collect some parts I won on eBay -

83CC25D9-22C9-45BA-A6AC-8F9A89E1D9BC_zps

And these are what I won, Metro Turbo 4 Pot Calipers, with the braided conversion hoses included, for a very good price ! Going to restore them and put them on my Mini:-)

C2156B2D-1A3C-4919-90D1-31964D2C9326_zps

That's all for today !


2-3-2014

Update,

Just done a bit of painting and sealing today as I've got work tonight.

Sanded down and ku-rusted the inner wing -

401C045E-B9E2-4C6D-988A-C6F06C1CC061_zps

Primed and sealed -

2D7E2689-803C-4C8E-A6B3-438419DC8E95_zps

Will sort the front of the inner wing out when I've removed the front panel.

On another note, tried to take the grease nipples out of the Callipers today and the inevitable happened, sheared them off, so will have to apply some heat and drill them out.

That's all until the weekend now, where I think I'm going to drop the rear subframe out and start on the heel board !

P.S - Had to take this picture, Sitting low ! Love it;-). It's the last time I'm going to see it like this for a while though:(-

69B871E2-8DB4-41BA-B150-FF82A0E8B055_zps


2-9-2014

Update,

Decided to start on the rear of the car this weekend as I can't do anything else to the front until I remove the engine. I bought some more box section to make a heel board jig and to make some bracing for the passenger side.

Box section -

A20B078F-C9CB-4FA3-97D4-D2011CE6B139_zps

Then we removed the rear subframe -

39F2A26B-F90E-443C-9630-3179F396A8E0_zps

3186EB04-DEC2-4B57-97D9-C1F2CF73016F_zps

It's been bodged to high heaven like everything else on this car, two huge plates on the top and a patch on the bottom, so will be replacing this with a new one -

7FBB2DA5-F0F5-4E97-8EAD-989F4C13F215_zps

FE712509-C125-40CB-877F-5D4960F11DD5_zps

Ku-rusted the heel board repair section where it had been spot welded -

05b3c4530f9130b071c45c978185ad05_zps36f9

Then I primed it up -

2c307f79a854c8c110bbe4b1e3b389cf_zps7a11

8ee95b16d0b0416f37486e823300f979_zpsb023

Then we made this -

f3f939de6d08ca492c345276423941a9_zps5104

f75ddd9d23d236763b43364fe012ba4d_zps0c92

40639a8e91d3160ef8552be2ed4bab86_zps8681

We made two metal plates and matched it up to the subframe holes and drilled the holes. Then we cut the bar to the correct length and welded the plates to it. Simple but a critical tool.

Then it was back to body work and cutting out more rusty Mini -

efdfcead1e129a75aa9881628ec0e292_zpscfb5

THE BODGE IS STRONG IN THIS ONE !!!

42d9d513d9fcdcb0d60d0a335390ca1d_zpseffa

01577dc574a3fc511fab753bd51bbbd6_zpsc44d

And this is what we were left with -

b7cfbde298fd262006771d0a8f5598a3_zps2549

Looks quite daunting but once the heel boards in it will all drop into place fairly easily, ( HE SAYS ) !

Anyway we got the heel board in -

74b53c99a704dda799cc7008aec3ec92_zpsab83

e965ac1316b9ee964fe86ac1d6cc6260_zps6eec

How it fits with the subframe on -

6760ac9ca7c00866e59f069c32874615_zps99df

Pig of a job, but it had to be done, and feels like a big milestone as I really wasn't looking forward to doing this job.

Should have something real nice to show at the end of the month though:D


2-11-2014

Update,

Made a list of everything I need to do to finish of the drivers side, looks like it could possibly take a weekend or two then it's on to the rear end which looks like it needs a small patch underneath the petrol tank, a new valence, and new valence closing plates as unsurprisingly it's been bodged !

The List -

5a70023e6d3f11804029b047fbf1a6d1_zps3da7

Also I went outside for an hour or so before work today to do a bit or priming and mock up the panels that will be going in this weekend -

91f8408dfbe8c1ce88321ae4c99aa846_zps1863

Rear quarter repair panel and outer sill clamped in place -

c37030c795a97aae7c089dc43913daa8_zps22d4

Overall look with outer sill in place -

7b811cb9978bc064e7503bd4097329a3_zps3b5f

And the closing piece -

6d31d3f1d1a82ef8a5f9838cdf7df4c9_zpsec53

I also mocked up the rear floor pan, sill stiffener, and the companion bin but didn't take any pictures of that. Only mocked it up for a bit of a feel good really, need to hurry up and drive a Mini again, I'm having withdrawal symptoms:P


2-15-2014

Update,

We got the rear floor in today, can't believe I've got a whole floor again:D. Can't tell you how good it feels !! Here's some pictures of today's work.

Went out early this morning and got a few panels primed up as they were starting to go rusty, even though they were in the house !

Inner Sill Stiffener, Closing Panel and Rear Quarter Repair Panel Primed -

014e5e804a30b2d7f97950a8fafad9c1_zpsddb7

Rear Floor Pan cut to size and primed with zinc primer on the flanges -

0562605e3606b619c9e273db47b44f32_zps605b

Then we cut the rest of the rear floor out -

3455c00d64592dbd395dc6be0ae7b8f2_zpsf6b2

And then started to drill some holes ready for the plug welds -

d5f203129975c6673efe5f146a3e3f02_zpsa2b3

AND THEN THIS HAPPEN'D !!!!!

420ab9da76c041dae0fd6be553dd55b8_zps441e

866ad03f1d75856f8445dd39d679e6b0_zpsbec7

04f65820a355572352b919210f50b43f_zps12d2

This isn't coming off in a hurry -

3edcf674141e1bec77f6b83402151911_zps11ab

A shot from underneath -

ead3c0c0ff100e40f84a0eea4603b682_zpsce77

And the finished thing -

32a81f990154d3b8f2015cb8c3832601_zps0d60

We'll be welding in the other bits tomorrow to finish this side off hopefully, weather looks good for tomorrow, had to keep stoping today as it kept raining on and off, but still managed to get that done.

Anyway more updates tomorrow:-)


2-16-2014

Update,

We got a load done today, pretty much finished the drivers side, I'll let the pictures talk !

Chopped out the rot from the arch -

6384110db3c6ac10bcdfce73380b7677_zps2546

Made a peice and welded that in -

889baf8a84d22fbeb4640d882753f2b3_zpsa6fb

View from the back -

25127dec8e8e1bba037da3c0ff737920_zpsbecd

Then the bracing came out -

065fb46dda5d22de0a560b6122a89d8a_zps2a91

925c19c0e2ff95c5254213bb75dabbe2_zpsa5f4

Drilled the holes in the closing plate ready for plug welding -

cfaee042d8c6e04e29d43933c2fdebf9_zps279f

Welded that in and trimmed the arch repair back to suit -

d8acc7ea210da3dd8a4556f6b6d4640a_zpsa425

And then we fitted the inner sill stifferner -

399405e8f194b4551e1d0899bfc1a40f_zps716f

3013c75dee9fdf502fe6b8a906c4f081_zps03a1

Drilled the holes in the companion bin ready for plug welding and sprayed with Zinc primer -

7e6740d5bdc27dfc6066035712226fe6_zpse8c9

Welded that in, will need some trimming back around the door step -

a9afbf0379d7d19d627aa2d081a1c5c9_zps82e5

48f9d7efba4956cefbd1e5f09b247626_zpsd14e

And then chopped out the rear quarter ready for the repair -

bc382f8d23aa174b570155bdf9d807e5_zps098e

Applied top coat to places I can't reach when this repair goes in -

792c89dd1f57e63208efe3f125df193d_zps7334

Held in place with inter grips -

c677e821491e57272fff8bbb7d8587c8_zps8dd9

Tacked in place, making sure to let the panel cool as we didn't want distortion -

4f8714236971620c1670d17a36ad8c17_zpsd65c

Welded in fully and ground down -

160a5a92a20aa65e13df5b153ac65baa_zpsa63f

Primer applied -

4bdab10a3fc30cffba0a7e580dba2e04_zpsbab6

View from inside the companion bin (still needs the closing plate on the back welding in) -

bdc8481f5ffaf57be21b54105b5a334b_zps6789

a2fca78bd13a7ea30025184b0d0ee153_zps2042

Overall look -

01d80ddf7d541f17b8072680f34b1d19_zps7bc9

Good speedy progress today, had some sunshine for a change so that made a huge difference. Looks like the rear quarter repair is off in the picture but it's not, I've made accurate measurements from two different minis and there the same, also I don't think the heelboards to blame either as again I took accurate measurements and have dry fitted the subframe a couple of times with no problems, I measured and re-measured and both sides matched up and was plumb straight so I think it's got something to do with the pattern floor I bought, but then again it lines up perfectly with the door step, which again is dead straight !

What a mouthful, but at the end of the day its 1000 times better than it was and won't be as noticeable when the outer sill goes on !

Anyway I've not got much left to do with this side now so will finish that and then start the other side within the next couple of weeks:-) !


2-17-2014

Parts update,

Received some parts I won on eBay today.

Used Vented Disks for my 4 pot conversion, still plenty of meat left on them, they've just been sitting around for a while. I won them for the massive sum of 99p:D

860a9e1f99fca1ffdc28bf36b49442ec_zps7147

I've put them into a bucket of ASDA'S special own brand rust remover:D, it's good stuff, removes rust like nobodies business -

79e51f6a0ca557e703d7398c3e094c5b_zps9165

In the bucket -

63f2e68510781eb38fb944d096ac7b2e_zpsf308

Going to leave them to soak until Friday and then attack them with the wire Brush on the drill ! Then I'll use some fine wire wool on the disk and paint up the hub part black I think, just to make it all look tidy really !


2-22-2014

Update,

We'll more of a step backwards really ! Completed all that work last week only to find that when I retried the subframe it didn't fit. Don't ask me how this Happen'd because I have absolutely no idea, as you can see from my previous photos I had the subframe bolted on so I have no clue as to what caused this.

I've had a complete nightmare these past few days trying to correct the problem, it's been horrible cutting back into all the fresh panels I've put in and believe me theres been blood, sweat and A LOT of swear words !

Me and my dad have finally sorted it today and we will hopefully be finishing this side of tomorrow, it's put me back a good weekend as I was planning on starting the boot area this weekend. I've learnt a valuable lesson and I WILL NOT let this happen again !

Ohh and on a side note, I HATE HEEL BOARDS !

Anyway I've got a few pictures of some of the modifications We've had to do.

Cut the heel board and dropped it down about an inch -

50809fdedf262bf412ff4c8ad8e22db2_zps3d37

Also had to chop out my Heritage Companion bin which destroyed the lip part that welds to the inner sill by the doorstep, so I chopped it out and made a new lip, welded that in and primed the whole inside of it. Quite happy with it as it's almost an invisible repair -

057aab03f745d923eed9dd3b665d4efa_zps8458

881fac5d76f5cbb76566f853e8b26c3e_zps31e5

Some top coat on the inside as it's easier to paint off the car -

47a54ef9c7d29380c9c6c88fca5ccfcf_zps8d7e

Also had to cut out my rear quarter repair panel in order to reposition the heel board strengthening bracket which I wasn't happy about but it had to be done unfortunately -

6c5cceb451b0a469815c99bf0b753ce9_zpsc686

I've retired the subframe and it now fits BEAUTIFULLY, So tomorrow I should be finishing this side off, I'll take more pictures as I go along, as you can imagine I haven't been in the mood to be taking photos over the last few days.

What a disaster. At least things seem to be on track again now !


2-23-2014


9954986e49cc47578d09ca4e8d7fdd8f_zpsd608

Went in today:-)


Update,

Well we got the companion in today, and finished a few other bits and pieces.

Holes drilled for plugs for the companion bin -

4ea8addc7c68487d7d7cfe4cea38eea5_zps86ef

Then I tiger sealed all the seams that will be hard to get to once the companion bin goes in, no pictures of this but I thought this was quite funny when I pulled the funnel cap off -

d63a489dd116331166a34ee8dd7f8fe1_zpscb55

Companion bin went in next, looks scruffy here but will be tidied up soon -

158e18ef80856de4cfbe365de25dd0f9_zps1c1d

Then we welded in the rear quarter repair -

9b259f70b2f6d6aea86f293f9da35e21_zps08e4

Not too bad when it's got primer on -

aefcc41d8712831926f2083d7f661edc_zpsbab4

Then we went about fitting the closing panel -

9954986e49cc47578d09ca4e8d7fdd8f_zpsd608

Had to make this little bit to fill the gaps you can see in the above picture, pattern panels for you I guess -

438e18b6b6c197513430c132d93a83b4_zps35a0

All welded in and primed -

07786b031ee4a25217aaee5ddbbec198_zps199c

Still got to make a panel for the seat base to weld the top of the heel board to, hence the reason for the gap by the closing panel, and a few other pieces to make too.

Also painted the inside of my outer sill -

0cdc3e4520787ae5519bc764c6ff15e2_zpse5ce

48bfb893795c3df11bdf8431f1c98803_zpsa27c

Bought some of this stuff to fill in the rear quarter repair and other bits of filling Ill need to do -

e82641652ca093acae50983686354087_zps2ad0

Highly recommended on this forum so i think I'll have a play with it tomorrow. That's it for today:-)


2-24-2014

Update,

Got some Painting/Sealing/Filling done today. Also got her started up for the first time in ages today, sounded like a tank without a back box though:D

Here's some pics of today's progress.

Primed up the rear floor and applied Tiger Seal -

91a19e548a66a6ae4153b61977261f95_zps865d

Same with the underneath -

39d4212bd80386f3c8a986309f5aed7c_zpsc2ff

Next was the heel board area, etch and zinc primer applied -

3b9db2981456e030068598fc488f48c3_zpsbd10

Then I use regular primer over the top of that -

e5c3d720fcf618df267588a6da976fb9_zps84d2

Then I apply Tiger Seal -

c90288e8a83cd1aeae2e4aa39f5eb792_zps480e

7b45fb3779b19fb96a2a344b954ebeae_zpsddec

Primed up the companion bin -

afcd2948b21b4aad72b7a4ef6daf5f90_zps26c3

Then I had a little play with some filler -

9cf5911ba43dc4fb92f2cbd32764579a_zpsebe1

Sanded down a bit -

d8409fdfbddc58002995bd9487e1e2f0_zps0ed2

Still needs more work but it's pretty good to be fair, I'll apply one or two more light coats and that should be finished then.

She also put up a fight today, MINIS HAVE TOO MANY SHARP EDGES, my hands have been battered:D -

19b49db1cde02f0cf09ca3e567d363e3_zps614e

That's all for today, time to get ready for work !


3-2-2014

Rocket - Thanks a lot pal !

Update,

Prepped the inner sill and the underside of the car, then top coated them in some black top coat ready for some Waxoyl and maybe Shultz or something along those lines.

Primed and Zinc primer applied -

81986db7bf8d487c5ef50cb148967fb2_zpsd388

e3f7f53eaef54b73e89000dfc5ceddc4_zps8348

Then I give the whole lot a good few coats of gloss black paint, and also painted the inner wing up as had some surface rust coming through -

0b19dc9629ec21224bf8a19bef3c3f2f_zps5814

96d8f95c0c5e3c968203f8b26016b727_zps96c7

65226bd56149134cabbbe78398d369ed_zpsab95

Then we got the two floor pans welded together as one, in hindsight I wish I would of brought a full floor pan but I wasn't expecting it to be this bad, you live and you learn I guess -

97eef8d47911d54608b344d086f34626_zps6ece

2fa5b062a6aacba594696617d432b29e_zpsa4e6

Applied some tiger seal, will be re-painting the underside black tomorrow -

dbe4856702eeaaa98f3acf672ed0a9ea_zpsa0b2

Made a couple of pieces for the crossmember -

244f66754a0783dc6cb6f636fe00b94e_zpsdecb

Then got them welded in, not too pretty but will apply a bit of filler to the cross member, also it's going to be carpeted -

2f6645329ffeda40d7c01533f8452977_zpsd182

36341b5c4065923ff04aef636faccb70_zpsd629

I really wanted to get that side finished off today but a combination of the weather and running out of gas means it will have to wait until next weekend unfortunately. So today we done a bit of re trimming of the dash rails, black suede, looks fantastic:-) -

2686ddeb72972b79f3c38fcd2b24569c_zpseda6

b6017f54b0197358595086b83917e61d_zpsd775

dc2e0e37a5b42e52e58b1a40fc81aa6c_zps12cd

So that's it for today, I WILL FINISH THAT SIDE OFF NEXT WEEKDEND:D


3-3-2014

Parts update,

Bought these of a guy on here from the for sale section. Come with pretty much everything I need for the conversion, minus the ERA Turbo bolts I need to purchase from Minispares !

305d561458a0e3e51b5c4a83fe44a6cb_zpsd41c

I want to fit better breaks as I'm going to be converting to a 1275, when I find the right engine, and these are perfect for this ! I'm going to fully strip them down and rebuild / paint them, already started to today by removing the bleed valves and what not, but now it's started p***ing down so will carry on tomorrow when I get home from work.

Edit - Forgot to mention I also took delivery of some of this today -

a3b825dbba3234005e8c3ae281924c19_zps6c12

Heard nothing but good things about this stuff on here, so I'll be using this in all the cavities on the car, only bought the one can for now to see how it goes.

I'll also be purchasing a couple of cans of Dynax UB at some point in the future !


3-11-2014

Update,

I've pretty much finished of the drivers side now, just a bit of filling and sealing to do and the odd pin hole to weld up. Anyway here's some pictures of progress that I've made.

Refurbished the disks -

21aec4f3a1333156e748dd39359aba90_zps4c06

0e71f76be27485157147d62559c2c4cc_zps2607

Ground the lugs off the drive flanges -

4d557d4da5c6f92ff13dbcb4042647b1_zpsd6e3

df0405a36bafddbd040cd2fec52d60c2_zpsf3c9

Now to the welding, the hole in question -

ccec651b739d795c821d223abb0cbed3_zps0378

Made these pieces to fit -

80d65505b814e38fd1c9c7136ce9d825_zpsaf29

6b72362fe1033cdc43e4e90a3d8f5156_zps908e

Welded them in -

5f4e7823402135e83b561a66030c4065_zpsd536

Then tidied up the underneath -

3d83bcb15c5586a66d253ec142a2ba07_zpsd712

Then it was onto fitting the outer sill, welded up the jacking point as I won't be using it, that's what subframes are for ! -

6f85b166ef9e26286e3bba898ed0c148_zpsf2d9

367c04b6657688e4b3be2936d47782d9_zps5757

Then give the inside of the sill a good few coats of paint -

425a03ef095e8dc36acd1cad9506f092_zpsc446

25fd0558df53b2a19235feb5bfa91a4f_zps4cc8

Then we welded it on -

59f8c262c6b1fade52ebbadf49208183_zps87eb

79e04a6abac5df2ea88fc8a17cdde771_zpsa4b9

Then all of the cavities got a good coating of Dynax wax to protect them, it's all a lot tidier now as well as I've been out there filling, sealing and painting everything.

So seen as I've pretty much finished this side I started work on the rear.

Removed the valence -

307e09b7e2546f4645910b8c62551541_zps69ee

The damage -

257e1da454672994bbf368802ad74099_zps61f8

18c333992066639e23761c282c6fb0c3_zpseaff

Just makes me laugh at the fact the previous owner (Bodger), fitted a new valence and didn't bother to repair this, what's the point ! The rest of the boot seems to be in good condition but a going over with the wire cup on the drill should reveal any nasties I've got to deal with. To be fair, the metal on the drivers side corner is solid as it passed the screw driver test, but the same can't be said about the passenger side, went straight through. Where the boot floor meets the boot lid flange looks solid too.

That's all the progress, so until next time:-)


3-16-2014

Update,

I've started chopping out the rot in the rear, there is more than I was hoping, but it's not too major.

The problem area -

6335e5a3183c0e3b2a3f25efcb7fc37f_zpse0f4

It wasn't too bad in the other corner but I've chopped it out for peace of mind.

Chopped out the rot -

e2fcd3d9b37fada3e944cc198f921c00_zpsa7ae

780ce2093893febdb026be80b5148746_zps9885

I wasn't planning on removing the boot floor lip flange but the other guy who fitted the valence cut it too short so it wasn't actually attached to anything.

Then I had to go about removing the valence closing panels, what a NIGHTMARE ! There's like 20 spot welds that hold it on to the subframe strengthener, so lying on your back on the floor trying to drill them all out was....interesting to say the least:D

Some pictures -

8ab18ea7f99255f5a17960295c2fb800_zps6852

70e529322a0d49d65aebe186a806ff9f_zps5d2d

I may actually remove these strengthening plates and replace them with fresh metal but will have to wait and see what sort of size the boot floor repair panel is. I also removed the other closing panel but didn't take any pictures of this.

I also purchased some of this to get rid of some of the surface rust -

4aa459a08dd78e4c04012d97959be9ff_zpsdf40

Now I did mention a while back that I would have a big purchase arriving at some point this month, and I have indeed.

Here's some pictures -

9e3126526adf6c07719548519b76ca97_zps2179

a7124bba816b9754cc5b817f8c47a70c_zpsde92

7c4df6308726dd1110ebf251a220eede_zps2884

0015de29e92e028215156804a14abc3d_zps7c5a

c1c7481d481bf333dabb8ab19af07313_zps2f77

914c4c8ee6314b30436e2c3653980294_zps5617

I sent my whole interior of to be re-trimmed by a guy on here. His company is called JCS Custom Trims and his work is top notch and his prices are more than reasonable !

I had them trimmed in black vinyl and black suede with red stitching and red piping, same with the door covers. I'm very happy with them and the pictures do not do them justice !

Couldn't resist trying them in the Mini -

75cc467aa52fd1af98c6a6c44f4fc3aa_zps2d78

d1b4cf1e089077aeac171253ee1139a5_zpsd011

It still looks like a Mini from this side:D -

8b9582d89c71043e7342f9fdab855b96_zpsd655

Well that's all I got done this weekend, not one of my most productive weekends I must admit, but have been quite busy. Anyway more updates next weekend !


3-23-2014

Update,


Got some more done on the rear end this weekend.


I brought the magnum boot floor repair panel and cut out the piece I won't be using -


67f5b35b1e5b8bdd87de05a8af7954b8_zpsf0bb


Then I drilled out the spot welds from the arch brackets as I want to leave these in place to act as a datum point for re-drilling the subframe mounting holes -


9b0cb46ec40ba0c3367201cb082ec60e_zps4cda


af98fe1911fb3cc680fe1f33dcbae437_zpsd1d5


Then I removed the rest of the rotten floor -


59b4c1c3dc06c32c1eca32fb07d42a54_zps11d2


c628ac0c2eca1bb990e112004887445a_zps7d60


Then it was time to get the Deox Gel out -


488b67e23718b5a5eab16ad0862586c0_zpsdd80


352558ac864981fc6abd48f2a6c15f02_zpsf3c4


433e41e97c56d7fe6055ad127adee615_zpse720


So I give that a couple of hours to do its thing, and then agitated it with a wire brush and washed it off. I'm quite pleased with the results as this was well rusty.


816bb7f64d1a63aa5b4f278c9ae38827_zps021e


450c82029c6f6969f5bf591042e6e16f_zpsd244


There's still a small amount of rust in the pitted areas but I did apply some more gel which I'll get to later. So I decided to make a few pieces to repair the boot flange.


The places that needed repairing -


0e3eba23156761cce3cc2f3e8aba4eac_zps0c23


1262eb3574aae9609d274872da873696_zpsb16a


3bccd019f79ffe1d30bd608449c9d5b4_zpsfbb1


Rusty sections cut out -


21ef5428578da91fab6739f1fb77cb54_zpsbb69


Repair pieces -


1192ef9ebfb9e9842c69d50c97384c55_zpsc16b


a72cbfa7f13ae7058c05a45c2d4d5bdf_zps6b4c


Welded in and tidied up a bit, still needs more work which I'll finish next weekend. It's covered in Deox Gel in case anyone was wondering, forgot to take pictures before I applied this -


6035b57a9f397fd2da651d59060deda9_zpsdd0f


9f19e2ea0e62ec2f045c12a50061ab44_zpsc0d1


cd263d09cf7ce5549cd0433cd35a580e_zps5a33


I've left it to soak in the gel overnight to remove the last bits of rust -


63cf32cce6b0cb22f3f5e572514b2e9f_zpsafc6


That's all I got done this weekend as the weather has been terrible, suns shining and then massive hail storms come from no where, British weather !!!


3-28-2014

Parts update,

I've purchased two valance closing panels and a Heritage valance from M-Machine, they arrived today and I'm very happy with them.

Some pictures -

5b6e73e4f9acf6d97cf8aa09bea443d8_zpsf18d

d27037ba57a2373a1657d3779c70c6cc_zps2a96

42ca480597e0423e6ce12bd19c5d5d54_zps04b0

70696673a8bc1417e50265529fc16b9a_zps76a1

I wasn't to sure if the closing panels came with the strengthening panels already attached like the Heritage ones do but unfortunately they don't so I'll have to fab some up myself out of thicker gauge steel.

I'll be cracking on with this tomorrow, hopefully I'll get all the welding on the back end finished this weekend as I want to make a start on the passenger side.


3-29-2014

Update,

I've got quite a bit done today, the one corners now finished and there's not a lot left to do on the other. Here's some pictures of today's progress.

I started off by getting the closing plates in primer -

d637cc31dc582421ddf0112aa316ef95_zps8063

Then some black paint was applied -

a1667a89fa8254587122f499c7abc48d_zpse3de

Next I trimmed the boot repair piece, applied some zinc primer and fitted it into place with some inter grips -

4ed6156f5d8fbbcbb89f62d85a36b6d2_zpsf418

fd93bd3f7a9de2279e27eaf3641d94d9_zps9fa7

4f395134f95ea16088a5b59d4dd8b29c_zpsf26d

Welded in and tidied up a bit, this Magnum panel is a terrible fit by the way, i know it an aftermarket panel and all but it's shocking how they can get away with it, will be the last Magnum panel I buy if I can help it -

4608e8e77f4b1055812afe01197e1cdd_zps49a9

dcd4498a401df8f807db4fd62f954cac_zpsc0bd

Next I drilled the holes for the subframe bolts into the boot floor and made some stiffener plate -

8df9722e55b8058eed865c6034fabb1a_zpsa48c

cfe410d31a91a9a5b0fca48652d1836f_zpsdba9

You may notice it's short at the top but that's because some of the original strengthening plate is still in place and I wanted to keep it as there's nothing wrong with it.

Next I welded it all together -

0cbeb56155cd5c4a3c7e54ebc62a6249_zpse9e9

5bf4cb6f5f1b115ddc57cdf3cd392672_zpsce3f

a20126a5dfb7af9a700972dbff5ce4c5_zps1320

I've still got a few pin holes to fill up and I'm not welding the hinge panel to the boot floor until the very end as I need to put the boot lid back on to check the fit and make sure everything's where i need it to be.

All in all not a bad days progress, will hopefully be getting this finished off tomorrow.


3-30-2014

Update,

I've got the other closing panel fitted but didn't get chance to put the valance on as I had to paint and seal everything. Anyway here's some pictures of today's progress,

I made another strengthening piece and test fitted it to the car -

9b92bf57d55493a74de18acf237acf0b_zps4271

I then drilled the holes for plug welding and welded the closing panel on, it's not particularly pretty but it's strong -

9b6c79c75a48edae1fd6c21ceabad5ab_zpse169

14ddb440d5068a66f4607b3f73ca74be_zpsb5de

Mocked the valance up and it fits beautifully -

b2f2d77a899f8a8aa77a03cd73eab797_zpsf603

5301d327105e47bdee4ce74001d707af_zpsa087

659f21fe2be280fc0716a8a588ddd744_zps2a55

Then I got the Nitromors out and stripped the paint from the whole area that's been repaired, never used this before but I'm quite impressed -

036f7228e669826e3ac31e2185dd57a3_zps4f09

54e55a91bcb627face2b22874cdea4b3_zpsbe19

b4036c6df19f0793b037bc63d6573d90_zpsc5ef

0b1bed88d358b529afddb23cf57f5573_zps0506

Then Etch Primed and Tiger Sealed -

2d83514477fe5afba673b1930e496692_zpsba13

2f879729ba28aeeb28636edfb04ca523_zps59b8

494076b7d20e24b6cdd4270b19983b9d_zps9b99

d75a0e44215a99023d04704c008a5139_zps28c3

b2307949fd516bbdb1c4022292c0fbaf_zpse127

That's it for today but may go outside and top coat it before work tomorrow. I will be stripping the rest of the underseal of the boot floor at some point as I want to use Dynax UB underneath the whole car.

I know my works nothing amazing but at least I'm having a go, I don't think I'm doing to badly for an amateur:-)


4-7-2014

There Vinyl and Suede mate, to keep the price sensible.

Update,

I've got the valance welded on now, so there's not to much left to do on the rear end, should only be a couple of small patches to make.

I'm slightly lacking in pictures of this repair, but I'll show what I've got anyway.

Painted the underneath of the repair with some black top coat -

890ff4829b6c562874dbf9c125bda7a9_zps9ac3

3eb2e8675bba2a54afba5ee472f1b229_zpsc255

Drilled the holes ready for plug welding -

fc04fdf2782829f1c6bc9feadea20b62_zps82f2

279795271859b073aadd54063e2ad119_zps93bc

Sanded the inside of the valance down and I did prime and paint it but I forgot to take a picture of it painted -

54219b34923c5a5ba77c48e45df13ab3_zpsf71a

Welded in place and dressed -

a1b8b8b6c5dd2ed265f5d1deb5e97303_zpsbc6c

I will take more pictures of the finished thing when I've sealed and what not behind it. I've applied some Dynax S50 Wax to the closing sections today and have begun repairing the holes in the arch's. I'll put the photos up next weekend when I've finished them.

Should be starting the passenger side soon, but I'm going to paint, filler and seal everything on the drivers side and rear end before I start as I've already got surface rust coming through on my nice new fresh panels on the drivers side, which is very annoying !

Anyway that's all I got done this weekend as I've been quite I'll as of late and had to take it easy:-)


4-10-2014

Update,

I've been stripping my 4 pots down throughout the week before work and have completely disassembled them now, bar splitting them as I've been told this is a BIG no ! Wasn't easy, but got there eventually using a combination of a blow torch, a car pump and brute force !

80fe004612f51c0357f564945ff26b41_zps34dd

I'm going to take them, along with my drive flanges, up to a place called Bourne's to be blasted and powder coated on Saturday. I'm also going to replace all 8 pistons, bleed valves and all seals so they should look mint and work brilliantly when there finished. I'm going to use stainless steel pistons and valves to minimise the chances of them seizing up in the future. Was going to strip and paint them myself but I'll get a much better finish from powder coating and it will be one less thing for me to do !


4-12-2014

Update,

Went to the Pride Of Longbridge event today, was a good turn out, plenty of Mini's showed up, along with plenty more classics.

Here's a couple of snaps of some of my favorite editions -

Paul Smith ( my personal favourite ) -

b3943a260f3821f78fb40bb7ef93f2b5_zps3f15

ERA Turbo -

926ed8ee56bc0dcefc64b4cf183cd907_zps9d15

Both stunning editions I'm sure you will agree. Anyway I went there for a few hours with my dad and then came back and cracked on with my own Mini.

Like I said in a previous update I've started repairing the arches, I've completely finished the passenger side arch and that is now primed and has been tiger sealed. I've also made a plate and half welded that in on the drivers side, going to have a full day at it tomorrow though so should get the rear end mostly finished bar fitting a new battery box which is on the way from M-Machine.

So, hole in question -

f5f9696465b9e8c6d000a10ba000467d_zpsb086

Welded a piece in and tided up a bit -

d76e000cfb0df7460bb6776376cdd90f_zps2924

Then I removed all of the black underseal, used Deox Gel on the surface rust, and primed the whole arch -

e262fdd228aec618baa0411f25a25f13_zps0862

Tiger Seal applied -

5947f93780083c25a8c21773be94d07e_zps53b5

I'm quite happy with the way it looks, really motivates you when it comes out like that, definitely worth the hour or so it took to remove that underseal, horrible stuff ! I'm going to apply another coat of primer tomorrow and then use Upol Gravigard on top of that. Will be the same treatment for the drivers side then the arch's will be painted body colour along with the outer sills and flitches. The underside of the floors and under the boot area will be gloss black.

That's all for today:-)


4-16-2014

Thanks a lot !


Update,

A bit of a late update but heres some of the work I got done last weekend.

Gravigard applied to the passenger rear arch -

91958229997c1b4da5f3721268279368_zps6d2b

Then I went to work removing a nasty plate on the drivers side arch that's been put on by mr bodge, which revealed this -

fa1ece536a2bf2355afa85a9d34f4297_zps3507

Chopped out the rot -

fd7de3f88148db63ad294068954d0854_zpsc67e

I have begun repairing it but not finished it yet so will upload pictures soon.

Anyway I woke up today to be greeted by a nice big parcel from Minisport -

d01b972422f36890c237213008e0981d_zpsed1b

The goodies inside -

5a788eb672992cb66c5a234bbbf73825_zps8896

I've changed my mind again and have decided I'll be running 10 inch wheels, they just look so much nicer then any other wheel size, especially in the deep dish style, so I've bought the braking set up, and it's very nice indeed !

I also got a package from M-Machine which contained a heritage battery box -

247132ae106b6f21eee5ad6cd7849bba_zps3562

f34d85aa1db838d5ee8b9775702eda0a_zps1710

And also received a couple of other bits I've ordered throughout the week,

Dynax UB -

aad799c74324593c8a6731d593201395_zpsa05d

And a MK2 rear light lens, as unfortunately when I bought my set from binley hall the passenger lens was chipped -

c852fd778869440e5f2c83ba408ed662_zpsd09c

So it's been a busy week for the postman:D


4-20-2014

Update,

Right, got a fair bit done so I'll start with that arch repair. I've got no pictures of the actual patch I made as I forgot to take some but I have got pictures of it primed and sealed.

So, drivers side arch repaired, primed and sealed -

effe72160460c204577bf8c3db73276e_zpsb8d8

b58faa27e820b4dd91f8fb83b298d844_zps5fc7

e9b47523e3c96e143e9b040c50ea6afc_zps56cc

Another coat of primer and then Gravigard applied -

d428d98968e658ae479fbfb0636e140a_zpse163

Next on the list was to fit the new battery box.

Old box removed -

380fbaba93de241badc8573cdb95a6ad_zps5f47

e1ebf2fcd8e115379bd68f0f99d4bf3b_zpsba91

Tidied the lip up a bit -

f50c9cec86bb8fda0fe26dc7933f7713_zps0f79

Test fit of the battery box -

6583e65c65a114cf62bb6abed5c575b8_zpsaecb

Fits brilliantly as you can see, it's definitely worth buying heritage, so much less hassle. So I drilled the holes for plugging, sanded it down and gave it a dusting of primer. I also sealed all the way round but didn't take a picture of this, you'll see it in the rest of the pictures though -

7875a9284a37df9dda4bbaf58b1ea95a_zps8444

Welded in place -

822c16e73a0896c850abe6d15591f6bc_zpse709

Tidied up a bit -

f927028e6be094e3b34583505fb9e212_zpse544

Sits bang on level underneath -

63a3d5a2f7d0d582a6e4b98e9deff9ec_zpsaddb

af4353b0cd1a34966e6c298a137c5884_zps7cfb

Primed and sealed the underneath ready for Gravigarding -

dd826bbaee50dda3578c2283527582ff_zpsb15e

Then we welded in the tank bracket -

24ea3e1d8e476ba4943df09816097958_zps454e

Then we welded the closing panels to the back of the valence and seam sealed everything up -

93ffb10e3506f0f771f2cfb3abd9dafb_zps8c8c

9f8a5bb87f94918c38d663631b1ee01a_zps2ff5

Will be top coating all the underside gloss black and then using Dynax UB.

On a side note, I currently have these for sale -

a863cb901a9d1b7bd225e2715be7a8de_zps1c00

38b3258059afa233504ba9037bd6a1b9_zps2c74

8f8abf21b7db9d1837c8dbd859974353_zps31ba

12 x 6 deep dish Minilites, two have brand new yokohama A539 tyres, and the other two have almost new Yokohama A048 tyres fitted. There in immaculate condition, need them gone so make me an offer if your interested, also if you want more pictures and information there listed in the for sale section on here.

Got lots of painting, sealing and fillering to do tomorrow, I hate fillering !


4-26-2014

Update,

Been doing quite a bit of fillering and painting. Not my favourite job but these things have to be done !

Painted the closing panels and inside the valance -

02529cd7227a93152e24ee7645b33160_zps100f

1b1c42713be1886139693de3be1c235a_zpscc7d

Sanded down the outside of the valance, no need to go back to bare metal everywhere as the E-Coat on heritage panels is good stuff -

4138da56fe15f34cdebe7a2bbbf5966a_zps8afc

Primed -

3490f705f054cf38b9a510a6cb479dc2_zps1b80

Gravigard applied, you can't see the texture of it in these photos but it looks good in the flesh -

20e3e7a5c0f3fa4401f05f0dd4545183_zps0f5f

Then gravigarded the underneath of the battery box -

7bec7a8442aa7778cec411735c63718c_zps8145

Then I done a bit of fillering underneath the light area where I'd made a small repair, then filler primer on top of that, quite pleased with it -

3754d5b5daed98d04586e334f6a3071c_zpsffee

Where you see the crack in the filler underneath the boot lip has nothing to do with me, that's a previous 'repair' by Mr Bodge. Will be dug out and done properly -

ecd34e2f54183cd8e29aa25ee37e7966_zpsd816

Then the real graft started, took me three hours to sand down the whole boot area, some pictures -

485e1985c0c55d2248f9d4d095594b50_zpse5d9

317d7847748ff2dfb0dbb24f92955390_zpsea20

Found another patch of rust, so cut it out and will repair it at a later date, no welding for me this weekend, couldn't be bothered:D

f595cb4fd3db7d875d62759ee09b6b31_zps693e

Then I primed the lot -

d9ca3c5aa4508b1d3d7ba2cb0a3ddee9_zpsc3b9

And sealed her all up -

41b19a71067cb70e8da8d7152ffb6b60_zpsdfb2

d798c27d6032049bf0aeb01672c12149_zpsdf1d

That's it so far, might get a bit more done tomorrow providing it doesn't lash it down !


5-2-2014

Parts Update,

I managed to get myself a nice set of Exacton wheels last weekend, had to travel down to wales to pick them up but was worth it for the price I paid. They're going to need a refurb as they're a bit tatty, considering they're 30+ years old, and I'm also planning to make them into two piece split rims.

I was planning on using a courier to take them down to Force Racing to be split, but my dad has found a place that's local to us called Prestige Wheels that will dip, blast, refurb, paint and split them for what sounds like a very reasonable price, so we're going to take them down tomorrow !

Anyway here's a snap of them -

57d4b0ee13aec72a69dfc24caef3a349_zps7215

I've also put down a deposit on a nice low milage 1275 Engine. It looks to be in very good condition, nice and original and from what I can see unmolested. I've also heard it running and it sounds great. I've just got to wait for the guy to take it out now and I will admit I can't wait until we go and pick it up:D. I'm not after massive speed, just going to tidy it up and fit a few nice extras, maybe a nice cam and flowed head and a few other bits and pieces !

I should also have a few very nice interior bits and pieces coming through the post shortly so will put pics up as soon as I've got them.

Going to be helping my dad do a bit on his Mini over this weekend as he hasn't got a lot left to do welding wise so shouldn't take us to long. I'll also be doing the finishing bits of fillering and painting I've got left to do on the drivers side and rear end of my car in between, so will still have a few pics to update with, then next weekend turn the car around and start cutting out the passenger side.

It's also Himley Hall Mini show on the Sunday next week so will be spending some more hard earned cash;-)


5-4-2014

Update,

Spent most of the day yesterday disconnecting my engine and labelling the loom ready for removal. Quite enjoyed it to be fair, nice to do something other than bodywork.

But today I was back at it, repaired the small hole I had in the boot and made some bracing up and fitted that ready for removal of the passenger side floor pan.

The repair piece in place -

7c7dcf0e3bf20a5478b4e20633c111d1_zpsae57

Welded in -

541117a737be3c0a52a1666f54dfb49d_zps4b69

Zinc primed, primed and then tiger sealed, same goes for the underneath -

ac19604380eab7c97af9a9bb7e7b7ee2_zpse617

That's officially all the welding done in the boot area now, feels like a milestone has been reached !

Then it was time to fit the bracing, you can see how bad the passenger floor is in this pick, properly bodged -

663b1bf71a4ba515a9b204611e76bbc9_zpsabd8

And across the passenger door frame in preparation for the doorstep to be removed -

94ea29697bd8975fbbecf966521c88b6_zps047e

That should keep it all in place while the work is carried out. That's all for today anyway as was giving my dad a hand with his car, may get the boot area painted up tomorrow !


5-6-2014

Update,

Didn't do too much yesterday, being a bank holiday and all, but did get my boot area in red primer ready for the top coat.

So here it is primed -

80d9b9ef09c53f4003ae04d1b22a1132_zps7e61

May be applying the top coat the weekend, but I'll see what happens as I may be quite busy. I also took delivery of Mr. Vizards finest -

80ac2315ee2d5596e6b52f8d0ddfe940_zpsd150

That lead to me getting EVERYTHING I own Mini related down stairs and laid out on the floor:D. Wanted to see what all my money's been spent on over the past few months !

So, here it is, laid out -

c7b9d0618a2f9abb5ffbb5a7d16584cf_zpse4c7

A few close up shots -

a595ed407c69c858f0e49fe1ae8cc950_zpsf6d2

06730d5a741e8c85deb7dbf62a0ab0c0_zps7b5d

cbf8842392f05c82ce4f8830bd963db5_zps434d

And that's actually still not all of it, I've got two sets of four pot calipers and I'm not including all the panels I've got and the consumables I've bought. I've also still got more to come, just ordered a stainless steel heavy duty steering drop down bracket, a whole black seat belt set to match my interior, a load of smiffys stainless bolts and I've still got a 1275 engine to pick up, AND, it's Himley Hall this Sunday !

I don't think I'd want to count up the receipts and there's still a hell of a lot more to be bought. My wallet needs a break;-)


5-8-2014

Parts Update,

Received my drop down bracket today from Kiddspeed. I went for the polished option, Purely because I can't resist shiny things, and the workmanship looks to be of a high quality.

6ba4464e7771872f43c415be46db82cc_zpsa9ec


5-11-2014

Big Update,

Made some great progress on my car yesterday. Here's some pictures.

We started off by removing my 998 engine, this will be stored away as I'll be fitting a 1275 when the cars finished -

b08b2cf22a959ecce18b4be319286cf5_zps8f39

9397522784dc396967e4b83909fd1fcd_zps3876

Next was the front subframe assembly -

3e9ed170d5986f459b68facdfe777a49_zps4b9a

9e1a87ef9e70da8dfd6f06ef8a6c5c2c_zps8acd

Then i got the grinder out and what was left of the front end was removed -

f7a4ba02f2aa62c0b3045d753e9f340f_zps5b4b

edcea4b2fd7f26dc687a5b2c1c3b209e_zpsd73b

Bottom corners of bulk head and toe board corners are shot so will need replacing -

f39971db70fe83f2100299cb3721762b_zpsb87a

0430937281b05c173d21beaa5b54ff2b_zps6755

State of the passenger side flitch and inner wing -

e8a08fbf5eeeabefe35edc08dbd8079d_zps2fb1

8f3056410640d45c0e432143e9d824b1_zpsae76

81cf88e7c48c9fc10f22717855eb999f_zps485e

32106a35871774fa183c478d0962555f_zps0fcf

I'm going to be buying the whole flitch and inner wing heritage panel as it's just too time consuming patching it up like I did with the other side.

State of the drivers side inner wing -

3451989e20dff2f9d91a4638cd4aed0e_zpsbe05

Again I'll be buying the front half of the inner wing, M Machine do a panel and it looks decent to be fair so I'll give it a try, should be a lot more tidy then patching it up.

Then it was time to remove the dreaded over sill -

c265cd99fd6a31933aaff7cad5eeef62_zps6e33

e8a52ead0f5b6dd16acc7279e8d653fb_zpsc660

0850a7022024d3e49bab9b03539a723e_zpseaf9

8fbca4ffb07fe63daedbbb4861a147ea_zpseab3

I CAN NOT emphasise how important it is that you do not fit oversills, these are only two years old and look at the mess they have made !

Layers of Bodge -

90f4ca76c273a020302d39a93d411ae5_zpsbe82

So Ive roughly cut all that nastiness out and this is what I'm left with -

5dafbeba5b4b22799db2183d0303717c_zps3fba

cd35476e15da23f65f924b5f1a9c92b2_zps7750

All of the rot that was cut out of my Mini -

026ba0e7ba732db953ce7c4ca8aae9b1_zpsd2e8

I did feel as if I was getting somewhere with this but now I've chopped all that rot out it feels like a massive step back. Got to look on the bright side as my drivers side is now solid and my rear end is also solid. I've ordered the full front to rear floor pan from Minispares but will have to wait until next week to pick it up as there made to order.

After all that, depression had set in big time. So today I went to Himley Hall and had a splurge of spending to make myself feel better:D. It's the last time I'm going to be able to buy anything that are not panel related for a while.

Here's a few pics of what I got -

8e108dfe580e4d2be2813f102d6ac5a6_zpsae8e

A few close ups -

9d449dd7dde0a9fa5b013eee580b472a_zps5db7

82c17a015b7f71f4dde95bdc8dca4dca_zpsb505

1e2b1b5d13044a7ce87e0f9ead04a27e_zps1678

9325d64d46b59fb7c76267afe08d490e_zps3ec2

Ill list the items,

- Top tint windscreen.
- Wipac free form headlights.
- Exacton wheel.
- Stainless bumper.
- Standard arches.
- Black perforated headlining.
- Smiffys bits bolts.
- Standard door lock surrounds.

I also got the old tyres removed from my Exacton wheels, so there now ready to be sent of to be split real soon -

4ab44bcfa1eaf80f8fef853bfa470b08_zps4ede

Well that made me feel a lot better about the car so now I've just got to keep positive about it !


5-12-2014

Update,

Nothing major to update really, got the front subframe stripped, it's not in too bad a condition actually so I'll be sticking with it. It's now ready to be sent off for blasting and coating. -

a5997eced381e2ea3c3fdc014c1c5d92_zps39ba

a1d60ae067402fcf9e3f88c969273ea4_zps6c83

That is all !


5-15-2014

Update,

Received a few items I ordered last week.

Complete black seatbelt set, superb condition, very happy with them -

eb618b0c7915db96d1e0fbf11e9fe8db_zps45e1

Smiffys bits, one rear subframe kit is my dads and so are a set of the door stricker plates -

b701459cd70e1fd6ad5d94f945b3b676_zps9bcc

I've been doing a couple of hours a day before work this week just to try and keep it moving, as I won't be doing anything this Saturday as I'm going to pick up my 1275 and a few other things.

So, removed some more bits and pieces -

9a76ef8c8a53f1ca348b824439c5492c_zpsb8cb

14ce0eb95037e1b2c3933819702b0067_zps87ed

And I also started removing the remains of the old floor pan and inner sill, the toe board section is going to need a new lip making up as it's too far gone -

06f01812026ef99adfd7791f1de14ef2_zps7063

I'm going to be keeping the inner sill stifferner and the subframe closing panel as there in pristine condition, not to sure on the heelboard section yet though so will have to have a dig at it tomorrow -

46c002637f7478a465ba4cb23910c8d0_zps8982

Rusty pieces of Mini -

393db9ed5b7195e841409ba3e2af10da_zps306a

Should be picking up my half floor panel from minispares tomorrow or Saturday so should get that welded in Sunday !


5-18-2014

Update,

Been a good weekend, very busy but worth it in the end, I'll start with the parts I bought.

Went to Minispares to collect the panel I ordered, it's heritage as well, wasn't expecting it to be -

091d68cbd76316a89a3dfc65848a6846_zps34f6

Then me, my dad and uncle went to pick up my 1275 engine, purchased from a member on here who's been very helpfully and generous, he's helped me out massively with this engine ! Here it is as we got it back to mine -

352766f05a975c90b68d278af9063308_zpsf456

e786c65bb4445b7e82541b7a32cd37e5_zps16c6

Stripped from the subframe -

fb0f4ed472195ab86428242f003d67f8_zps8e49

972a574e9c5d10ee6b73a77f09206b6c_zps50ab

Also came with a HIF44 carb which I'm pleased about -

dc80bcda9f04679d59cf19b50dfb4023_zps29f8

40cc85dc339504f5110f97907ec4f1eb_zpsa13c

I have now removed all the ancillaries and popped the head off to check the bores. They're in superb condition, can still see and feel the hatch markings which you would expect with it being a low milage engine. Going to clean it up and have got a few ideas in mind for it.

Today I got back to the bodywork and went about fitting the new floor pan.

Chopped out the rot on the toe board lip -

f17417f5a6cc5900bb9f4ba93be5a206_zpsf614

Made a new lip and clamped it in place -

d80d784b0409551d10461dd96cb13b6f_zpsd0b1

Welded in -

e04f3dbf26a560b8e87bd98298ed1409_zps75c6

Also welded up the pilot holes made from drilling out the old spot welds -

224d5c8206d6b95f1125fa29ce3a86d5_zps6442

All ground down -

7cf2fc549f6839f1c4fafb7e7b471c02_zpsc670

Primed up -

919dfbcedfdefe87e84b23133d759e32_zpsdff4

Then I trimmed the floor to size and drilled all the holes in it that I'll be plugging from inside the car, haven't welded it in yet as I've got a small repair to do on the heel-board lip first. I've also left the heel-board end piece in place for now to make sure what happened with the other side doesn't happen again ! I'll replace this when I've welded the floor in.

So, here it is clamped in place ready to go for tomorrow, ran out of time today.

b1c96314b90dbfca2f4e119510599fd5_zps90e0

My dads also been ringing around a few body shops to get a quote for the respray, got a company saying they'll do any fillering required, priming, painting inside and outside and a machine polish after for a very reasonable price. They've got a booth and oven, but I'm going to pop down there next weekend to look at some of their previous and current work to make sure Ill be getting it done properly !

Got a week off in four days time so I'm going to put a BIG panel order in to M - Machine and get all the passenger side finished off and maybe even start the front end with a bit of luck:-).


5-19-2014

Update,

Got the floor pan welded in today, not much left to do on this side now !

Made a small repair to the heelboard lip, tacked in place -

5a68682d9fc2c9f857525a47a2a188cc_zps380a

Fully welded -

f164d3bae03a34006ed9bf5670e6713c_zps2aeb

Shaped and zinc primed -

a3f315f809ae2981f757e552a1117bf6_zpsc455

Then plugged the floor to the toe board, inner sill stiffener and pulse welded to the tunnel, still have the heel board corner to replace and doorstep but it's getting there -

55fb51084f4fc1503daec0cad6296313_zpsbd4c

4dd4545f45017e3a117a0197a4ef8d60_zpsae92

That's it for today, will do a bit more before work tomorrow !


5-24-2014

Parts update,

Received the panels I ordered from M-Machine, I've got a week off work now so hopefully I should get this lot welded in, and then it's just a front end to sort out !

Here's the panels -

54b0ca40d2f14614e94e581c41fec3d5_zps1cb0

Decided I wasn't happy with the crossmember so I've decided to replace the whole thing. I've already removed the R/H section of crossmember so won't take much to weld this in.

Just got to get an outer sill and that's all the panels for the passenger side !


Update,

Haven't been able to get any bodywork done today due to the weather, but I have managed to degrease the whole engine. I've also removed the head and got that stripped down.

Degreaser I bought -

8fc8afd567515d1202df1775b171fc01_zps33b6

Engine degreased and head removed -

c2c43f3206253d3f8e5a6837967a47ae_zpsf191

a1544effb91536af053a2f8cd684b542_zpsc589

The bores are excellent, just need to de-coke the pistons and top edges of the bores -

913946b2d896e91daf60ca263cafb355_zps8c37

And the head stripped down -

030f5f6830b0a669fe815f2d87205120_zps5667

1aba207945242a44a2e690fc5e917065_zpsc6c5

Valves and springs taped together, numbered and stored away. (The rusty bolts on top of the rockers are the manifold studs in case anyone was wondering) -

185f9b135128a77d88ac7043fdb6ed52_zpse3f2

Think I may send the head of to be skimmed, ported and flowed but I'm not to sure on how far I want to go with this at the moment. I may keep the engine original seeing as it's in very good condition, will get some prices of the work I want carried out and make my decision from there.

Will hopefully be doing some bodywork tomorrow as long as it doesn't rain !:-)


5-26-2014

Update,

Well I got the welder out yesterday and made a bit of progress with the body work, coming along nicely now !

So, I removed the old heelboard corner and cut it to fit -

7dff8a41578dea6aabf737db33f81d09_zps2453

05321c1c2df8eb813f162286efbeff5f_zps222b

a0ce64070b825c66f116421bbb1b02dc_zps5e78

I did weld this in but forgot to take a picture so will upload one tomorrow !

I also got the doorstep in, magnum panels are absolutely terrible so had to make some modifications to it.

Had to slit the panel in order for it to fit -

d2642587db5fc470d7b13c47a0132449_zps1ce6

Fitted in place ready to be welded -

450bf77cc665f55d9711b43a760e1e55_zps5e14

Welded in, I need to finish grinding it down, should be an invisible repair when I've finished, will still need a lick of filler after though -

0955313f3757cb86ac97db2d7316eee2_zps9237

That's all the progress from yesterday, been sorting out the shed today as we couldn't move in there due to so many parts, so no time to work on the Mini:(

Going to have lots of parts up for sale soon though ranging from interior pieces to whole engines so take a look:D


5-28-2014

Parts Update,

Got a nice big package today which I've been eagerly awaiting for the past week or so.

The contents -

b6cb413070b1595e26f79174d899aab0_zpsc118

48eda55dfa6558a6334c1164ba3fbc9c_zps0cd4

179a379119cd2839e5f2a367d69cdf02_zpsf14b

MPI two speed heater, it's absolutely mint and I'm very happy with it ! Wired it up and it all works brilliantly, the matrix looks brand new and doesn't leak, I think it's quite rare to find one with all the correct ducting now. Been searching for a few months but had no joy as there were none on eBay or anywhere for that matter, luckily someone responded to my wanted add on here and the rest is history !

Sod's law I get a week off work and it rains constantly ! Planned to get the passenger side finished but the weather keeps holding me back !


5-31-2014

Update,

Got a fair bit to update, so I'll start with my cyclinder head.

Firstly I degreased it, then I removed all of the old paint, rust and de-coked, came up really well -

d80448991494fccd2831960d67ed5185_zpsacd6

9d417405f3656e51ef6515e25b4bffe3_zpsef61

Then I did the same with the valves, my hi-tech valve spinning machine -

a22a9c071417940ef5a3d9b509f334b0_zps1ab8

A quick before and after -

a17c5c9d728dccbea765004eaa826dd6_zpsa03b

58fff7129aacb5a7c53d17ff7d867ad2_zpse60b

A trip to Minispares later and I've (almost) got everything needed to rebuild the head, inevitably I forgot some things as you do -

14c4327dfb3616cb492a4a12e5dcf8c8_zpsd83b

Then I continued by painting the head, had to be red, so happy with how it came out:-) -

9c8444684ba7bd3b432ddb7dd6a1f7cb_zpsc709

Then I lapped the valves in, hardly any wear in the guides and well within tolerances -

3e7bdd06eedbb17e594859bc157cb8d0_zps6a04

Valve stem seals fitted -

d0daf302f066d6b107614eee9b3cf0cc_zps3241

Valve springs fitted -

acc8961a81c61716bb2d979927f08dd7_zpsae2d

And rockers fitted into place -

ab25572d73def36f9b5c9a6a88af78bf_zpsee65

Will hopefully be getting my metro turbo rocker cover polished so should look the business !

Now onto today's work, which was bodywork, and involved fitting the new crossmember. Went in with relatively little effort, a credit to M-Machine for the quality of their panels !

So, here's some pictures of the fitting process, primed the inside -

f1f53a819a39d9de5cd35fafb5e51c27_zps91ec

Then applied some top coat to the inside -

c0e12ad74ae2352be3a3046e8333323a_zps3f2c

And then a bit of a jump, but welded into place and the bracing removed -

1398595c8ebb731db76881c0eed18d5f_zpsb7b1

dd6430a5ee9f0fcc70ce1dbda37dc98d_zps568f

Got the welds ground down silky smooth, thanks to the new electric file, great little tool -

2c2b938721272f2f6c74d5b5cf19c7ca_zps4cec

And then primed up -

7fdf570a34d77eb640e74de44d1b5ce2_zpsba94

Little hole in subframe closure plate that had to be repaired, so I widened it out to a square shape and made a small repair piece -

311aee083063298e8a1c803d20ddbde0_zpsb32c

Repair piece -

335ab8447111bbb099e214f787db31ba_zpsdee2

Welded up -

e4062f0d208e1798c6c4c984eb8eb098_zps20d4

And to finish of the update I also got these in the post -

4181cd730bb2029e3515907bd9dd2116_zps8ade

Reverse side of the petrol bib -

2766e27c5ea114a9e027a7a5c567e129_zpsc7e4

That's it for now !


6-1-2014

Thanks, it took a while to get it like that but it's definatley been worth the graft ! Their was a guy on here in the traders section who was importing the bibs from japan. Take a look, he said he was ordering some more but if not then you could try eBay.

Update,

Felt like doing some engine work today seeing as the weather was so nice, so I got it stripped, sanded and painted. Here's some pics of progress.

Stripped down to the block and box, it came apart so nicely, nothing seized, looks like its been looked after -

c3e35f58b3f7c348b97e2641c64a6da1_zps6334

24a2b3a1d7649aa802d75000a351fce1_zps5249

7b3471818e57a7957ef0a5923af49a74_zpsebae

All the parts laid out -

fdac67f22f929698d3e53841f62f5e74_zps8188

fa04312b46dabd773760b6c8d92b0ea4_zpsb584

Then out came the wire brush attachments and the block was cleaned up and masked ready for paint -

4ad0d39031f2b7ecdcf3b4d72f778c66_zps0161

cd5a34a52ba567c8c111a753c6196a28_zps88c9

Painted up and all the aluminium cleaned up, will autosol this in the near future -

0238fac393bad5a9fc0a476f62f54be8_zpse499

befa3d471020d7c948508b5a114cad03_zps1bb3

060ca8f58503b28f5da933f27b5b030c_zps0554

And just for a comparison, came a long way from this -

Before -

fb0f4ed472195ab86428242f003d67f8_zps8e49

972a574e9c5d10ee6b73a77f09206b6c_zps50ab

After -

0238fac393bad5a9fc0a476f62f54be8_zpse499

befa3d471020d7c948508b5a114cad03_zps1bb3

Before -

030f5f6830b0a669fe815f2d87205120_zps5667

1aba207945242a44a2e690fc5e917065_zpsc6c5

After -

9c8444684ba7bd3b432ddb7dd6a1f7cb_zpsc709

3e7bdd06eedbb17e594859bc157cb8d0_zps6a04

Looks good if I say so my self:-), going to buy a flywheel puller, as I want to replace the clutch. Better to do it now rather than when it's back in the car !

That's all the progress today, may get some more done before work tomorrow !


6-2-2014

Cheers Ben, took a good day or so but it was so worth it !

Update,

Managed to get a bit done before work today, here's some pics of Progress.

Removed the inner wing, took an absolute age drilling out all those spot welds but came out tidy enough -

673828bbf73aa8dba1f9f29733078d8e_zps0ed0

0c9bdb29771221c3fb0a2b8b713bcf13_zpsa1f7

Picked a couple of new tools up from halfords today, flywheel puller and a 30mm socket -

d5aa8db4b8b1b561fd53993d444bbe0d_zps77e3

So I went about removing the flywheel, came of with relative ease to be fair, was expecting to be swearing and sweating, but that wasn't the case at all -

Removed the flywheel nut -

c624d8b053e52d30d427f51fd4390342_zps0e6c

0412d2be12a83d2e9cab2a47f1f8be79_zpsaff3

Then removed the flywheel and cleaned the casing up a bit as it was quite oily, looks like there's a leak from the clutch oil seal so will be changing that -

35ae5e74e2b3796ad9c1af0146648a34_zpsbc30

355a6bb91e4f996017ceafb7e1f7a4bd_zpsd9dd

Wasn't in bad condition at all, clutch still has plenty of meat on it, but I'm going to change it anyway, more for piece of mind than anything -

edfa46d01ab6b1f785b8e566857b613f_zpsb9d3

Got to put an order in to minispares for a few gaskets and what not but that's all for today. May do a bit before work tomorrow but it depends on the weather.


6-7-2014

Update,

Got a little bit done yesterday but I'll start off with the parts that I've received through out the week.

Various engine seals and gaskets from minispares -

a79dcf8f4af2d4e5c03e7cfba8fa6dd4_zps1961

Various engine bolts from smiffys bits -

b6fda92d4ab2dae164ffb8d2db4e335f_zps0d0f

New clutch plate -

bbec9358a9658879ea970c3c7dd95c83_zps9e48

MPI interior mirror, no more being blinded driving at night:D -

10565d5354ae0a7e11fc37e378e42afa_zpsb65d

9cb5a6f5846f15f7fe8408d8af82a39b_zps1692

LH full inner wing and an outer sill -

ca909d1cf6ac75c6396a03eecc269d0f_zps2cf4

And finally this little beauty, going to have the magnolia speedo and the magnolia duo oil and water gauge soon aswell -

224a3ec638b67942ba4ca14c9caae7c9_zps85ff

Quick shot of it in my dash -

310cf4601848d9c77bab343b1ef48c4d_zps1938

Very smart I'm sure you'll agree:-)

Anyway, here's the bit of progress from yesterday.

Fitted a new clutch oil seal, no pics of the new one in place as I forgot to take one, but I'll show you what I have anyway.

Removed the old one -

ee71bdfbbcef4d6ea24ba81932580cdd_zps4773

Checked the primary gear over, all looking good -

ac9959cd9c6e5c24fd2b0248e362308f_zps5c05

And then installed the new one. Also fitted new drive shaft seals and a gear selector seal -

68d332d077600ab08187d5b6968d6f93_zpse622

e79cb3330fa2ff95db3fa82e07e512a8_zpsa8f8

46b7deba94f4cec685446c7e08d94699_zps3a6e

Then I fitted the new clutch plate. Decided to clean up the housing as it was quite oily and had a fair amount of surface rust.

Before -

510aa1723cedd67e17121db385092058_zps27db

After -

2ca99e86a73a88857696a3faca22fdc9_zps9aff

faa5eac4217efced19d63e5ffbce5180_zpsb4bd

And the other part after degreasing, looks like new -

548fa0fa58c2b2fbc8dc91c4e9582b51_zps1146

261e89a2ad45a94049142369bf0dd02a_zps2bc4

Clutch plate in place -

ed3c9d8efb0e46b37cc9d01964c566f8_zpsef95

Then assembled and placed back into position, need to get a bigger torque wrench for the flywheel nut though -

308121b7476461fe2f69605e8a4d61e9_zpsed40

And an overall shot of where I'm at -

90f25e2048795c5ba0b6625e0263cdae_zps9865

Finally, I'm quite annoyed with myself as I've managed to damage my newly trimmed drivers seat moving them yesterday. It's a small scratch on the bolster but it's actually gone through the vinyl to the under layer of material -

2675f0907778ffd4f592a41f611d91ef_zpsaa44

Hoping I can get this repaired, looks like it's going to need a new panel stitching in.


Update,

Well its been raining pretty much all day here, but the sun decided to come out for a couple of hours earliyer, so I took advantage of it and got a few engine parts cleaned up.

Fuel pump before -

256ae157582229efca30db1b6b7cbebf_zpsf7f2

After degreasing and a light going over with a wire wheel -

8c58fbe6201b52a2b2a1c44834c595c6_zpsfa62

Oil filter housing cleaned up -

47442541ee9f6fb62d903bd317a65f7b_zpsb4a5

Bell housing cleaned up -

ad190bd9dc1e40e47638a2ae33f170c6_zps2d07

Was thinking about having the aluminium parts of the engine polished, but I quite like the look of them how they are now. Might have my rocker cover and dashpot polished though !

Timing cover taken back to bare metal with a wire wheel, then I coated it in Deox gel and wrapped it in cling film. Will leave this over night to remove the rust from the pitted areas. Would have been a whole lot less effort to buy a new one but have you seen the price of them, couldn't believe it ! -

3cc29a70cf6c4d1e33a443698d525ce2_zps1915

Timing cover back plate cleaned up and given a light coat of etch and some top coat -

07a97ad503e2bf0259ee4e1e8e871fa8_zps5478

And finally, the oil filter housing fitted back to the engine, using my new stainless bolts and a new gasket, and torqued to 19nm -

0599cc6e893b6cd8d756e5575f3bd25c_zps4e79

Looks like bodywork's on the cards for tomorrow as the weathers looking good !


6-9-2014

Update,

Was up nice and early yesterday as the sun was out. Started the morning off with a bit of engine work, here's a few pics.

Unwrapped the timing cover and the Deox gel has done its job -

fa16a052a4987fa3b244223e34c2a324_zps996c

After a quick wire brushing, rinse off and etch priming -

ade4dce84fdb15551e9f7cfd5c18fe1a_zps3e6f

Left that to dry in the sun and decided to fit the backplate and timing gear back to the engine, have ordered another chain tensioner, but just popped this one back in place for the mean while -

905bb9a95a1867edf94bd6a972dbc196_zps5a73

Can't do anything else as of yet with the engine as I'm still lacking a few necessary gaskets and what not, so went outside to start on the body work. Got a fair amount done so was quite pleased, anyway, pics of progress.

Chopped out the rotten part of the crossmember closing plate and was left with this -

c4cccad590c6855b246d2a58e247b218_zps41ee

Then made a repair piece and welded that in -

8e6a02f758427b618de86b3426780b41_zpsb07d

Next up was to test fit the inner wing and drill the holes ready for plug welding -

7998b3c3eb0f581c1b6382d52a3c6bea_zps7cff

Welded in -

e4c60dd257c3bec6b99db28c4c9e442a_zps2f0f

Shot from the inside -

f10acdaf722af56109237a33275c12a3_zps24cd

Still got to grind all the plugs down so may get that done today. Next up was the companion bin, drilled the holes ready for plugging -

3fbdf3482e2c67bed2d12bc7f91c552a_zps10be

Welded in -

5ef4b71d7fc83d041f8aaea687ff20db_zps3019

Also managed to get the top half of my seat cover removed. I've arranged to send it back and have a new panel stitched in, my own fault, these things happen though -

0586c406f1b2459e4c5a4b4ff02bbaec_zps63a9

That's all what I got done yesterday, not a bad days graft !


6-11-2014

Update,

Was up nice and early yesterday as the sun was out. Started the morning off with a bit of engine work, here's a few pics.

Unwrapped the timing cover and the Deox gel has done its job -

fa16a052a4987fa3b244223e34c2a324_zps996c

After a quick wire brushing, rinse off and etch priming -

ade4dce84fdb15551e9f7cfd5c18fe1a_zps3e6f

Left that to dry in the sun and decided to fit the backplate and timing gear back to the engine, have ordered another chain tensioner, but just popped this one back in place for the mean while -

905bb9a95a1867edf94bd6a972dbc196_zps5a73

Can't do anything else as of yet with the engine as I'm still lacking a few necessary gaskets and what not, so went outside to start on the body work. Got a fair amount done so was quite pleased, anyway, pics of progress.

Chopped out the rotten part of the crossmember closing plate and was left with this -

c4cccad590c6855b246d2a58e247b218_zps41ee

Then made a repair piece and welded that in -

8e6a02f758427b618de86b3426780b41_zpsb07d

Next up was to test fit the inner wing and drill the holes ready for plug welding -

7998b3c3eb0f581c1b6382d52a3c6bea_zps7cff

Welded in -

e4c60dd257c3bec6b99db28c4c9e442a_zps2f0f

Shot from the inside -

f10acdaf722af56109237a33275c12a3_zps24cd

Still got to grind all the plugs down so may get that done today. Next up was the companion bin, drilled the holes ready for plugging -

3fbdf3482e2c67bed2d12bc7f91c552a_zps10be

Welded in -

5ef4b71d7fc83d041f8aaea687ff20db_zps3019

Also managed to get the top half of my seat cover removed. I've arranged to send it back and have a new panel stitched in, my own fault, these things happen though -

0586c406f1b2459e4c5a4b4ff02bbaec_zps63a9

That's all what I got done yesterday, not a bad days graft !


6-11-2014

Update,

Nothing major really, just a bit of painting and sealing.

Painted the timing cover -

f9c4b1ce395b7aea39491856bf1d0d87_zpsa1be

Ground down all the plug welds on the inner wing and applied a bit of primer -

e6a19ceb37432ab19cbd4f4353bf2a0f_zpsecf1

Sealed the underneath of the flitch -

48656154756650eeece9849b773d6871_zpsea6a

Sealed up the inside -

0f23189d354290be657a5b325655c32c_zps6c11

395dcfd4a9160df0648bbdb1a9b523be_zps7688

c3c26920e66b0c398988261114135a25_zps5542

Ordered a couple more panels from M-Machine today so they should be here by the weekend hopefully !


6-14-2014

Update,

We've had a productive day today and got a fair bit done. I'll start with the items I've received.

Toe board corner piece and a half inner wing from M-Machine -

e40db4b75400069ba2cbaf6763c2a4ce_zps6757

d4a65c0e6e9b604ce416a73012f2fb8b_zpse16d

Popped to minispares this morning and picked up a few bits and pieces to keep the engine build moving -

a572fd3fdbf714b6dc3bed4f574ac0ea_zps72bf

Got back home and got cracking with a bit of engine work as it was too early to unleash the angle grinder. Firstly I fitted a new timing chain tensioner, no picture of this, and then I got started on de-cokeing the block. After a good half an hour it looked like this -

c174ab5c176320146a37172844bd2cf4_zps00a2

4fac491c316de6abf1c14f92b8eade88_zps0ee8

Amazing what a bit of plus gas and metal Polish can do !

Fitted the studs back into the block -

b19e2efcbc81aad05edaf26593a9f372_zps4b9b

Placed on a new head gasket -

e404b6378ac92da82f2db966dd23aef6_zpsdde9

5ba87d873c77054cbcec5f3f9940630d_zps5e8c

And the cylinder head fitted and torqued down -

e0e779eda6dc6a0d44f128e28d4dfeb7_zpsd770

That took me up till midday so I decided to go and make a start on the bodywork. Cut out the rot in the quarter panel and uncovered about an inch thick layer of filler to go with it -

f74cb05663c3ce28cd912fde7b43fe0f_zpsff47

Removed the filler and found the quarter panel to be perfect underneath, no idea why it was spread so high up the panel ! Then made a small lip for the subframe closing panel -

6e7aebbb6c2f3ad8210fbd7347c8fb81_zpsfdb4

Tided that up and welded the small closing piece in place -

44f793b098016024e6a058dbade37299_zps0971

Tacked in the rear quarter repair panel -

4bfd288134194045d998d3dbaa3e4919_zps6aca

Fully welded, took a while as I wanted to avoid distortion to the panel, so had to keep cooling it off with a wet cloth -

ab29b45151f219ac5cecfa267688fb85_zps8838

Ground down, will need a lick of filler but pretty happy with it -

077227282a2b18affe5ec9939e253040_zps0bb9

Then made a new piece for the lip -

147f0c01f6226cfc4e60c909777b091b_zps1bbe

f83f43d70a7aee58ef93f4a8e5ad7bdb_zps0219

Same thing for the front of the doorstep lip -

4978a412bbd3bd27984fa4c06d2234c6_zps9dc4

Then made a new seatbelt bracket as the heritage panel doesn't come with one, funnily enough the other side, which is an M-Machine panel, does -

315a86360c94f686344c3539c3dd60c9_zps3923

59fb8d960578bc5f33d7fd4a79a1eb56_zpsd96f

Welded in place -

45d68a94d42e87da3ed96b187e619e4f_zpsa623

Then sanded and prepped the inner sill ready for the outer sill to go on, zinc primed and then regular primer applied -

fa56258a10464117ffbe7a5c44000405_zpsc7a3

eb3686006e35a1a3b7f3d0b31ae2f01d_zpsee7b

Then I did top coat this with a good few layers of black paint but forgot to take a picture.

Prepped the outer sill, stripped all the nasty magnum coating, holes drilled for plugging, welded up the jacking point hole, zinc primed, primed and top coated -

cecbff4fa0db953dd6fe20adb7e16fd1_zpse0aa

ad674d510ddc5ebcfb164d0a7c20d49d_zps501d

2c6f56e7c5445173244fff15ea9cc4c2_zpsf565

7dc1fe3ea88e8dc24cef84894ab5e038_zps6bd6

a0016130e8bfd4a3b6729483c33bff34_zps8576

And welded that in to place -

23839c7c356dfb9e6830d25e4100e71b_zps68d7

0b29003b40f3643e31a313cec7bd9940_zps8df9

The outside of the outer sill needs a good flatting down and some primer putting on as it looks a bit rough in those pics, but ran out of energy / time so will be done tomorrow ! That's all for today:-)


6-15-2014

Thanks for the kind words ! As for panels, I would have liked to use all heritage panels of course, and even though I have used a fair few of them, they are quite expensive for what they are. M-Machine panels are absolutely spot on, closest you can get to the heritage panels, I've used a lot of them so far, and have had no problem with the fitment what so ever, I wouldn't think twice about using their panels.

As for magnum panels, I've not had the best experience with the ones I've used. Their doorsteps are poor and require a lot of modification to make them fit and their boot repair section is also poor. However, I've used magnum outer sills on both sides of my car and have had no problem with them. In hindsight I wouldn't have used any magnum panels but I was just a novice and didn't know much about welding or car restoration when I started this build. But now I've had a chance to work with panels from different company's, M-Machine seem to be far superior, the quality of the metal just feels better.

I will be using heritage panels where it matters though i.e, scuttle, door skins etc just so it looks right. As for the panels you'll be replacing, i'd be using heritage rear quarters as I've not heard great things about the magnum version. I'd use M-Machine for the outer sills and front panel. Of course a lot of this depends on your budget, if you can afford the heritage stuff than go for it, if not don't be worried about using M-Machines stuff as it's excellent, I'm sure plenty of people will agree with me.

Hope this helped you a bit !


6-16-2014

Update,

Bit of engine work today as I didn't feel like working on the shell, got a few bits tidied up and back on the engine, starting to come together now:-)

Here's a quick pic from yesterday though, sanded and primed up the outer sill and doorstep -

706796f5c13211d6c135330fd825a07a_zpsa5f8

So, to today's progress, wire brushed and painted up the clutch parts, new thrust bearing, new O ring, new pins and new split pins. Also greased up the hole where the arm sits -

aaf4bbd4b9bd193b1f91eec2e8aaeb26_zpsfe5f

Fitted back into the bell housing -

17c9767e346c2fc987f5f41d728614bd_zps9dd6

Fitted back onto the engine with new Smiffys stainless bolts, torqued down and the end float set to the correct distance (6.5 mm according to the Haynes manuel) -

7daccccd8a87b936abad7675f4f8bac7_zpsf7cc

Next up was the timing cover, primed the chain and sprockets with oil and wire brushed all the bolts. Then I centred the cover using the crankshaft pulley and screwed the bolts in finger tight, removed the pulley and then torqued down

a63ce70c1d82edd9b4d385454d8e113b_zps8dfb

Then I cleaned up the engine mounting and fitted that back to the block -

062d8264727920d0472bf915c2aa492f_zps8b32

9af0319bd62006496e49fc6986a028e9_zps2f7d

New bypass hose, (new water pump to be bought soon) -

66296cdd4b6b921f135d96e6d775c14d_zps27e9

New temperature sender -

a93c81e95dfc28c3360f0d721b9729fc_zpsbe25

And I also touched up the block with some red paint where it was needed. Here's a few snaps of where I'm at now -

1dbeea836503d7ad6ed51e3b19b82cee_zpsa913

4afe012196ebc9d412dc10e47f34b91b_zpsc2ed

280df753757be290c9749a145373b499_zpsc5b1

139611475de9c9d856cf913bd2cd7a9d_zps666b

That's all i got done today, spent most of the day looking through the Haynes manual for torque settings !

I've also got a quick question, does anyone know what the torque setting for the timing cover bolts is. There's two settings in the Haynes manual (1/4 - 7nm & 5/8 - 16nm) and I don't know which I need. My bolts need a 3/8 socket to tighten them so are both of those settings above irrelative to me ? If so what do I need to torque them to, as I've currently torqued them to the higher 16nm, kind of confused about this so any help would be great !


6-21-2014

Update,

Removed the drivers side toe board corner today, the rot is a fair bit worse then I expected it to be.

d31e604295e0b3a19a6ad99156cf7dff_zpsf3ba

As you can see from the picture, where I've removed the toe board lip it's completely rotted the flitch out. Looked fine from the outside, very deceiving.

View from the outside, the lower bulkhead is going to need a repair as it's also rotten

c8dbea7b0a4621e74b1ebc277362d3c6_zps81a2

I sat back and had a good look at it, and decided I just WAS NOT happy with the repairs that I've made. Me and my dad have put so much effort into rebuilding this car that I think it's only right that I do the repair properly. It probably wouldn't bother most, but it bothers me.

So I did this -

0da069aa839d616791059912685a7ffb_zps2f0a

Bit of a step back some may say, but I think that fitting the full Heritage panel, as I have done on the other side, is what this car deserves. I couldn't justify doing the other side so neatly and leaving this side 'patched up' so to say.

So I'll be sending back the half inner wing repair panel I bought from M-Machine, and I'll be ordering the full inner wing / flitch Heritage panel.

On a lighter note, had a little trip down to Minispares on Friday and picked up a few parts for my engine -

e7aec52956c8d3a80378be2a1dda5002_zps1caf

And a couple of bits from Smiffy Bits came through the post -

a7f0ac7e0f4d3e8a872b4bb46539976e_zps0422

That's all for today but I'll hopefully be getting the toe board corner repaired tomorrow.


6-27-2014

Update,

Got a fair amount done since my last update, I'll start with the bodywork.

Had to remake the flanges for the dash rail and bulkhead as they were thinned out to much when I removed the old inner wing. So, chopped them off and made some new ones, then welded those in and made a new back plate for the shock mount. We clamped that in place and then welded that in place, here's a few pics of the process -

06643a9751cba45c113a20389e227879_zps461d

b5b449e07298965d5e57f00b1760f72e_zpsc063

16c0c7dce907e26d6ebf2fa698641bbf_zps3c57

e2b4f7a7d523ba18e95cb279e82e183e_zps0594

ed6c63ab61c733a8d3421fc67e3df1d6_zps558b

Ground down the welds on the flanges, and then shaped the backplate to fit nicely, then gave the whole thing a good few coats of zinc primer -

63a221df9f8bcabd685a85ad042c0ba6_zpsa59b

Then some black top coat -

0d564db76bb020796994ff2770327af7_zpsa055

That's all the bodywork I got done throughout the week, doing a bit each day before work as usual. Also received the RH inner wing I ordered from M-Machine -

b1e67b12f1d947a48a988a7376f357d5_zps9783

e29ddb90324f3517b143facf1725fc61_zps10d0

It came without any hinge holes, and after putting a question on here , nobody knew why. So after a few calls to the heritage panel company, I got no where and gave up. So I decided I was just going to fit it and take my time getting it right.

So, trial fitted and it's not too bad at all, just had to do a little fetteling and it was in place -

ee27c294dfc606a8b48440a6ca6eb5ad_zpse38e

Drilled all the holes for plug welding (already started welding and then realised I hadn't taken a picture) -

d6783915e10e87da7747ef142bbaf28a_zps61e9

Fully plug welded -

3d087f24f5c38285085a1897982741d9_zps5f2e

0a22e7696301e3ce3bbda25e0dc86005_zps83ff

Then we got all the holes drilled and cut the toe board to fit, will be welding this in tomorrow -

60566d9f895140cfeca4ee0969ba59e9_zpsdd1e

1d0eed331bd956b633456469026f4a54_zps3696

99405c6233b56c2e32666fb50cf6da4f_zps1d33

dbf0434dcce9615ee907fc62e8e6f3e4_zps2f01

fe51bf5922caebfc3b5d21e774e548c6_zps9f68

That all the progress on the body up until today. Now for the engine work. Just been cleaning a few parts up and fitting them back to the engine. Ill start with the slave cylinder.

Before, very rusty and pretty much seized -

95AFDB1C-A0EB-4840-9294-4716481123A5_zps

089c24e28f731c25be9b2f7b2950fabd_zps06d2

Degreased the cylinder and the back plate, then dismantled the cylinder and gave both a good going over with the wire wheel -

afa976cb9318b8d4611c9505908defdf_zps577d

318ac9b63c74ebc4383cf220f4d321c1_zpsc710

Zinc primed -

0fa519722e96906d291518b7f98fe277_zps1ac8

c6ea0dbe220fafa6b8952592738c8e55_zps7c55

Then painted with a few coats of gloss black -

4633bcedea9ecbe15191e283a620f7d3_zpsed6e

Reassembled the slave cylinder with a rebuild kit, and a new bleed valve -

dedfbba4b92eb6b370a8c8461c1703cb_zps7ea9

Then put back on the engine with a a Smiffys Bits stainless fitting kit -

26e87f52b40ae8debb704afc11f5fd5f_zps7d77

Happy with that, I got to work cleaning up the distributer -

d8076701f87608ece1b0c3fa20f70cb7_zps59e2

d93e88ca967f9f0176d14e9fcde2ebc8_zps8da0

New rotary arm -

229fb9bf10833ad6f544b9b4807966c2_zps41c6

New O-Ring -

2d44d8078eb99308c6296f8854cb21e1_zpsc4b5

And I've also fitted a new cap as well, no picture of this though. Next I fitted the fuel pump back to the block -

495f30bd0cb9cf6a18a86f7d0541bf8f_zpsc1e8

Cleaned up the oil feed pipe and fitted that back in place -

611c5c944aad49194167c174430e33f5_zps4ed8

2a9f0fac35347f81eab408c342542974_zps45fb

and cleaned up and refitted a gear box to block nut and bolt -

a65adfe464faa748e898cc477e752f59_zpsa4c6

Just waiting on some bypass hose clamps then I can fit the new water pump. And finally, I received my seat cover back from the trimmers, so my dad gave me a hand and we re-fitted it, very happy with it, took some steam to get the creases out of the new panel, but got it looking good in the end -

a38d8c5e270130780f2d66065919f081_zps163d

a46734632ddd84988ea6b8bcc45a3821_zps30da


6-29-2014

Update,

Got the toe board repair panel welded in today, some pictures of progress.

Had a small hole to repair first, hole in question -

9826a311441249f8d858626777f9f6e8_zps35ba

Repair piece made -

51b0649e415d24bfe4994b5d6b47cee9_zpsb2ea

Bend put into it and fitted into place -

94a86bbc5d8b7c760e39cd047506250e_zps2160

Welded in and ground down all the welds (I also repaired the floor pan lip on the inside on the car, no pictures of this though) -

870f7f698aa73ccfb59aa291b8c34194_zpsd539

Then I ground down all the plug welds on the inner wing and applied some primer on all the bare metal areas -

4d8d89bd0df115a5c89bd511d320ed51_zps1493

d861b6d4c960ff6262f2ec94bd0a6128_zpsfcc3

9c6312bee2dd90e240f0ca1ddd815440_zpsb748

33a6b1c3f48e9c935c9fa0ff01ee0f23_zpsccd7

Really happy with this repair, looks really tidy, just got to seal it all up now and then we can start on the front end. Going to flip the car over first though and get it all primed and sealed underneath.

I also went down to the place I'm thinking of having my car resprayed yesterday, I had a look around at some of the other cars they're doing and it looks like there work is of a good standard. They've got all the proper kit, booths and an oven so ill hopefully be booking it in within the next month or so, can't wait.

They had a MK1 Fiesta which has had literally every panel replaced by the look of it, and they also had this in there for some bodywork -

e594aed32dbabb707370102939987da8_zpscf65

Very nice, I'd love to own one of these, one day maybe !

Anyway that's all I've got done today.


6-30-2014

Parts update,

Received a nice big package from Minispeed today, felt like a kid at Christmas again:lol:

73fc9880721ce013a98ad0985a29bdeb_zpsb7e1

The contents -

78264d89a7c576a2aa38f8ab8297a952_zps7dd6

All my Heritage panels I ordered on Thursday. That's pretty much all the panels I need to finish the Mini off.

Still to get are, two wings, front panel, bonnet and a rear subframe !

Happy days !


7-5-2014

Update,

Just to let people know, I've changed the name of this thread in case anyone was wondering.

Reason for this is because when I first started, I wasn't expecting to be doing a complete restoration, but Minis being Minis, it quickly escalated into just that. I think the new name is better suited to what we've been doing, hence the reason for the name change.

Anyway, we've got some more progress done today, I'll start off with what I bought yesterday, and the bits I fitted to my engine.

Some new door hinges, Minispares own, and some new bypass hose clamps. Heard good things about Minspares hinges so I'm hoping they'll be a good fit -

9d8dec2865adba6a9eb75e3a42cecb9d_zpsc3d3

Now onto the engine. Fitted a new uprated water pump, new bypass hose and all bolted into place using a Smiffys Bits stainless fitting kit -

a857e850df12c08edaf584161f75244c_zps343a

Refitted the thermostat housing. New thermostat, new gaskets and I also bought the ARP stainless bolts to fit it with -

229af0328220bd1d8d1c9a6de5ea2a50_zpsfd6d

Now onto today's progress, bodywork. Got the scuttle and the scuttle closers fitted, feels like a massive milestone !

But firstly, I had to remove the bonnet hinge brackets as they are really rusty, going to clean them up and re-fit them -

7e4b768da6cdc05ec8a45ff6b9f302b8_zpsf30c

23987c0c2330eff0da9b30cea1475338_zps58c8

Removed, and the rust cleaned up behind. Will apply some Deox Gel tomorrow -

68d52d78c85e6d3540ca04c599d01a02_zpsff66

3f8235960cc07654cfff35f136ccf03e_zps5f6a

After that was sorted we moved onto the scuttle, we fitted it to the car and marked out where the closers will be sitting. Removed the scuttle, then drilled the holes in the close out panels and plug welded them into place, plenty of zinc was applied before and after -

276f628e6ac92a27c2b9554446120f63_zps4ce8

8cf776c84fb15ef172a87a3081a84eee_zpsb991

Next we drilled the holes in the scuttle and clamped that into place. We made sure to fit the windscreen at this point to be sure I'd have no problems in the future -

e809874979980f1ef769160715676f8c_zpse790

bbbcdb5a864f22e4091d3a9bf037a980_zps41f1

4dcc7f46a5dc450a52b3f73ebe68d8c1_zps3148

Welded into place -

4356c87429ca6e31866daac389752a1c_zpsee79

Got a load of grinding to do, but that can wait until tomorrow. Feels really good to have gotten this far, didn't think I'd ever get here when I was finding all those bodge repairs, but I can almost see the light at the end of the tunnel now:lol:

Going to make a start on the door skins tomorrow, looking forward to doing those, should be interesting !


7-6-2014

Update,

We had a crack at the door skins today, I think it went quite well considering we've never changed a panel skin before. I'll start with the drivers door.

Completely stripped the door of all the components and set it down on the workbench ready to remove the skin -

fb9d2fd3b9dc801b5ac5395ef8bf838c_zpsd7be

Went around the whole edge of the door with the grinder until it looked like this -

c2ef2f54e29ba5d1c046a69ae01b570b_zpsa512

Then just lifted the old skin off, this was the state of it -

a425459ce06029b1a050bcf6dfd85b05_zps5040

The frame on the other hand is really very good, required no repairs what so ever, just had some pitting -

403e6928faaf58566cc29ac930ca985e_zps6ca2

So I give it a quick wire brushing, then give the flanges a good coat of Deox Gel and left it for a while to do its thing -

ac5341821e8c0edfa1bb381583962827_zpsa104

After about an hour or so I gave it another going over with the wire brush on the drill, then washed it all off. Then we prepped the frame and applied a few coats of zinc primer -

efe810c4c948393d95567ad460172c07_zpsf82c

203777412537ec9e8df8c829ab620f16_zps7df9

e1061234c424298d875a0527578b81e4_zps977d

Then we applied a sound deadening mat to the inside of the door skin -

d3ec193e9db7f6d220e937da391f84ab_zps6eb5

A bit of a jump, but the door skin fitted and welded to the frame. We checked the fit on the car during this and it's pretty good, the door gaps will need some work though. Had a few high and low spots after a quick sanding but not too bad at all -

6d2b95b183c6b3587a196179953d4d74_zpsfa73

38c84d27446ffe7f57bd233e1fbca8fb_zps8e34

A bit of hammer and dolly work and a quick skim of filler later, it's looking fairly good. It's by no means the final product as it needs more work, but I'm very happy with it for now -

c9be22e0edf42f1d3aa85ef558af170d_zpsee5a

A couple of shots inside the door, looking how it should do -

cd978eab5525f312f3a09ec84f633ad1_zpsb225

75a292cb27d85f7a7c21dbf554cd46ee_zps3e33

Now onto the passenger door. Stripped the door skin off, and this was what greeted us -

0b9440eee0110847cb1b2a902cf902ba_zpsbd8c

98c54f544458d99633524aa6d8e7580e_zps4f27

b840abc939ec88c6d05d9d0296817b9b_zps4d58

f61a46520a6721aec202e3ce8a7023b3_zps73c5

04220386732763428adaaffeb16efdfb_zps5397

Looks like Captain Bodge has been here too. I knew there was some filler in this door but didn't think it would be hiding that. So it looks like I'm going to have to buy the lower door frame repair and fix this before I fit the new skin.


Anyway that's all we got done today, will be doing a bit more before work tomorrow !


7-7-2014

Update,

I've been grinding down the welds around the scuttle today, it's came out really well. Here's a few pictures of progress.

Ground down with a 60 grit soft pad on the grinder, and then I went over the lot with the power file using a 120 grit belt to smooth it all down -

56b788fea3719dfd77d7be7ad20f603d_zpse82a

966ace68ccc08e56e1eb5e6f27a06eff_zps4426

Then I shaped the flanges properly using the power file, sanded the scuttle closers and the edges down and applied some zinc primer -

6b17a207c719afc28fc90c43ae7ae7a9_zps869f

fc5d982faee355a1cc0e4a1f6ffa46f4_zpsf6e8

cd6893ec94374ebfc44f59667d249ecf_zps258b

a3a36a4c4672533e759fc4bb56e9bb7c_zpsa457

I'm also in the process of removing all of the paint from the bulkhead. I'm up to the bulkhead crossmember now, so I'm going to finish that off tomorrow. Will treat any surface rust with Deox Gel and then zinc prime the lot, seal it up, and then apply some regular primer.

Will be picking up the last of the panels I need from Minispares tomorrow, seeing as it's an event so will be getting some discount !

Another few weeks and she'll be off for some paint (hopefully):-)


7-9-2014

Parts Update,

We went to the Minispares event yesterday, was a good turn out. Got a nice discount and some free food !

I've got all the panels I'll need to finish the car off now so will get cracking with that on the weekend. Here's a few pictures.

The panels -

b5afb46ea23ac5e5894945cd14876b70_zps4f4e

Also bought all the rubber mountings I'll need to re-fit the front subframe when welding the front end on -

f59462625daef933bed9ee457bd0a769_zps4976

And here's a picture of some Minis that were there -

91e4636a2607731f973fca0f29110823_zps9c0d

I've also nearly finished stripping the front bulkhead back to bare metal, so some progress / pictures of that coming soon !


7-12-2014

Update,

Well I've finally finished sanding down, treating the surface rust and zinc priming the bulkhead. It's took a good week of doing a few hours before work and most of today, but it looks really good !

Here's a few pictures -

1bcb82a22bcedac05d8f3e0e4fccf9fb_zpscbd7

49aaf95bb1dfa423c2a8f455f70e99cf_zps6270

c847b3839514df6ca71f91d13cc9ce7a_zpsf23e

47221caddc3a6f4e1bbee638dda2f80f_zps8a4d

Just need to sand down the outside of the drivers side inner wing, prime it and then that's the front end ready for the new panels !

I also removed this bracket from the bulkhead -

e37d220cf3677ebb246c0d4aeef47439_zps2b4f

aa5ff8ba309f8511cb1e6427d579401a_zpsc6ee

As you can see it's really corroded, was thinking about buying a new one and welding it on, but it doesn't do much. I had a look at my dad's car and it's only got one relay sitting on it, so I think I'm going to leave it off, it will de-clutter the bulkhead which is always a good thing !

I've also had to take back the two wings and bonnet I bought from Minispares. I checked them over when I got home and they had quite a few dents in them, plus the bonnet was a really poor fit ! Should have known really with them being Magnum panels.

Anyway I've now ordered the Heritage alternatives to those panels (which I should have bought in the first place), hoping they'll be a better fit. I'll see how the Magnum front panel fits and if it's as bad as the bonnet was I'll be sending that back and buying the Heritage version too. Will put some photos up when I have them.


7-13-2014

Update,

I decided to flip the car over today as I wanted to clean of the remaining under seal from the tunnel and boot area. Here's a few pictures.

Flipped on her side (uncle and grandad looking impressed with their efforts:lol:)

9b6cb9609d21e0513ba84df920de3bef_zps3f19

b3b76ae9acc41421762646094ea49559_zps0e00

35623e72c4a8b52e80b721a5c91015f4_zps7a10

State of the underside, plenty of surface rust appearing on my welds -

f5a2a5f4ea61e08f4adfa40e6a9dce93_zpsaf41

Cleaned up all of the under seal -

85fe4530f8cda308194418351b435173_zps0d02

Then I sanded down, treated the surface rust, zinc primed and then primed the passenger side floor pan. Will repeat this process on the rest of the floor tomorrow, then I'll seal it all up with some Tiger Seal -

17c36c104f43d34ec7192d2a29806ff8_zps2e4e

That's all the progress we've got done today.

I've also been thinking about colours for the Mini to be painted in, I quite like this -

58cbe288540bf5d5a048cb37492180ef_zps17d5

I think it's Willow Green with a Snowberry White roof. I'll be pretty much going for the same style as this, low, wide and nicely stance'd with the wheels poking out of the arches. Looks the dogs in my opinion, let me know what you guys think !


7-16-2014

Update,

Been making some more progress throughout the week, here's a few pictures.

Firstly I welded up a couple of the drainage holes as they were quite pitted. Cut out -

67a2feb31d209970d84bf1334b1303e0_zps5cbb

14a275aa062d437be4fb4d2dba28665d_zps9076

Cad template -

a6108beba6bef0944f84354e8c67ccf7_zpsceb7

Transferred to steel -

623b811977e0990e40421317b7a6d87b_zps3181

Welded in and tidied up (no picture of the other hole welded up as forgot to take one, same thing applies though) -

e163e48ddcad59d648d002487592407c_zps9577

Then it was on to the mammoth task of cleaning up the floor pan, (I haven't done the boot floor yet though). I sanded it back, treated the surface rust, zinc primed and then applied some regular primer over the top -

2e8140dbb2acfac47759035198d94118_zps4980

Next job was to seal it all up, I masked out where I wanted to apply the sealer so I could get nice straight lines -

a124ac36484f4b4831af6380efe39e7e_zpsa1d0

Sealer being applied -

7898abcf42bb33d77ea7fb3517723cc2_zps8f25

Rubbed in and the tape removed -

7b2d7031c4b89df663f60d17343d9344_zps3ea1

Same process for the bottom half -

5ed31cc7f4770e5adaf0b7a7725c00aa_zps73f6

95ea02ceed72740b4130c029e79d2c04_zps0d9d

Very happy with the outcome, I'm also going to run a thin bead where the outer sill is plug welded to the floor and also around the seat belt bracket in the tunnel, just for added protection. Will do this tomorrow as I ran out of time today.

Just this to sort out now then I can flip her back over and get started on the front end -

06b68d5d666462ad28284db3afede151_zps330d


7-17-2014

Thanks Jared !

Update,

Managed to get a quick hour on the mini today, done a bit more sealing.

Taped up ready for the sealer -

333d6fee84187efe917e5a510310ed32_zps3d5e

9f7d5eb4a61fef8ac9d9857eb6d5e6a3_zps0044

ef55c30fd2cb600c11f8037b9a045edf_zps0dd6

Applying the sealer -

6ea065a8085a82eb479078f165936cd9_zps2921

fda4155c279615636e7fc47026544c1a_zpsaa3a

Tape removed -

0fbf0142374b967c8992a21f5276e794_zpsadb3

25b7b82cd0aaba0085fbcdddb5f4c309_zps6be4

1585aea1a4d3d8ad0bc7aa303bc6115a_zpsbfe7

67621fe428b44e4595ae7deca61687fa_zps7e80

35aee75250dbafebc072d14388740947_zpsaf61

f9b65950c983631177b549486e4e65ba_zpsbd9a

Overall shot of where I'm at -

715329e3dbde042ffabaf13fb5dded87_zps8b4c

Should get a good few hours in tomorrow so will hopefully get this underside finished off !


7-18-2014

Update,

Finally got round to packaging up my wheels ready to be sent off for the split rim conversion by force racing. I'm going for the 6 inch rim, then it's just a case of choosing a colour when I get round to having them refurbished. I'm thinking gloss black !

Anyway heres a few pictures of them being packaged up.

Bottom layer -

c84684c302ba7c34b273ed42b0dace07_zps313e

Top layer -

31cf794b230e2de3e016debe17733078_zpsb375

e18a19c4f5f641f1a6033c895ad2404f_zps90bd

da633740e809c2a19449d46790e8d40d_zpsbda9

So, when I get these back they should have a nice big shiny dish on them:-)


7-21-2014

Update,

Finally finished cleaning the underneath up. Here's a few pictures.

L/H jacking point closer sealed up -

76ae6862e7614bca49d57f3000518a10_zps95a0

Same treatment for the R/H side -

ac2542a3737bdc5bb0220529a4f2b692_zps1395

Boot area sanded down, treated, zinc primed, then a coating of regular primer applied -

e1ef360c0b87baf964082abbc1339bc2_zps03fa

And sealed up -

73e89309e516ee1358ee00604e7abab1_zpse805

d494a0018a9eaedd6155a766e68a7ef0_zps664a

cf265269fd2a9723fdb15e33d995e420_zps21e0

Flipped back onto her belly -

bf4a212d0d9eed8f6234e9a4a7dad950_zps99e4

So glad I've finished that now, started to become VERY tedious towards the end. Was definitely worth doing though !

Also, I finally received my bonnet from Minispeed, and I also picked up two new wings from Minispares -

3098d3cfbc34862513a2144b7faf4b2a_zpsd27d

cf561658030f78771008e814ad63c6c1_zps0e6e

Just got to source a decent passenger side door frame and then I can crack on with the front end !


7-23-2014

Parts update,

After what seems like months of searching, I finally managed to track down some factory MPi companion bin pockets. They,re mint with no damage what so ever, and also have all four seatbelt covers, so I'm well pleased with them.

Here's a couple of pictures -

ae6c4bf349c4c3b17e1fbdcf1aae9085_zps2ca0

No damage to the screw holes -

e3cee4a6c3d7d4acfdf8416f04030dfd_zpsa54d

e8b9002a156b103148357763f8dd58b5_zps39d0

I've also just ordered a door bottom repair piece from M-Machine, so I'll be cracking on with that this weekend. Got two weeks off starting next week so hopefully i can get the welding finished and then get her off for some paint !


7-28-2014

Update,

Haven't got much done unfortunately as I'm still waiting for my door repair panel to arrive. Hoping it will be here tomorrow, then I can start making some real progress.

Heres what I've been doing in the mean time though.

Purchased some lowered shock mounts -

af930a427f4f00542578cd2d2d77e7d1_zpsbff3

Cleaned up the small bracket that the shock mount bolts into and zinc primed it -

42c17e00dc7c5e83e3bb34acec11dc82_zpsc1b8

Welded into place -

9a73a7a9f95ea372f00186e3c85b9dac_zps7401

Then I wire brushed the hinge brackets and left them to soak in some Deox Gel for a while -

5477ebf23beedfbf2353a8abffe30176_zpsad85

Zinc primed -

f6249ddbce0bf2ba10d7999c1a967335_zps2280

And welded into place -

7929fb0c78c40c3cc000ba1623644c2d_zpsba80

802a662615ef6840683a0977dedf28fd_zps29cb

That's all for now but have been doing some more sealing today so I'll put some pictures of that up when I've finished it tomorrow.


7-30-2014

Update, Part 1 of 2.

Got a fair bit done over the last couple of days, lots of pictures, I'll start with the sealing I've done.

Scuttle closers sealed -

483e7df06cb42b0dee379d13efc87ace_zps1fef

3c7f04eca909e2d0c968a64080188223_zps951e

Bottom of toe board masked up -

32068117662e2199af37319f3e6f27d2_zps9f90

Sealer applied -

04002945e51e1265afc631924a09d15c_zpsca42

Smoothed the sealer out and removed the tape. Then I masked up the top of the toe board and the R/H flitch -

c09be3345f4df05390afe86517451815_zps7bed

d367f1de1f55958945eea77a15ee47ed_zps1ac1

Sealer applied -

145e6a7350d4626530f5cbb8cffb2267_zps0ece

a017acc7032141c11bc728b1a3c222a2_zpsf70b

Smoothed out and tape removed -

1946e0698f34c9182f15595b53592dc8_zpsc3e7

46bbca3d670ee1f2bac653d0a8150f99_zpsecbf

ba9b86b965373ff536c43bca6af2b725_zps09d1

Then I sealed up the bulkhead -

1d7c551c2a5bc79e7e3d138f5ad4cc0f_zps05c3

41a5b3e796e44ea8ee81fe40000876dd_zpsaa63

ebdd879efee4e77d1e550820fbe36619_zps2c87

a6929e1e994155d81378b45e52196530_zps7f2a

66c903800ef3e31542b8a582646b8d14_zps29d7

001283db1efbdcd41b83d70141ceb348_zps7028

I also removed the last of the bitumen from the back seat pan -

d3642415ebd38c7504a40c5923d55f75_zps6a8d

That was Mondays/Tuesdays progress. Today's progress to follow as I can't fit it all into one post !


Update, Part 2 of 2.

Today's progress.

Finally received my door panel repair piece, unfortunately it's a magnum panel, should of asked before ordering from M-Machine as I presumed it would be one of their own pressings. I've had to do some extensive repairs to the door frame as it is really quite bad, but I'm very happy with how it's came out.

Anyway here's a few pictures, the repair panel -

705d2be5896a72762071db0c81169123_zps85d2

Chopped out the rotten bottom of the door -

2c9935a3c9e09f6fa84654da786a477f_zpse224

Trimmed the repair panel to fit -

8ad44471775490345656e8f8fb9f75e1_zps7dea

Tacked in place -

1d3697b8db79a68bb492d80413d30e39_zps082c

Then tried the door skin on to make sure the repair panel was positioned correctly -

0ff6854a73238c21e70033fc5e6f7d26_zpse28f

Happy with that, I removed the skin and fully welded the repair -

d8248fa7e1581d3d5b063df7ba5bcc30_zps3991

Next to repair was the bottom corners of the frame. Made a repair piece and clamped it into place -

af63c8f78d6f96ea7d9f3e61b6afc70a_zps3d33

Tacked in -

6824943d45acda8d0e2da9ae2675dfac_zps22bc

Fully welded -

dd38901298b20e494259a1ecece35a03_zpscc93

Same procedure for the other corner, clamped in place -

a785f87f392028dce508e50df66d88c8_zpsf3cd

Tacked in -

21e73dc65037bee8436c4467c907d0f5_zps6c4b

Fully welded -

811d128eb96c649e028c7056b6fec785_zps70b1

Next was to replace the flanges, cut out the rot -

74acb0b1761d4f9f47e4596f0da57d52_zps5ab5

CAD template made -

680a081fddb9e2dd25d7c25c8363c834_zps990c

Transfered to steal -

7c4faad58fda6e3c0cda2b6be56364e8_zps8230

Clamped and tacked into place -

9f686b0498ceaa5e3fa543efd250e328_zps1fd6

Fully welded -

1a664a3338986ba3b3015f23694b0b30_zps431f

Same for the other side, cut out the rot -

6e02c432cdbbe684045ea7770528251c_zps7159

CAD template made and then transferred to steal -

26def0d82344051126f8719a36c7cec5_zps5f6e

Clamped and tacked into place -

e123cd74f0ffcfd01cbf42f15ea9a89c_zps3f83

Fully welded -

eac4c38352e43e2b9e136b10daa8d38c_zps2144

Tidied up the welds and run a roloc disk over them -

828a2eba3596035ca8df110b18d2c3d8_zpsffb4

fa0ae921fd3e126144c7ad7e3be24fd2_zps0b72

Flipped the frame over and done the same thing, light skim of filler over this and will be as good as new -

152d63c0b26817e97a7162ce83510d89_zps12f1

d230d04c9ec9b1faeac86347fe0b8beb_zps4d51

Drilled the three drainage holes in the bottom of the door -

22500c13b052f8d2e4fc9a870e88b730_zpsbb03

Removed all of the magnum black paint and wiped down the whole frame with some solvents to remove the old waxoyl and grime -

2baa3e906a94ae9292e812939bbf16e0_zpsa033

6f3ad2708a3a419928d4d382e85284eb_zps76fb

Zinc primed the bare metal and applied Deox Gel to the rest of the frame flanges -

fa68e2c03d272a295172b8f8f28b9f88_zps8e14

I'm going to leave that wrapped in cling film until tomorrow now to give it time to do its stuff. I'm also going to leave the weld on the back as it keeps it nice and strong, just going to run a small bead of sealer over the top to tidy it up. I'll grind down the weld on the front face of the door and apply a light skim of filler, just waiting for some sanding belts to arrive for the power file before I can do that though !

Last job I did before coming in was to apply a sound deadening matt to the door skin -

37eb4ea51d8bd105c6998869ee634a38_zpse323

More updates to follow tomorrow, hoping I can get the front end over the weekend !


7-31-2014

Update,

Some more progress on the doors today, here's a few pictures.

Left the Deox Gel over night and it's worked great as usual -

f0ba66d22403c20bc58c8f8039c94219_zpsd5d2

9cf8926d13066a0919e26193858a9ecf_zpsa6ee

Wire brushed the frame and then wiped off the Deox Gel. Then applied a few coats of zinc primer -

969d83f7c8b0691184406351c34d0544_zps265c

Flipped the frame over and removed the Magnum black paint from the front. Sanded down the flanges and then zinc primed it -

7c3a4877310263328468a8063053c28b_zps8316

b064d806e6d11c7a59a4e59b0f46711d_zpsf766

6130122ab130ee39a5138ddcb8fbc9ba_zpsc0f6

Placed the frame into the skin, positioned it roughly where I wanted it and then closed the edges of the door skin over the frame -

7c296cbe9e1cb04e19f69ff2995b5500_zps943e

Took it out to the car and bolted it to the A-post, gaps aren't too bad for an initial fit -

fd56b413174ed7a95464c80768810922_zps8dd5

159c2e9e57ffacd9d8bdbdf42e346cae_zps7629

Drivers door -

e50dc74a18983d0f3f67b60f1efe85ad_zps1fe2

40852751c7369002375b5d9c008f7a5f_zpsea5b

Both still need more work and I've bought some weld rods to get the gaping right. This is where I'm going to spend the extra time because if the gapping isn't right then it'll ruin the whole look of the car. I haven't welded the passenger side door skin to the frame yet though, so I've still got room to manoeuvre that about.

I'm going to set them more or less where I want them for now and then I'll come back to the door gaps after I've got the front end on, should be the last job to do before it goes off for paint !


8-3-2014

Update,

We've been having a play with fitting and lining up the front end for the last couple of days, it's all starting to come together now and the gaps are looking quite good so I'm fairly pleased !

Anyway, here's a few pictures.

Fitted the front subframe back to the car, for the first time in almost seven months, using all new mountings -

f3130da4ac222af91a094f19c3098b4d_zps56e6

Then we fitted the bonnet and adjusted the gap to the scuttle -

e87583271a1ce9df84d9c430afb2744f_zps9e58

04e94bcb45cc1263dc1448b38d4a4f23_zps95b6

Fitted the front panel and adjusted it until it sat nice with the bonnet -

e65e00603d735c5c63842d368d8d48bd_zps6549

9ec1f4081e6520488940ceb6aea884b7_zpsaea9

6c7ec8933f99a7ee52f4d30b5e74d651_zps9f98

Then it was onto the wings which proved to be a lot more tricky. Took a few hours to wrestle them into position, but the gapping has come good thankfully.

929c9def36acfc8c798fcfd03003edd9_zps87fb

02828639e6c19e1715ddcfc6ac47338e_zps3cff

157ffdc7007e20c4f69d101b848484a1_zps08d8

So that's all clamped into place but will still need a touch more fetteling before we're 100% happy to weld it in place. Still got the A-Panels to put on and line up but that's a headache for tomorrow !


8-9-2014

Thanks a lot Jared !


Update,

Well I've put my two week break from work to good use, I've now got a complete front end on the Mini.

Carrying on from my previous update, I went around the front end panels and tweaked them until I was happy with the position they where in. Then I went about drilling all of the holes required for plug welding.

Wings -

a7889674e775efc7ebb3434a79f2b0a6_zps41ce

baa895e4a69b7eba2f903915fdf219ae_zps8089

Front panel -

d460176a6bb90db2ed080749c56f2a61_zpsed36

d73ab8b1087f28cb35e69406b4784ffa_zps8a85

Clamps required to hold the wings and front panel in position -

6d1a2d5c5c151792905b814bb1a9194b_zps88e5

7f85feafd3c8ac8447414e4db9a69a22_zps0174

How that looked from the outside -

0ab40cd7b87e95f2fd2b7f68661fa5a8_zps27df

a5df44e1bee9cfe56e84fb7db16ca998_zps2963

All welded in place -

b31645cfb07baa02879198060882f4c4_zpsb1eb

15aeef652763384283b151aefdd81bc4_zps6616

6f3f3ad7068b17c32d26193fead5aac9_zps4a3e

ada1bfad0199e3a31bd3488e4fc65290_zps31a2

Completely welded the wing to front panel seam to minimise the risk of corrosion -

f5565d30c20f8ee5bb02fdcc1ebf8cae_zpsa1d7

6dcd057428dabf0113daaecdf19b6576_zps8ca6

Also had to redo a few of the spot welds Magnum had done on the front panel as they hadn't caught at all -

937401d74cf6f4b9fe26352100f68854_zpsc142

How that all looked with the bonnet placed on -

343cbb1754a0de01ecf00e43378610bc_zpsecb4

Next up was the A-Panels, zinc primed the door post -

71632d66bbda79a6ea8b7d78e80501a2_zps3c88

Zinc applied to the A-Panel -

407dbf80963d2e059e34fcd740e0d27f_zps878b

Clamped into place -

23c43c93d6c53631f61e6de9cacd6d66_zps8857

And then folded the lip over using the method shown on this forum, which involves the use of mole grips and a piece of wood. Came out really well -

776281291856160639b2e9c3cb4190a1_zpsd638

Exactly the same procedure for the other side -

8dfaa434a5d9e9a9dabc3c6514ce39b4_zps7958

Overall look -

101e291af73abd38e9336da5da599968_zps5ce4

10f6aab3708e1d68840afd1affb3d8ab_zps59e3

Also gave the welds on the wings a quick grinding down and applied some zinc primer -

e6af7cdb32026a42904ea7cf40431be3_zps6c3c

e045ed7c2ece9d8cdfe8d279a0243b88_zpsf904

Still not finished with this as I've got a lot of grinding, priming and sealing to do, but at least i now have a complete Mini ! (sort of)

Anyway today we decided to have a look at the door gapping's on the drivers door.

Door to rear quarter -

3b891f5dff1c35f321459a3c52b1c4a9_zps8455

Door to A-Panel, hard to see in the picture as the A-Panel is still in the black E-Coat -

20aac5dc3b01e2a40f96e8353c41688c_zps6dc6

Not brilliant and much to wide for my liking, so we marked out where the problem areas where and tacked welded some weld rod to the door -

43bc2d8ca3a77b6371d2d9a9d3290863_zps55af

6df4ddc4ffc307e3e7593c1a2dccc425_zps7262

Happy with the general position they where in we took the door off and fully welded the rod to the door front and back -

31b5999ae486f9728fb1184e61eb169a_zpsa217

de6b18ed90f1a9a6a9aa6a15750daba7_zps23d7

d9774dc244092fdfdcc0c6c246559e5b_zpsca5d

After a quick grind down and a bit of shaping -

8cf6621dee3b95a15dbb3fd4fb477ccb_zps0d62

3f2b90067363468614f86c66a17942d9_zpsd5fc

Bolted the door back to the car and we now have this, not 100% finished as I'll still need to tweak it a bit, but a vast improvement non the less -

50dd83a9fcc822f0739474dd2c76c2ff_zps6618

(Again hard to see as the A-Panel is black, will apply some grey primer tomorrow and take a picture, so you'll hopefully be able to see the gapping a lot easier) -

94dec3a4c6c9253de3ad6e97b75d75a1_zpsa062

Not to much left to do now, just the passenger door gaps to sort and then all the tedious jobs like sealing and what not.

We'll be phoning the place that's going to be painting her on Monday to book her in, probably looking around the middle of this month so that should give me enough time to finish the last few jobs !


8-15-2014

Parts update,

Received a big package from Force Racing today, I wonder what could be in it;-) -

a35a38e230a31d1dca0d490d06b46b8e_zps8489

440fee5f938d0cd591349f9e2ff46f55_zpsb82b

My long awaited Exacton split rims, they look absolutely stunning, and will look even better when I've had them blasted + powder coated.

Here's a couple more pictures -

5bf0e9ec46ee3489f9cf7df8ff928492_zpsf3fb

d60624810b9eb9845d893206baf176be_zps7b3e

094e9239797337715c029017ef6493ef_zps7442

c99408c071d3cac8373bd1b3d6c1d125_zps487a

6c0ace9eea8d0411befdce05b0398b77_zps0f2c

An absolute credit to Carl at force racing, he does a cracking job !

The paint shop will be coming to pick up the Mini next Saturday, so it's going to be a busy weekend getting all the small jobs finished off so she's ready. It'll probably take them around two - four weeks to completely paint the shell so that should give me time to get all the running gear and what not refurbed and painted.


8-21-2014

Update,

Well the Minis off to the paint shop on Saturday, so I've been doing all of the small jobs that are required to make sure she's ready, lots of sealing, bits of fillering and a few welds here and there. Nothing too interesting so I didn't take too many pictures, but I'll put up what I have anyway.

Completely welded the scuttle flange to the wing/a-panel flange -

c82edaa3d08b876e77fc0f64b70dd051_zps3cfc

b5b880a391b8ef39b17c63890385bc8a_zpse1c1

Had some extensive pitting around the fuel filler neck, so had to replace that with fresh metal. Cut out the rot -

445dbc15bdd2fab6e8fcf4824bd7a23e_zpse817

CAD template made and transferred to steal -

a7c364d6efd46068682c9a2221d36570_zpsd646

Clamped in place -

ef4bf6783a80c719106d28dc3d19d7fb_zpsf5a8

Welded in and ground down -

852f909084dec34ce0d065588e0efe48_zps5bf6

Tried the rubber seal for fitment-

2eb54b334d8357edd91f91c6e1d303d9_zps0706

Cleaned up and welded the bonnet stay bracket back in place -

559c8435c7d3599319d837bd9c8af22e_zps537e

cffcf919b2f907b8050e9f9587b58a85_zps705f

Welded up the holes in the bonnet as I'm going for the clean, de-badged look. Still needs going over with the power file to make it completely smooth, then a lick of filler to finish that off -

c27aed1f5b79e9241f74bccd5c5098f6_zps800b

ef8a6f164146e947a563fba926dd5386_zps6699

Lots of sealing done underneath the wings -

7a1711624855cac4b8fe12a6704292d1_zpsec42

c762ae60a6b93fa28ec4e0e44786bef2_zpse2ec

5c29e419cad8d20acde909fb8332b52c_zpsf810

Same was done for the other side, that's just a small portion of what we've been doing, but as I said, it's not very interesting so I haven't been taking too many pictures. Still got more sealing to do tomorrow so will put some more pictures of that up when I've done it. I've also been doing more work on the door gaps, I should get that finished tomorrow so they'll be some pictures of that too.

Now onto something a little bit more interesting, I bought some new hinges from Minispares recently but I found them to be pretty poor if I'm honest, so I decided not to use them and to try and get my original ones repaired, as they had a fair amount of play in them.

So we went down to our local engineering shop to see about getting them reamed and having new pins put in.

I had the holes widened to 7mm to eradicate the wear in the hinge, bar the last section which was left at 6mm to ensure that the pin would not drop through as it wears. Then I had some new pins made from solid hardened steal, these where machined to 7mm, with a 6mm taper at one end and a rolled edge at the other so it will grip tightly when pressed into position.

Here's a few pictures to better explain.

51391bba15f7130b33b9759e2a5a2659_zps922d

1e987d8184fa0df3d8d10b2d03dd8369_zps398a

As you can see, the bottom hole, of the part of the hinge that screws to the door, has been left at 6mm, the rest has been machined to 7mm -

Here is the pin, note the step at the bottom -

5635184a00830de58920e7e4f3f30464_zps89ea

And a couple more pictures -

fcbdbfb9575928fb2cb0ae279e7dfbad_zps7151

8b797668882ac0e237be6275c2693d65_zps4136

A really nice job done, obviously the pins haven't been pressed into position yet, so won't be sticking out like that when finished. I'm going to get the hinges powder coated soon, speaking of that, I've also taken a lot of things down to be blasted and powder coated, should be picking those up tomorrow so will stick a few pictures up when I've got them.


8-22-2014

Update,

Been doing the last couple of jobs today, again, nothing to interesting but their all jobs that needed doing.

I'll start with the doors, zinc primed the edges and applied some sealer. Here's the drivers door -

9bdca7564953849a0d9f10e521ff987d_zps6544

d9e6d792efc24ce210c2d9cceed14bb4_zps49a3

145fe02a8de7520674b98cbfa2b32559_zps27b2

3a41f549c898d942f06c9d0c3fbab549_zps7593

5338d69ae55365af616071417d630aad_zps9f4a

66388ce3123b3d2054ed711a31d2a1df_zps8e8c

Passenger door -

03c8a99d91863c08afd411ecf289b931_zpsbccc

8db01cc9e6379fae587b29836a62914e_zps7cdf

6d6c1c11c13fbf8cc3c152717edff8cc_zps52f6

Forgot to take a picture of the door gapping's now I've finished them, will do so tomorrow before she goes.

Sealed up the heel board -

fa180fe08d3f03004cef16b85a972fdf_zps78d6

And a couple of other places -

7e826235be01029963569a5dedbf48a9_zpsf065

280d001eca6a2270e091f6bf9205f84f_zpsc2a7

Applied a bit of filler to the bonnet and flatted it back, only a quick skim though as after all, that's what I'm paying the body shop to do -

8b544f7872ec5cf000cc5ead61b95881_zps4cea

Drilled the holes for the companion bin pockets and test fitted those -

e1ef8ea90de1e70e2e333b47fc08c283_zpsfde7

829288166aa5da4587f18ab8dc207b2c_zps642b

And did a few other jobs, not really worth taking pictures of though.

Tomorrow's the big day so will update with some more pictures then !


8-23-2014

Update,

Well, today was the day, eight months of welding and grinding is at an end and the Mini is now off for her shiny new coat.

Started the day with a quick trip to Minispares to pick up a few things, boot lid, seam strips, clips and some new mirrors. Here's a few pictures -

baaf9c20e4a0038b88e2320f09c5008b_zpsa8b9

ae7d298d58b2f8434dbcd9a5d1f51d68_zps1dfb

ee5097cd4bdbb68bcb35d42bc3843343_zps30dd

Then we finished a few small jobs that needed doing, mostly sealing to be honest. Here are a few pictures of the finished door gapping's.

Passenger door -

864d0e22ee08a76bb6af614dc7083d81_zpsa8c8

83a130ff9f5af8b33e6d020836fd5fdf_zps2e0f

a130a6012f7746b68495a905319991d8_zpse5ed

Drivers door -

0d75f0307ce9ebf16c16532af08e963f_zps8bcc

bb482e2ff3dcbd8245796c9c614a8cb8_zps6715

e1d68c35c5a295c0af6201d3657041e7_zpsa862

Wasn't an easy job, and probably the one I enjoyed the least, but is definitely worth doing to get nice tight shut lines.

Anyway, here's a quick picture of me and my dad waiting for the guys from the garage to come and pick her up -

1aae353d5a3debddab7df452bf4fb722_zpsccf0

6dd73d9c44d1b36b5349ca61c73bb9a8_zps683f

Loading her onto the trailer, started to rain so we had to throw the car cover over -

4a4af8a422acdf37d8017cb298668332_zps2f77

All set and ready to go -

df466d8626d0820d63ea18321f4aa6ab_zps1ed6

On the move, the furthest she's moved in almost a year:lol: -

e28a31ae8cd726a77970824788251c13_zpsa36b

We arrived at the body shop and went through what we wanted doing, paint codes and what not. Then it was time to go, this is how I left her -

46e4da12f3c0e3a0455a57a3fdf952c9_zps22a4

1d1aa3737d9769d699dc02d0902f985b_zpse3de

Felt quite strange coming home to an empty drive, but the next time she's back she'll be fully painted and awaiting me to put her back together again:-)

I'll also be checking in with the body shop regularly to make sure it's all going to plan, and is being done to a standard I'm happy with.


8-24-2014

Update,

Stripped down most of the running gear today, radius arms, top arms, hubs and drive shafts.

Here's a couple of pictures -

76bfba5c11bb417ca28aeb4e2ea46229_zpscbd4

b404c28d1221d33cd5818f057a065ac5_zpsc083

14d38c9ab4a70a0b9e9115e09b75db94_zpsfac3

ad2b7856f9a7d27128fd2003fedce88b_zps8704

Still got to strip down the other hub and driveshaft, and remove the bearings from the top arms, radius arms and the rear hubs, then they can go off for blasting and powder coating.

Not to sure if you can remove the bearings from the drive shaft or the UJ that attaches to it, so will have to pop a question up on here.


8-29-2014

Parts Update,

Picked up a few things that we took down to be blasted and powder coated last week, here's a few pictures.

Front Subframe -

baf0aef436eea3503279a486b7425de7_zpsc18e

f57d62acfa1c5d51c87501761c3aacfe_zps7cbb

28c26bbc56ddf031aeaf70e0e26e9dc0_zps9071

A few various bits and pieces -

79718acdcab052f2bc809d4cd6d11a03_zpsab06

868e347448e9e5f35eea86bdc9d2c40d_zps7048

0cfa1717a4141334252cfdfc2c1eb227_zpsb754

780c9cff4d49fffe8ccdf9f0984cd628_zps23f9

0b681998f1045a40b7b8b4d9b993bc20_zps0236

Stopped at Minispares on the way back and picked up my Newton Commercial carpet set, very nice bit of kit indeed -

0206ffba7520084257bde2c73790b7cb_zps7458

ed85992b16e8edb41b387d8d6ca53a9e_zps5e9b

87df1b3c9c8e8560ece7de1d15b781b2_zps5fbd

And a nice little touch from them -

ff23d3a3d1ad7aeec9474c40f6e6e58b_zps96a3

We're going down to the body shop tomorrow to see how there getting on, hopefully they'll be some good progress being made, will update with some photos when I have them !


8-30-2014

Update,

Got up early today and made the journey down to the body shop, fair to say I've been quite anxcious to see how they're getting on.

The 'paint', and I use that term loosely, Mr Bodge had applied before I bought it has taken them a bit longer than they thought it would to remove, seeing as it's been put on so thick, so they've not managed to get as much done as they would have hoped.

They have however completely removed the crap paint from the roof, and started fillering where it's needed, and have begun removing the paint from the rear and the quarters, also fillering where required. He's going to take it back down to the factory paint/primer so hes got a good base to work from.

Here's a few pictures -

d37b9ce1d2131a09494d0f6df5e8d32f_zps5de5

723c3d17df742e490f076a8b37eded9d_zpsa488
(Note the VW bus in the background, next project for me maybe;-), that or a beetle anyway !)

309b8d7a966dec8c62f013e9e648e565_zps8b6d

53b0ab42ec2a5719195781ad95f7f3d2_zps923b

They've just finished a land rover defender that's had a full respray, so will have a lot more time to work on my Mini now that's out of the way.

We're going back down on Wednesday as he says they'll be a lot more progress made, so should have some more pictures then !


9-3-2014

Update,

Been stripping down a few bits and pieces over the week, nothing major, just all the necessary parts that need doing while the Mini's away.

Stripped down the pedal box ready to be blasted and powder coated -

1b500cbc159a6f5e2a44da8db0f22f0e_zpsbe15

Master cylinder stripped ready for a rebuild kit, will clean up and paint this myself -

1cb2be864c0624aa5edf9766ddce764a_zps31ac

Didn't get chance to go down to the garage today, so will have to be Saturday instead. Should also be picking up a new rear subframe on Friday, so will take that down to the powder coaters along with a few other things.


9-6-2014

Update,

Picked up a few more things for the Mini today, here's a few pictures,

Rear subframe -

c77e7e51df64ecb4e1093b4742deb43c_zpse966

Master cylinder rebuild kit, new reservior cap and a pedal box switch, as the last one exploded in my face when I attempted to remove it:lol: -

0fdaeca1bc64972bc64a252394e518cb_zpsa7c9

Came back home and made a start on refurbing the master cylinder. Wire brushed back to bare metal -

ce4d65b22f77ba8e4fde6ace861120a2_zpscc09

64dc5fe90ea416ab008bda92c25b6344_zpsf29b

Holes plugged up and hung up ready to paint -

bfc6a29d45fcc44585e15633b3391832_zps4c78

Zinc primed -

891042dc1ec294010561e57ff332d857_zpsff01

While I was waiting for that to dry I replaced all of the rubbers on the plungers, secondary plunger stripped -

685814a13cb222042893544388a0f500_zpsd888

Main plunger stripped -

d2cbfee4cfd9bb8778c1d3e46b66fde7_zps8196

Degreased the lot and rebuilt them. Main plunger rebuilt with new rubbers, (forgot to take a picture of the secondary plunger rebuilt) -

1512f43ed4f31bd6fc747b446f376cf6_zps3294

Cleaned up the reservoir -

ddb444c7450f71f99cf93796da877073_zpsba21

e7e1efb120d861fc31139817e1063ea8_zpsb8b9

I give the master cylinder a few coats of gloss black paint in between doing that, here it is after I gave the paint a while to dry -

dea9d9bf0e23b57d6f6b34bfa278d513_zpsf50b

8b67501d7f4eeda9b1324d22e062b94d_zps9265

And rebuilt with the new rubbers and plungers -

2093ed5c6e6e8b23abc530153501e4fc_zpscdb7

baf44f1595d8348f2b10cde790523114_zpse9a0

Just got to refit the reservoir, need to get some new roll pins before I do this though.

Also went down to the body shop today, unfortunately I got there too early as they are just finishing of the fillering and flatting back before she went in the booth for a coat of primer. Did manage to get a quick picture of this being done though -

6fcc67ba645a4e8442ad2f0c8bf65d54_zps3b5b

There going to prime the outside first, then flat back the inside and prime that, stone chip the bottom and then paint the whole shell.

The next pictures of the shell should be it in primer hopefully !


9-8-2014

Update,

Had a fairly busy weekend so haven't got much done, here's a couple of pictures of what I did manage to do.

Here's the brake limiter valve before I wire brushed it -

8797e10e66b158c10c4e033b05bb6a32_zps0182

Wire brushed back to bare metal -

5b3e0a1c2ccac5d72333c5e242ac950b_zps3aff

Zinc primed -

6391eb5daa038a92560b93e3795b0578_zps3837

39191e9091eac36ed9ea0648b60867f7_zpsbb34

Left that to dry for an hour and then applied some black gloss -

06987d541b0cdb60a18400992f097a7d_zps6a53

ca691f99047ed44724e91f9af1daf336_zpsfff3

I was going to strip this down and rebuild it, but I can't seem to find a rebuild kit so I left it alone.

Next I wire brushed the brake servo box back to bare metal -

ccbf6ec7464d41c87385fbce436513a4_zpsdeb7

ed97bc2afd8321842deea898cb09c92e_zps60e6

Zinc Primed -

9bc57c77accbd155ac772c299f566f78_zps0730

41e13940fca656a44ec3ccd46f6883ff_zps3036

Going to leave this until tomorrow now to let the primer fully cure, then I'll rub it down with some 1200 wet and dry to make it smooth so I'll get a nice finish with the top coat.

Some pictures of that soon.


9-9-2014

Update,

Received some pictures from the body shop today, the outside of the Mini is now in primer.

Here's a few pics -

eb6c7d80d82afa784a3999befef738ca_zps4595

1c89a52f9be5ffea53f0ba9ee29e628f_zpse8fa

78520a87ea0b8cc260c714e10016a03f_zps5c7c

She's also been given a light coating of black guide coat so they can see the high and low spots when rubbing back.

It's all very exciting, looking forward to going down on Saturday to see her in the flesh, more pictures then !


9-13-2014

Update,

Went to the garage today, got some better pictures of the outside of the Mini in primer. Their in the process of flatting it back at the moment, it's also on axle stands ready for the stone chip to be applied underneath.

cb32aaad3d948b7dceae3576a733f2ed_zps29e6

6a8f2f6f7280a81bec74821ee35b130b_zps27fc

af524e4d04d2df6ce378a56f3bdc82a3_zps3a52

51f4cfdb4099f7fe7c783f2a03eac729_zps71cf

I had a few dents in the roof but they've repaired them really nice. The rear quarters have came out excellent aswell, very happy so far, hopefully should be painted soon !


9-14-2014

Update,

I've flatted back the servo box and gave it a couple of coats of gloss black today, I think it looks great, here's a few pictures.

Flatted back the primer with some wet & dry -

eab43155992a3662fe31ba913c7c9ce8_zpsd788

Hung up and painted -

550a4ce227095e2e42b998a272579304_zpsd74c

be959743a2de0b429c22617483257ea9_zpsbcf1

Left that to bake in the sun for a few hours and then started to build it back up, rubber gaiter and bung put back in place -

4d18f5c862c0067a91b755c3fcb4a997_zpsfddb

55f04a8f32aea99f5af6ec4555bd6873_zps4ecd

Fitted the reservoir back onto the master cylinder (not easy, a lot harder than it looks) and put the new cap on -

fe9bd92f3d2a6c4097c75877de611fc7_zpsee57

Then I fitted the master cylinder to the servo, and then fitted that assembly to the frame I had powder coated a couple of weeks ago -

78bac52beaa1915e48fa73ffa1fc534b_zps486e

Still got a few more things to bolt to it, but that can be done tomorrow. Very happy with how that's came out !

Not a big update, but an update all the same:-)


9-15-2014

Update,

I've almost finished off rebuilding the servo unit, I've installed the plunger mechanism and cleaned up and re-fitted the vacuum pipe.

Here's a couple of pictures -

3926d1bf36559e38916fea7cb64e7d08_zps8769

a148003b63125d611937f816c767a55a_zps217a

Just got to replace the roll pin that holds the reservoir to the master cylinder with a new one, and that's that finished and ready to be bolted back to the Mini !

I also purchased some MK3 thick frame opening rear quarter windows recently, I received them today, here's a picture -

e15879b9449b35061103f9c263310a2e_zpsdb7b

Obviously the sticker will be coming off, and I'll polish up the frames and also have them tinted along with the rest of my glass. They feel a lot better quality than the later type thin frame ones.


9-19-2014

Update,

We have received some pictures of progress from the body shop today, the underside has now been stone chipped, and has also received the top coat of paint.

Here's a few pictures -

4b1b5772115b5cfbf935a33c8e5cc4fd_zps606e

0431796b4c5d16766c691aa0e82fc598_zps5eb0

Not the greatest pictures, I'll get some better ones when we go down there tomorrow.

It's so nice to see our hard work paying off, it really does look fantastic !

I also went down to Minispares today to pick up a few bits. I got the adjustable camber kit, which includes the bottom arms, tie rod arms, rear camber brackets and the correct rubber bushes. It's a really smart bit of kit -

6939ea6629acb61ce0ddf68192b95f67_zps01d0

Picked up a brake master cylinder rebuild kit, the gasket to go with it and a new clutch push rod arm for the slave cylinder -

48099a9ff009c5bac2054046cd5cbe7d_zps6e07

And finally I got some burr walnut door capping's, just the door furniture to get now -

cc1f602b06c34d083443df115a93946d_zps9b2d


9-20-2014

Update,

Another BIG milestone has been reached today, the Mini is now wearing her shiny new coat !

We got down there for around 2pm and ended up staying until gone 6pm watching them paint her. I've never seen a car being painted before so found it very interesting, there's definitly a knack to it !

Anyway, here she is up on the frame in the booth having the last few bits done before final paint -

c1bf456bb6401234dd5875b7eda0a22f_zps67ec

They used an air gun to remove all the dust from in and around the Mini, and then wiped the whole car over with panel wipe. Next they mixed up the paint and put a coat over the joins where the seam strips go on, like so -

ca944c850d1491d0ab5046a8b66f38c6_zps5a91

97f84395843043ecae4aaaf30925d526_zpsd0a4

Seam strips being clipped into place -

d94c8c05f3944304cac10438a794dab5_zps92b3

f3c9f628c40fd4a058251c8d9e1fbee8_zps39ed

Then he started spraying on the first coat -

ba154aee4156b9346e6910bcaa322e14_zps1485

3b9c7d0bf074c9949455f650ceb4109b_zps9016

4b3986ecaf03c044bc6c83409c5cefd9_zps0b12

9b2eb5da93f620a8308e40f6b8ab85ce_zps7d3f

He finished the first coat and then left it to flash off for 10 minutes, then he let me in the booth to take a few pictures -

779c0e4693f3a8f5dd50c52e0a7c9c37_zpsb232

ae65e214c31b7d0f03346e184c5907aa_zps28ff

cb64f57e0c624229332e7f95f0a74597_zpsd4c1

Inside -

0cfca56472be659372e8acc68c0ebe07_zpsef92

Then he applied the second coat, here's the finished product -

d6e419ca738e21288215b75db5466262_zps583c

445beeb61869d371bc0735f0ff68c958_zps0863

5f8db63750ec6cbc9ecf84c46c6fc257_zps295c

It's came out soo well, the paint is like glass ! Just the roof to do (which is going to be black) and the other panels and she will be finished.

All the months of graft, grinding, welding, headaches, blood and many many swear words have definitley payed off, it's so nice to finally see her in colour. It hasn't quite hit me yet, and I i don't think it will until she's home !


9-27-2014

Update,

Picked up a few more things from the powder coaters today, here's a few pictures.

Rear subframe -

c868ae501c7f83d0b77b4756b0d40b54_zpsc981

Various other bits -

c6cf173bd2504ff262cd62ee3f520f64_zps972a

32c8e517f017a8f9eb1cae7d09a8fdea_zps71c9

ca50c53373bf3ae3a6245b7b053ef9a6_zpsaf41

a8b037ad2390e84f3217b06c2a023e8e_zps6777

06a19c2c1dad18c16121686b0eceaf6f_zps26ed

I also picked a few new parts from Minispares so I can start building up the subframes -

e0a6f9ce4c4b229f8ccda6aede8dca47_zps96d8

Decided to build the pedal box back up -

ac549b27ae133f16ee010620e1630b54_zps298f

5d1096e5746817cdcdd45f6c247e79f1_zps7112

134b66d2af97d6a217b65c1b3b81d487_zpsc855

We have been down to the garage for the last time today, as the Mini will be coming home next week !

I can't wait, here's the doors and what not being painted today -

3f347aeaadc45c15fbe2a52ccdea7e07_zps1c16

He let those dry for a while and then I went in the booth to get some close ups -

10806440abfe1dfcf2bad080992e4f5b_zps55fa

b1a19b08f466328030656ae2a9e57fea_zpsffa7

99159932461b4896f5c40291989bb826_zpsd2aa

97e4274fd2ab5316310d082a13780043_zps8a2c

And the roof is now black, there's white filler dust over the whole car at the moment so not the best picture. Also if you look inside the car you'll see the mirrors and the other bits have also been painted -

4d7999d246d225e605d4ecfc4c938390_zpsbe1c

And I took a shot of inside the wing -

b6ceaab40806d790301e097539b1fcfd_zps8c8e

Looks fantastic and should ensure our hard work lasts for a long, long time. I'll also be fitting inner arch liners for added protection !


10-3-2014

Update,

Well... SHES HOME:D

Before that though, this is what she'll be living under for the next few weeks while we get her back together -

c904052d6062e021ce4b9420e79a079d_zps742b

Only a cheapy from eBay, but should do the job nicely.

Anyway, the garage bought the Mini back late last night, so unfortunately I couldn't take any pictures of her being unloaded due to it being too dark.

Been out there all day today though and have made a start putting her back together, here's a few pictures -

a0f4a7fbf47d2d19043ae80601315a80_zpsc1a4

3256974ccb45ac48171e4640bc3c2b18_zps4fb7

46174585f26346ff265d5133b48efe32_zpsa75a

Couldn't resist getting my split rims out and mocking them up -

ecdf92f8f40a29a036a7cdf3740ca1aa_zpse5ab

cedde2febdbdffe53b1a31f740b4744b_zps8c5a

145348a83d7a239bd1596e78891fb163_zps2614

7983cd2c4104c219d818c06235d2c59a_zpsf45b

Got it up onto the stand that the bodyshop have borrowed us to make it easier to work on, then took a few shots of the underneath -

ec780b12376269f56cddea232911468f_zpseedb

8ab289ccf77f261f376f02f68751245a_zpsb1ea

It looks great under there, next I began the process of waxing all the cavities. I use this stuff as I've heard good things about it -

b5a3b3979b884f6c79b0ed00f2d388fb_zps5862

Masked up and waxed -

0c8efc82143964acf86dc2e0b5e3b955_zps34f0

I used the same process to do the rest of the car.

Roughly refitted the front loom -

2e7a25b67f155b1cb1f15a38f9e86c79_zps6c1f

67fe7ce2de678e9ee9d2dddba7c80894_zps2982

And the rear loom -

96042abdc2c48634e8bc3b0df4181b9b_zps5cc3

New stainless stricker plates loosely fitted -

ce5daf9163f426311cad889f07224495_zpsd22c

aa5d85f6f070a2b7890a4ae54d3cd32c_zps9ac5

And finally, fitted my new MK2 lights and my stainless bumper -

3fb18f738a899a9274506899d2c2ef94_zps5dc0

Going to pick up a few things from Minispares tomorrow, I may even make a start on fitting the headlining if Im feeling brave enough:lol:


10-7-2014

Update,

I've got a bit more done, I'll start with the stuff I've bought though.

Various rubber seals -

8545883bb79395437c4c07d1ac58c4bb_zps72a8

Door chrome trim, rear radius arm repair kits, head lining clips, straps that support the boot while open, engine earth strap, check straps and door light switches -

bfeee72836d038836c2bb60febd892c3_zpsc350

Also had to buy another red tipped head lining bar, as me being the heavy handed fool that I am, managed to snap the end off my original one -

5686fcb16f3bafc9d481dec635b8992e_zps86b8

And finally, I took delivery of some Dynax UC, going to give the whole bottom of the car a coating -

8fc16a65cfc3f96e51190179f1f9f6ae_zpsf9b6

I haven't managed to get a lot done on the car as I've been really busy of late, but here's what I have been able to do.

Cleaned up my fuel pipe and fittings -

f6b6229ddee1ebdb13b7b3b63ffbeab2_zps3b7e

d0662c6a44074b9f4313a186adfb1b79_zps5423

Changed the end of the door light switch wire to accept the new switches -

a7d2e1261d192ce9daafd70df5b63177_zps9df1

Switches in place -

224939abc98176d5f8c0e034e8d34132_zpsd648

6eee4ebf01ac52c66ec369cf956a9315_zps384e

New washer pipe front to back -

1966c0f7a01abd0bdf8cb42f0860d355_zps3b18

We also test fitted my rear subframe, just wanted to double check the subframe fitted as it should, seeing as it's a new one -

16022ead7f455d9ef92c496b4426734c_zpse102

ec83be0818c4a9ae6f0fb9e0aff0a609_zps88c4

And finally, I've got my headlining roughly fitted in place -

df8957f7e772614a1436ddb3082f5bf8_zpsaa35

There's a lot of packaging creases in it at the moment, so I'm going to leave that as it is until the weekend. That should give the creases time to come out, and then I'll fit it properly.

I've just put an order in to Smiffy's Bits for all of the stainless nuts, bolts and brackets needed to get both subframes on, so looks like I'll be fitting those the weekend as well:-)


10-11-2014

Update,

Got a good chunk of work done today, but first, here's a few pictures of the parts I've purchased throughout the week.

Lots and lots of stainless nuts, bolts, p clips and what not -

6c50558eab82410d68446d95afc46bbe_zps499e

Steering rack and other bits and pieces -

c51fd721cbb29c501475ead5518a71ae_zpsb910

We also got a few things back from the powder coaters -

43ac5e83028f4fd178d8e1fbef43712f_zpsc28e

Now onto today's work, I woke up early this morning and coated the whole underside, rear arches and front arches of the Mini in Dynax UC. It's dried to an almost matt finish and looks really good, I forgot to take some pictures of the process but if you compare the pictures in the last update to this update then you'll see the difference.

One thing I would recommend is to wear eye protection, a decent mask and some disposable overalls with a hood when spraying it. I had the first two but not the latter and I got absolutely caked in the stuff lying on my back under the car, wasn't fun trying to wash it out of my hair and off my skin after:lol: !

As I was waiting for the wax to dry I reassembled the top arms, of course exchanging the nuts, washers and the plate in the repair kit for the stainless alternatives -

ca9fd81a5c21fc56fd01f62c7c8a42d1_zps474c

Bolted them onto the subframe and fitted the new cones, knuckles and Hilos. I also waxed all the cavities in the subframe while I had good access -

901fa7761c64df3e7e5bcfcc956954a6_zps494e

129b4dbb8fbb67b65b7832e4352c4e36_zps2fd1

Next job was to fit the steering rack -

b973c3a5a1c13fad70a8acb0fed1675b_zps8917

We applied a thin bead of tiger seal around the edge of the shock mounts before fitting them, this should ensure we don't get any rusty accidents later down the line -

ba767f59107ff942373622966e7c0fbd_zps18c4

After fitting those in place it was time to bolt the front subframe on -

47218fc3ab305e36ee4032775c14c9bb_zps6b33

c77734dc2beaac98f513bf8310277910_zps3303

d1b7e83a9f1413851e0533fd9d046e08_zpsb901

9bcc67821287417ad0c74f097de7214a_zps8ae7

Bolted the stone guard for the radiator in place -

90e3e7416edc278283a400022726d69b_zps4ac9

Happy with that, we moved onto the rear subframe.

Bolted my freshly powder coated trunnions onto the subframe, again exchanging various bits and pieces for the stainless alternatives. I also took the opportunity to wax all the cavities while it was easy to do so -

66690a9a4f733c284bfd347f4ada2774_zpsc3ae

cabb10fcb562f9f53e93ed3836b71f1c_zpsf4a4

We managed to get the subframe in place with out damaging any of the surrounding stone chip/paint/waxoil, so I'm happy with that -

488b4b349b32c27d31768819fe02919b_zps9c59

4a4c417b5708a99335d43f92b36c959d_zps6b09

e39533809c17ec27f3927bc9cadb1596_zpsac42

814b72d49247b84a19ebde93237dbba2_zpsce91

That took us up to 7pm, definitly a good days graft, so we pushed her back into her tempory housing and left it at that, (the blue sheets there to stop any chaffing on the paint work from the plastic sheeting) -

53d1a6757ae3c3fb04678c2f6548b433_zps6c62

More updates tomorrow hopefully !


10-19-2014

Update,

I haven't been able to get as much done as I would have liked this weekend, due to me having a bout of man flu.

ill start with what I bought throughout the week, some more smiffys bits and stainless p-clips -

76fb5d663c86ff2b6d2dbe47c7ed9d94_zpsf124

Went down to minispares on Friday and picked this lot up, the wheel bearing kit is genuine timken, the cheaper ones looked a bit dodgy in my opinion -

28b8cc84f8931146dd9fc06f7cb74dba_zps488b

First job of the day was to get the fuel and brake lines in place using the p-clips, here's the fuel pipe -

28a1c389f949f1499954ff3fd101b73e_zps77a6

5a2dfa99538693220538534d94ced087_zpsa404

And the brake line -

7a7861bf6cb6fc9fe844dbae707c3083_zpsa284

f3c9f2e639a1a261844235ac01b20f68_zps2be1

The p-clips look great and are a lot more substantial than what the factory used to hang the lines.

Happy with that, we moved on to the front hubs. We started with the drivers side hub and fitted the new bearings, ball joints and stainless bits and pieces onto it, here's the finished hub -

b7c1d41551b88e07825ab177a11290ed_zps07ed

720c7dd74e3a069fb71f00d24844e632_zpsb9da

I degreased and cleaned up the original timken bearings that we removed from the passenger hub. There in really good condition as I would expect seeing as my car had a relatively low milage before the rebuild.

Degreasing the bearings -

5c2567bbf673179d17309e51878efd16_zps86e3

Cleaned up and awaiting to be fitted -

e9ee35db0d83b4964762e84442ceabba_zps12c1

Packed the bearing full of high temperture, automobile grease -

098c9b26a558820afc65bea1df9d3445_zps4227

And fitted into the hub with new dust seals. I couldn't fit the ball joints unfortunatley due to me running out of shims -

5eeec2e6e1751615159e64ade90edaba_zpsd424

989b1bda2aba8445f1031851027d6dae_zps072e

Fitted the adjustable tie rods and adjustable bottom arms to the drivers side, their set to the standard lengths at the moment -

4cfdeffddc2be32d54406d1a3a308b25_zps6e3e

And fitted the hub into place -

19a0976ab891897edb6d533c41b0119d_zps02d2

We've also temporarily fitted the doors back onto the car as they where getting in the way and I don't want them damaged.

Here's how the door gapping's are looking on the drivers side -

b8b7de0b12ccfcf4dc10794049e9a59a_zps1be4

bcf204ed865841e8bc0625dcd3306ffa_zpse8d1

d5161facae03a8c87e9acc3ddd351b0e_zpsa492

It was definitely worth that extra weekend getting them right, it's really paid off !

Couldn't get a decent picture of the passenger door as the space is tight that side, I'll pull her out tomorrow and take some though !


10-25-2014

Update,

Made some more progress today. Started off with a drive to minispares, here's what I bought -

7ac841690ea9ed8a8a0630fb2cff90b6_zpscf6d

ffc866cd38580eae8ce0740cee2b61ec_zps46fa

Also picked up my radius arms from the powder coaters, I've had the new bushes fitted and reamed to the correct size -

a0bbac1604d27c8e98df7d08772ab0b6_zpsc08e

Back plates fitted and the nuts and bolts changed for stainless -

dce37db3108e2d2da0afe621bed3cfa3_zpsc97f

b0ec1e83255d66c4d97ee5a165232a91_zpsdad8

Passenger side radius arm built up with the new brake shoes and what not -

e765e637f6183228145a9ba958b54436_zpsb075

ee6b5948992836a96c435af194f3ec0d_zpscb66

Fitted onto the subframe -

7fee5323db50d030d5808a22e60e804d_zps6248

Built up the suspension -

c748380f61dd6dbd410dc9a40fbcec77_zps91a4

And fitted that into place along with the braided brake hose and gaz damper. (The brake pipe is not in its final position) -

10fa55320970ff99d840aabfeda6f82a_zps9ec2

Also fitted a set of the new bearings into the rear hub -

e7750d6204d42f21c695402fdbe07ac5_zpsa983

1bf785d5a7f7af250fff26772002858a_zpsd7a5

And the seal in place -

248c2e7c6089fb7685be0c5adf44b745_zpsf349

Can't put this in place yet though as I've still got to knock the studs into it.

I've also fitted the side indicators into the wings -

95aa102c4da747f585f358d4a421f52d_zpsa8bd

71292d47f784e1b7b926cfa31600afa2_zpscf2a

That's all we got done today, should have some more to update tomorrow !


10-26-2014

Update,

Been out most of the day today so not had too much time to work on the Mini. I got straight to it when I got home though and have built up and fitted the drivers side radius arm and suspension.

Here's a few pictures, radius arm rebuilt -

2692da8891e4d67cf96bc8d24db7eba9_zpscb10

fff402901c68bc0a050b6a760bc03e29_zps10b5

It was getting quite dark at this point, so I had to rig up a light in the gazebo as it was getting hard to see what I was doing. I had to use the flash on the camera so excuse the picture quality from here on.

Radius arm fitted to the subframe -

aaec272d3a7d0ad4a719b04d35b399a0_zps88f5

Suspension built up -

f391188c45c37b3b1b57b47a3a4ebc4c_zpsedd2

And fitted to the car along with the shock and brake hose -

2b74bc5420ad2b8d014f29c6685a79b2_zps702b

That's all the progress for today but I'm going to finish off the front passenger side running gear tomorrow, then I've just got to sort out my wheels and she'll be rolling:-)


11-1-2014

Update,

Another big milestone has been reached today, she's now rolling for the first time in almost a year:-)

I'll start with what I picked up from Minispares yesterday, some genuine Minifins and a couple of other things that were needed to get her rolling -

2773bce7058a373eb49ed14009faf5ac_zps75c7

Keyed the surface of the lower arm pin with a scotch pad and zinc primed it -

5df9a5ac432a707c097e7c18bc488b26_zps1e73

Wire brushed the rear wheel studs and zinc primed those -

571dc58c4199ebdc2fb74d7423216834_zps4ee0

Give them a coating of gloss black paint -

efcc4c0e3a4708d293c6352bb4f6af46_zps52a7

Fitted the bearings into the other rear hub -

c422bd5a981c571b2a762bf4335a550b_zps6c96

2024a02df255cd9f5e4db653b6c52cde_zps3c55

Then fitted the wheel studs into the hub and the hubs to the radius arm -

f0c2e4a1f69ddae15790eabec17026fc_zps5650

bce53d3d1c278d7152e24aed19210a6c_zpscb34

And fitted my Minifins with a smiffys bits stainless screw, i think they look amazing -

bd0927c84e35c963ce2a34e8c86461c2_zpsd2e4

030a4ca4e4e35661f9129d04262261ff_zpsdc96

Just got to get some aluminium center caps from Smiffys Bits when his shop re-opens and that will finish that area off nicely. Then it was onto the front, built up the passenger side hub -

9e84df11010e94b7ca11a93d4fe51b14_zps884c

And got the running gear built up both sides ready to accept the drive shafts -

90cdef9ef7f40f3d9374a44a9fa58f14_zpsf59f

d9e4b668007b5700cc14525165cab4aa_zpsdf7c

I degreased, wire brushed and painted the CV joints -

1093e0bc7265965ac140b0d01c0f78e3_zps8f6a

Packed those full of grease and then fitted them to the drive shafts with new gaitors -

34345ec5bb879516201d912a8864d96f_zpsbfcd

cede7d628a527ad09d253f9995720140_zps2708

Popped the CV joints into the hub and fitted the disks and drive flanges -

48fd2b79d6ff411d9766a52939fc7bf6_zps80f8

301c658499e5a5e494089023f9cdaec9_zpsef37

Didn't bother fitting the calipers as I've got to torque everything up tomorrow as I ran out of time today. Anyway I absolutley could not resist getting a couple of split rims out to see how they looked -

3910dfb4799712a373c037b2914fb36b_zpse42a

43115f91c283a4743e7c6bfc4251efdf_zps7236

6e95fadf3d270b174cd0dcd18b5c7680_zps1b49

There's a nice amount of wheel poke so I'm a happy chappy -

3e63bc8380d2cf108a1f9a0e947a248d_zps6930

And then down on all fours for real, I've stolen my dads wheels for the time being:-) (excuse the picture as it was getting dark) -

beecbf8c95af2c77ad0b11689221075e_zps4285


11-2-2014

Update,

Ok guys, we've got the front half of the headlining fitted and glued into place, and have also fitted the windscreen and the top dash rail.

I'll start with the headlining, I must admit I took a bit of a backseat on this job as it's not my strong point, so I left the important fitting to my dad and was on strict tea making dutys ! Glad I did in the end, as he actually fitted them in the minis for a while when he worked on the line in longbridge, so his experience has definitely paid off.

I haven't got many pictures at all of us fitting the front half unfortunatley, somehow I've only managed to take two photos. I'll take some more of the finished front half tomorrow and more detailed ones when we fit the rear half during the week. Anyway here's the two top corners by the windscreen -

655518609a3688aaa0dc310ebd440af8_zps4f97

58157bb45efafc95a9b9d1ccb674563f_zps1ffa

No wrinkles and the fit is great, that pretty much set the tone for the rest of the headlining.

Here's my top dash rail going in, got to love the suede covering -

7bcdb8b8a5aba0e18a0a546e548e3526_zps6359

Windscreen rubber on -

c1bab964bf901e4b562f7908e26724a4_zps4e90

Screen in position -

405348892219550220692c14f1a9c2ca_zps27ad

And chrome fillet strip fitted -

061f736a21e1f26f55173b22dcf282ba_zps12ea

Overall shot -

f089231ab6305b1b2037cf3dbfae428b_zpsf715

35212287051f86fdc56787e813a63456_zpsaa72

So glad I went with the top tinted screen, wasn't to sure about them but it looks stunning ! Starting to look like a car again now:-)

Shot from inside the car -

e31a746ec0ffb5c47f6a7ef34465b863_zpsc9f2

Anyway, I'm going to have to send back the 7.5 inch brake conversion I bought from Minisport as one of the calipers hasn't been machined properly and I can't align the holes in the caliper with the holes in the hub to fit it.

Here's a picture of the two calipers, the first one is the one that fits fine and had been machined correctly -

2946ebdb655ddf2ee3e11749572bf21b_zps5b91

And the other -

111346acccd3a70249db299f22f1613b_zpsf6d7

You can see that there's a lot more metal above the piston when compared to the above picture, and it's that which is fouling on the hub and not allowing me to fit the calliper.

I could probably fix this myself but would involve me shaving some metal from the hub which I really don't want to do as it would ruin my lovely powdercoating. Plus I've paid good money for the braking kit and I don't see why I should have to correct their mistake !

I'm going to take advantage of this opportunity anyway and put the extra money to get the 4 pot aluminium minisports calliper braking kit, the kit I originally intended to get !


11-3-2014

Update,

Nothing major achieved today, just managed to squeeze a quick hour in this afternoon.

Fitted the bulk head sound deadening and carpet -

5c8243067a412dc3ea6e5aafcac6acdd_zpsa841

Then the bottom dash rail went in -

b48e08f638ff96cfa45145583af98643_zpscfd3

And I also fitted my MPI heater and tubing -

1bf4d473aab1b3a15934ea56849c00d1_zps6696

3535998b7caf7188412db47656148e54_zps7868

That should do a better job then the old single speed metal heaters, and I may even be able to de-mist my windscreen on those cold mornings !

I've took my wheels down to the powder coaters today so should be picking those up on Friday, I've gone for charcoal grey with glitter speckle and then finished with a coating of lacquer, should look the business hopefully !

Also, I'll be dropping the engine in on Saturday if all goes to plan, can't wait !


11-9-2014

Update,

Well, the plan was to get the engine in this weekend but unfortunately the weather hasn't allow for it, so I've got a few other bits and pieces done instead.

Here's what I bought from Minispares on Friday -

a33fe80ad5920c6b38a37dca3e81200b_zps5f5b

Could only get two tyres as that's all they had in stock, I've ordered two more so should be getting them soon. I've also bought a new car cover as the gazebo is keeping the bulk of the water out, but there are still a few drops getting in.

I also got my splits back from the powder coaters, I went for a charcoal grey with glitter and laquer -

c38f8be59ec1c7af266f3e658ea6b70b_zps3a57

f2b0aacb0c436ba58c49e92e07d7f021_zps7209

You can see the glitter speckle in this picture, it really pops in the sun light, the picture doesn't do it justice -

508c3fa6129c740564908639e0d91d3b_zpsa63d

The sun came out today so we pulled her out of the gazebo and made some more progress.

Fitted the rear hub dust caps I got from smiffy's bits -

ea61b0946024c8733c5b11045033e84f_zpsb528

25c30731d98063a12dce06c80ad48264_zps3243

They really finish that area off fantastically with the minifins fitted -

8493ce3ced397b91d679881bb072ecf0_zpsc319

1078c48fd0fbeb5cdacfac0aecd2e628_zpsd2c2

We decided to build up two wheels, here's a picture of the rims being fitted after installing the inner tube and the tyre -

f4dec30d65d666f813d262c9978c37e6_zps4ffa

28133893c565699d5037a3a21d751c50_zps8c2e

Tyres pumped up -

8c30353203ef848f0268ab30cae8705b_zpsc8e6

d4baf30d38e28a3a942defaca8608b4a_zps0646

And fitted to the car after a bit of tyre shine was applied -

d65a93b3a00684baa0de57ef3beb7617_zpse31b

Took the front wheel off and put it on the back of the drivers side as that's where it'll be staying -

240411dee30c29980428b8ec83efda34_zpsa445

c3730cb78c199d1f1fd7f16843f0ff69_zpsc4e3

Tyre poke -

3beb43ecab6bfca72c8761a6257c58df_zps5253

2f74beb4faabde8f32bbba92f9d2bf5f_zpsc53b

I absolutley adore these wheels, they look really retro and give a chunky look to the car, definitely worth the money and effort !

That's all for today guys, I'll be doing a bit throughout the week though as I need to get the engine ready to be fitted for next weekend !


11-15-2014

Update,

Yet another milestone has been reached today, she now has her engine back in and is rolling on all four split rims.

But first, here's what I got from Minispares on Friday -

bb1f3015a300314b4ac48c40ee91a192_zps2356

Now onto today, the first job was to get the other two wheels made up ready to go onto the car, so, here's the tyre and inner tube fitted to the back rim -

80c83bcf3c587cadb004da468da5abc8_zpsfeba

Front rim bolted on and starting to pump it up -

fc5ffc4fc52a2282b43a788bc1375ba3_zpsc95f

Do the same procedure for the other wheel and you end up with these -

6ed59adff2495ecb7e694ef11da33ae3_zps01f3

Happy with that we moved onto the engine, we made a pallet and attached some wheels to the bottom so we could move it out onto the drive, here it is ready to go in -

3ae8beb171b9a8fd08f5565750260c69_zps3706

Here's the engine crane we hired for the day -

76cd777a8138c690cfc1bd1c38eaf14e_zps19f7

I did have a picture of the engine suspended but have lost it, so I'll have to skip to the engine in the car -

7ce163a7d11a3d475c6f56750c86b30d_zpsfdb3

Then it was just a case of popping the drive shafts into the pot joints and putting her down onto the wheels. Here's a few pictures of how she's looking now -

23c5a668e0656a2f6c296916df7d5244_zpsd956

981d5b73bb4de6ad90d62bb4eebfc7f6_zpsde21

d82a0e5c95aedfd2b2e6a2a71b341f2b_zps6ec2

d3b7379cbdd233a7b46cbf74efd11f79_zps3a84

And then back into the gazebo she went -

3a3870fce896d8763744ca655bcb57d4_zpse347

9ef61ada6b496102007b9386cec4e330_zps9e97

We're going to finish the headlining off tomorrow so some pictures of the that will follow !


11-16-2014

Update,

A bit more done today, the headlining is now fully fitted and I'm really happy with how it's came out. Here's a few pictures of how we fitted it.

This is how the Headlining looked around the C-pillar before we started -

d4db29a5ce4f40502b7d484e65097156_zps5944

We trimmed the bottom off so it's straight -

ecadde516a85517171d7a0681561c460_zpsccf6

Then we glued the rear and side window flanges and the back of the Headlining. We left that to go touch dry and then literally just stretched the fabric until there's no creases, then stuck it down and placed some old boot rubber on to keep it in place -

524261438cf69af50802ddced03ddbfb_zps3f90

That's literally all there is to it. The same process applied to fitting the headlining around the side window, started off with this -

85e2aa8b63368e26ba966852a40a183f_zpsbd42

Glued and then stretched into position -

13fb56665c5ea83b89618c371e9bb007_zpsda85

Now onto the more tricky B-post, we trimmed it to fit around the flanges like this -

4baf63bc663af6e125bd798efb1f776e_zps808b

Apply some glue and pull the fabric around each flange and you end up with this when the rubbers are fitted -

aa84d898d7f646be618c45f0bb2595ce_zpsfb7c

Here's the other C-pillar finished -

d8c098ebec5cbc5f783fedcc60ba4946_zpsbb88

The other B-Post with the interior light fitted -

3382e1bc375e90f76a8f2c293425f324_zps61de

And a few overall shots of the finished thing -

7c8788c8a295020984861709e1d4d9e8_zps4029

54c1f92dff347daa6d1c3f5178ee6d2e_zpsbf80

917df234e87600a5b21c6266fca20011_zpse350

711ad43ea1150d378428e3af1d20dca7_zps81ba

0006fb9d714d253870001479b1855d1d_zpsad20

We also fitted the little bit that goes along the parcel shelf -

70ea73836b15c1f57ae9e45f58d58769_zps12c6

Happy with that I built up my boot lid and got that fitted -

e6d4826d22e82655a032b5c33bd4780a_zpsf065

45bc1309980e2ff19461a6d4f704762b_zpse7e0

0b07fe3cbc9d39a1f5e01d9a29fc21e3_zps0f42

0b5842d74288d77469821d649d8af519_zps8fe4

00e44292b00a61d2b648434f99ffb18b_zps8744

That's all that's been done today, I think the next job will be to get the sound deadening down so will make a start on this tomorrow !


11-24-2014

Update,

After what feels like an eternity, I've finally received my 7.5" brake kit from Minisport. Here's a few pictures -

b7391d3dc4b680b42aa003dfa980dbc9_zpscdcf

a5287b868a9cbd96e383ce922e5b7ecc_zpsdda1

7843cfe9fcc0f16b01049d7a3697864e_zpsf683

They're a gorgeous bit of kit, it's amazing how light the Calipers are, so glad I went for this kit in the end !

Anyway, I've been laying down sound deadening over the weekend, it's taken three days of laborious labour but it's came good in the end. Here's a few pictures -

75b9fc1f9b76fe5349c11937fda4ca81_zps7e2b

1c2a94cdb5eea7ecbc44a0088dcec9fc_zpsc422

It was a case of warming it up with a heat gun, then laying it down and making sure to push it into all the indentations in the floor, then once I had it all layed down I went over the seams with aluminium tape. It does look like a fairly straight forward job, or so I thought it would be, it's so hard to work with unless it's warm, and even then it's a pita. I've definitely got sore fingers now !

I've pretty much copied where it was put in the factory. I know you can go crazy with it and cover every interior surface but I don't feel it's necessary, and you'd be surprised how heavy the stuff is ! If it was good enough in the factory then it's good enough for me !


11-30-2014

Update,

Git a bit more done today, I'll start with the purchased items though. Ordered a few items from Minispares and Smiffy's Bits during the week, mostly nuts and bolts needed to finish a few things off -

eee6ee6745a54ffe11b12882476d9466_zpsc4d4

I also picked up this little beauty, couldn't say no really as I got it for a great price -

74b4eaab3904c51ae0fd480c2b926ef3_zps3a6a

e36a7ae7ce0c8575dd07a1b7d3ece1ea_zpsddf8

And a pair of window runners too -

97c7a0dec1062fe3a94827a6a6d669bb_zpsc5ea

Now, onto today's progress. I wanted to get the doors back onto the car this weekend so the first thing on the list was to sort the hinges out. I took them all down to bare metal using a wire wheel on a drill, like this -

b2320fb4fb51916c4a1001c7b247b521_zps229c

Once I had them all like that they got a good coating of zinc primer -

19c33539075d63b65c90783777ddffe5_zps147c

And then a few coats of gloss black -

c521b7728a3aa09605ebbcebd39aeee6_zps9f95

Next job was to knock the pins through the holes in the hinge, but first I sanded a small flat into each pin using a Dremel with a metal sanding wheel so the grease would have some where to sit whilst the pin is inserted. Then I heated the pins up on a gas hob until glowing red, like this -

a4213a0bab53a029c6fe4fef41934866_zpsc40a

And then dunked them in some ice cold water whilst still glowing. This will harden the steel and increase the life of the hinge.

Here's the hinges built up and ready to go back onto the doors -

571272d838da3c9a8a6bb772abe47174_zps804a

Next, I partially built the doors back up. Handle cleaned, polished and refitted back to the door -

df653025176a503bb239781c76f8cdc7_zps62cd

And the inner workings bolted back on -

78931fbf30ac83dad45bbf26c668fc16_zpsbdc6

The optional Smiffy's bling;-) -

2b244f9a5991611371989fe30300306c_zpse577

Same applied to the other door, no glass however, its on the 'to purchase' list.

I enlisted the help of my dad to hang the doors, please excuse the pictures as it was getting dark at this point.

Drivers door -

c2766076052c27d67f997e1707d2f183_zps3e88

Passenger door -

7d7d480503fd7d044f3b4cad6dbe4f60_zps0141

Their not in the final positions yet, I've still got a bit more fetteling to do as it was getting difficult to see and I didn't want anything getting damaged !

Anyway that's all I managed today but I'll upload some better pictures of the doors fitted tomorrow:-)


12-6-2014

Update,

Didn't get too much done today unfortunately, but progress is progress, I'll start with the bits and pieces purchased during the week.

I took full advantage of the sale Smiffys Bits had on Black Friday and purchased a few of the more expensive parts he has to offer. I also went to Minispares this morning and picked up a few nuts and bolts and some radiator overflow tube -

2ca9d1a6213e348d75ba714500815bb4_zpse1e1

Fitted the stainless caps onto the tower bolts -

e4292d838c5b8d17d10ddaae86deb585_zpsf64f

906f466d02bc7e4982329cf10687d494_zps1d75

Brake reservoir cover fitted -

a3c7e5b4d10ce39b245e90bd5486966a_zpsfd4f

Got my freshly rebuilt pedal box fitted, along with the accelerator pedal -

d80126279991ba4e4abb252fd4d81a11_zpsc414

With that in place the next job was to fit the servo assembly to the car, gasket in place -

1723afd9c96e06f252c97dd255823eaf_zpsf77d

Stainless plate added -

5b8af4c3403085ec6d2e544296ea80ad_zps7c16

And then the servo -

b305c97f2b91d61356534f31db6f7df6_zps0b97

Also fitted the new seat anchors -

bd6c12dfd8bac738f7ac39519203c4a3_zps26af

27272b5e400a26ad39d2c9ab6da15dd2_zpscead

And Finally I fitted my stainless steering drop down braket I got from Kiddspeed a while ago -

7356346d5ea7264bc6eb43292245c26a_zps4785

That's all for today but if all goes to plan tomorrow I should be fitting my brake kit I got from minisport !


12-7-2014

Update,

Well today didn't go as planned unfortunately. I jacked the car up and removed the passenger side wheel only to find the new cv boot fitted a couple of weeks ago had a small split in it -

6b776ebc68195b2f90ee7bcfe0cfa00f_zpsdaf3

Now, I'm not sure whether this happen'd when I was fitting it or if it was already there. Luckily though I had a brand new spare one.

So, ended up having to remove the whole hub assembly until I was left with this -

5da8a5c75d8ca7798b990de3ac1f85ca_zps626e

Wrestled the cv joint off the drive shaft and replaced the rubber boot -

7c0040aa98f7b1fcc74c208be0a01a16_zpsd090

And refitted the cv joint -

5ee7a9fe85042fc2e756abc0d3bd61b2_zps4642

I also noticed I didn't fit the white platic dust shield over the oil seal on the back of the hub, so I dug that out and fitted it -

d407513eee14480409be73feadfd041c_zps923b

So with the hub back on, we started on the job I originally intended to do, fitting the brake assembly. Screwed the drive flange to the disk -

e4343d0d6edf0752a5511e44bd6c5e98_zpsbfac

Placed that assembly onto the shaft and torqued it up using the flat washer tool from minispares, here it is -

b543657d3939028dedac520b409e9089_zps5152

Took that back off and put the hub nut split washer on, then torqued that up and put the split pin through the whole and bent it around -

2d4553dc225cd5da7875720270de5ade_zps7734

Fitted the caliper and the braided hose -

0c5e3981074603327428040ab8210f1f_zps3492

And then put the wheel back on, took a picture through the headlamp hole, looks the nuts -

f327866719c9435f2d7d550843a15e18_zps5bd3

Started getting dark so we didn't have time to do the other side, but I did fit my bonnet catch assembly with the stainless bracket from Smiffy's -

f415cf4333cb9ce09b70687f5595cbfe_zps12ae

That's all for today, but I may get the drivers side done tomorrow, weather permitting of course !


12-14-2012

Update,

A bit more progress made today, I swapped the brake disk on the passenger side with the other one, so now the holes are facing forward -

6c50ea3ccaf2b5260837cff434c1b2e0_zps5ba6

And then got the drivers side built up -

9a6305a62f30cde41b920a1304b82e88_zps33a8

731db222022e5365b7fcc74712f94b71_zps66e4

With the wheel back on -

2df50a295fa7e2b6088ad1607b6f0f11_zps2bae

Here's an overall shot of how we currently stand -

2c00f1dd8c7ab972e4830c42b6de8070_zps4e0f

Still lots to be done I'm sure you can see. Anyway, I put the car away and went around the back to make a start on stripping down the last few parts that need refurbing.

Here's the gear selector before -

11c86e7f894fc05c05380a0095b32c13_zpsf4e0

And after -

36f0cbcbf6315ea8f715887d87bf6e8e_zps3abc

I'm going to replace all of the rubber components, clean up and polish the aluminium casing and I'm thinking about having the two arms powder coated.

I also stripped the steering column down, before -

970981a845b4c811193a6cb157f05a7b_zpsc24b

After -

88491b4634bff6beedd08006e52a88e3_zpscb4a

Same story with this really, I'll replace the nylon bushes in the column and give the whole thing a general clean up. All of the electrical components are fine so I dont have to worry about those. I'm looking at getting a Moto Lita steering wheel and Boss which should finish it off nicely.

That's all the progress for today:-)


12-15-2014

Update,

Refurbed the steering column today, I started by using a wire wheel in the drill to remove the old factory paint and rust from the bottom of the column -

5dc24dde33c6f1a5542f82490a995a0a_zpsd02b

Zinc primed and a couple of coats of gloss black applied -

54bee336a5d865e240cbb93e5f2c7ca7_zps6fa6

Next I degreased and cleaned the column tube, inside and out, and cleaned up the stalks and mechanisms. I had lot of zinc overspray on the steering cowling, so I t-cut and polished it until it was all removed. For a 20 year old piece of plastic, it's came out quite well. I also re-used the nylon bushes, as the first job I did when I bought the car was to replace these, so there's no wear on them what so ever !

Then it all went back together again, here's the finished thing -

fd884189d6296e2291c12b6aa472b3e4_zpsc912

a29966dabcb0f013f98d0dbca709faaa_zps59a1

Went and Fitted it back into the car, I also torqued up the steering rack u-bolts once I was happy with the position of the column -

05c818b9b307531ad903e9e558664bbb_zpsaf24

be4626360a4f4d41ce7470fa34920c34_zps52c4

Another piece of the puzzle done, she's starting to feel like a car again:-)


12-19-2014

Parts Update,

Been down to Minispares today and brought the last bulk of items I'll need before it all closes for Christmas, here's what I got -

2255a215a71044cec75c4808e1d8ebdb_zpse444

Close up of the Paddy Hopkirk pedal -

247fcc56761c97ccaf762db5bce0138c_zps60f0

I also received my stainless Fletcher exhaust system through the post today, here it is -

eae086dc6ab3094a93cf0781531418b0_zps7498

df36dd085fc24d48c2449bc76d7d4f37_zps8e9d

Massive thanks to Minispeed for posting that next day delivery, probably wouldn't have received it until after Christmas otherwise !

I've also ordered some more Dynax S50 cavity wax, aswell as the bits I'll need to refurb my front loom, so hopefully those should arrive soon.

Anyway, that lot should keep me busy throughout the festive period, will make a start tomorrow !


1-2-2015

Update,

Well, I decided to take a much needed break from the Mini over Christmas, and apart from my gazebo collapsing due to the snow, it's been great !

I've been back at it today though, here's what I've got done.

Started off by screwing the stainless manifold studs into the cylinder head, and fitting a new gasket -

da400a8fa635e237cad05a75f2f13c1d_zpsd88f

Then fitted the manifold and y-piece -

c8c506096e9f9da7e9b9330a64ae6e48_zps3d12

Next to go on was the inlet manifold -

c6bb8aa004909219dcba7473da70346e_zps38fa

I stripped down my carb, cleaned the lnternals and put it back together again. I've also polished up the dash pot a bit, didn't go too mad with it though as I like the look of the aged aluminium -

8da8c8efefb451a5fda0332ba2934819_zps7217

And got that fitted along with the accelerator cable -

921391b2ff75fce82b7edaff6112c087_zps1da3

Still need to get the thick manifold washers and a few other things to finish that area off.

Next job was to fit the link pipe and back box, here's a few pictures of the finished thing -

62b713bd002294d0d239613b7229313e_zps3c4f

7bc07c694c82e2ad804b81efdc7cf08e_zps418f

2bb4312de6f27723b892f102fd5c750e_zpsfffb

That's it for today, I've got a few things to sort out for the next trip to the powder coaters so I may do that tomorrow.


1-3-2015

Update,

Only a small one, after searching for ages I managed to find some of the moulded factory sound deadening that's fitted to the front bulkhead and floor pan from a member on here. I received it today, here it is -

9a692a2d1a73a8e5a5d393bfe1f09f18_zpsbc42

It's in pretty good condition considering its 20+ years old so I'm happy with it.

Anyway, there was a brake in the weather earliyer and the sun came out for an hour, so I cleaned it up and got it fitted into the Mini -

075633becbfdc636e8dac84a4c2d2485_zpsf91e

It should help keep the noise down inside the cabin, plus it's nice to fit something original from the factory back into the car.


1-24-2015

Update,

Haven't updated in a while as I've been saving for Bingley, so haven't really bought anything substantial. I have bought a few small bits and pieces though, and I've also collected a few bits I sent to the powder coaters last week.

Here's what I've bought, a few stainless nuts and bolts, assorted pack of automotive grommets, and a few other things -

9cd1d0ba25af2254b6c908fa5e2b0363_zps6f42

Took a bit of inspiration from Pete's thread and bought these to secure my loom where needs be -

e356247e17f77772b77ade9c26a8e22e_zps1efe

Bits from the powder coaters -

264f0746de6feff5065f7bcab3208087_zpsf608

Really happy with the tank, I'll be purchasing the POR15 cleaner/sealer kit for it also -

bd7fef1f04c777ab3552f62ab5f89388_zpsaf91

Went for the same colour I had my wheels done in for my rocker cover -

97b96dd88f988137f5c6aa0693fe5853_zps6d5d

Now onto today's work, got the battery cable secured to the subframes with some stainless p clips -

6eeca26b36e61d2e06b95f77eef317c1_zps8bd1

ffc50746db489f2efb25adbb40c3c62e_zps4667

Then got the rocket cover fitted -

b11d51a1da8d2359ebbe6637c78e661a_zps376b

I think it looks excellent and finishes off the engine great. Next up was to fit the cowling onto the rad, couldn't get hold of the bolts I needed today and the originals don't don't fit as there UNF and I need UNC as the rads aluminium.

So I've secured it with some longer temporary bolts we had lying around, I've got some stainless ones on the way so will swap them over when they arrive. Here's it is along with a stainless rad bracket from Smiffy's -

f8e0f82c8c709455967270e79b5969ff_zps4ca6

And fitted onto the car with the silicone hoses -

2f7604164609340c0a22210d75d07f24_zps63aa

It will have to come out again as I've still got to fit the crank pulley and what not but I'll worry about that at a later date.

Thats all I can really get done now until I go to Bingley and pick up the other bits I need, but I'll post some pictures of the stuff I pick up tomorrow !


1-25-2015

Update,

So, we was up early today to make the trip to Bingley Mini show. We arrived around 9.30 and went straight in to what I can only describe as madness, utter madness !

The Mini scene seems to have exploded over the last year as it was the busiest I've ever seen it, a lot busier than last year in my opinion. After having my toes trampled on and waiting for what seemed like an eternity to be served at the various stalls, I poured even more into my bottomless money pit and got almost everything I had on my list and more, with the exception of glass and various magnolia gauges, as no where seemed to have them.

Rant over, this is what I came away with -

d1a83964f1415d0825084efaa1d58b41_zps321d

And a few close ups -

ca5926e54046b85c4abd2f5533d8f9f8_zpsfaf3

6894c93510ccbe734473885c6203ab92_zps0055

3204753167a37e3cabd21f5985813f85_zps37da

cb7ed40e4c6af4eded83f807e31d9346_zpsc4ce

5ec53c901fe98c63275e38b4a2cec10d_zps9f12

I absolutely adore the DSN Billet bits, and I saved almost £100 on the Burr handle set and cappings. The packet in the background is underlay for the floors, so that coupled with the silver bitumen pads that I've already laid down, and my Newton carpet set should keep the noise right down.

Anyway, that should keep me busy for a while now, I'm going to get the glass from Minispares next week and then drop it off to be tinted. Haven't got too much more to do until she's ready for the road and I can't wait, I've got some BIG road trips planned for summer time !


1-26-2015

Update,

I've been able to get a quick hour in today, so I've gotten the felt sound deadening in.

It's a really nice quality felt, and it's a good half inch thick -

2df98bfae58a69d178c87aac39fe86cf_zpsb15a

Here it is in the car, it required a small amount of trimming but nothing major. It's damn hard to cut though ! -

17923b4f88a957ce208da04016fd39cc_zps6c50

078e97b1ea193acbf7481839f2518fa2_zps27a5

915d2f2abc1704de4b18520a4de7b15d_zps8dc6

And I also got the front bumper on -

0bd353dc20447aa168ee34eaaf5f6516_zps1f9f

I think the next jobs I'll do will be to get the handbrake assembly fitted, finish off refurbishing the gear selector and get that in, then the carpets can go in.


1-31-2015

Update,

Picked up some much needed supply's yesterday, de greaser, spray glue, paint and what not. I've also bought stainless nuts and bolts to replace all of the mild steel ones on the gear selector, and a couple of things from Minispares, heres a picture -

de2a323ea21c6fda1e3476dfde9ba7b0_zps7983

96f40edf97f4bf88866ca9d5f013f893_zps723c

Also picked up some door glass, didn't have the rear screen in stock so I'll have to wait -

89cbf9e069519f642fdba6faaffd9f80_zps435d

So, onto today's progress. I degreased, cleaned and re-greased the window regulators -

226f735b3f622eee2bdfe81f94080fde_zps52e9

2d7507f4ed5fe7c18371087366c07e0f_zps0b78

Fitted the window runners onto the glass -

155c15e13d78a9714c24c000cd07dd60_zps00b8

And then went outside to build the doors up. I put some non setting putty around the window regulator hole like so -

0ab678a6e30d9125651078e610b0cb89_zps20e2

Also replaced the foam pads behind the door workings -

11b65dbe8db615aafa18249e12399c86_zps2ac9

Then we fitted the glass and chrome weather strips, here's the passenger door -

88a708d8ccc266ce53bb35908f8abd74_zpsf1f1

And the same procedure for the drivers door, putty on -

f7178e1bc65d09c56eb554d204021a81_zpseb58

Glass in and weather strip on -

542a9b8c846ef3105ca42c3ebe3ca21d_zps532a

I picked up some plastic sheeting for the doors from Newton Commercial when we went to Bingley, it's great quality and fits perfectly -

996e5251e5ef8a68cdec042415880533_zpsd33d

5d2cf96db7d25b8fd7f4362d1514acc5_zpsdc13

Happy with that I went back inside and made up a parcel shelf out of hardboard -

cb71bc8b5fca8650cb47a09fa1263e39_zps364b

I've covered it in black suede left over from when I recovered the dash rails, here's the finished thing -

dca8a107818808cd79cd04c0dd25fe15_zpse22b

That's all the progress for today, I'll have more tomorrow !


2-1-2015

Update,

We got a good days work done on her today. Started off by fitting the rear wheel arch covers we got from Optimise, brilliant quality as is the same with all of their stuff -

40bccebe395668373f73234d01036990_zpsab8e

3ef32385825b1d1d7b87e8a81a1d5705_zpsaf6d

With those in place that means I could get my rear seat and seat belts in -

fed58a5a4e80a0f145a145a20fe843d3_zps1e24

The grey lip finisher is temporary, I'll be getting some in black. Also got the parcel shelf in -

36824f8851c7f564ab4c81dfb8e428a3_zpsac15

Next we carpeted the crossmember, inner sills and also fitted the rear half of the carpet set from Newton Commercial -

0a8a4418b46616e0377e87da951f05bc_zps643d

bd14a0f46150aaad1a0d8d4d78c5e650_zps7076

Excellent fit and hardly any trimming needed. I'm leaving the front carpet & sound deadening out for now as I'm going to refurb the gear selector tomorrow and get that fitted.

Next to go in was the front seats, here they are -

deb3278cc0099c706381ccaa30da81e3_zps3c13

c428702f392a2ebe7a0ccc3ef58c4c58_zpsd0de

And finally a couple of overall shots of where I'm at -

54c7b2912ff59a4b6299b1f5c60bd79a_zps4595

bd4da5100d29bd66379239fa5ac97e5f_zps2986

It looks excellent inside the cabin and the smell is absolutely amazing, like a Mini that's just rolled of the production line at Longbride !

That's all for today, the next jobs will be door cards, door furniture, door capping's and then the plastic pockets can go into the companion bins.


2-2-2015

Update,

I've spent the day refurbishing the gear selector, here's a run down of what I did.

I degreased and wire wheeled the alloy housing first, the old grease inside was a pig to clean out as it had turned into what resembled cheese string. Here it is -

ca406e07ee48cb4ed701d5271125d684_zps1680

Next I wire wheeled and zinc primed the two arms -

126de2014d08fc8f48002632cd33ee37_zps1612

I also painted these gloss black but didn't take a picture. After leaving those to dry for a while I started to assemble the selector. I fitted the lower arm back into the casing and knocked in the roll pin that connects it to the 'yolk'. Then packed it full of fresh grease -

79b405dae72357c77bad9846493c35f3_zpsb048

Happy with that I closed it off with the plate I had powder coated, I also replaced the screws with stainless allen head bolts -

934eb21f653d885fd1087590912801e5_zps926e

Next to go on was the upper arm, the other powder coated bits and new rubber bobbins. All bolts have been replaced with stainless ones -

40d67a74a60557553410aa45ec1ac395_zpscdd3

I got a Moto-Lita gear knob for Christmas, it's new old stock and was quite expensive, but will tie in nicely with my other Burr furniture -

e74be65865808e4c4ad99d28185dd1b9_zpsc0ae

2f15cd43a01cf35fe450f6c5b7b121ec_zps413f

3c4537bc95614648cb8720aec2150b53_zps65f5

So I got that fitted along with the sponge and rubber boot, here's the finished thing ready to go in the car -

5f161c69e28cc31950aac144631aa10a_zpse35e

Will probably get that in tomorrow.


2-9-2015

Update,

I'll start off with what I purchased over the weekend -

a48c071572a2ee534f19737436a97543_zpseb89

Just the dual oil and water gauge to get now and then that's the full set. Moving on, I've now gotten the handbrake and gear selector fitted, here's a few pictures.

Handbrake assembly fitted into the rear drums -

f3411849479b63cbae6ef58ffc22726a_zps8bb8

c1bd7ad2d107005c32091b94394d6b20_zps3c3b

d11248a555d6a517884eeb4c4486eb58_zps489f

Fitted the Walnut grip and bolted the handbrake into the car -

c477b27ef53eca4f9a8be27625313314_zps8f4a

Then the gear selector went in along with the front underlay and carpets -

c1e9ce37f7302e46c359368f0368f46c_zps3c73

I also mocked up my dash, it's not in permanently, I still need to buy the edging strip and a few other things yet -

80d64bf4ca57cb9a237c55989c588d62_zps542b

bc0f68e37ef62328d48e0633a59bb23f_zpsdd45

I've also cleaned up and painted the clutch master cylinder, here's what I did -

Wire brushed it back to bare metal -

f7b22085268916dfee9eaf63307a78fd_zps8ea8

Zinc primed -

29ff21be4e38e72bcfaf9289ea712aee_zpsd1a1

And then a good few coats of gloss black -

a3e54d8ebc8c66a2b4f7e6e13526962a_zps7ba0

Cleaned up and rebuilt the plunger system with new seals and washers -

3ae389c0f38cae42da39c23defbf4635_zps6587

Then put it all back together, here's the finished thing -

984d4b43e02dd46d88b25be9eac3a514_zps89ee

And finally, back in place on the car -

2c8cf5a84550779ce6b92d46680a8ba7_zps2404

That's all the progress for now,


2-21-2015

Update,

Been fairly busy of late so haven't been able to make much progress on the Mini, but got out there today and got a fair bit done.

I'll start with the items purchased over the last couple of weeks, POR 15 fuel tank sealing kit, various stainless nuts and bolts, braided fuel hose and a few other bits -

ef82a33f3365bc756e88e37c1d66d48b_zps18ca

dca9c3cad8959651811dda479bfc4e56_zpsc774

Finally purchased the last magnolia gauge, as well as a braided oil hose and a new speedo candle -

e0c50053cfc0d1e3a60ae0b079473f96_zpsf7f1

13b3655e3eded8f9fb2197b6d02e613a_zpsefb1

Had some new C-Pillars made by optimise as the ones that came in the headlining kit was a bit pants to be honest. There perforated vinyl with black stitching -

df6b32efe27a05f0f554284866ff2246_zps34b9

3e442913cc916e7abb3fc7fc809b498f_zps0da6

Managed to find some factory bulkhead sound deadening from a member on here in mint condition, needless to say I snapped it up straight away -

4e9ce9a982b2cec67c76853c2a48ea08_zps2109

And finally I purchased this little beauty -

a3ba665d7aa9e0696c03d95cb7eefe68_zps34e2

28d781242f4d95a973b5757d3060a256_zpse716

Not cheap but will finish off the interior nicely.

Now, onto the work that's been done. Started with the fuel tank and began the sealing process. First, we ran a magnet around the inside of the tank to remove any media that was left over from the blasting process, here's the results -

65e0807a6dca8f48abe801550db06c1f_zps846e

Done that a few times until it came out clean. Next we began the process of degreasing the inside of the tank using the POR 15 cleaning solution. No pictures of this stage as I forgot to take any but I can confirm its brilliant stuff, removes all of the gum and grease from inside the tank.

With that done it was time to put the metal prep in, here it is inside -

067C8F86-7F50-452B-9E61-AD315E80C075_zps

Left that in for around an hour, rotating the tank every 5-10 mins. As you can see from the picture above the metal is clean and rust free. Drained the solution from the tank back into the bottle, as it's re-usable, and placed a hairdryer into the filler nozzle on full blast for a while to dry it out -

c536b421d1ea5b3418ff7940b0b655f9_zpsc288

With it dry we began to pour the sealer in, here it is in liquid form inside the tank -

69C364D5-9210-4B6E-BDF9-6DD5D96B517C_zps

Rotated the tank around a few times and then poured out the excess and left it to dry for a few days, here's the inside now it's dry -

06f1de63404b0fc5dd12ad7b654e4e78_zps3511

Very happy with it, and even more so that we managed to keep the small inline filter inside the tank free from the sealer, so there was no need to break it off.

Now, with the tank ready to go in, that meant I had to get the rear lights wired up. As I'm fitting MK2 lights this means they won't fit into my current loom so I've had to change a few things. This is the rear light wiring, they're bullet connectors -

765f29623844348ad1707bdcd20e3663_zpse774

I cut those off and bought some male to female spade connector plugs to replace them -

a476dcd373ff1a8398f7e7b6dab625ea_zps4fde

So, I crimped the male spade end onto the rear light wiring -

fd185653ca724b496950347909cdb33c_zpsaa6f

And then added some solder to enhance the strength and conductivity -

ef8f8bd134d875a3efe1a43ea119d4a2_zpsaf86

Done the same to the others wires on the rear lights and then went outside to repeat the procedure to the wiring on the loom. Snipped off the factory connector block, crimped on the female spade connector, and then soldered those as well -

6ad56b274a9f78358150572779782b24_zps51bd

Pushed the connectors into the plastic housings and then plugged them together -

19b8a7f9c127a601570c1d9c57ad089a_zpsec28

With that done we put the tank in, such an awkward job and not made any easier with the fear of damaging fresh paint. Anyway, we got it in eventually, I've replaced all of the securing nuts and bolts with stainless alternatives -

856d2b2fbdd415aa8dcd8a09a97cd27c_zps3c20

34d9a35b405290394a42f354100311ff_zps4841

Washer bottle cleaned, back in and connected up -

2fb329e735c2ac7b68419f058a394541_zps7620

We also secured the loom to the boot floor using the zippy clip plastic blocks I bought -

3e655383b5f3b80d0ca5889aa866f074_zps2969

c214f3f9a65106addeed8da11a7b4b21_zpsc43b

Plumbed in the new braided fuel hose -

4710eb8983bcde1232188886960f67d0_zpsb601

4DC8355F-AE3E-448F-AC73-7129D174EBB1_zps

And also fitted the bulkhead sound deadening, as well as the braided oil hose and speedo cable you can see poking through -

902bf48d343f0cd291461290a483e0f7_zpsdc83

Finally, we fitted the pin that holds the clutch master cylinder and the clutch pedal together, managed to get it into this position with the aid of a pen magnet -

0690436ab8be7feb5fbed88690adc7f5_zps5784

And then using a hammer and a long flat head screw driver we tapped it home and slipped in the split pin. Looks/sounds pretty simple you'd think, it's everything but that believe me. NEVER AGAIN:lol:

Anyway, that's all the progress thus far, may crack on with refurbishing the main loom tomorrow.


3-1-2015

Update,

Not a huge one unfortunately as the loom has taken longer than expected to refurbish. I'll start with the purchased items, a few things needed for the loom -

dd35c0b60d67c9a3a3d8f5f127f7f080_zps3f2d

My rear screen finally came into stock so I picked that up along with a new rubber and chrome filler -

765229f72e74b05f7440e699f80d9cd8_zpsb968

And I also bought the boss for my steering wheel -

9f8ecffaf1f517e78fe3875733bb9906_zps53be

873749d4555d682d866e75e0f0a49913_zps61e9

Now onto the loom, it's easily taken 20+ hours to refurb it due to the state it was in. I removed all of the old tape, cleaned and checked all of the wires and re-wrapped it with fabric loom tape. I've changed the fuse box for a new one and replaced almost all of the bullet connectors for spade terminals except for the ones that connect the front loom to the rear as these were fine. I've also changed all of the connector ends for new ones including the alternator plug as they were badly corroded and also cleaned up all of the relays.

Here's the overall loom now it's finished -

5d70a44b46dcd57754aec1f679aa9f67_zps00f7

And a few close ups -

2aca8d56c10e23f6205ab1000e919a58_zps6ae3

f905b65ca1188d7525af76e2f68be774_zps54ac

9464a6e41f26247aebd935067d1b3235_zps3f98

e9825369d94073ae0f44734645519b50_zps4dbe

2d0af4f82e6b4aae54dee3ad9358c56f_zpsd5a4

That's now been fitted back into the car and connected up. Next job was to plumb in the water pipes for the heater, here they are connected to the heater along with the heater valve -

e140557386590338d2cbda2f89b34ce2_zpsffa2

Fitted the heater back into the car and plumbed the hoses into the engine -

86fc8fca3125e85fbecbd2bb954013cb_zps8ec7

Got the rear screen fitted -

36e49ff1c7bea924052edee5e41f0ac8_zps01b4

0c06edf26282de1688f71d548d8110b4_zps5f2e

And finally, fitted the steering wheel -

e776ddc6ba6b44dc14fe13036fc2ef0d_zps8257

That's everything I've got done this weekend.


3-16-2015

Update,

A tad overdue !

Unfortunately, my iPad committed suicide and my phone decided to take a shower with me, so I've had no access to my pictures. (You can probably imagine how the rest of my day went:lol:). Anyway, my phones now dried out (thankfully) and Ive bought a new iPad which means I can now update my build thread.

Ok, the brakes and clutch are now bled and fully working, and shes finally running and moving under her own steam in almost a year and a half !

I'll start with the purchased items as usual, brake fluid and a few other things -

42d65cd1f94339e9a1d6022b9f8f3fe7_zps5bef

Lumenition Leads -

e43571fbd65360a2bd1e7944c629979d_zps2d7b

Eezibleed kit, best money I've ever spent, brilliant bit of kit ! -

69d27f3ad111ad89313e2f77401be234_zpsbc85

All the bits needed to crank the engine over -

567384cca1aa185478d54f777b0f47d7_zps38eb

I bought the 075 Peugeot turbo diesel battery as recommended on here. An absolute beast of a battery and more juice than the Mini will ever need -

d8dc763ec5aefbdd3da3ef8b335cbf92_zpsd2da

And a quick close up of the Lumenition Coil -

866ac8c7277042f3a75e3adefce5a635_zps44b1

Finally, took me a while to find this small rubber boot that fits onto the brake pedal shaft but Somerford Minis came up trumps. Quite expensive for what it is -

f81f80efd547ce7cbf8049b2a0fa49fe_zpsa833

Now onto the progress, got that rubber boot fitted -

052d784ce5074459a628c3497f130942_zpsa277

Next job was to bleed the clutch, what a nightmare ! I couldn't get it to bleed for the life of me, no matter how many times I tried I had no pressure when I pushed down on the clutch. I ended up taking off and stripping down the master cylinder and upon closer inspection of it I found a small score in the piston barrel which meant the fluid was just pushing past the seals. Damn !

So I borrowed the master cylinder of my dads mini and low and behold, the clutch bled up and worked perfectly. Here's a couple of pictures of the bleeding process using the Eezibleed kit -

78a5a95c37f2bcaec5aa651e728d6f0a_zps4a7d

6105242551da2ef6cbdd0c0dafbf36f8_zps5fb6

dbce0630c0ecca54fb877f377dfdcea7_zps99d2

Luckily one of the members on here who's only five minutes away from me had a brand new plastic body master cylinder in the for sale section on here so I popped down and had that of him. Was quite lucky with that and I saved myself some money which is always a good thing !

Anyway, here it is -

aba9e11e2fbf62fa697d9d4f5868a908_zps72f4

And then fitted to the car with a braided one piece hose -

4994727f0cde062c57e57ce4f09691ba_zps42f6

Next job was to bleed the brakes, I cleaned and re-used my old brakes lines as they're in excellent condition. Here they are fitted into the compensator valve, I used a stainless bolt to secure it to the bulkhead -

67048affed2a518a0f2a6c00f6f60fc8_zpsc7a4

Then it was just a case of bleeding the system using the Eezibleed kit, starting with the furthest bleed valve away from the master cylinder, which is the passenger rear wheel, and then working your way around the car.

That was Saturday's progress, now onto Sunday's. I stripped most of the ancillaries from my 998 engine, starter motor, coil, distributor, alternator and used these to start my 1275. I would have fitted the new alternatives but I'm planning to use electronic ignition but haven't had chance to wire that up yet and didn't want to create any new problems, so I used the points and condenser distributor as I know that works fine. Minispares also gave me an MPI alternator by mistake so obviously I couldn't use that.

Here's a picture of it all bolted on -

b103ba91c0e74c2a25204aa479c3d7f8_zps9f68

And here's a link to a video of it running, sounds beautiful and the exhaust note is excellent -

http://i854.photobuc...zpsvuaswzq1.mp4

Apart from a few small issues getting the timing right, it all went quite well.

Anyway, that's all the progress for now. I'm waiting for a few Smiffys bits to arrive and I'm going to swap the alternator over during the week as well as refurb the starter motor and what not.

More updates then:-)


3-22-2015

Update,

Spent the weekend refurbishing a few engine ancillaries, I'll start with the purchased items.

I'll apologise in advance for the quality of the pictures, my camera on my phone has stopped working since taking a dunking so I've been having to use the camera on my iPod which isn't the best.

Went to see Mark from Smiffys bits and picked up a few bits -

07d5543d8b07173a52fae9d599ee28d4_zps4a0d

A few bits from Minispares needed to refurb the distributor amongst other things -

6c3b88af3524e4f7a777adce717e98a6_zps4741

Now onto the progress, started with the starter motor. Before -

2a18aa4bde1c8032ae4eabe57eb0a824_zpsf03c

Wire brushed down to bare metal -

e1213ca4ec7319082bc936841b105cbf_zpse5b4

Zinc Primed -

7094384d1a6336991ae475492418b4d6_zps2374

102bc55aa2b201ad78ddec848a23a693_zps7e02

Painted with a few coats of gloss black -

87753feb7bef00bd3299e1f4c8b9bc59_zpse0c2

Applied some fresh grease and then put it back together -

6e80152e9c20985e71ff46ebfc050757_zps124b

Next up was the dizzy, stripped it down and wire brushed the lot. I taped up the aluminium housing so I could paint the vacuum advance, here it is zinc primed -

b4e24a03f8dcd871e52d53a092e62302_zps995b

A few coats of gloss black applied -

69745548c18eac9be509e159503b164b_zps9f18

New points, Condenser and an uprated rotor arm installed -

8b3589294dbce463927224b2800d7319_zps6725

And a new cap to finish it off -

c9b7eef80c764d4a1839dc4a7860d66d_zps1e53

For some reason the paint on my engine has cracked and started flaking off so I've had to do something about that, here's how it looked -

02fe6738beb444afe88d31e48fa75bec_zpsae4e

I bagged up all of the bits I didn't want anything getting into and then wire brushed all the lose stuff off using a manual wire brush. Bagged up -

4798afc855e46ac365e8128083ca7fe6_zps0c82

And wire brushed -

feaf8dec7f27f95c120c74342ddba9d7_zps5691

I repainted the block and head with some fresh paint -

382b5dae1617adc3dc6081501adbe999_zpsc817

Annoying as I put a lot of effort into painting it the first time round, but what can you do, these thing happen I suppose. Anyway with that done It was time to start bolting the ancillaries back on along with a few shiny bits from Smiffys.

Starter motor back on and connected up -

d69d3dfa867d01cf20c1a1b6a6a18993_zpsa4ad

Dizzy back on and connected up -

ab3e459bfd4e9966619d0e66bc29d56b_zpsa27e

Stainless alternator brackets bolted on -

dd67b8e6ff9c5356f4bf184360a8b15b_zps0a3c

New alternator fitted -

a45e726e2ce522d66474a5a2485cb9c9_zpsd402

New coil along with stainless brackets and rubber cover fitted -

25b511c54d071250717427c53433dff4_zps3e04

Pipercross air filter bolted on -

2666a1aad3b9e41722caa3864962f451_zps5a76

And also the bulkhead blanking plate -

b9fef158660101273e464fba5d8782c9_zps222f

Finally, this is how the engine bay currently looks. Almost finished in there now -

51e1743bd4711d24f8b759b029e0a6c8_zps1381

I have ran the engine with the fresh paint on today and all's looking good so far, no cracking/flaking to be seen !

That's all the progress for this weekend, will hopefully be receiving my door cards and sun visors from optimise tomorrow so I'll have some pictures of those then.


3-23-2015

Update,

Received my package from Optimise today, here are the contents -

6a0223359fa52f88d60f8892cfaed870_zps2jej

5ed96176dce87d5bcc49f5d3ce2383be_zpsvkbk

f3a9b3775c55095bd310fcd066c3ca2b_zpsco3v

ff70ca3d42d1a707078e443c6142e011_zpsdao3

Decided to do the sun visors first, here's what I started with -

20fc71560b73f1900aa5c5f772c4821f_zpsnadw

Cut the vinyl covers off until I was left with the bare frame -

5f3b27dbeb00810c4d14924c061ccf84_zpsn85z

Fitted the new covers along with the hardboard strengtheners -

75f5447ab909ed7011879160abcb818e_zpsffmx

And then fitted them into the car -

361856423b28b58dac3d6b907b6215a1_zpsyoux

Next we fitted the rear door cards, MPI plastic bin pockets and the burr wooden cappings -

6b5fec34625524e741032a9f95d2cae0_zpsvejj

bded7e3901f57b9eb94bf69b17823c3e_zpspjyh

Not the best pictures unfortunately, it's hard to get a decent one due to it being dark in the car and the light coming in through the window sends my camera crazy.

Then it was onto the doors, got most of the trim fitted but still need to get the screws to fit the door pulls and I also need to get the black plastic pieces that go around the door lock. Here they are -

d5f876c787425d042643350de0ee3679_zpspgj6

0b51e0f5a1e39f75e1442b02c09f6807_zpsoea9

Again, sorry about the quality of the pictures, my camera doesn't do them justice. Should have a new phone soon so the pictures will improve !

That's all the progress for today,


4-8-2015

Update,

Of sorts...

Life's a bit hectic at the moment so I've not had any time to spare for the Mini unfortunately:(.

That will hopefully be changing soon, I'm putting a list together for Minispares ready for Friday which will contain near enough everything I need to get her finished. I'm planning to have her done ready for the Mini show at Himley Hall next month, but that all depends on how long the garage I had it painted at take to do the cut back and polish. There's also a few areas I'm not overly pleased with so they're going to redo them, not sure how long that will take though.

In other news, I've purchased a new daily. It's a low mileage two owner MG ZR in really nice condition. Here it is next to the Mini -

b508a6a625dc8ecce0ae0ef54d8d4cc1_zpszkt2

40b2f231137f65f35b32b5d964409750_zpsyhft

dee6a5f5d488ee29263aed55e6e3234a_zpsztg2

And on its own -

4501ffd33f1cb4000e579566264c336a_zpsewkt

f51758810a0756cf4285d577ad194354_zpskck6

Anyway, they'll be more progress made on the Mini this weekend so I'll update then:-).


4-23-2015

Update,

Well, the Mini is now back at the paint shop having a cut back and polish and a few ramifications to the paint work. Here she is loaded on to the back of the truck -

9dbaa66067e5fdf822c875893ca5a8dc_zpsbh7r

c1befb07b9a4140e7ffc93e92a6c63af_zps3rza

Not much of an update I know, but it's all a bit slow going at the moment. I'm hoping I'll have her back by next week and then I can get the last few shiny bits bolted on and get her through an M.O.T.

Id really like to be able to make the Himley Hall Mini show next month but my chances aren't looking brilliant at the moment annoyingly.

Best get my finger out !


6-1-2015

Update,

Been a while since I've done one of these !

I've finally got my Mini back from the paint shop after having the paint cut back and polished and the roof re-painted, she's now seriously shiny !

Unfortunately I missed out on taking the Mini to the Himley Hall show but I still went and picked up a few more bits anyway, here's what I got -

14264c18a1dd2b1aa3b56b072f521638_zpsozof

5fc7b1a6fa6120e5766d4e43c055038c_zpsf4dg

14d6f4b99be67457d62b6708c16d5f1b_zpsxax6

And some more autoglym products to add to my ever expanding collection -

339bbcf3777401ac8a5cc728bd172111_zpspqjd

So, first job was to get my DSN hinges fitted ready to get my bonnet on -

317c2a8ac398a46511f29cb8bec2eb20_zps11lb

Then I fitted the bulkhead deadening whilst it was still easy to do so -

118fa79f0bd40bfb34ec160b11742e85_zpsgw5l

Bonnet fitted -

9a12ed213ac06016d07dbd5bf93a253c_zps3gfu

6f608fde1f9993e51899006278b2f177_zpsrfu8

I also fitted the bonnet insulation and a Smiffys Bits stainless bonnet prop before hand -

6774c372ac577c31245ecbd169667fbe_zpsmyj4

Next bits to be fitted were the headlight bowls and looms -

415de47bfb55f8d33769fa60797fa2b4_zps1qcg

Changed my rocker cover T-Bars for some red anodised ones as the chrome plated ones have already gone rusty, they haven't even seen any action yet ! -

37f4ff3a8a8e1565c8c1e8f59b96f87b_zpsxdol

Last job of the day was to swap out the black metal part of the switch panel for the Burr Walnut replacement -

edc0862d4b7c60c1c9eb482db5291f2d_zps0wti

Finally, I'll leave you with a couple of shots of her now she's been polished -

1e5c52dfcedbb7d4a5e3c8937b2e51ff_zpsbmjy

bae69499aadb2cf0402f972de13eac9c_zpsywmd

Can almost see that glorious finish line,


9-27-2015

Well...That went to pot !

I'll be honest, I've been really rather lazy of late but this weekend I decided to pull my finger out and get some more progress made on the Mini.

I'll start with the bits I purchased.

Few bits from Minispares -

626875c808987b73a533b7b214a09ee8_zpsnpi1

b8a79264247075e4a5ad360801680e1a_zpsw6al

3bf2b24816fda7105c6381be563ab599_zpsfzdx

And some rubber wheel arch moulding trim -

f91a56a845fcc9ba9d0b90904131d419_zpsoj9p

So, first job of the day was to get my wiper mechanism built up, I've replaced the 'worm' and also painted up the tubing that it sits in -

c50e696acb9edf4b20d4bae45cc3cdec_zpslydm

Then I plumbed in the washer tubes using the t-piece I bought -

3e50afd9a1f79673f1752604aa6ce054_zpsisxk

And fitted the washer jets and stainless wiper hole blanker's -

bebe1dfb55786981fb59f75687116fb9_zpsfklf

I also fitted the wiper mechanism but forgot to take a picture of that in place. Next on the to do list was fitting the door mirrors so I got the rivet gun out and fitted some aluminium M5 rivnuts -

89a64307130fa510bce7db1be0365db0_zps2u6a

I used some stainless button head Allen bolts to secure the mirror to the door -

ec42cc23783f70cff47694593d02a60a_zpsmoio

A couple of shots of the mirror fitted -

1458a6aad64a10eb5a0f039649f119b3_zpstcxa

b62a76b142880d821ecf69e3330f19f2_zps56zy

Rinse and repeat for the passenger side.

That took me until midday-ish so I decided to crack on and finish getting my headlights and front indicators in. First off a bit of wiring was required, I swapped the bullet connectors for some spade connectors on the main loom so I had to modify the headlight looms to fit those.

Here's the wires all connected up -

6204d50d1d947d07c5e0d8814bf48f74_zps5nxc

And then shrink wrapped -

f3bc2aabd4e7037707f93de8d83f90ba_zpsakmn

I bought some ready made indicator looms for an MPI Mini from Minispares so I had to modify those to fit my indicators. Here it is out of the packet -

53d7a405d6408c02635d805379e2116a_zps3j0f

Snipped the plug end off -

4b68df5f5cdbe494103b6a4959de363c_zpsj7fg

And soldered on some male spade terminals -

bf2cf721d23ed2ba63ad5912bff0b384_zpsvmec

Here's both the looms ready to be fitted -

366d302f70b21d7880541e19fb99d128_zpsfrrt

With all that wired up and some Osram Night Breakers fitted into my headlights, this was the result -

fb23fc320a2fbd56bce77052ec5c4704_zpszkyi

Whilst I had the soldering equipment out I also changed the wiper motor plug as I didn't spot that it was quite corroded when I refurbed the loom.

Here it is soldered up and shrink wrapped -

0bd58edaf13c5f97ee4d7a6cc1723b54_zpstxvt

And then wrapped in loom tape -

c795e94a329b9e67e8c9c9a1de21e4a4_zpsdzgd

Fitted the horn along with a Smiffys stainless bracket -

da784cd241e05f5964f86ac47ff420bd_zpssiut

bf606863ea9b3c0f2f6e24c4d153abf4_zps4s64

And finally I thought I'd fit my speedwell petrol bib and oil tag -

8d3dedd82ddecc986b6c939e04f289e0_zps5mid

cf5916db43b0a98ffc2fc3724abfe40c_zpslcdu

I've also started to fit my wheel arches so I'll have a few pictures of that tomorrow.


5-10-2016

Update,

Long overdue I must admit !

Well I've finally finished sorting out my daily so now I can fully focus on getting my Mini finished and back on that road where she belongs.

I went to the Himley Hall Mini show the weekend and picked up a few bits and pieces that I needed. Here they are -


And a few bits I purchased prior to the show -


So with those items in hand we left the show early as I was itching to get back and work on the Mini.

Before I get started though here's a couple of pictures of when I changed out the rubber bushes on the rear subframe for the poly replacements -



Ok, with that out the way I started by fitting the fresh air blanking plates, these are stainless steel items I purchased from a seller off eBay -



Got my new fog light fitted, just got to drill a hole in the boot floor to pass the wiring through and connect it up -



And I finally fitted my walnut door pull handles after I bought an assorted pack of stainless self tappers -


Then it was onto fitting my inner arch liners.

Now they do supply a fitting kit with the liners but I didn't fancy using self tappers and rivets, plus there mild steel so it would only be a matter of time before the fitting's started rusting, so I decided to use aluminium rivnuts and stainless button head fitting's. That way it'll make for a much tidier job and will be easier to remove in future.

So we drilled holes in three places and fitted the rivnuts into the inner wing -



And then fitted the arch liner into place and bolted it up -




Rinse and repeat for the drivers side -



Fantastic idea these arch liners, makes you wonder why they were never fitted from factory !

We also got the grille fitted along with the bonnet catch mechanism. I've again used aluminium rivnuts to secure the grille to the front panel and we also fitted the grille buttons I got from Smiffy's Bits -




Still got a bit of adjusting to do with the bonnet to get it spot on but all in all I'm quite pleased with that.

That's about it for now guys. I did have all four arches fitted but I had to remove the front two to fit the arch liners so I'll get those refitted, take a few pictures and post them up on here for you to have a look at.

I've also fitted some wheel spacers on the front and rear so the wheels pop out the arches a touch now, looks mean !


12-18-2016

Update !

Wow, i can't believe it's been over 7 months since I last updated this. Where has all that time gone, feels like only yesterday I was fitting the arch liners and grille !

I've still been working away on her here and there but she's still not seen the road yet unfortunately. She is now practically finished though, just need the last few finishing pieces and she'll definitely be going to all of the shows next year.

I'll post up the pictures I've taken over this time, will be a bit jumpy though guys as I haven't taken pictures of everything I've done as I'm juggling this with another project at the moment.

Here's most of the bits I've bought -




Managed to get my hands on some OEM Mini mats -




Also got hold of some original locking wheel nuts for the mini special wheels -



Look great when fitted along with some chrome caps for the rest of the wheel nuts.



That's all the purchased bits (I think).

Well, it's been a while since I last removed the covers so I decided to take them off yesterday. She was looking a bit sorry for her self so I thought I'd treat her to her first wash.

You'll see in the pictures below that all the arches are now fitted, as well as the rear windows and number plates amongst other things -




And back on the drive looking much better -




I took a couple of closer pictures of the rear windows fitted too, no pictures of me rebuilding them unfortunately. Not an easy job changing the rubber seal in the frame though -




Fitted the stainless steel kick plates I got from Bingley Mini show a couple of years ago, you can just see the mats fitted in these picture too -




Also changed out the rubber bushes in the steady arms for some poly replacements -




She sprung a pretty decent sized oil leak when I put her back on the drive too -



I've had a dig about and the bulk of it seems to be coming from the drive shaft seal. There's also a small amount coming from the timing chain cover and the fuel pump.

I'm hiring an engine hoist soon for the other project I'm working on so I'll whip the engine out and change the seals and gaskets over. I also need to repaint the engine with some good quality paint as what's on there now hasn't faired well at all.

I know this updates a bit all over the place but I'll keep on top of what I'm doing now and hopefully get back to updating regularly.


Comments
