Zax Bugeye "Shaggin' wagon" Build thread by zax

2 minute(s) of a 100 minute read

OK! Injectors have been installed! The Passenger side GBOD removal was a little more involved. The injector install (from start to finish) took about 2.5 hours, though the majority of the installation involved re-installing the passenger GBOD since the bracket actually supports the coolant overflow tank and coolant lines.

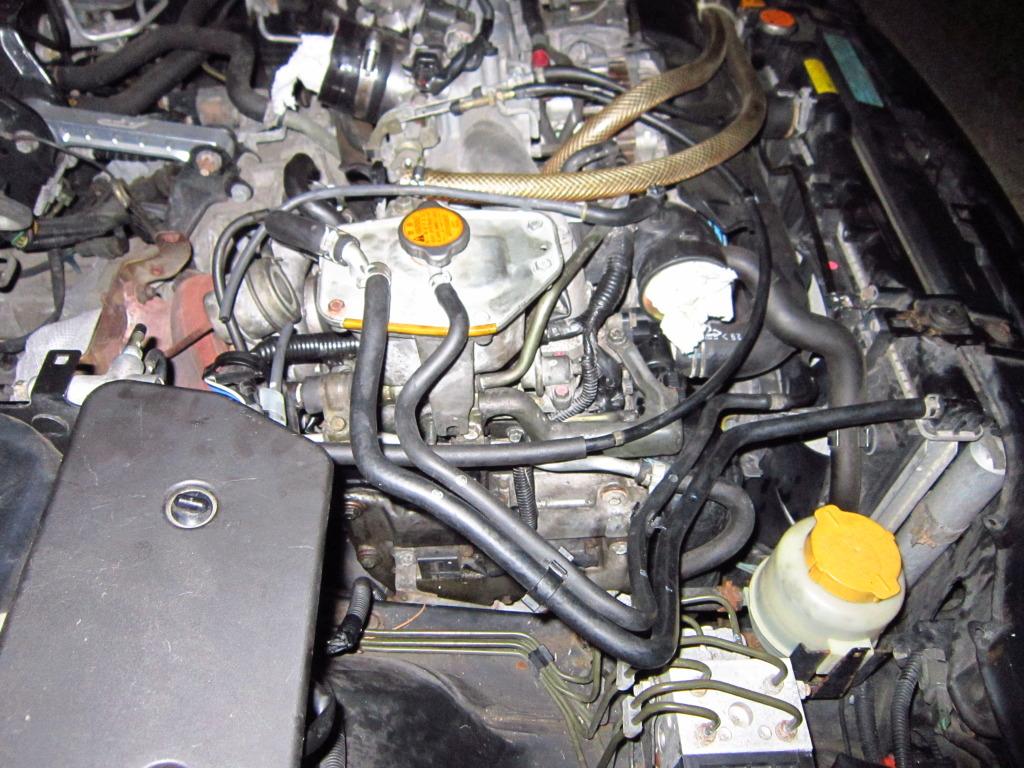

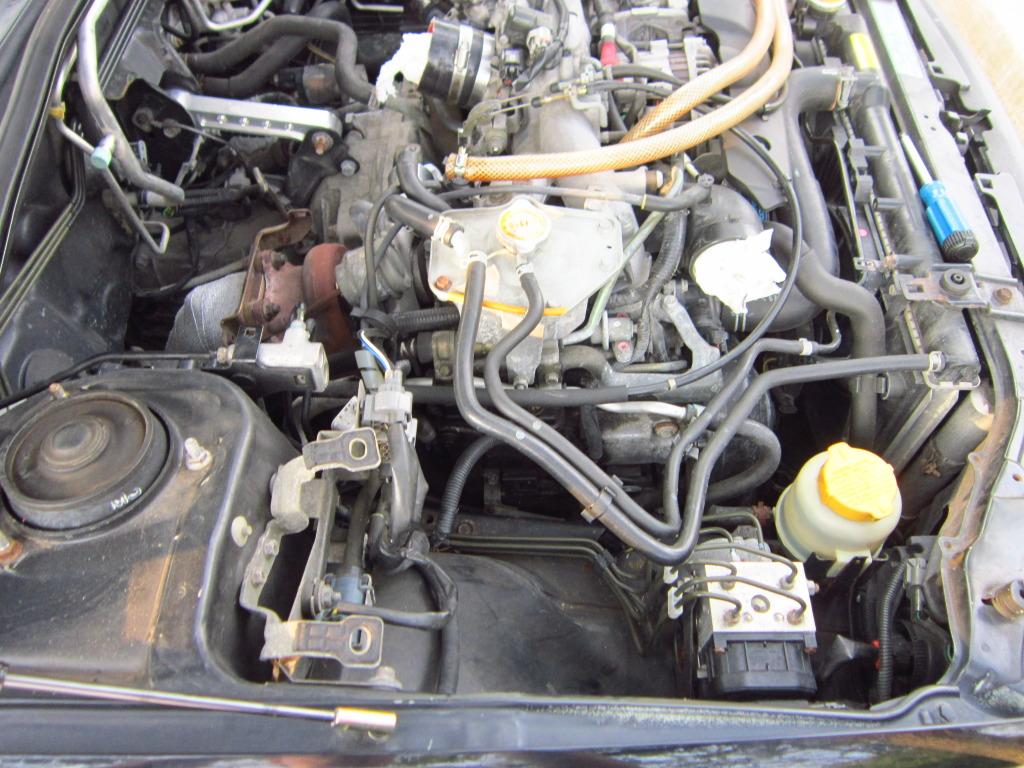

Heat shield, intake, and TMIC brackets removed:

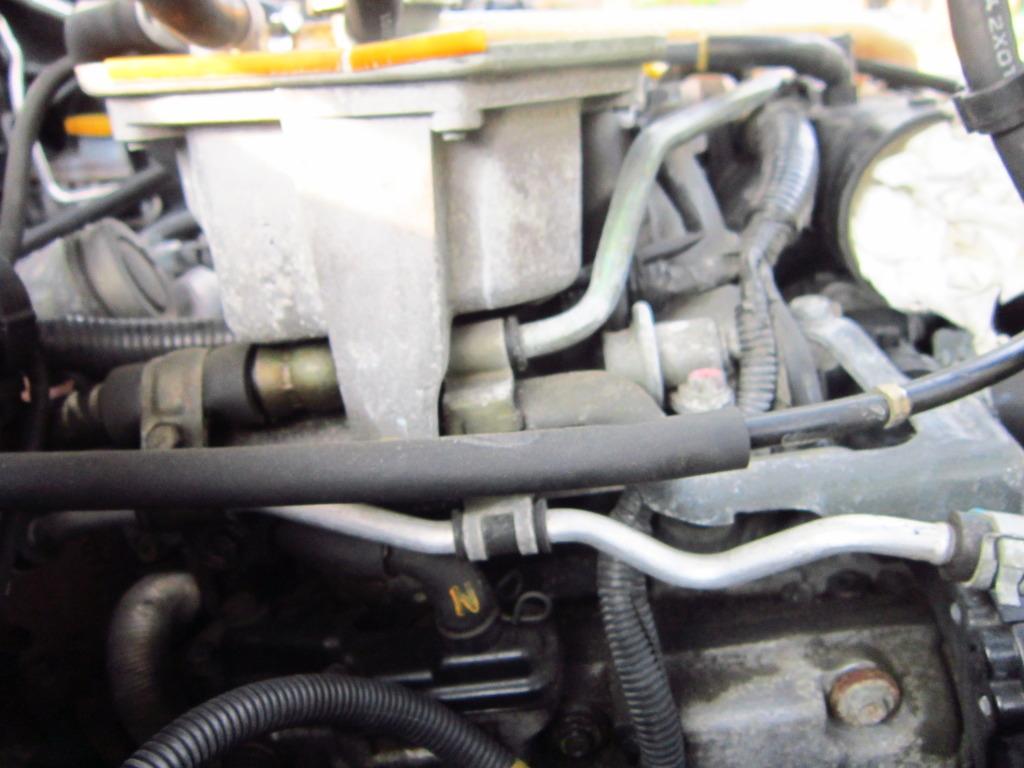

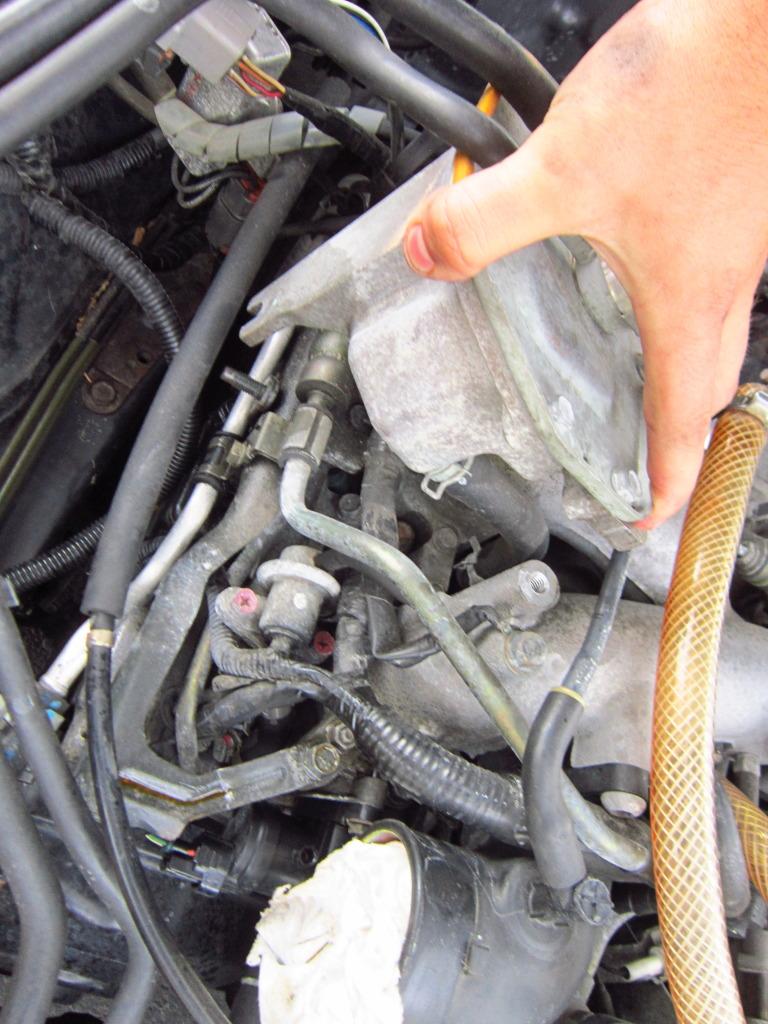

Passenger GBOD visible; must remove the bolts holding the coolant overflow:

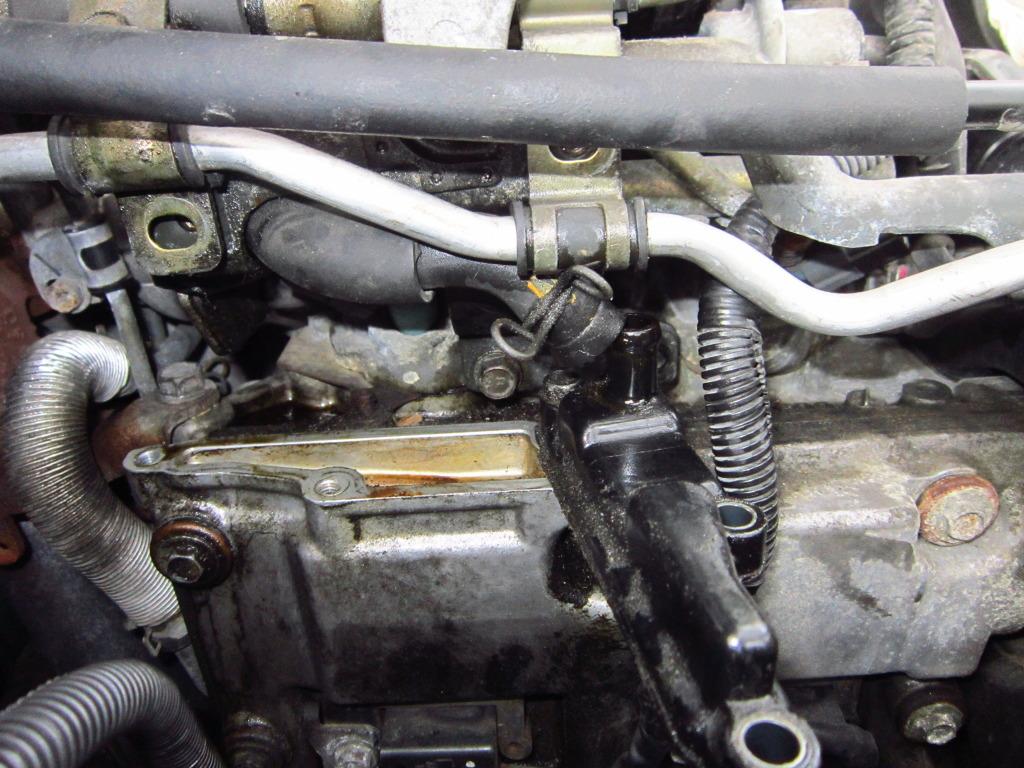

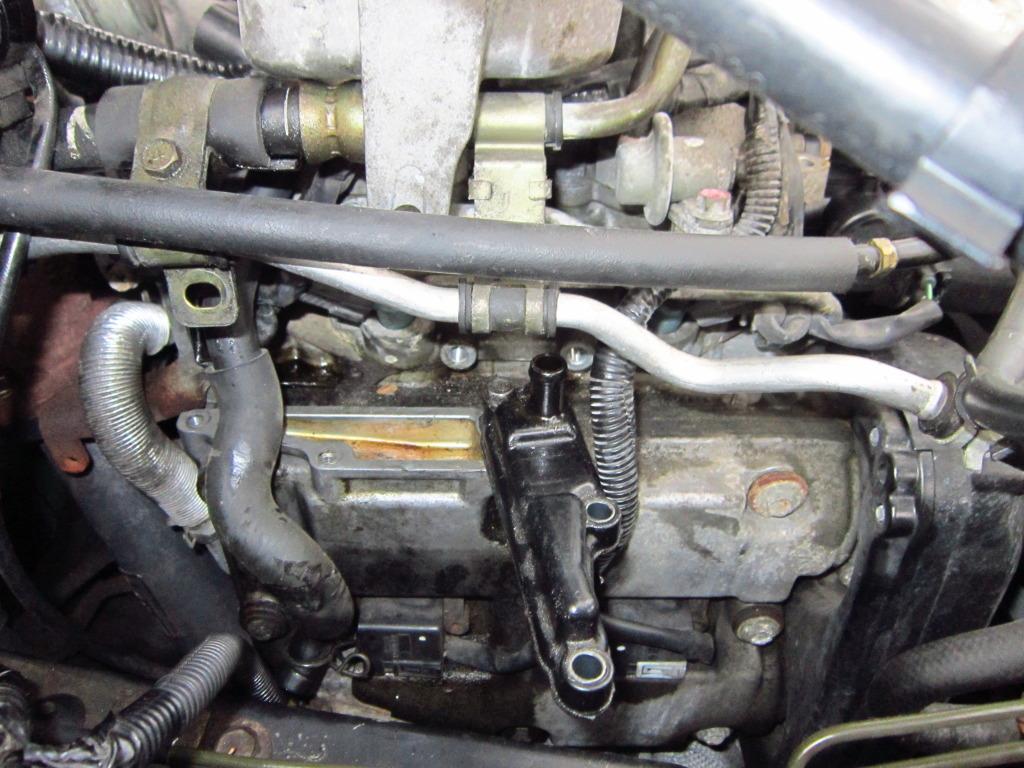

Cylinder head vent will not come fully off, but it must be swiveled to remove the lower bolt on the GBOD:

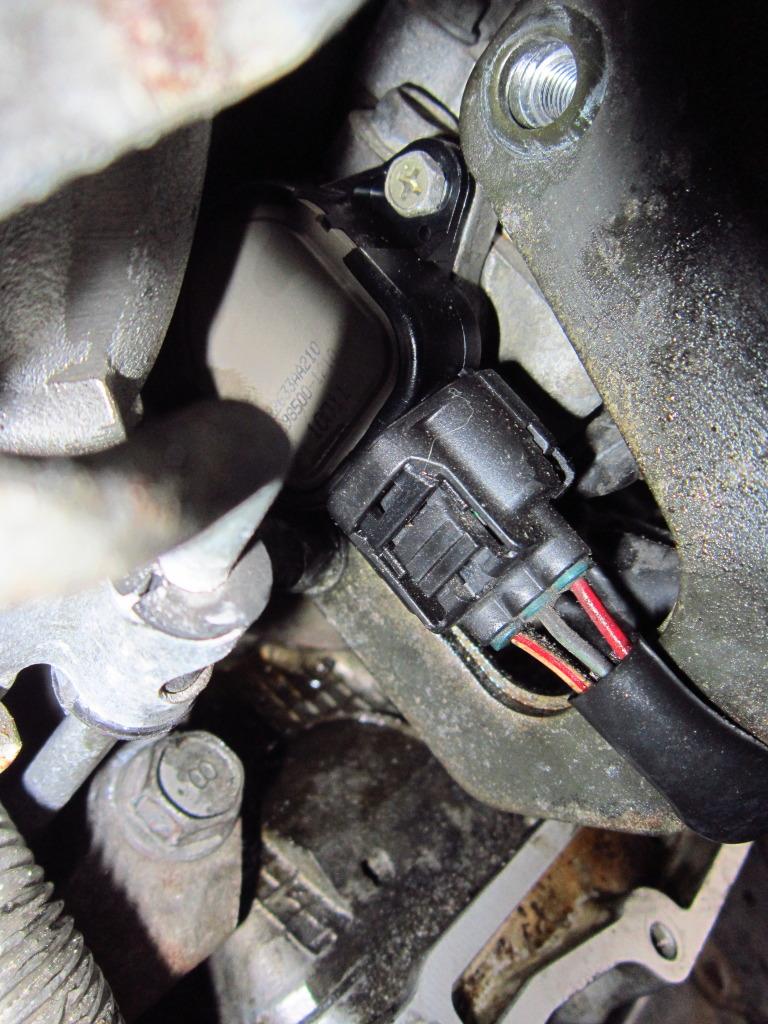

This bolt (in the shadow) by the passenger TGV actuator is a PITA but is necessary to remove the GBOD. Would have been 10x easier if I had already pulled the turbo:

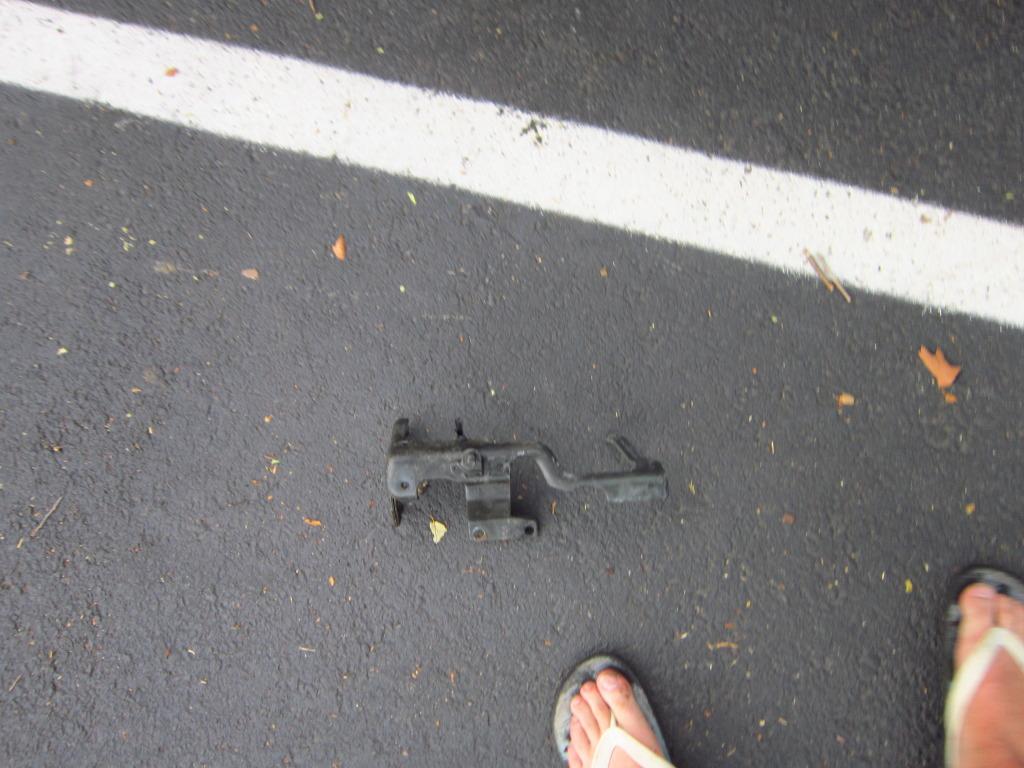

GBOD is out!

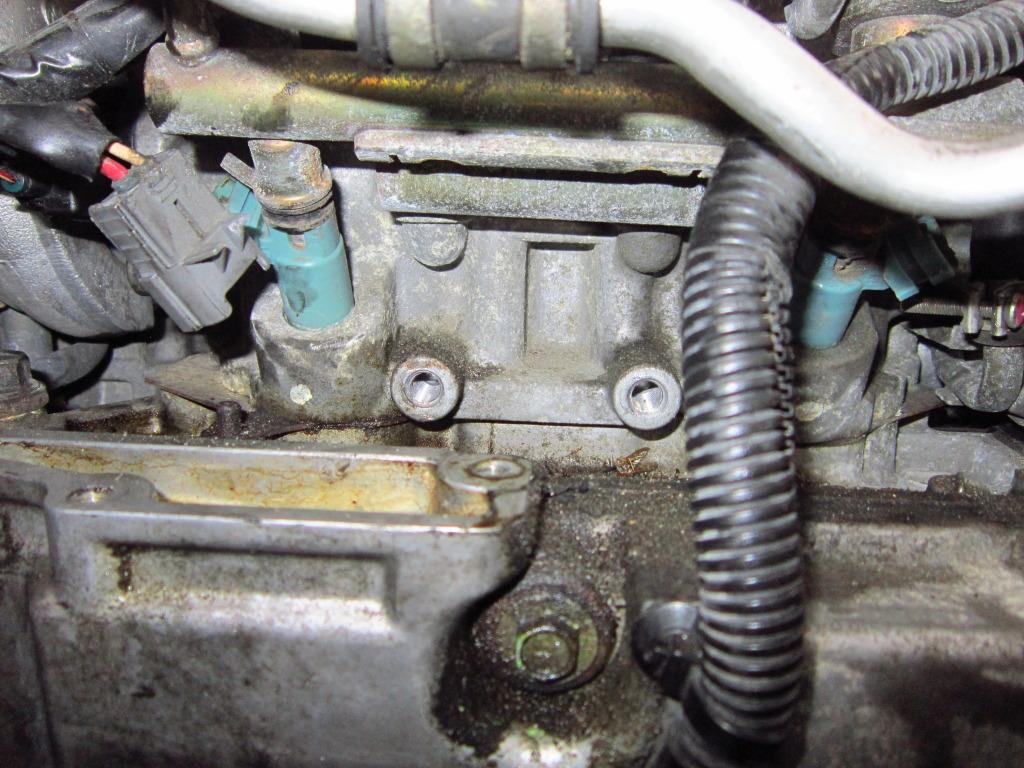

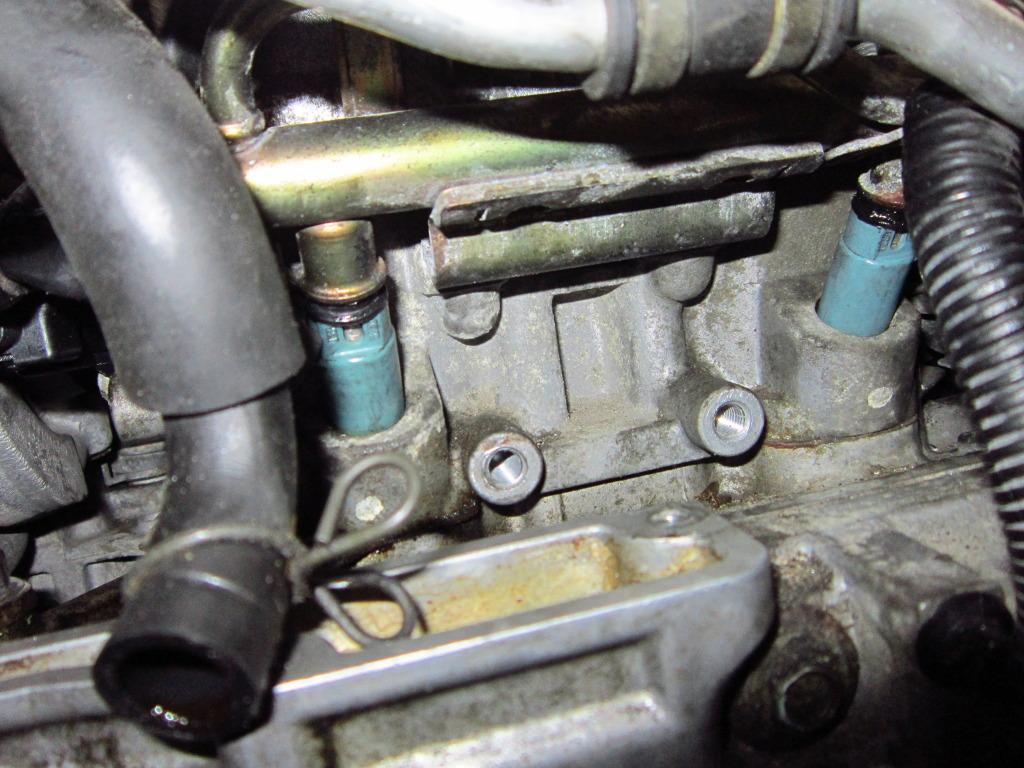

Stock injectors and fuel rail:

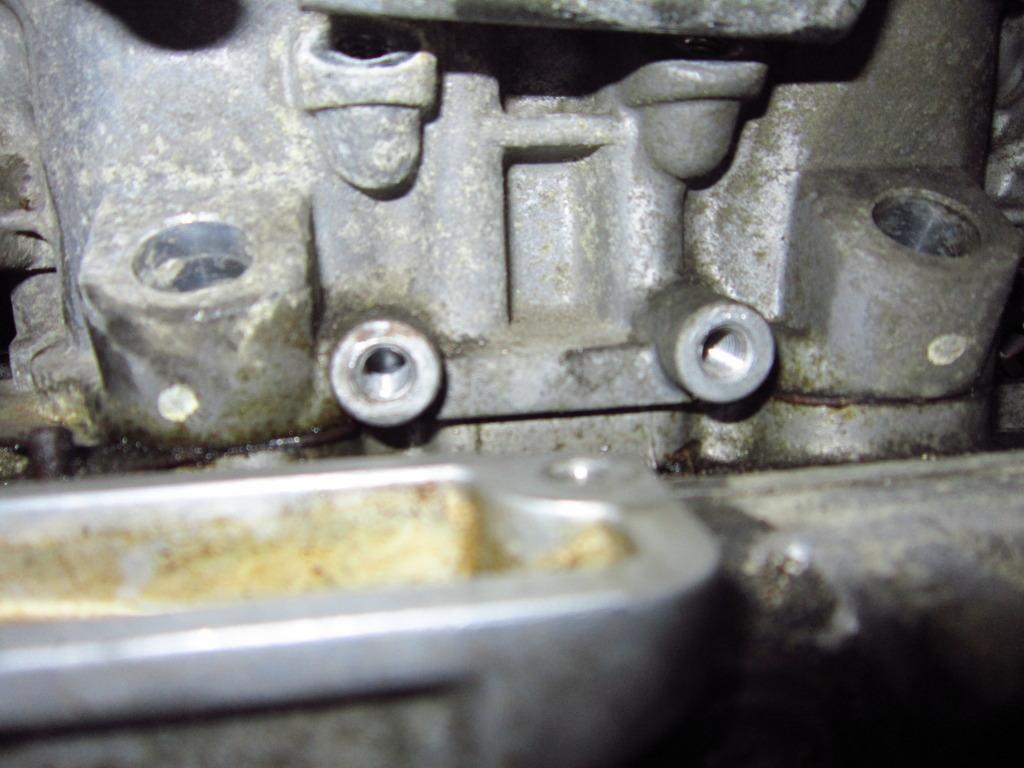

Injectors are out!

DW 750cc Injectors are in!

GBOD re-installed:

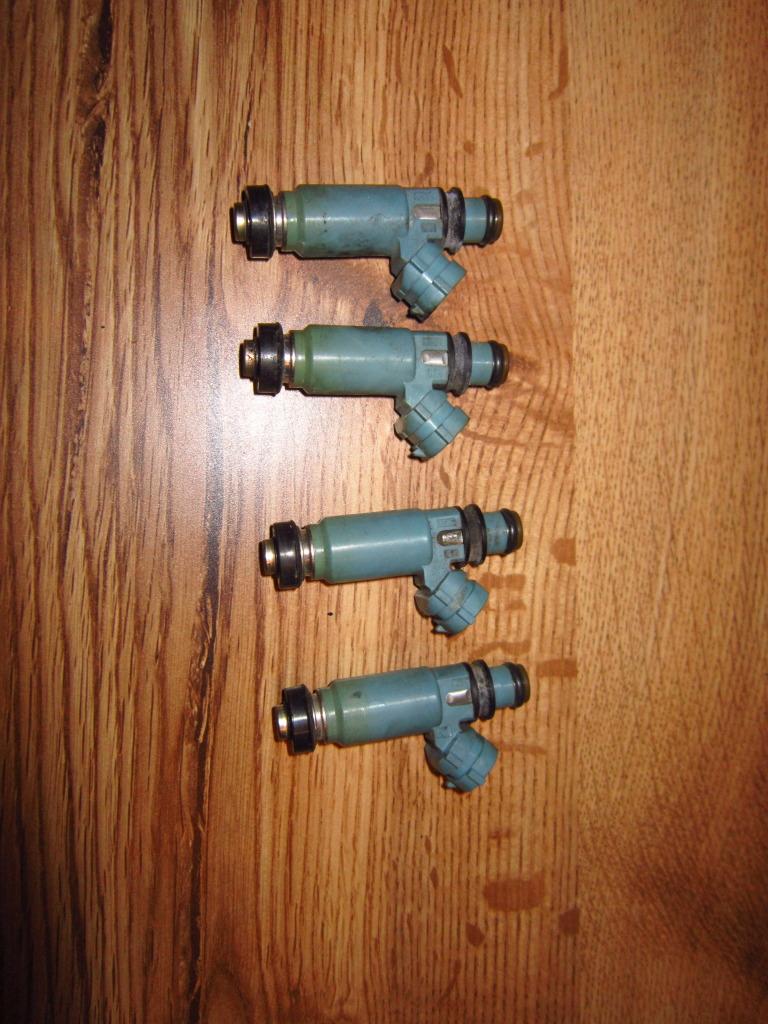

All 4 stock injectors:
