Thanks another guy in club4ag posted it, its a sweet cheap nice mod.

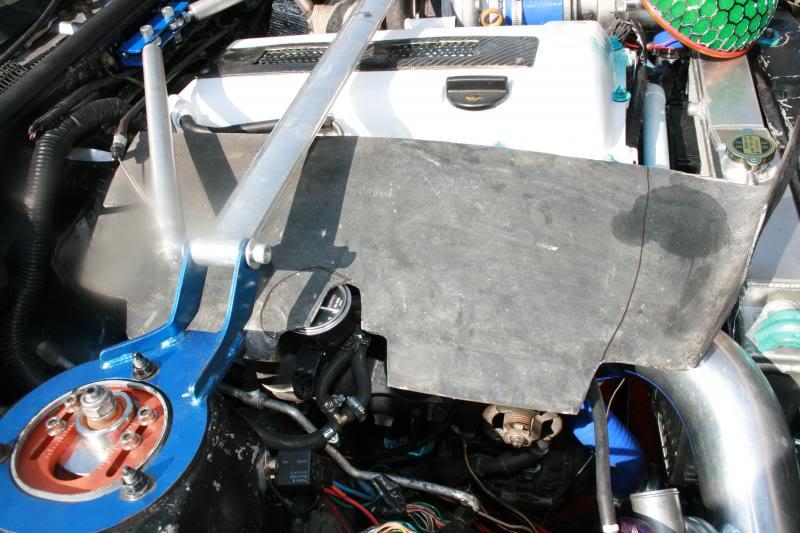

Thinking about making a plate to cover up the intake manifold, might glass it in CF

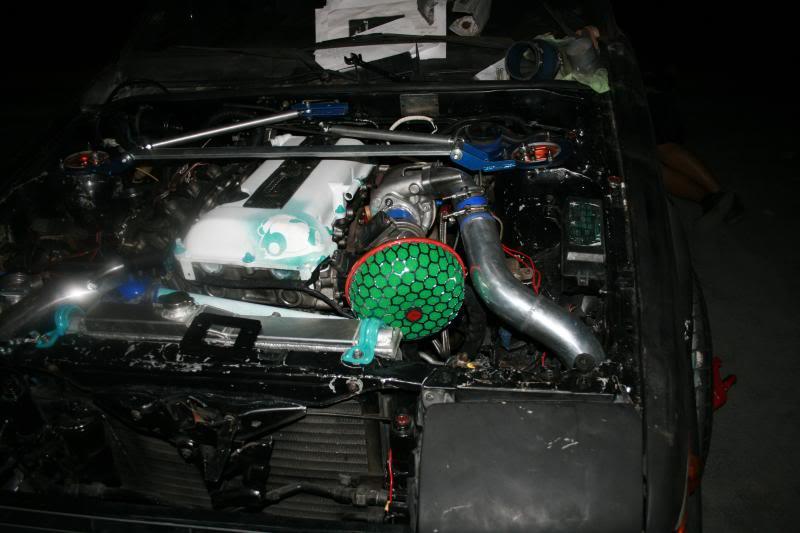

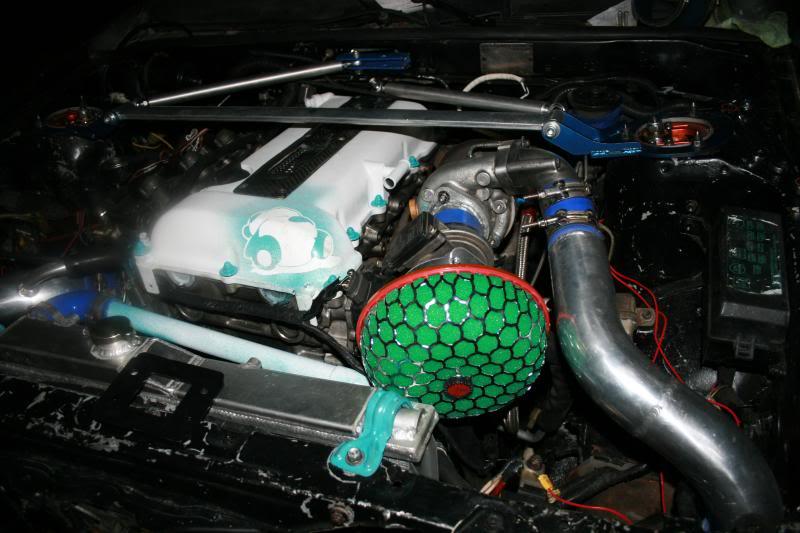

HKS filter on, I need to lower it a little but its pretty much done.

Got the exhaust done today with xene, whole thing cost about 120 bucks to make V-Band and all!

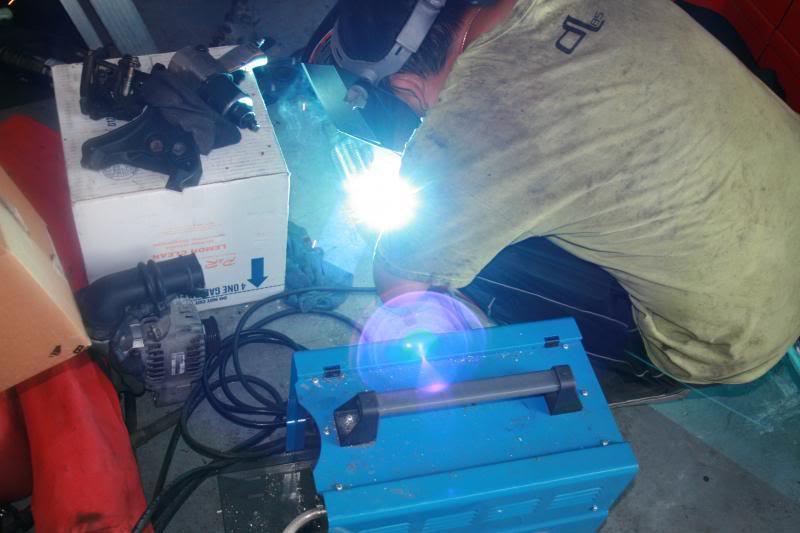

since my garage does not have a 210 outlet we had to stick weld the tac welds then bring it to his place to finish it off.

Pile of steel

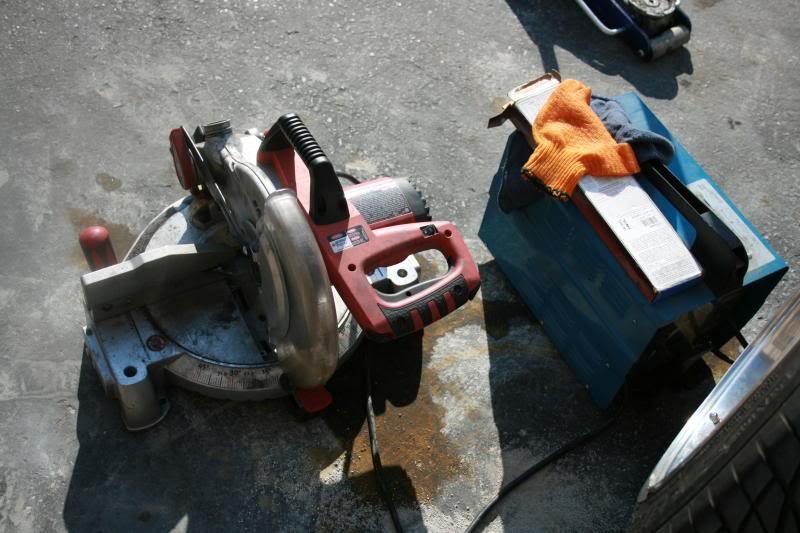

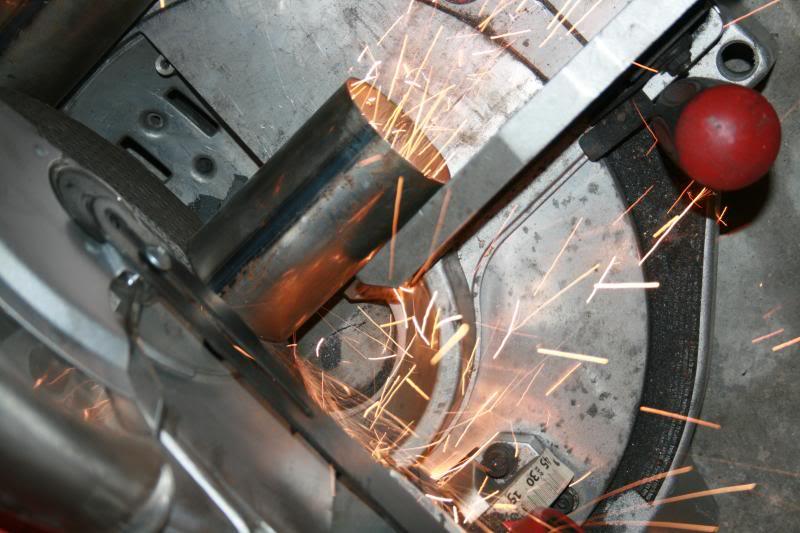

Cutting it down to fit proper

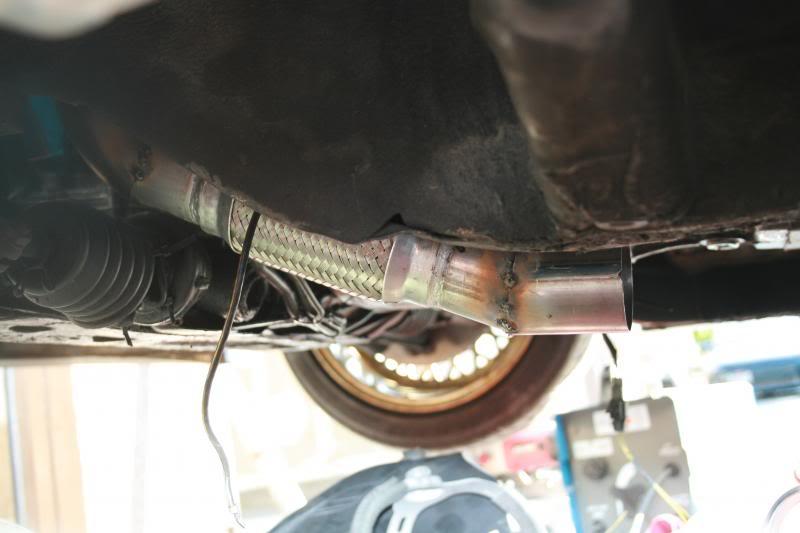

Downpipe and flex pipe tac welded

V-Band welded

Mid pipe

lol caught the blanket on fire

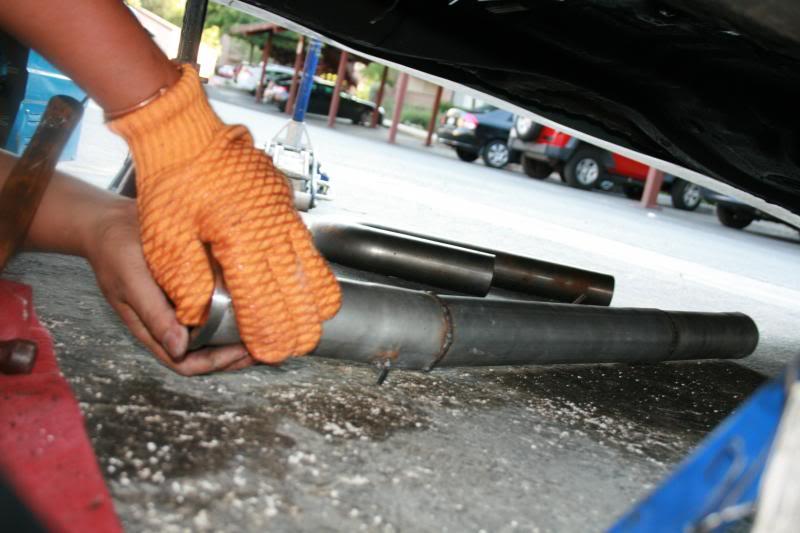

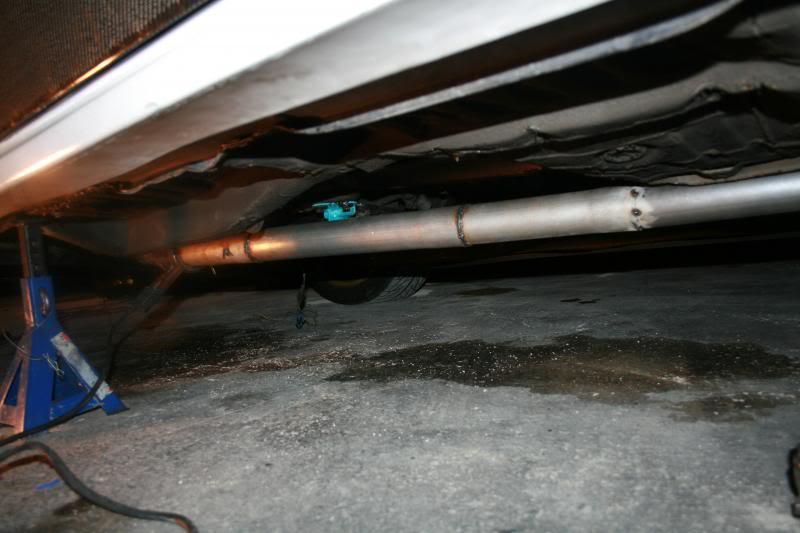

Midpipe continued

Brought it back to xenes to use the 210 self feeding welder, Not the prettiest welds but its all full depth and strong.

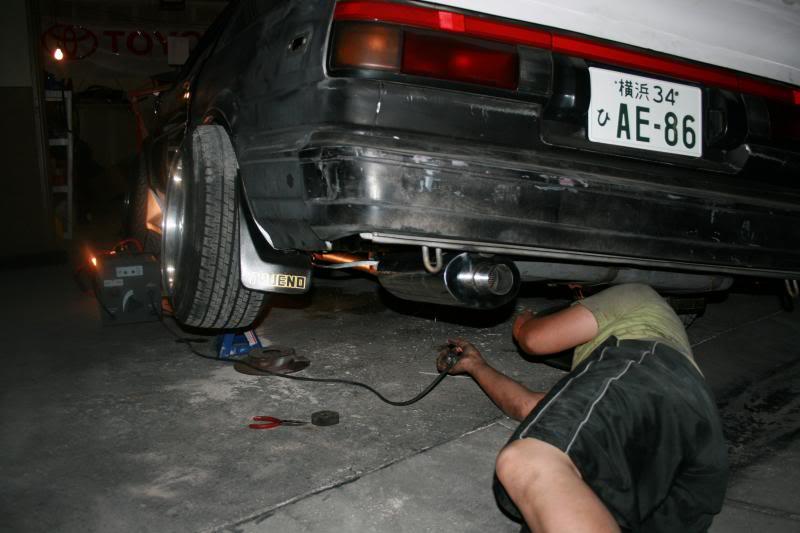

welding some hangers

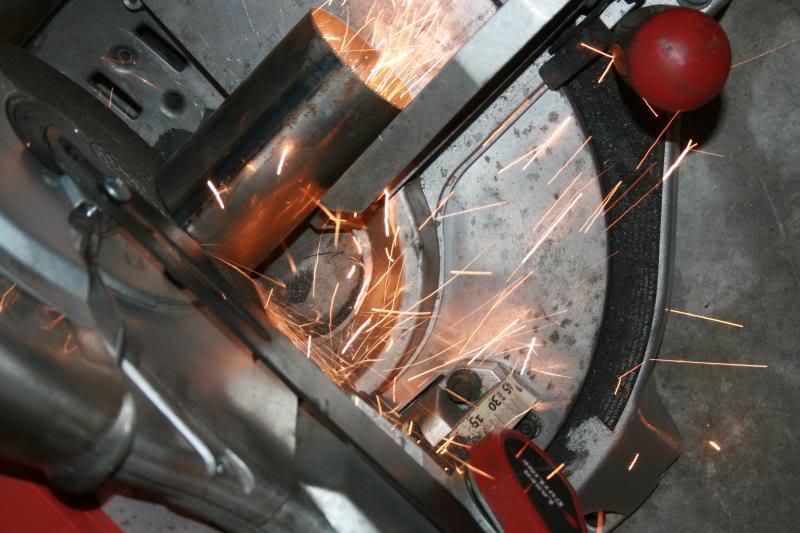

Cutting down some pipe to make the angle for the muffler

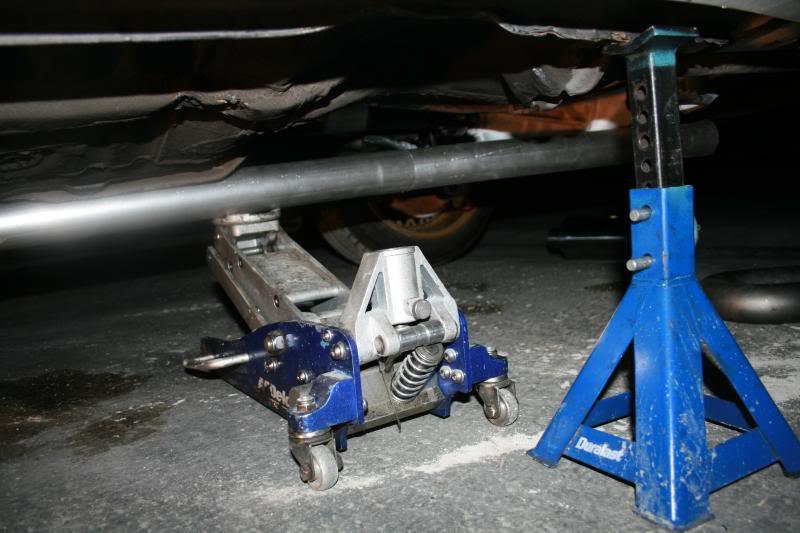

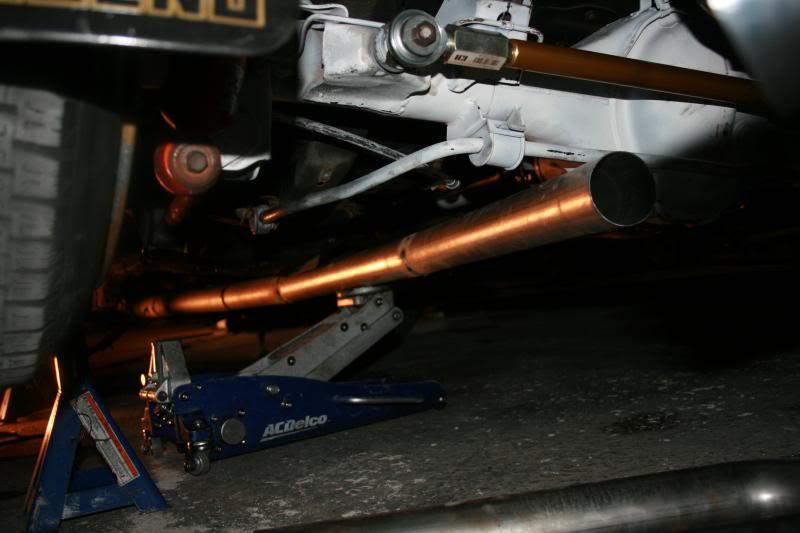

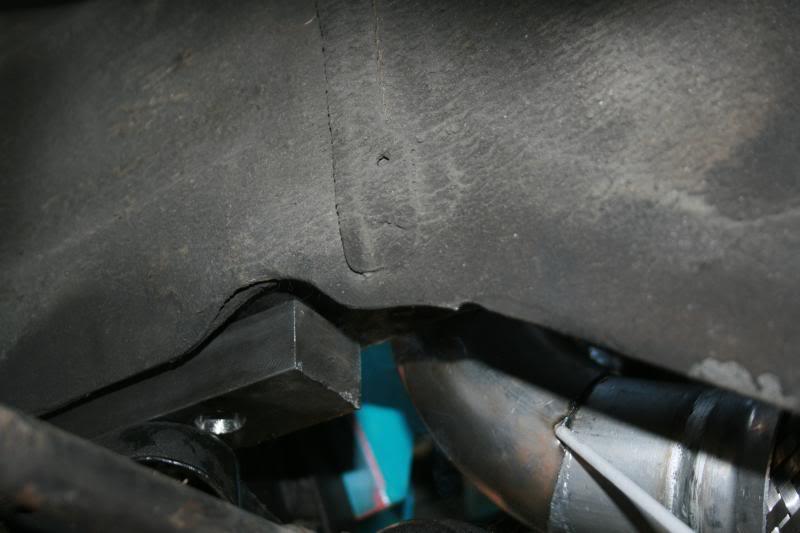

Getting the pipe positioned under the rearend

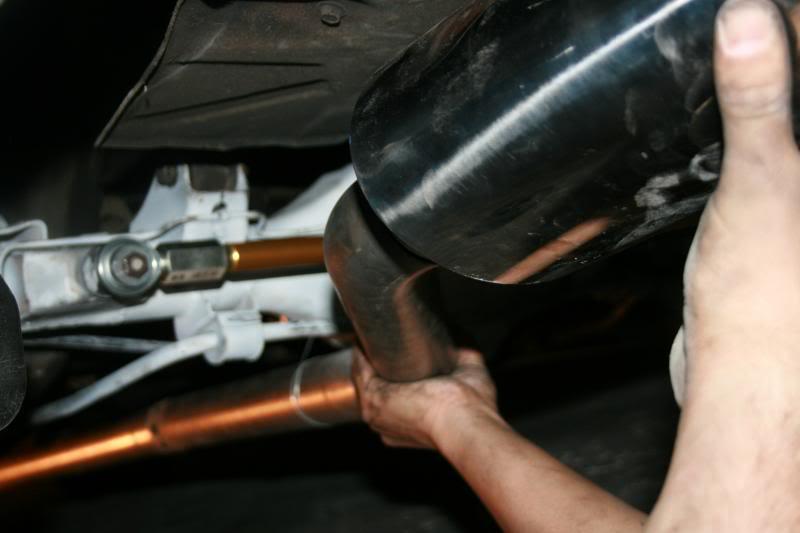

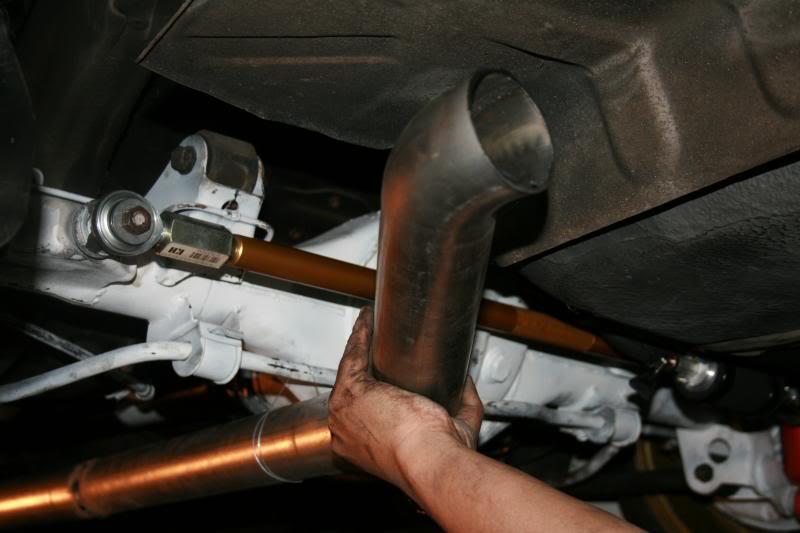

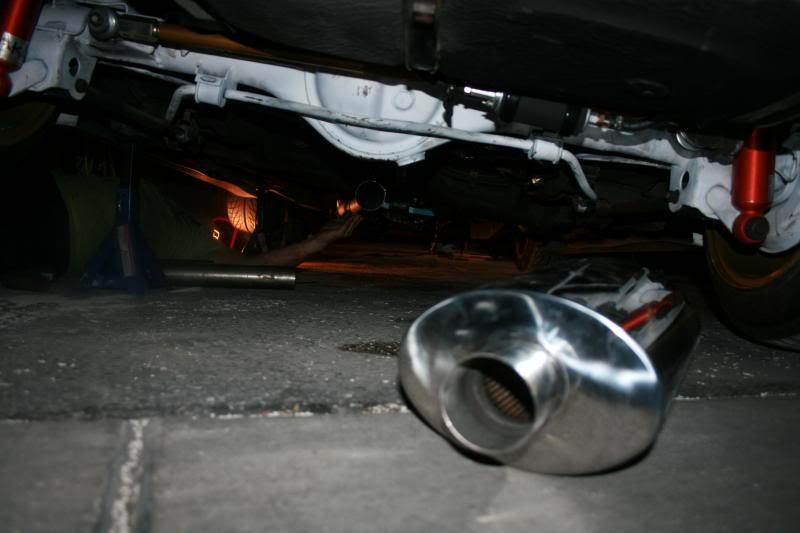

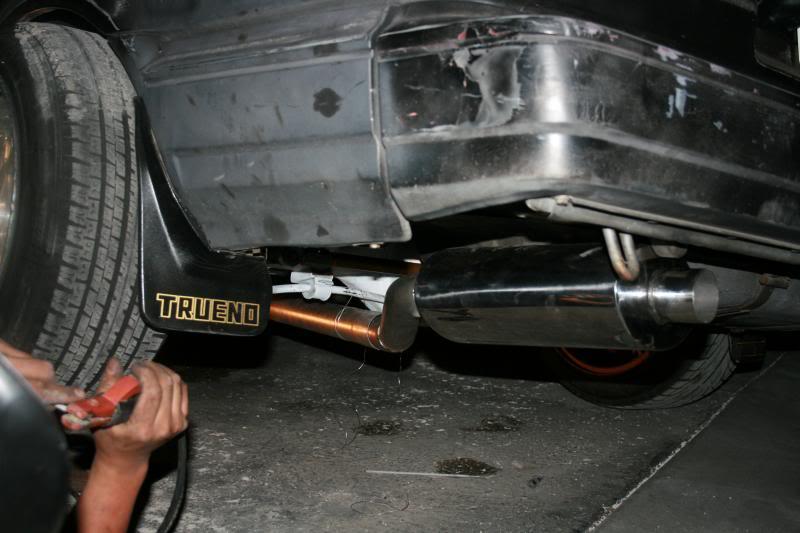

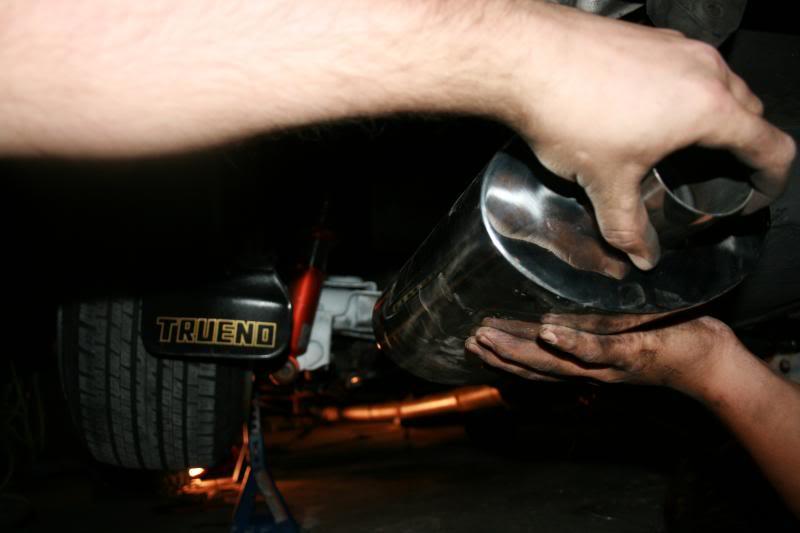

Testing out angles for the muffler

Time to weld the pipes and bends up

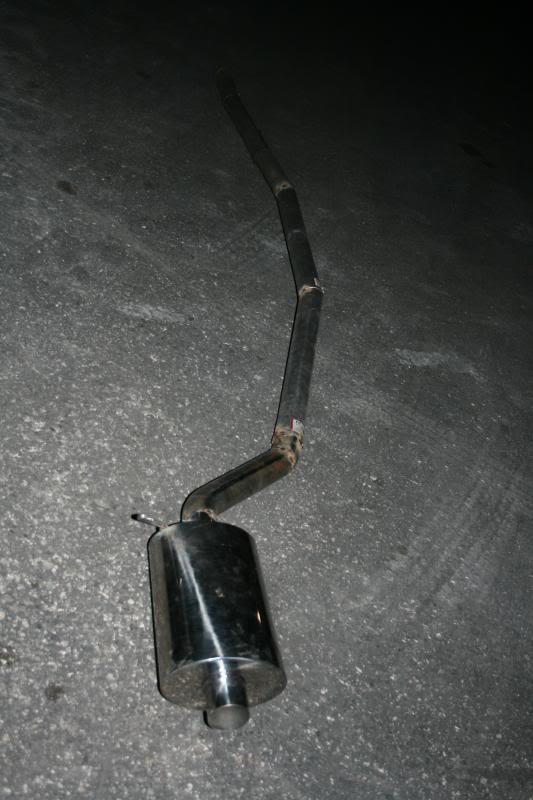

welded

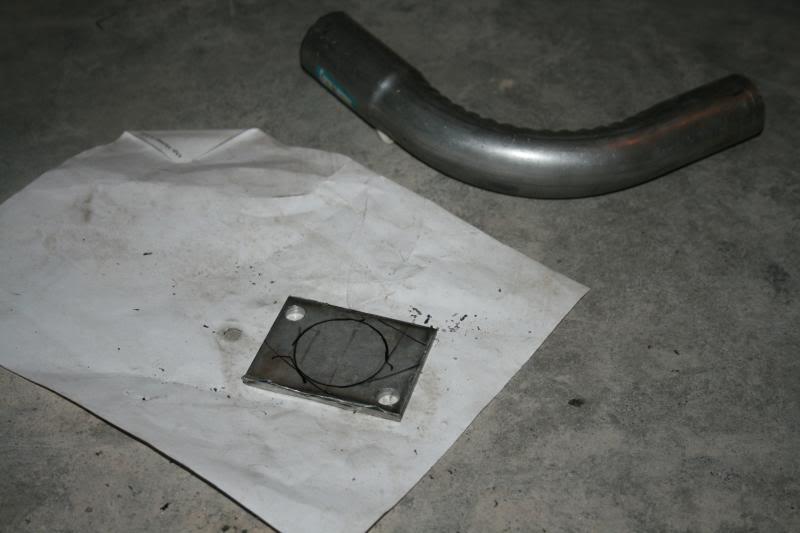

Started to make the flange and screamer pipe for the wastegate

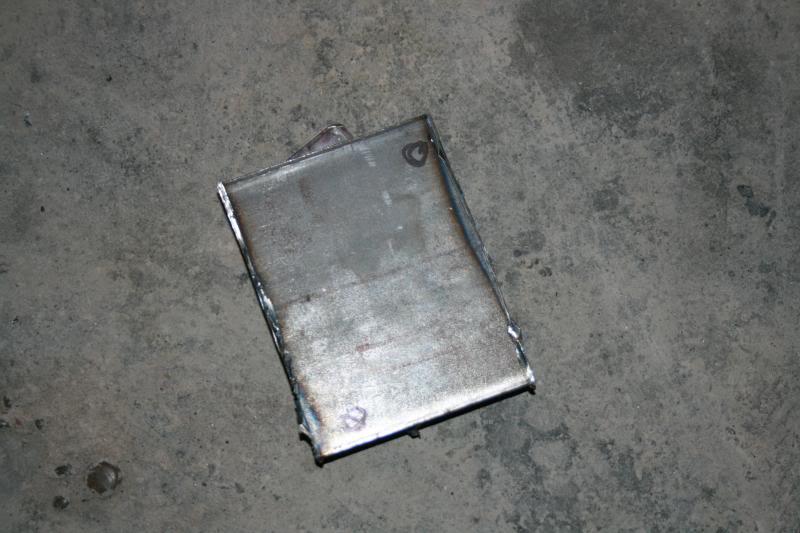

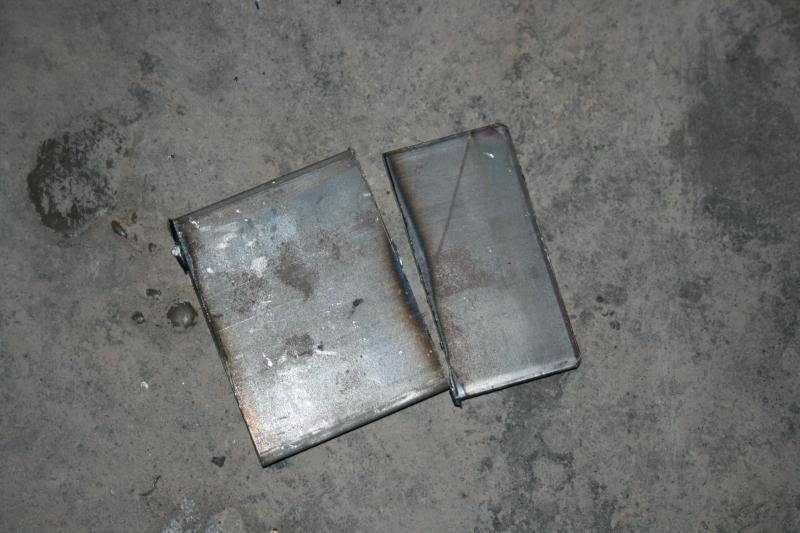

Cut a piece of steel I had laying around

Used a piece of paper to mark out the wastegate bolt holes

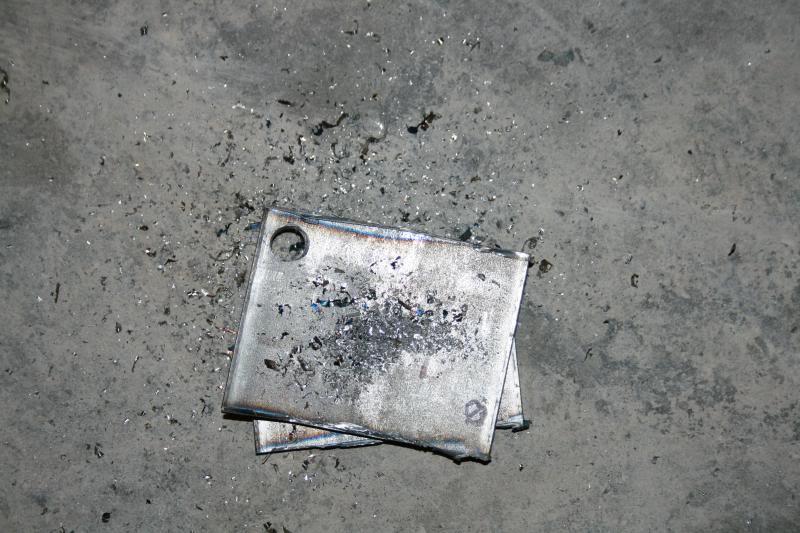

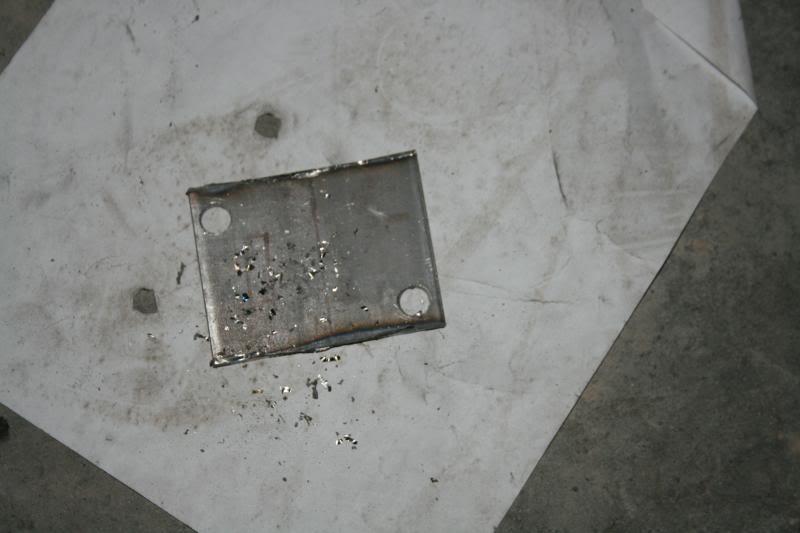

Drill some holes
