Corolla/Corsa Electric Power Steering Column
Compliments of SuperDougy @ club4ag.com
4-8-2013
7.13.2011
Here is my Corolla/Corsa electric power steering column after it was finished. The first pic sucks since it was with a phone. The rest are the column installed. From the hub to the tilt is Corolla. From there to the spline is a Vaxhaull Corsa C electric power steering column. The upper part of the u-joint is Corsa and the lower part is Corolla which attaches to the manual rack with a Quaife QSR quick steering rack and pinion. Most of the two columns were disassembled and put together. It was crazy how close most of the tolerances were between the two different columns. Most of the inner shaft is Corsa except the the Corolla spline that was welded on so It would accept the Toyota steering wheel. It has a control module to adjust the weight of the steering from one finger parallel parking to pull out the big guns no assist track days.

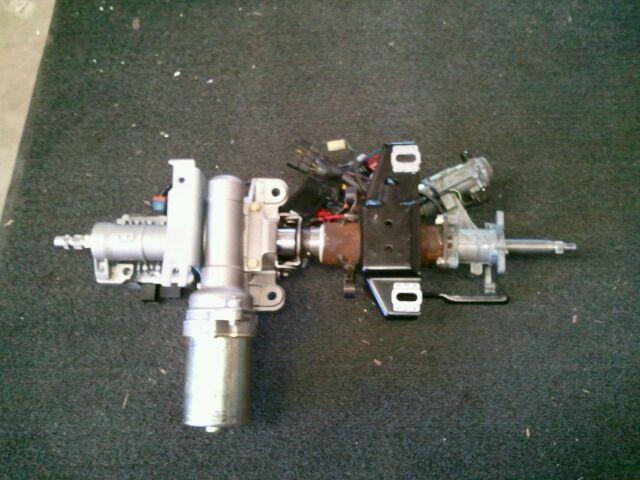

Finished Corolla/Corsa electric steering column.

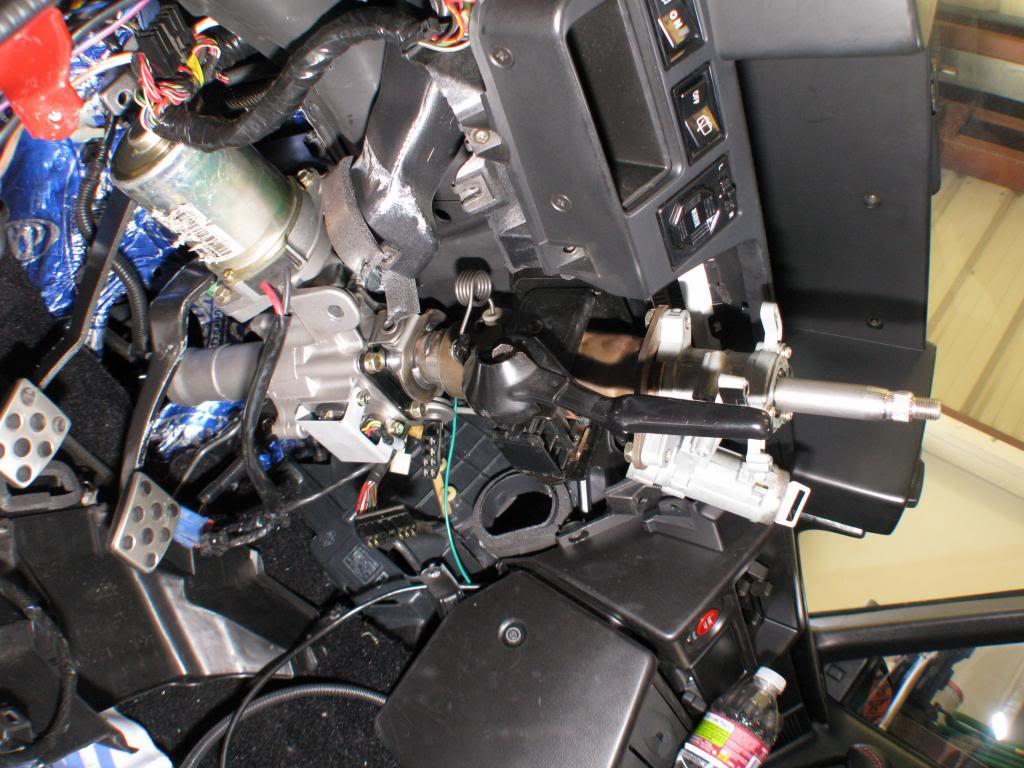

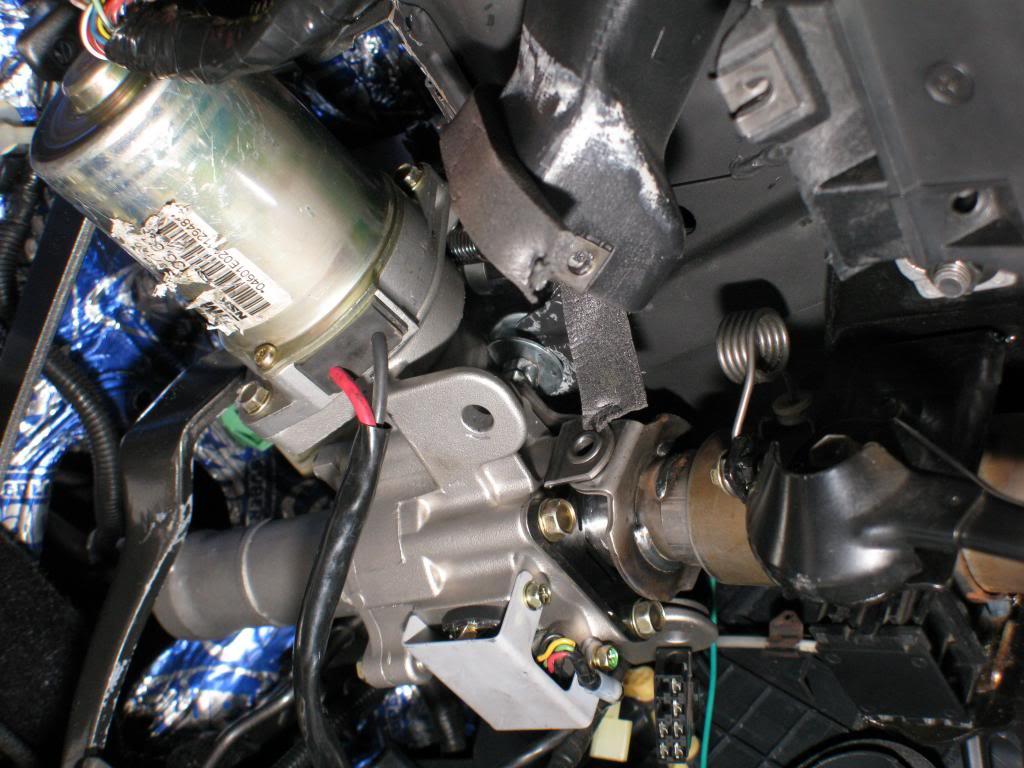

The electric motor makes for a tight fit. The vent housing under the column had to be modified with a hammer.

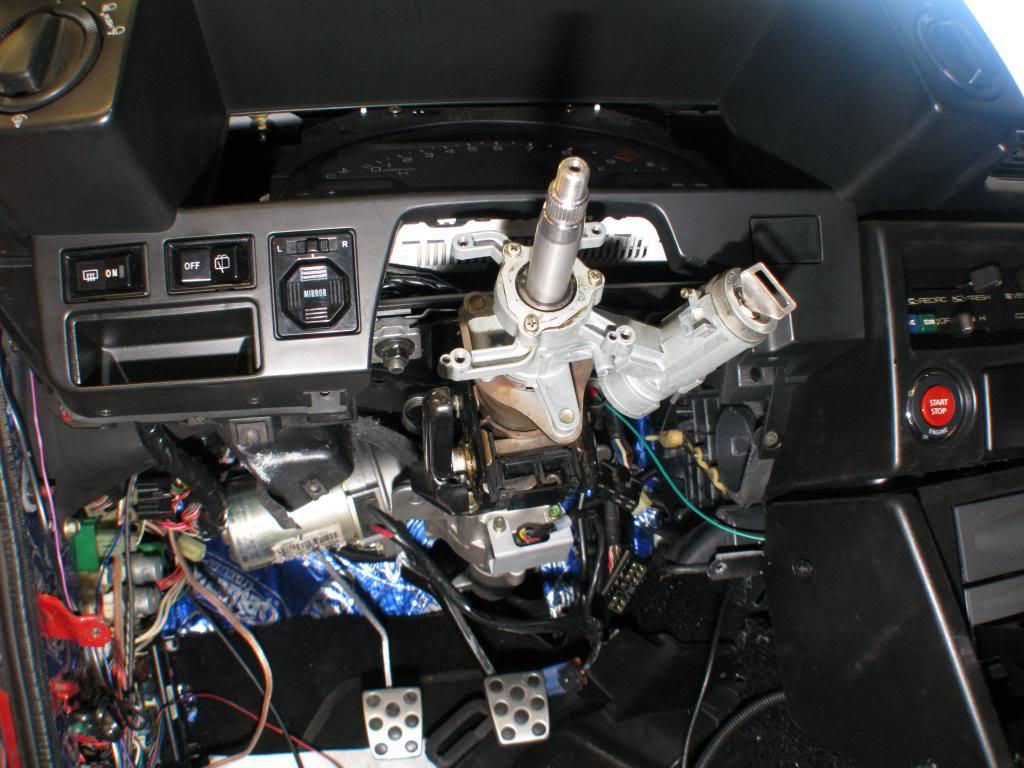

The Corolla ignition, signal arm and trim all keep the interior looking OEM.

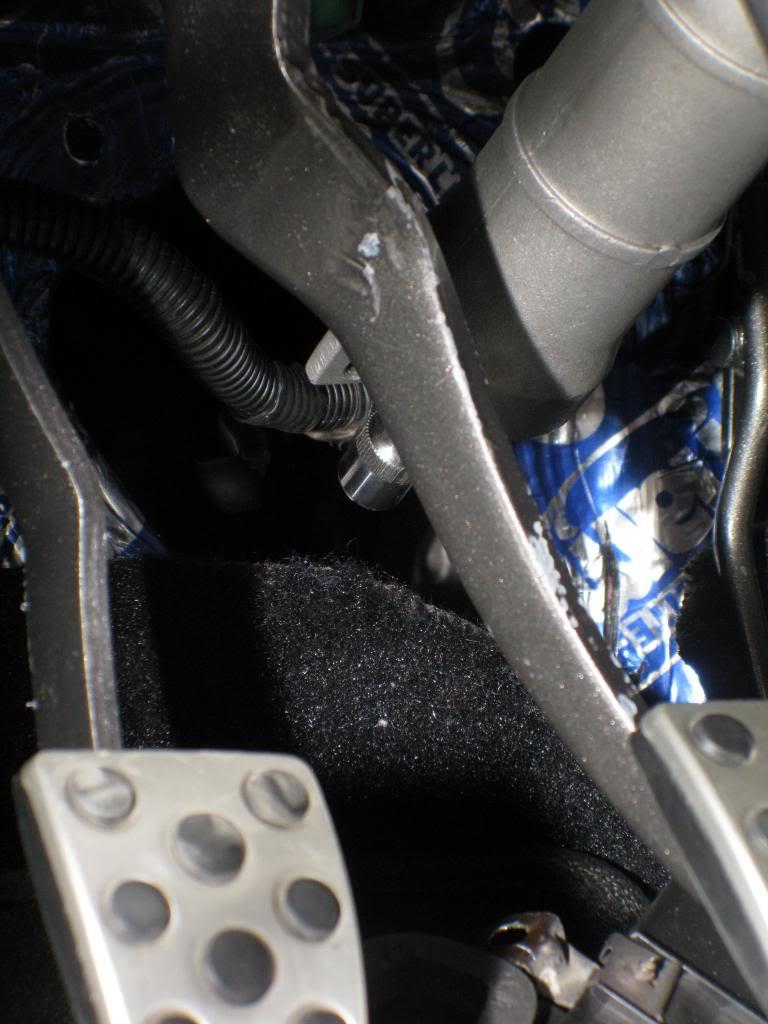

The Corsa spline that slides into the Corsa u-joint

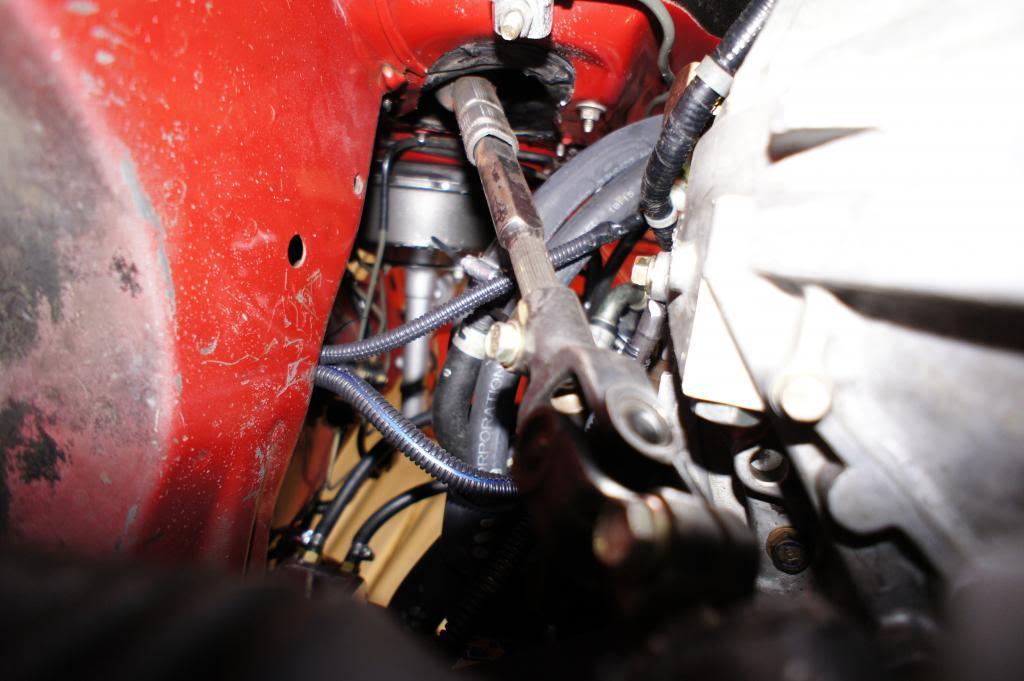

Supra intermediate shaft leading up to the modified Corsa u-joint.
My Corolla/Corsa electric power steering column turned out really nice. I can use the OEM steering wheel, column cover and signal plus a Supra intermediate shaft on the opposite end. There's no draw on the engine and I can still run a manual quick rack. I have not track tested it to see how it holds up but a lot of guys use this Corsa columna for rally. All in all it's the second best mod in my Corolla, f22 still takes first.
It's really nice. The dial is set for some assist when I'm driving around town but if I need to park I turn it all the way up and long drives on the highway I shut it off completely. Once my new engine is in I would like to test it at a track to see how it feels.
4-9-2013
The motor kicks in when the steering is turned and shuts off when it stops. When you hit full lock the motor will stop assisting until you start to turn the wheel again so there is no need to adjust it. My only concern is how it will handle the constant turning on a track. The Corsa electric column is from Ireland where they use it often for rally cars.
