My AEM Water/Meth install by Radride

3 minute read

My AEM Water/Meth install

Compliments of Radride @ www.supraforums.com

4-4-2009

So I finally bit the bullet and installed my kit. At first it looks like a daunting task with all of the wires and figuring out where everything goes.

First thing you want to do is figure out where you are putting the tank, pump, comtroller and the nozzles.

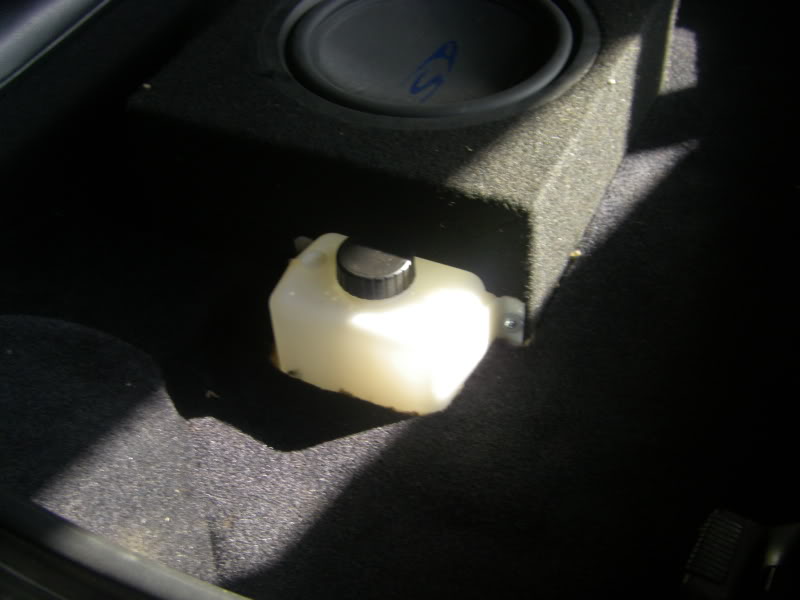

I put the tank in the trunk and attached it to my sub box.



I installed the pump right behind the rear seats where the stock sub would sit.

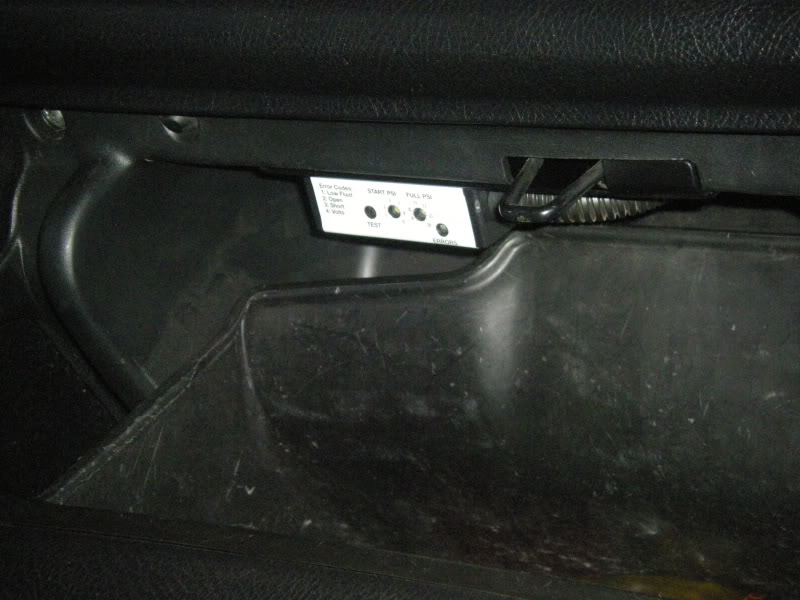

The controller I installed in the glove box:

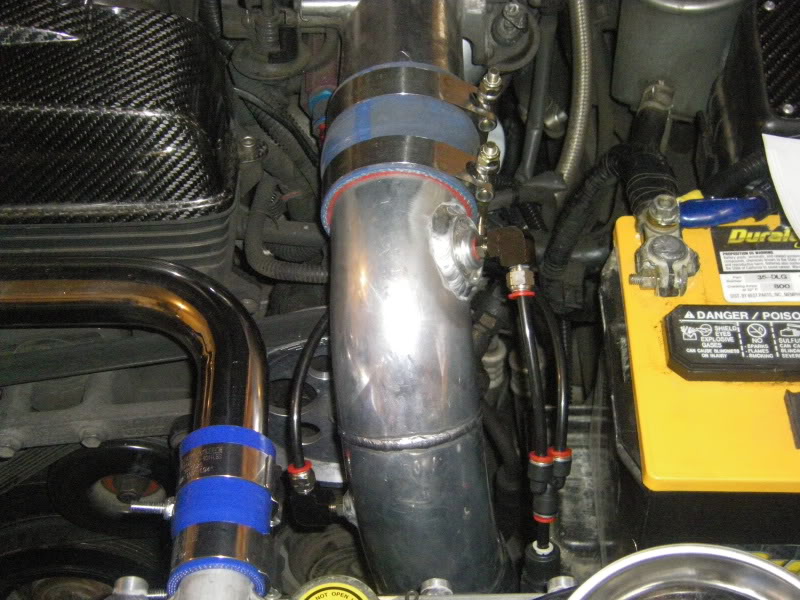

Now I ran the meth lines through the cab along side of the driver and through the firewall (along side the stock rear tubing) and wheel well (have to remove the splash guard) and routed it to my nozzle locations:



Now I ran the wiring from the AEM for the pump and tank through the middle, under the arm rest and to the back (must pull the rear seats out). The power wire for the pump ran along side the meth line to the battery.

I tapped the 12V switched power from my clock harness (I don't have the stock clock anymore) for the AEM unit and for my boost control cut relay that I tapped into the stock wiring harness by the main ecu. That way if I run out of meth it will kill the boost down to stock wastegate pressure.

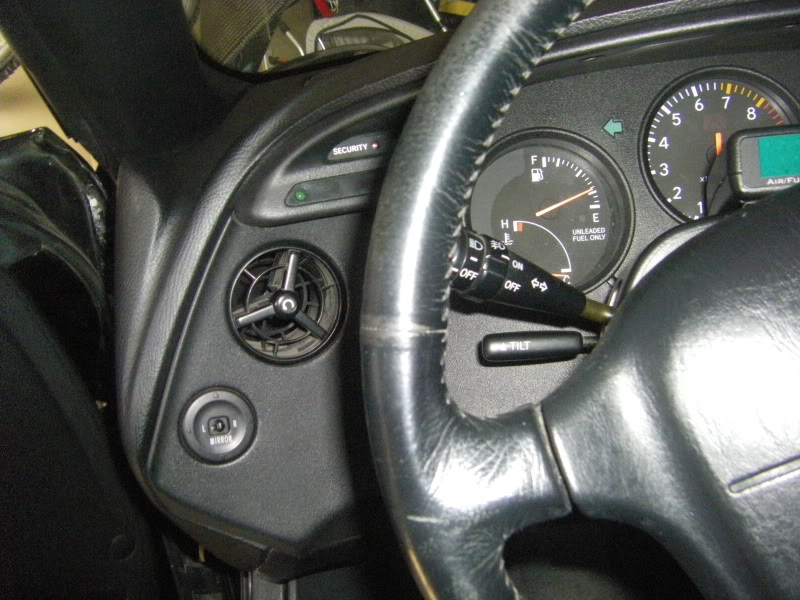

Finally the last thing is finding a location to you main LED. I wanted a stealth like install but also functional so I installed it here:

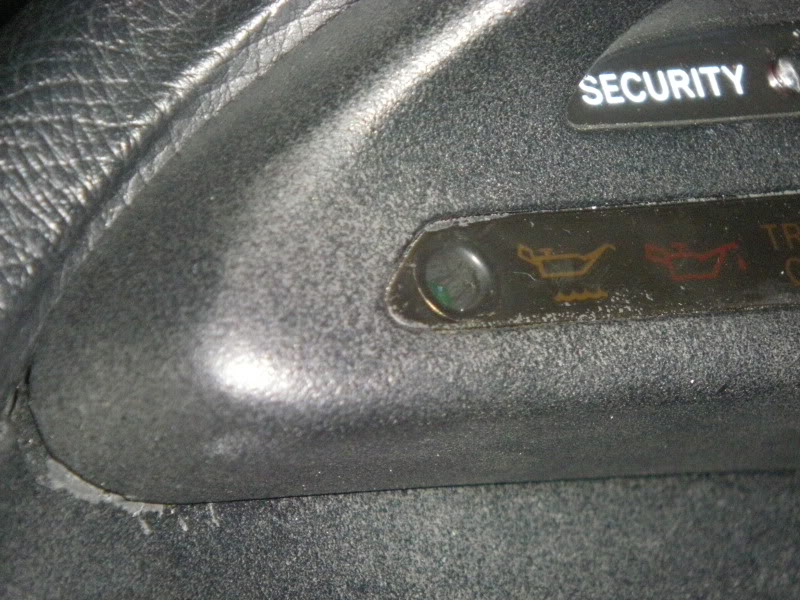

Here is a better pic of the LED:
