Phoenix Estate Vvc K-Series Diy Subframe Conversion

2 minute(s) of a 66 minute read

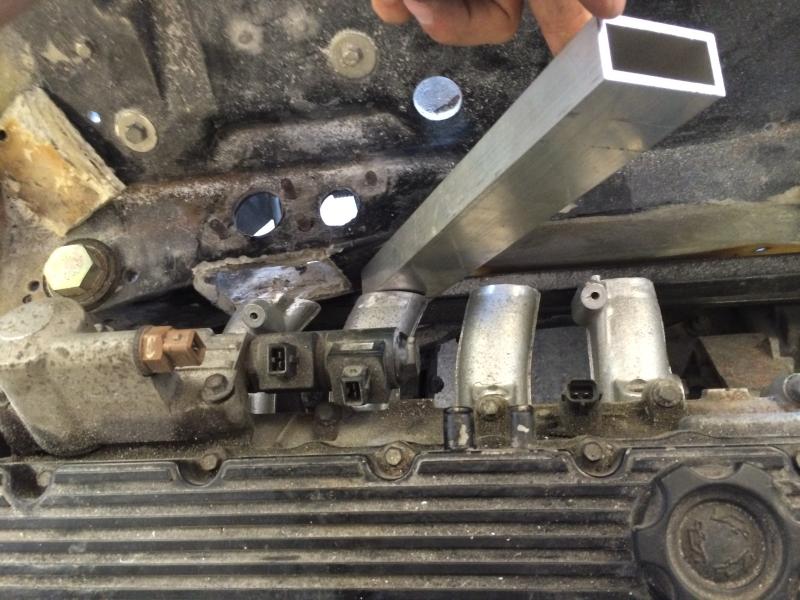

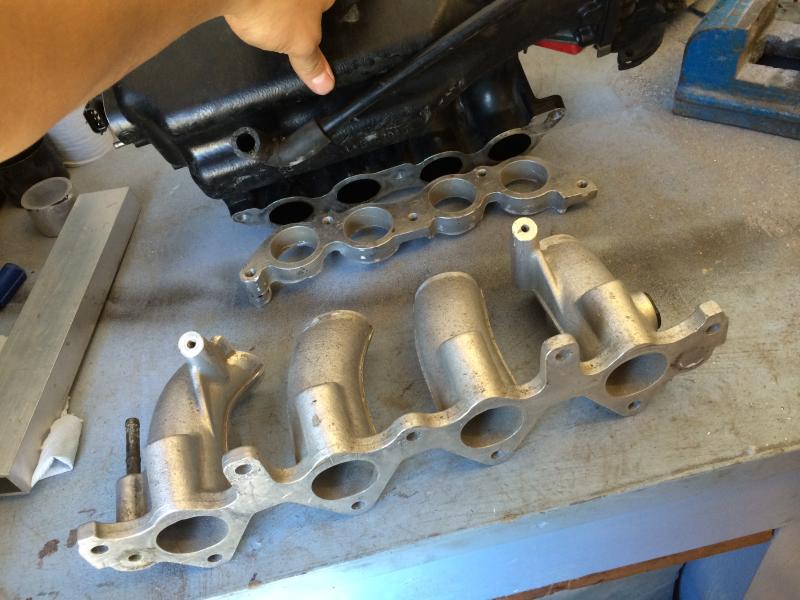

I've had to change from the round bar route and gone for some 50x25 rectangle box section, so the manifold is cut flush now.

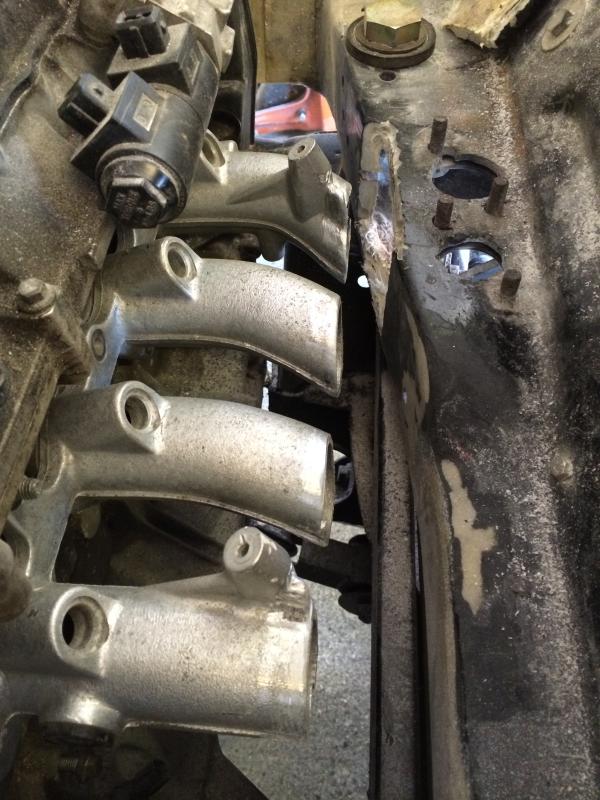

The 48mm tube won't fit and I can't fit them any closer to where the injectors sit. But the box section will work. It will come off at this angle...

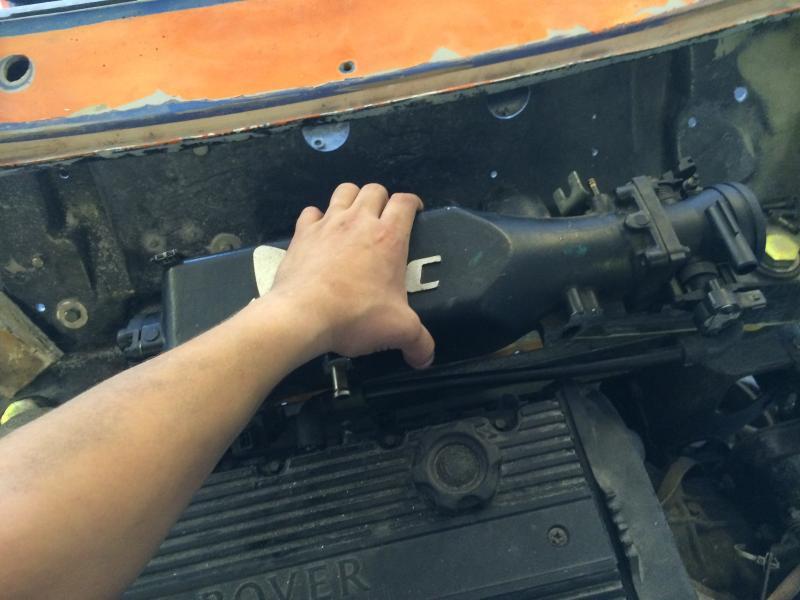

...and the inlet we end up here, much further over to the right.

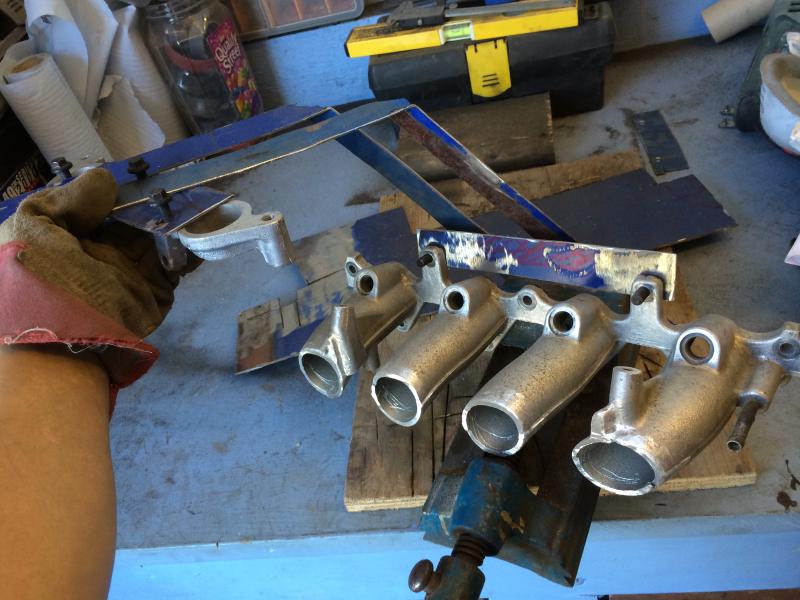

I've cut the top flange flush

10-3-2014

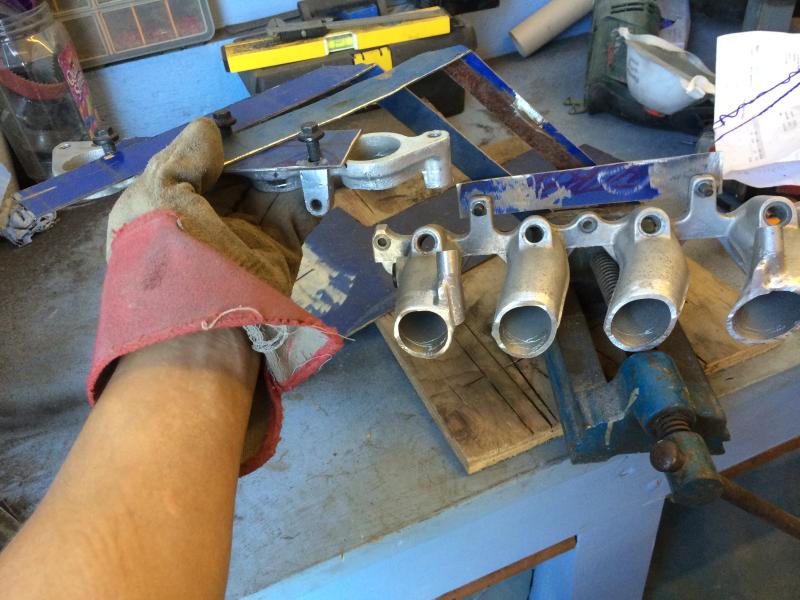

Next step is to build a jig to test final fitment and to make sure everything is in the right spot when it gets welded up .
