Phoenix Estate Vvc K-Series Diy Subframe Conversion

2 minute(s) of a 66 minute read

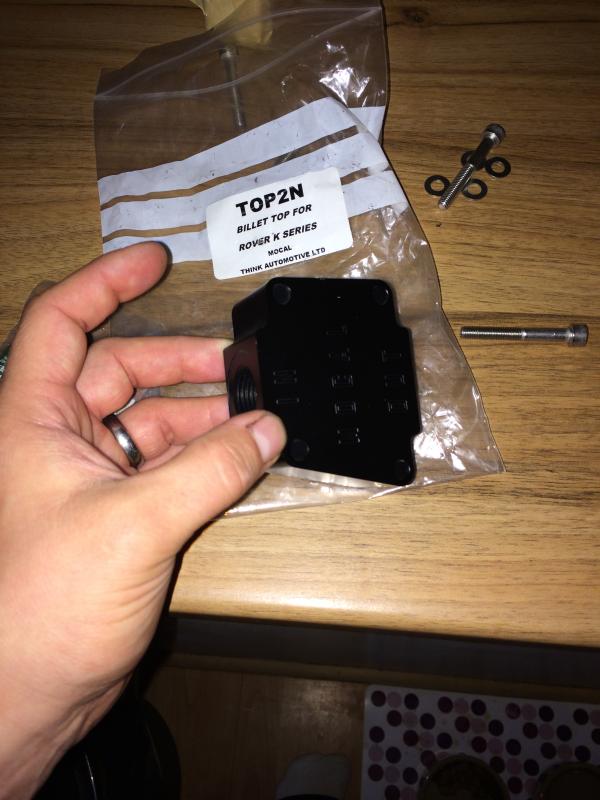

What arrived was slightly different to jlh website. It is a mocal / thinkauromotive item.
32mm without the gasket so should work.

10-17-2014

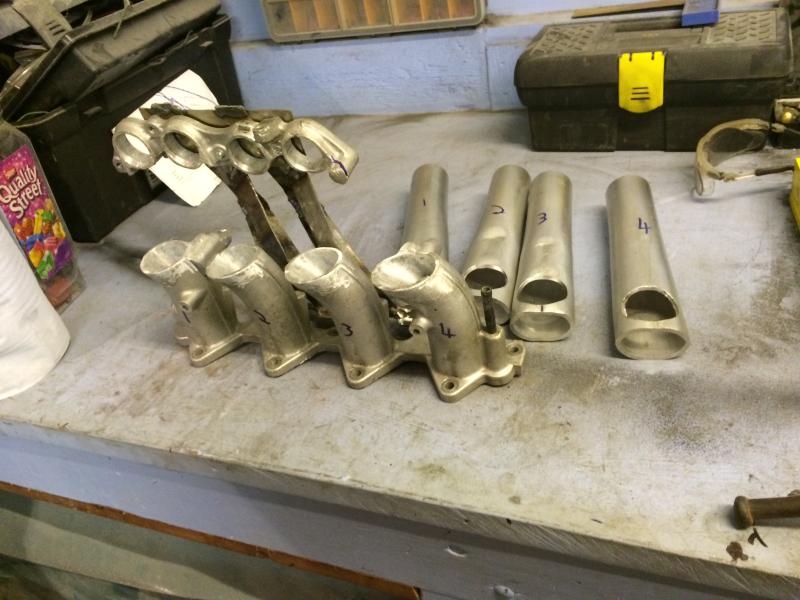

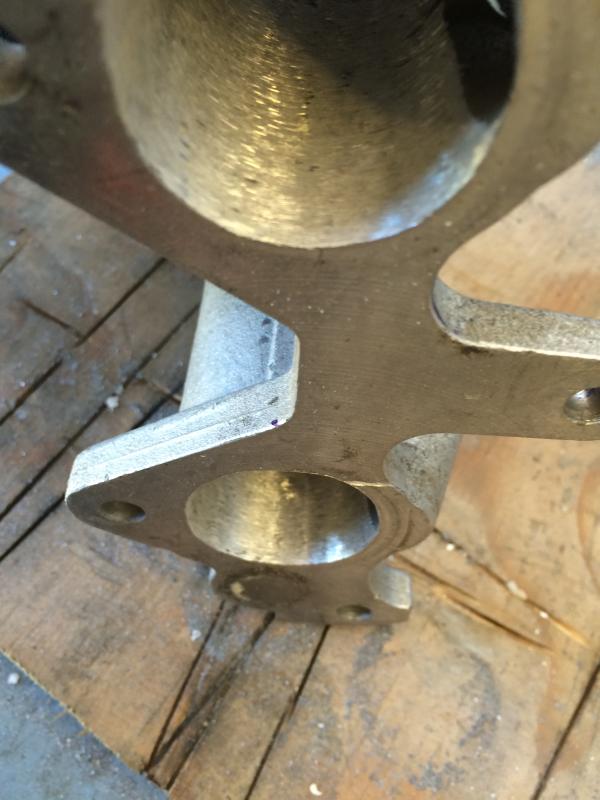

A bit more progress with the inlet today. Can't quite call it a polish, but definately smoothed out the cast inlet internals.

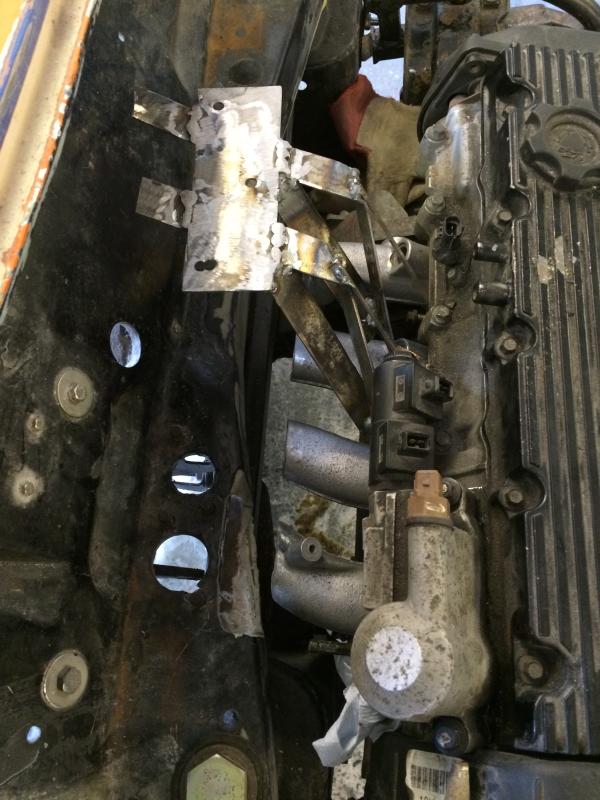

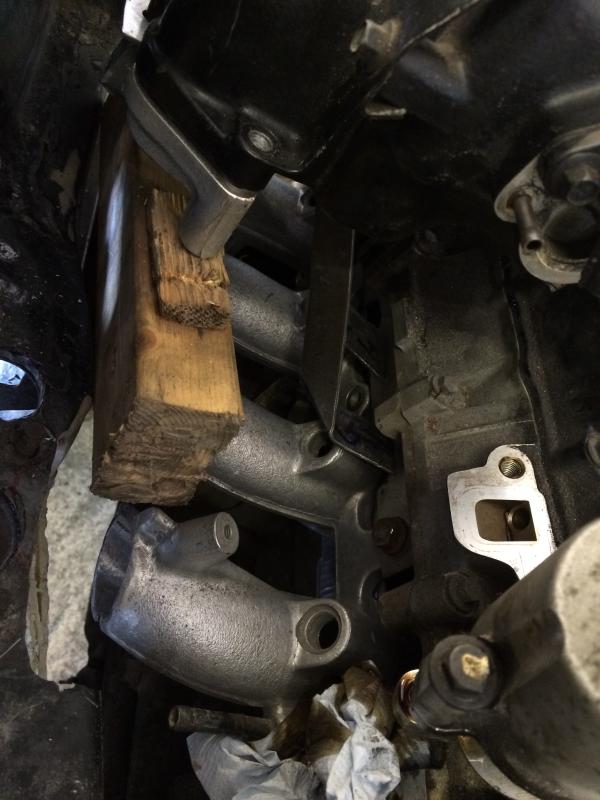

Then started on the jig.

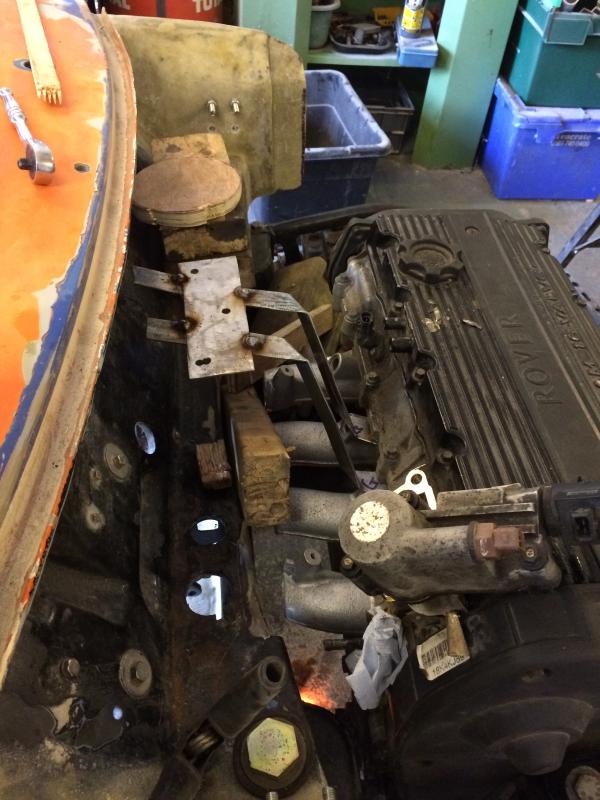

Then added some bracing to the jig.

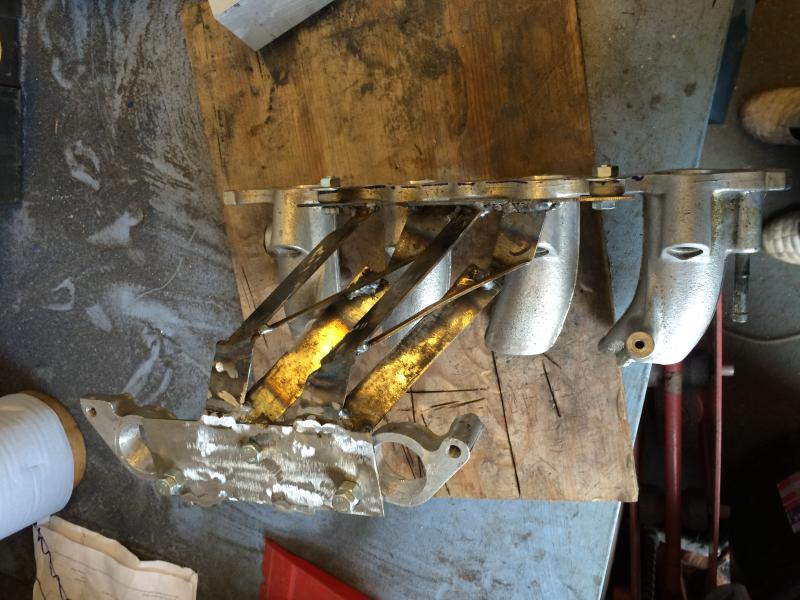

and ended up with this

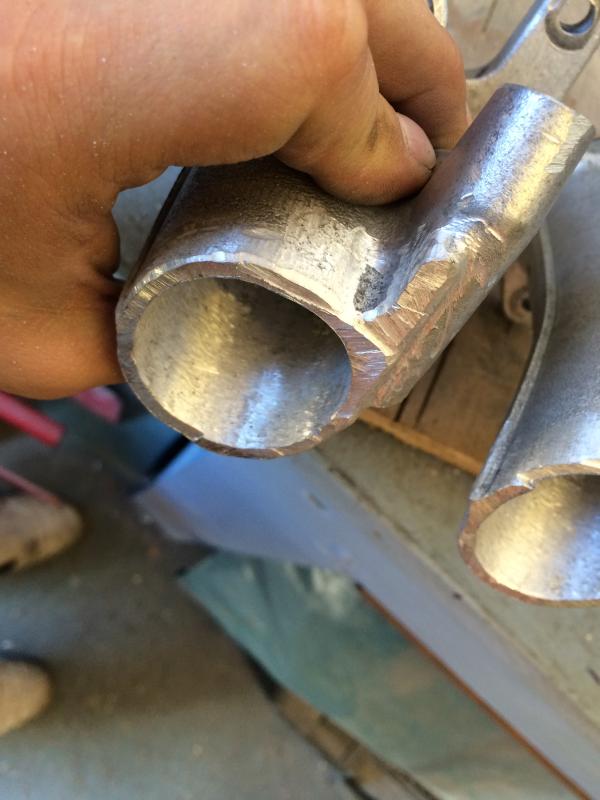

With tube ends flattened out (using a press) and holes drilled.

...just got to cut them to size. Which is gonna be trickier than it sounds.
