Phoenix Estate Vvc K-Series Diy Subframe Conversion

2 minute(s) of a 66 minute read

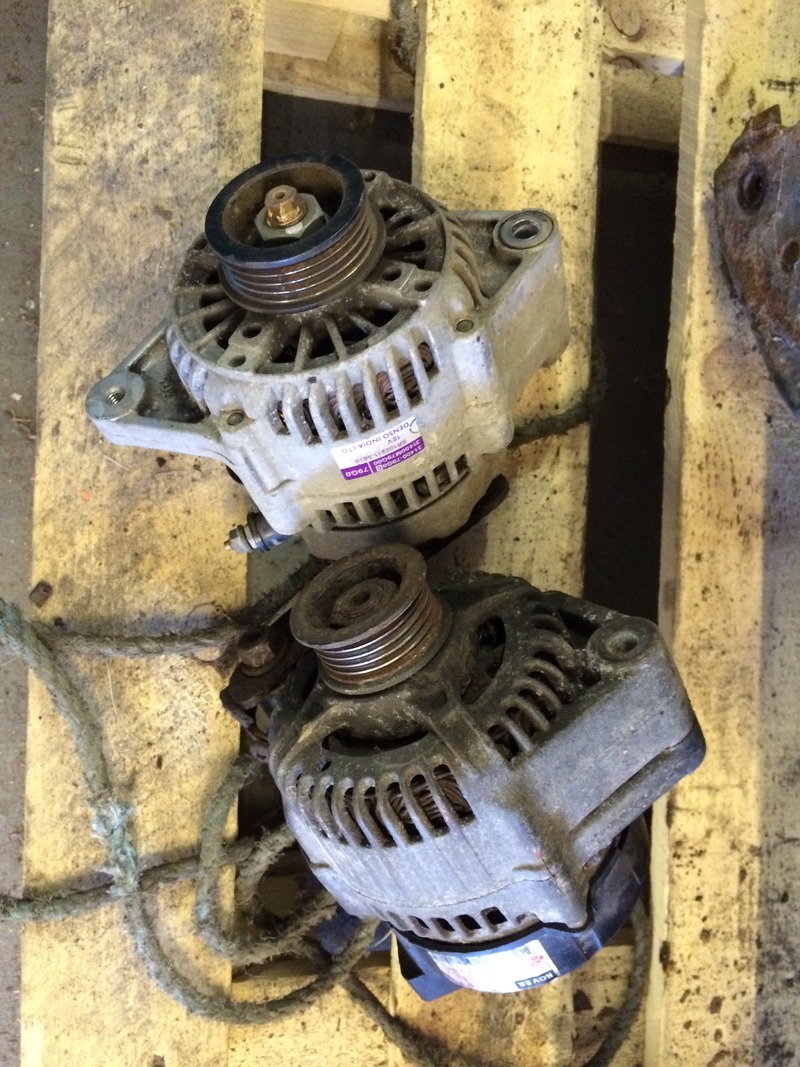

I was after a small Nippon Denso alternator and some people have found them in Daihatsu Charades and such like. I took a chance on this one cod it was £12. But it's only a little bit smaller. Fail. I'll post up all the info I have so other people don't make the same mistake.

SUZUKI ALTO 2005 ( 03-06 ) 1.1 16v ALTERNATOR
TAKEN FROM A NON AIRCON MODEL
DENSO MAKE
PART NUMBER 31400-79G00 / SR102211-5610

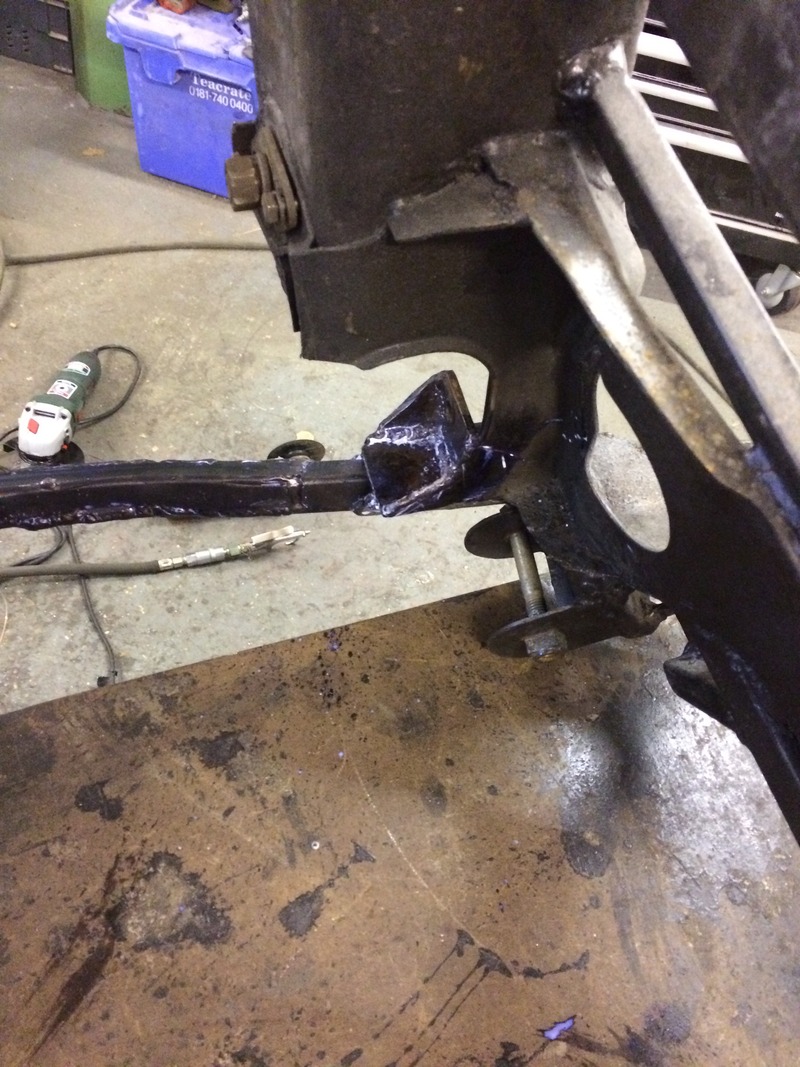

Before my welder started buggering about, I got the gearbox mount done.

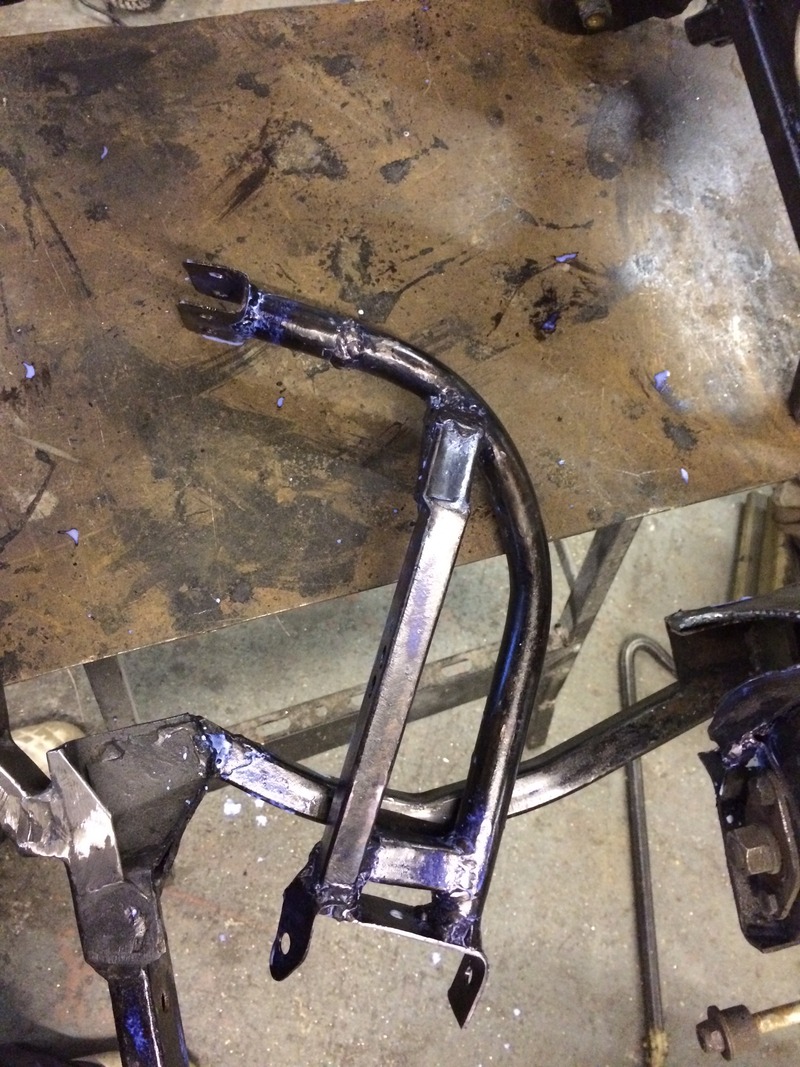

I cut off the extra support and covered the notches in the lower leg

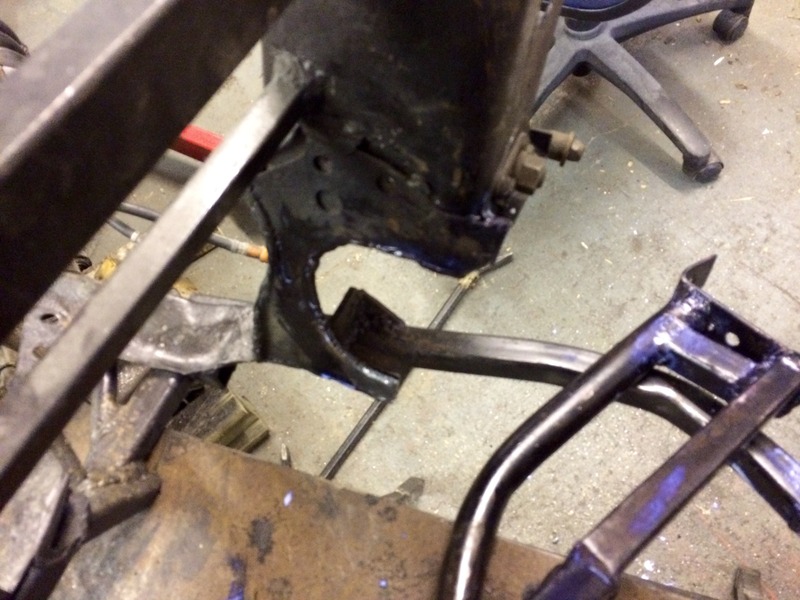

I cut the o/s driveshaft hole bigger and then welded the seam for strength.

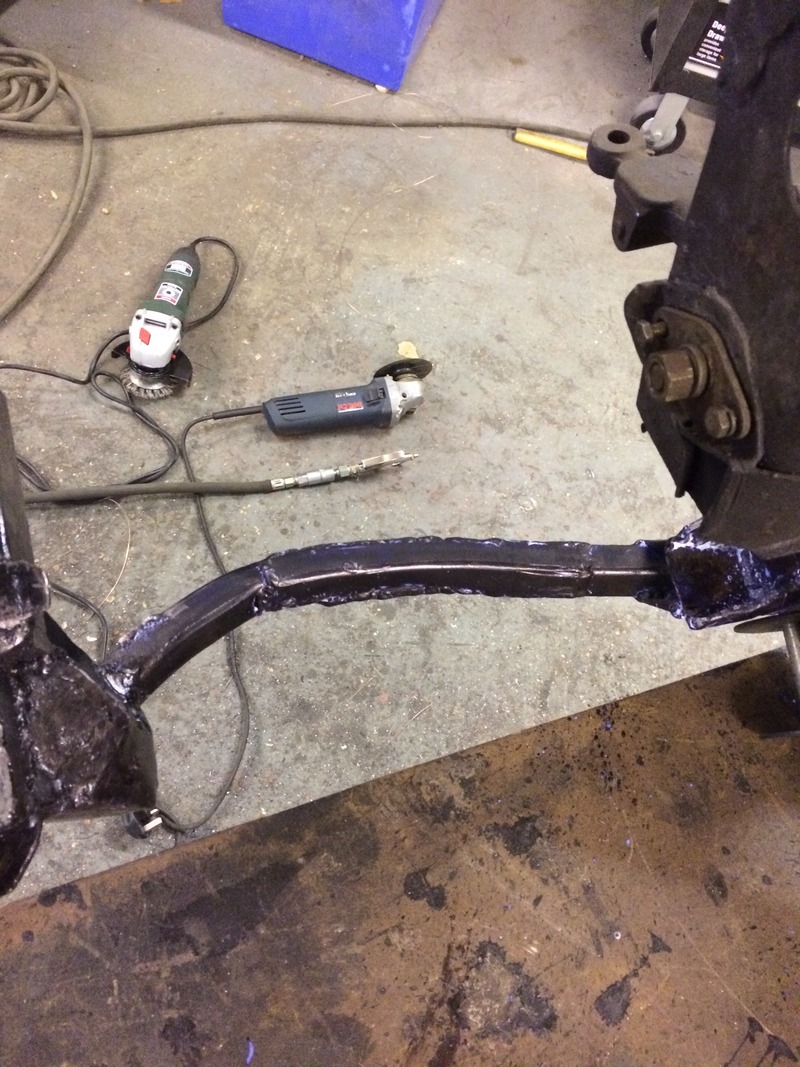

Ditto for the n/s driveshaft clearance.
